Storage Box

USD1078269No. D 1,078,269designGranted 6/10/2025
Patent USD1078269 — Storage box — Figure 1
Fig. 1 · Storage Box

Claims (1)

Claim 1 (Independent)

The ornamental design for a storage box, as shown and described.

Full Description

Show full text →

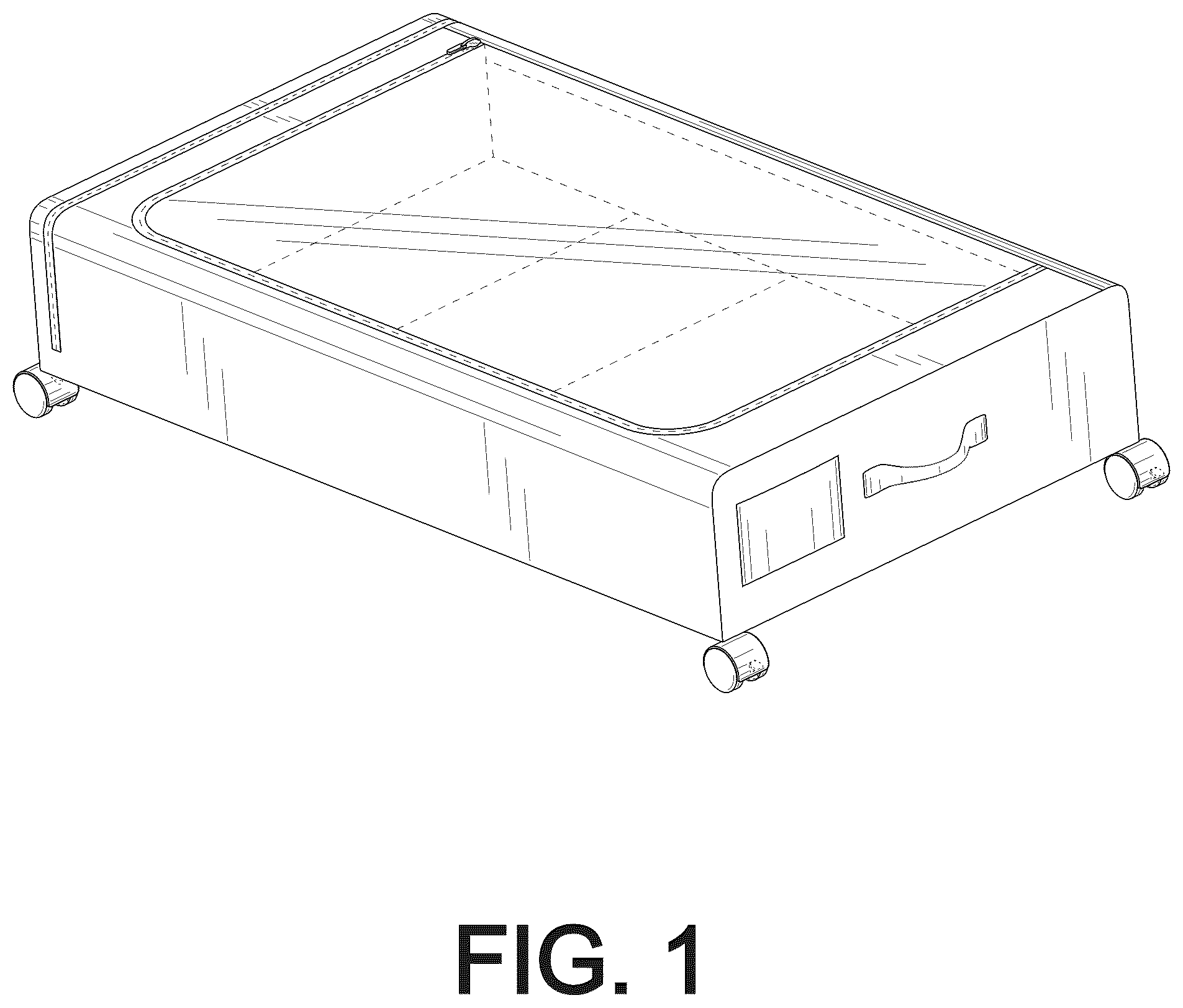

is a front, right, and top perspective view of a storage box, showing the claimed design;

is a rear, left, and top perspective view thereof;

is a front view thereof;

is a rear view thereof;

is a left side view thereof;

is a right side view thereof;

is a top view thereof; and,

is a bottom view thereof.

The broken lines in the drawings depict portions of the storage box that form no part of the claimed design.

Figures (1)

Fig. 1
