Solar Lamp

USD1078146No. D 1,078,146designGranted 6/3/2025

Patent USD1078146 — Solar lamp — Figure 1 — Fig. 1 · Solar Lamp

Claims (1)

Claim 1 (Independent)

The ornamental design for a solar lamp, as shown and described.

Full Description

Show full text →

is a top perspective view of a solar lamp incorporating the new design;

is another top perspective view thereof;

is a side perspective view thereof;

is another side perspective view thereof;

is front view thereof,

is a back view thereof;

is a top view thereof;

is a bottom view thereof;

is a side view thereof; and,

is another side view thereof.

The broken lines in the drawings depict portions of the solar lamp that form no part of the claimed design.

Figures (10)

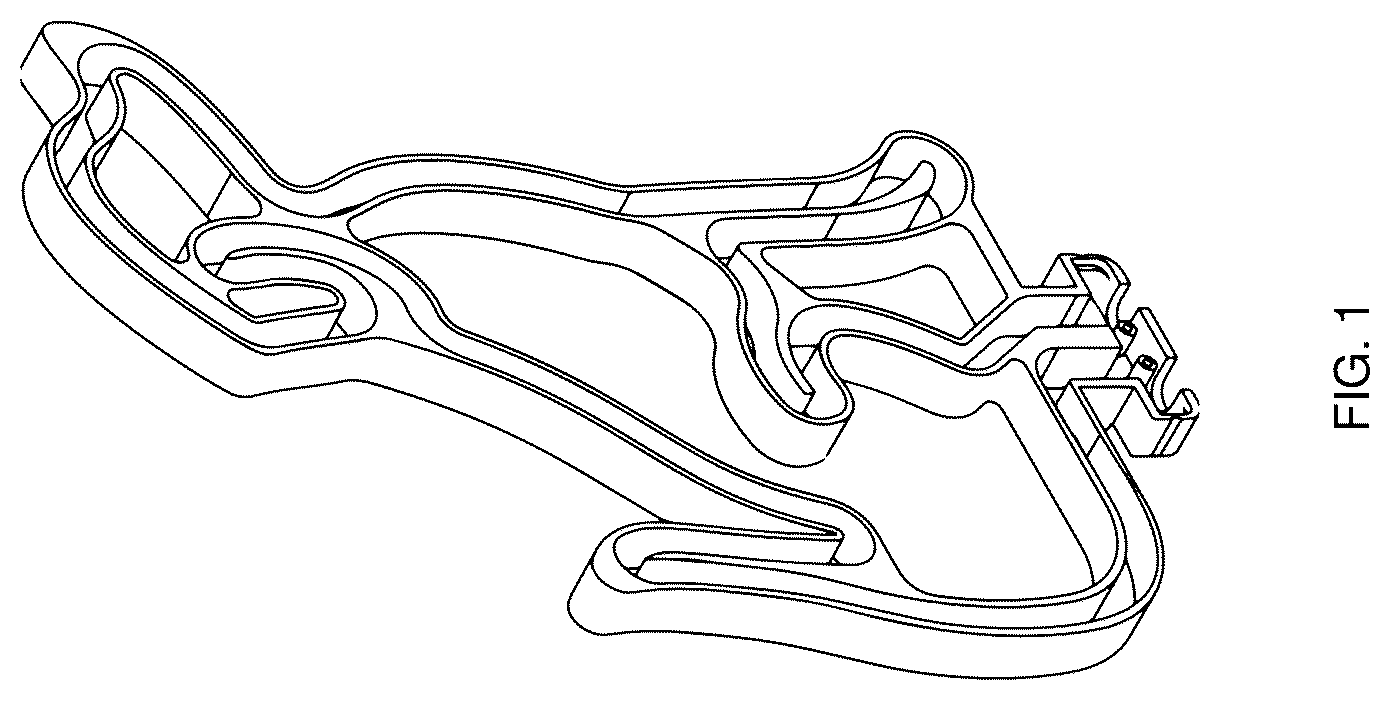

Patent USD1078146 Figure 1 – Solar lamp — Fig. 1

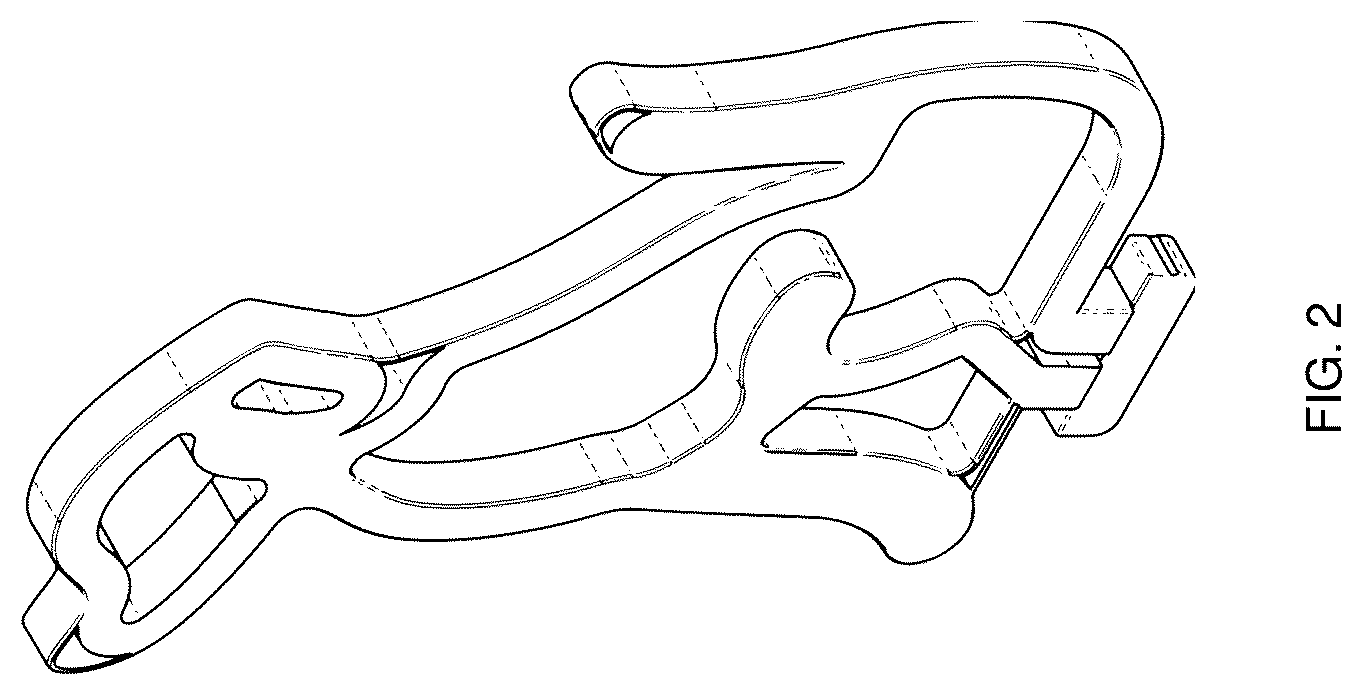

Patent USD1078146 Figure 2 – Solar lamp — Fig. 2

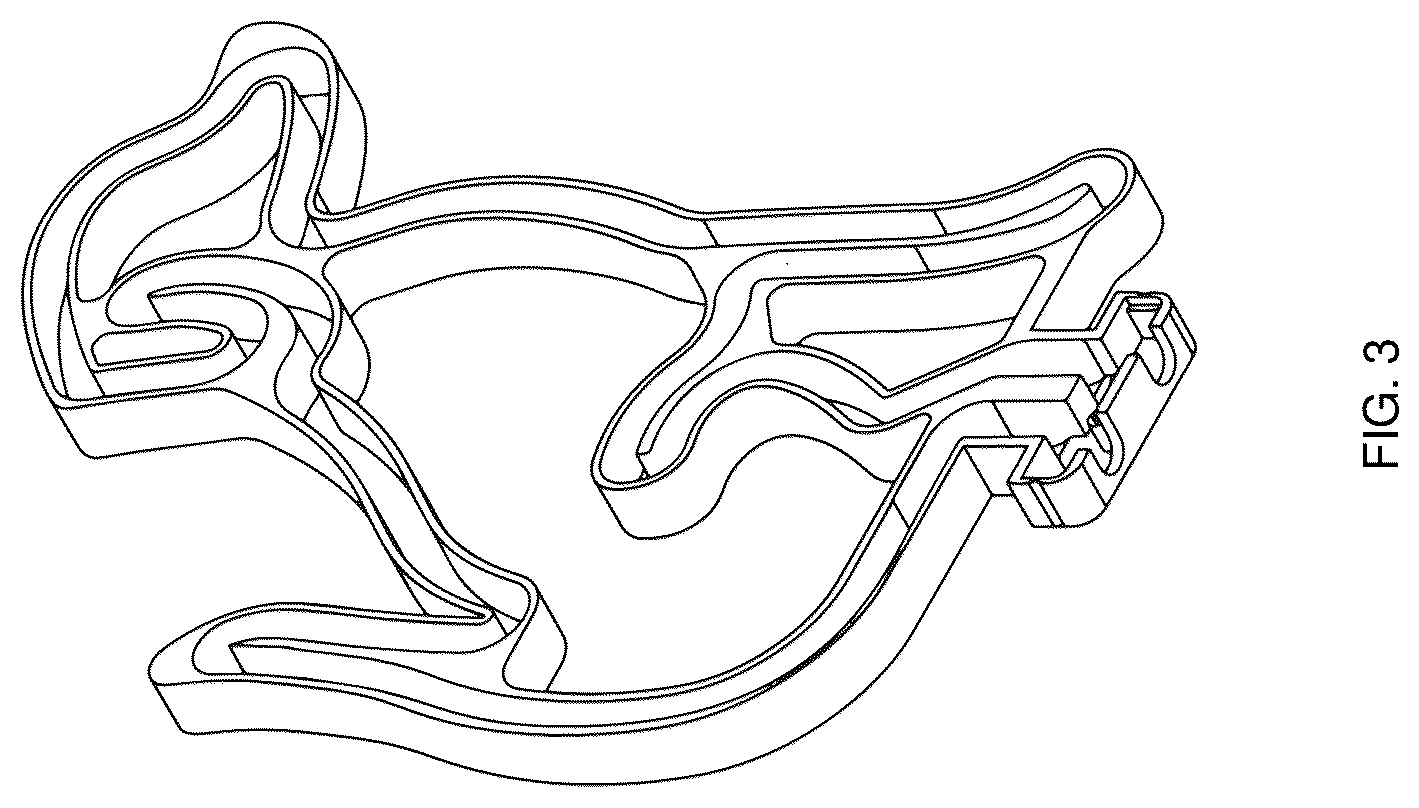

Patent USD1078146 Figure 3 – Solar lamp — Fig. 3

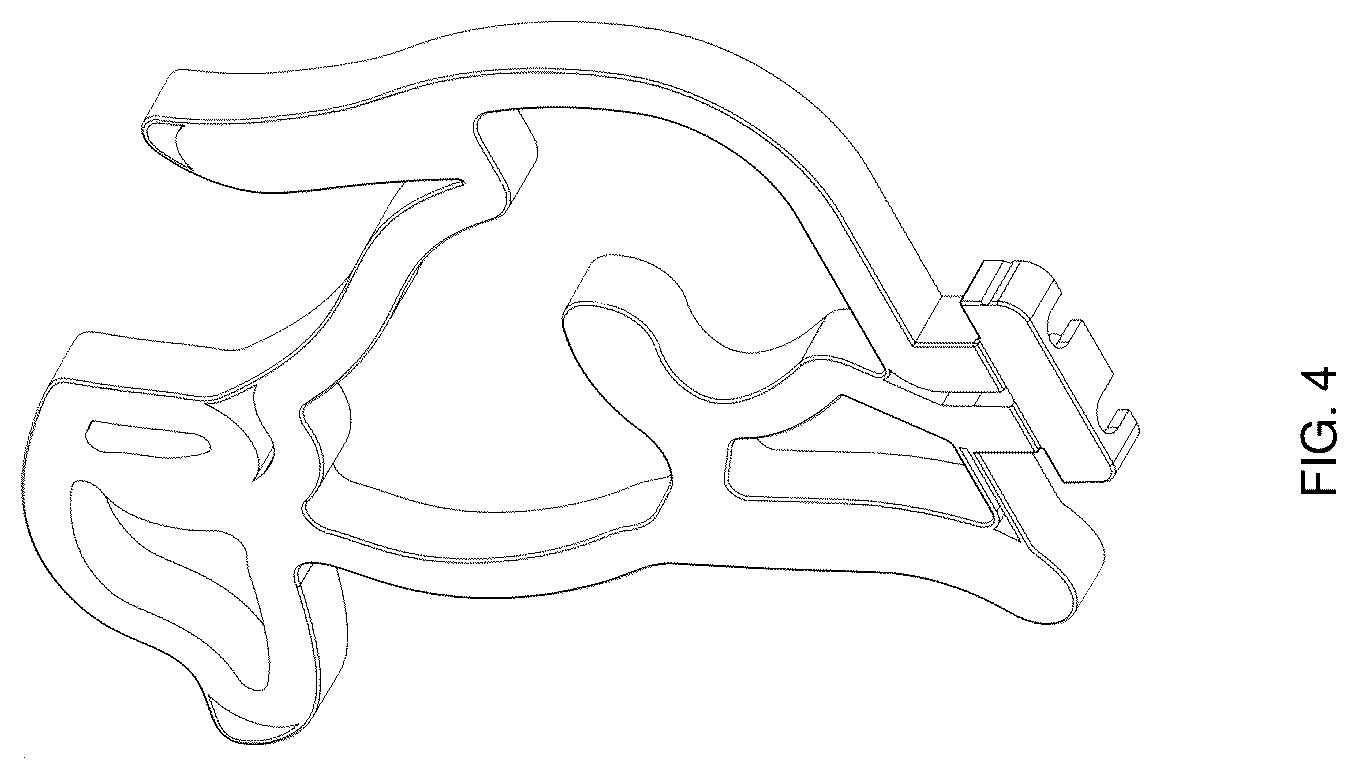

Patent USD1078146 Figure 4 – Solar lamp — Fig. 4

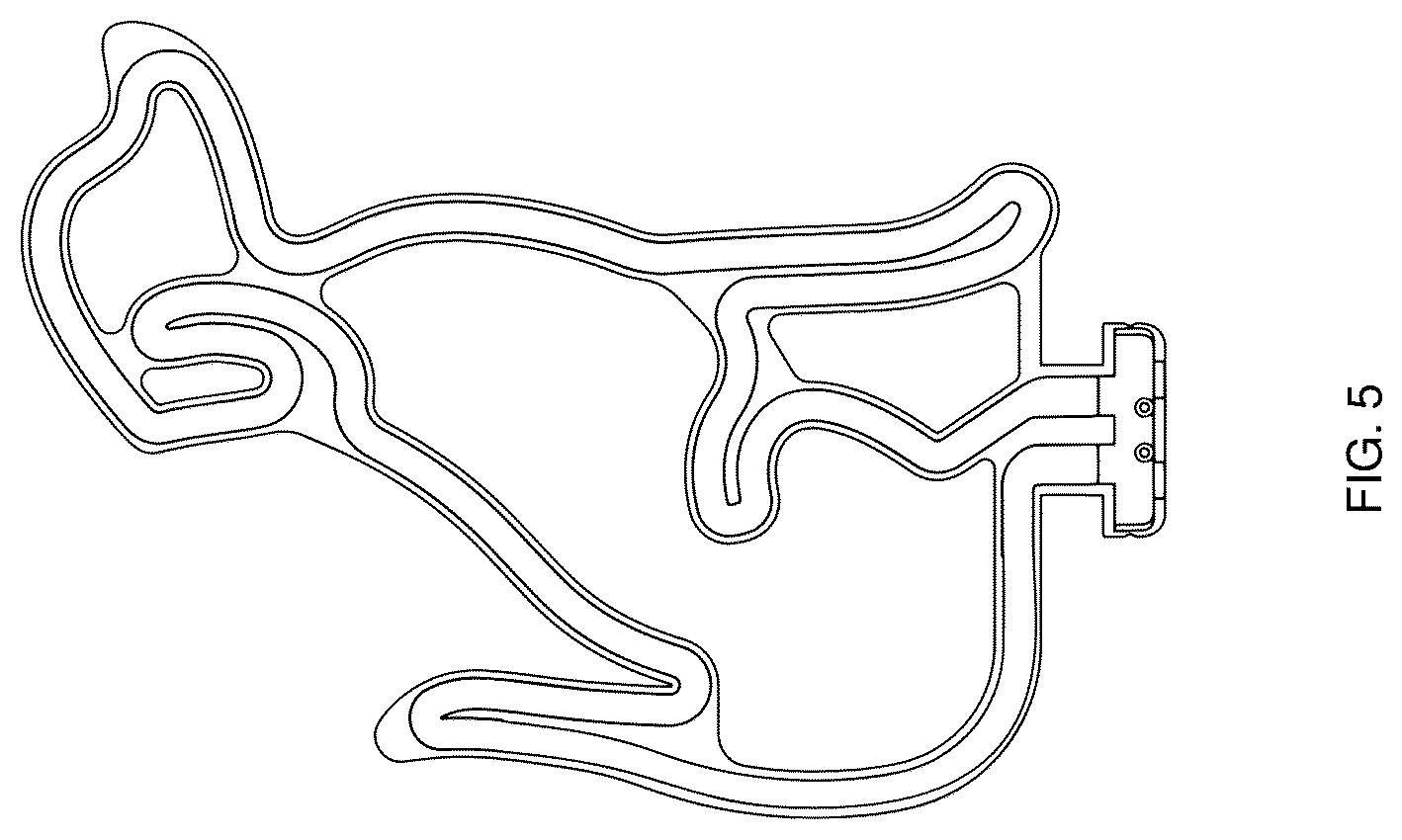

Patent USD1078146 Figure 5 – Solar lamp — Fig. 5

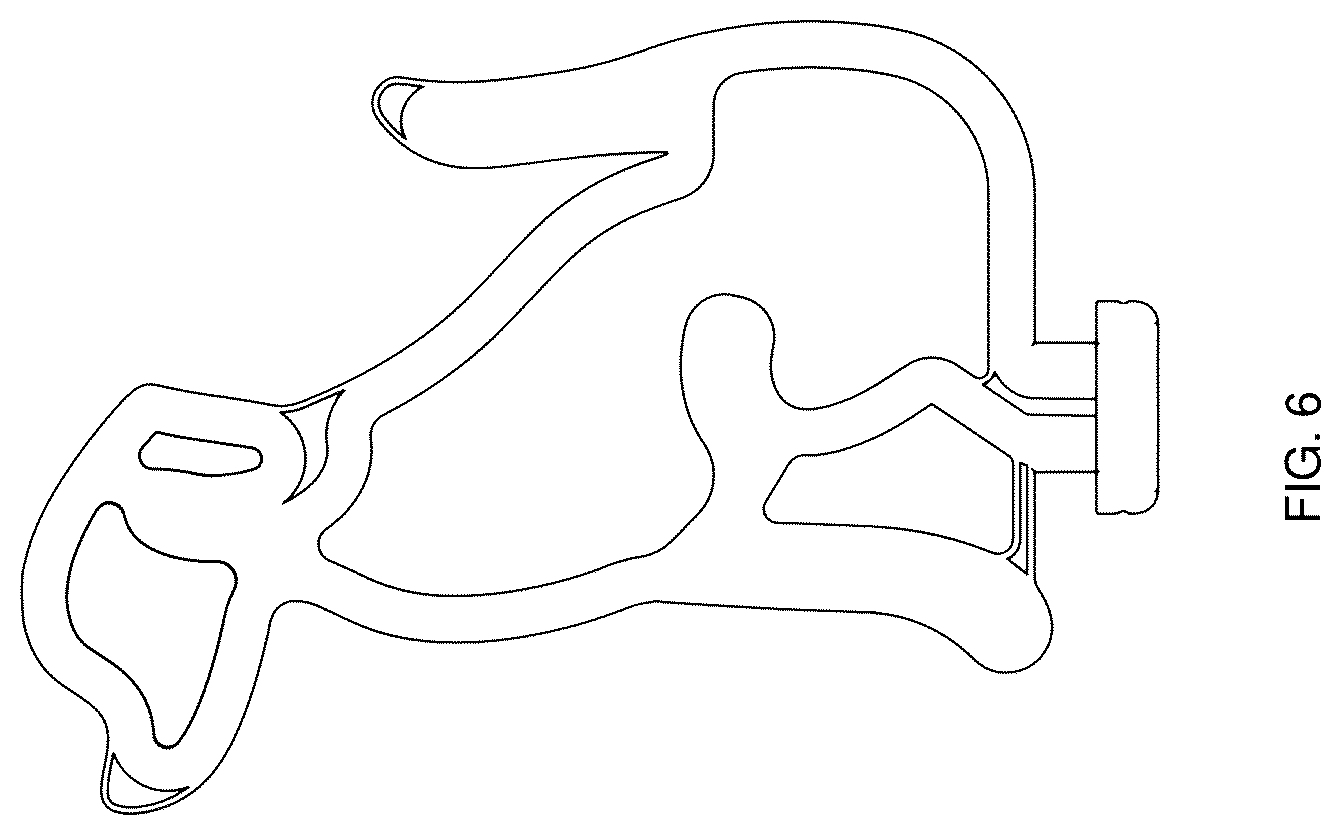

Patent USD1078146 Figure 6 – Solar lamp — Fig. 6

Patent USD1078146 Figure 7 – Solar lamp — Fig. 7

Patent USD1078146 Figure 8 – Solar lamp — Fig. 8

Patent USD1078146 Figure 9 – Solar lamp — Fig. 9

Patent USD1078146 Figure 10 – Solar lamp — Fig. 10
