Holder with Pads or Portion Thereof

USD1078060No. D 1,078,060designGranted 6/3/2025
Patent USD1078060 — Holder with pads or portion thereof — Figure 1
Fig. 1 · Holder with Pads or Portion Thereof

Claims (1)

Claim 1 (Independent)

The ornamental design for a holder with pads or portion thereof as shown and described.

Full Description

Show full text →

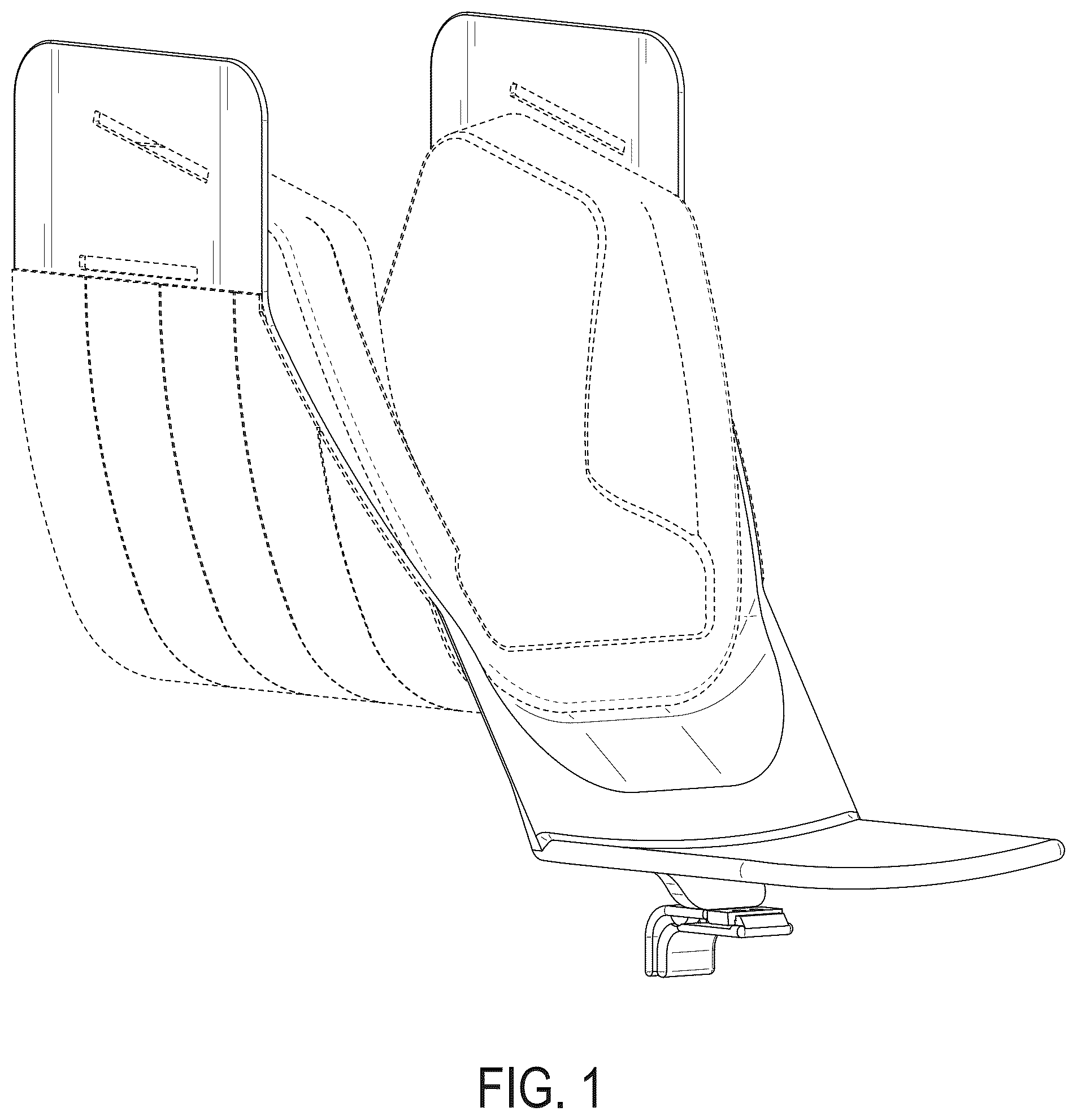

is a front-right perspective view of a holder with pads.

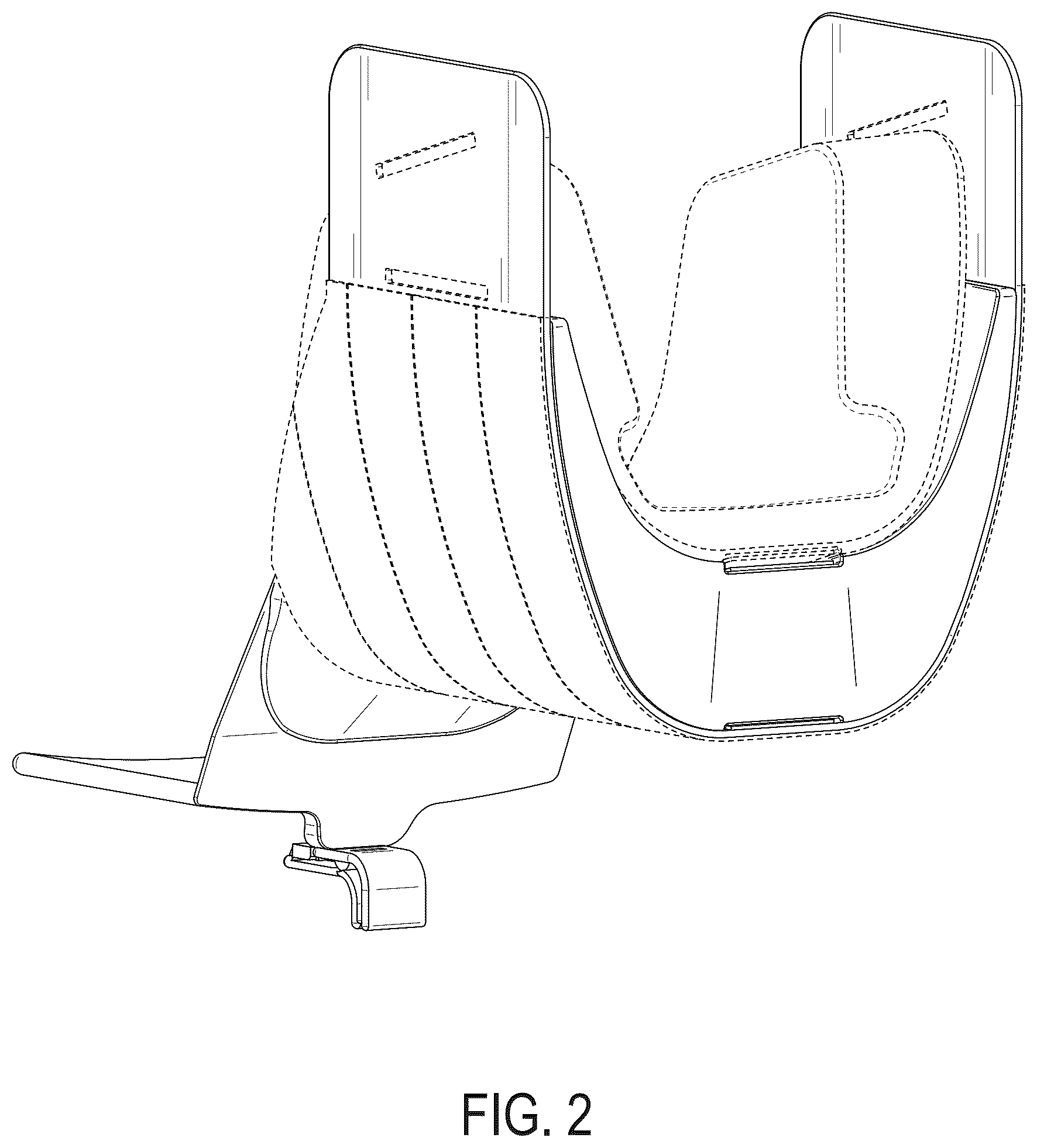

is a rear-left perspective view of the holder with pads.

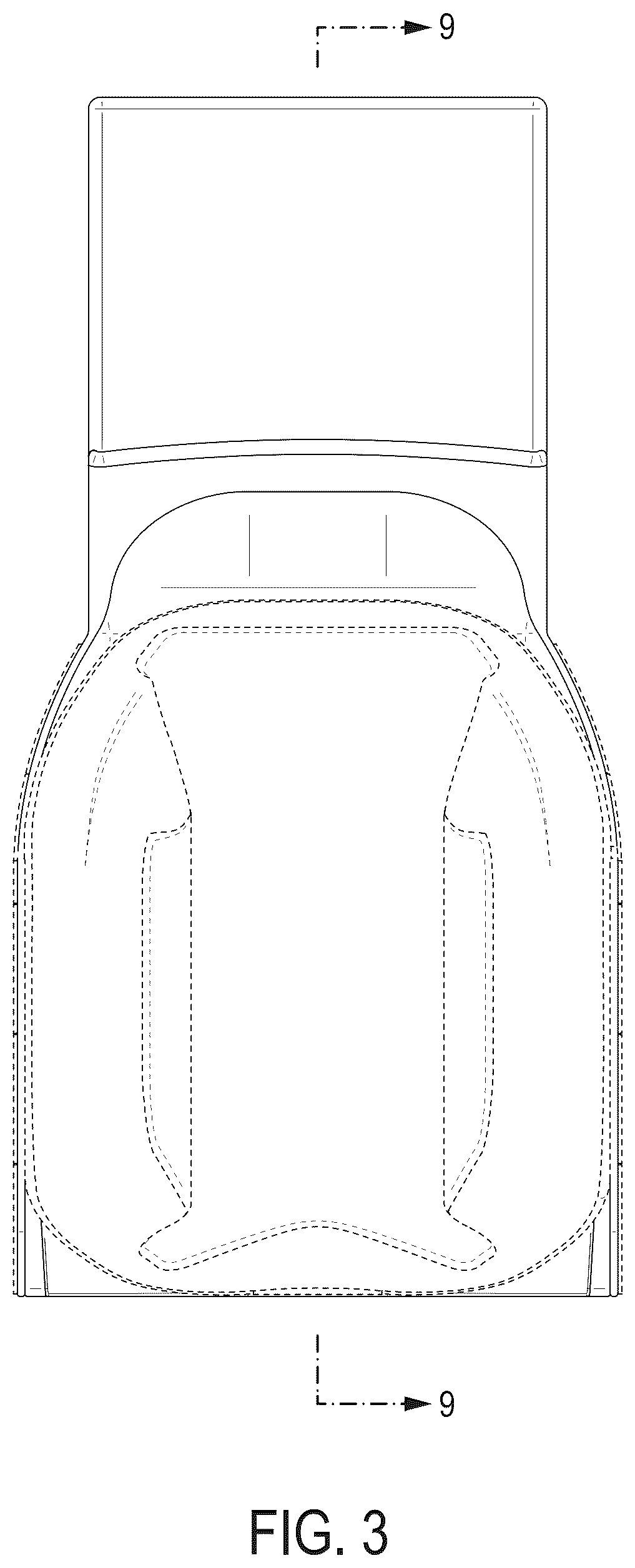

is a top view of the holder with pads.

is a bottom view of the holder with pads.

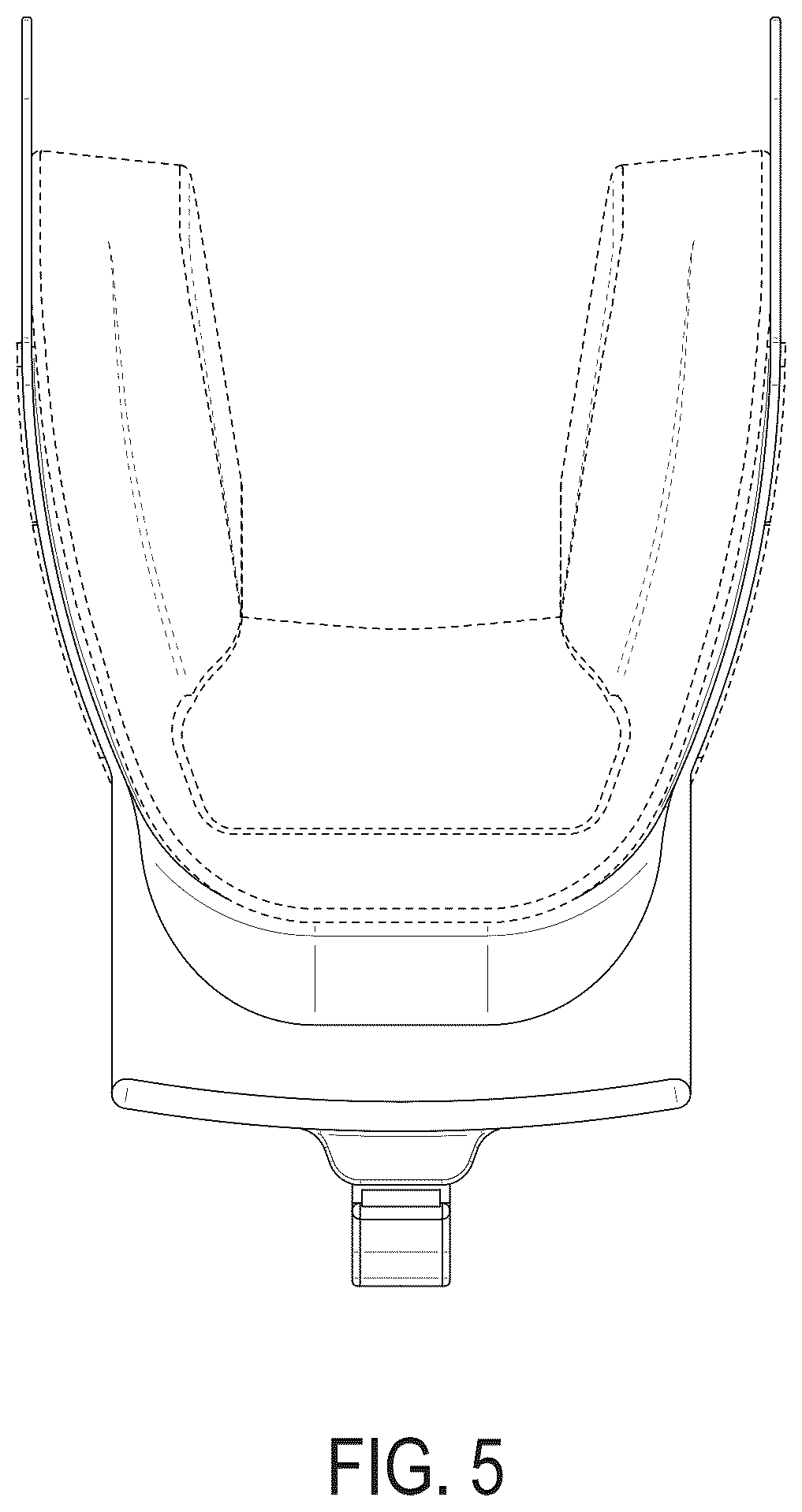

is a front view of the holder with pads.

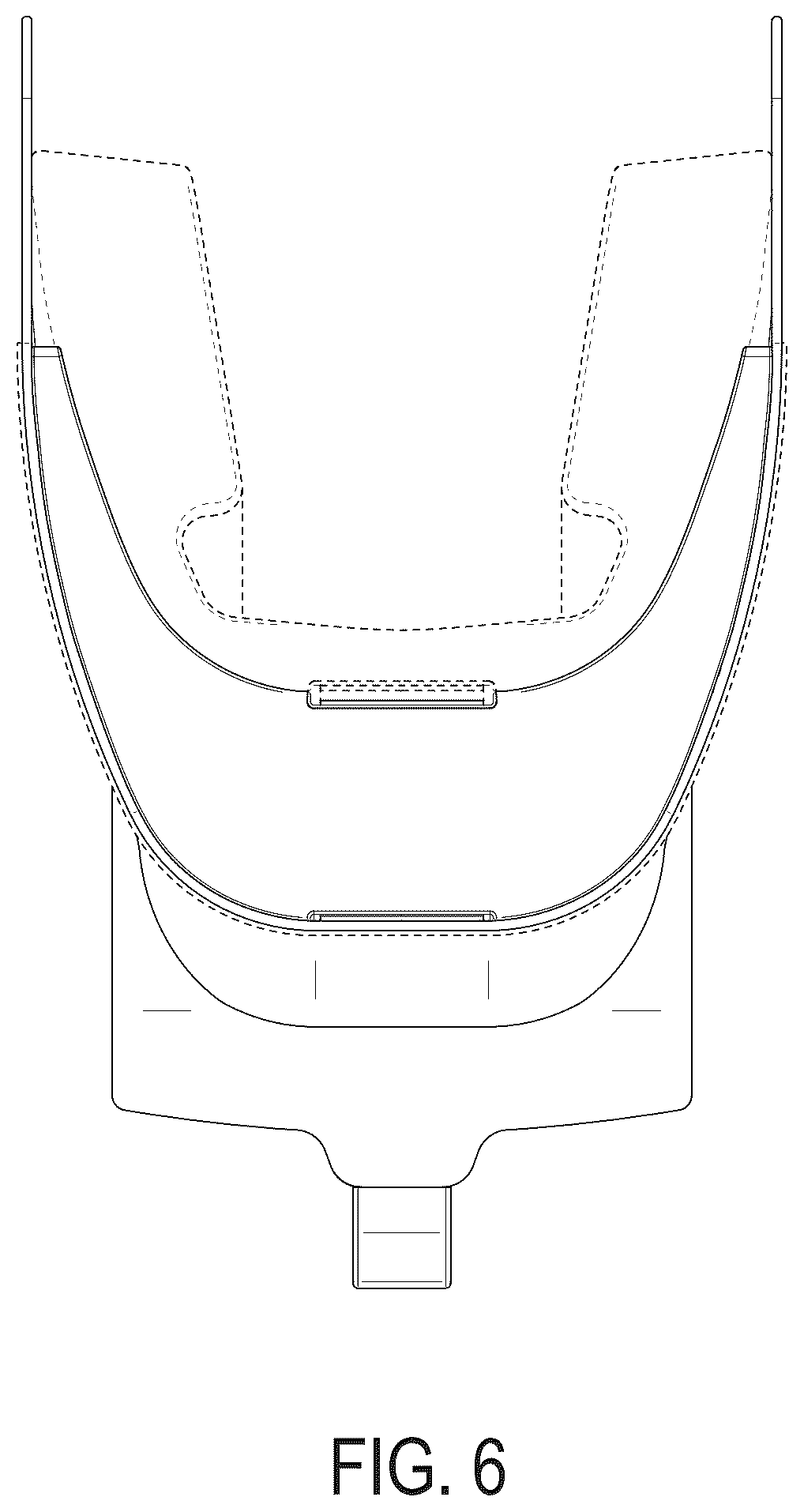

is a rear view of the holder with pads.

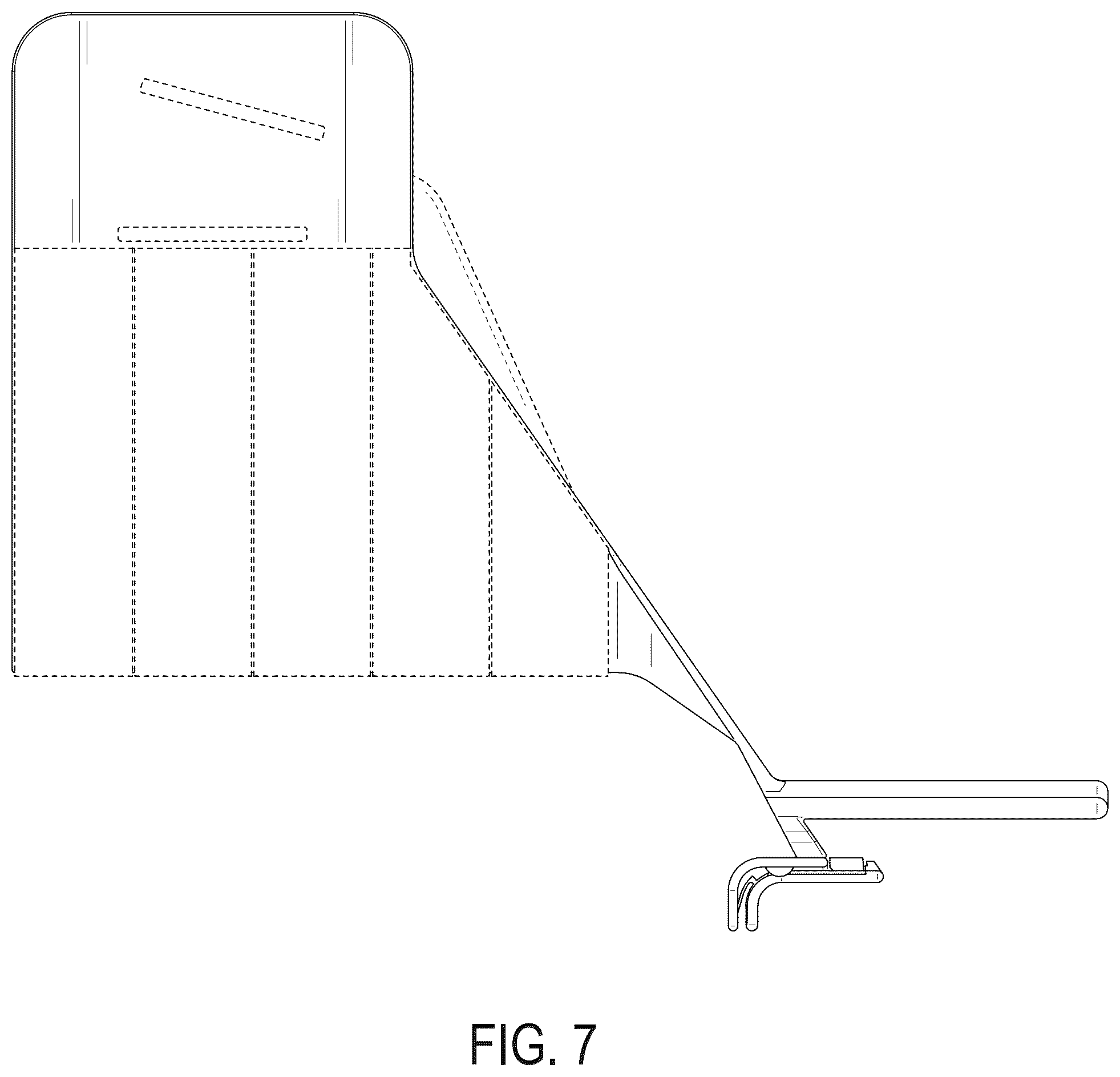

is a right side view of the holder with pads.

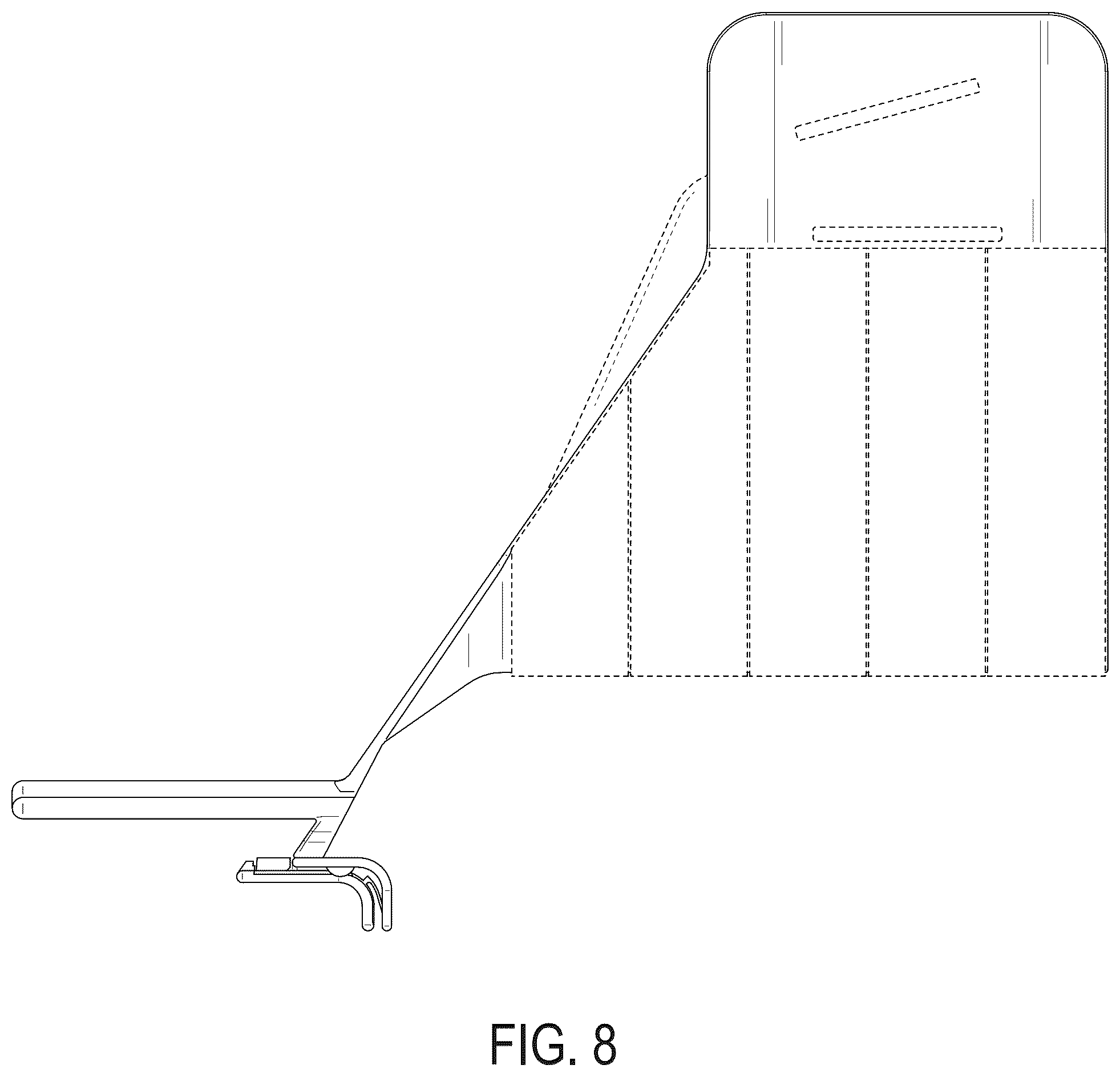

is a left side view of the holder with pads; and,

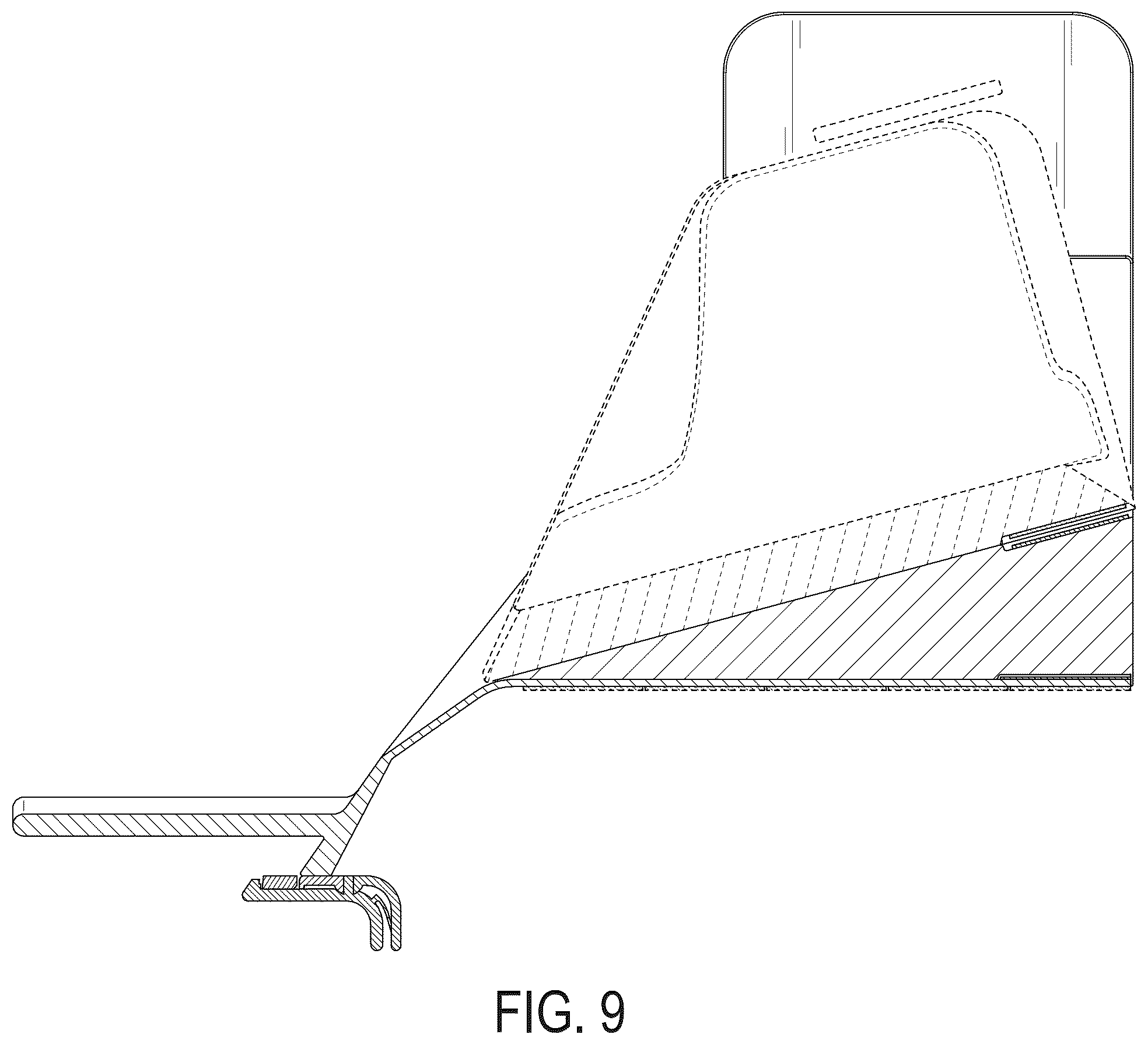

is a sectional view of the holder with pads taken along line 9 - 9 in .

The broken lines in the drawings depict portions of the holder with pads or portion thereof that form no part of the claimed design.

Figures (9)

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fig. 9
