Smart Toilet

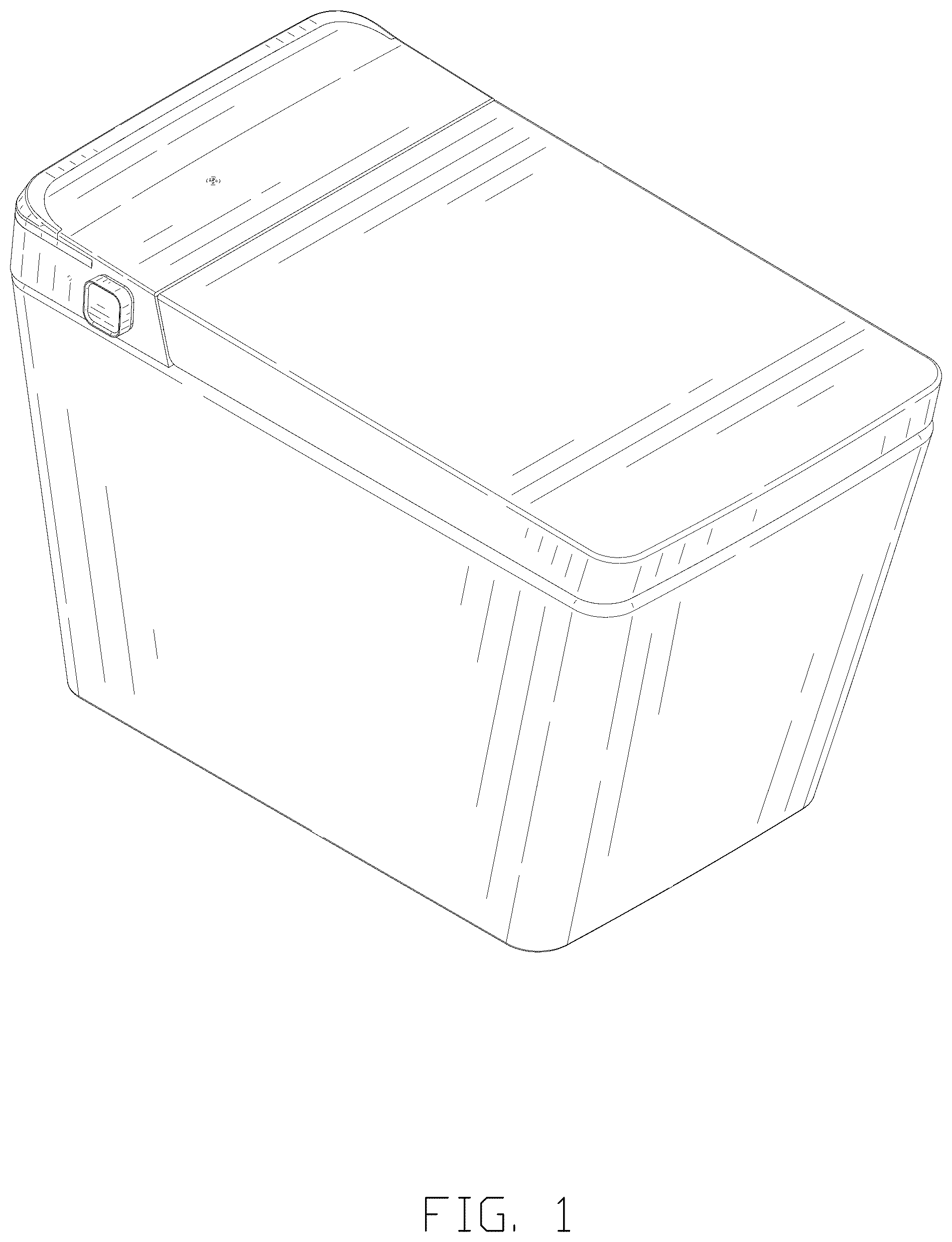

FIG. 1 is a perspective view of a first embodiment of a smart toilet showing my new design;

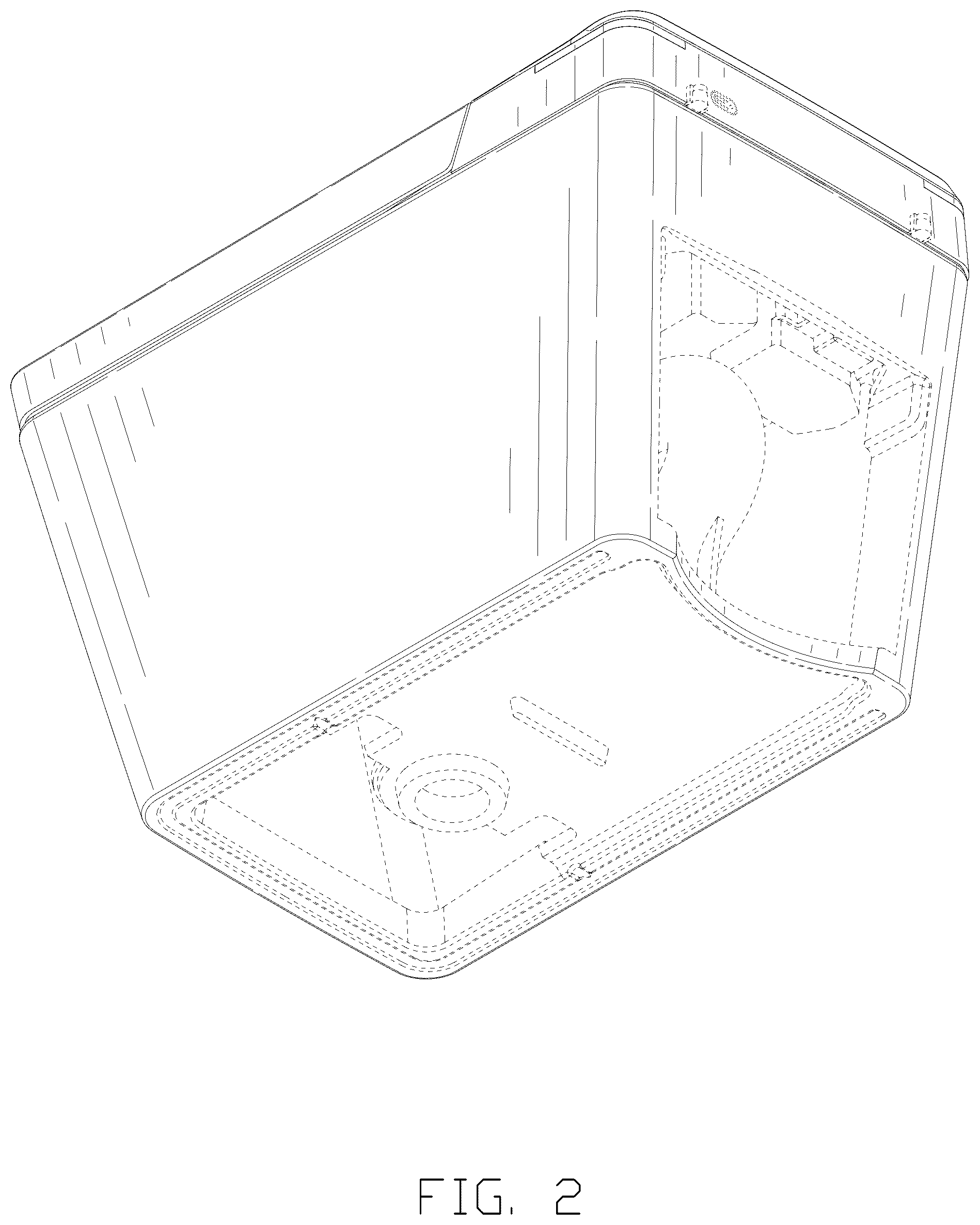

FIG. 2 is another perspective view thereof;

FIG. 3 is a front elevational view thereof;

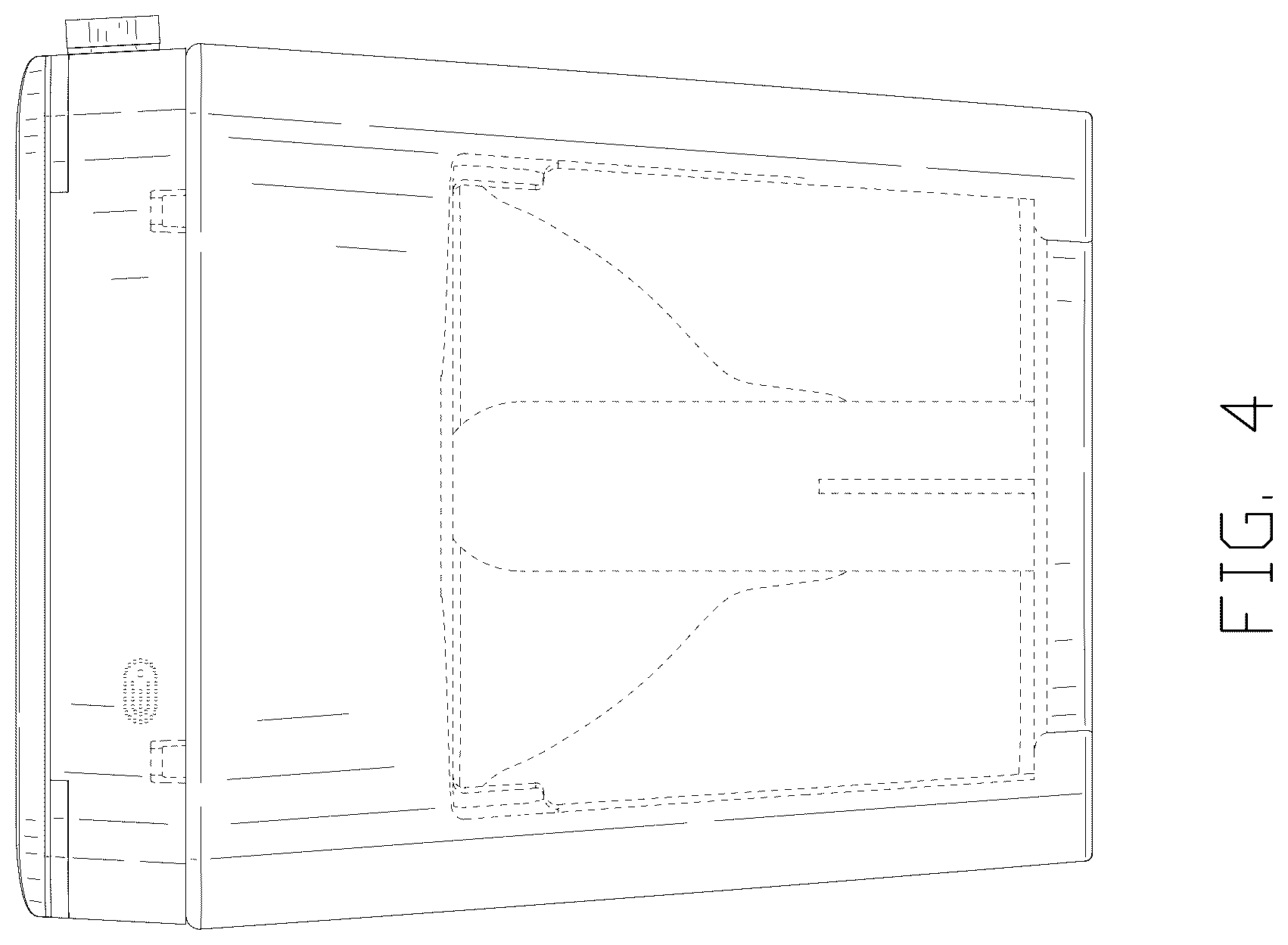

FIG. 4 is a rear elevational view thereof;

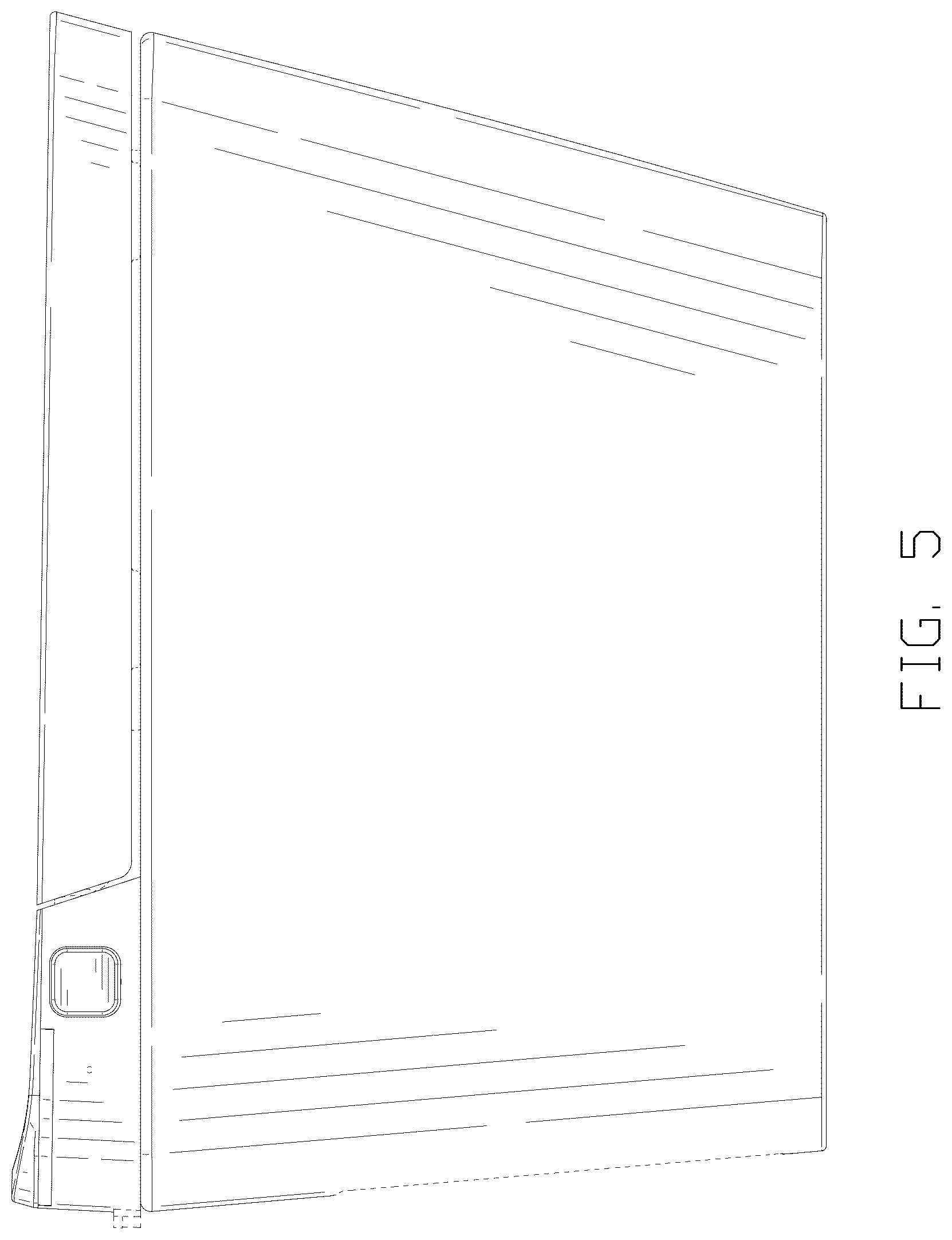

FIG. 5 is a left side elevational view thereof;

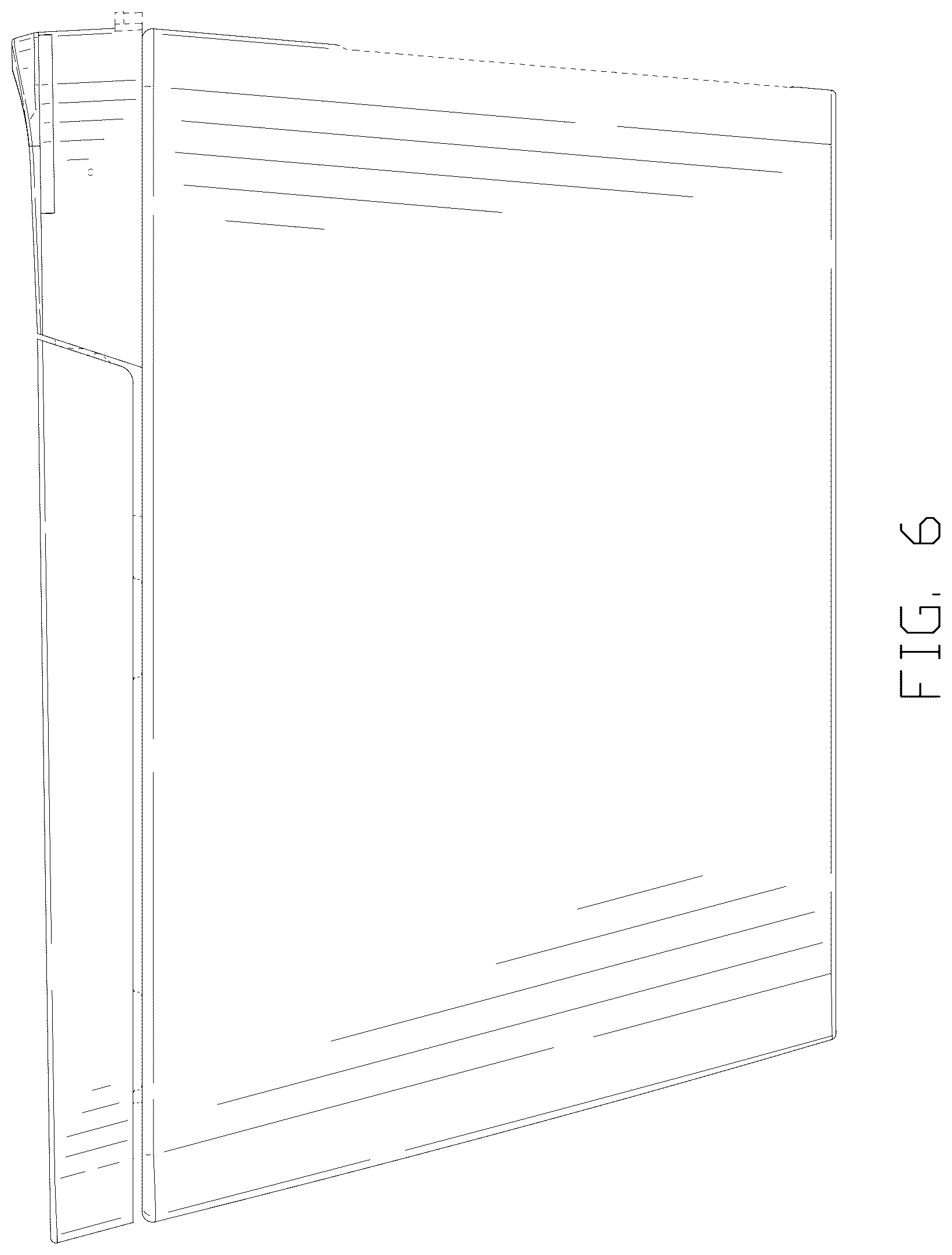

FIG. 6 is a right side elevational view thereof;

FIG. 7 is a top plan view thereof;

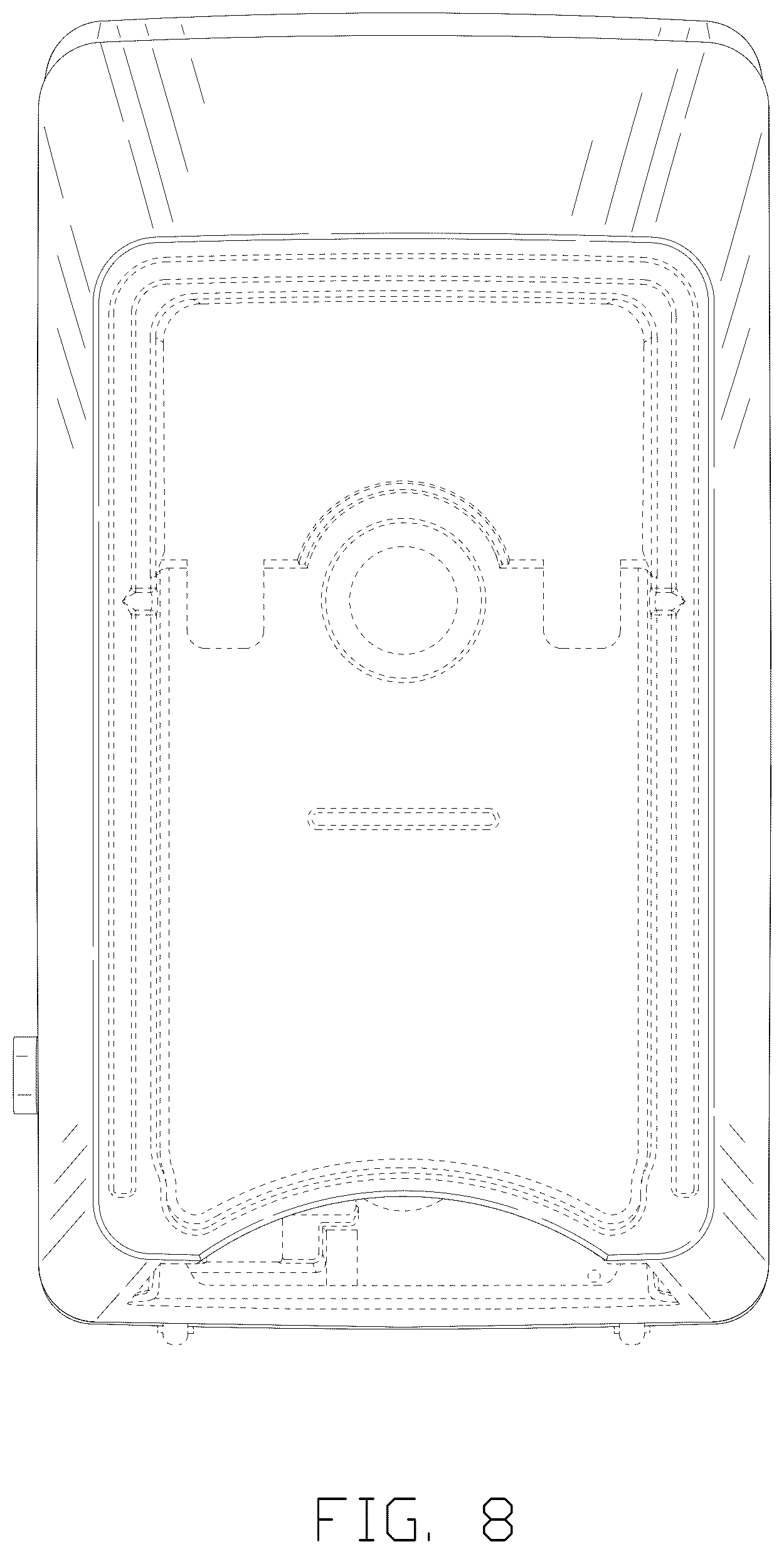

FIG. 8 is a bottom plan view thereof;

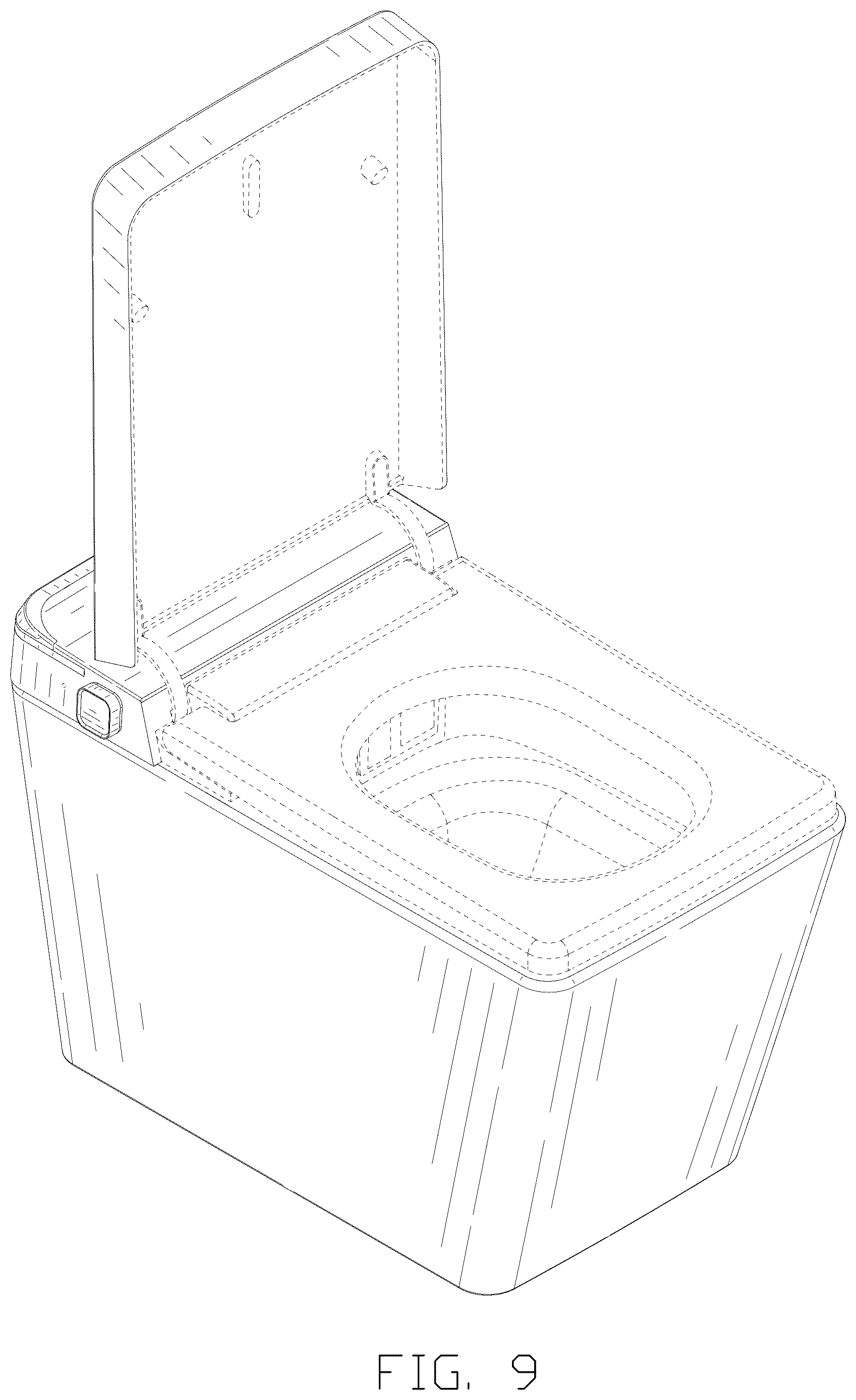

FIG. 9 is a perspective view of the smart toilet of FIG. 1 , where the smart toilet is in a configuration of use;

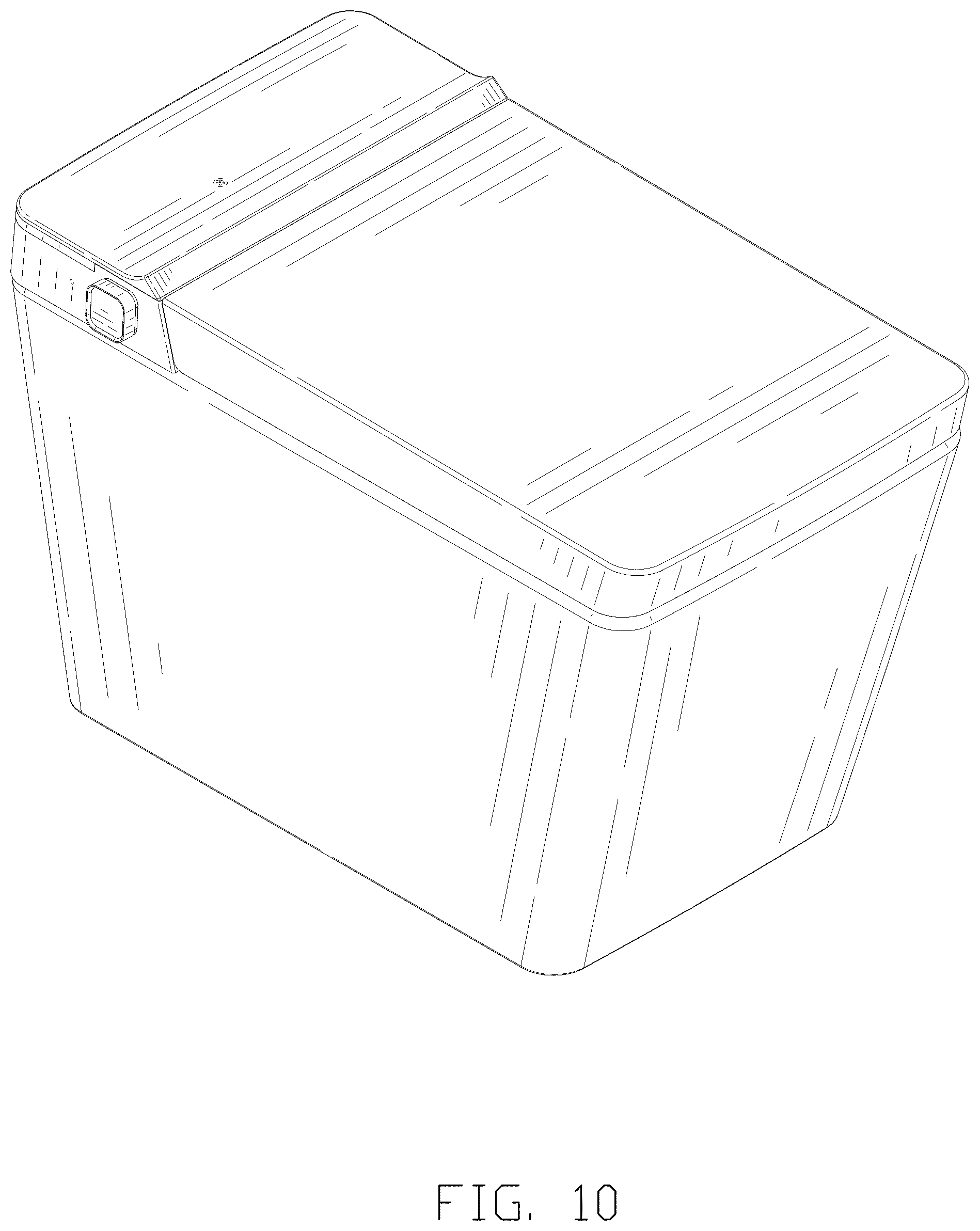

FIG. 10 is a perspective view of a second embodiment of the smart toilet;

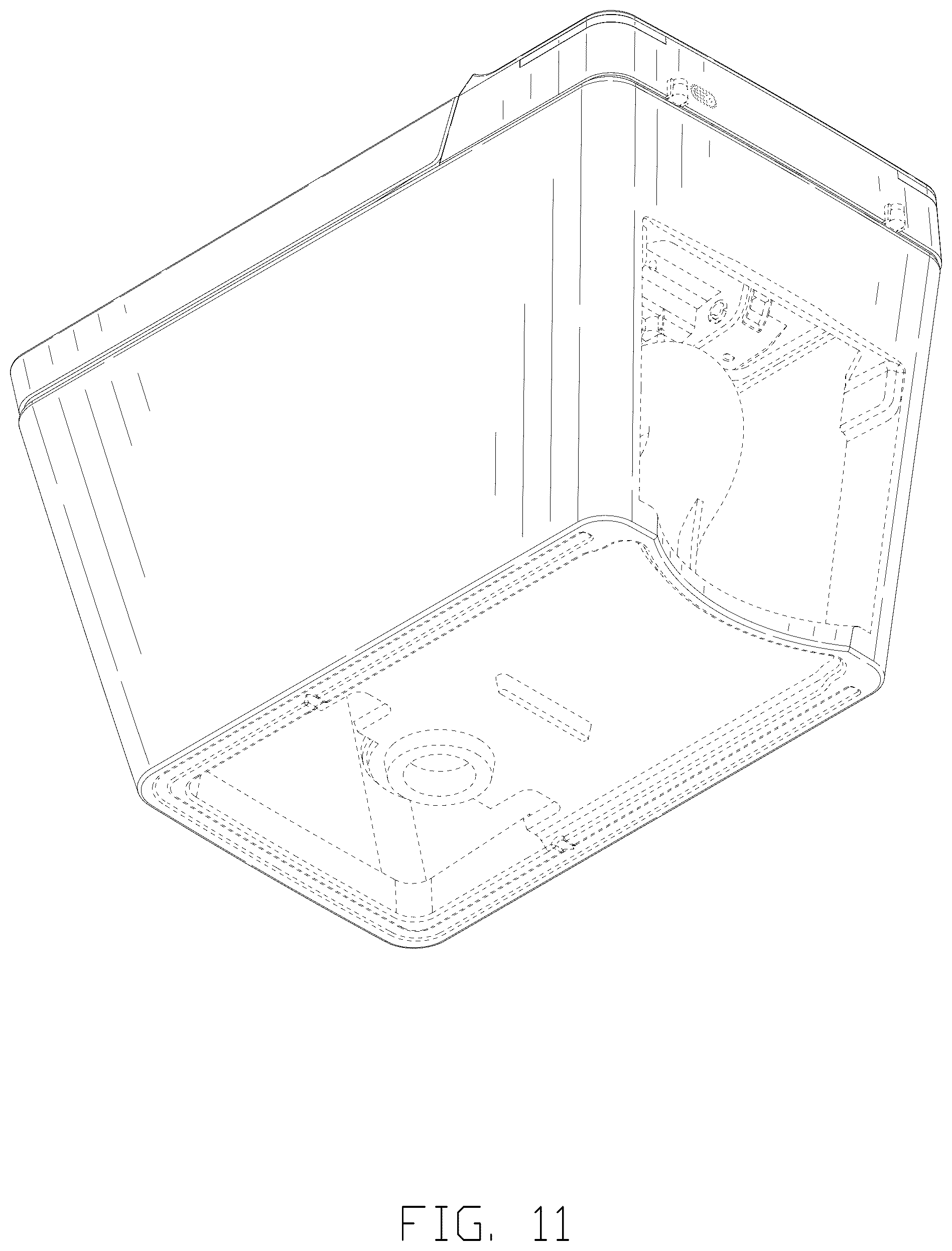

FIG. 11 is another perspective view thereof;

FIG. 12 is a front elevational view thereof;

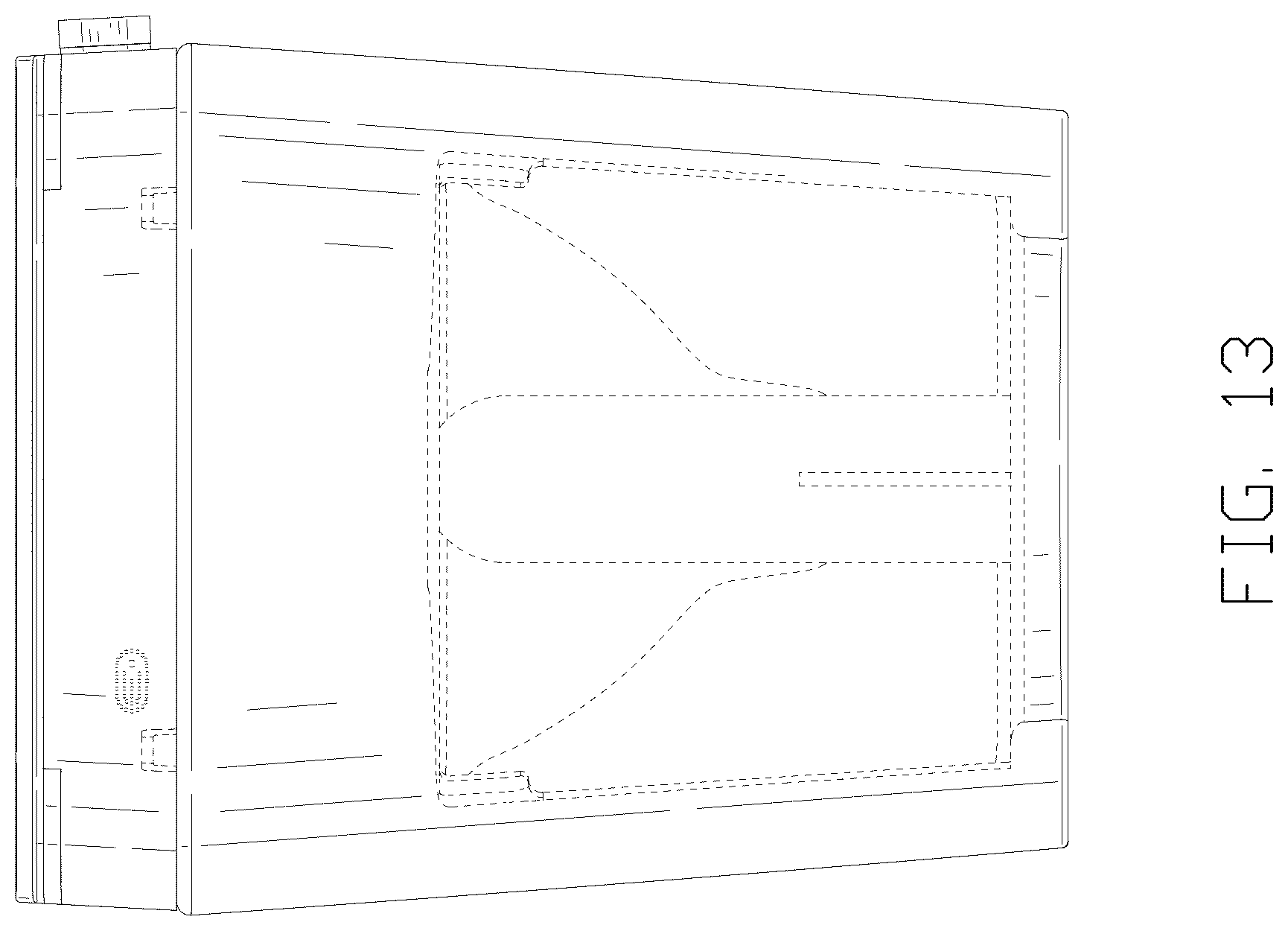

FIG. 13 is a rear elevational view thereof;

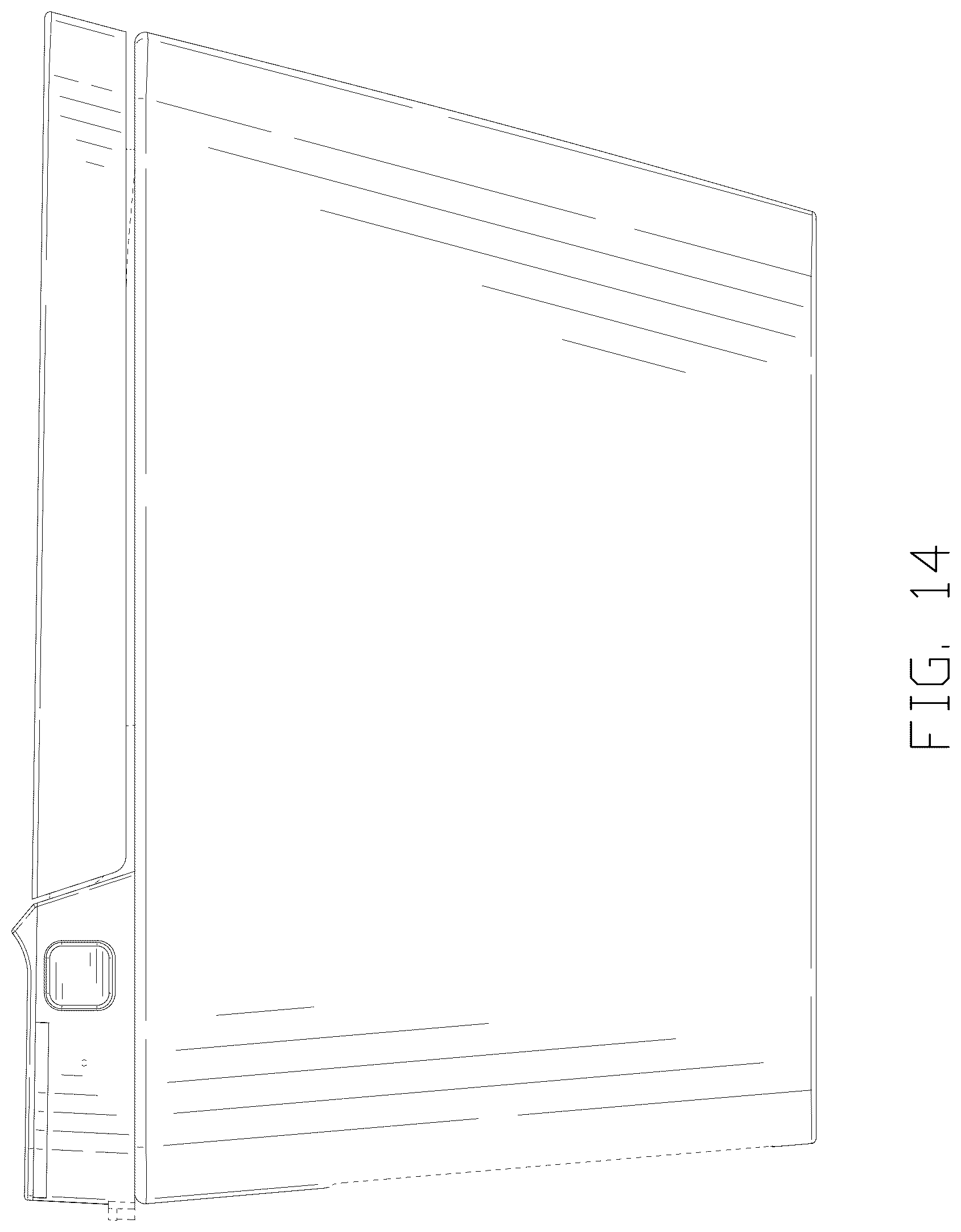

FIG. 14 is a left side elevational view thereof;

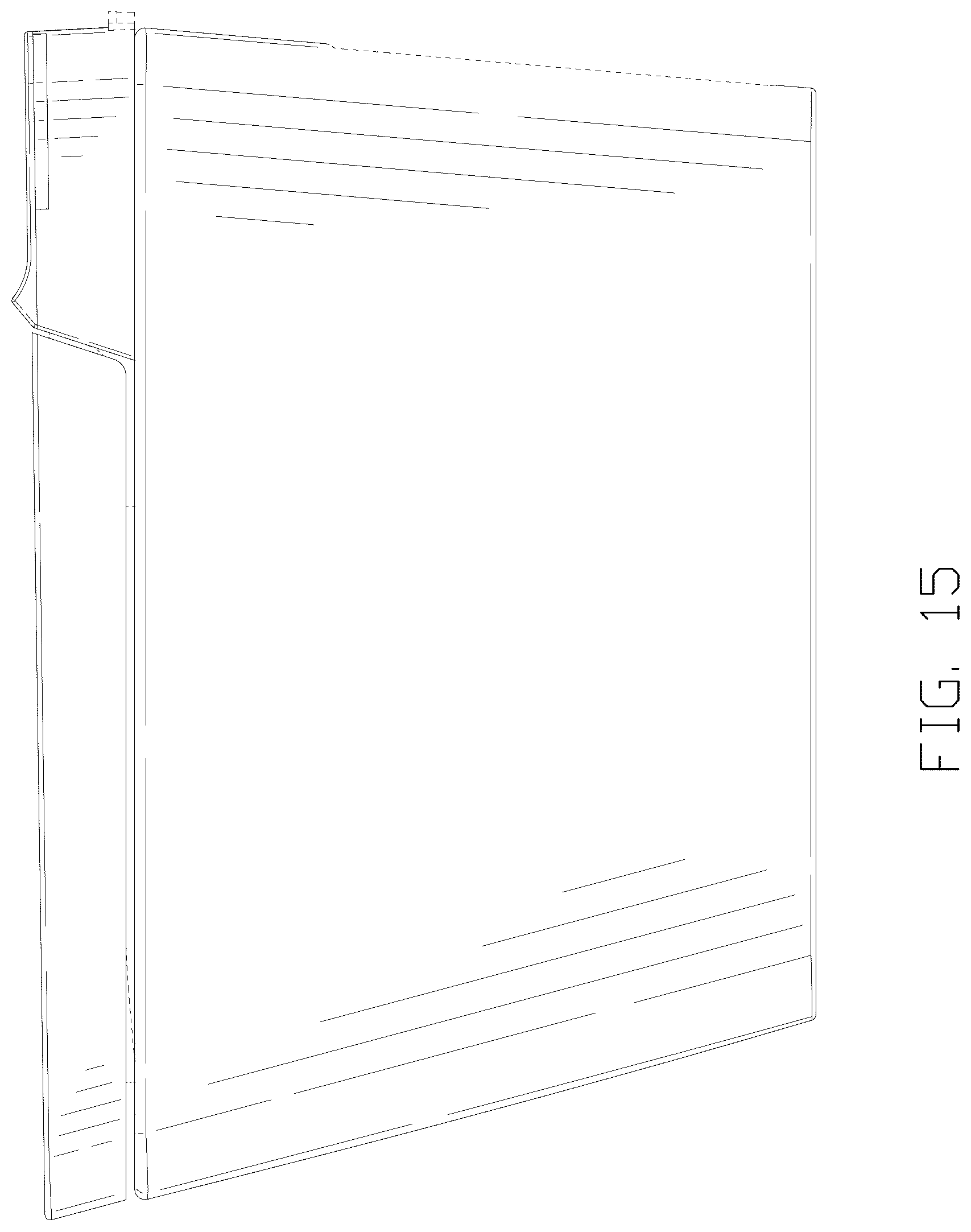

FIG. 15 is a right side elevational view thereof;

FIG. 16 is a top plan view thereof;

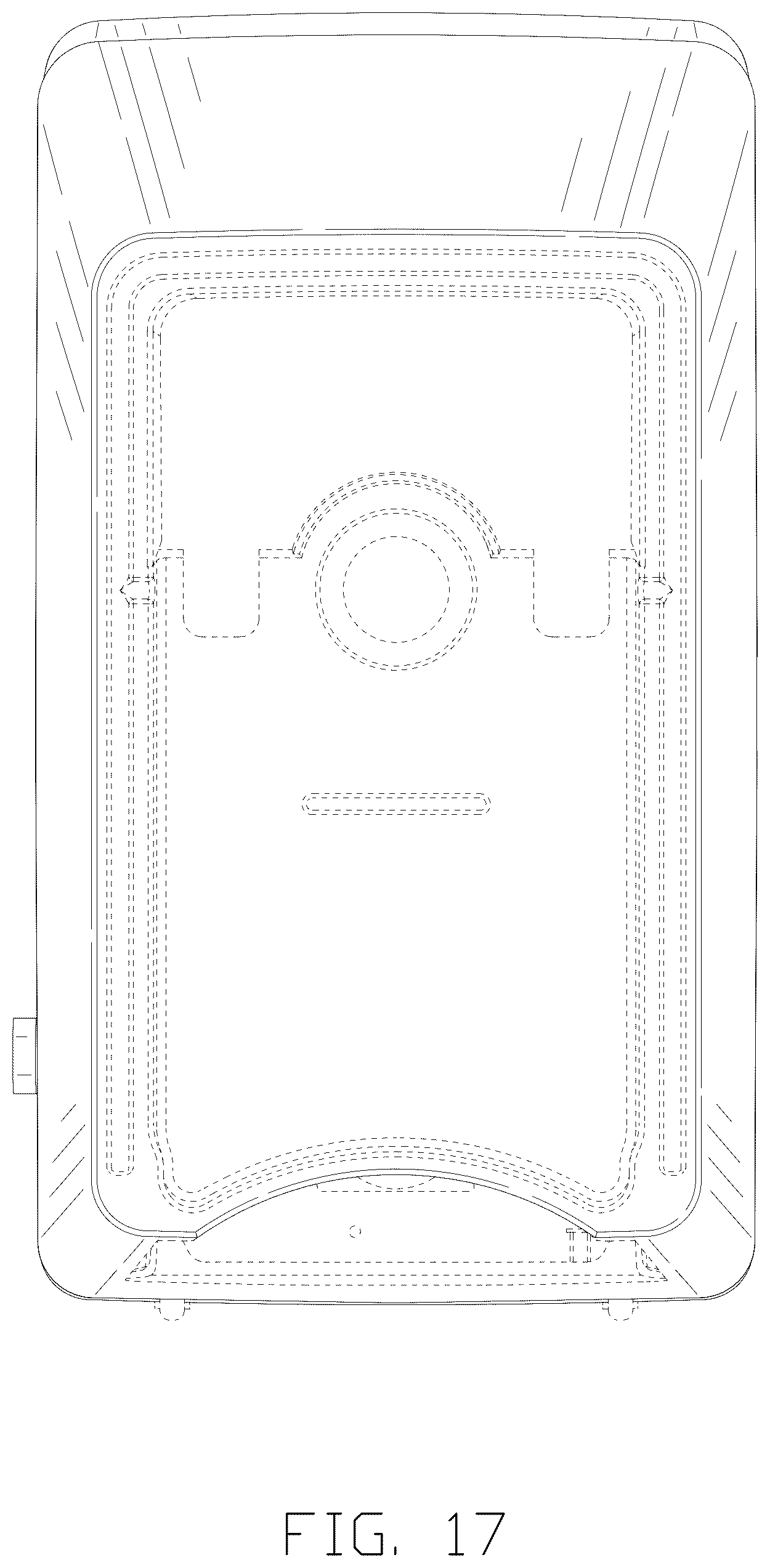

FIG. 17 is a bottom plan view thereof; and,

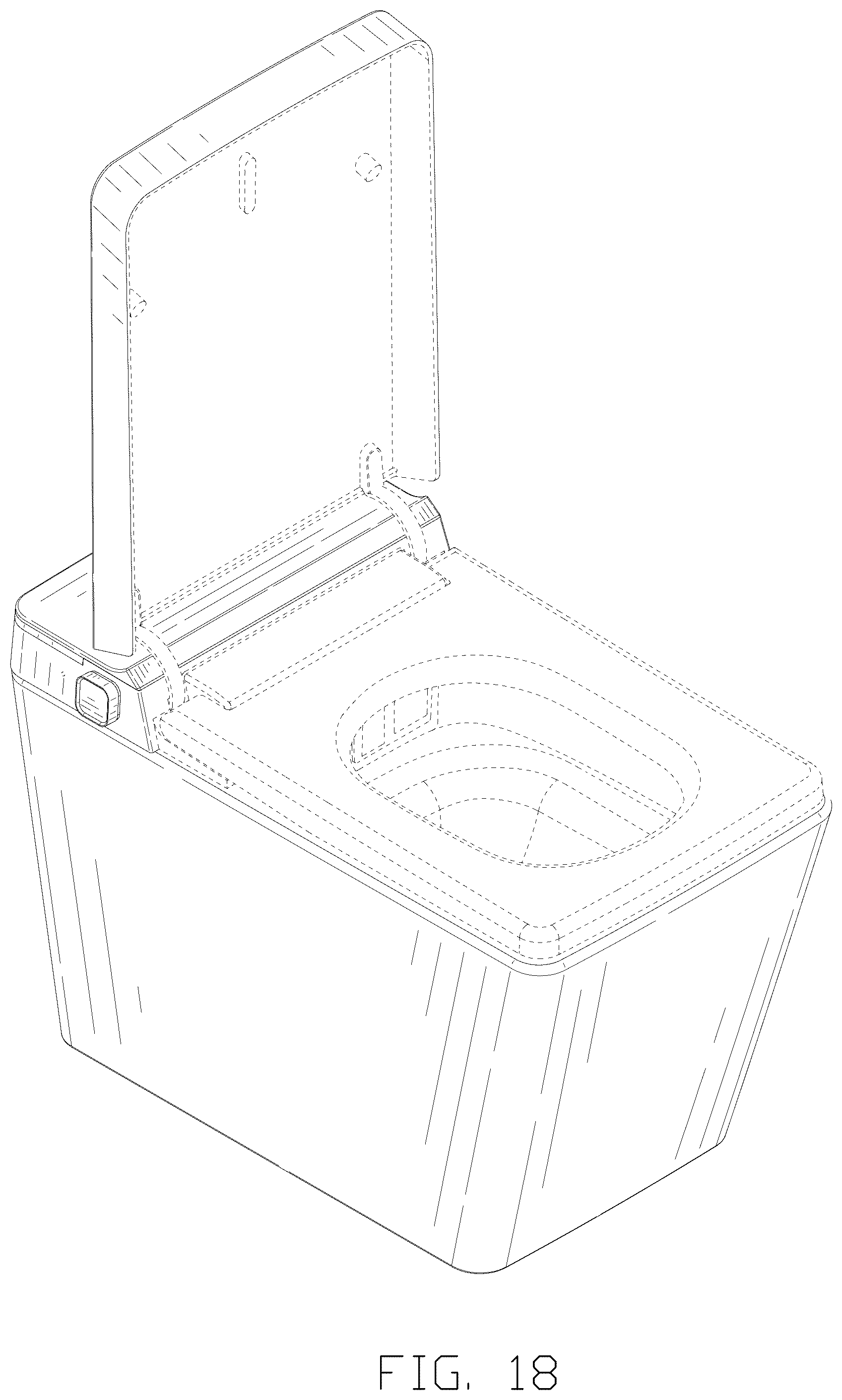

FIG. 18 is a perspective view of the smart toilet of FIG. 10 , where the smart toilet is in a configuration of use.

The broken lines in the drawings depict portions of the smart toilet that form no part of the claimed design.
