Adapter for Pipe Joints

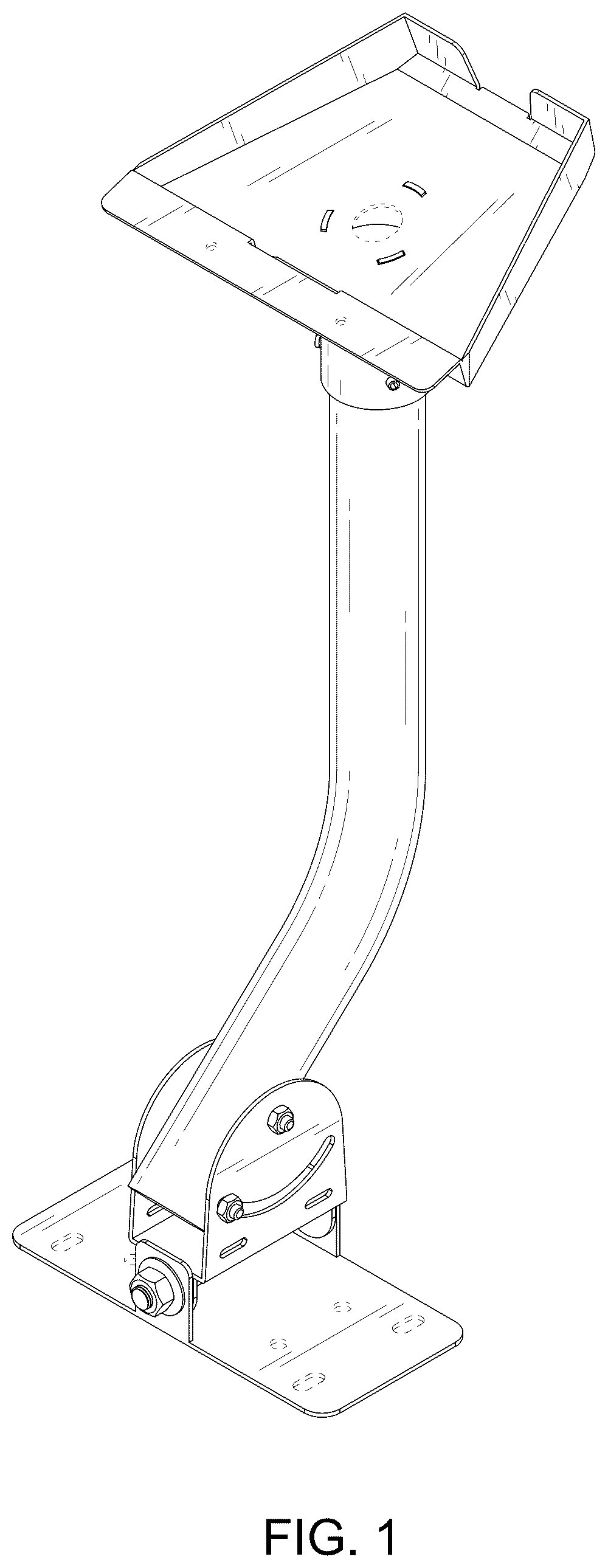

FIG. 1 is a perspective view of an adapter for pipe joints, showing my new design in first configuration of use;

FIG. 2 is a front view thereof;

FIG. 3 is a rear view thereof;

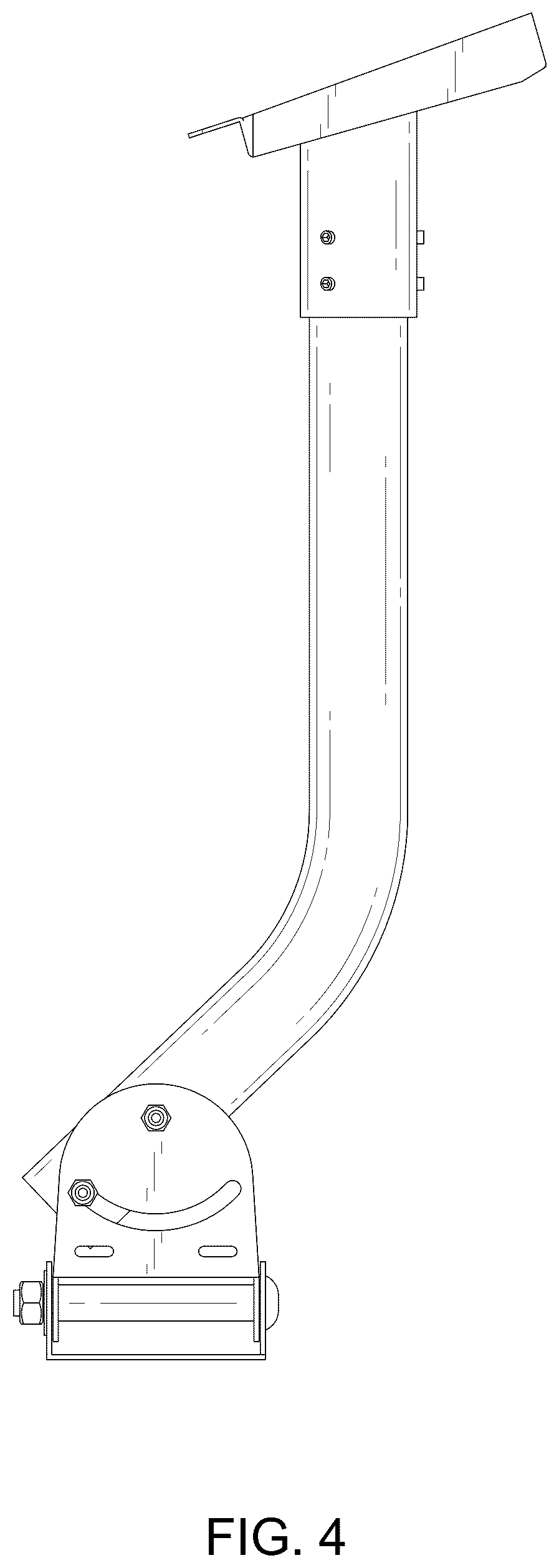

FIG. 4 is a right side view thereof;

FIG. 5 is a left side view thereof;

FIG. 6 is a top view thereof;

FIG. 7 is a bottom view thereof;

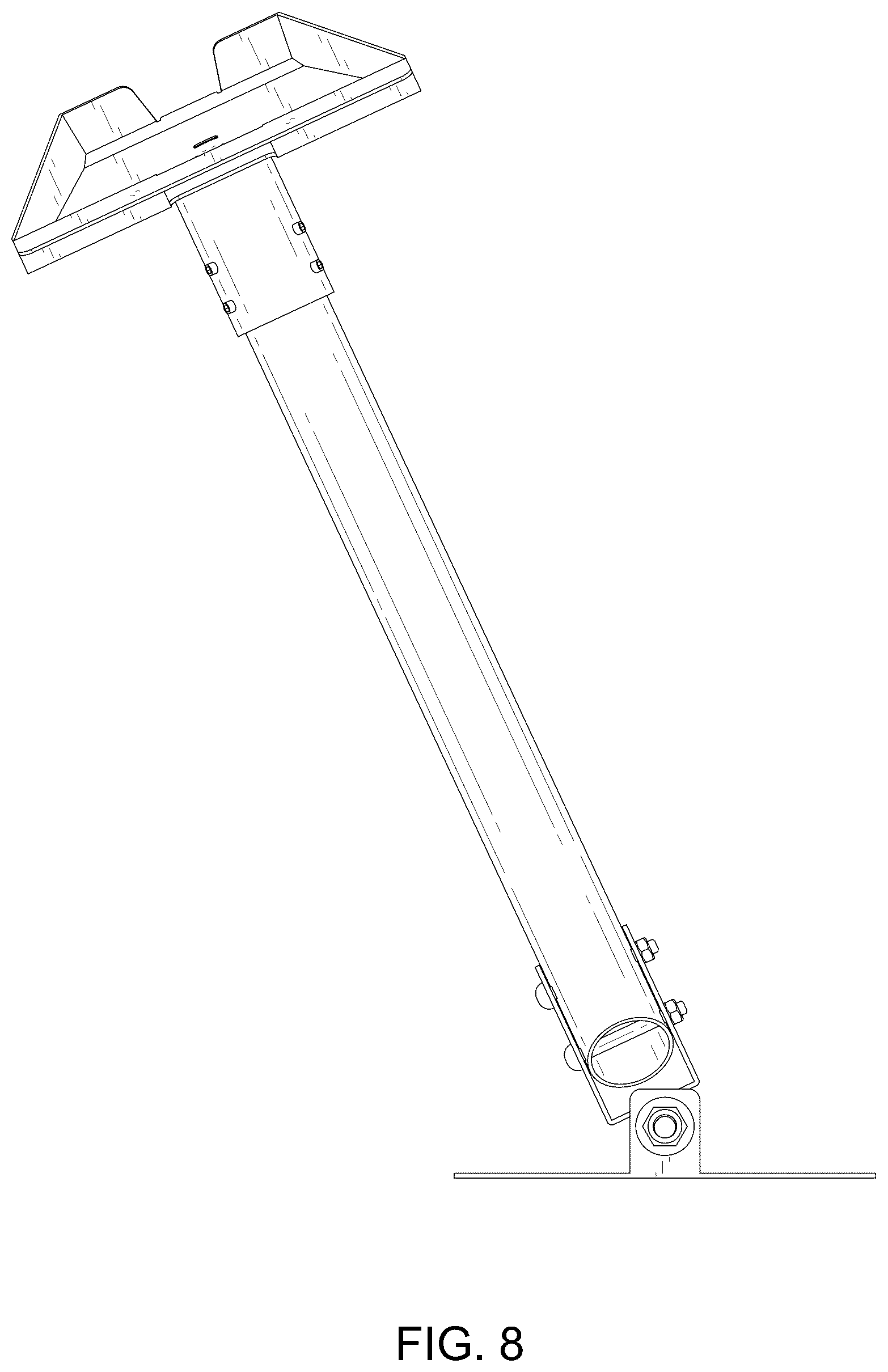

FIG. 8 is a front view showing the adapter for pipe joints, in second configuration of use;

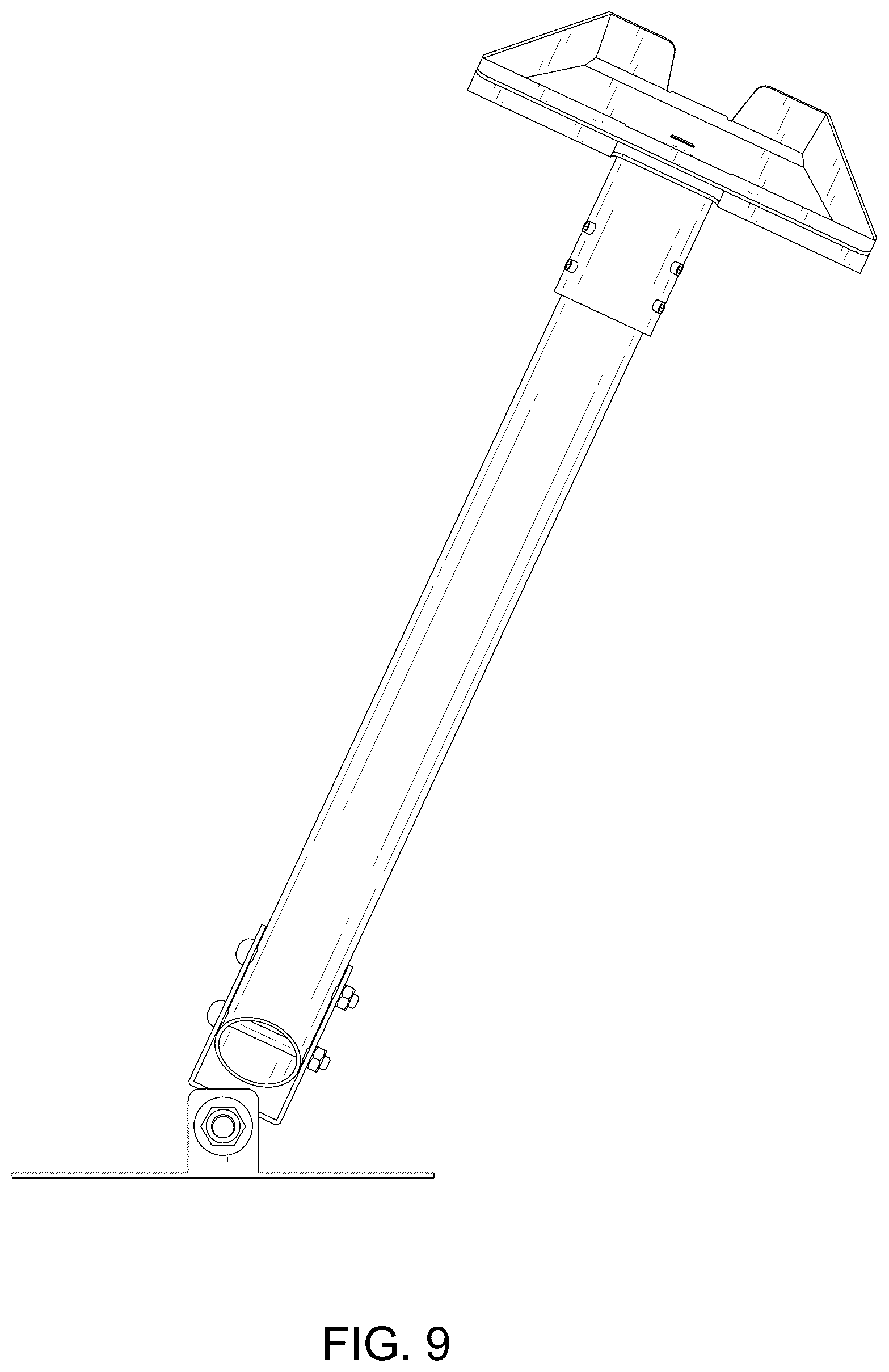

FIG. 9 is a front view showing the adapter for pipe joints, in third configuration of use;

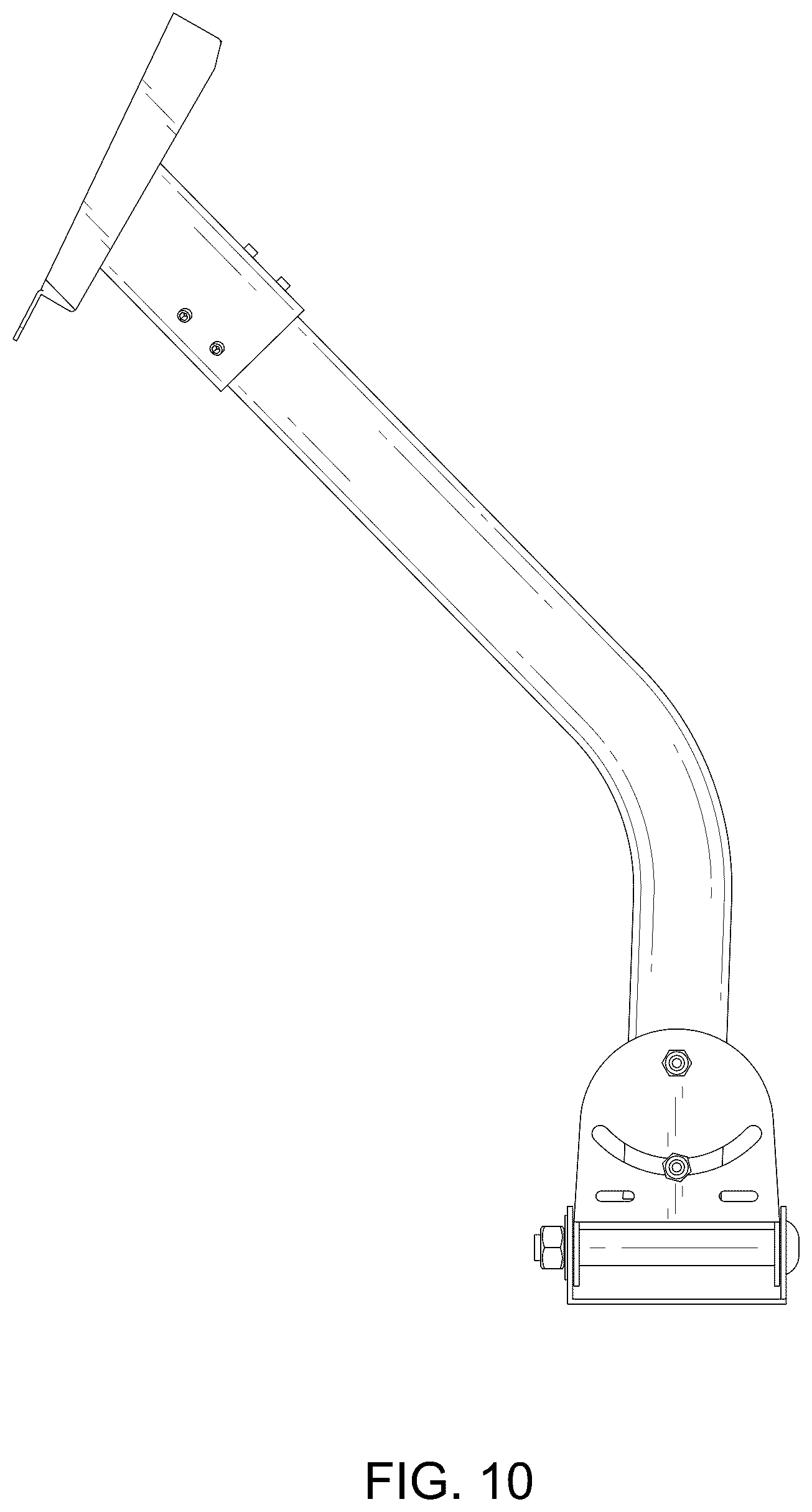

FIG. 10 is a right side view showing the adapter for pipe joints, in fourth configuration of use; and,

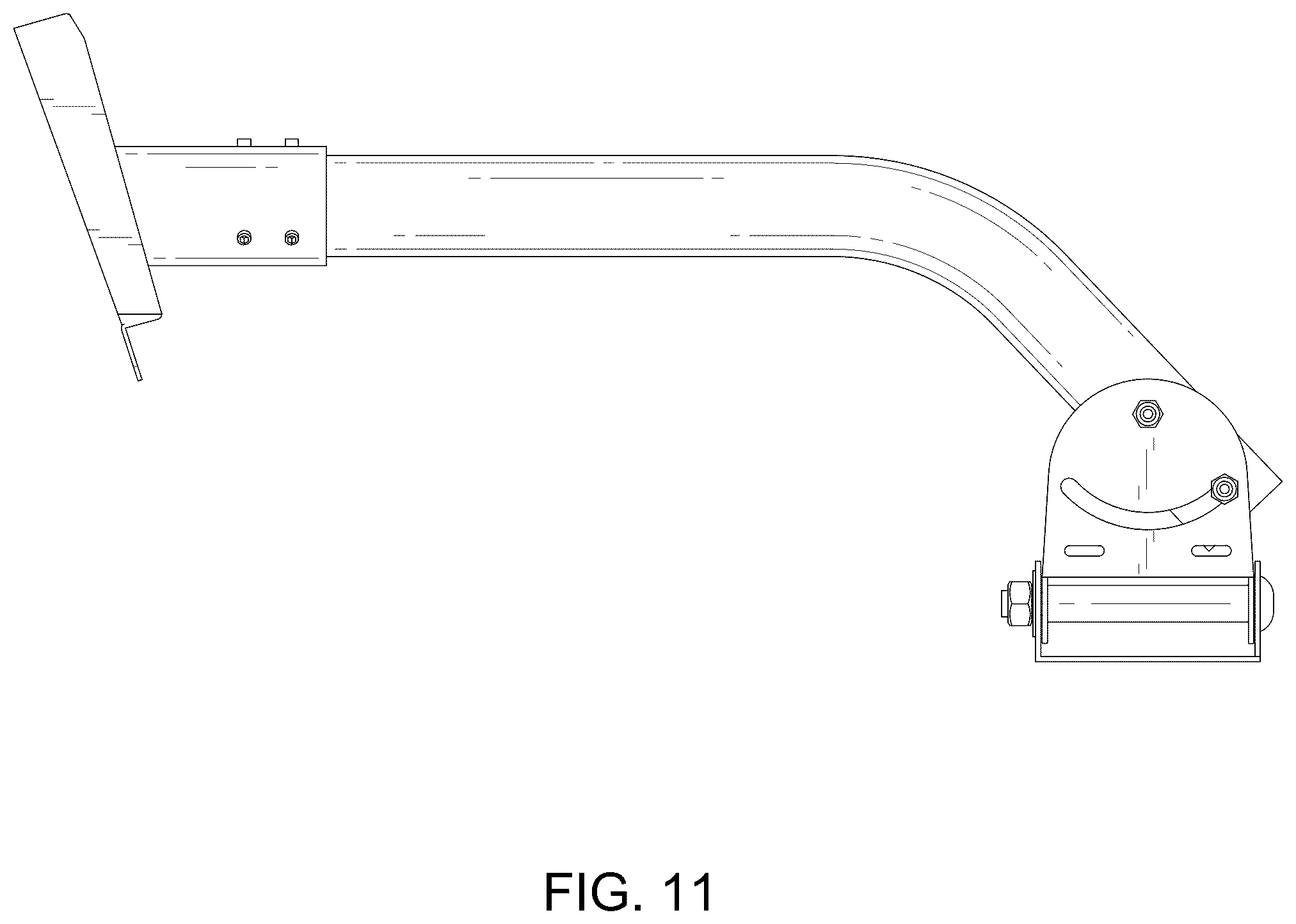

FIG. 11 is a right side view showing the adapter for pipe joints, in fifth configuration of use.

All the broken lines in the drawings depict portions of the adapter for pipe joints that form no part of the claimed design.
