Connector

USD1077750No. D 1,077,750designGranted 6/3/2025
Patent USD1077750 — Connector — Figure 1
Fig. 1 · Connector

Claims (1)

Claim 1 (Independent)

The ornamental design for a connector as shown and described.

Full Description

Show full text →

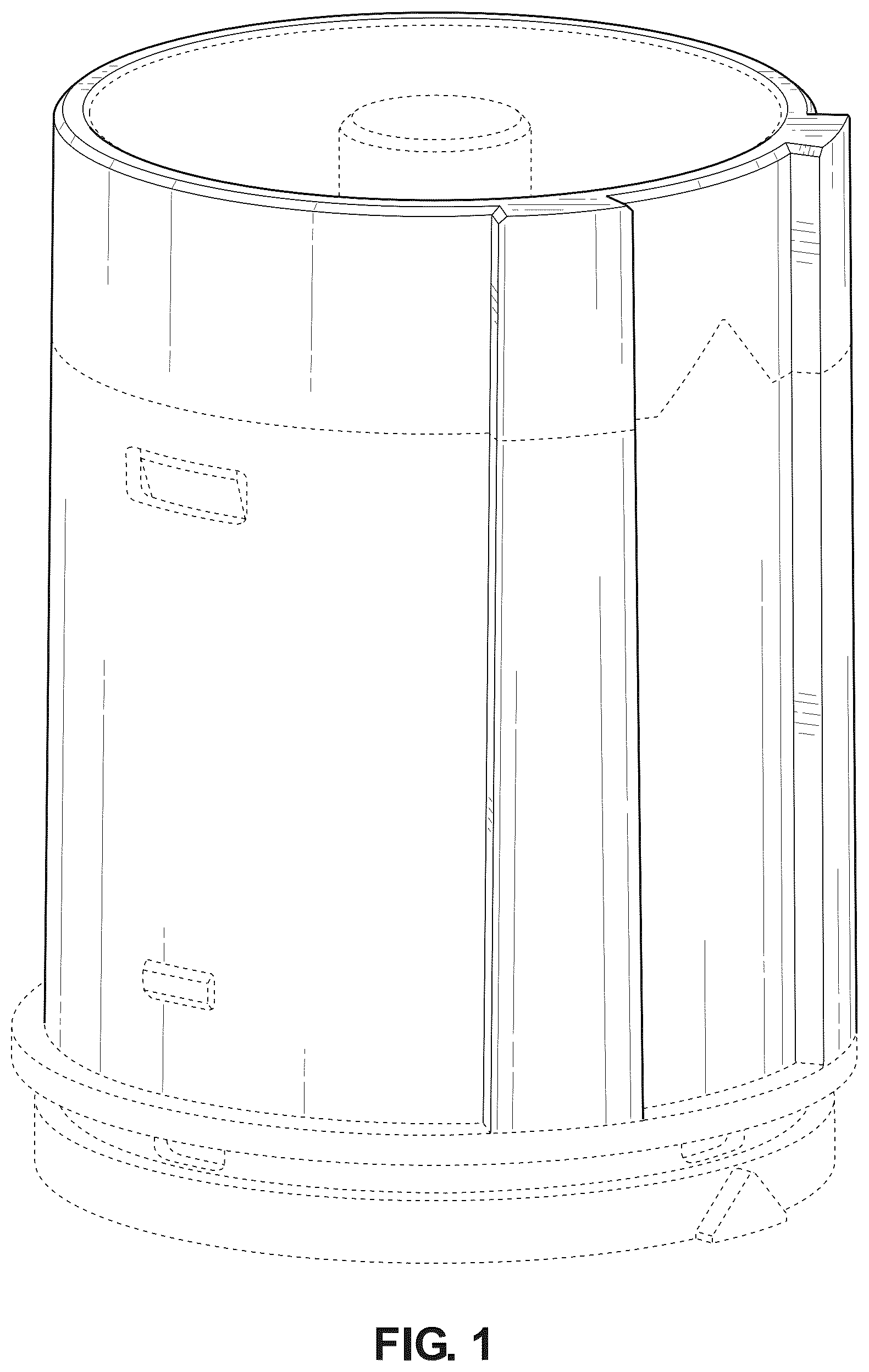

is a front perspective view of a connector showing my new design;

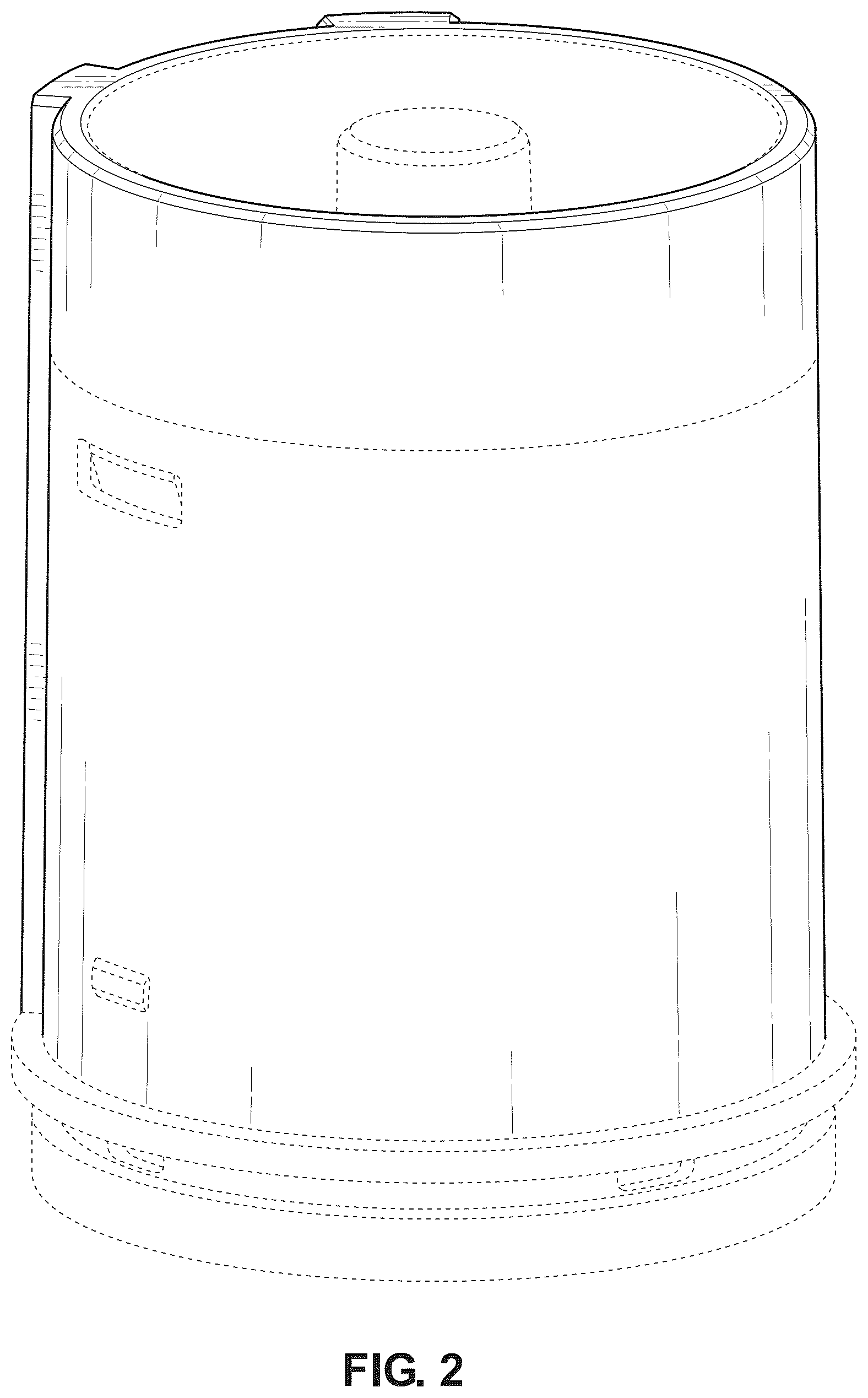

is a rear perspective view thereof;

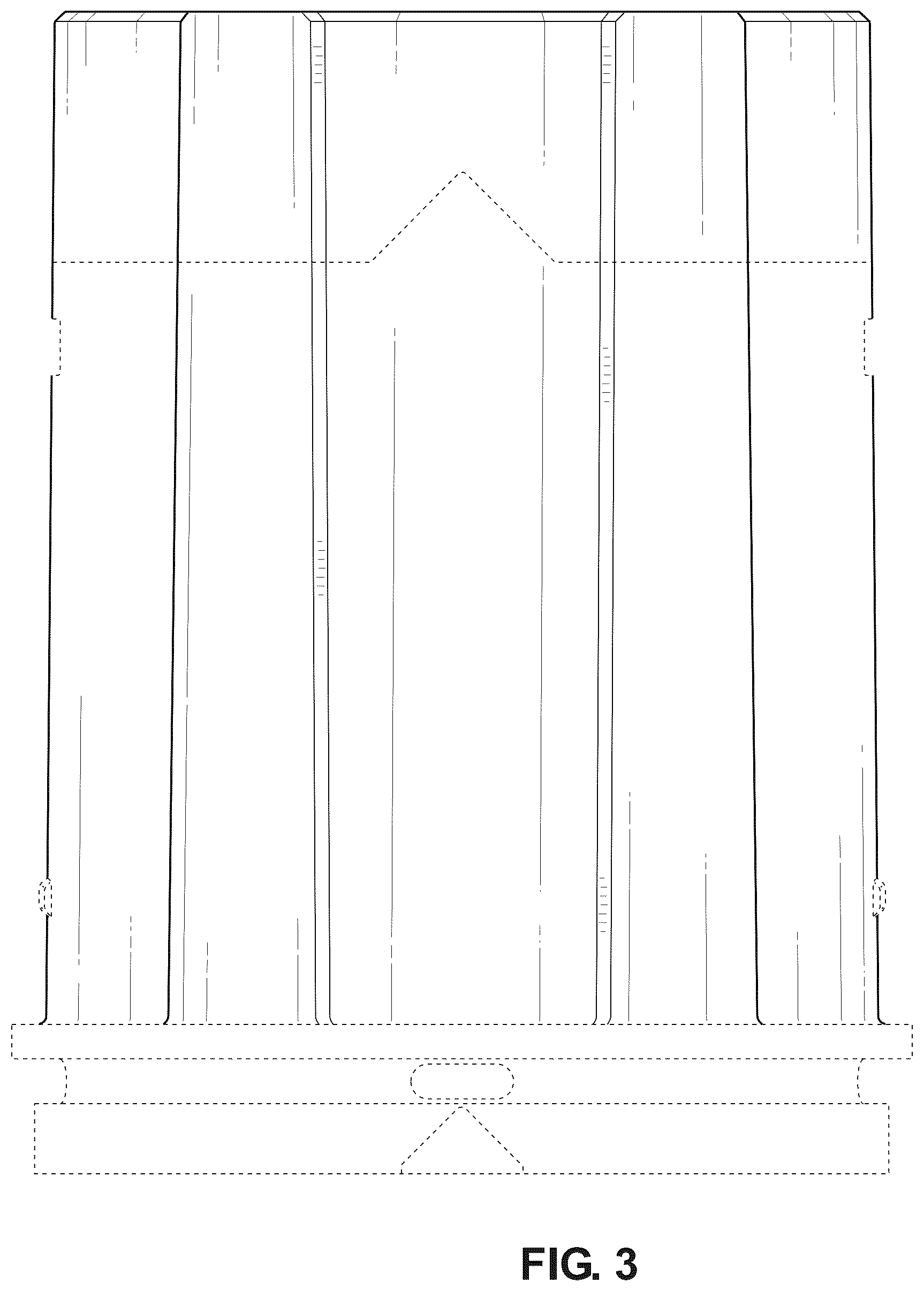

is a front view thereof;

is a rear view thereof;

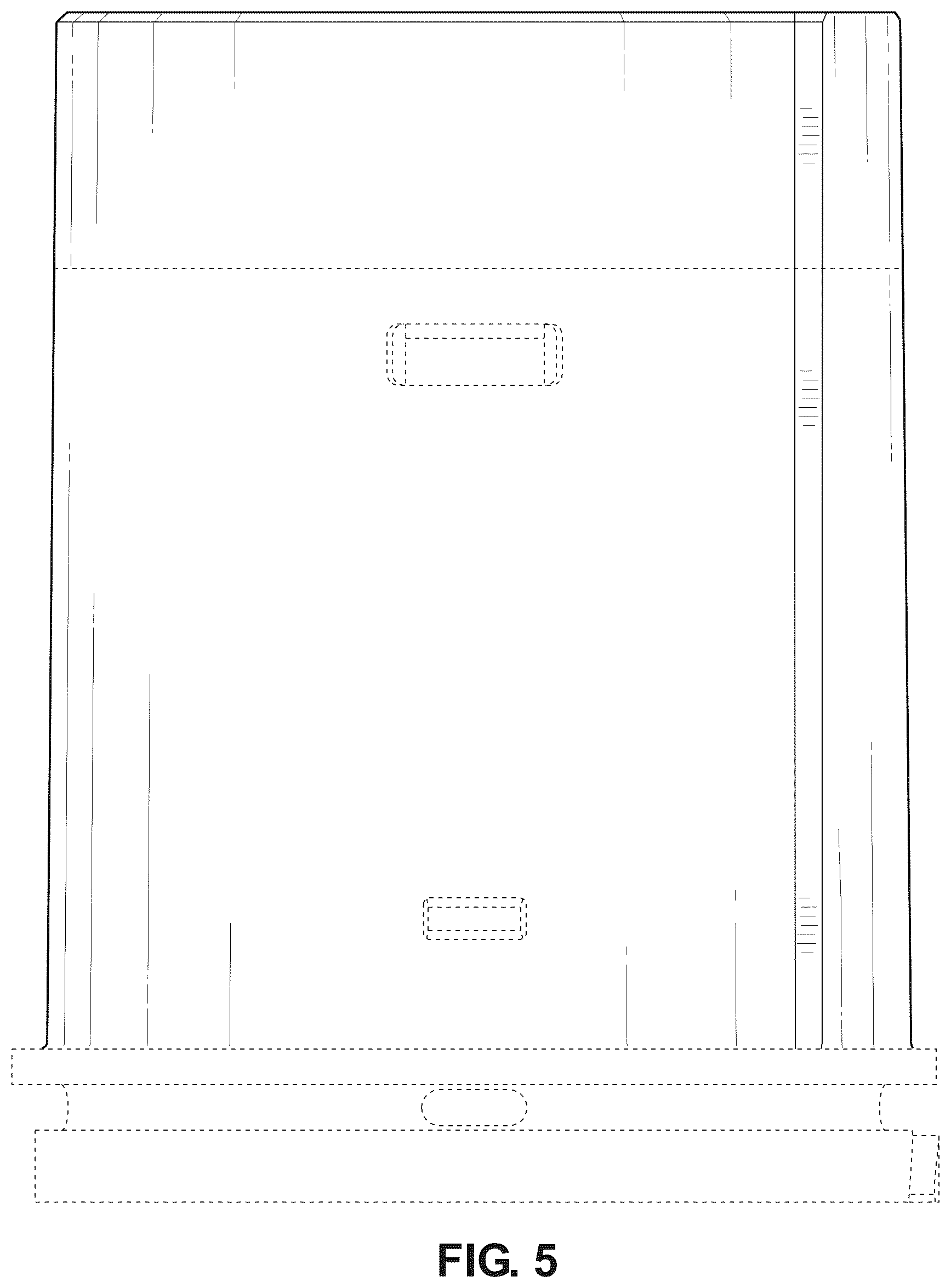

is a right side view thereof;

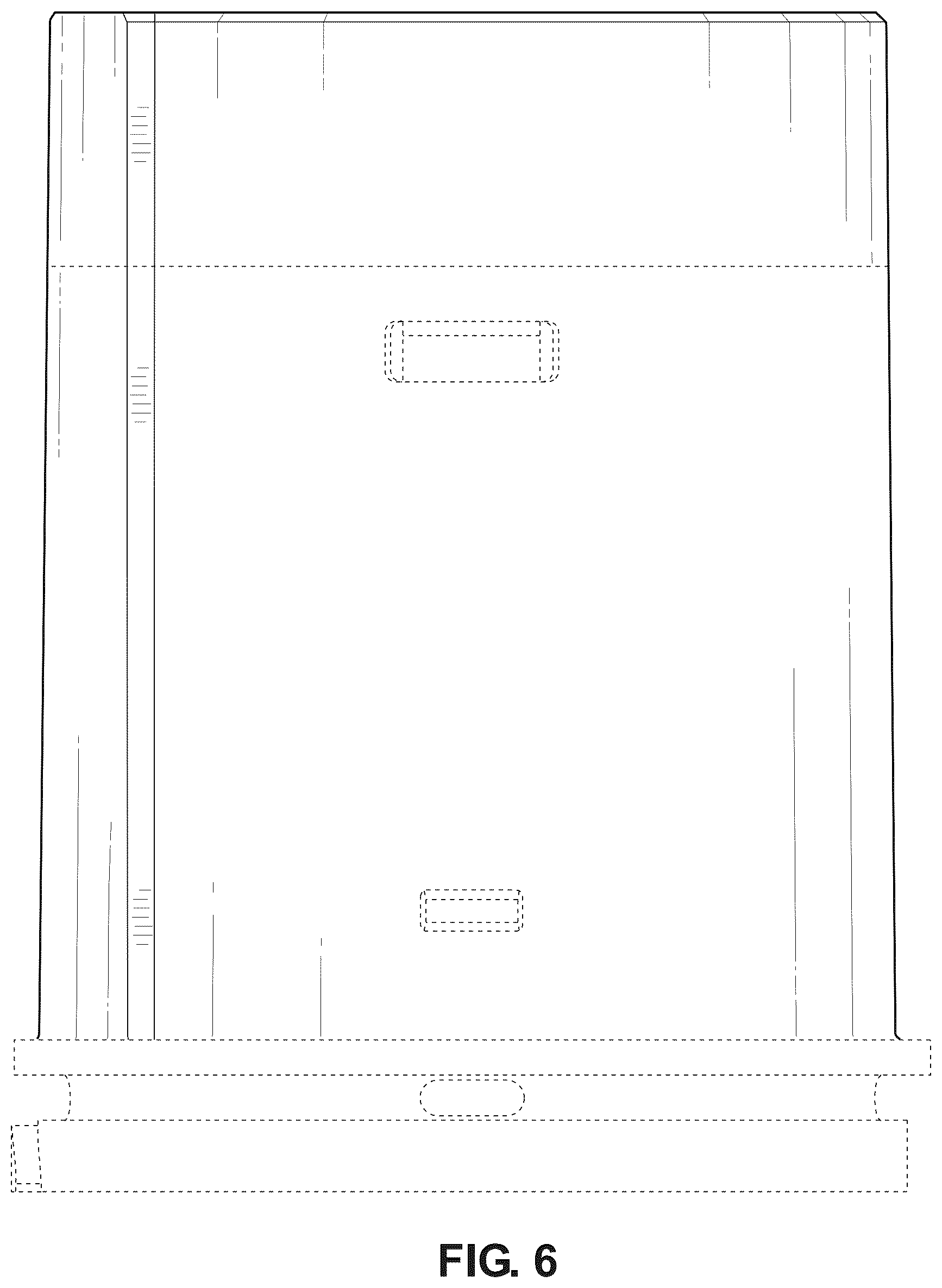

is a left side view thereof;

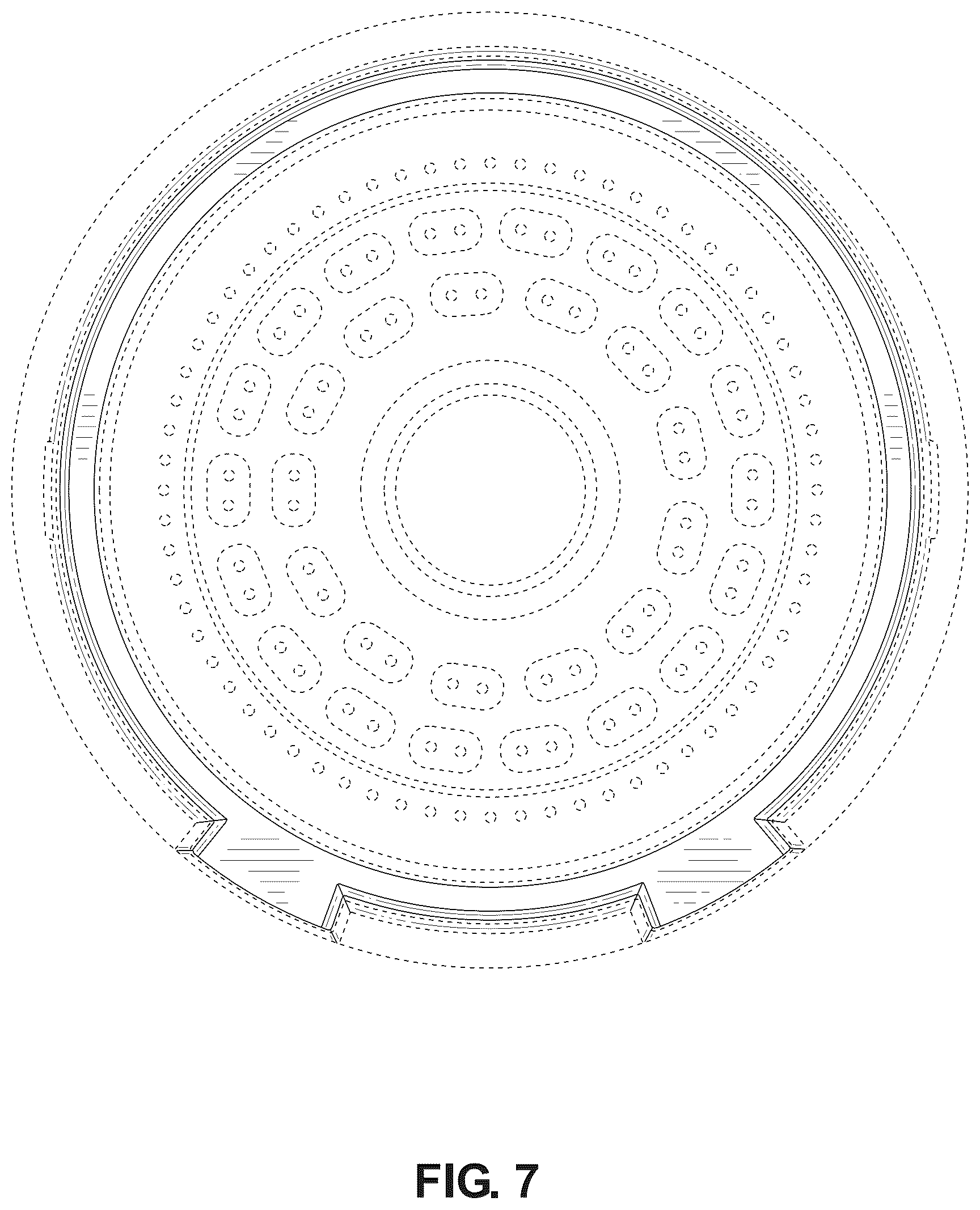

is a top view thereof; and,

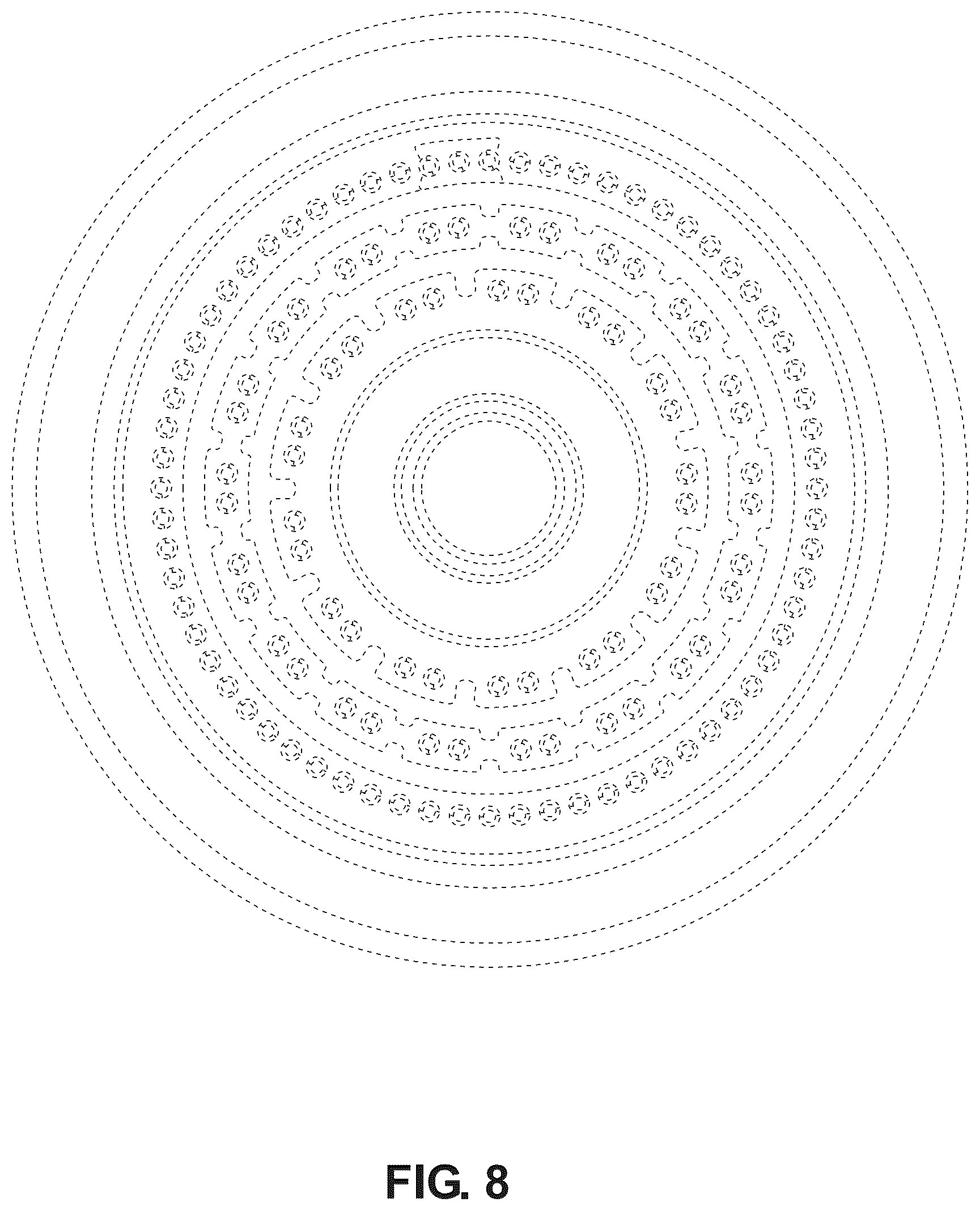

is a bottom view thereof.

The broken lines depicting the remainder of the connector form no part of the claimed design.
