Soap Dispenser

USD1077519No. D 1,077,519designGranted 6/3/2025
Patent USD1077519 — Soap dispenser — Figure 1
Fig. 1 · Soap Dispenser

Claims (1)

Claim 1 (Independent)

The ornamental design for a soap dispenser, as shown and described.

Full Description

Show full text →

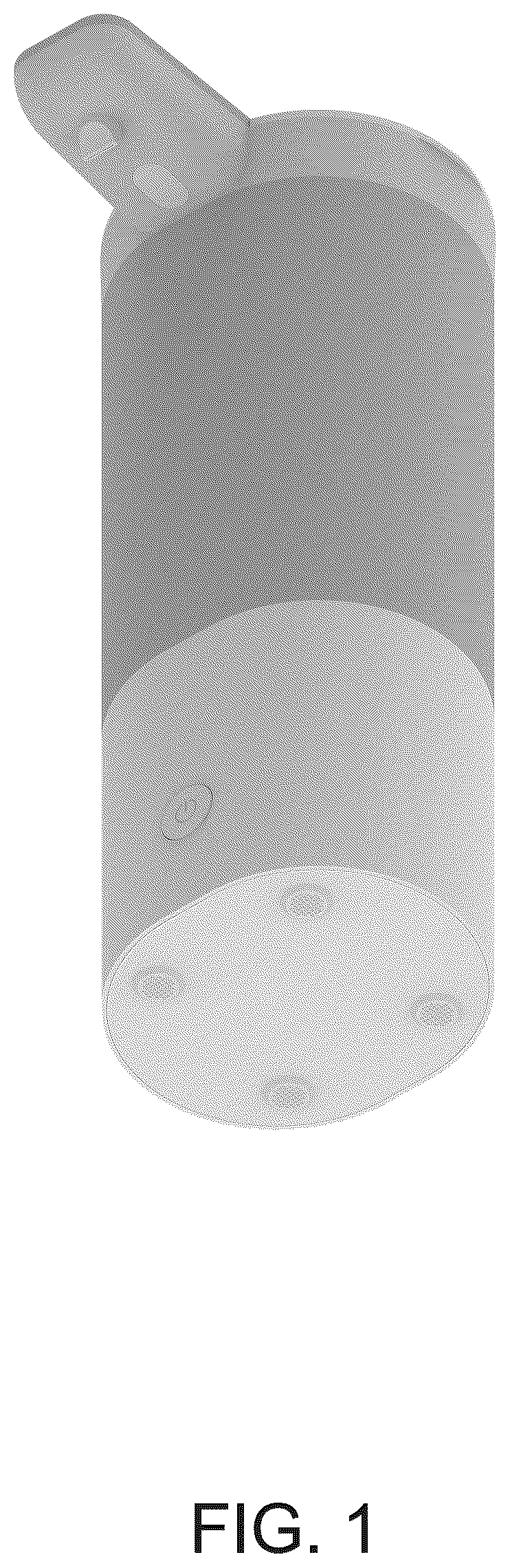

is a front, right and bottom perspective view of a soap dispenser, showing my new design;

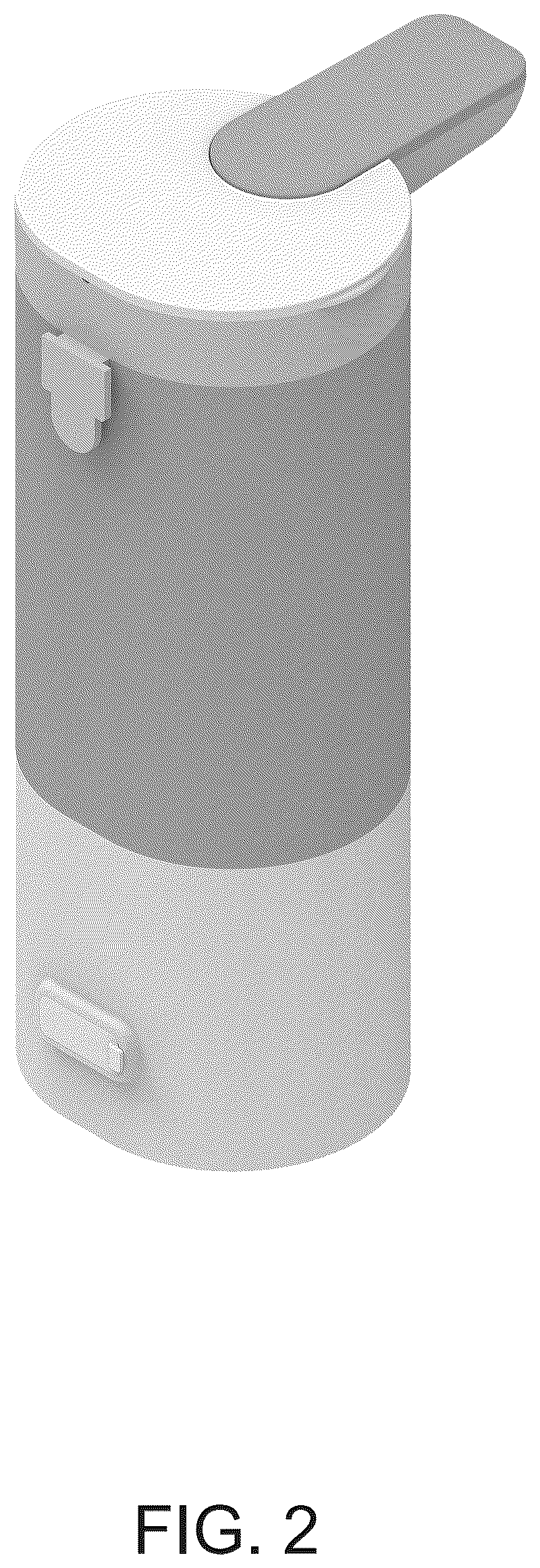

is a rear, left and top perspective view thereof;

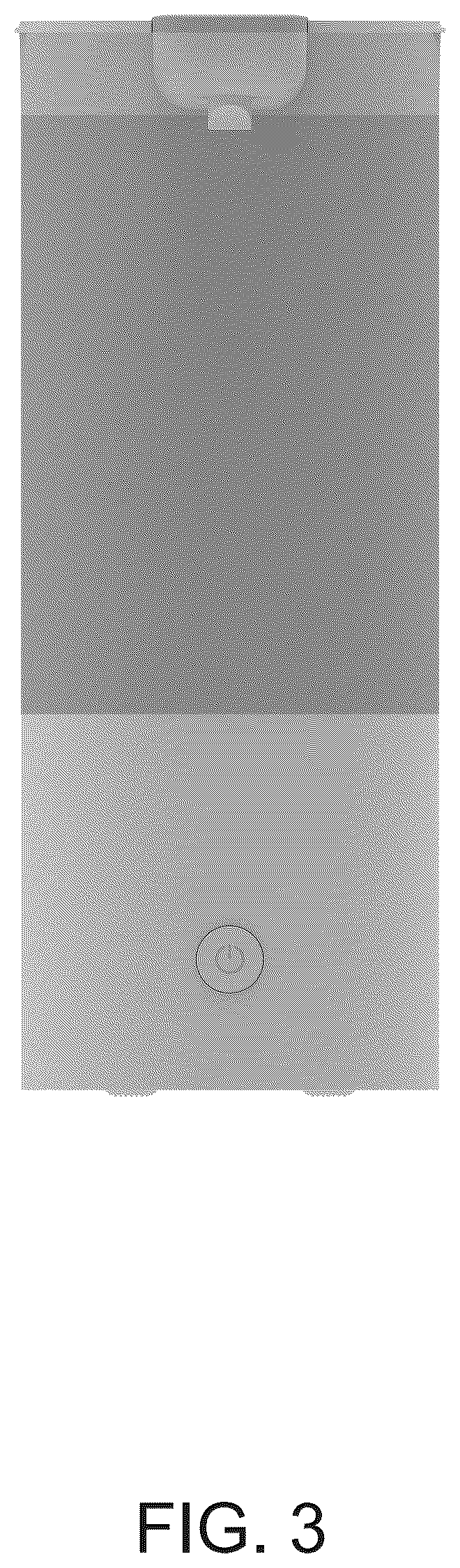

is a front view thereof;

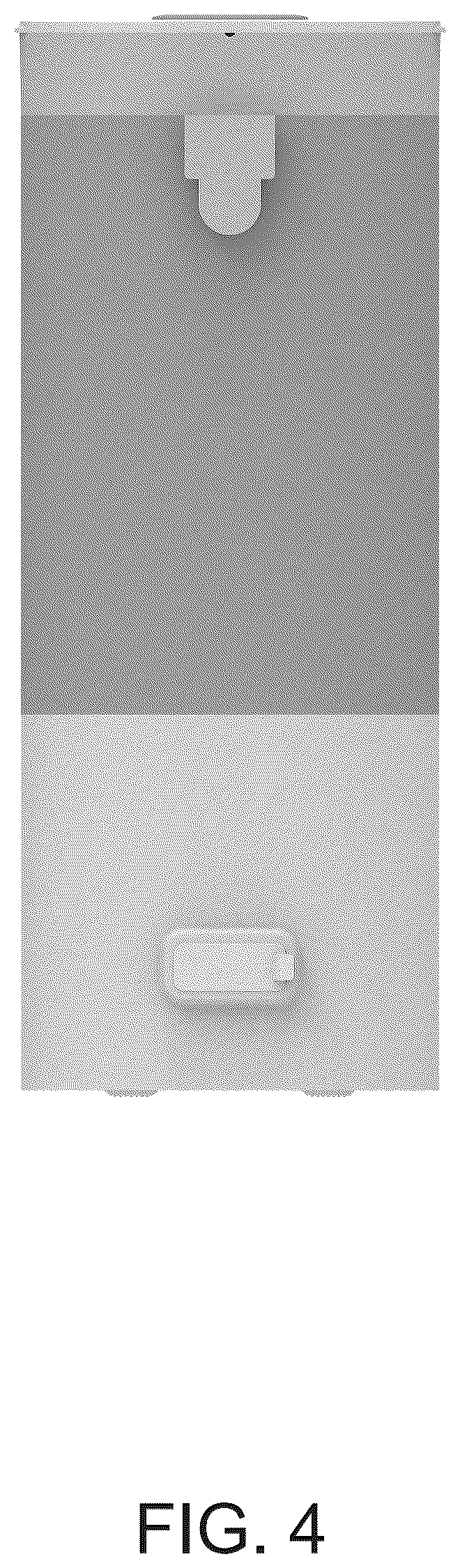

is a rear view thereof;

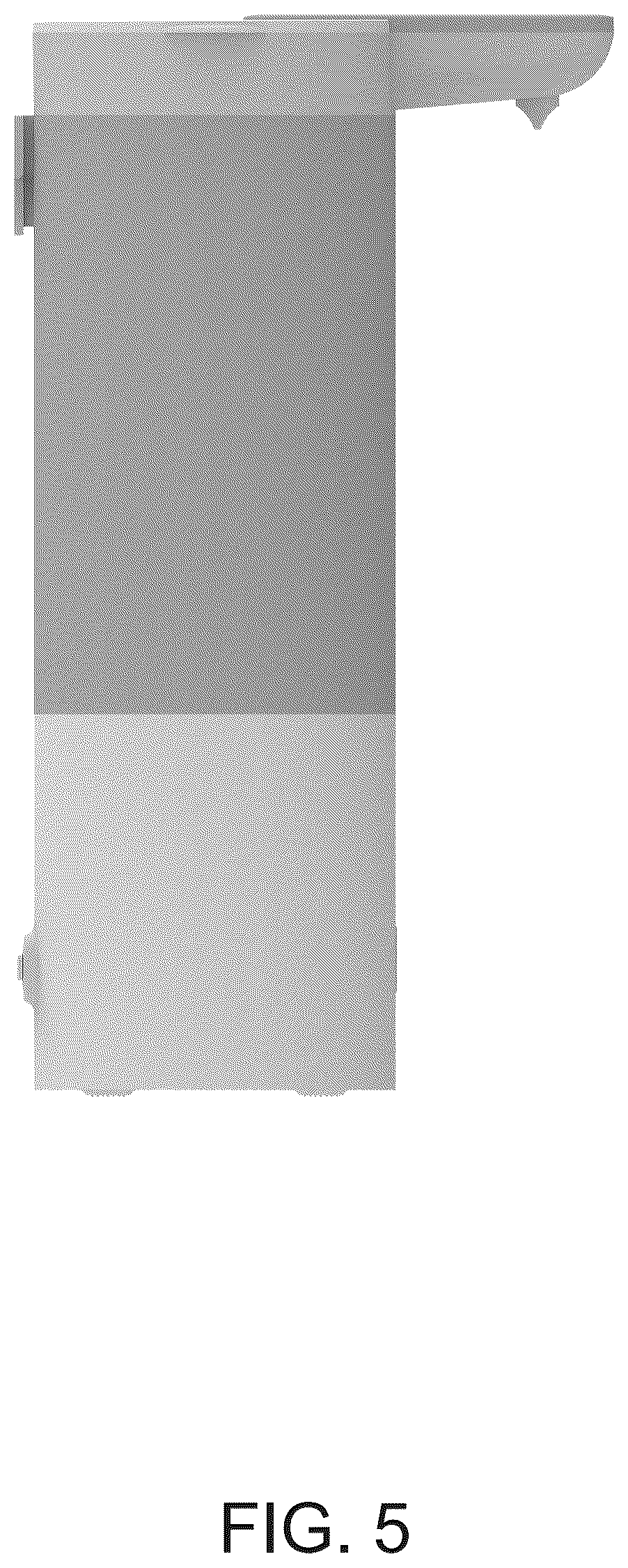

is a left side view thereof;

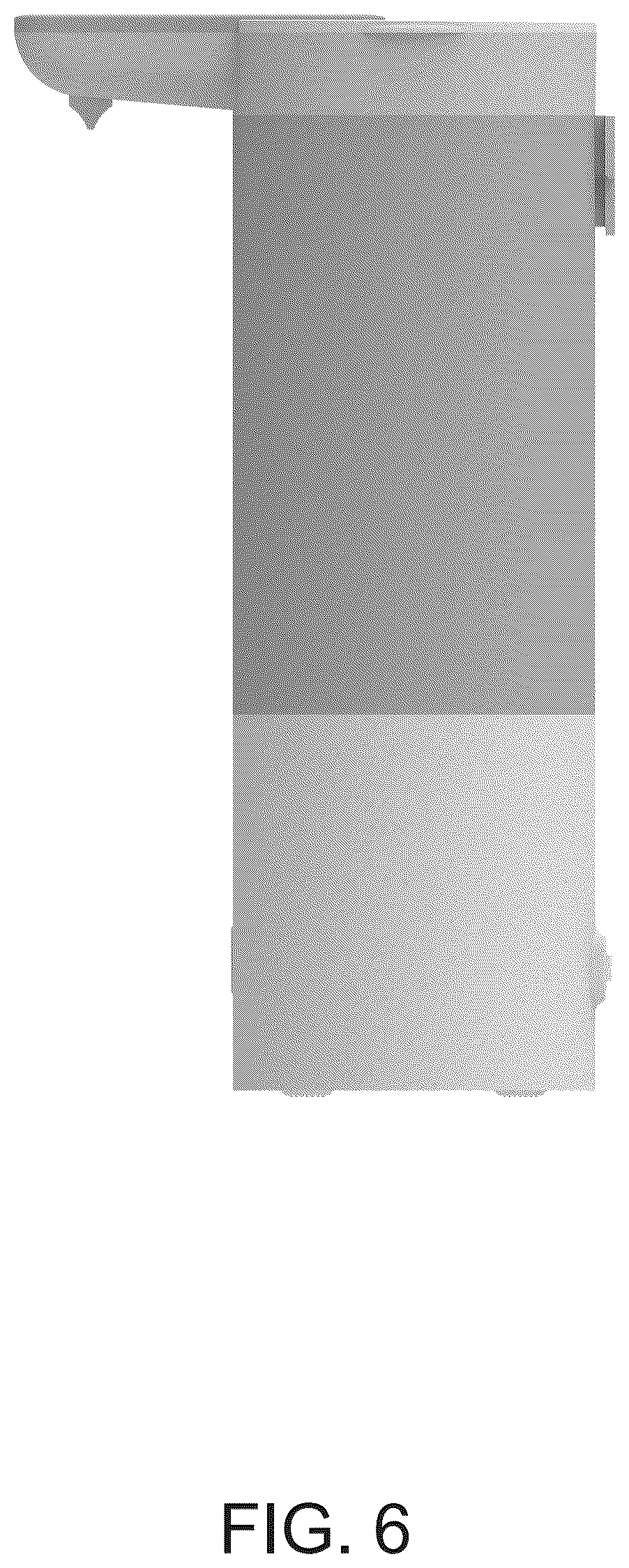

is a right side view thereof;

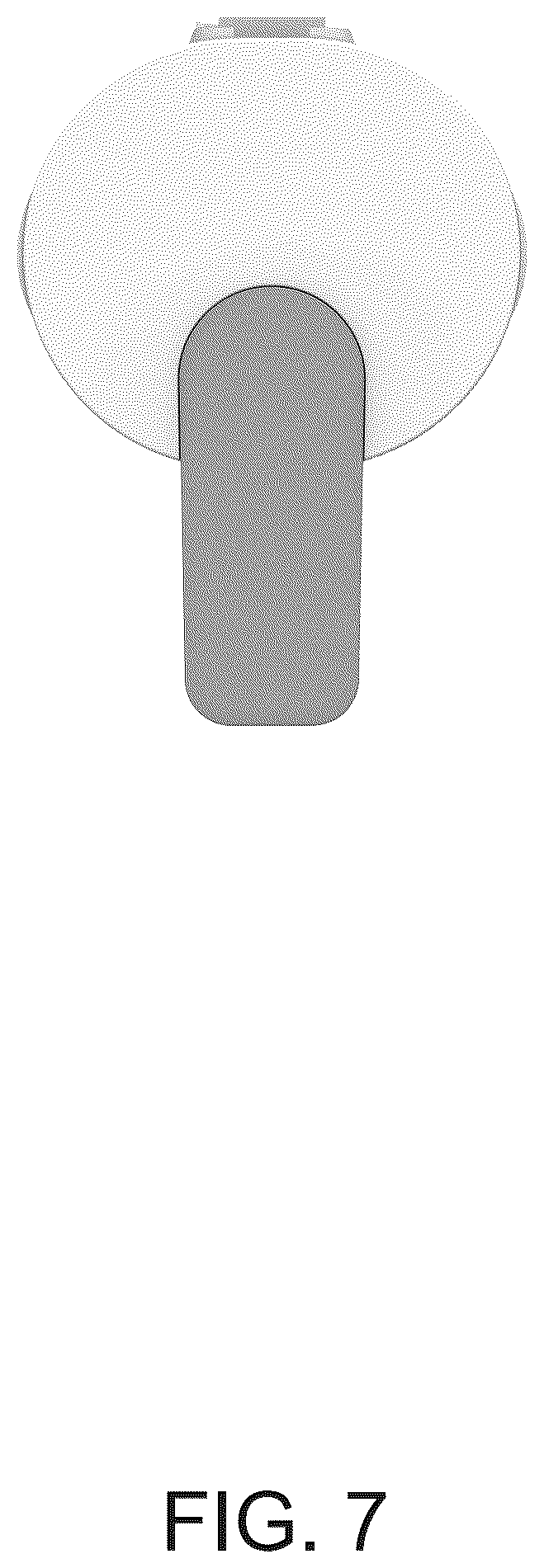

is a top plan view thereof; and,

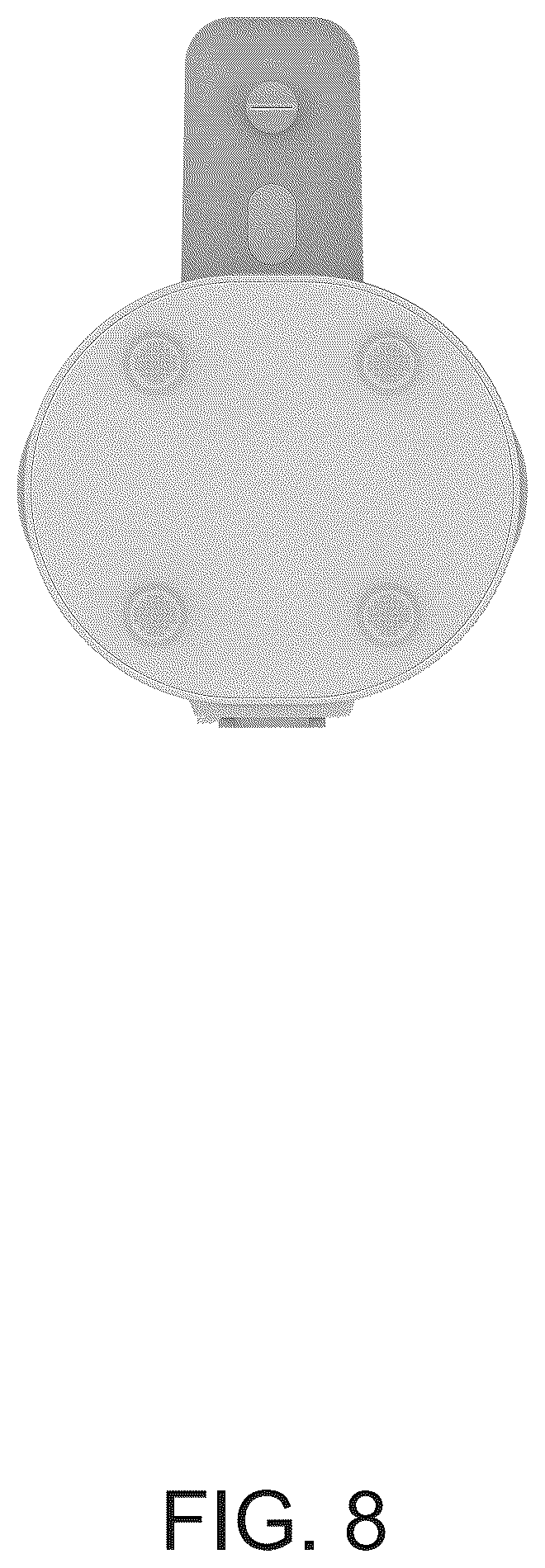

is a bottom plan view thereof.

Figures (8)

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
