Toilet Paper Storage Basket

USD1077511No. D 1,077,511designGranted 6/3/2025
Patent USD1077511 — Toilet paper storage basket — Figure 1
Fig. 1 · Toilet Paper Storage Basket

Claims (1)

Claim 1 (Independent)

The ornamental design for a toilet paper storage basket as shown and described.

Full Description

Show full text →

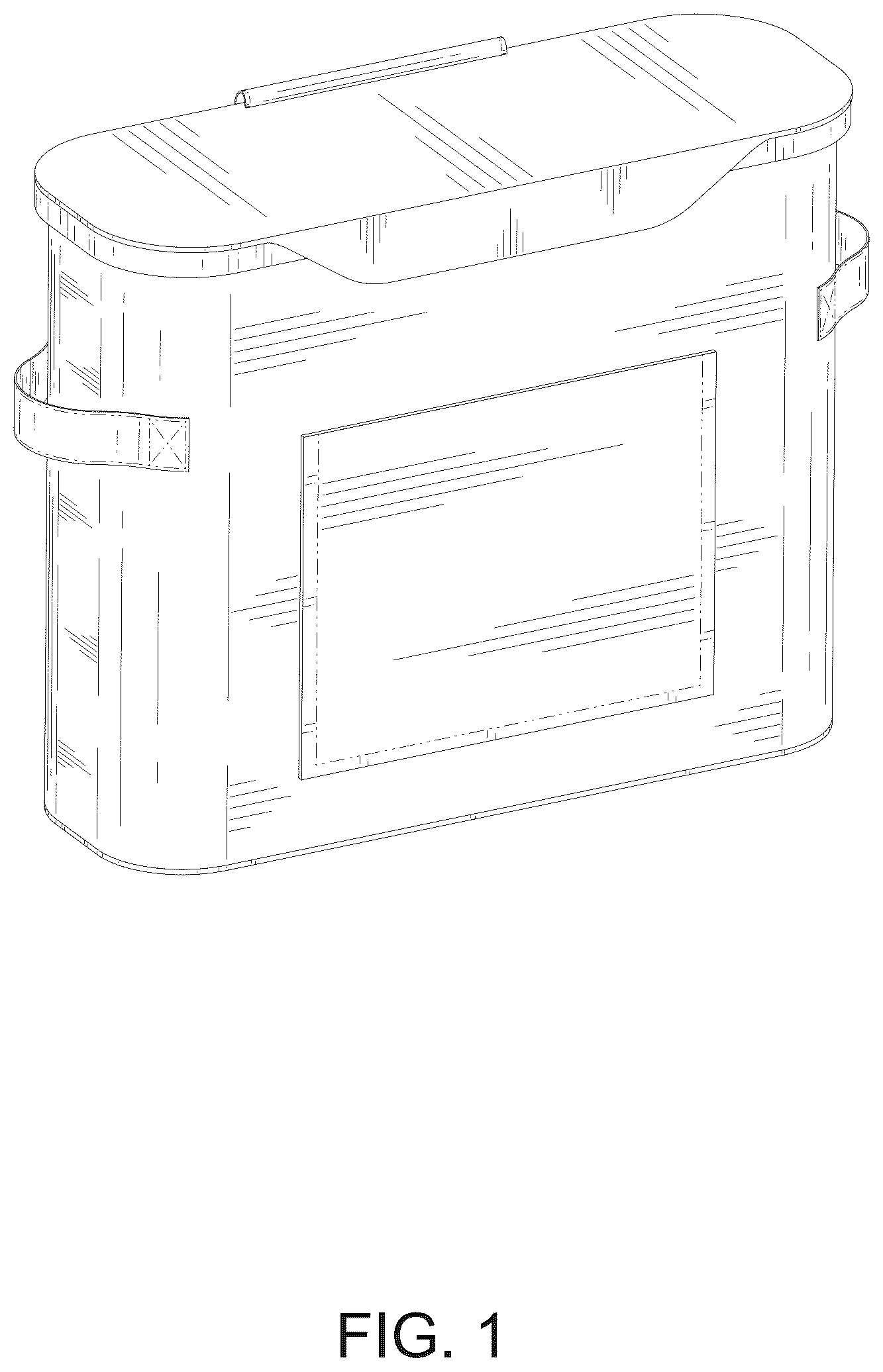

is a perspective view of a toilet paper storage basket showing my new design;

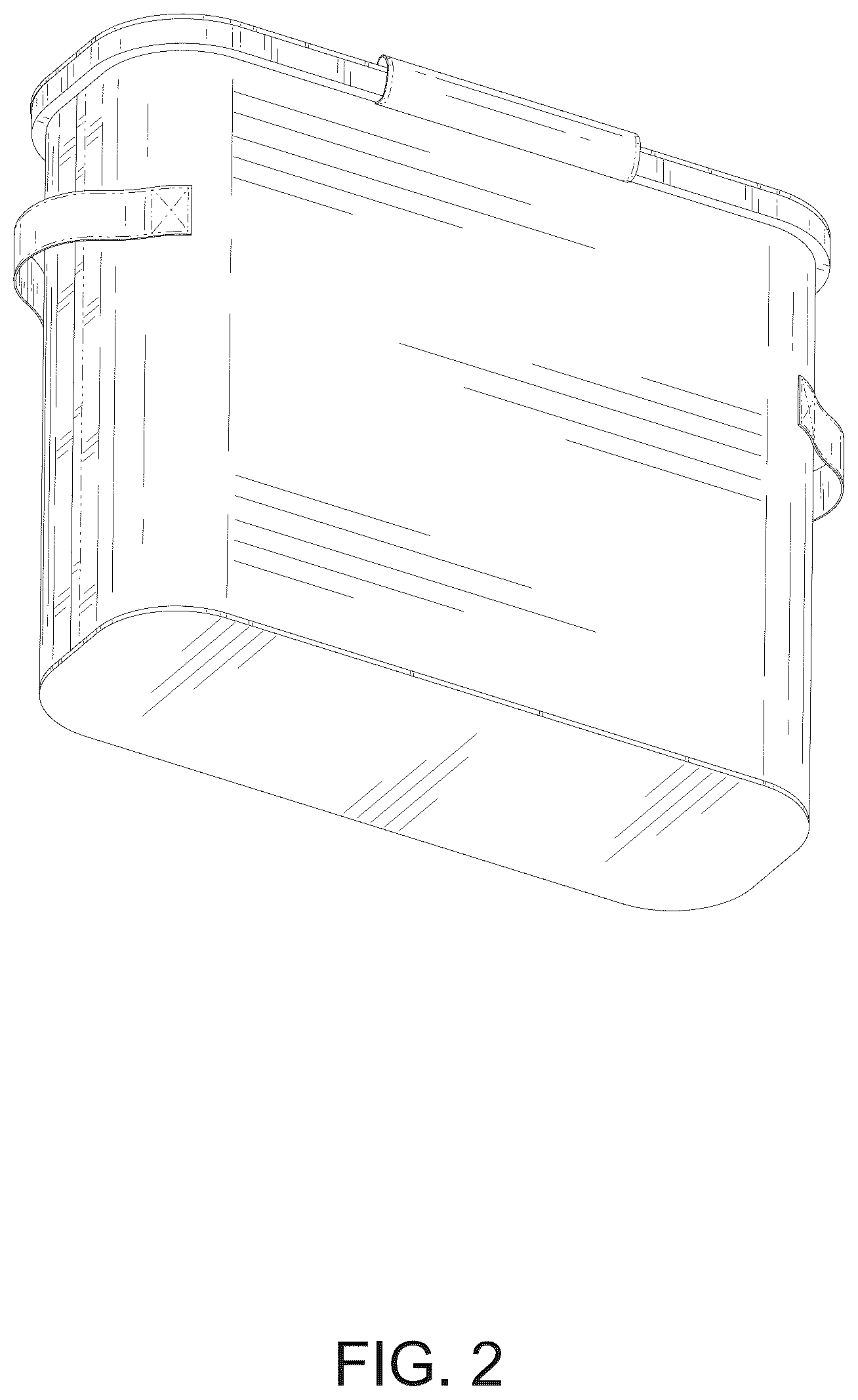

is another perspective view thereof;

is a front elevational view thereof;

is a rear elevational view thereof;

is a left side elevational view thereof;

is a right side elevational view thereof;

is a top plan view thereof; and,

is a bottom plan view thereof.

The dot-dot-dash broken lines in the drawings depict thread stitching of the toilet paper storage basket and form no part of the claimed design.

Figures (8)

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
