Chair

USD1077503No. D 1,077,503designGranted 6/3/2025
Patent USD1077503 — Chair — Figure 1
Fig. 1 · Chair

Claims (1)

Claim 1 (Independent)

The ornamental design for a chair, as shown and described.

Full Description

Show full text →

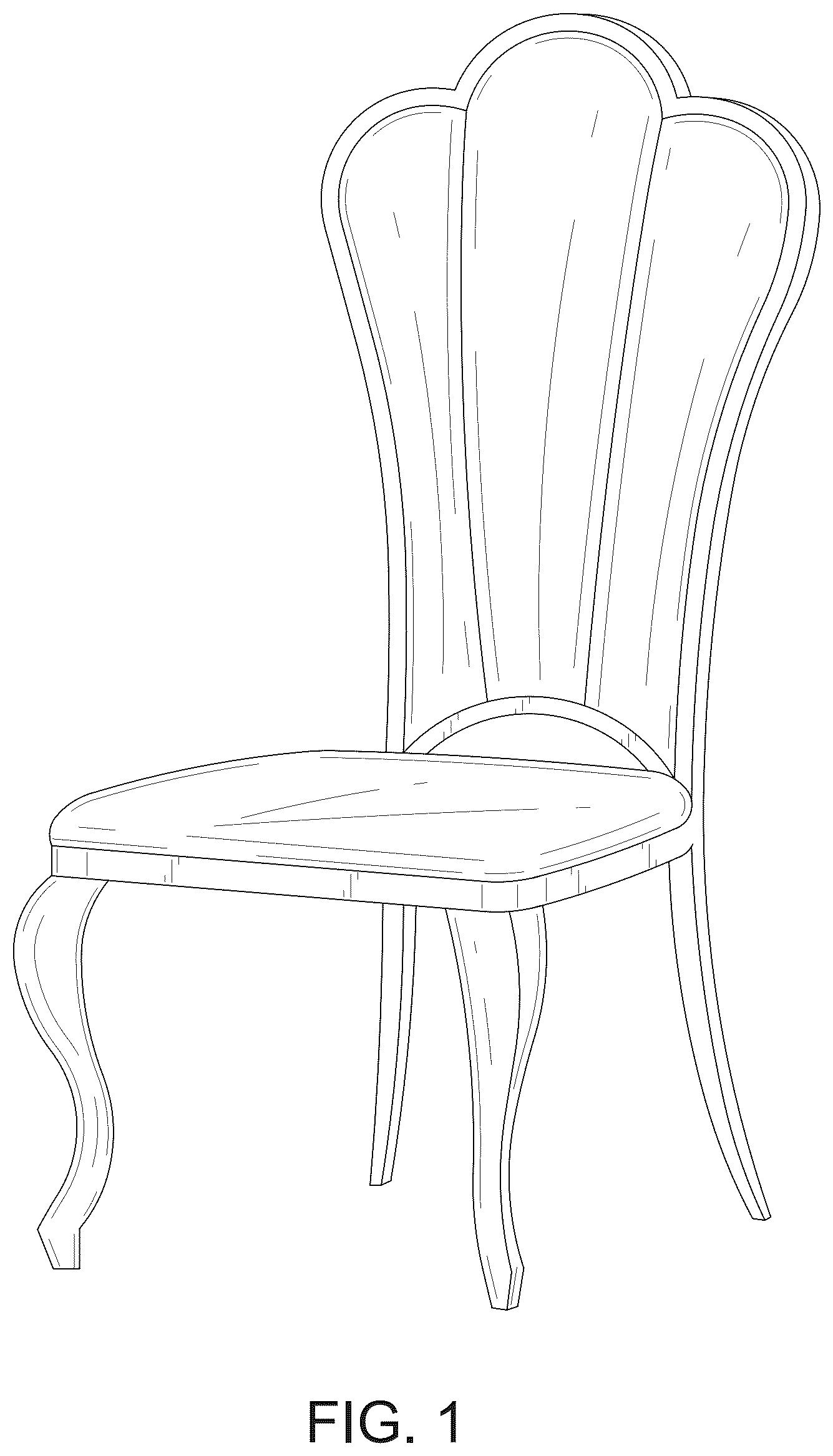

is a perspective view of a chair, showing my new design;

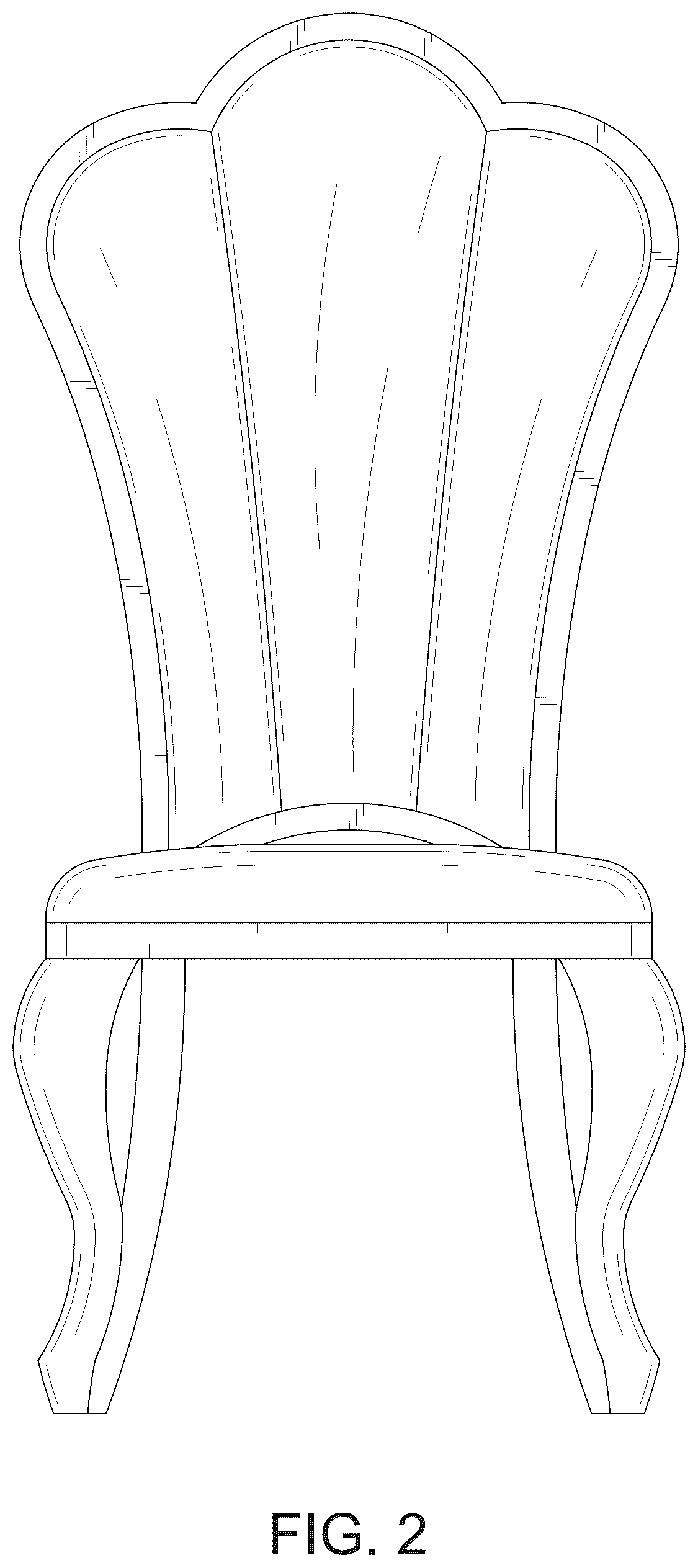

is a front view thereof;

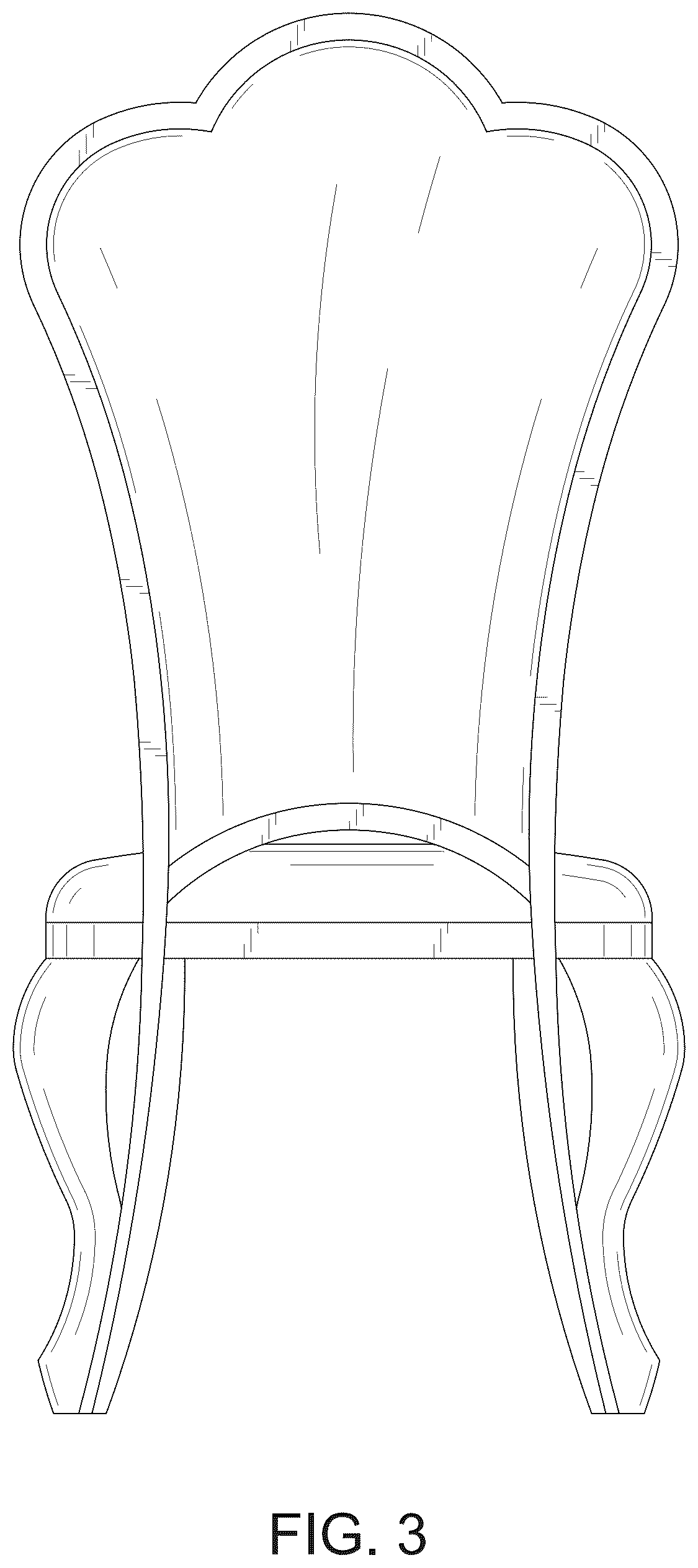

is a rear view thereof;

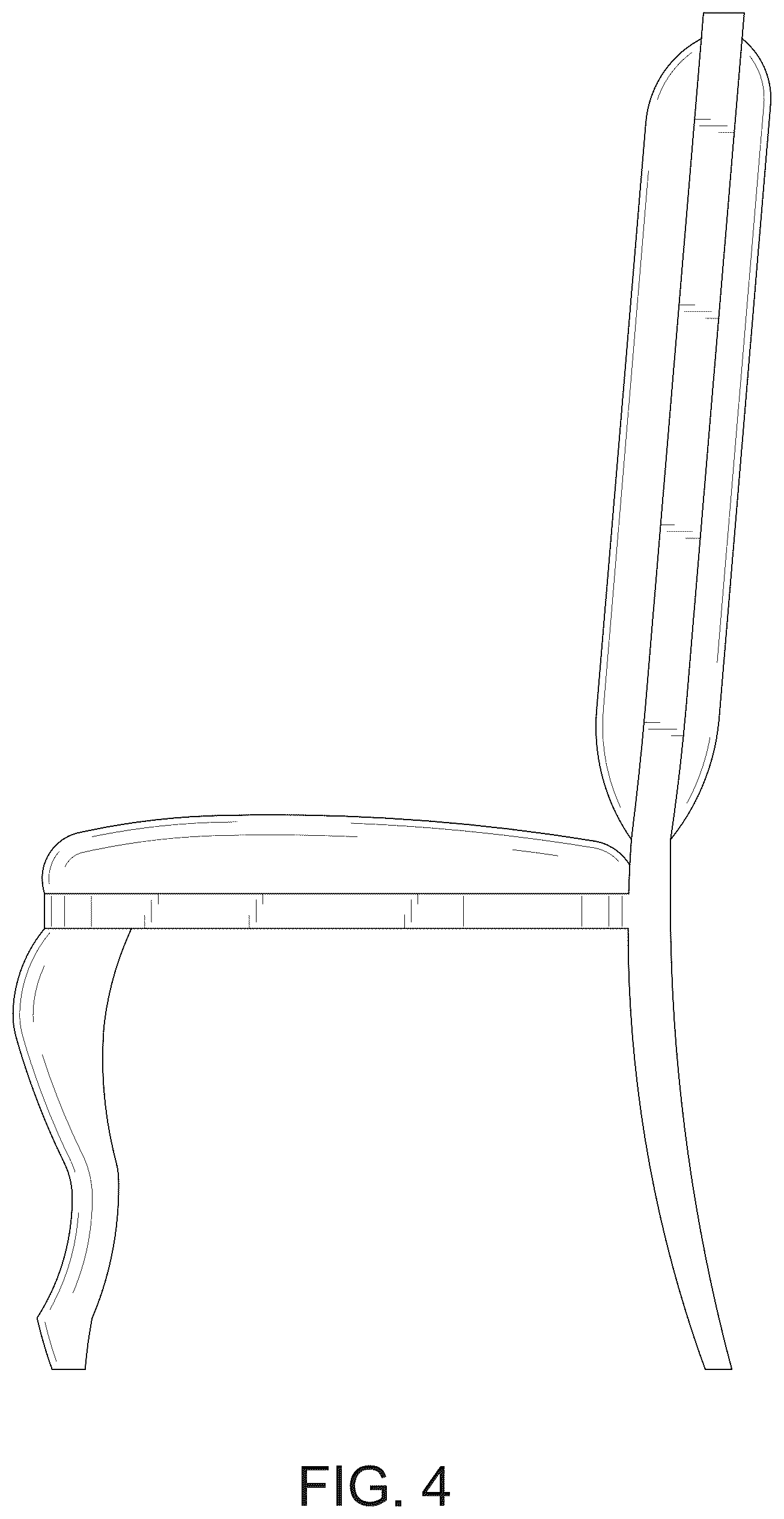

is a right side view thereof;

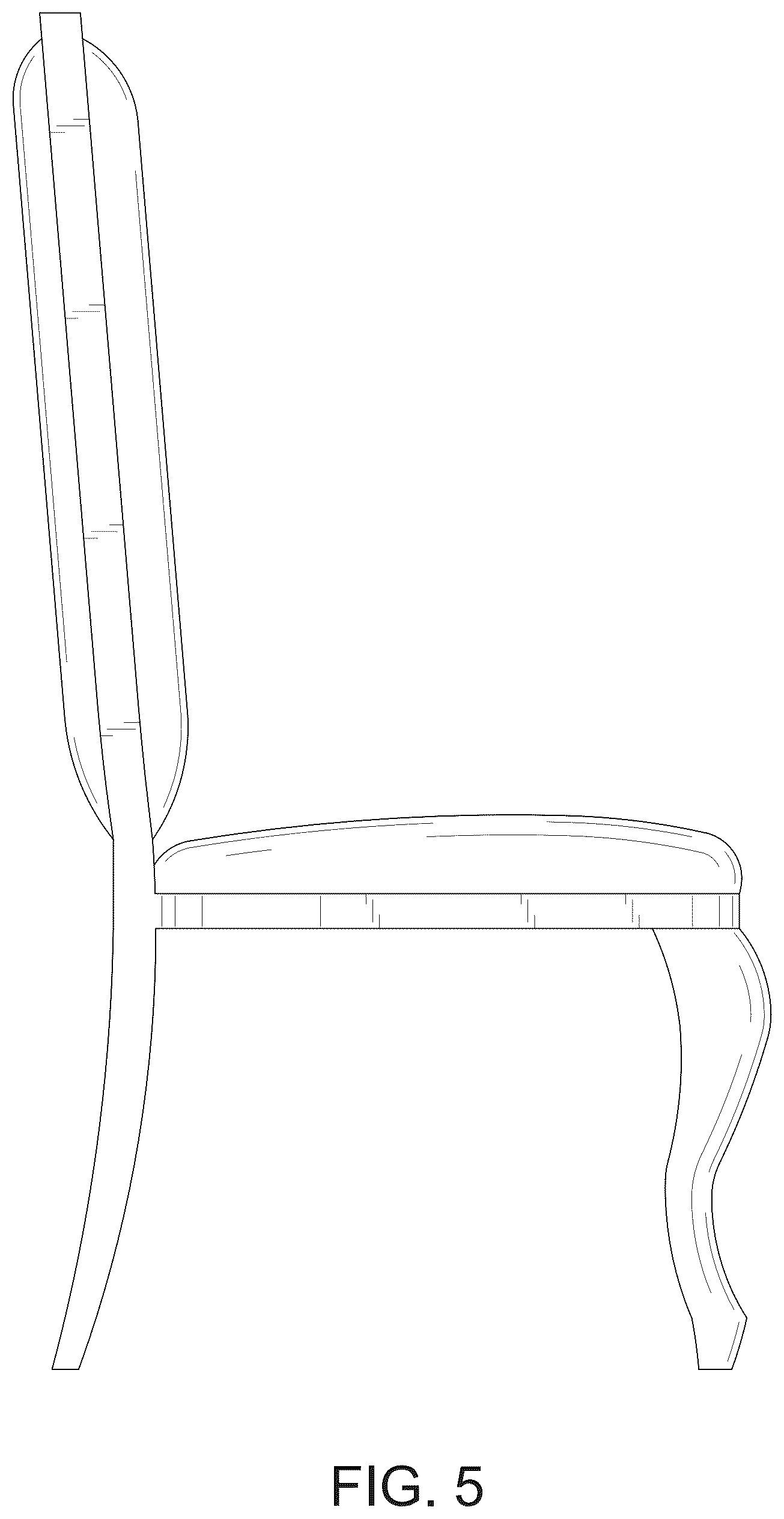

is a left side view thereof; and,

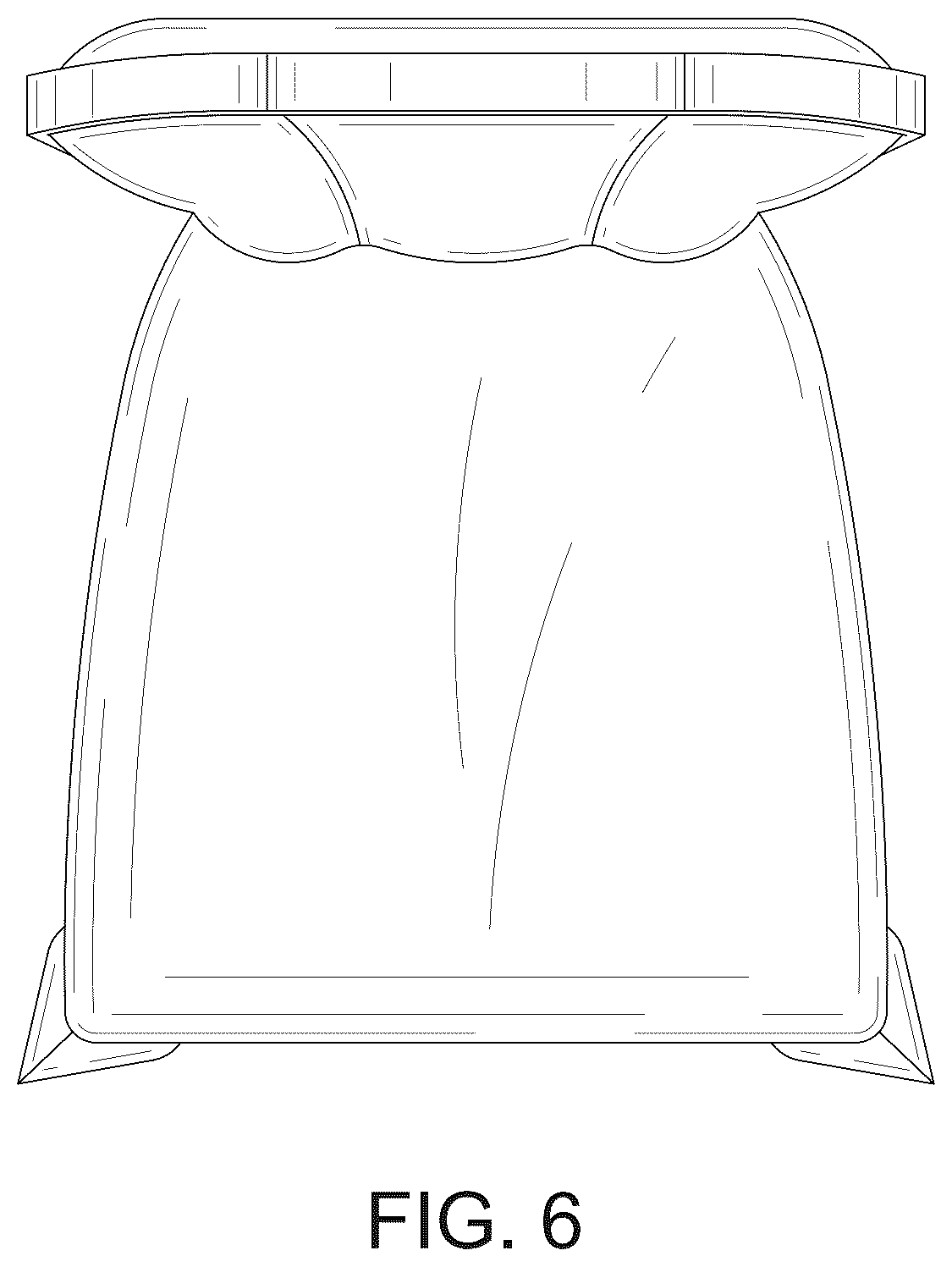

is a top view thereof.

All the broken lines in the drawings depict portions of the chair that form no part of the claimed design.
