Launching Tube for Consumer Fireworks Aerial Display Shells

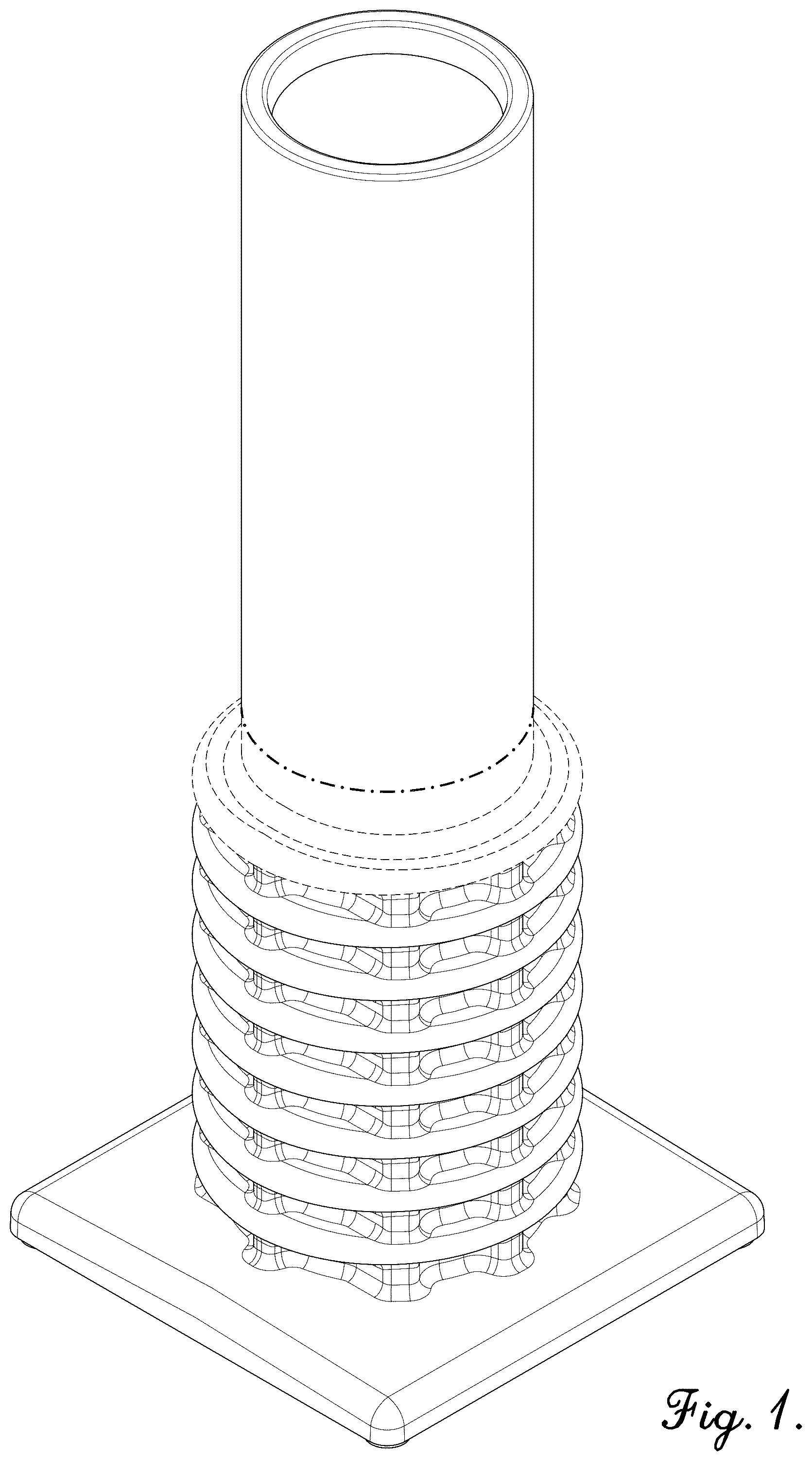

FIG. 1 is a top perspective view of a launching tube for consumer fireworks aerial display shells according to our new design;

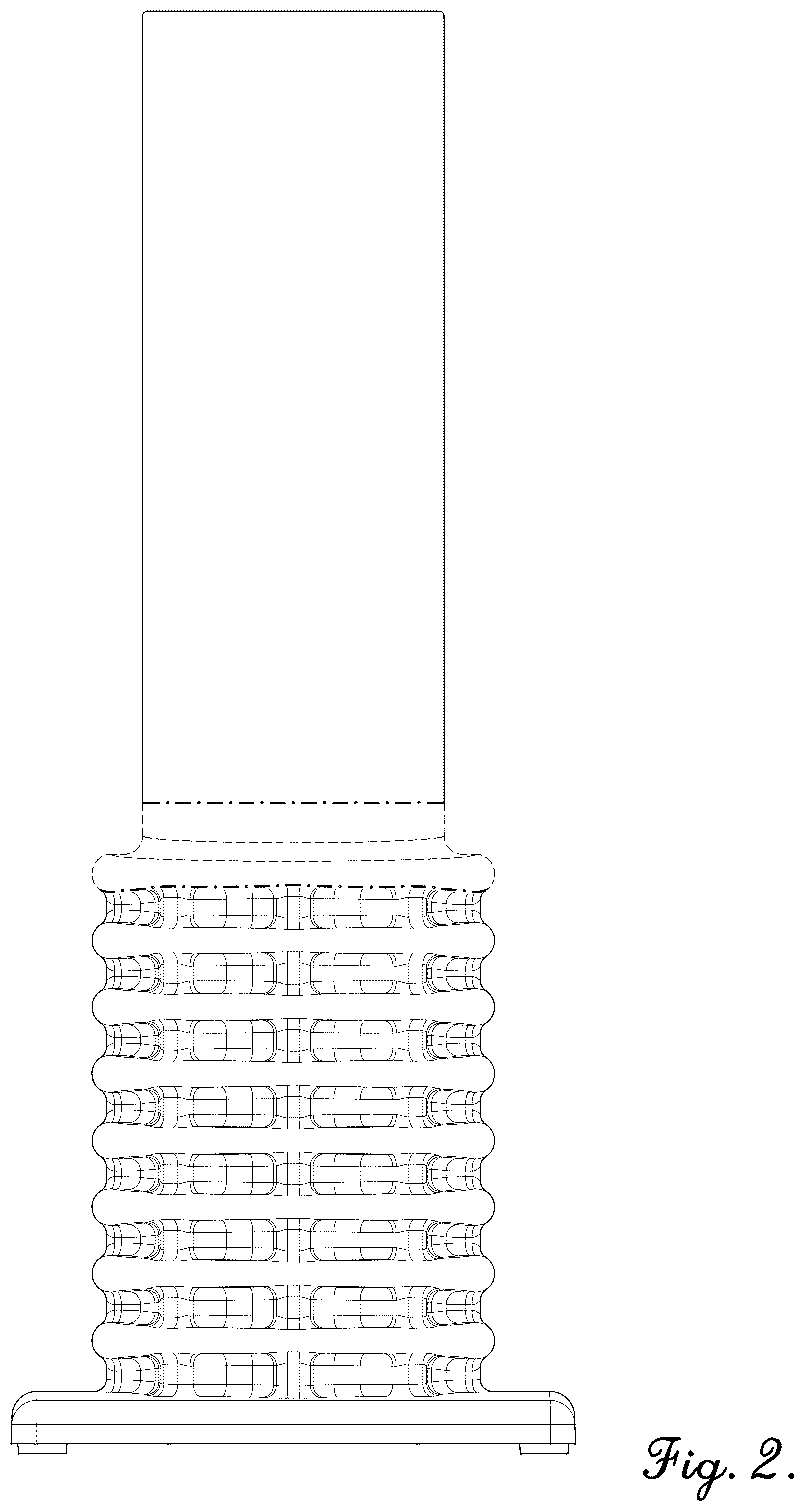

FIG. 2 is a front elevation view thereof, the rear elevation view being identical;

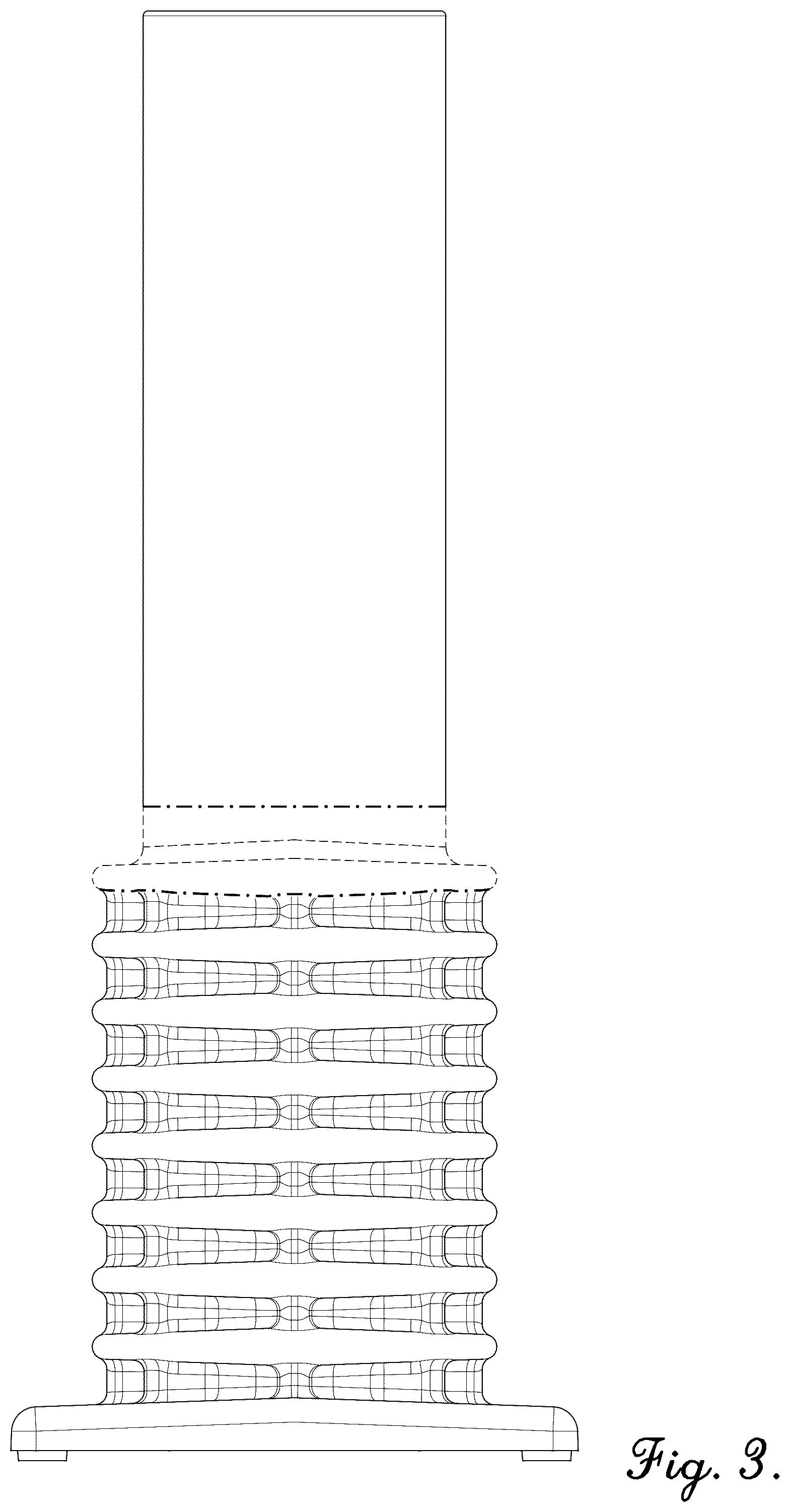

FIG. 3 is a side elevation view thereof, the opposite side view being identical;

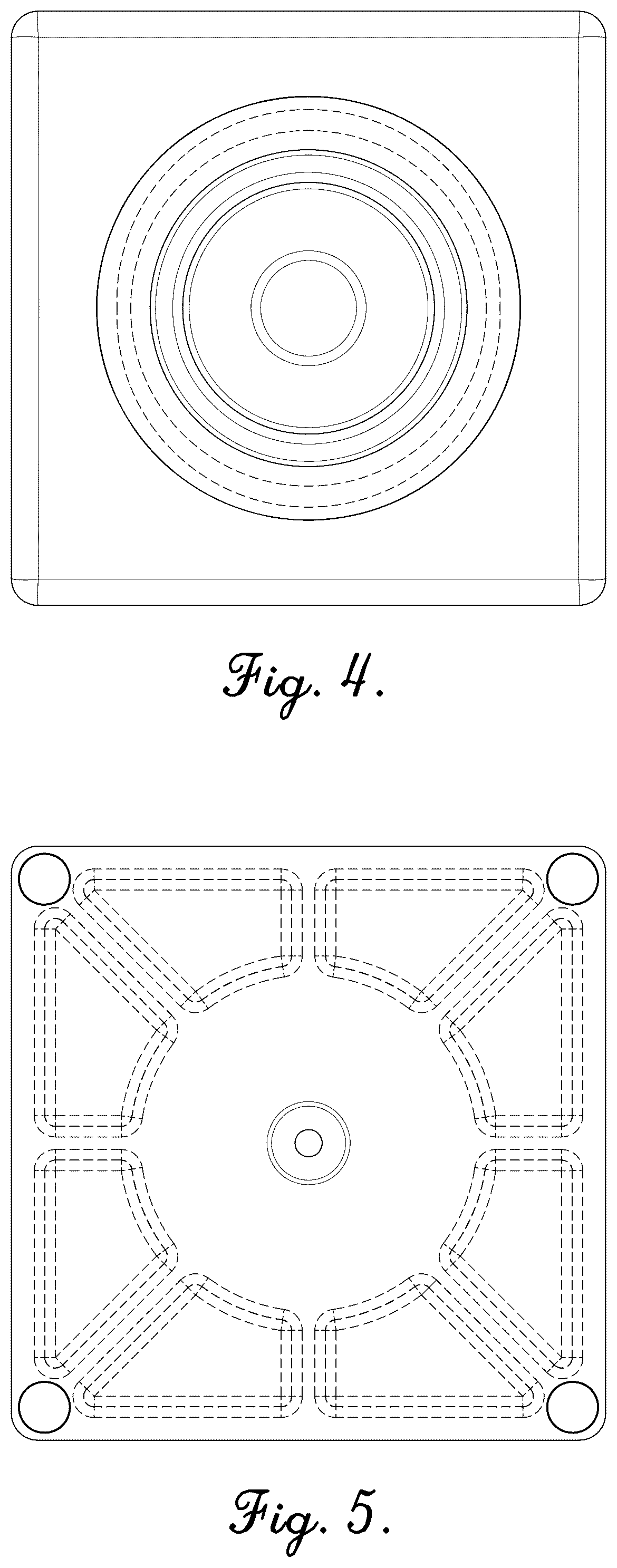

FIG. 4 is a top plan view thereof; and,

FIG. 5 is a bottom plan view thereof.

The dot-dash lines in the drawings are boundary lines, which define the bounds of the claimed design. It is understood that the claimed design extends to these boundaries but does not include the boundaries and the area between the boundaries. The dashed broken lines in the drawings depict portions of the launching tube for consumer fireworks aerial display shells that form no part of the claimed design.
