Music Boxing Machine

USD1077112No. D 1,077,112designGranted 5/27/2025
Patent USD1077112 — Music boxing machine — Figure 1
Fig. 1 · Music Boxing Machine

Claims (1)

Claim 1 (Independent)

The ornamental design for a music boxing machine as shown and described.

Full Description

Show full text →

is a perspective view of a music boxing machine showing the claimed design;

is another perspective view thereof;

is a front elevational view thereof;

is a rear elevational view thereof;

is a left side view thereof;

is a right side view thereof;

is a top plan view thereof; and,

is a bottom plan view thereof.

The broken lines depict portions of the music boxing machine that form no part of the claimed design.

Figures (8)

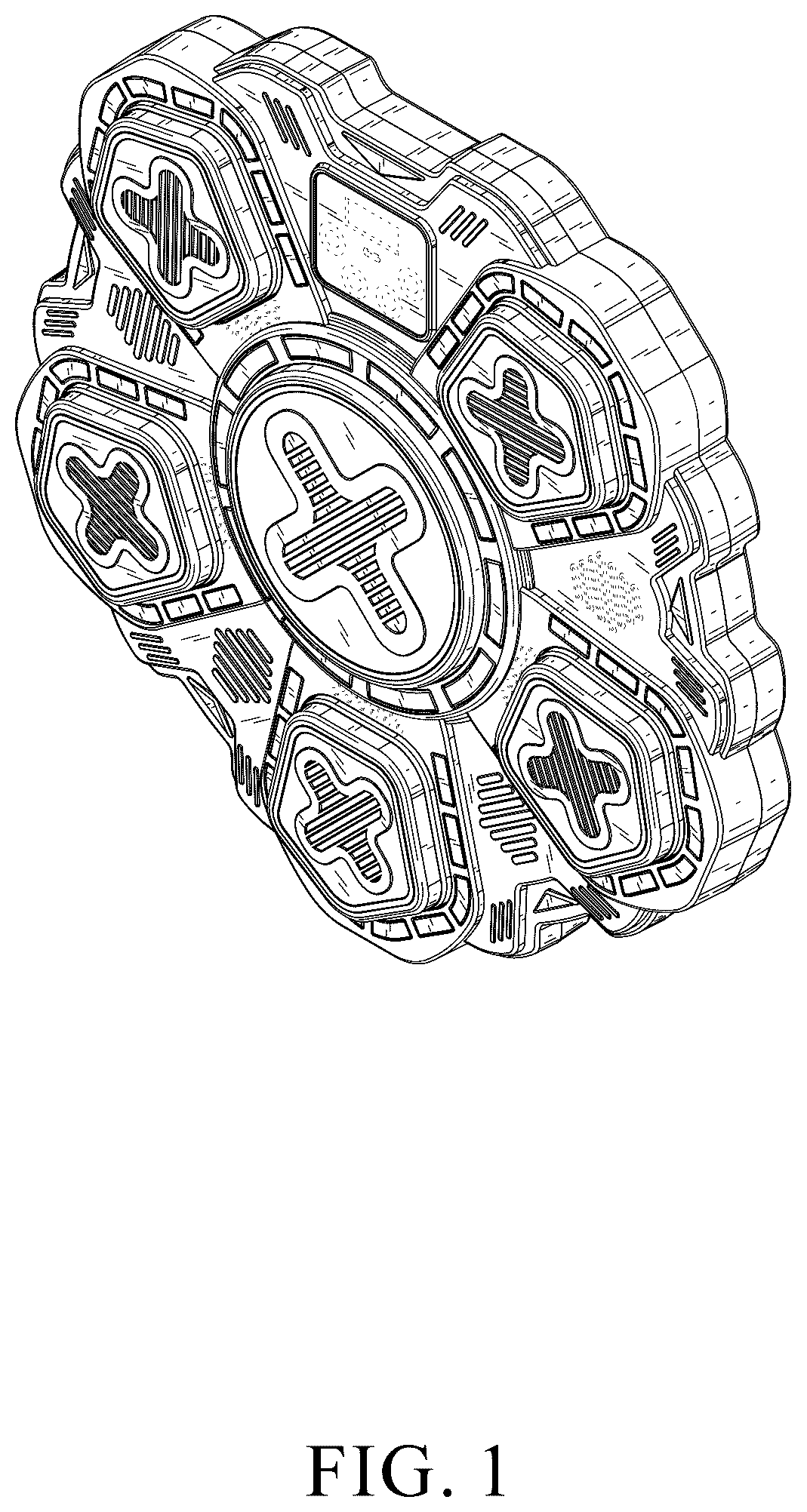

Fig. 1

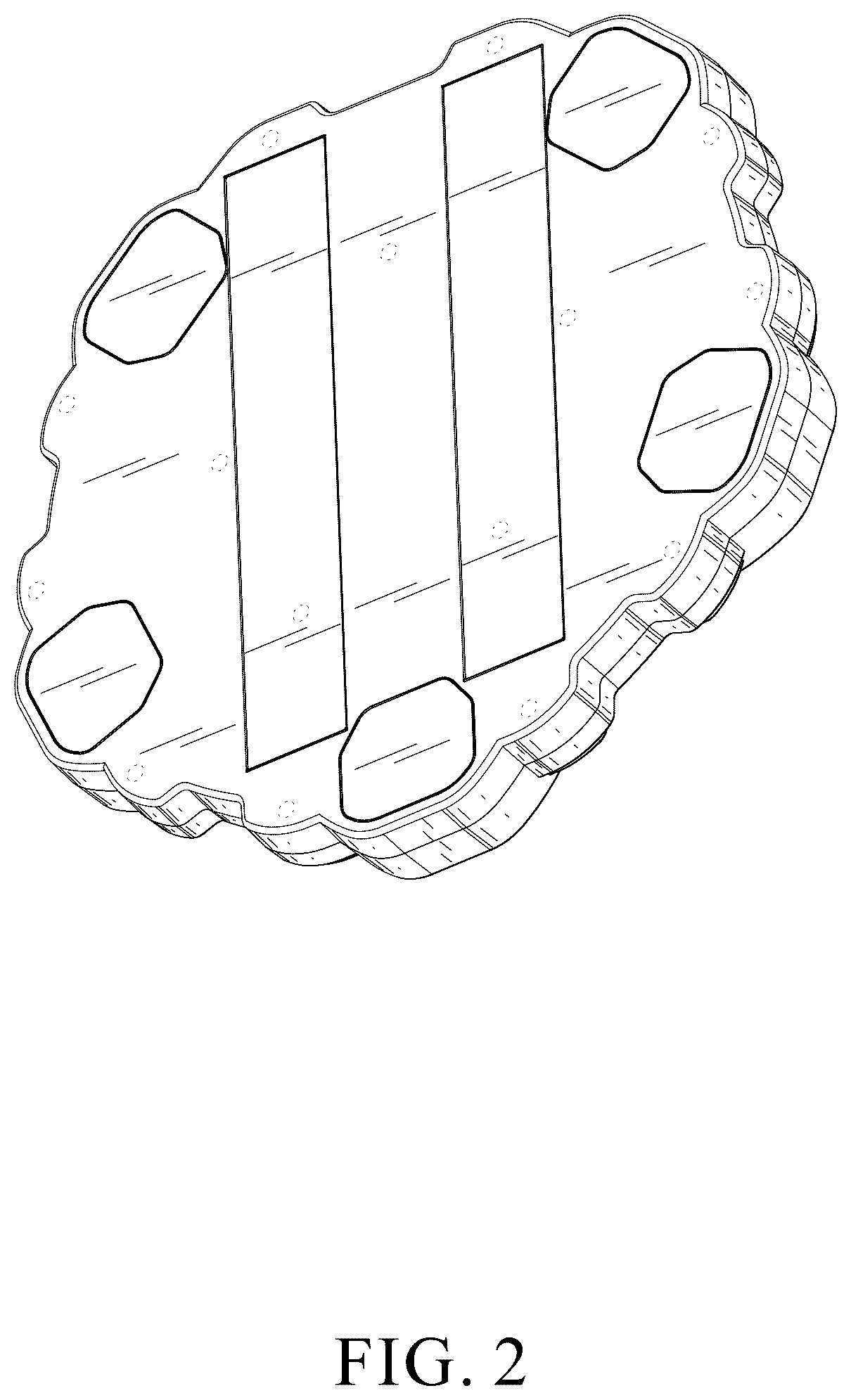

Fig. 2

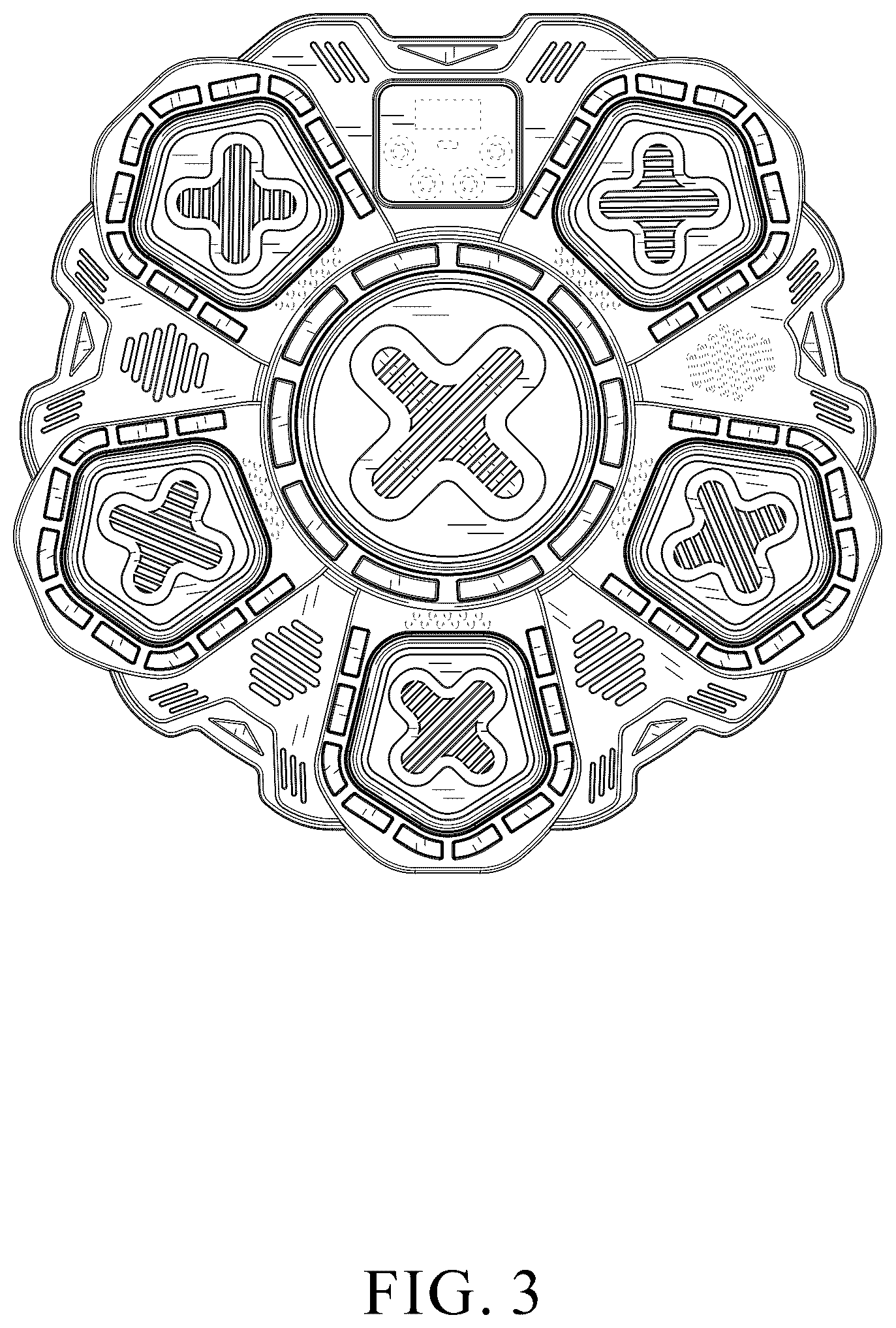

Fig. 3

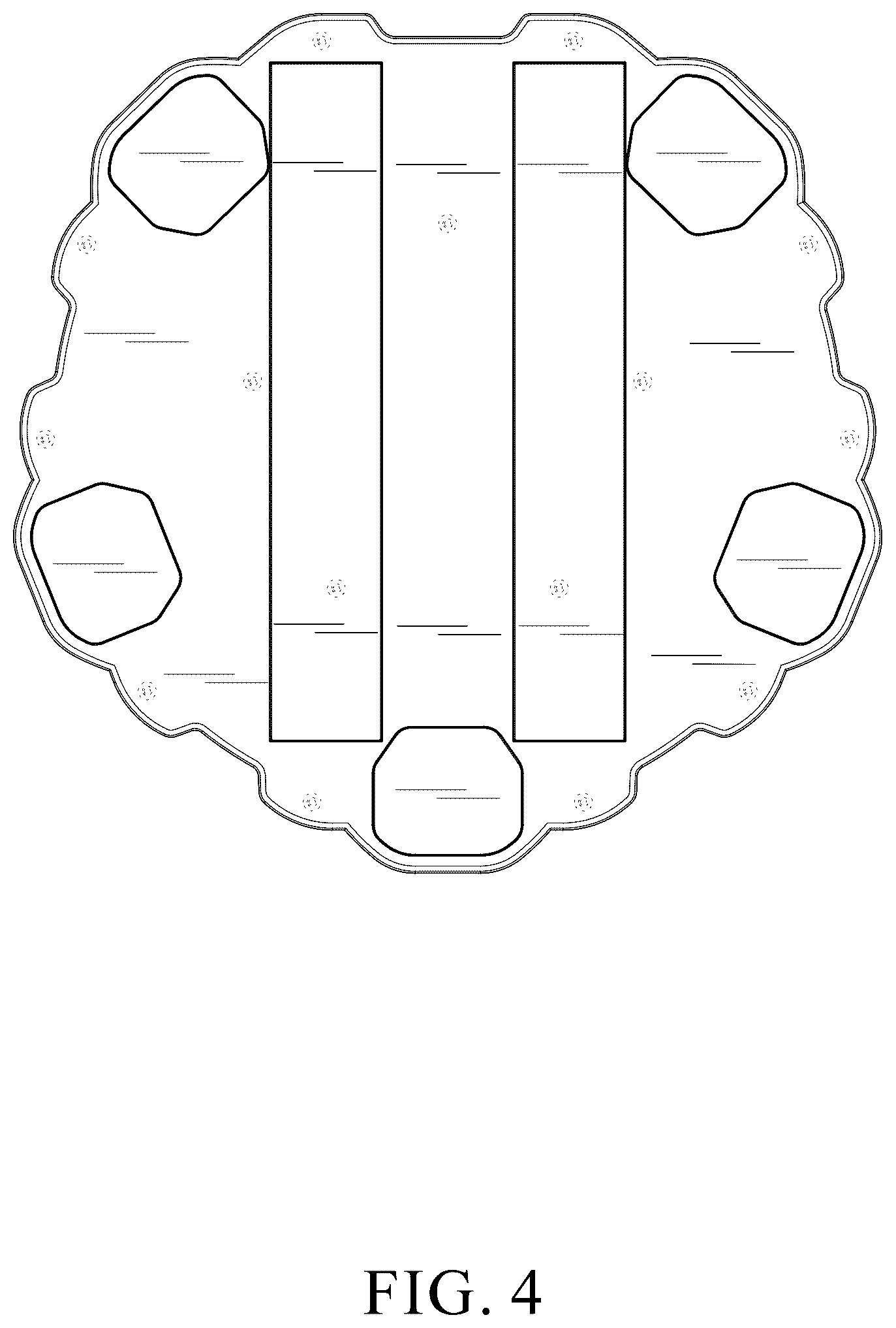

Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
