Docking Station

USD1076919No. D 1,076,919designGranted 5/27/2025
Patent USD1076919 — Docking station — Figure 1
Fig. 1 · Docking Station

Claims (1)

Claim 1 (Independent)

The ornamental design for a docking station, as shown and described.

Full Description

Show full text →

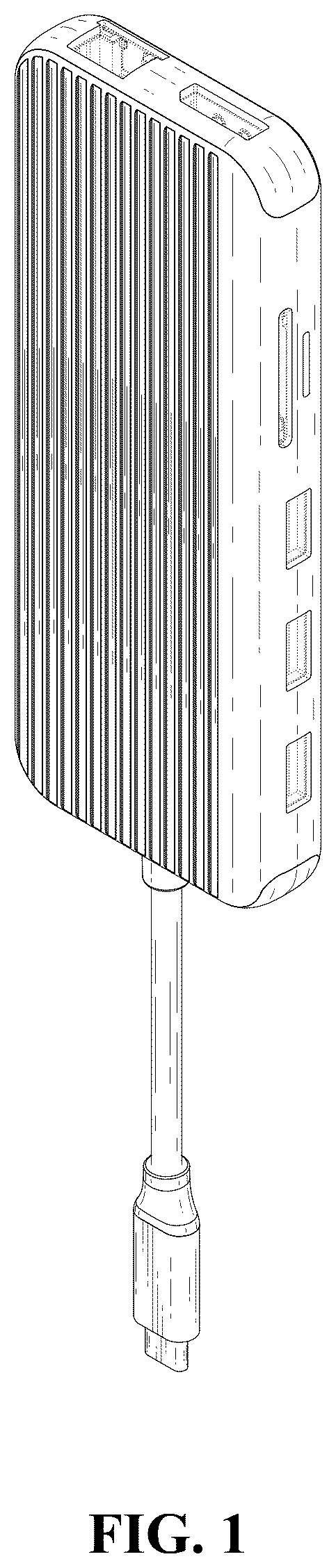

is a front perspective view of a docking station, showing our new design;

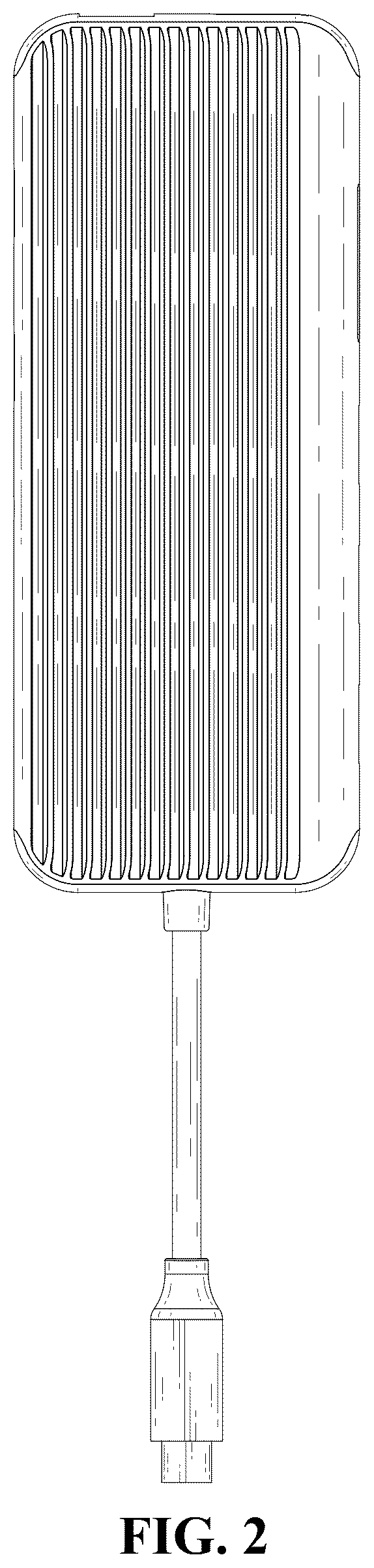

is a front view thereof;

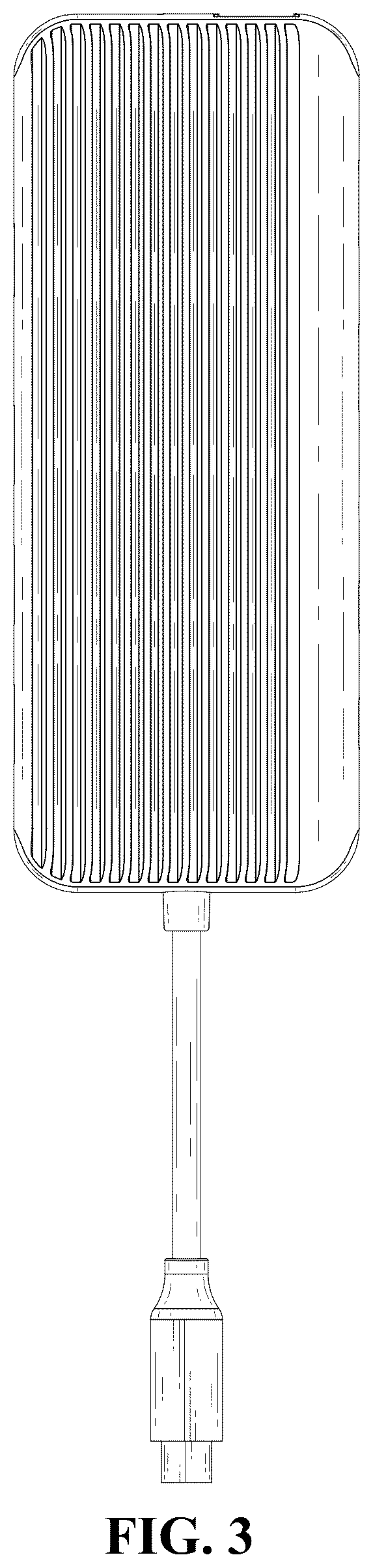

is a rear view thereof;

is a left side view thereof;

is a right side view thereof;

is a top view thereof; and,

is a bottom view thereof.

The broken lines in the drawings illustrate the portions of the docking station, which form no part of the claimed design.
