Display Screen

USD1076843No. D 1,076,843designGranted 5/27/2025
Patent USD1076843 — Display screen — Figure 1
Fig. 1 · Display Screen

Claims (1)

Claim 1 (Independent)

The ornamental design for a display screen as shown and described.

Full Description

Show full text →

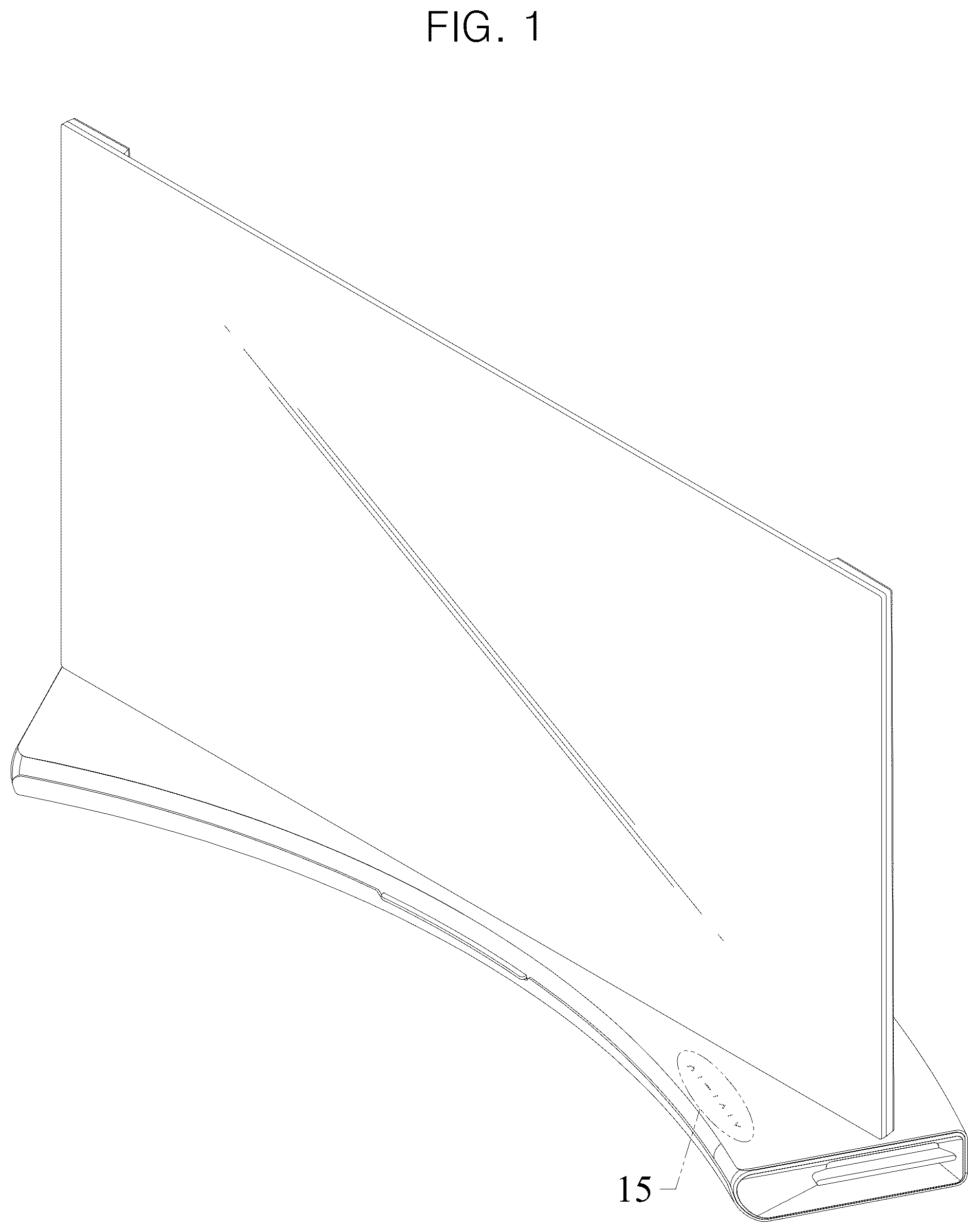

is a front, right, top perspective view of a display screen showing our new design in a first state in which the display screen is flat;

is a front view thereof;

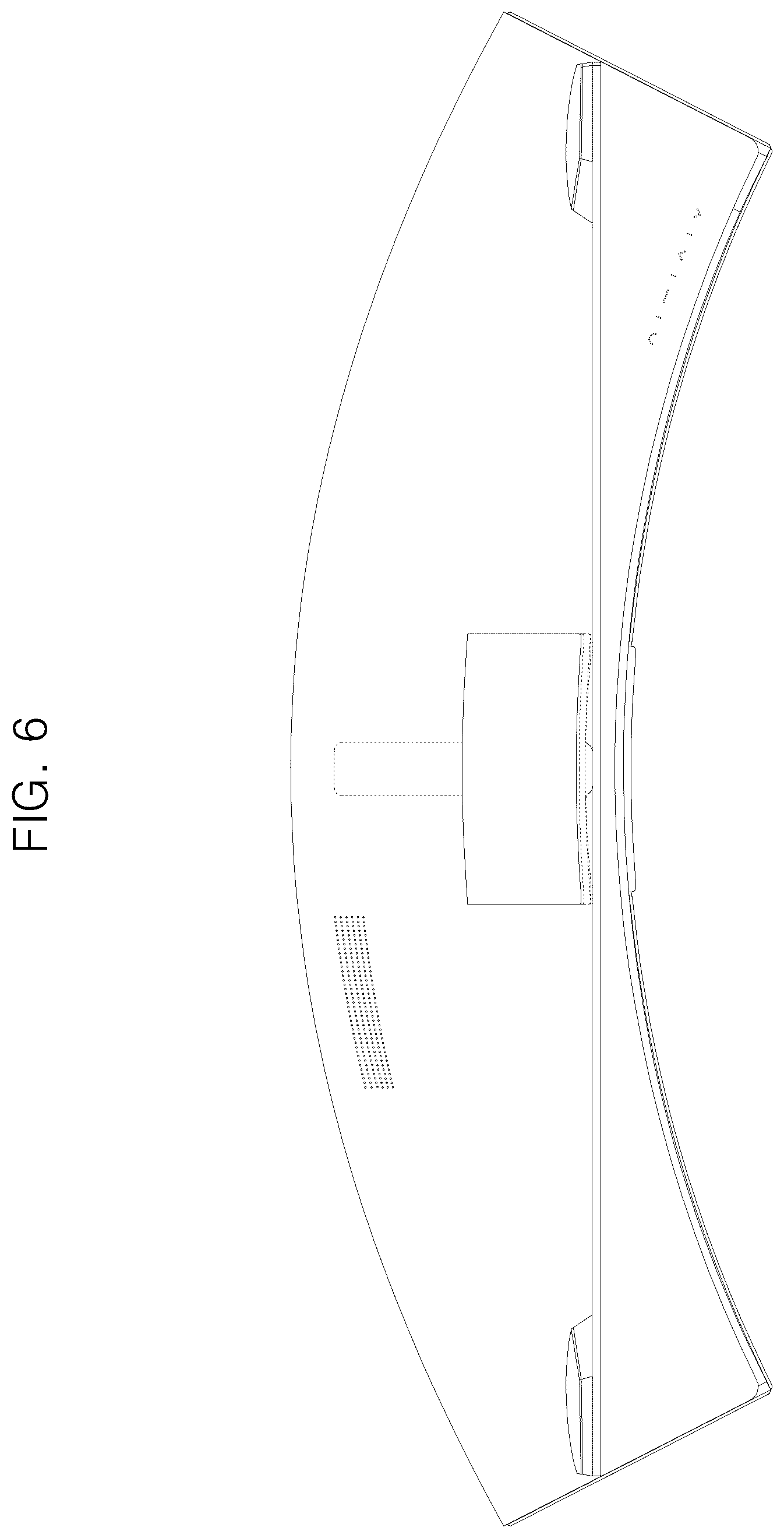

is a rear view thereof;

is a left side view thereof;

is a right side view thereof;

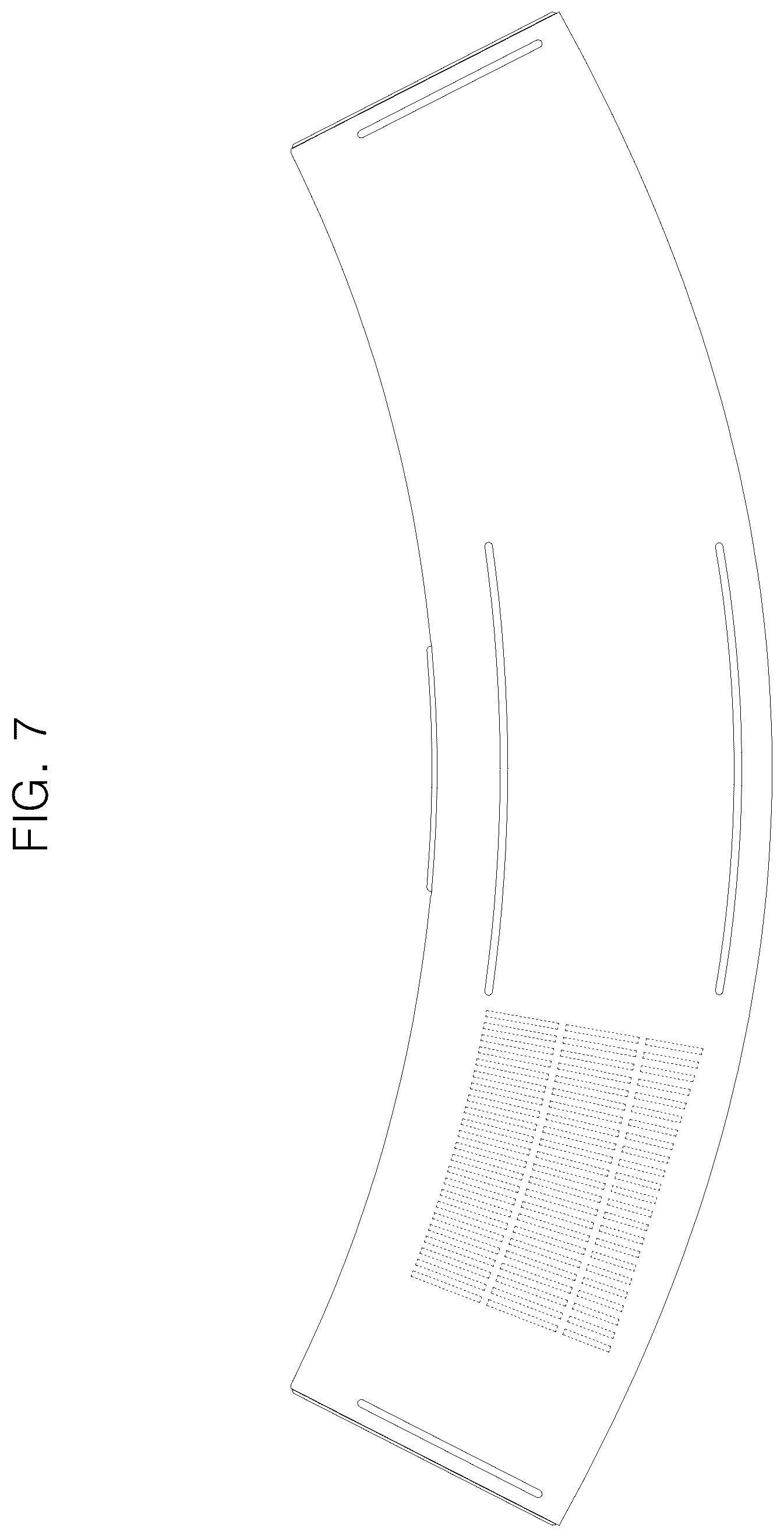

is a top plan view thereof;

is a bottom plan view thereof;

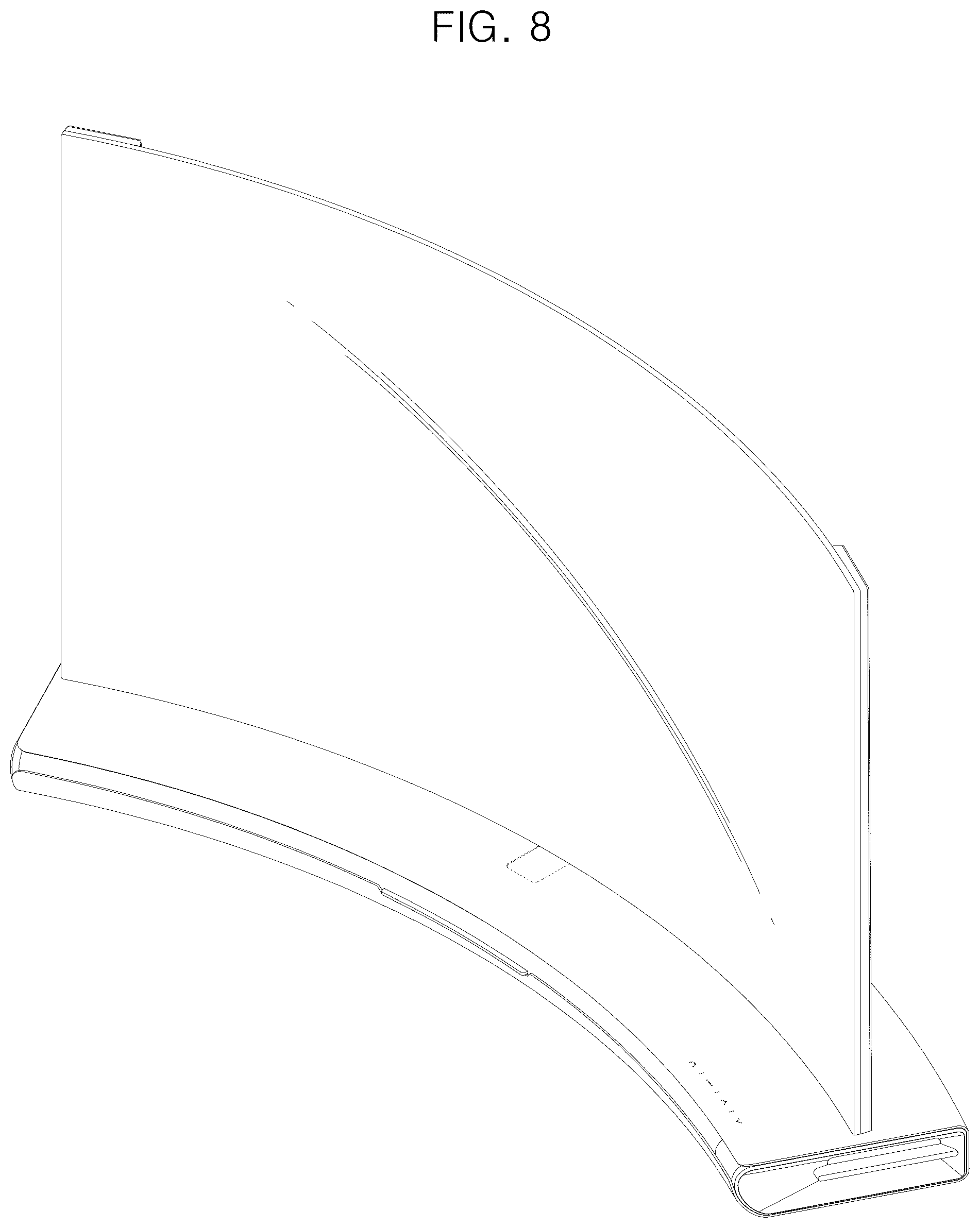

is a front, right, top perspective view of the display screen in a second state in which the display screen is curved;

is a front view thereof;

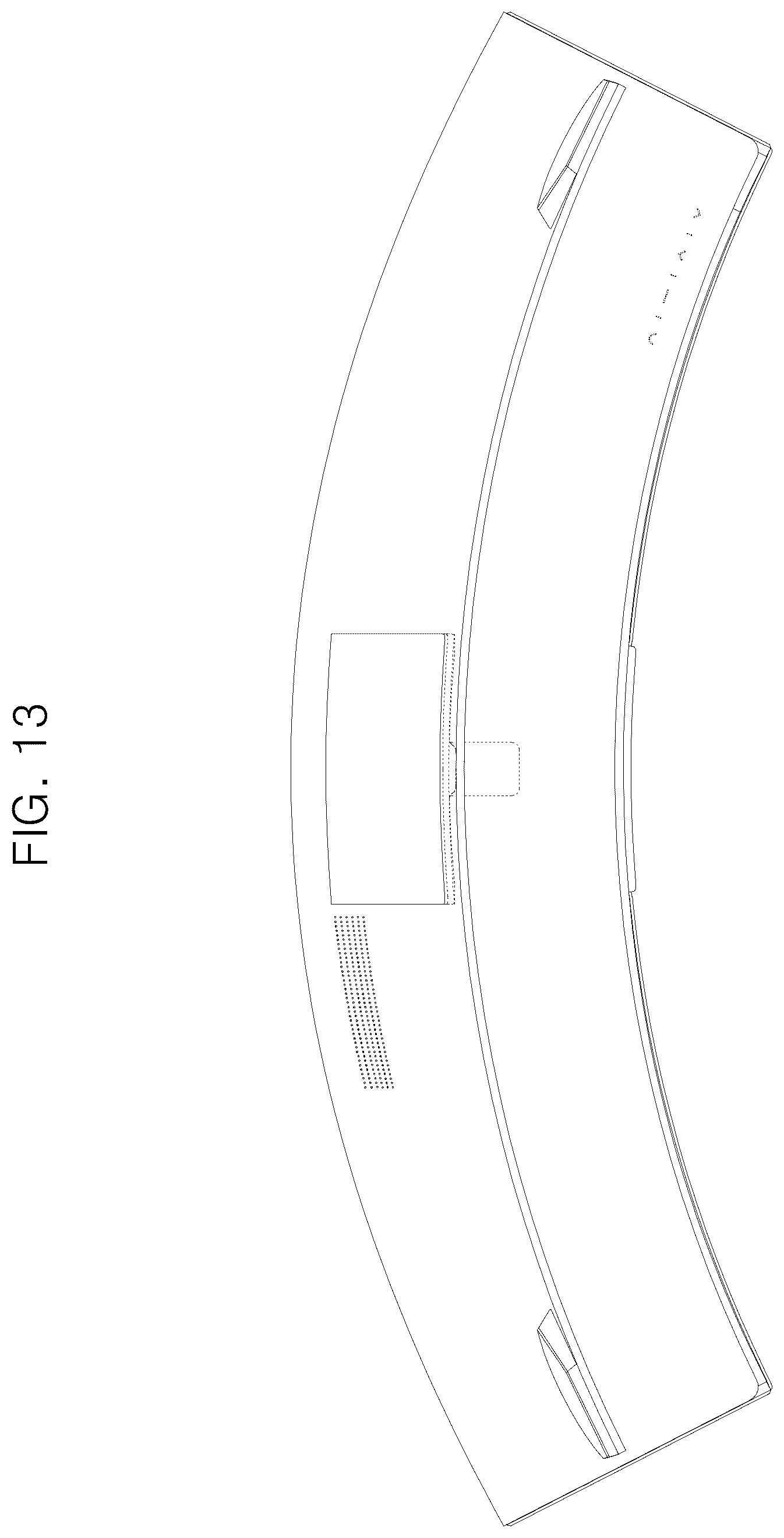

is a rear view thereof;

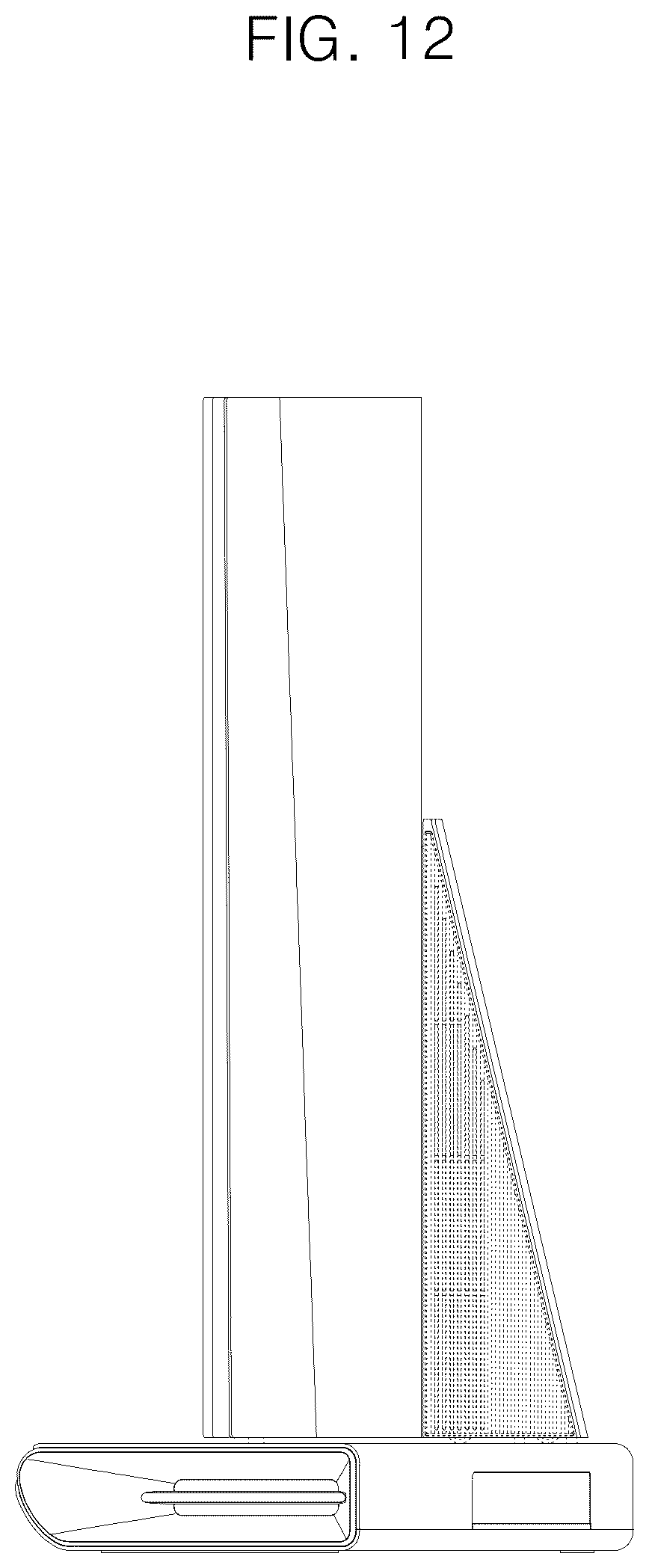

is a left side view thereof;

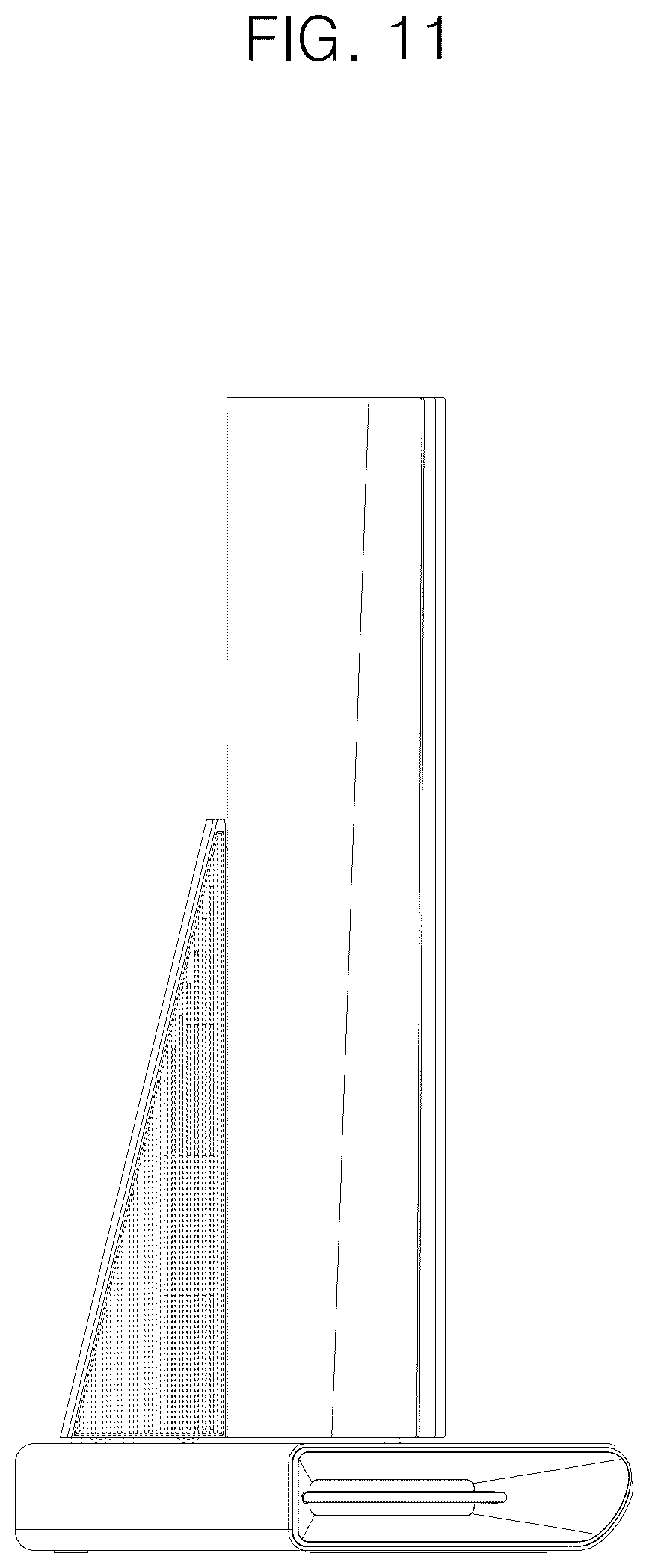

is a right side view thereof;

is a top plan view thereof;

is a bottom plan view thereof; and,

is an enlarged view of portion “ 15 ” of .

The broken lines depict portions of the display screen that form no part of the claimed design. The dot-dot-dash broken lines in are included to show the boundary of the enlarged view and form no part of the claimed design.
