Electrical Connector

USD1076824No. D 1,076,824designGranted 5/27/2025

Patent USD1076824 — Electrical connector — Figure 1 — Fig. 1 · Electrical Connector

Claims (1)

Claim 1 (Independent)

The ornamental design for an electrical connector, as shown and described.

Full Description

Show full text →

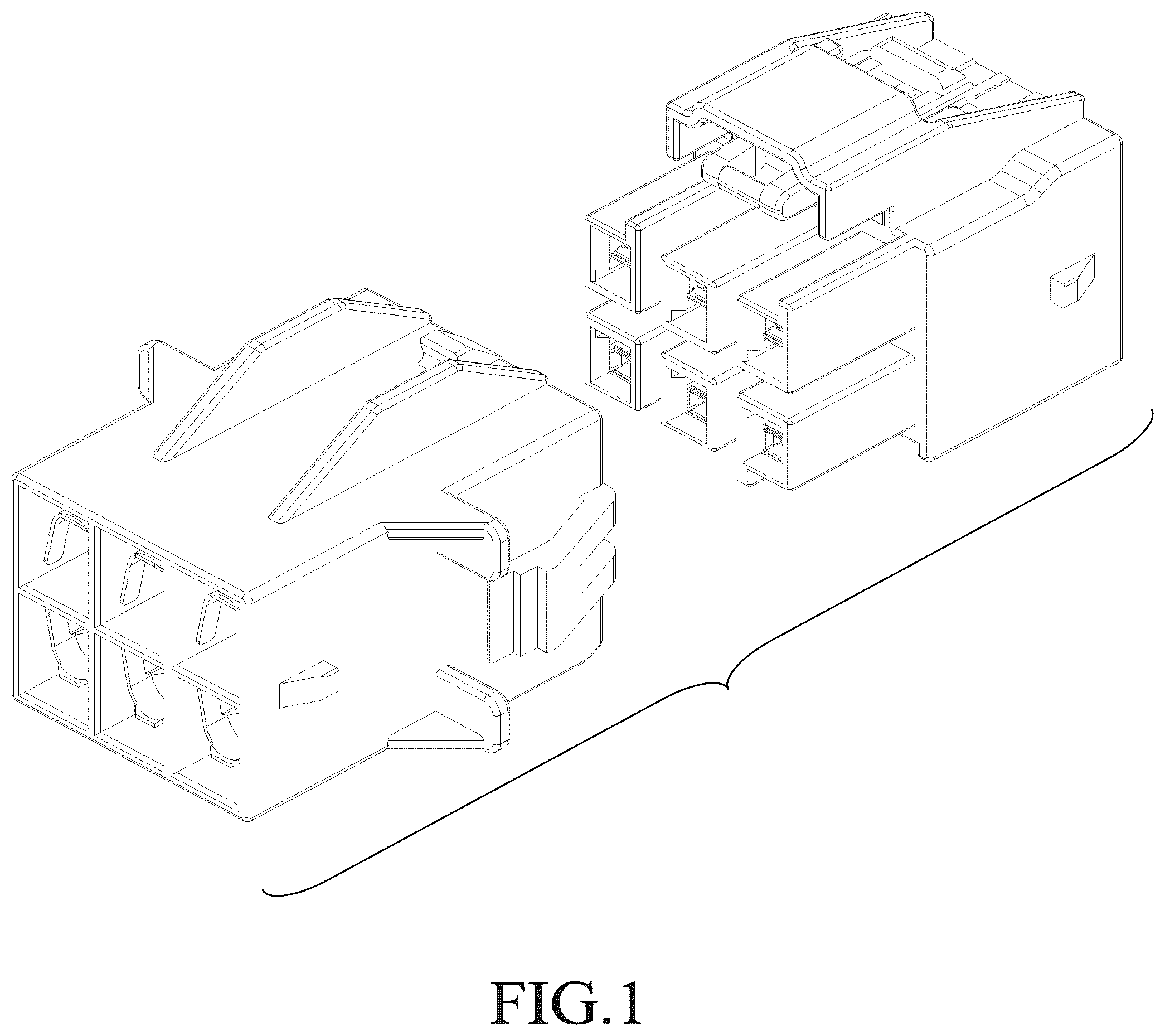

is a first perspective view of an electrical connector;

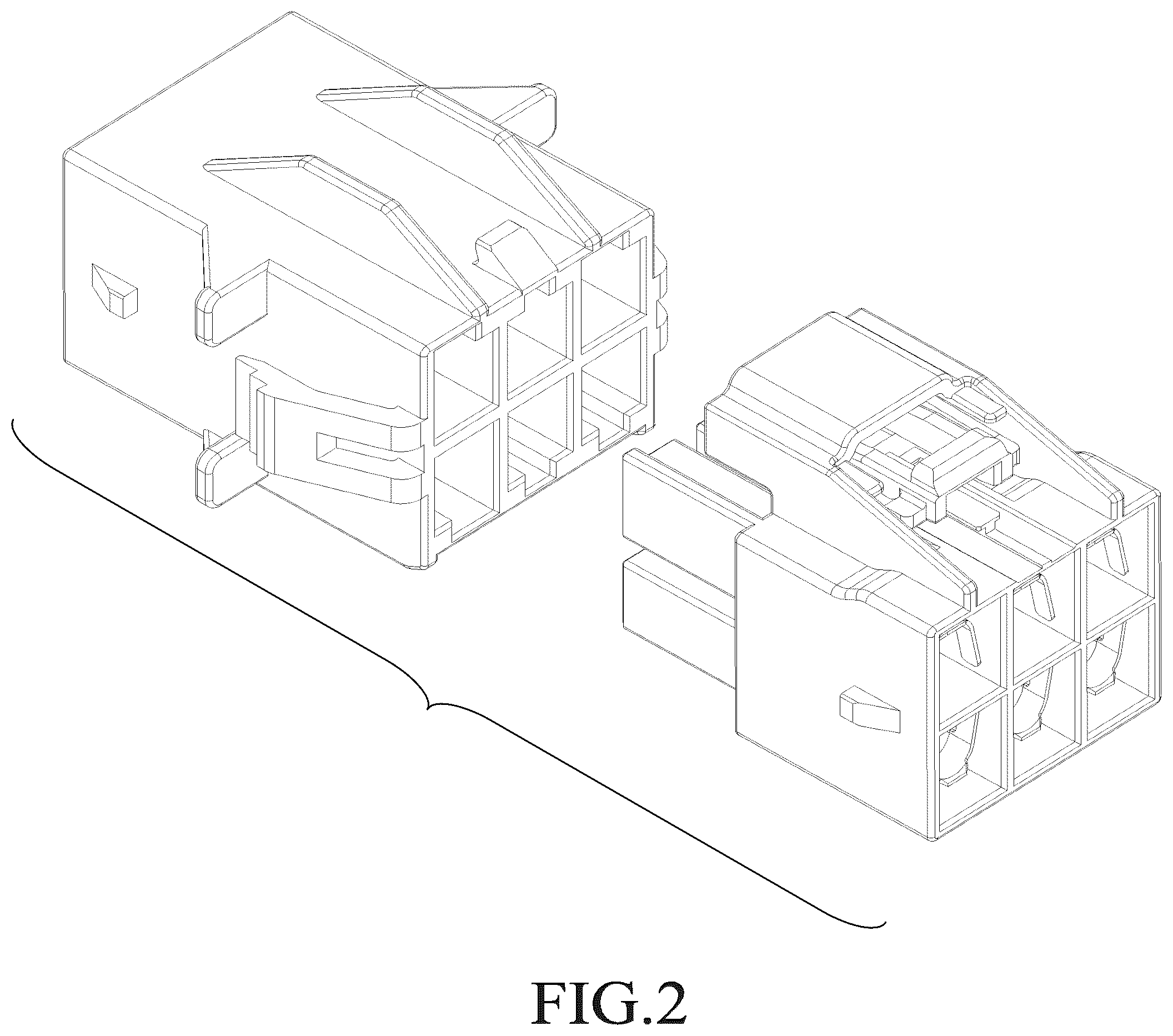

is a second perspective view of the electrical connector;

is a perspective view of the electrical connector with the plug and receptable connected;

is a perspective view of a plug of the electrical connector;

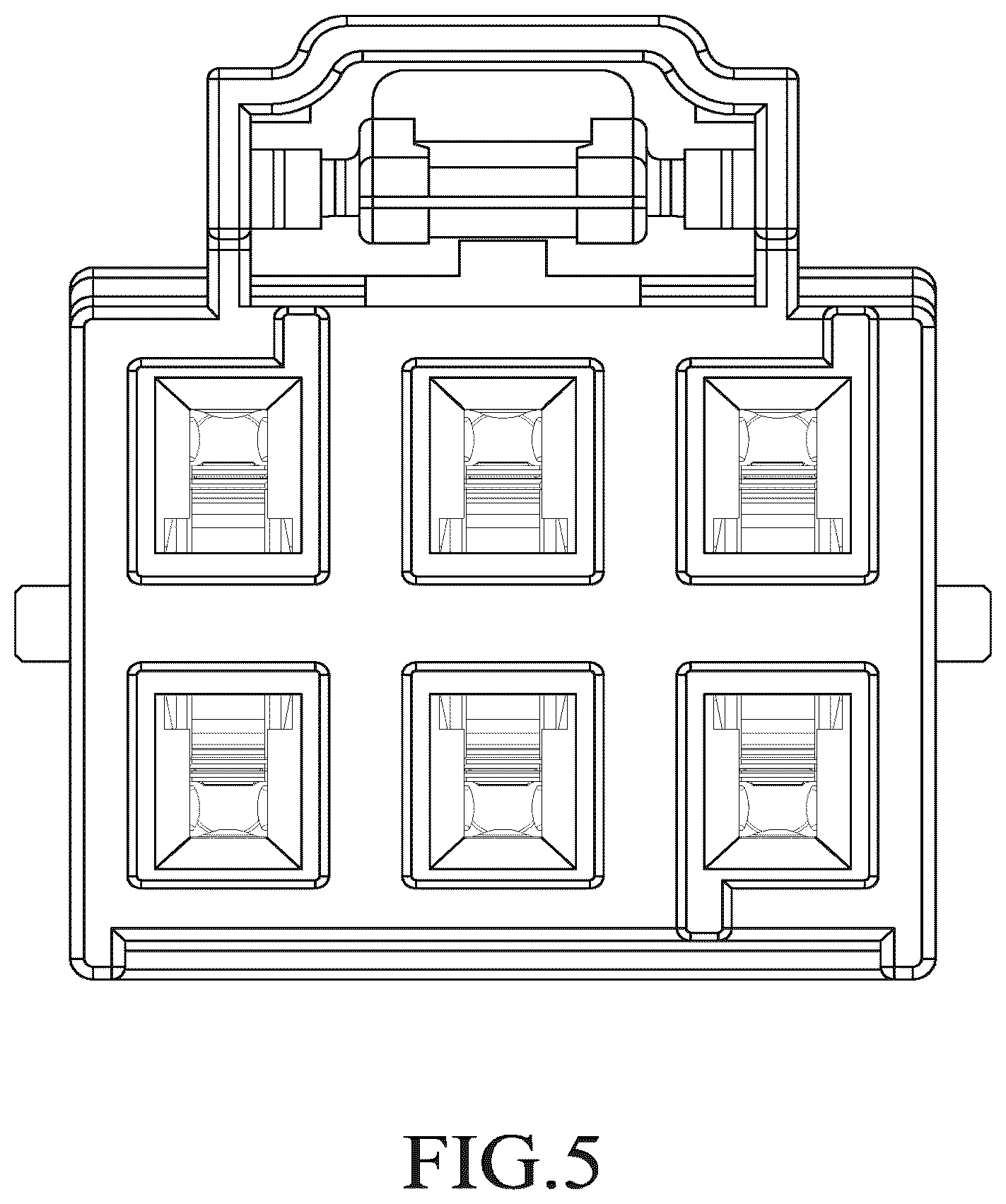

is a front view of the plug;

is a rear view of the plug;

is a left view of the plug;

is a right view of the plug;

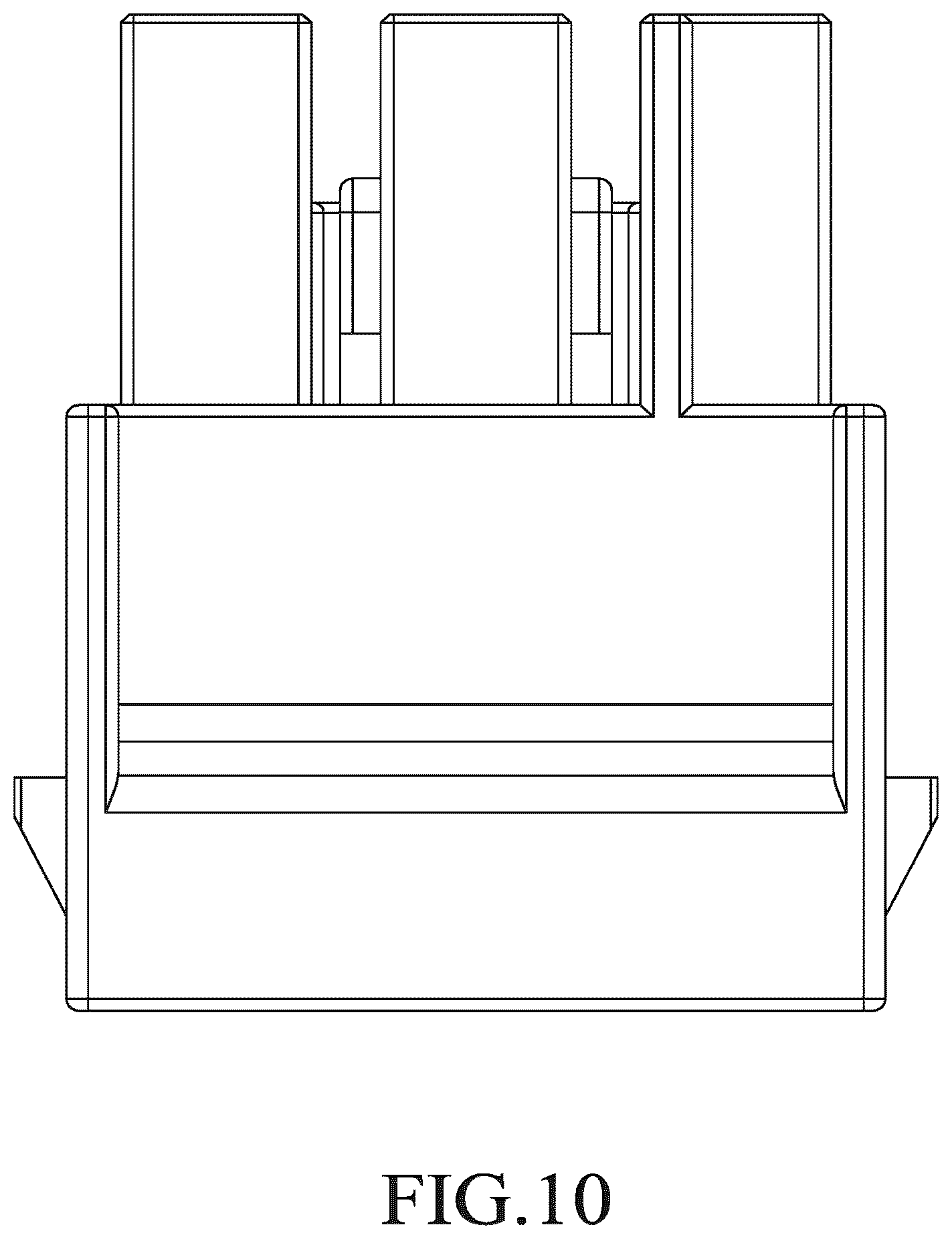

is a top view of the plug;

is a bottom view of the plug;

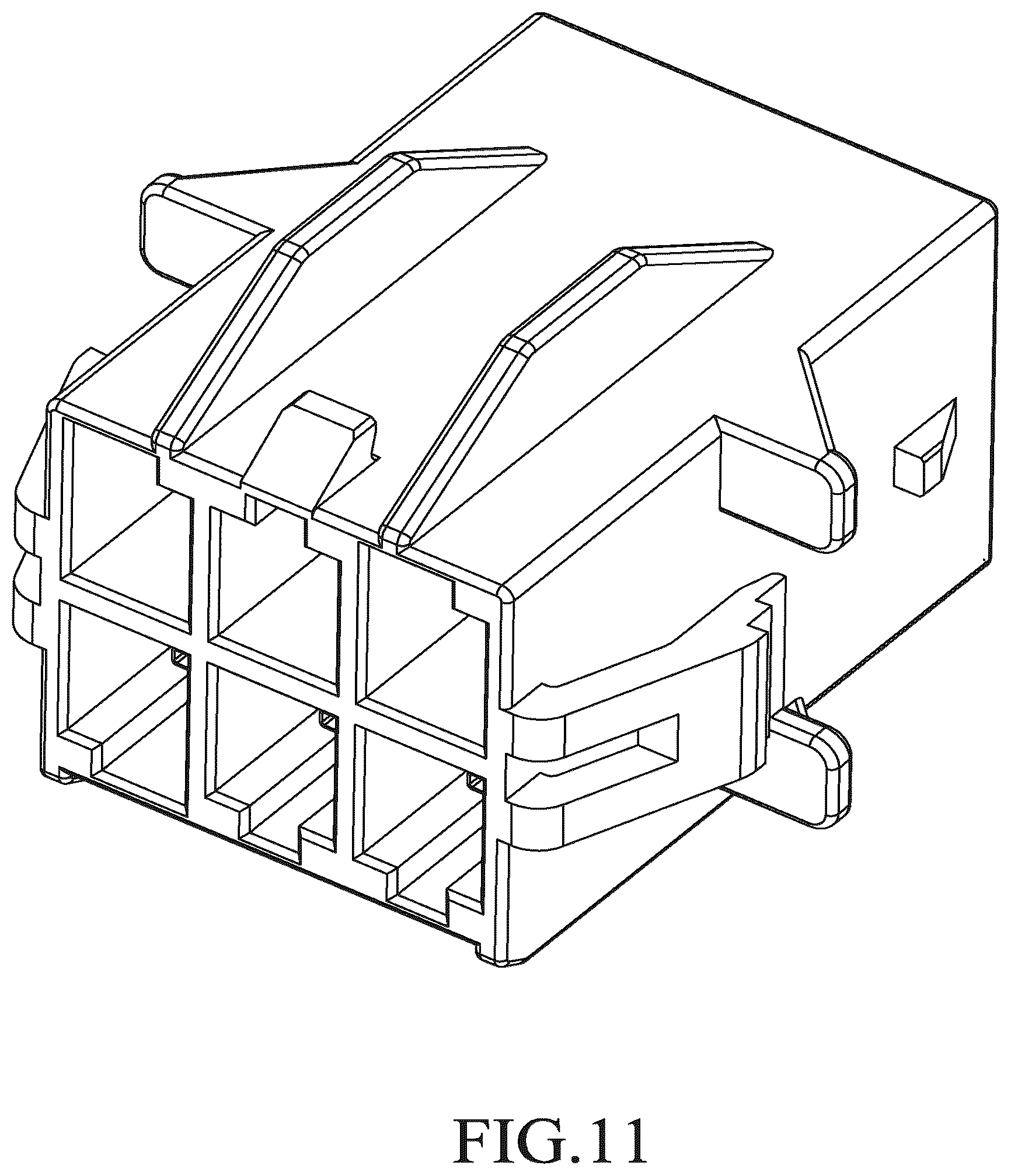

is a perspective view of a receptacle of the electrical connector;

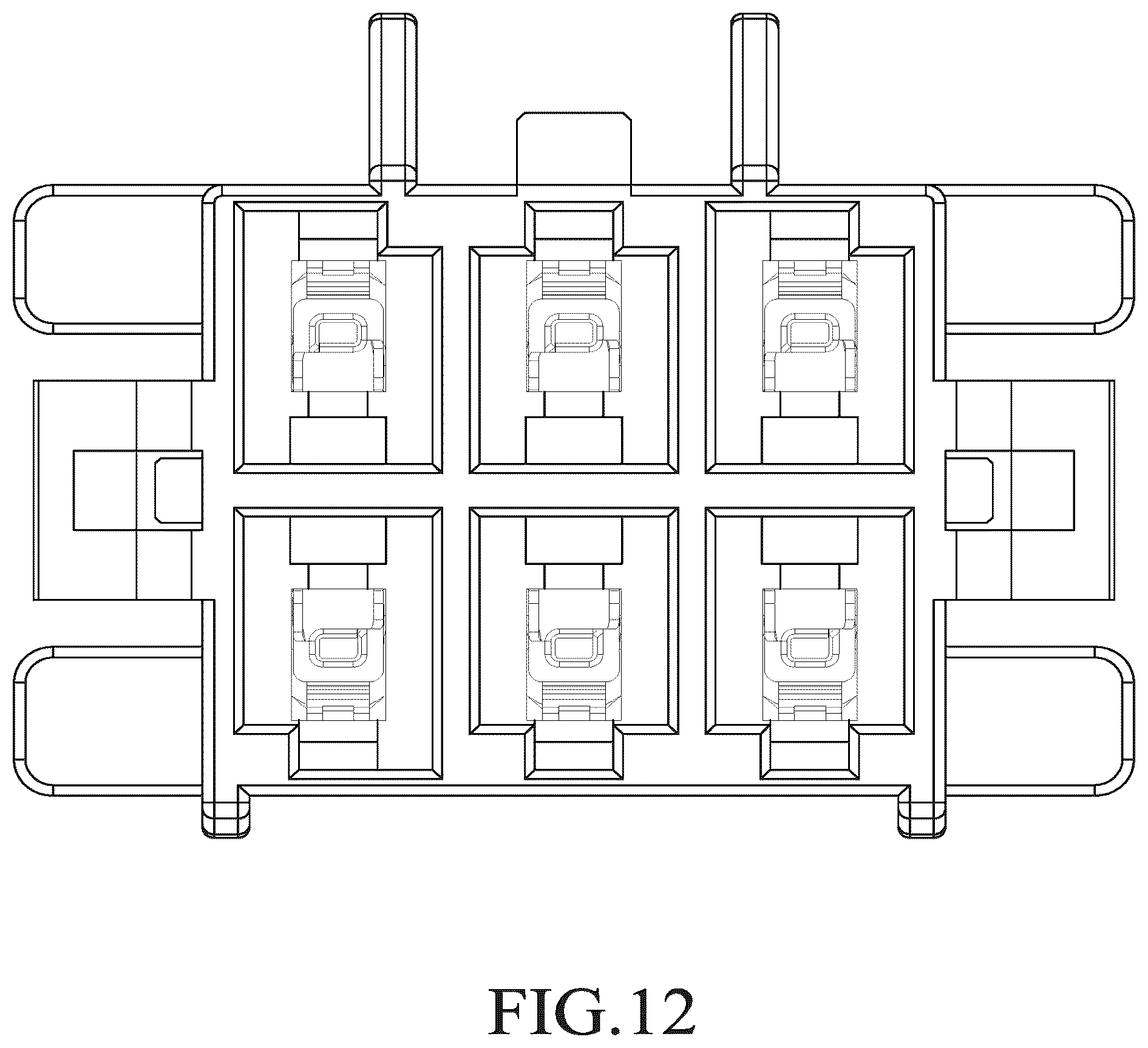

is a front view of the receptacle;

is a rear view of the receptacle;

is a left view of the receptacle;

is a right view of the receptacle;

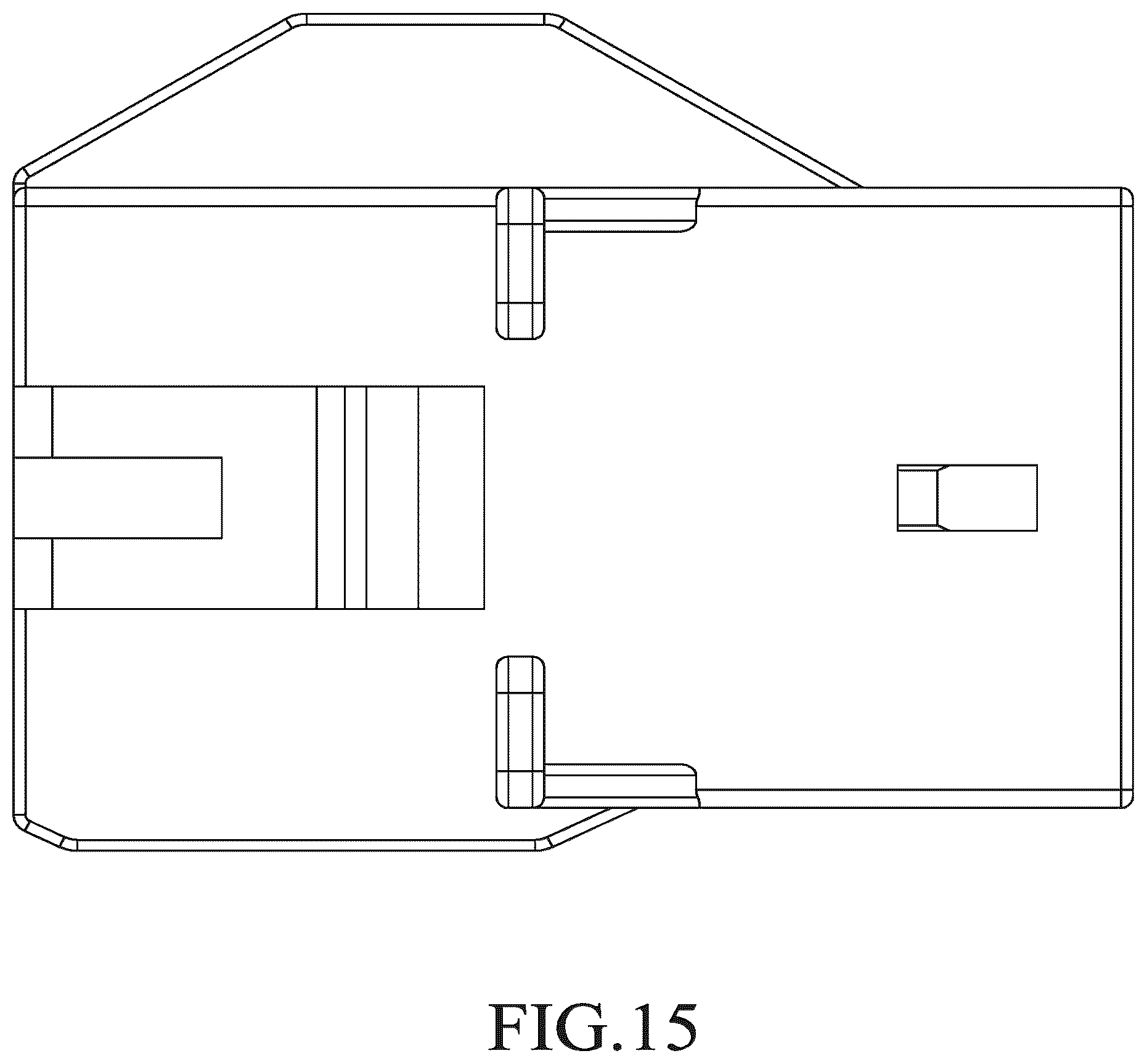

is a top view of the receptacle; and,

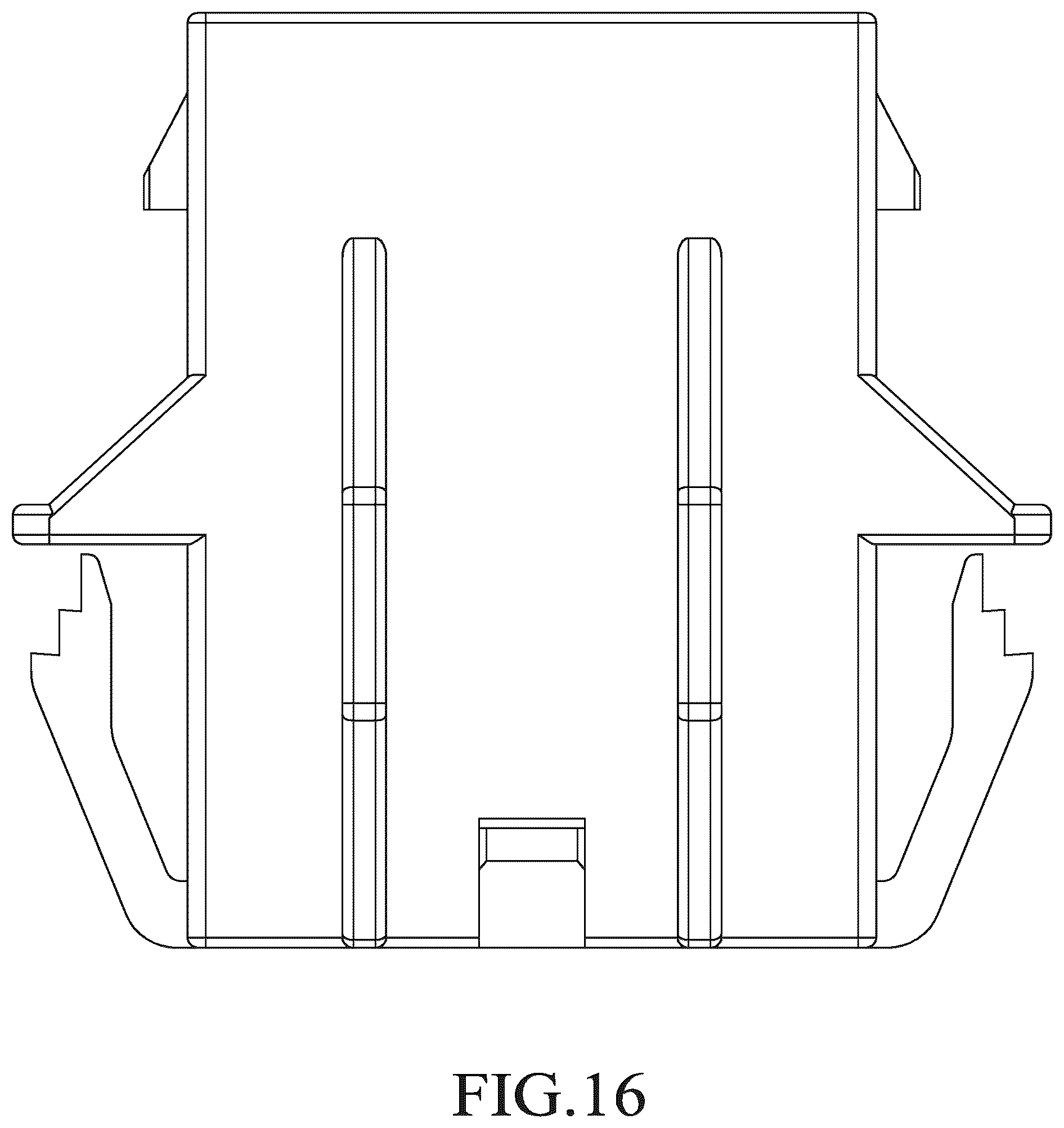

is a bottom view of the receptacle.

Figures (17)

Patent USD1076824 Figure 1 – Electrical connector — Fig. 1

Patent USD1076824 Figure 2 – Electrical connector — Fig. 2

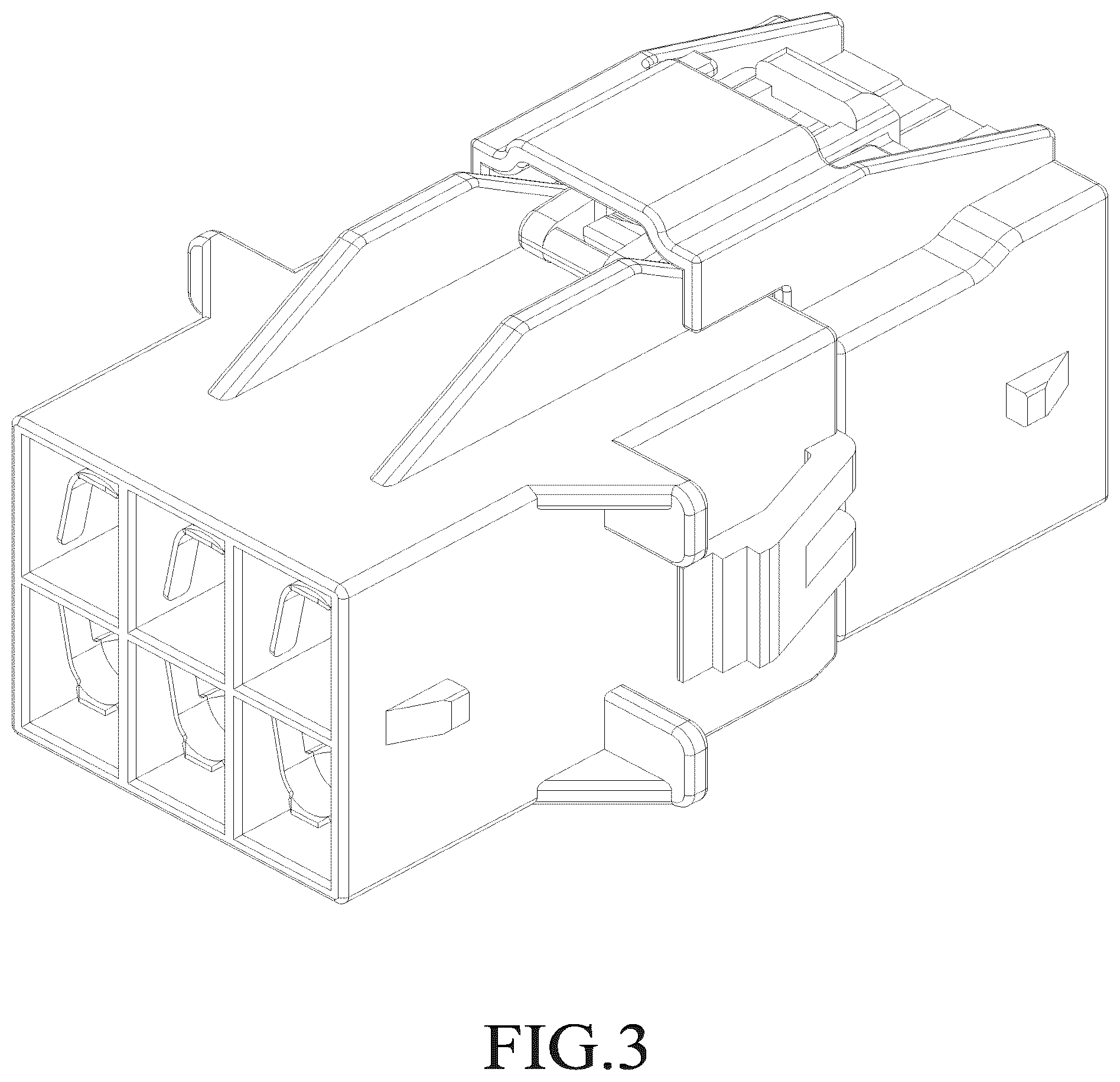

Patent USD1076824 Figure 3 – Electrical connector — Fig. 3

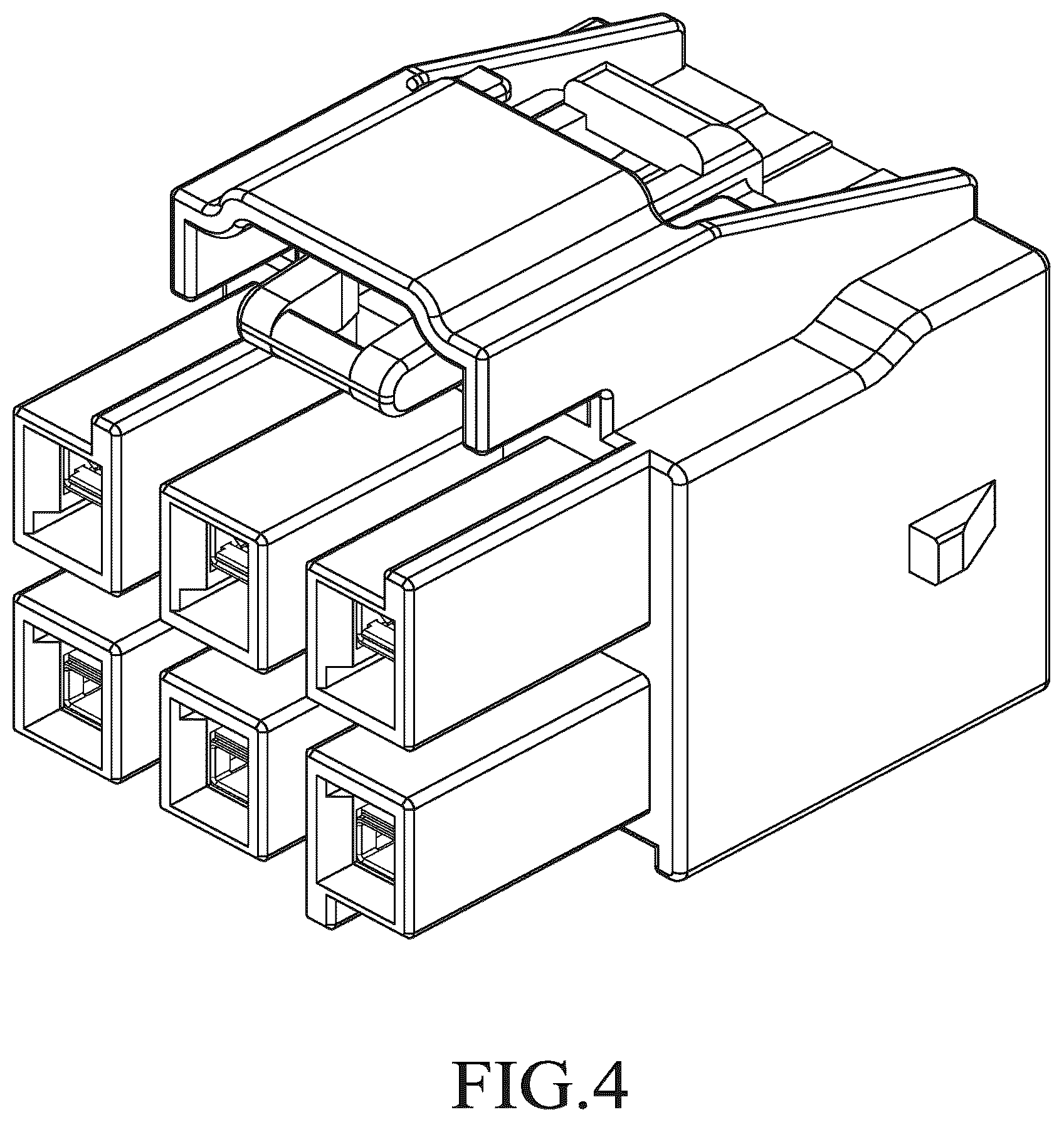

Patent USD1076824 Figure 4 – Electrical connector — Fig. 4

Patent USD1076824 Figure 5 – Electrical connector — Fig. 5

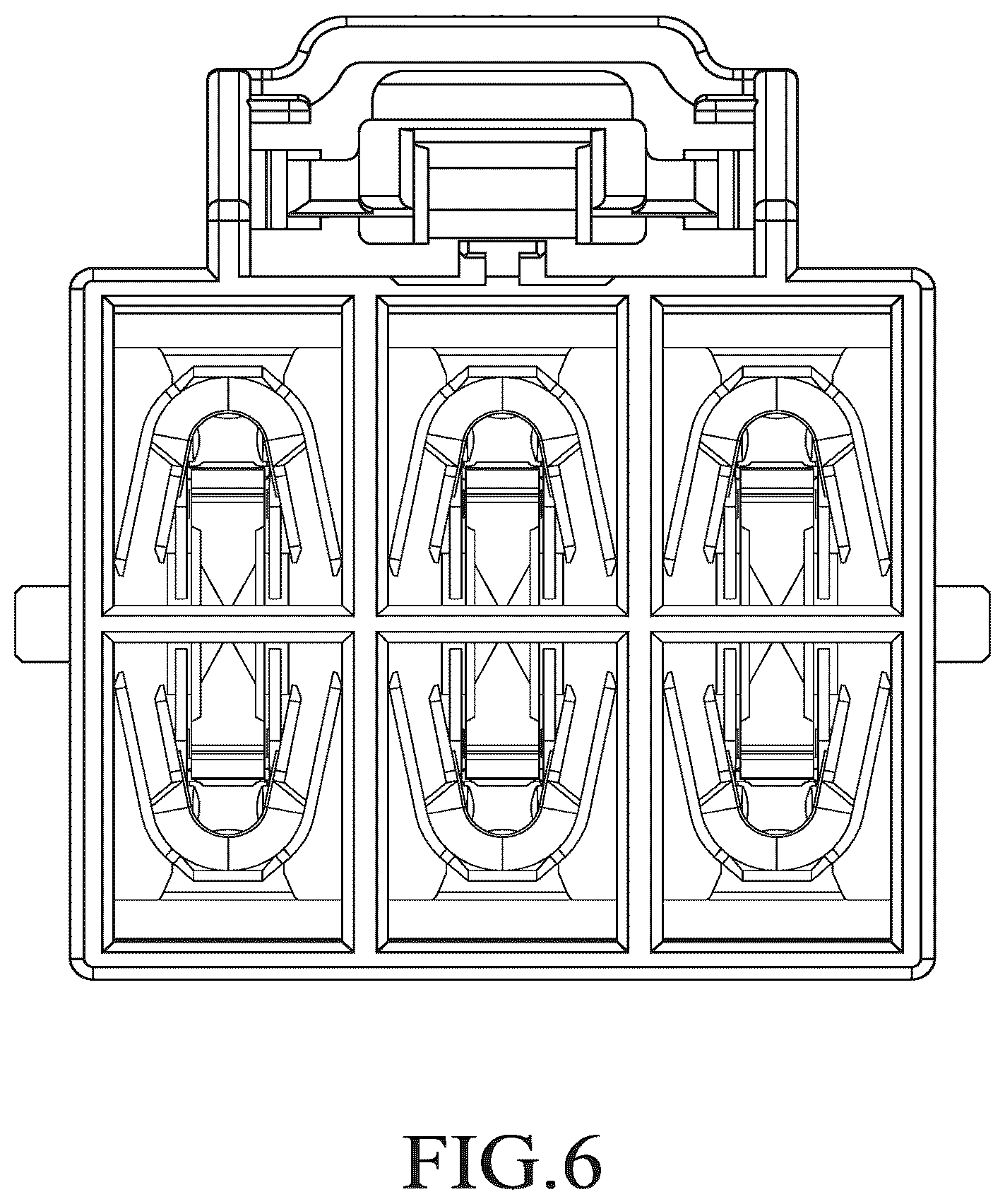

Patent USD1076824 Figure 6 – Electrical connector — Fig. 6

Patent USD1076824 Figure 7 – Electrical connector — Fig. 7

Patent USD1076824 Figure 8 – Electrical connector — Fig. 8

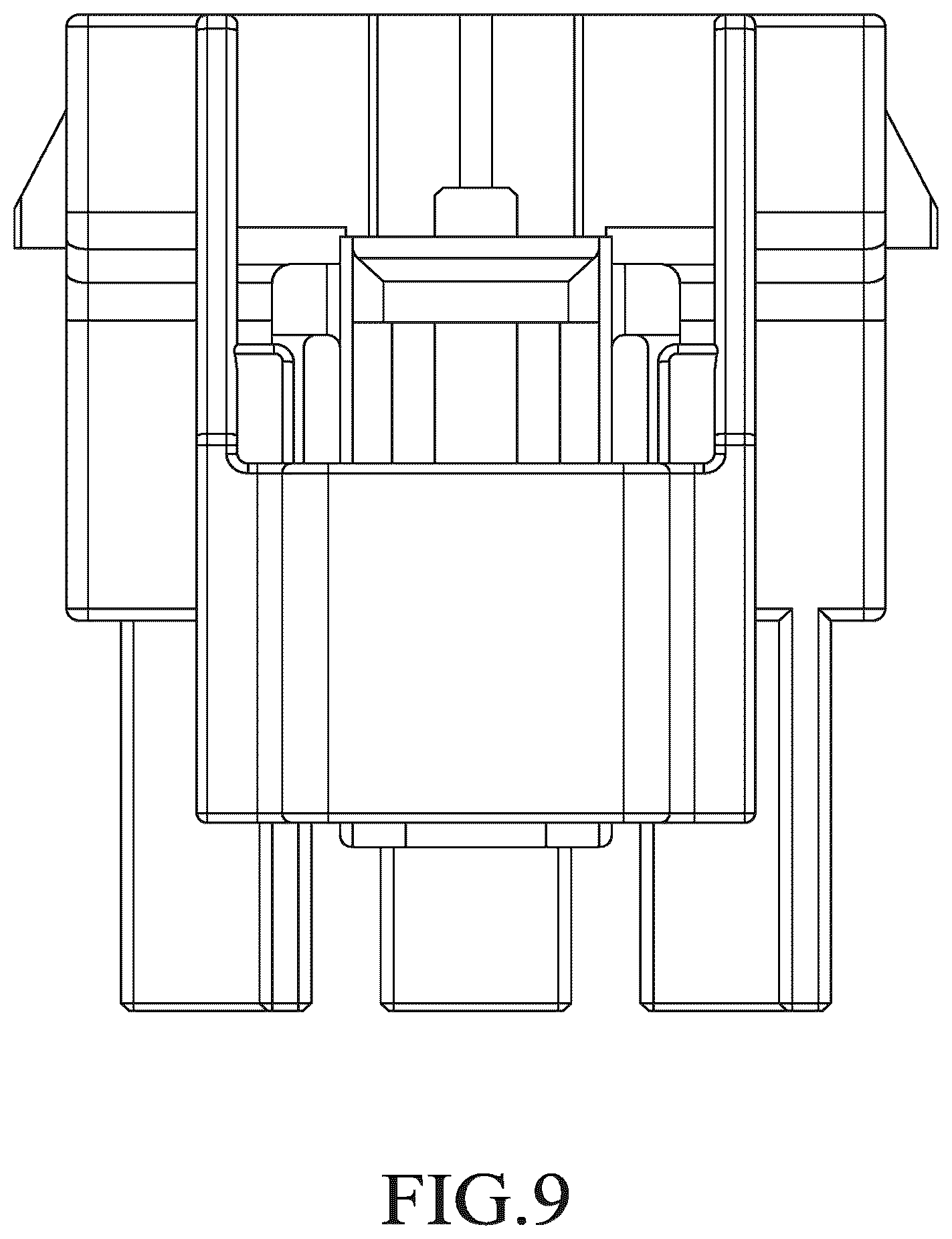

Patent USD1076824 Figure 9 – Electrical connector — Fig. 9

Patent USD1076824 Figure 10 – Electrical connector — Fig. 10

Patent USD1076824 Figure 11 – Electrical connector — Fig. 11

Patent USD1076824 Figure 12 – Electrical connector — Fig. 12

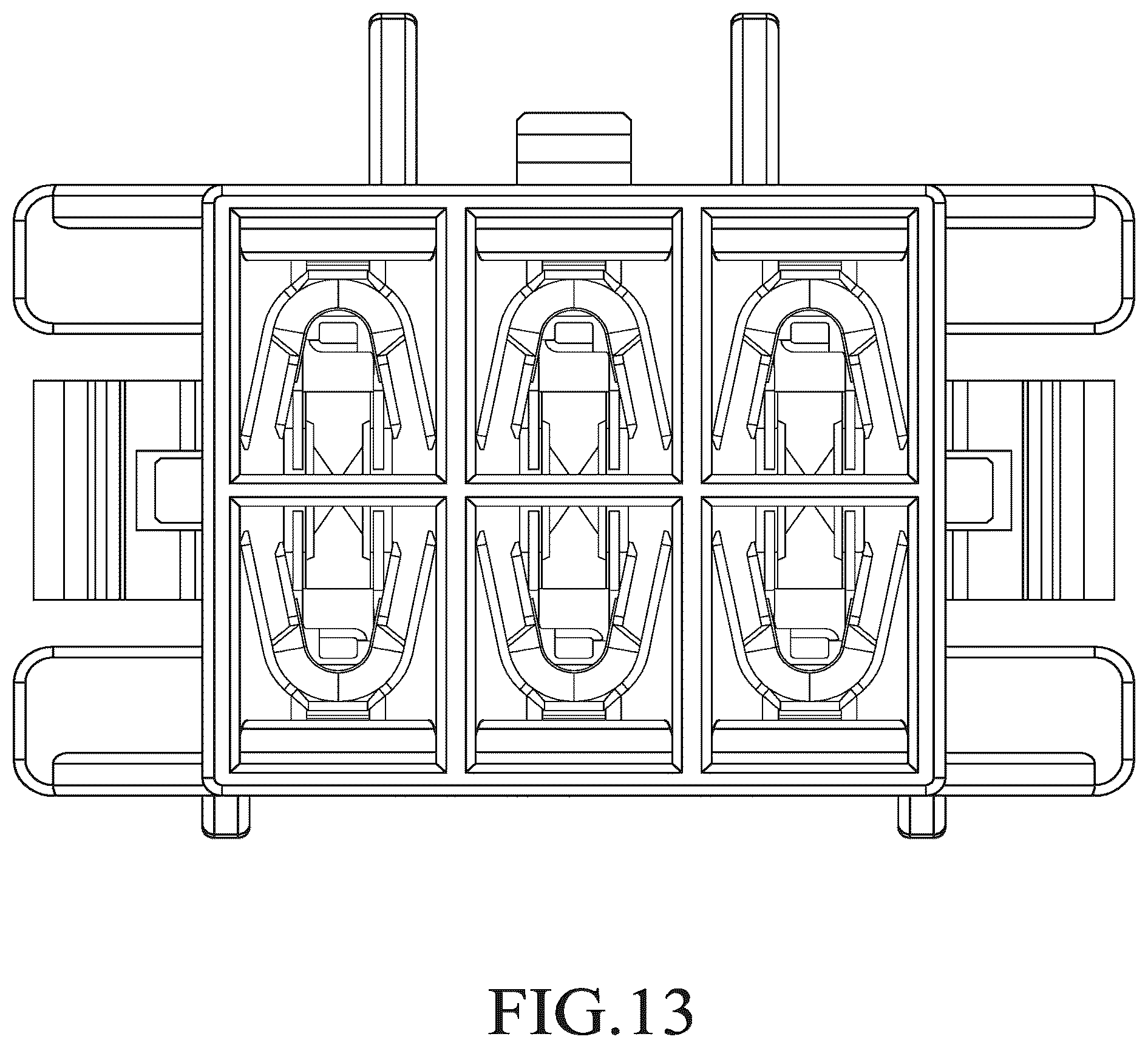

Patent USD1076824 Figure 13 – Electrical connector — Fig. 13

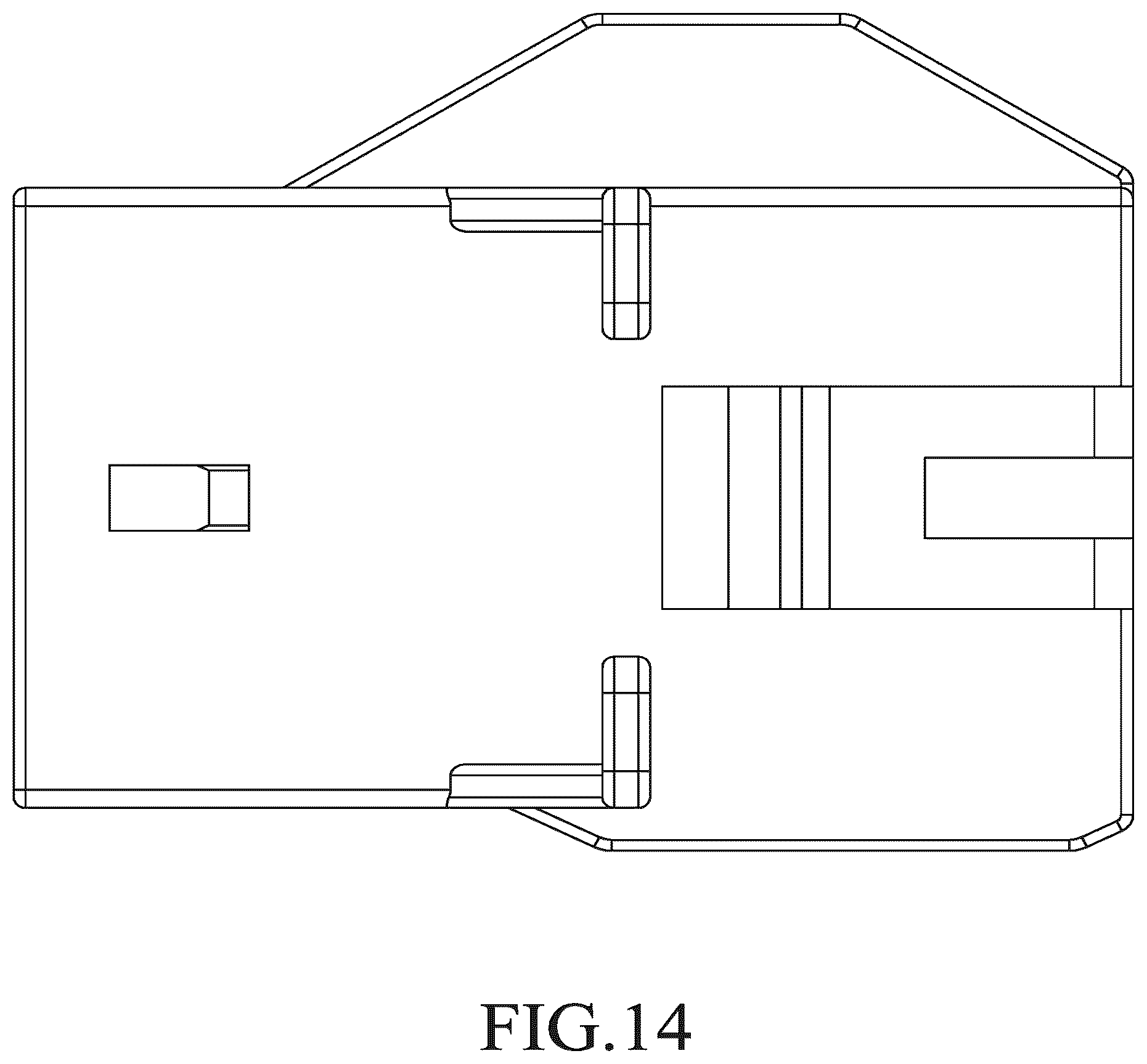

Patent USD1076824 Figure 14 – Electrical connector — Fig. 14

Patent USD1076824 Figure 15 – Electrical connector — Fig. 15

Patent USD1076824 Figure 16 – Electrical connector — Fig. 16

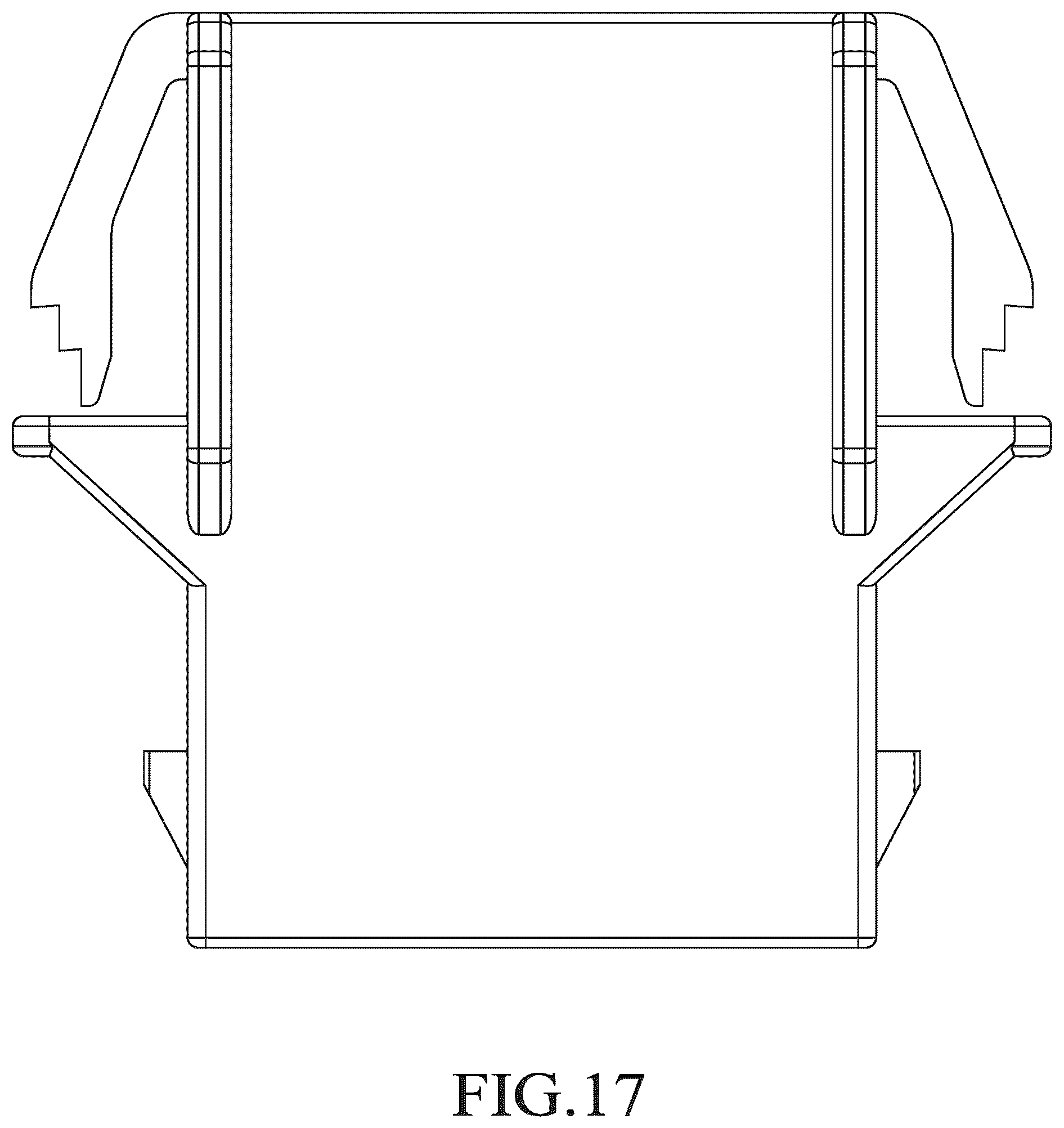

Patent USD1076824 Figure 17 – Electrical connector — Fig. 17
