Power Strip

USD1076819No. D 1,076,819designGranted 5/27/2025

Patent USD1076819 — Power strip — Figure 1 — Fig. 1 · Power Strip

Claims (1)

Claim 1 (Independent)

The ornamental design for a power strip as shown and described.

Full Description

Show full text →

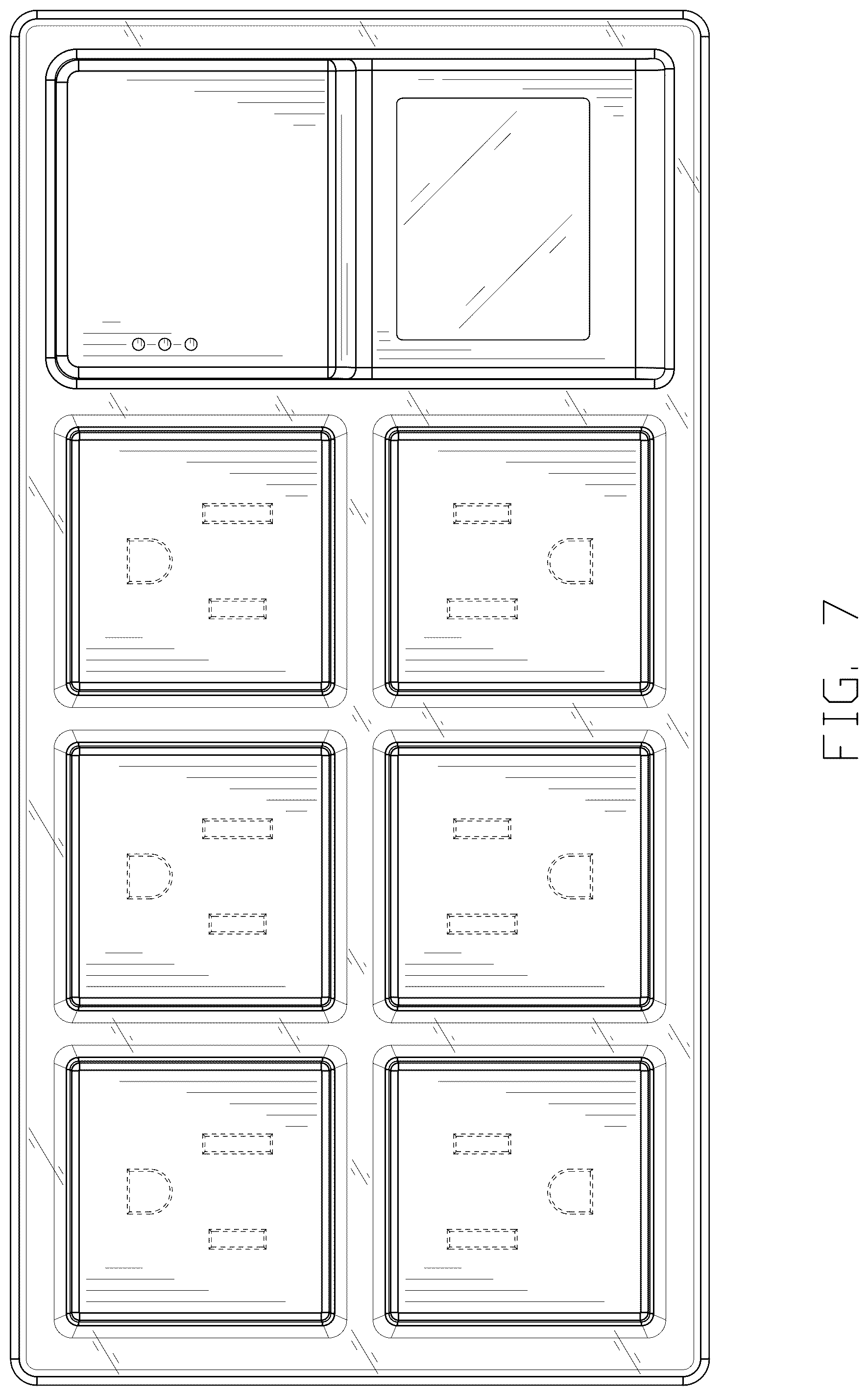

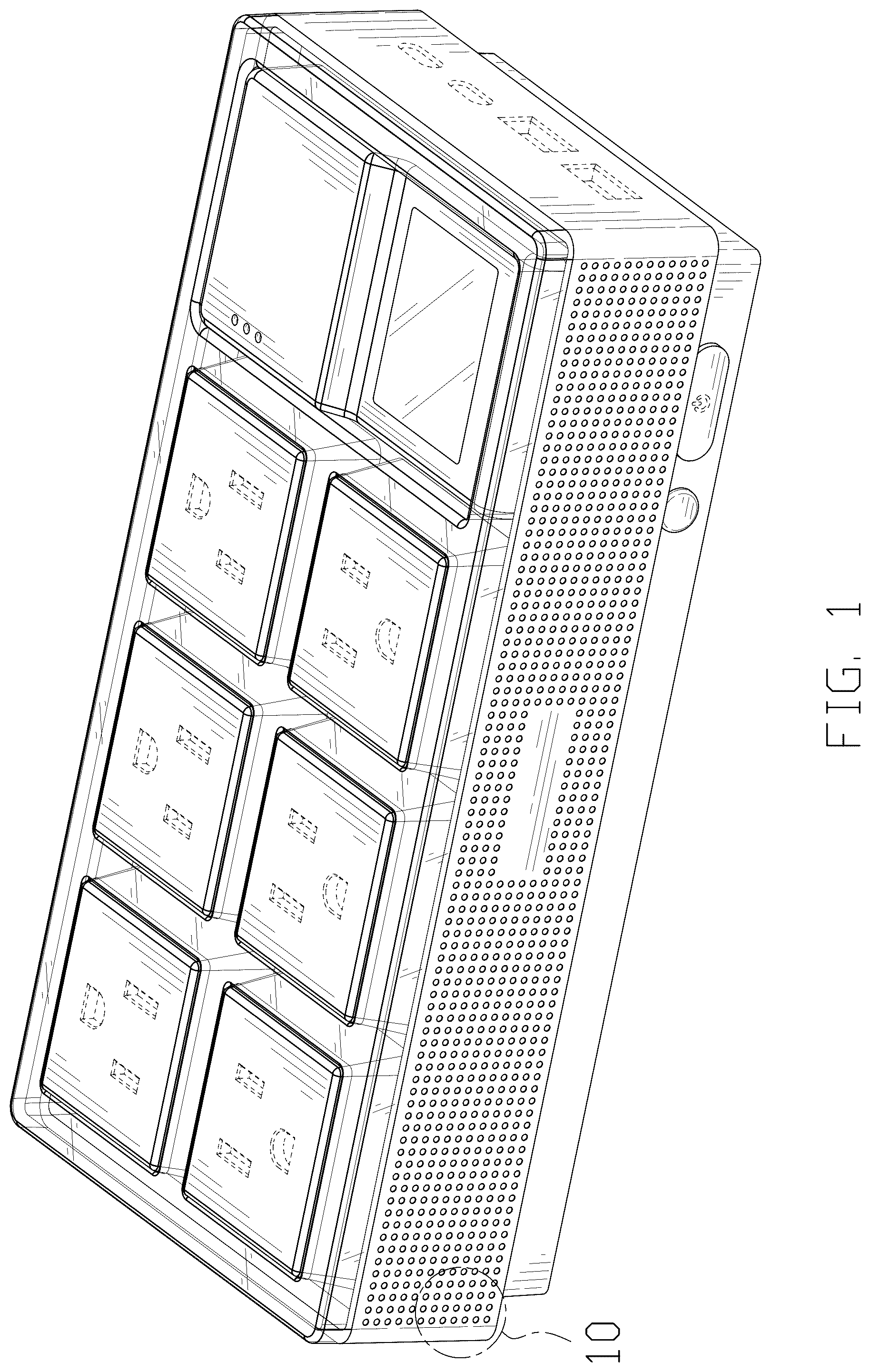

is a perspective view of a power strip showing our new design;

is another perspective view thereof;

is a front elevational view thereof;

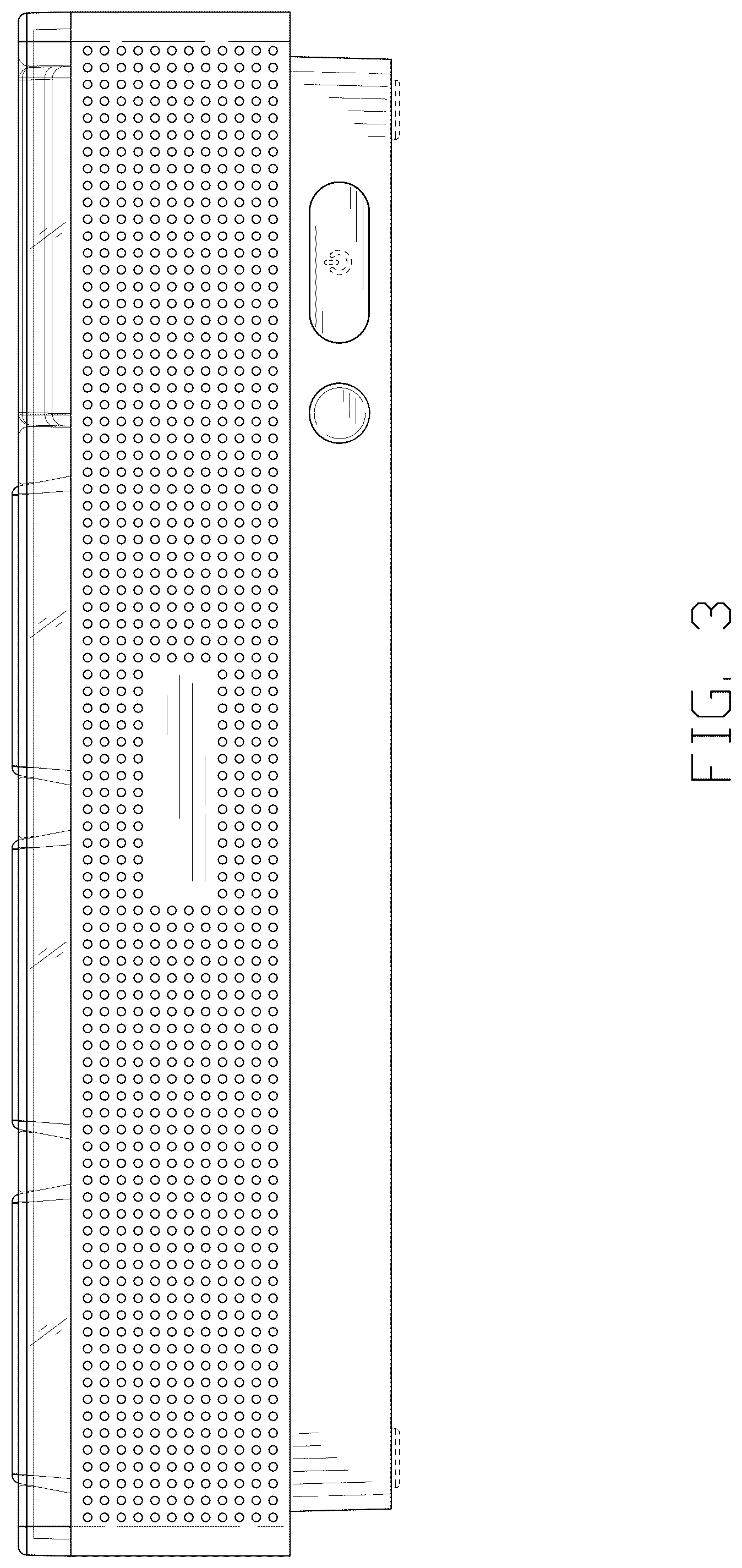

is a rear elevational view thereof;

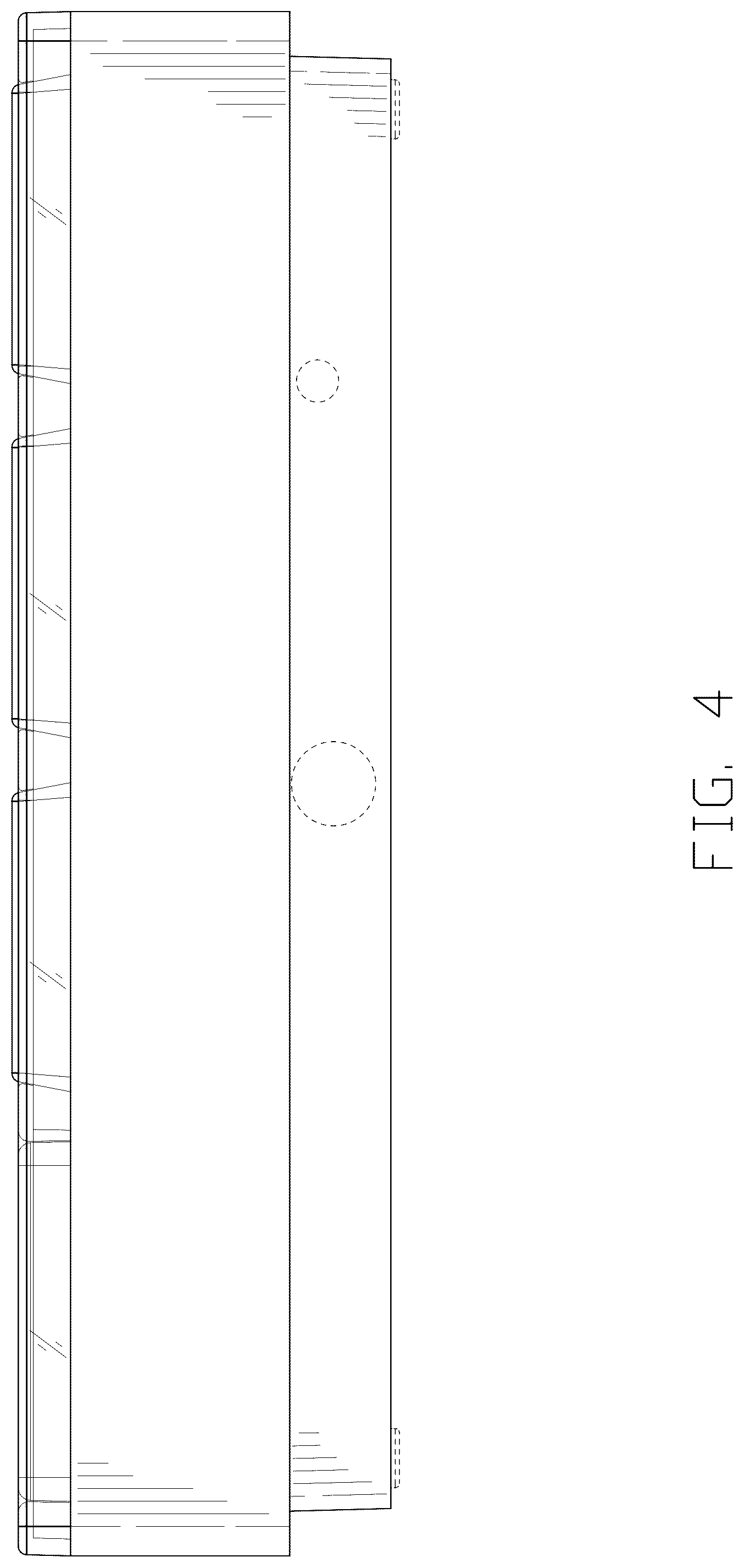

is a left side elevational view thereof;

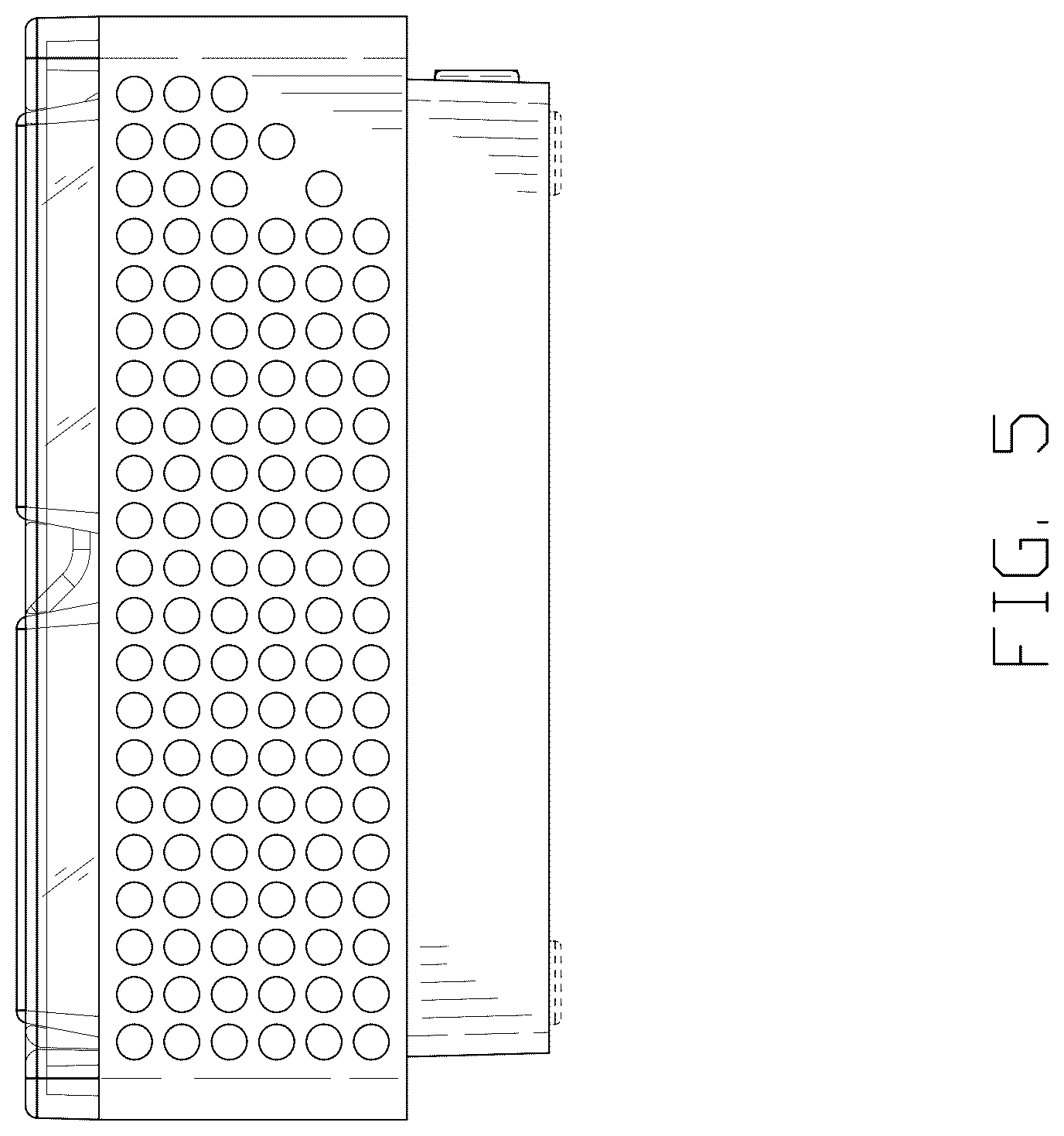

is a right side elevational view thereof;

is a top plan view thereof;

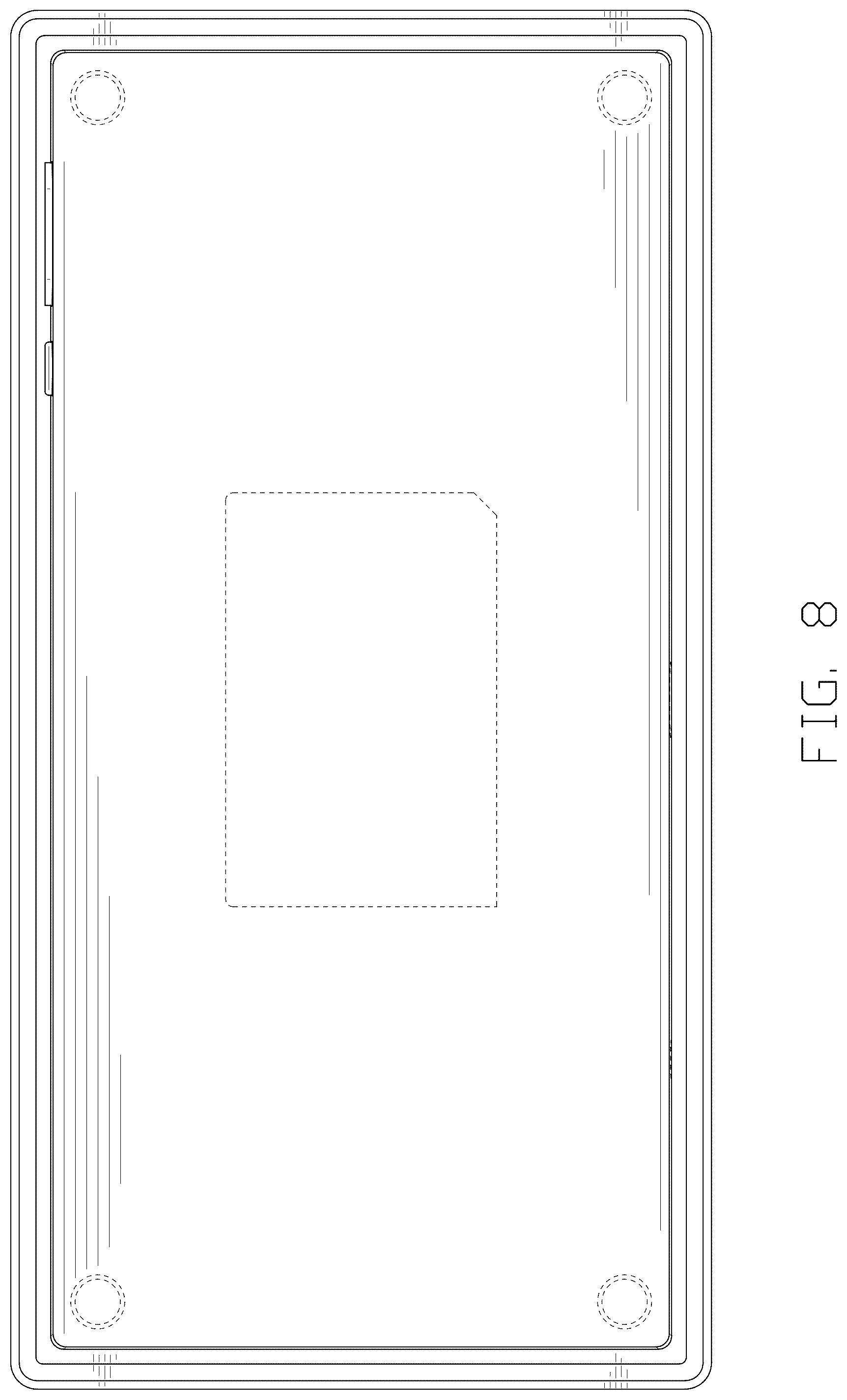

is a bottom plan view thereof;

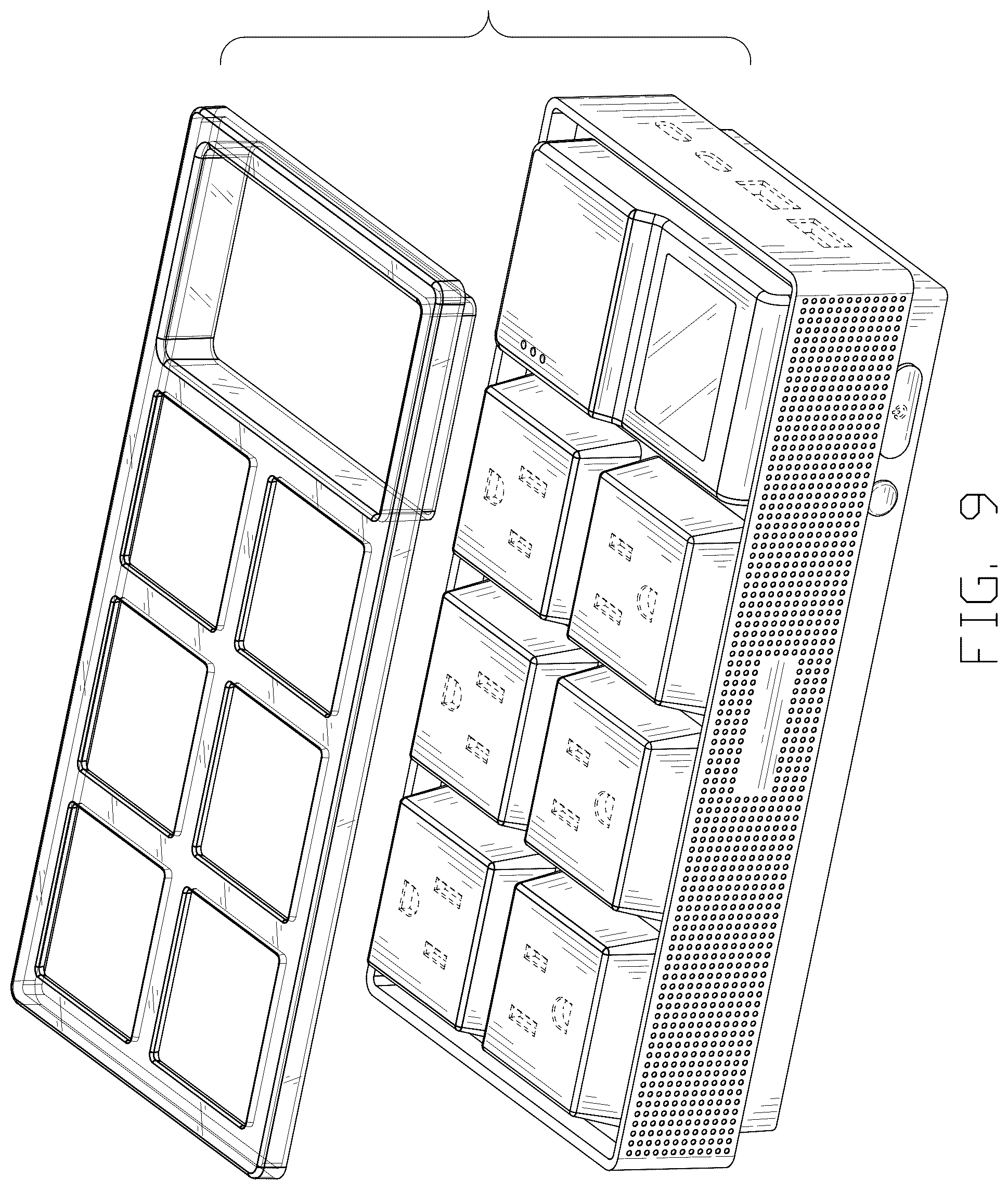

is an exploded perspective view of the power strip; and,

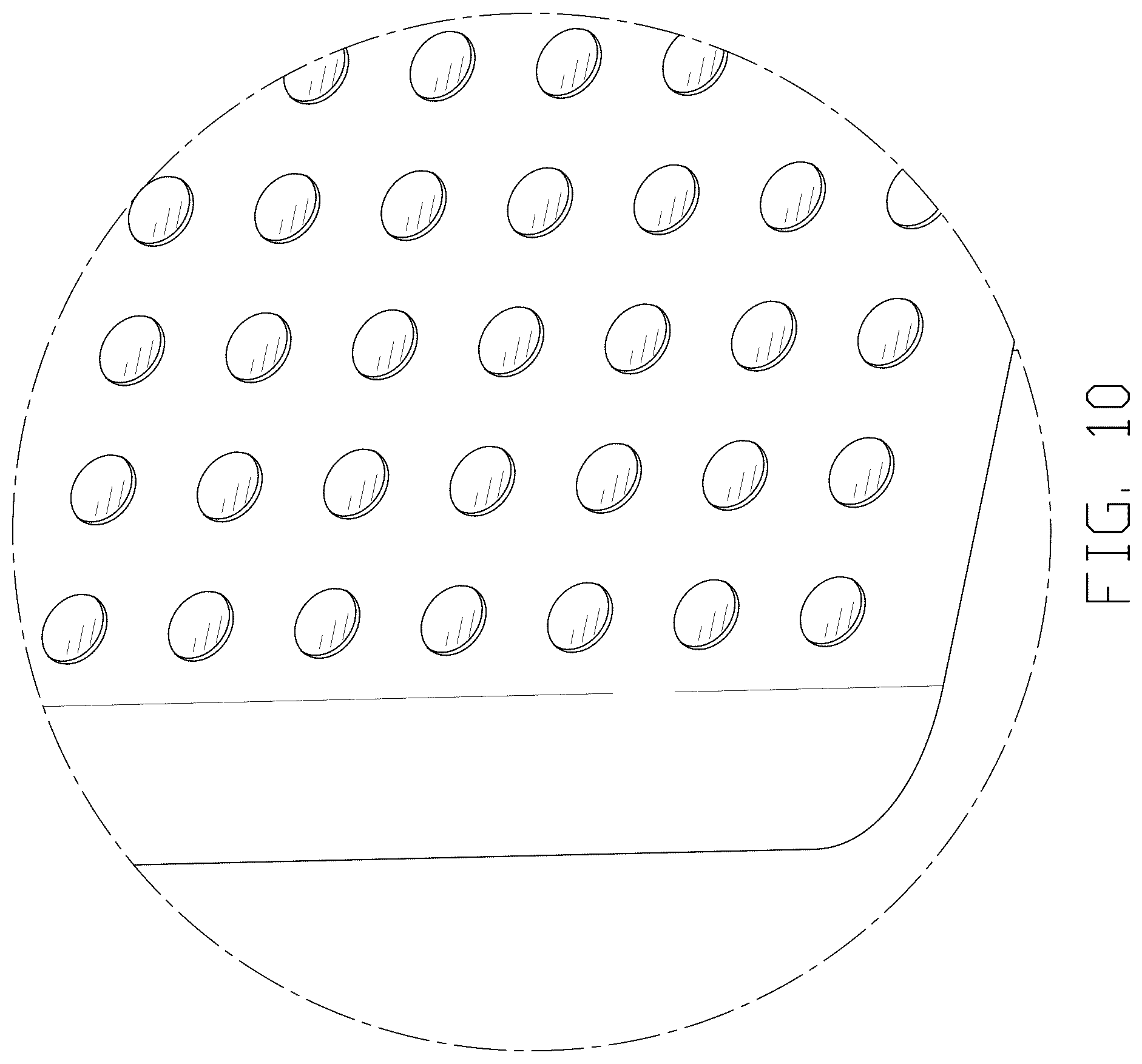

is an enlarged view of portion 10 shown in .

The dash-dash broken lines in the drawings depict portions of the power strip that form no part of the claimed design. The dot-dash broken lines represent boundary of the enlarged portion and form no part of the claimed design.

Figures (10)

Patent USD1076819 Figure 1 – Power strip — Fig. 1

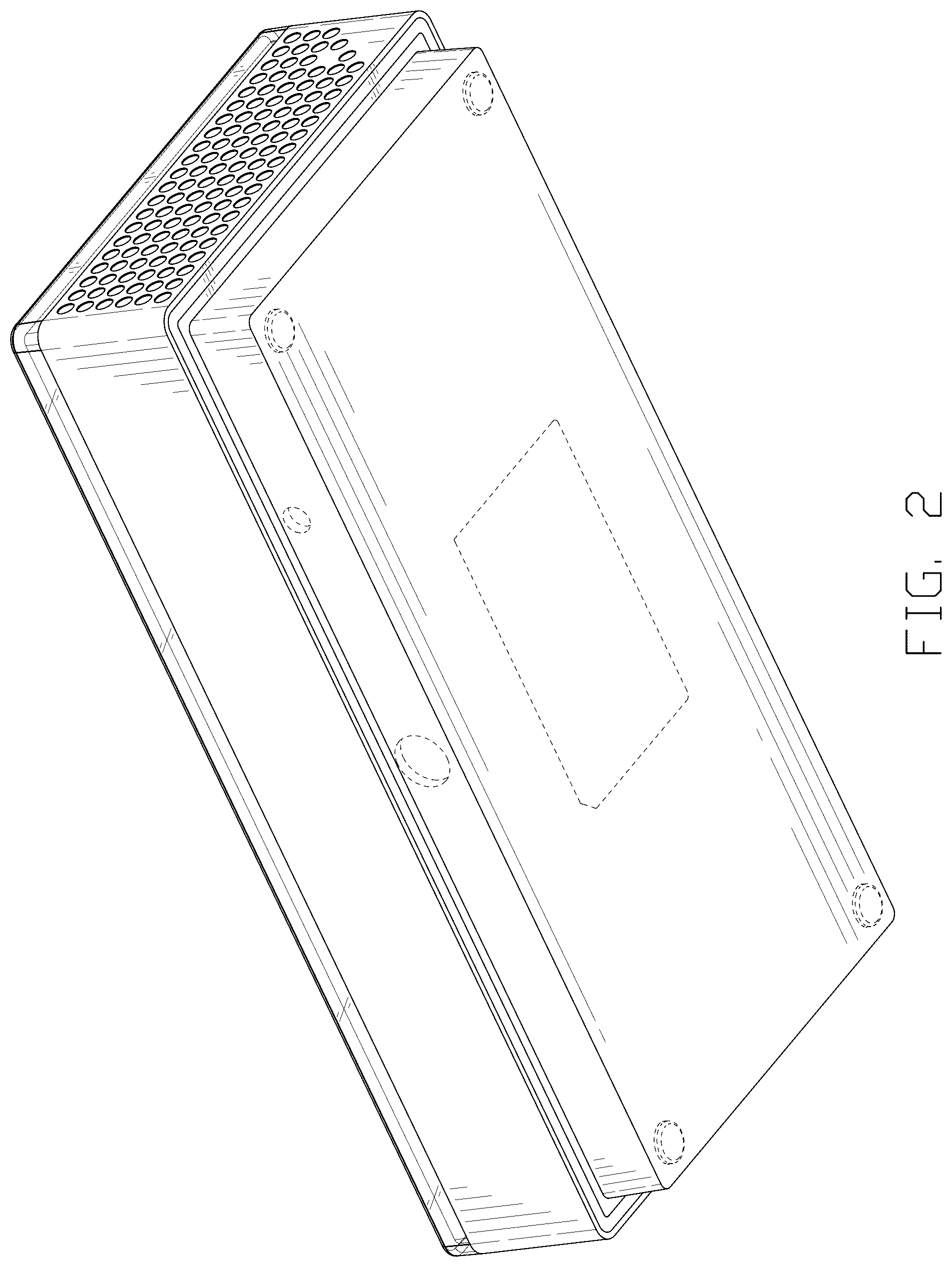

Patent USD1076819 Figure 2 – Power strip — Fig. 2
