USD1076774No. D 1,076,774designGranted 5/27/2025
Patent USD1076774 — Tire — Figure 1
Fig. 1 · Tire

Claims (1)

Claim 1 (Independent)

The ornamental design for a tire as shown and described.

Full Description

Show full text →

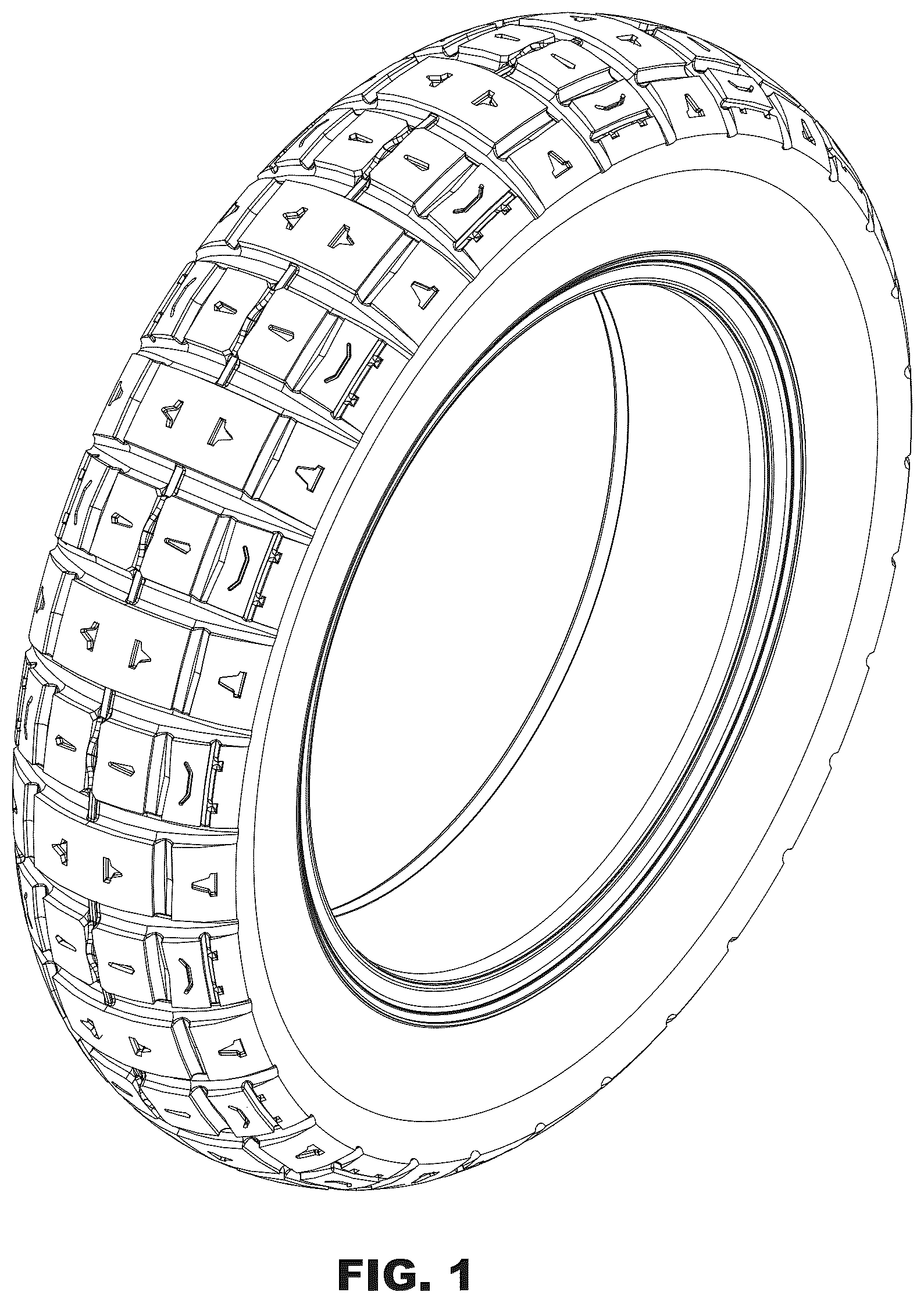

is a front isometric view of a tire in accordance with the new design;

is a front elevational view thereof;

is a rear elevational view thereof;

is a right side elevational view thereof, a left side elevational view being a mirror image thereof;

is a top plan view thereof; and,

is a bottom plan view thereof.

Figures (6)

Fig. 1
Fig. 2

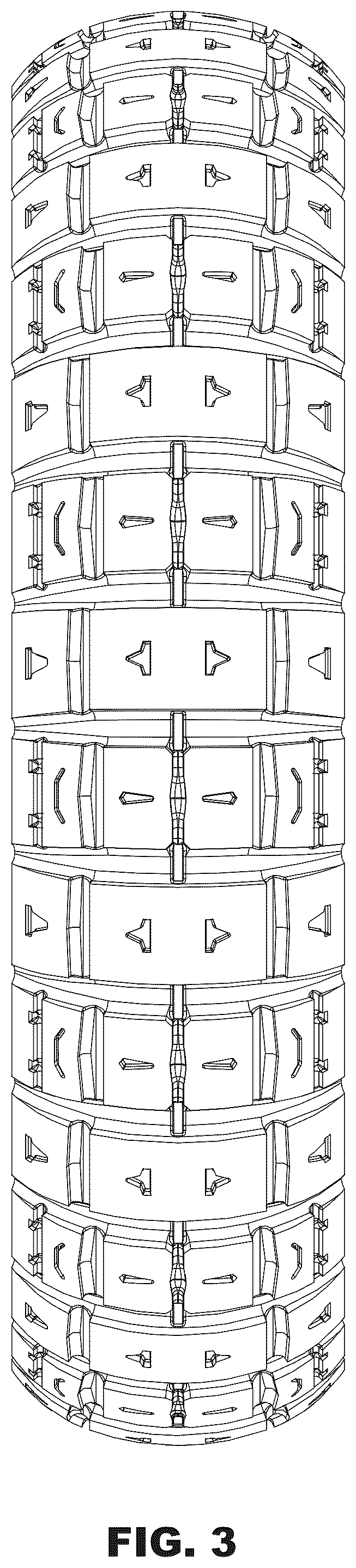

Fig. 3

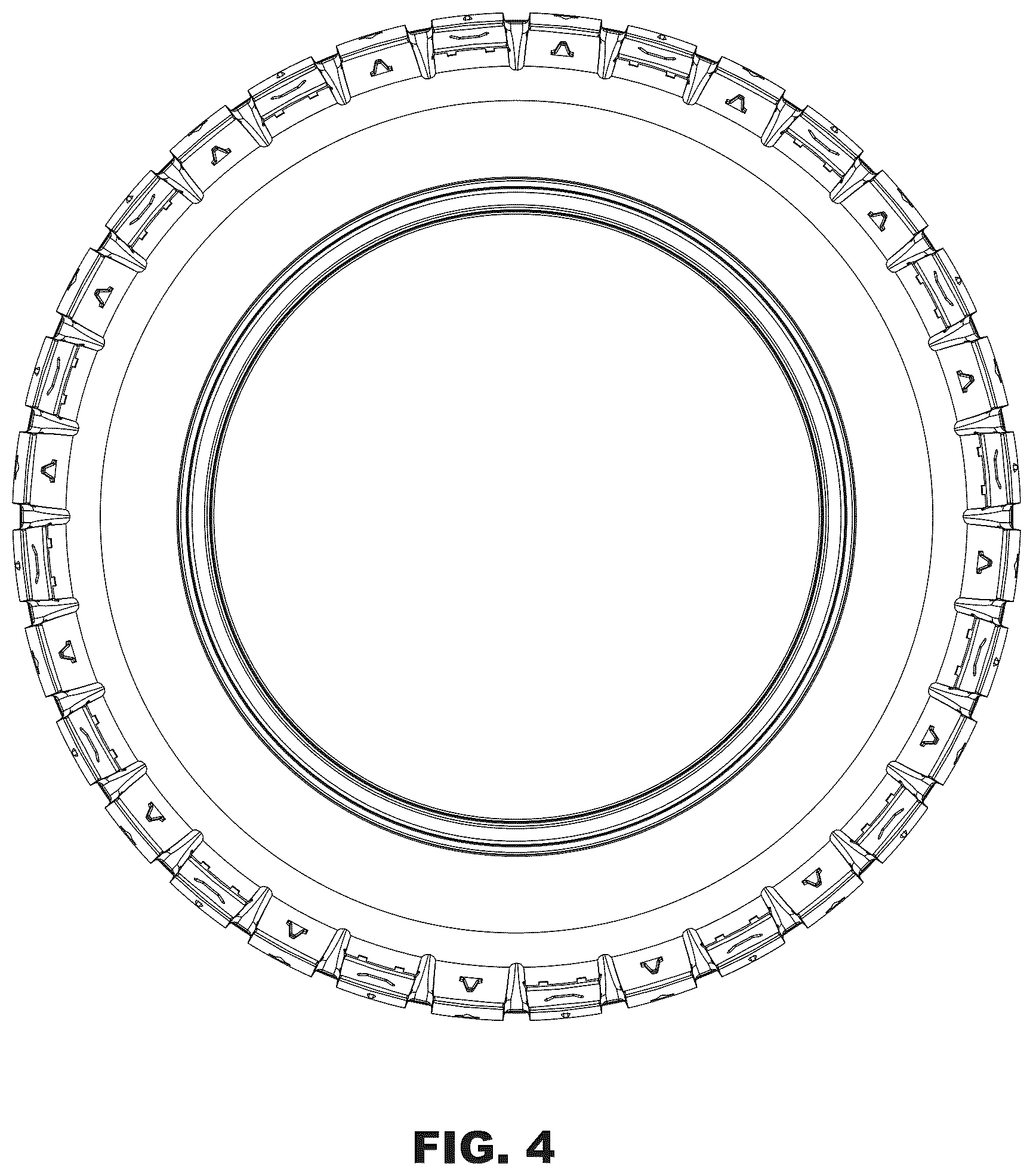

Fig. 4

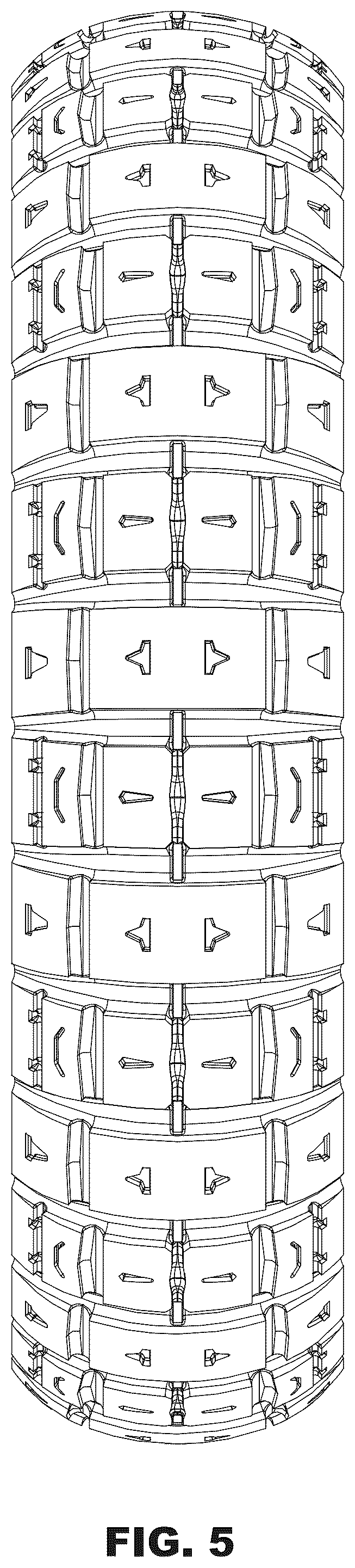

Fig. 5

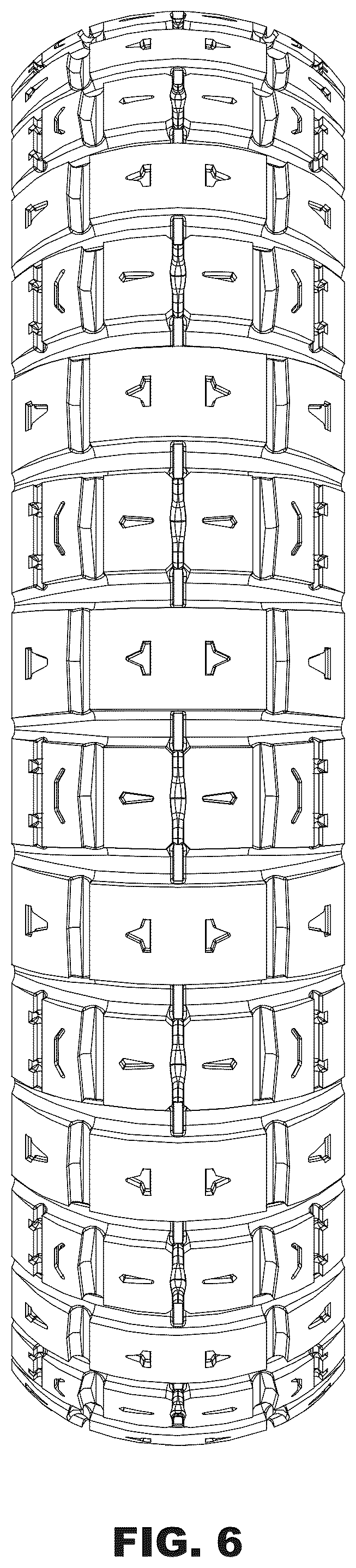

Fig. 6
