Windshield

USD1076748No. D 1,076,748designGranted 5/27/2025

Patent USD1076748 — Windshield — Figure 1 — Fig. 1 · Windshield

Claims (1)

Claim 1 (Independent)

The ornamental design for a windshield, as shown and described.

Full Description

Show full text →

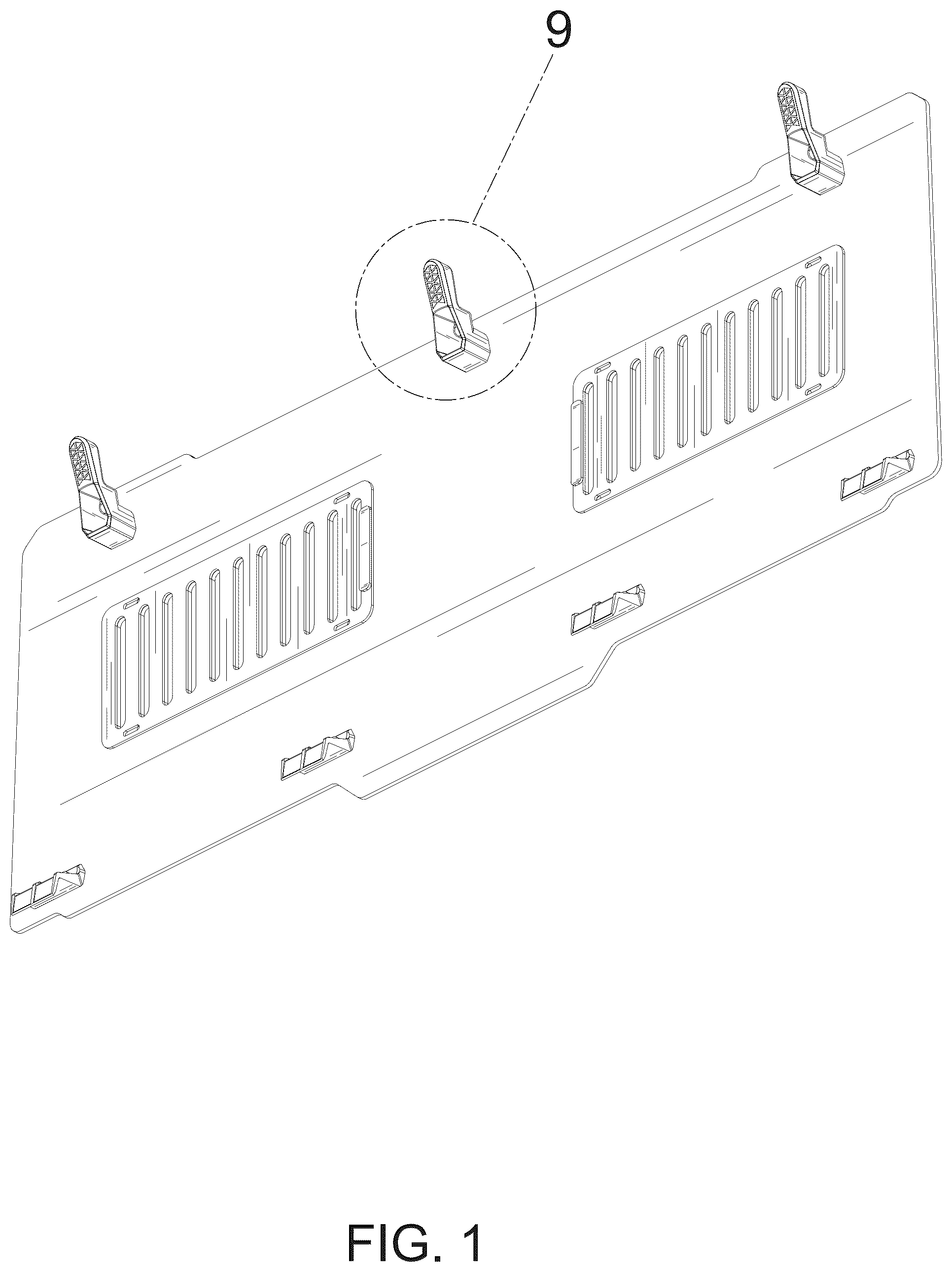

is a front, left and bottom perspective view of a windshield, showing our new design;

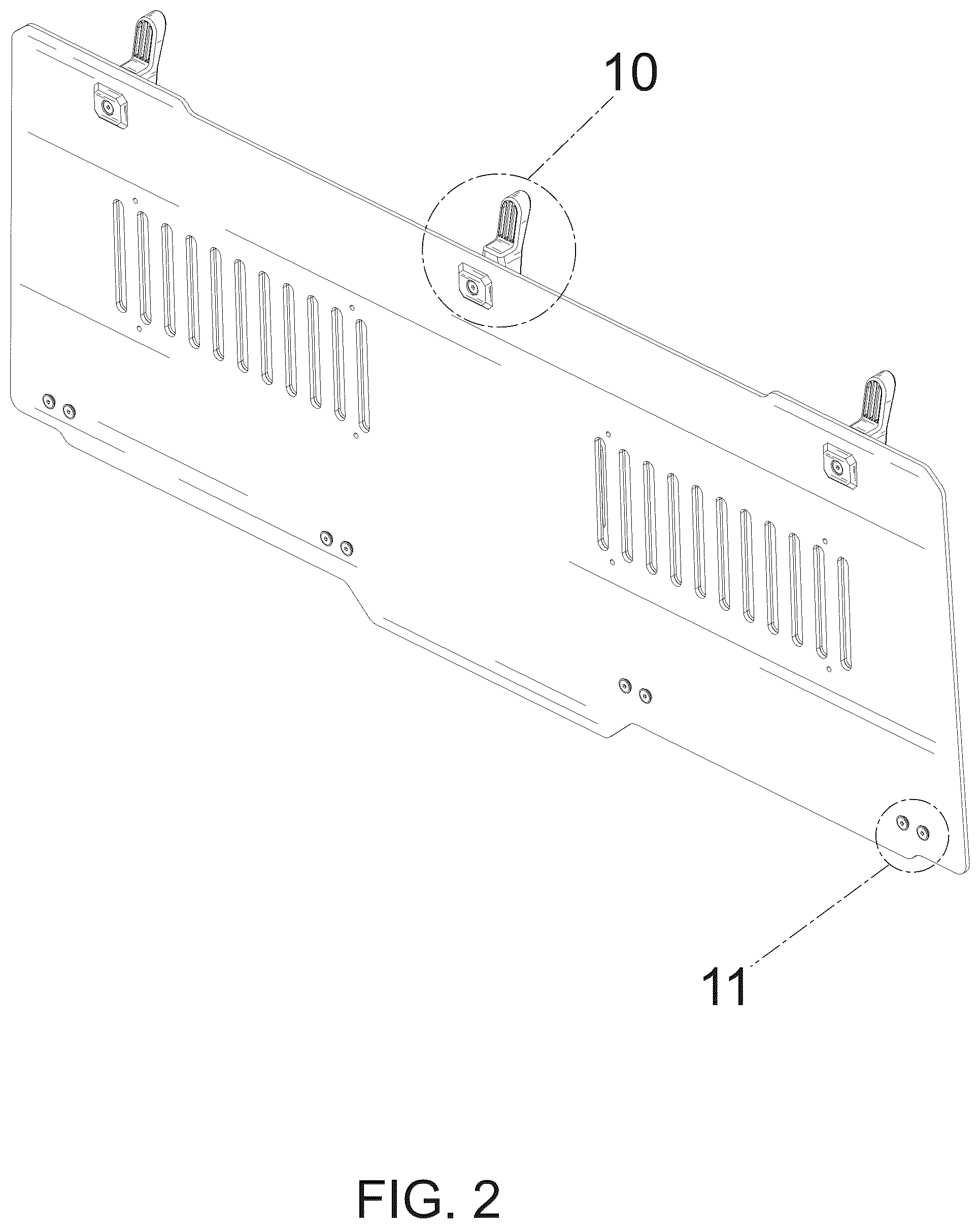

is a rear, right and top perspective view thereof;

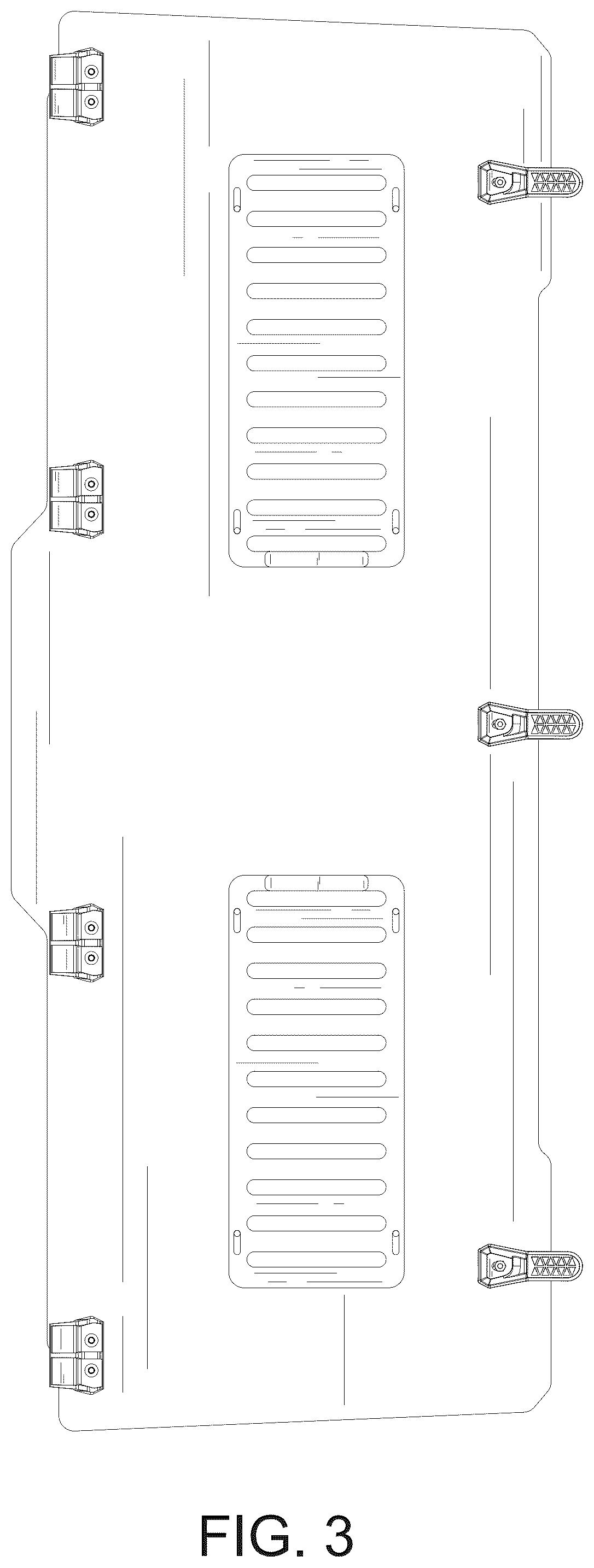

is a front view thereof;

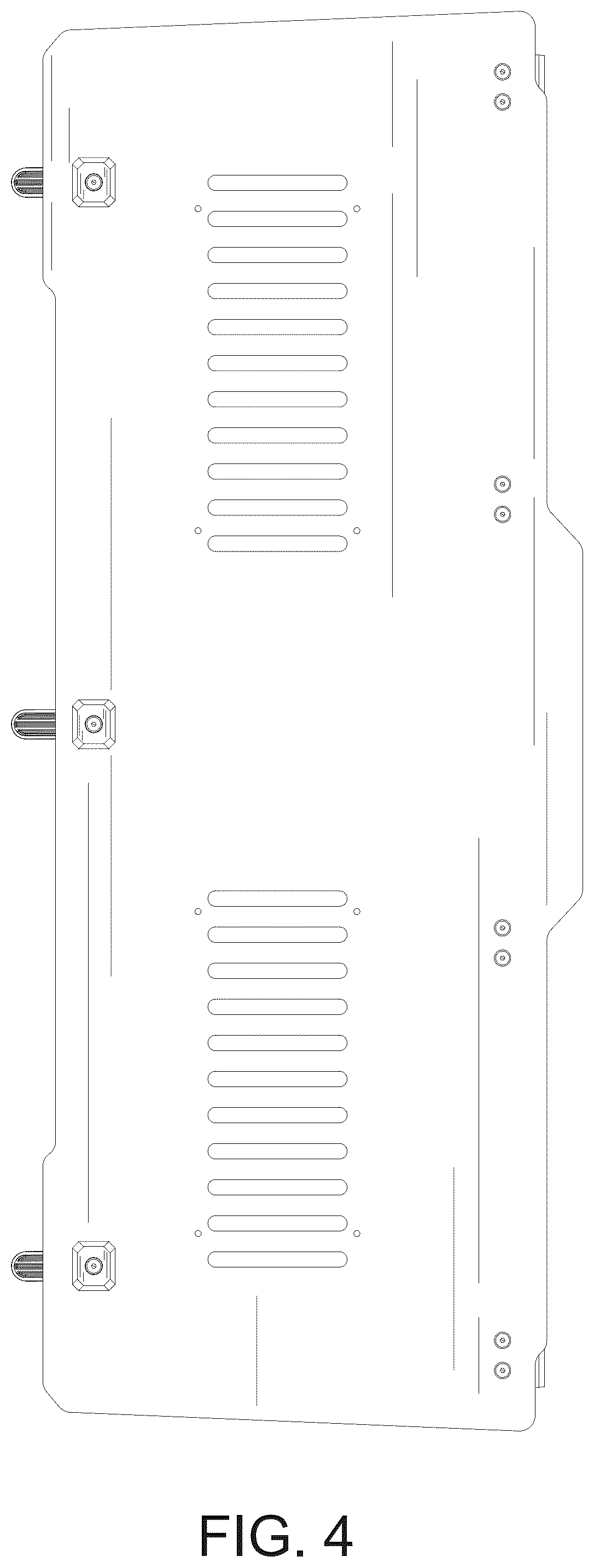

is a rear view thereof;

is a left side view thereof;

is a right side view thereof;

is a top plan view thereof;

is a bottom plan view thereof;

is an enlarged view of portion of thereof;

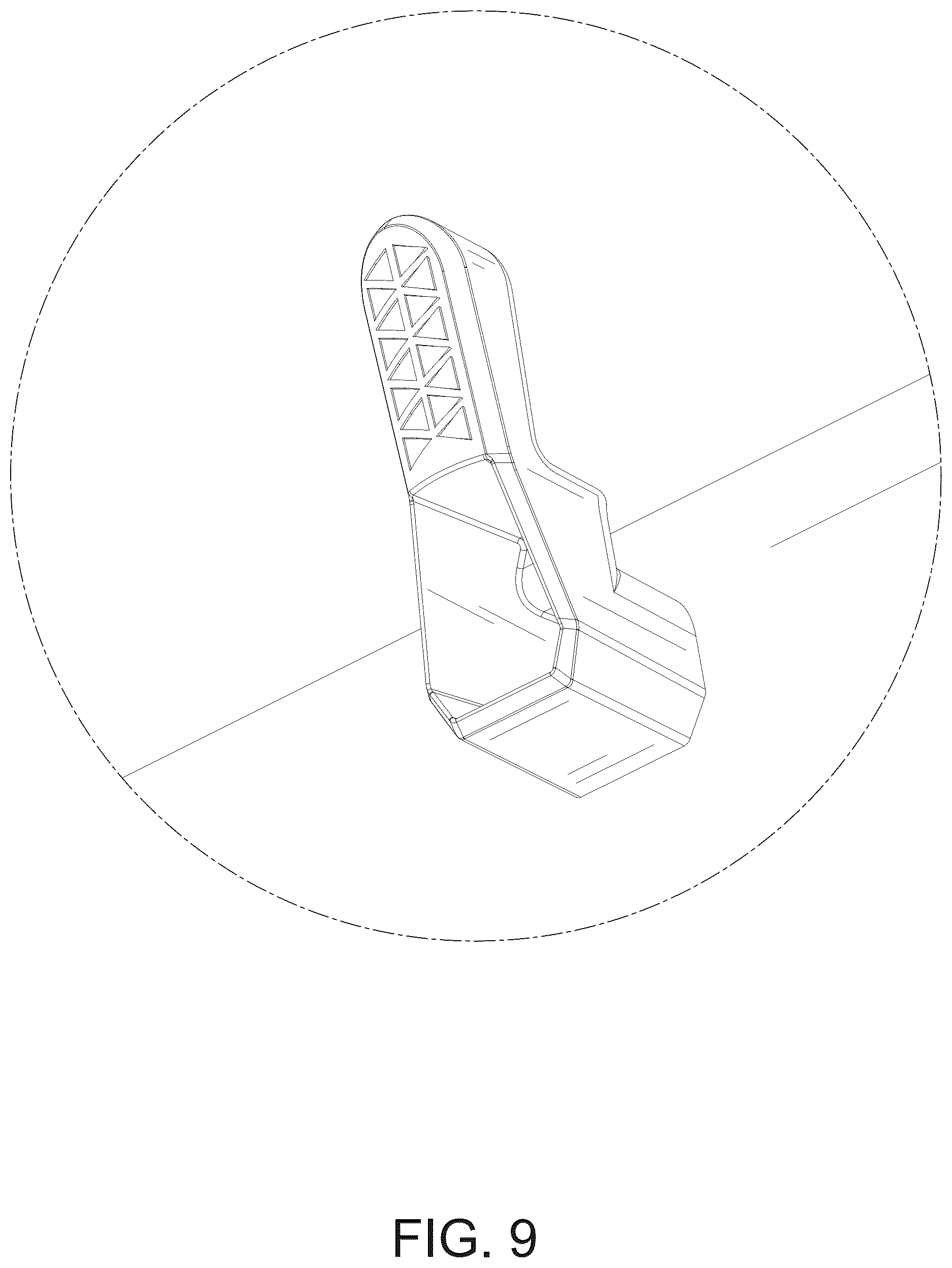

is an enlarged view of portion of thereof; and,

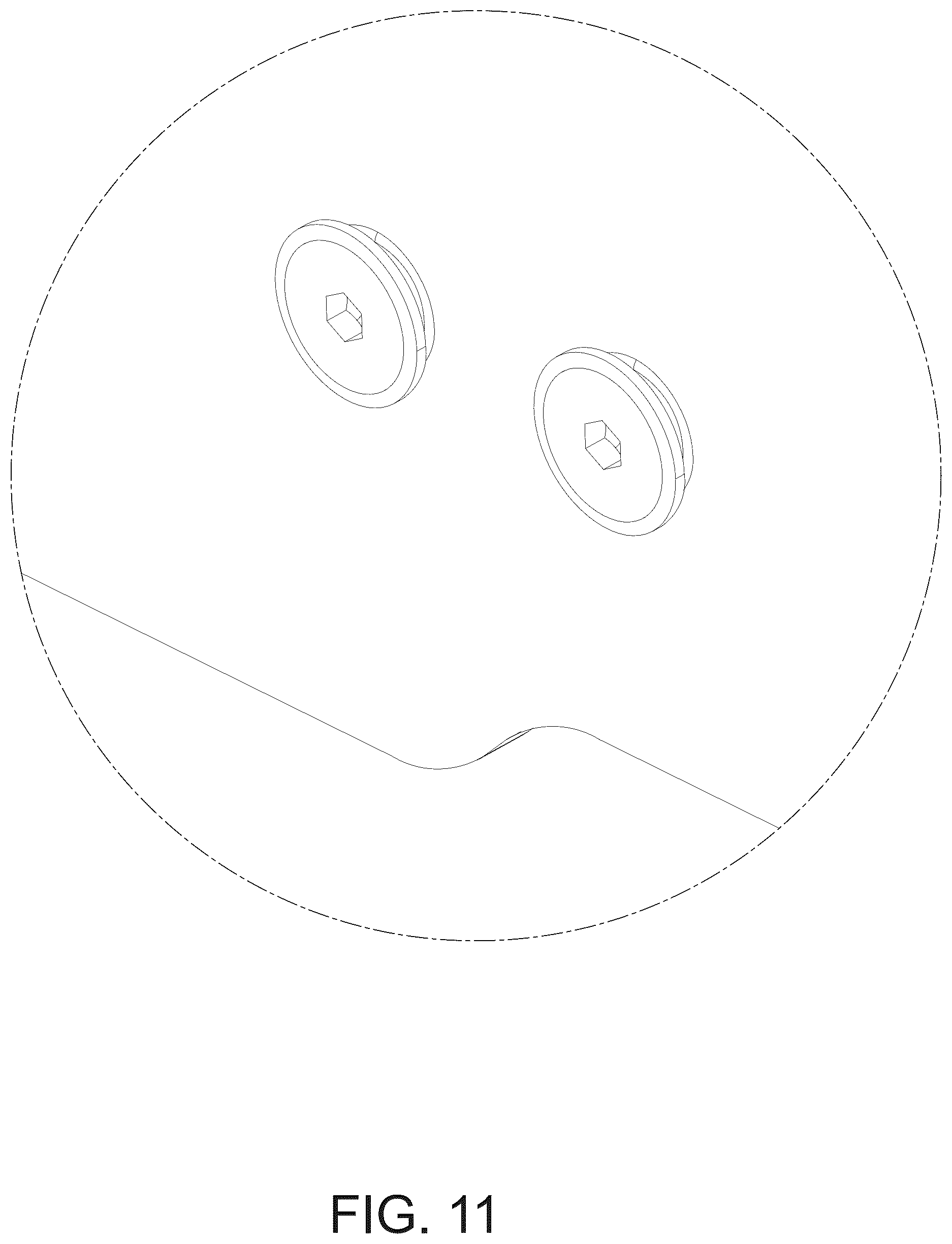

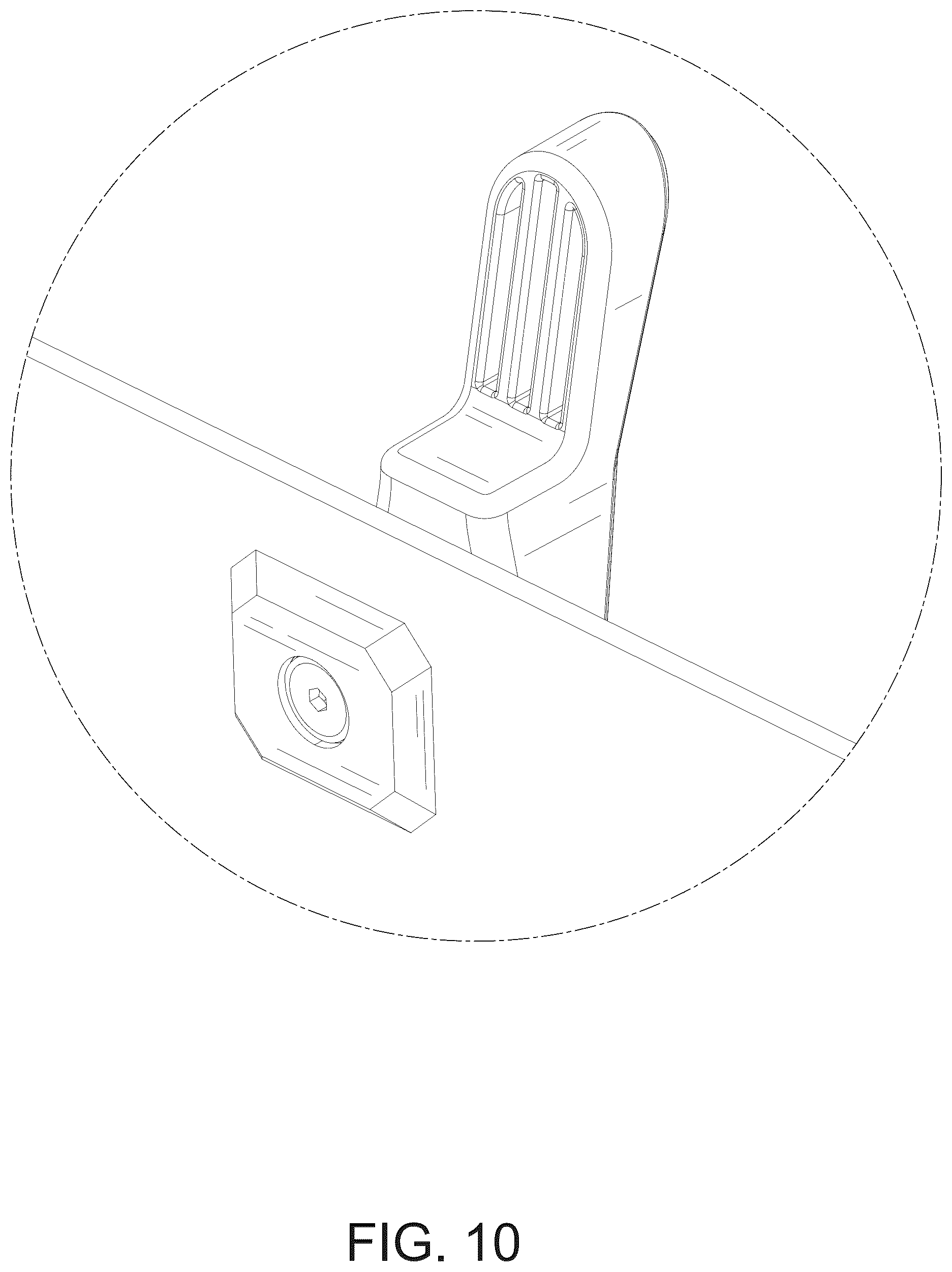

is an enlarged view of portion of thereof.

The dot-dash broken lines depict the boundaries of the enlargements that form no part of the claimed design.

Figures (11)

Patent USD1076748 Figure 1 – Windshield — Fig. 1

Patent USD1076748 Figure 2 – Windshield — Fig. 2

Patent USD1076748 Figure 3 – Windshield — Fig. 3

Patent USD1076748 Figure 4 – Windshield — Fig. 4

Patent USD1076748 Figure 5 – Windshield — Fig. 5

Patent USD1076748 Figure 6 – Windshield — Fig. 6

Patent USD1076748 Figure 7 – Windshield — Fig. 7

Patent USD1076748 Figure 8 – Windshield — Fig. 8

Patent USD1076748 Figure 9 – Windshield — Fig. 9

Patent USD1076748 Figure 10 – Windshield — Fig. 10

Patent USD1076748 Figure 11 – Windshield — Fig. 11
