Socket Wrench Tool

USD1076627No. D 1,076,627designGranted 5/27/2025
Patent USD1076627 — Socket wrench tool — Figure 1
Fig. 1 · Socket Wrench Tool

Claims (1)

Claim 1 (Independent)

The ornamental design for a socket wrench tool, as shown and described.

Full Description

Show full text →

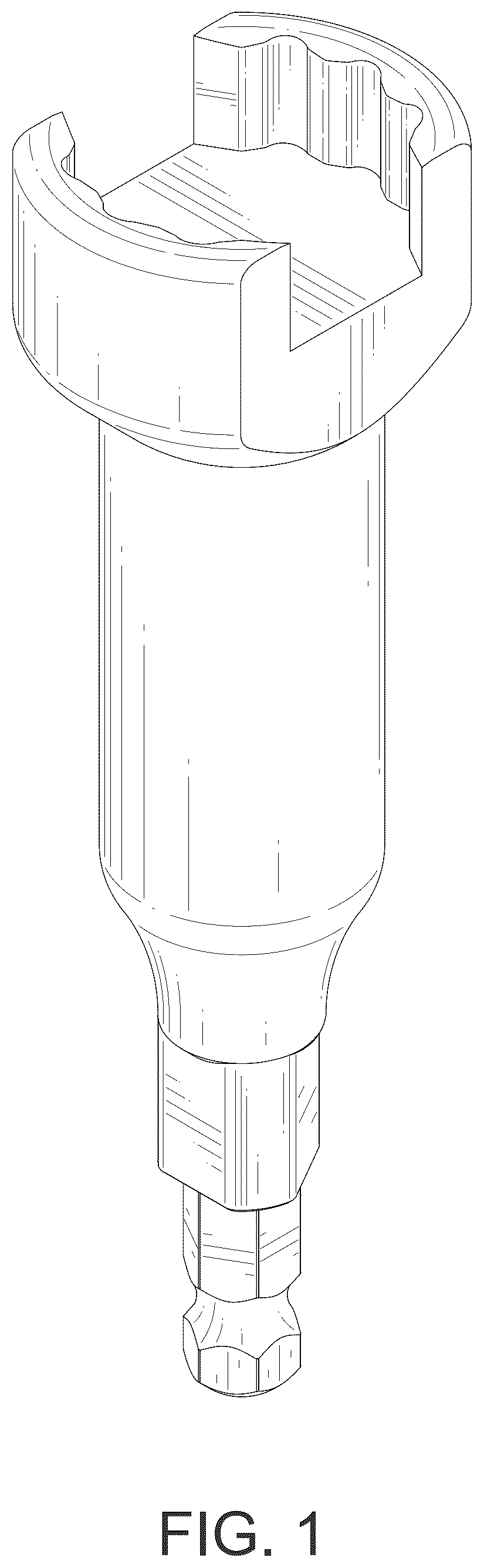

is a front perspective view of a socket wrench tool, showing my new design;

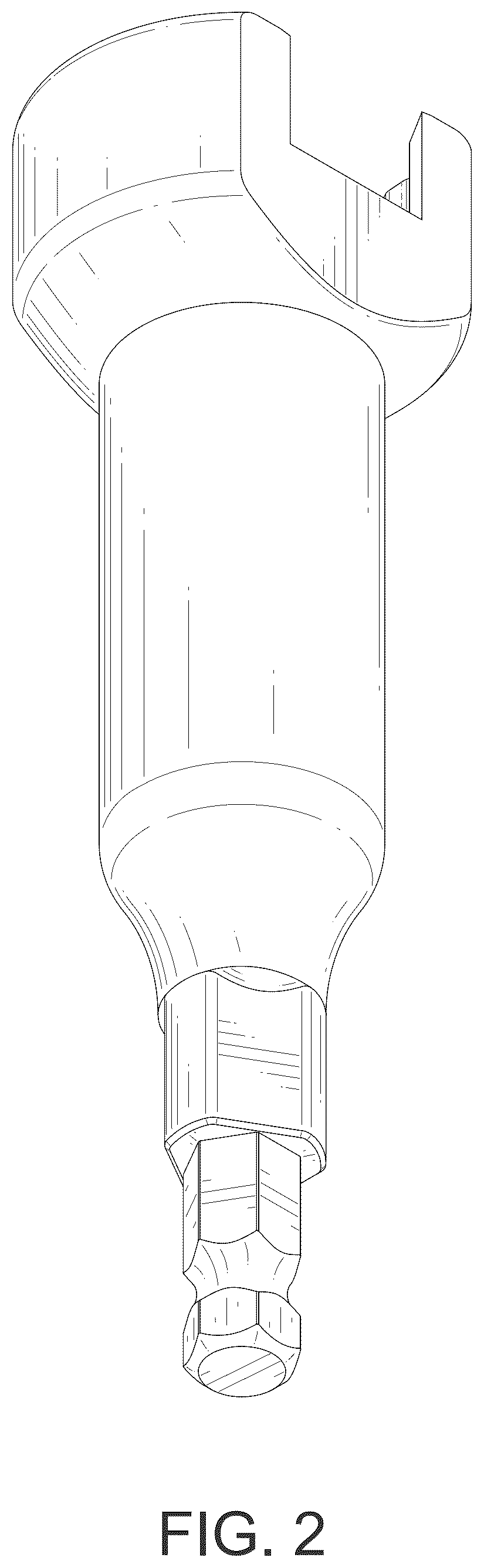

is a rear perspective view thereof;

is a front view thereof;

is a rear view thereof;

is a left side view thereof;

is a right side view thereof;

is a top view thereof; and,

is a bottom view.

Figures (8)

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
