Cooking Range

USD1076561No. D 1,076,561designGranted 5/27/2025

Patent USD1076561 — Cooking range — Figure 1 — Fig. 1 · Cooking Range

Claims (1)

Claim 1 (Independent)

The ornamental design for a cooking range as shown and described.

Full Description

Show full text →

is a perspective view of a first embodiment of a cooking range;

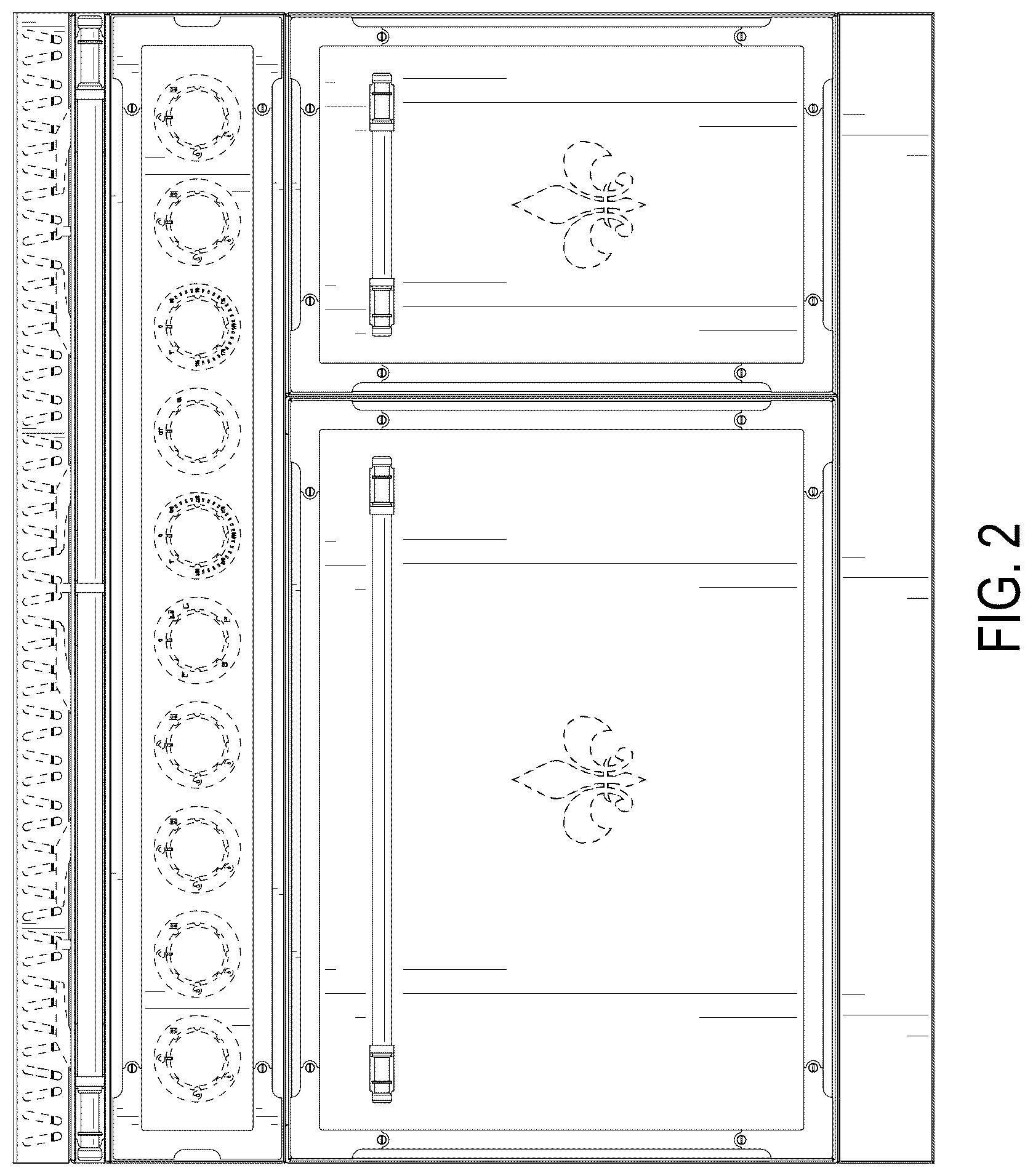

is a front view of the cooking range of ;

is a top plan view of the cooking range of ;

is a right side view of the cooking range of ;

is a left side view of the cooking range of ;

is a perspective view of a second embodiment of the cooking range;

is a front view of the cooking range of ;

is a top plan view of the cooking range of ;

is a right side view of the cooking range of ;

is a left side view of the cooking range of ;

is a perspective view of a third embodiment of the cooking range;

is a front view of the cooking range of ;

is a top plan view of the cooking range of ;

is a right side view of the cooking range of ; and,

is a left side view of the cooking range of .

The broken lines in the drawings depict portions of the cooking range that form no part of the claim design.

Figures (15)

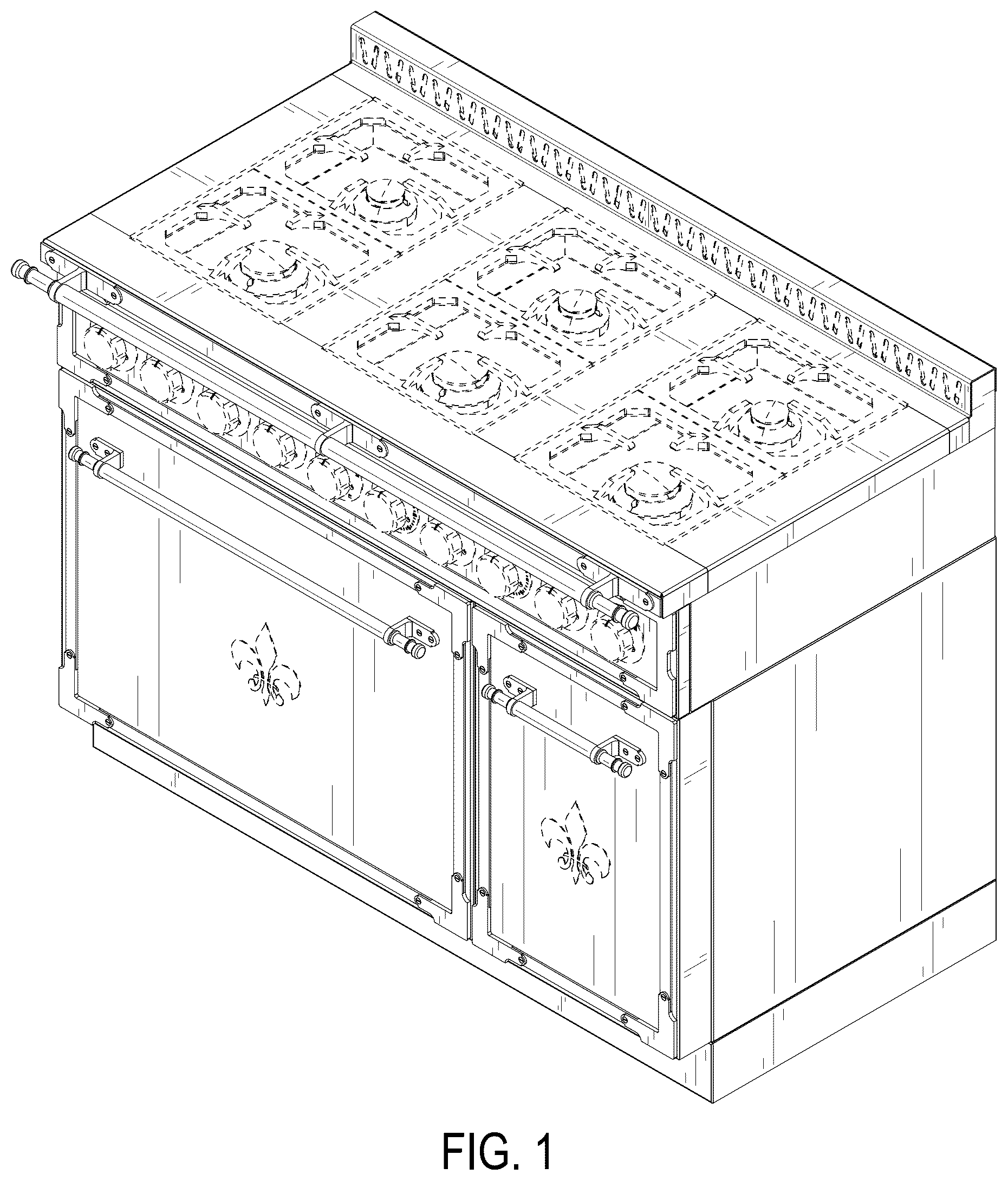

Patent USD1076561 Figure 1 – Cooking range — Fig. 1

Patent USD1076561 Figure 2 – Cooking range — Fig. 2

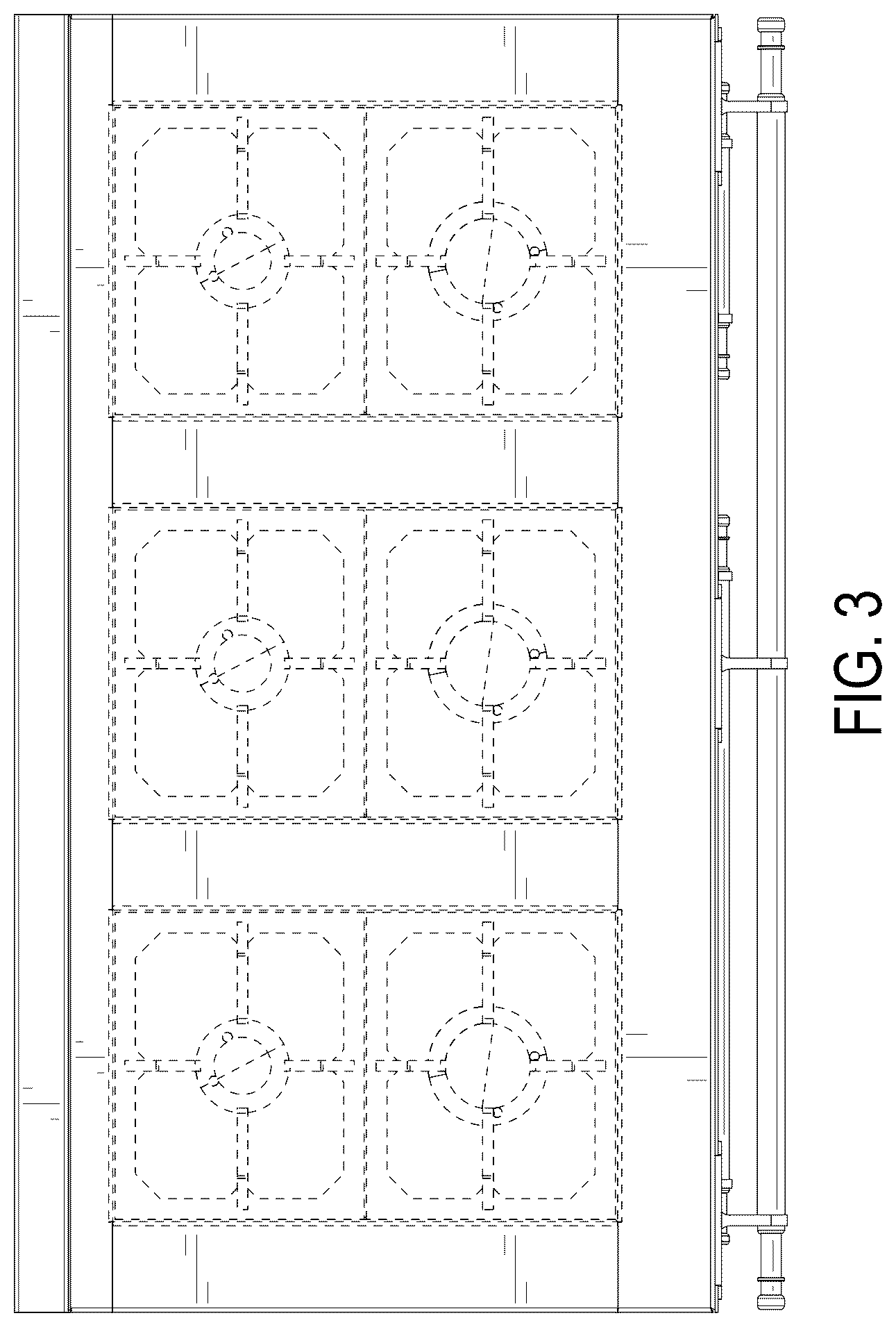

Patent USD1076561 Figure 3 – Cooking range — Fig. 3

Patent USD1076561 Figure 4 – Cooking range — Fig. 4

Patent USD1076561 Figure 5 – Cooking range — Fig. 5

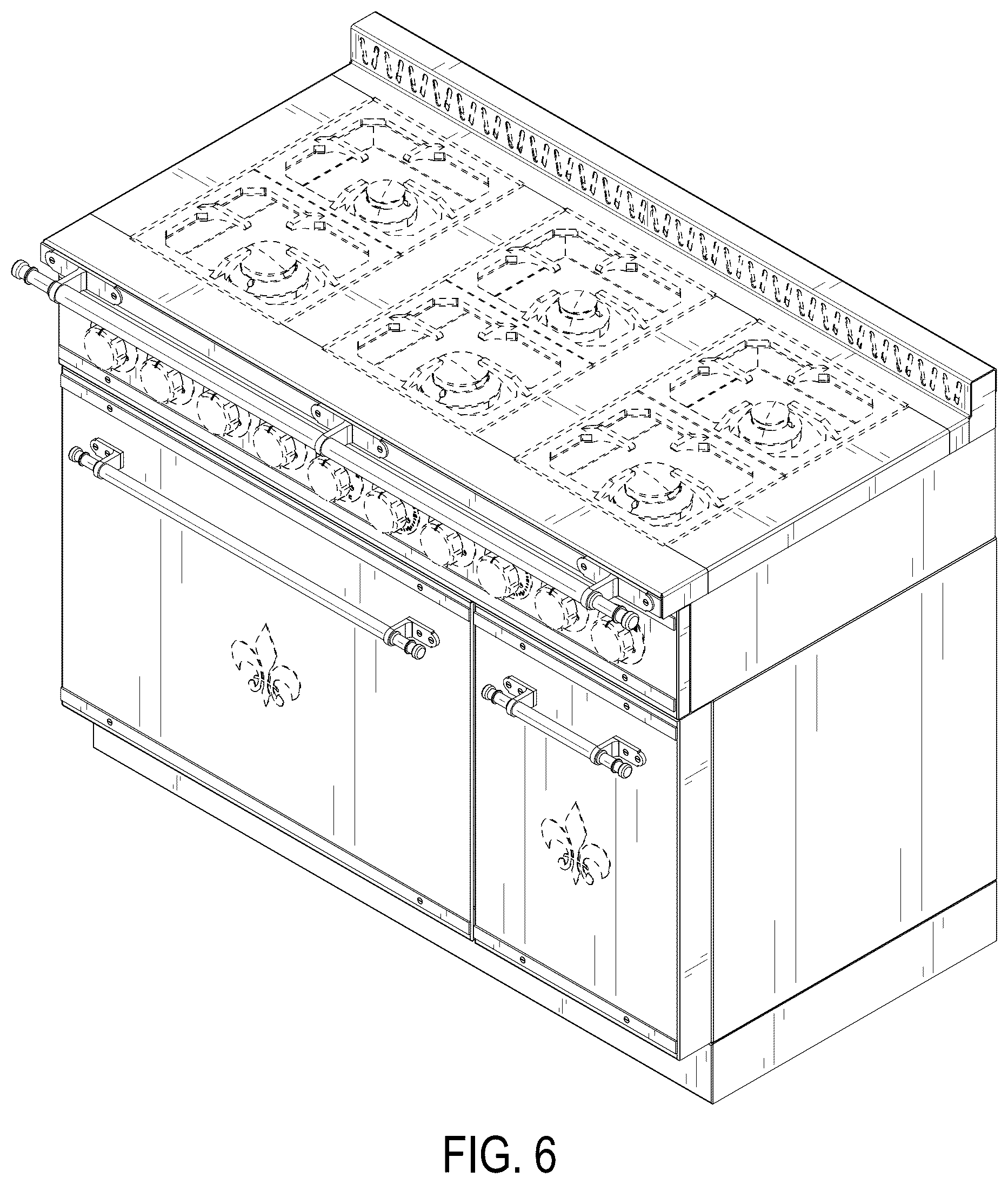

Patent USD1076561 Figure 6 – Cooking range — Fig. 6

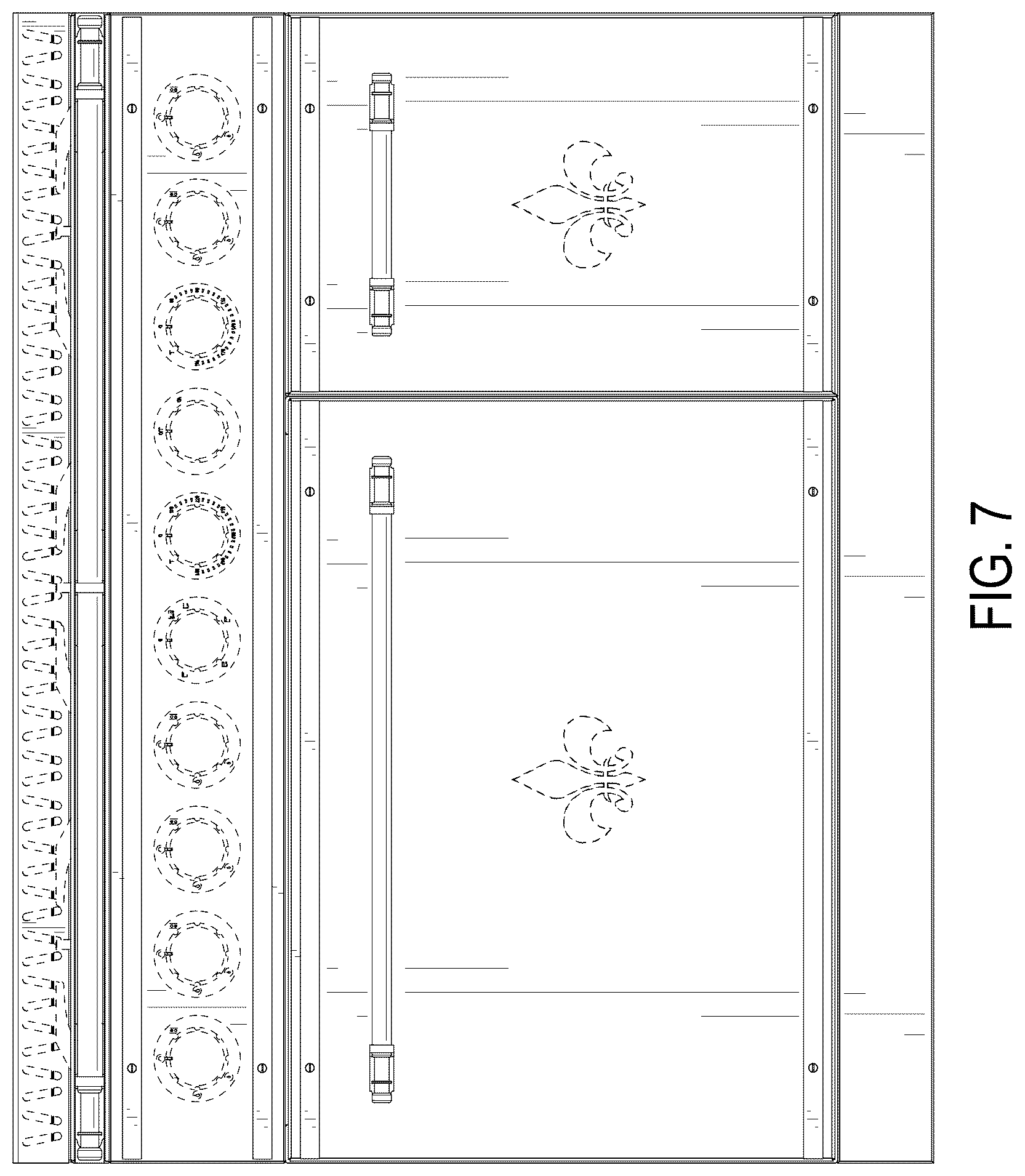

Patent USD1076561 Figure 7 – Cooking range — Fig. 7

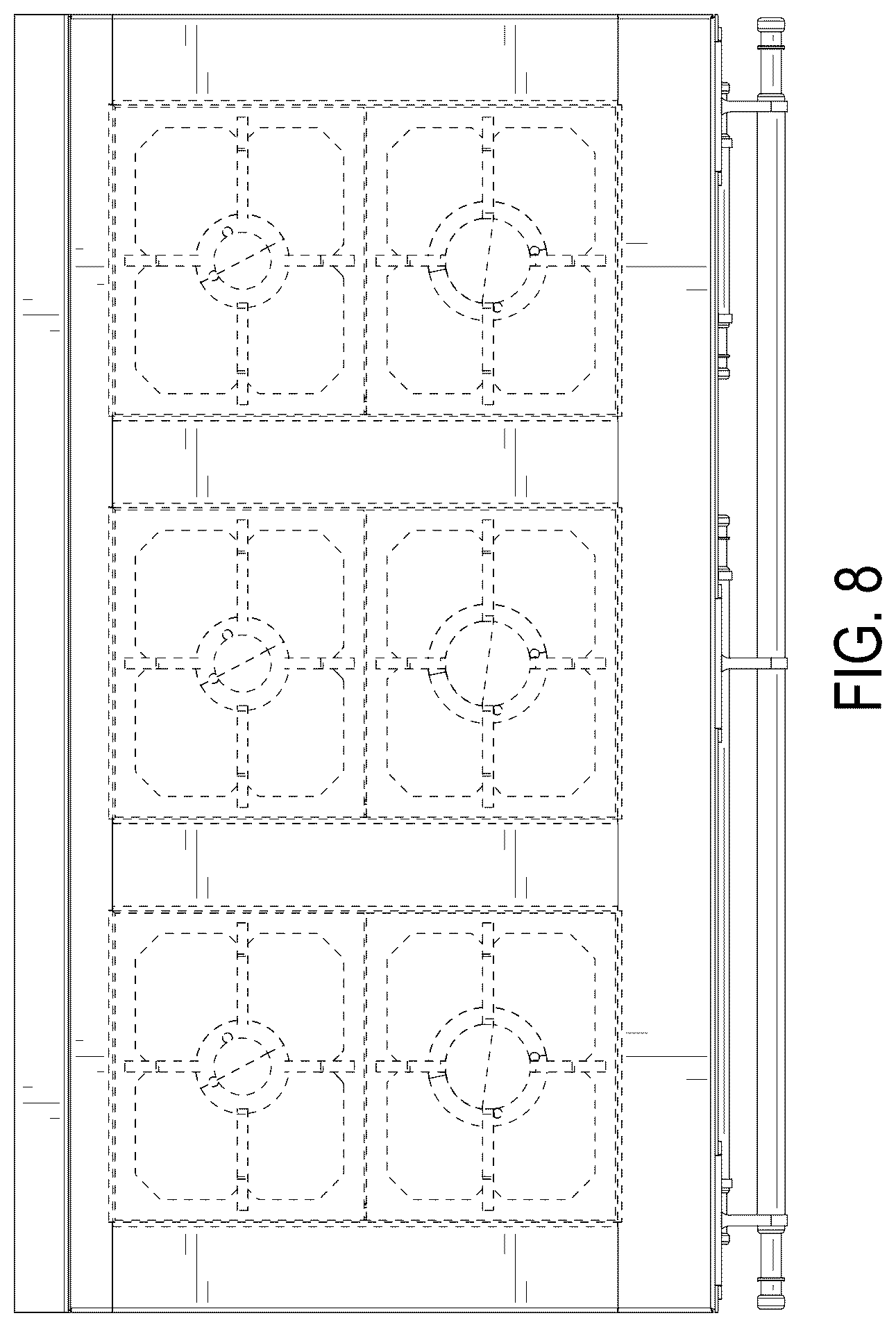

Patent USD1076561 Figure 8 – Cooking range — Fig. 8

Patent USD1076561 Figure 9 – Cooking range — Fig. 9

Patent USD1076561 Figure 10 – Cooking range — Fig. 10

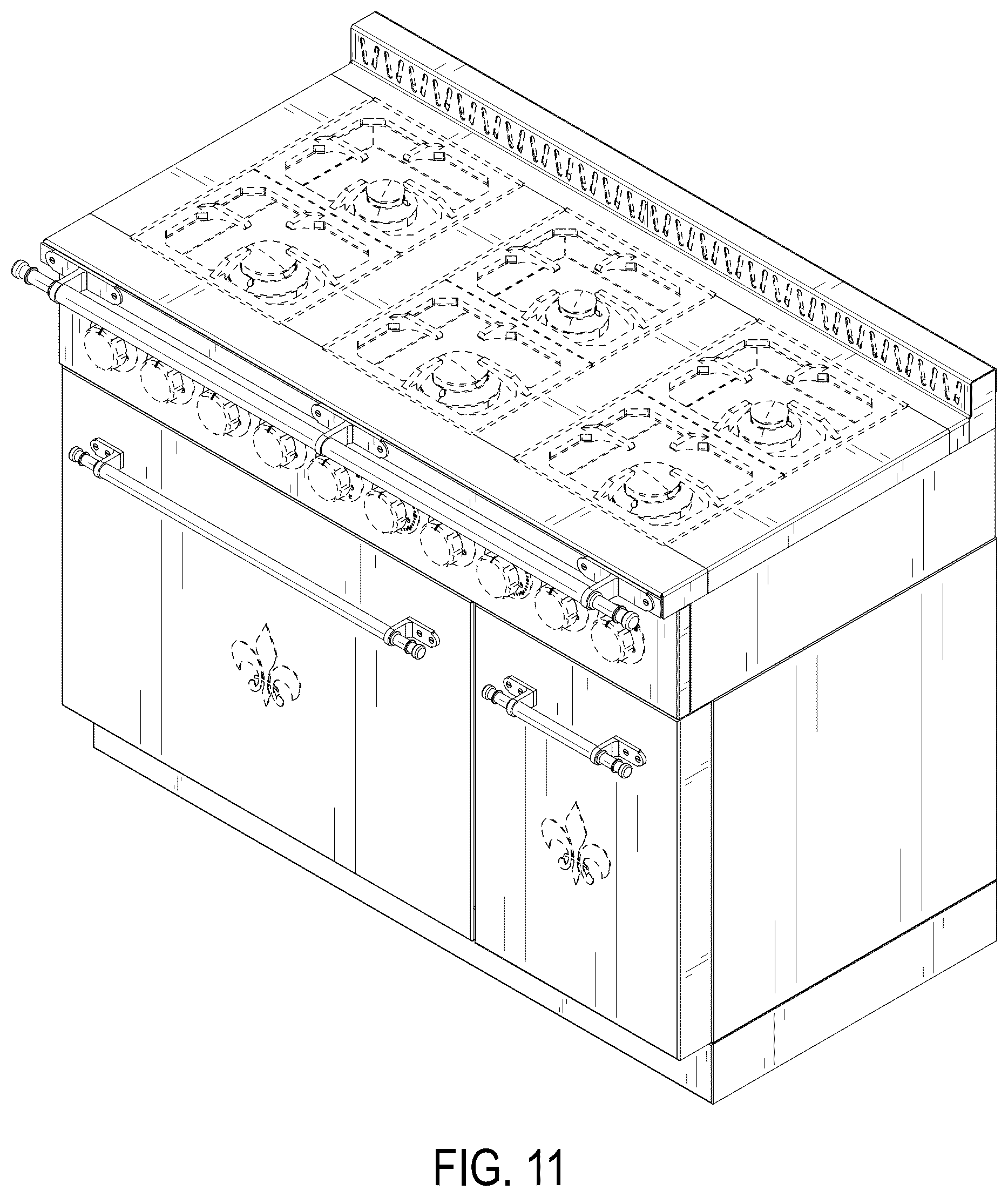

Patent USD1076561 Figure 11 – Cooking range — Fig. 11

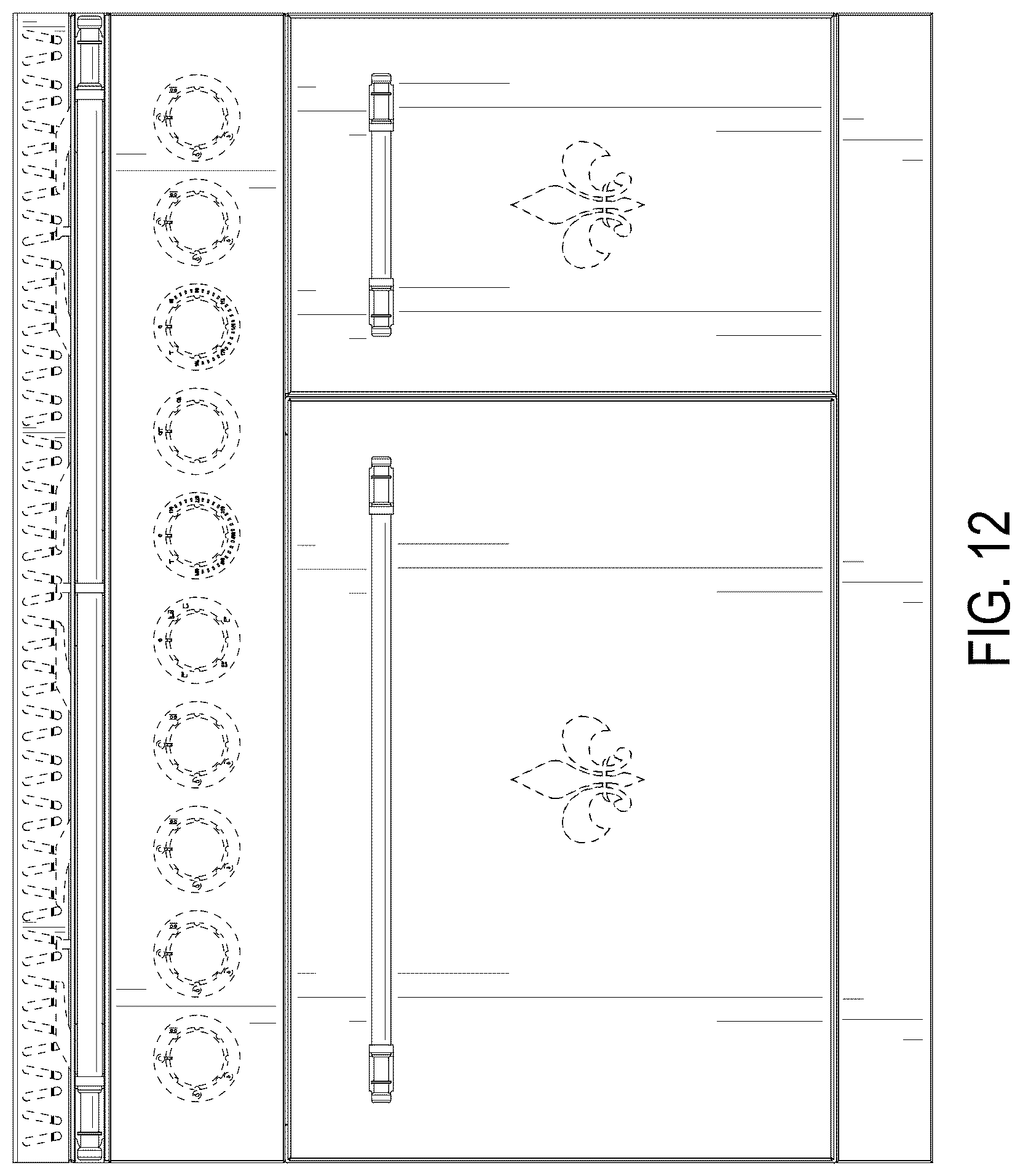

Patent USD1076561 Figure 12 – Cooking range — Fig. 12

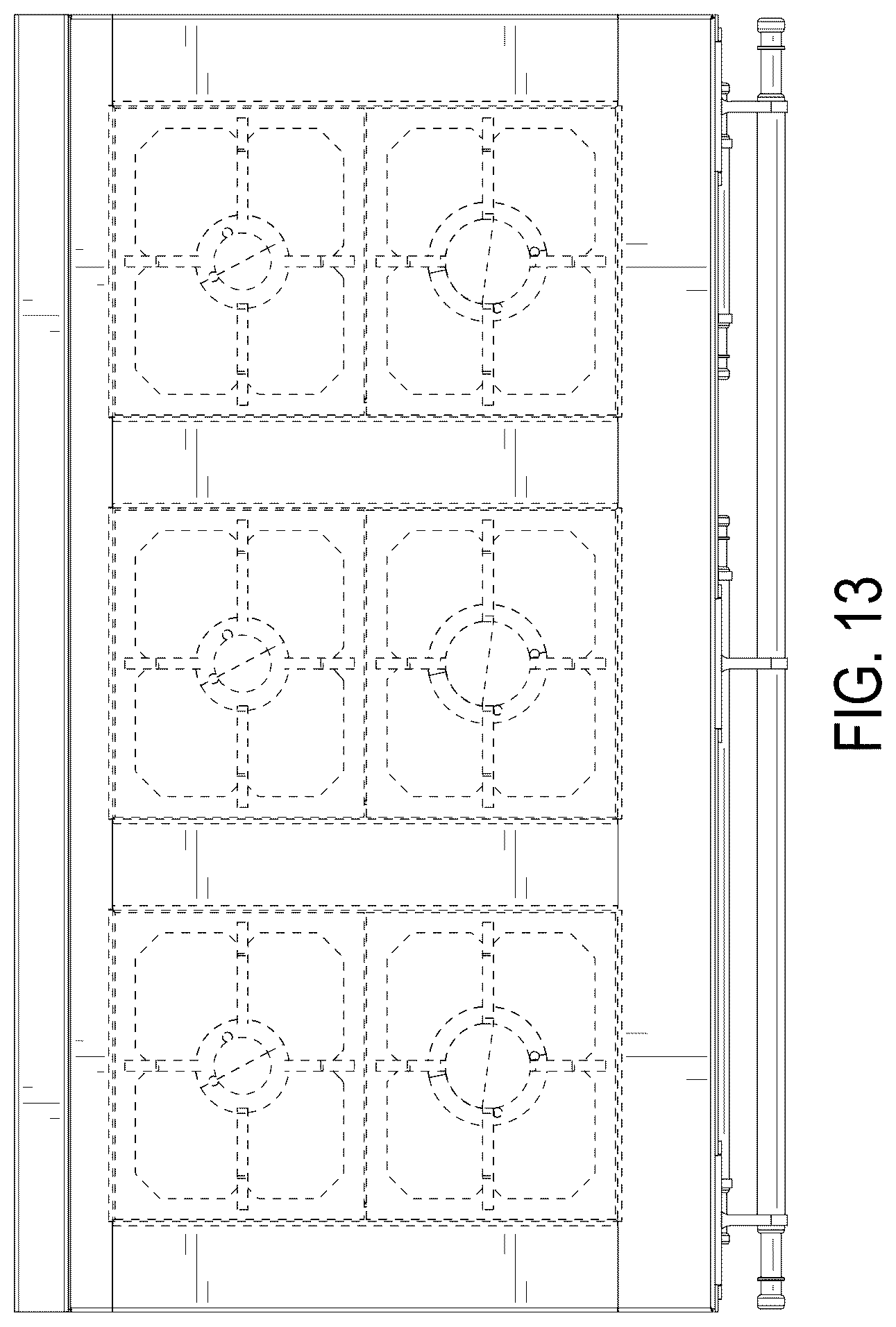

Patent USD1076561 Figure 13 – Cooking range — Fig. 13

Patent USD1076561 Figure 14 – Cooking range — Fig. 14

Patent USD1076561 Figure 15 – Cooking range — Fig. 15
