Round Cantilever Umbrella Base

USD1076531No. D 1,076,531designGranted 5/27/2025

Patent USD1076531 — Round cantilever umbrella base — Figure 1 — Fig. 1 · Round Cantilever Umbrella Base

Claims (1)

Claim 1 (Independent)

The ornamental design for a round cantilever umbrella base, as shown and described.

Full Description

Show full text →

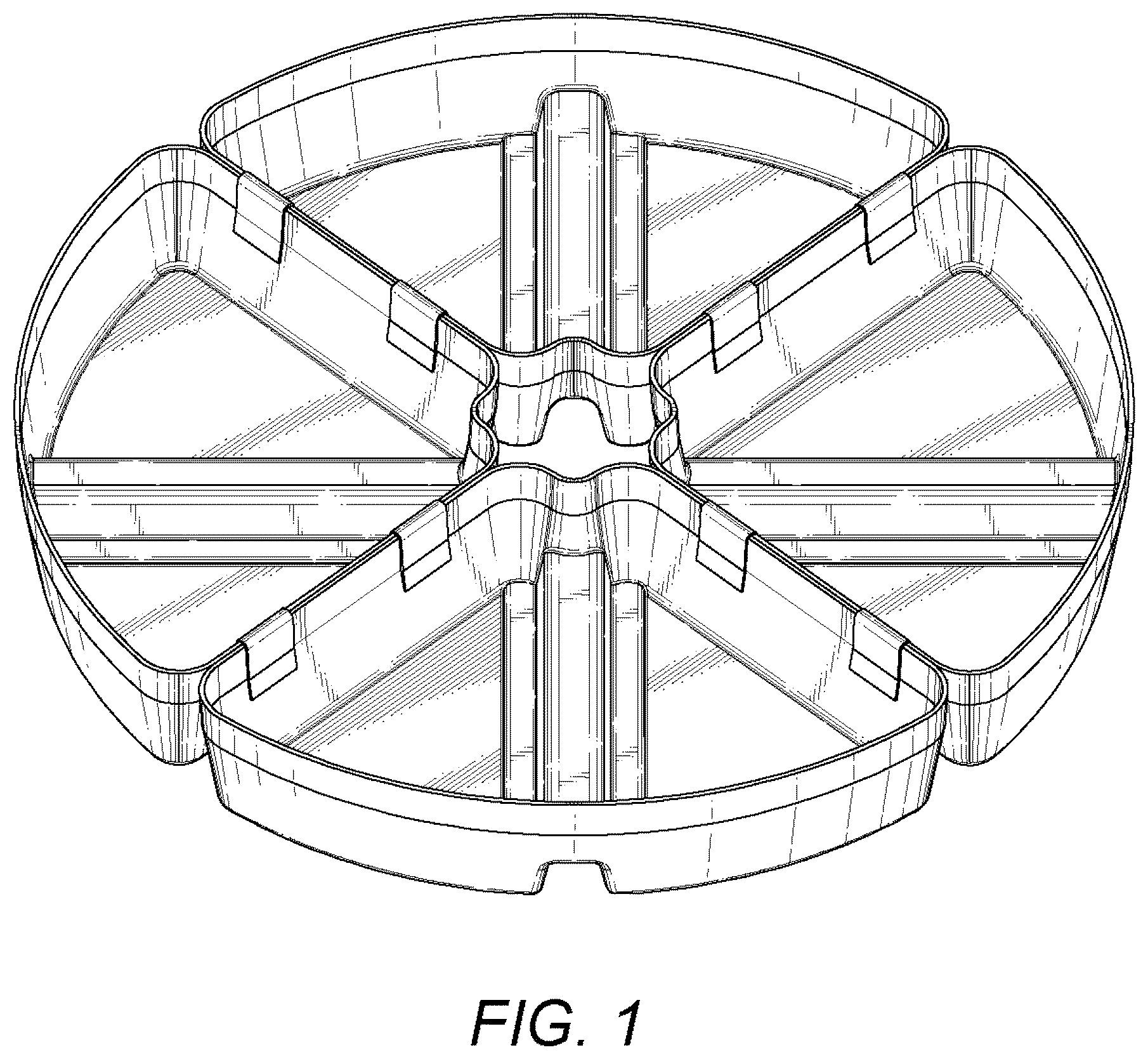

is an upper perspective view of joined sections of a round cantilever umbrella base;

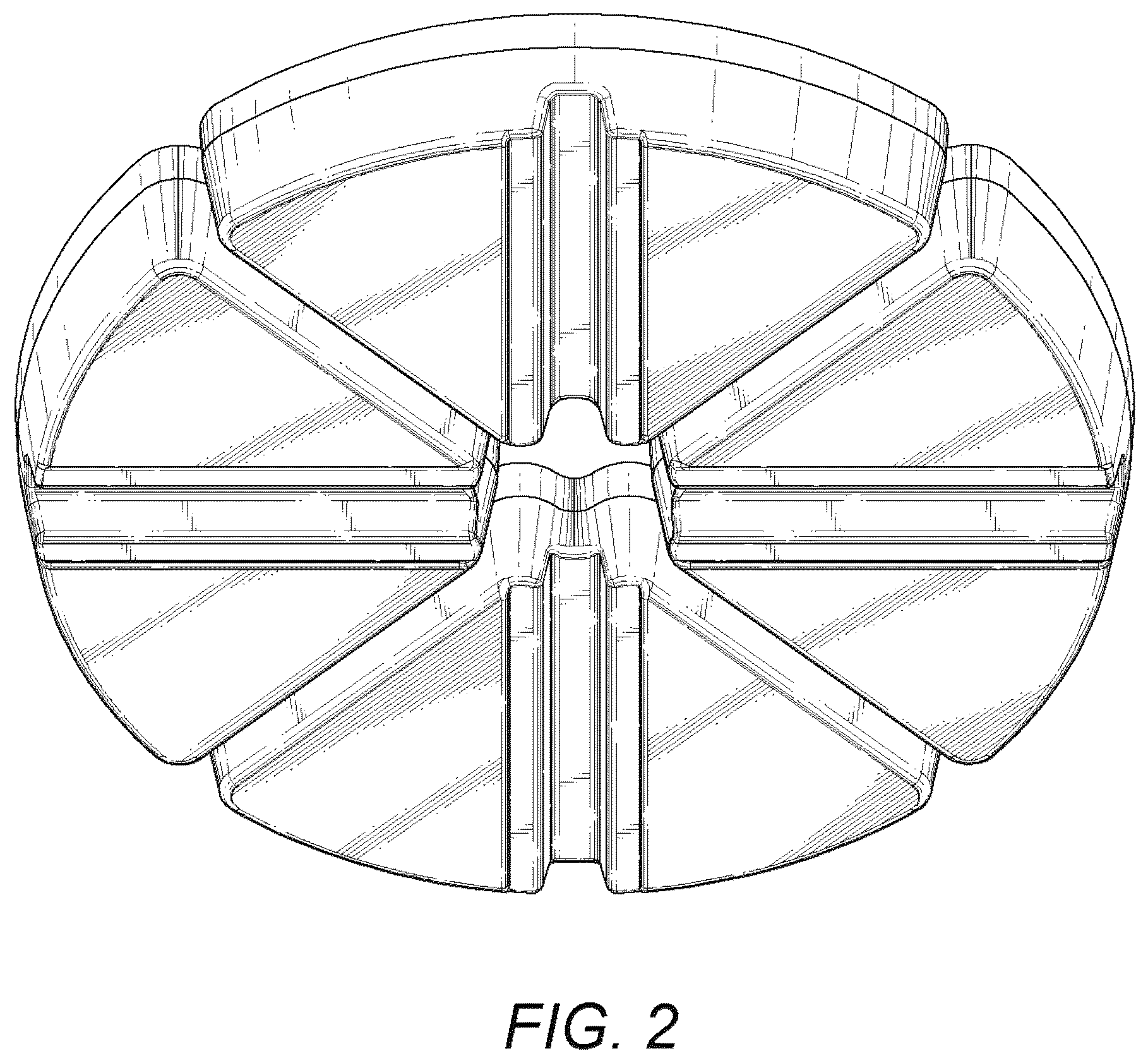

is lower perspective view thereof;

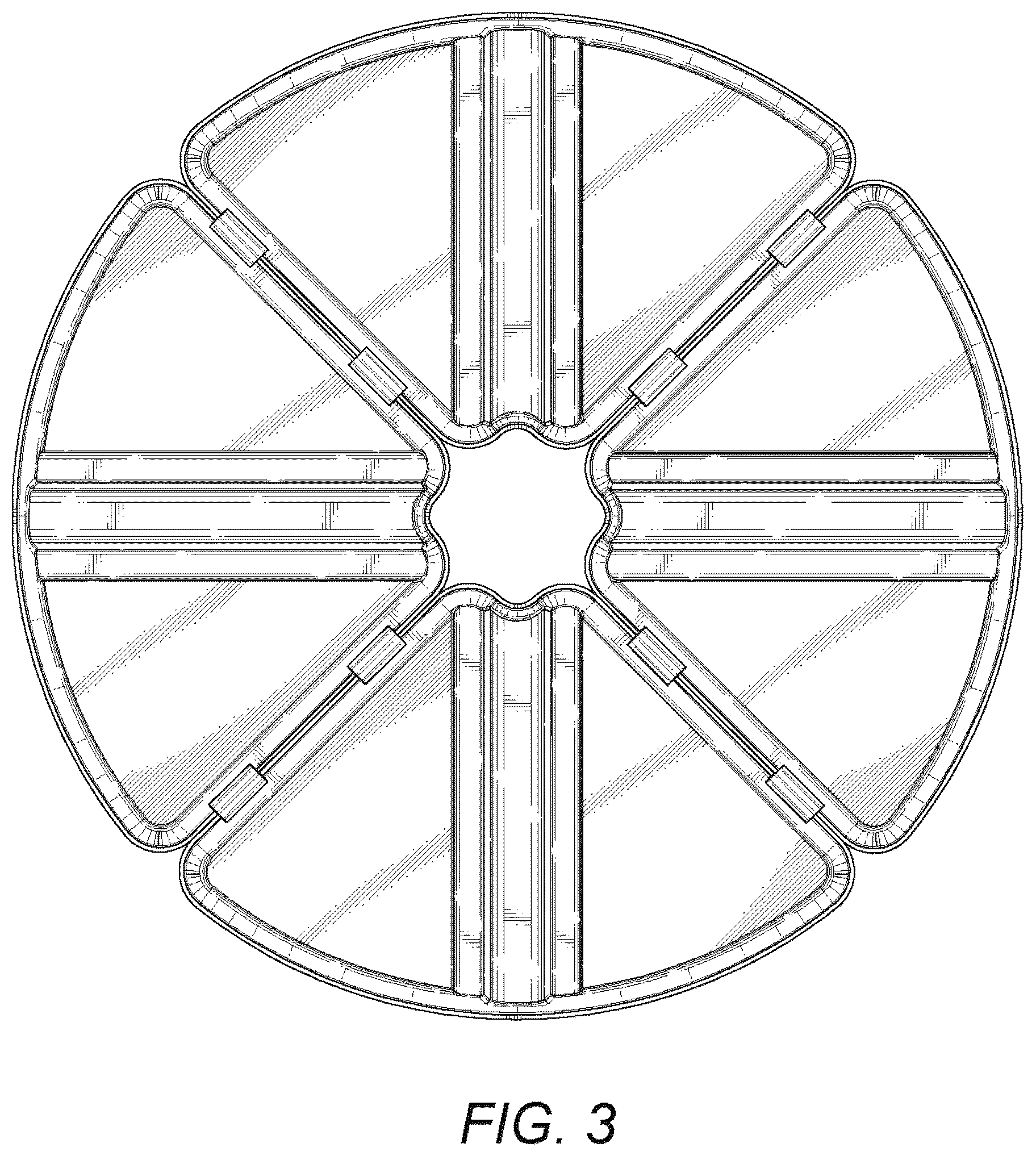

is a top view thereof;

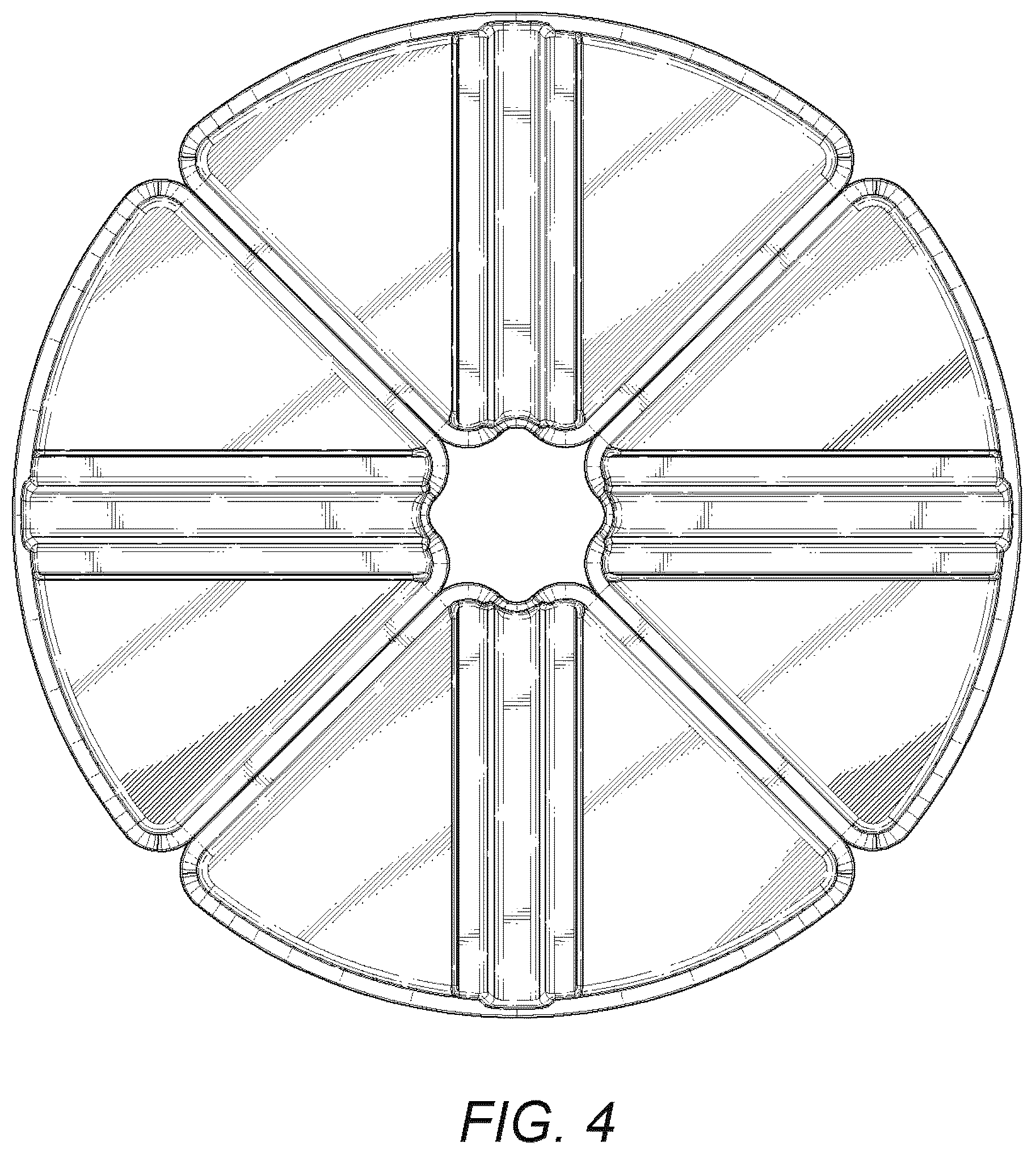

is a bottom view thereof;

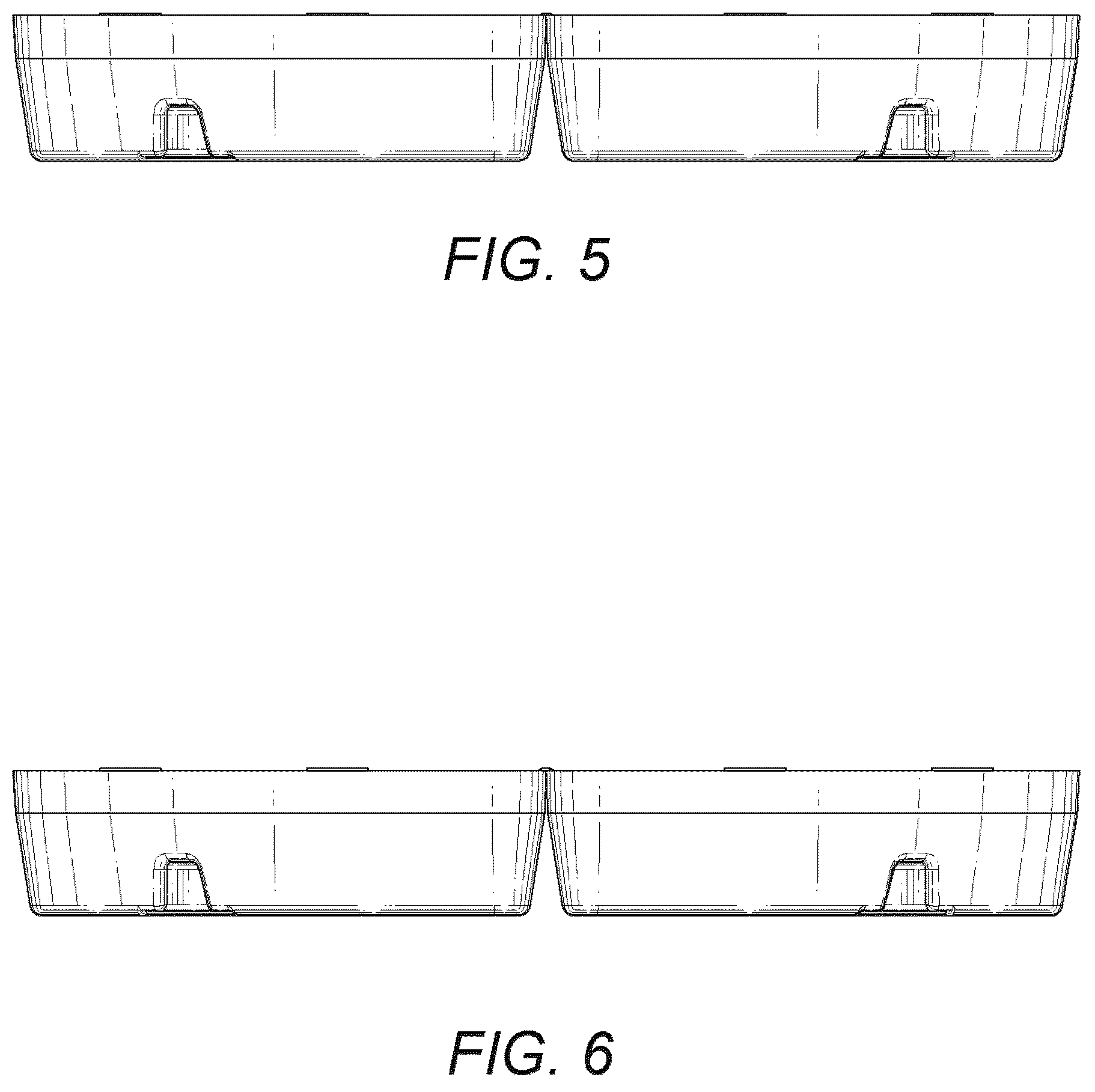

is a left view thereof;

is a right view thereof;

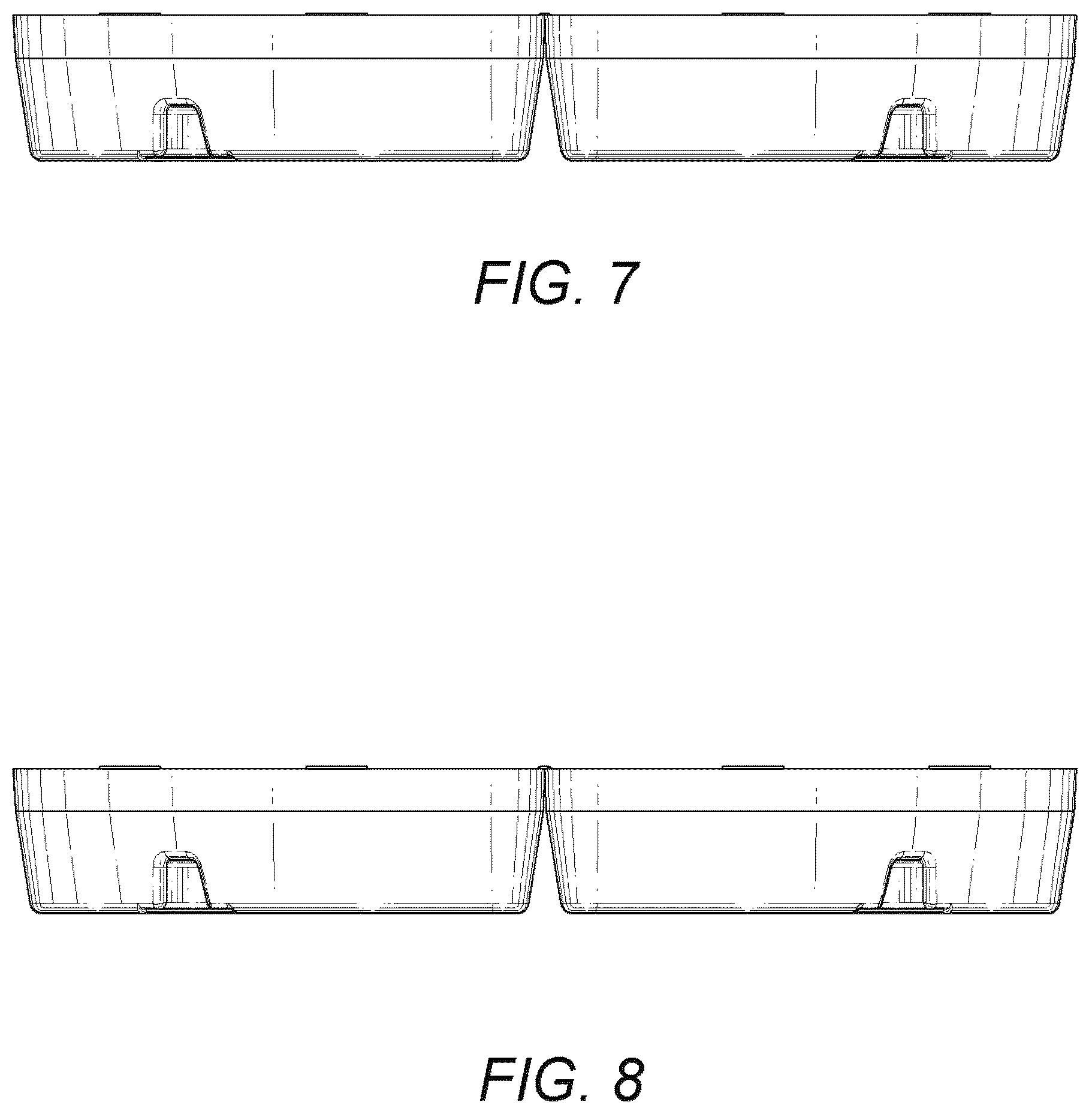

is a front view thereof; and,

is a back view thereof.
