Projector

USD1076199No. D 1,076,199designGranted 5/20/2025
Patent USD1076199 — Projector — Figure 1
Fig. 1 · Projector

Claims (1)

Claim 1 (Independent)

The ornamental design for a projector as shown and described.

Full Description

Show full text →

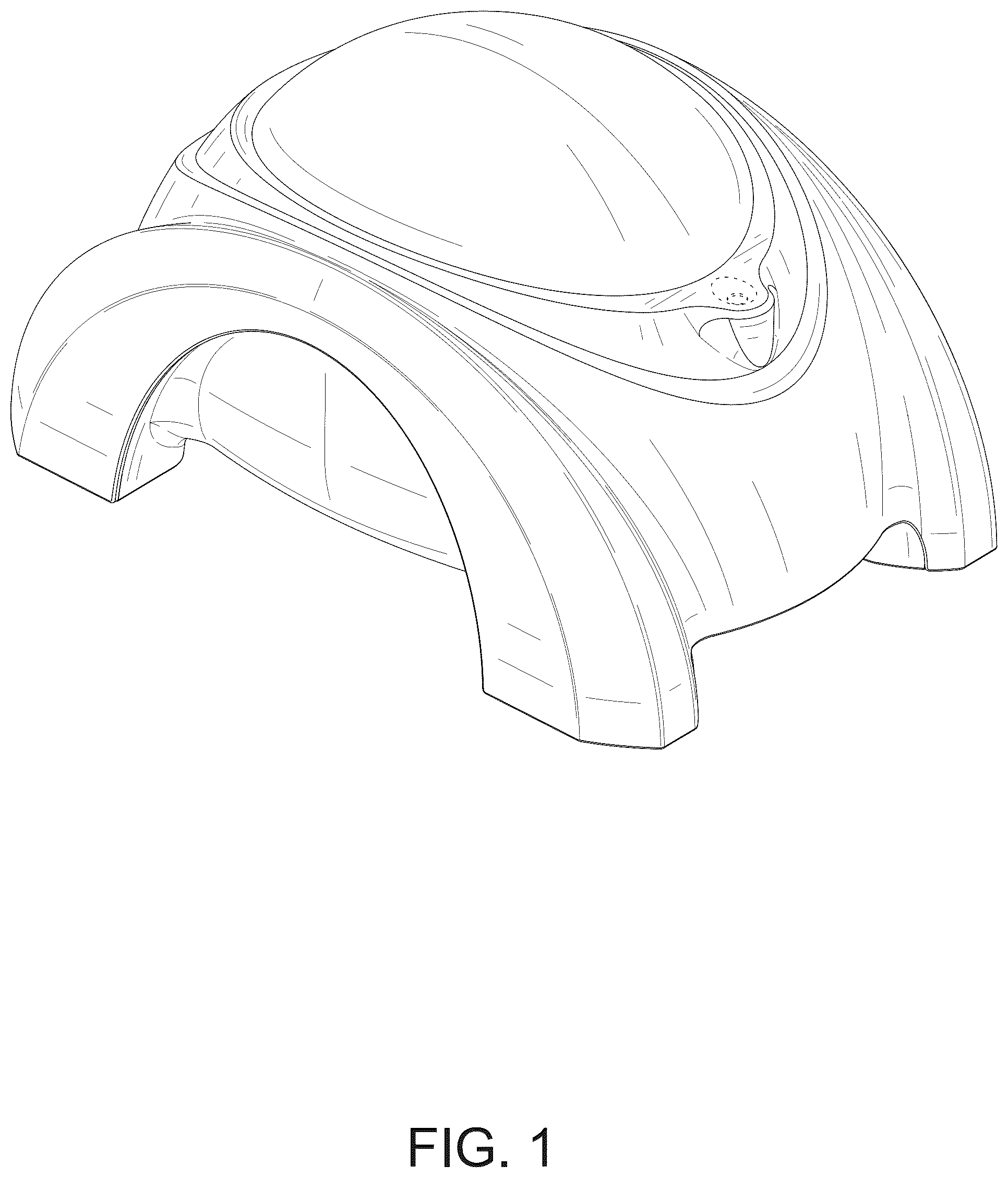

is a front, top, right side perspective view of a projector, showing my new design;

is a rear, top, left side perspective view thereof;

is a front elevational view thereof;

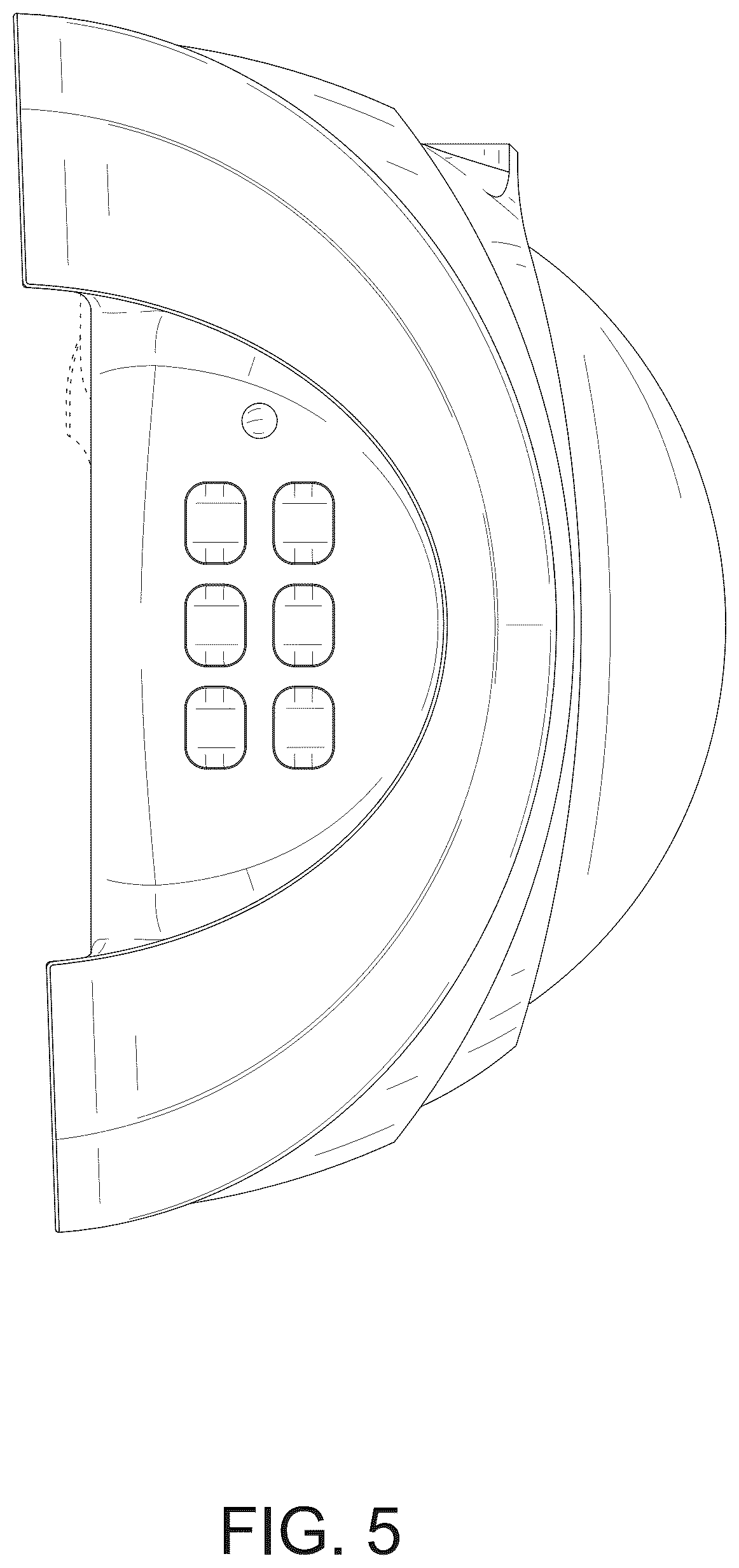

is a rear elevational view thereof;

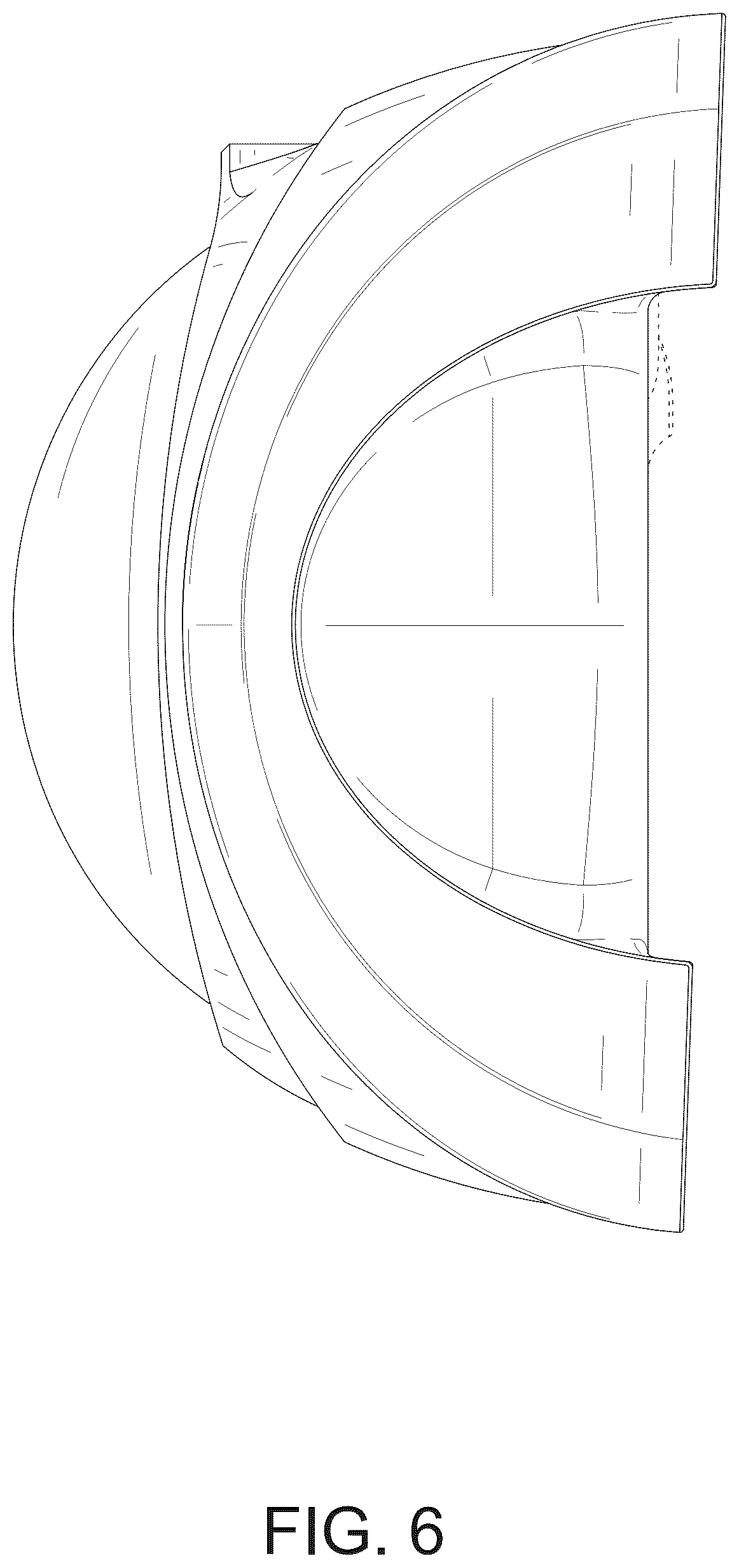

is a left side elevational view thereof;

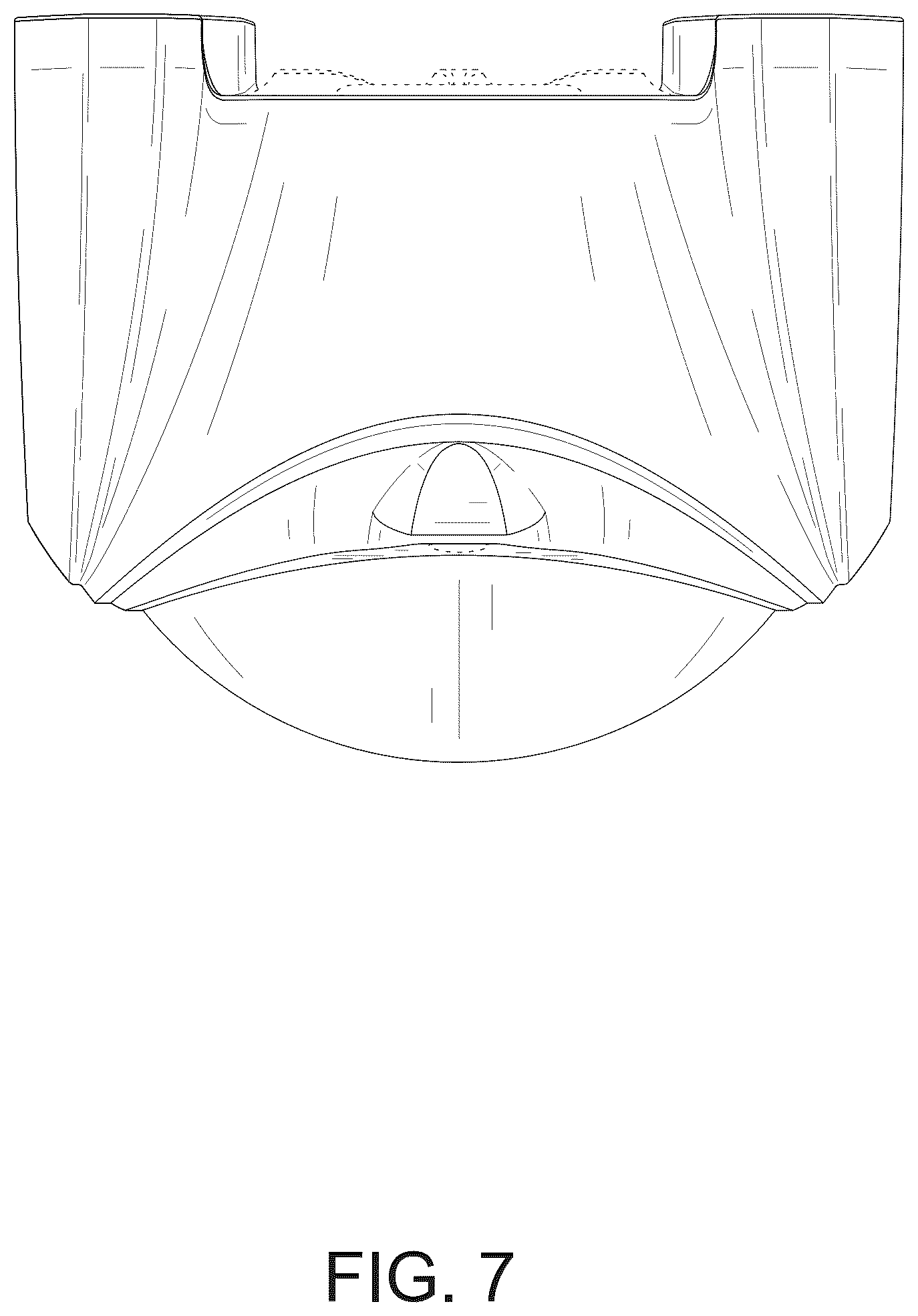

is a right side elevational view thereof;

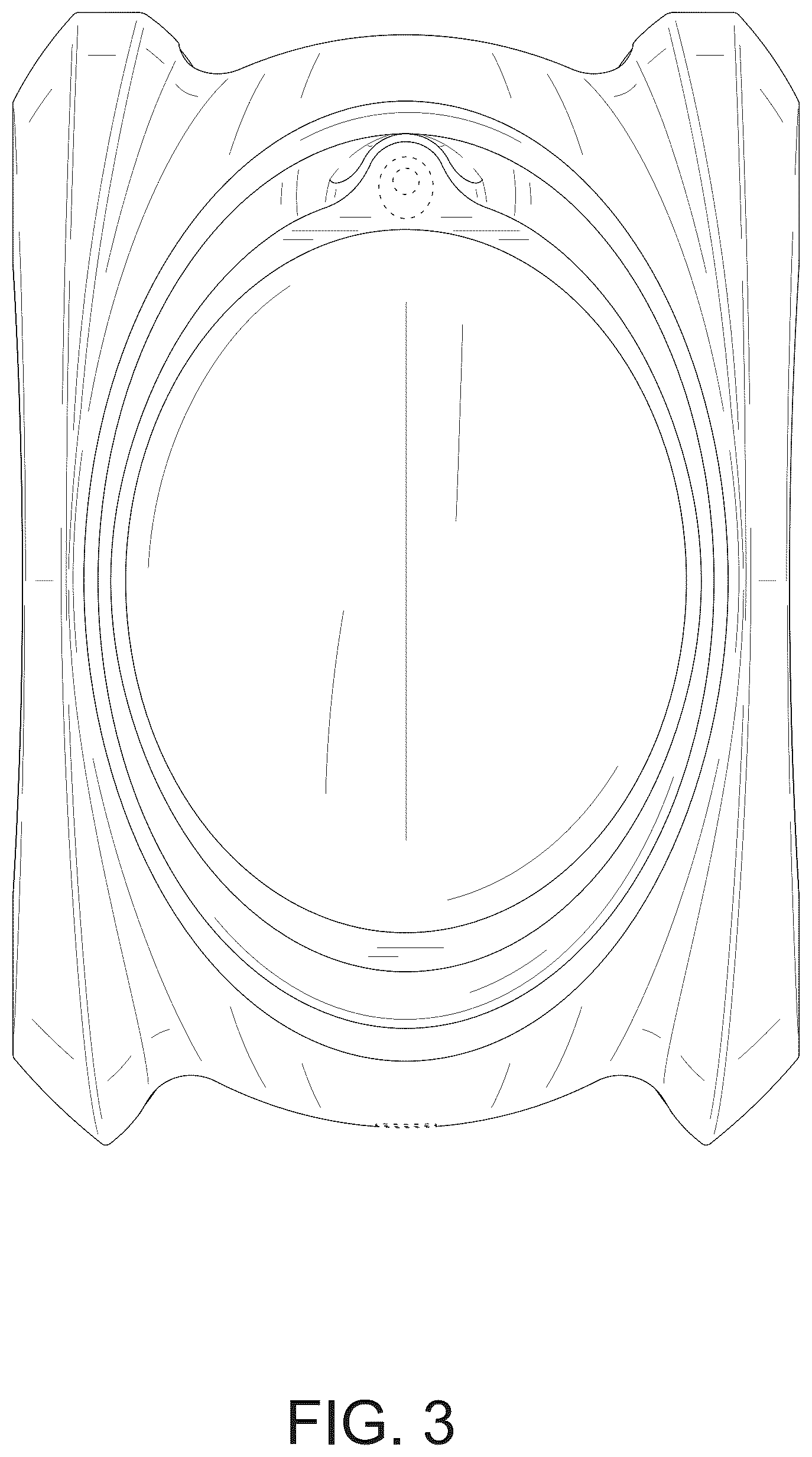

is a top plan view thereof; and,

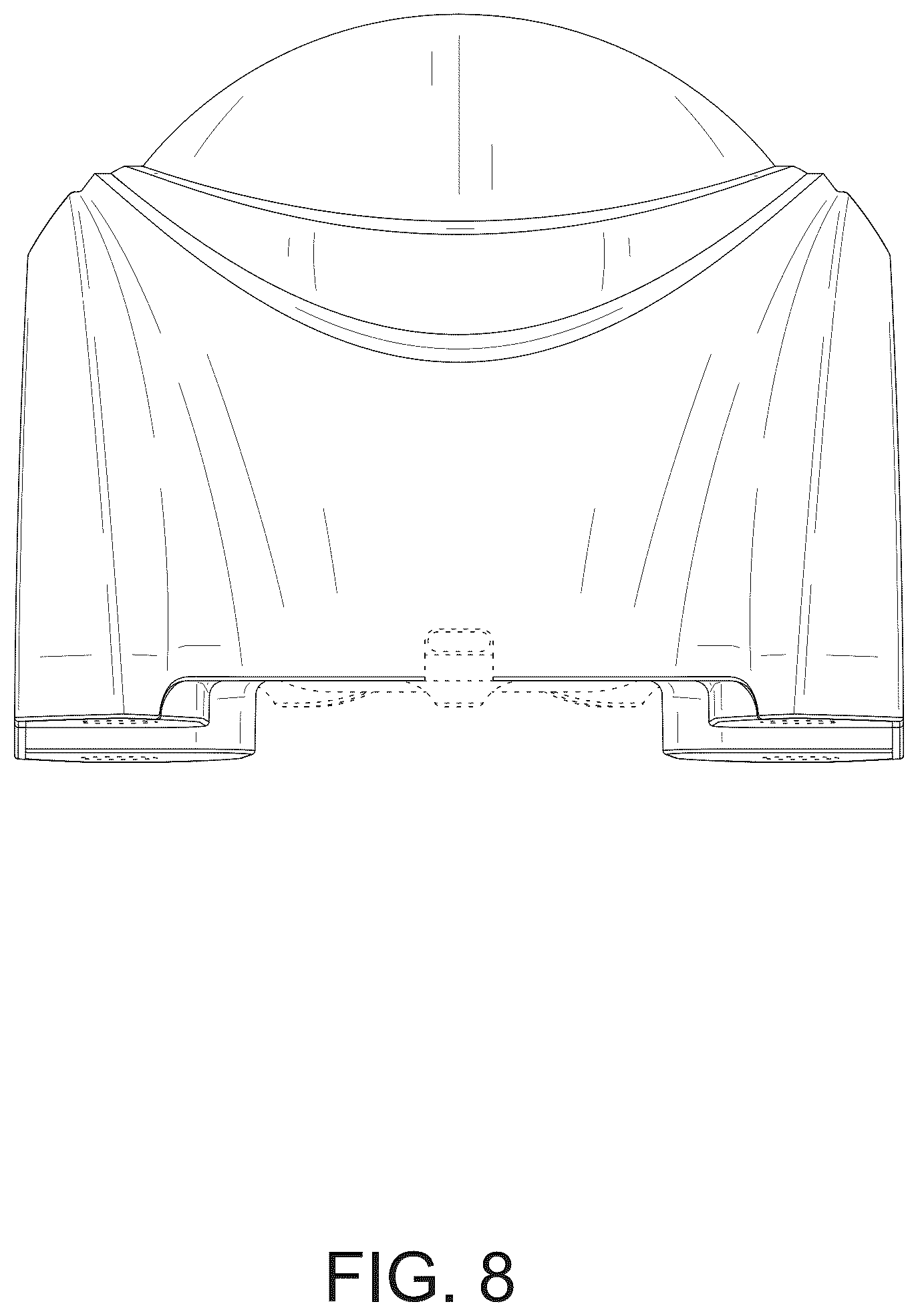

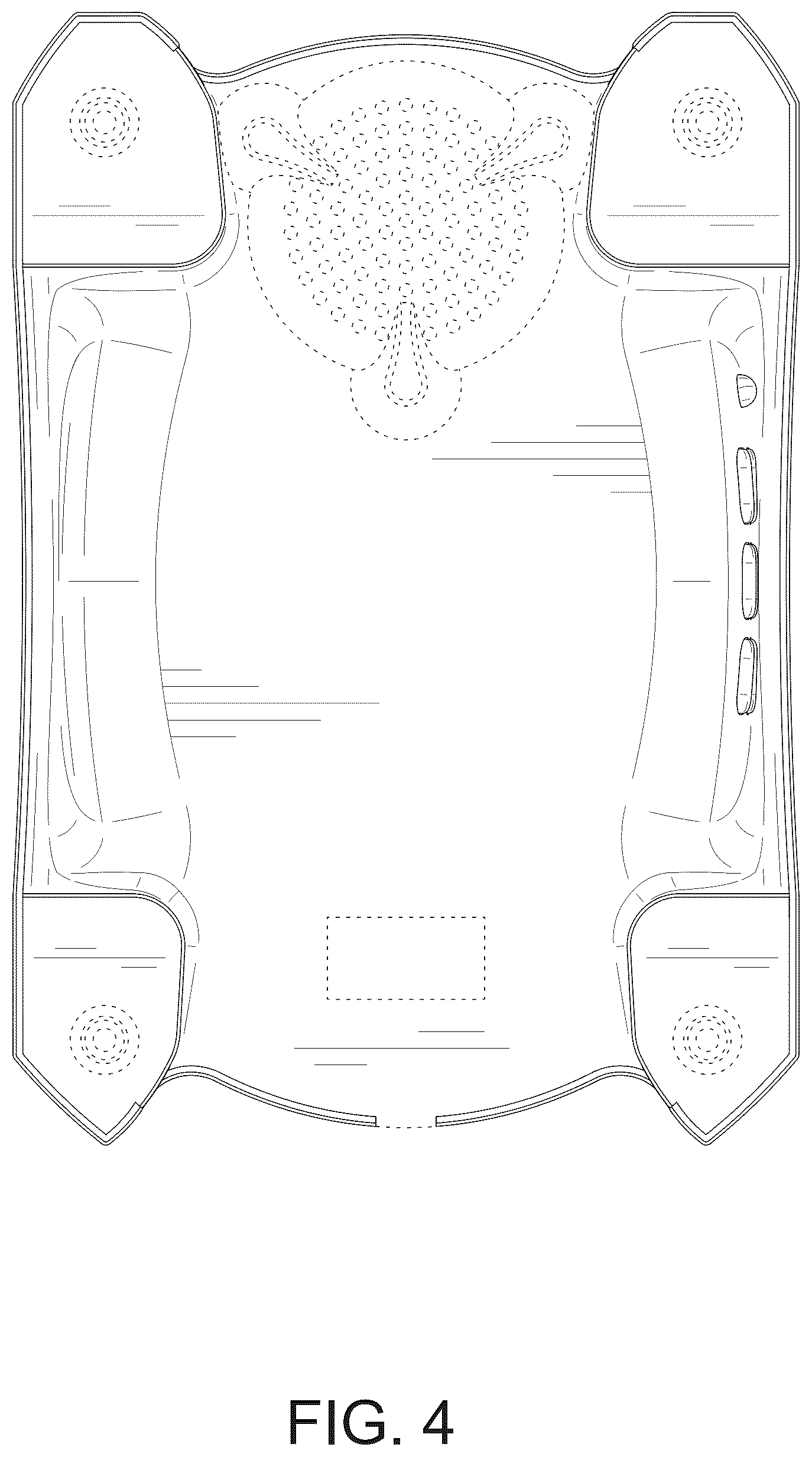

is a bottom plan view thereof.

The broken lines in the drawings depict portions of the projector that form no part of the claimed design.
