Stage Light

USD1076175No. D 1,076,175designGranted 5/20/2025
Patent USD1076175 — Stage light — Figure 1
Fig. 1 · Stage Light

Claims (1)

Claim 1 (Independent)

The ornamental design for a stage light, as shown and described.

Full Description

Show full text →

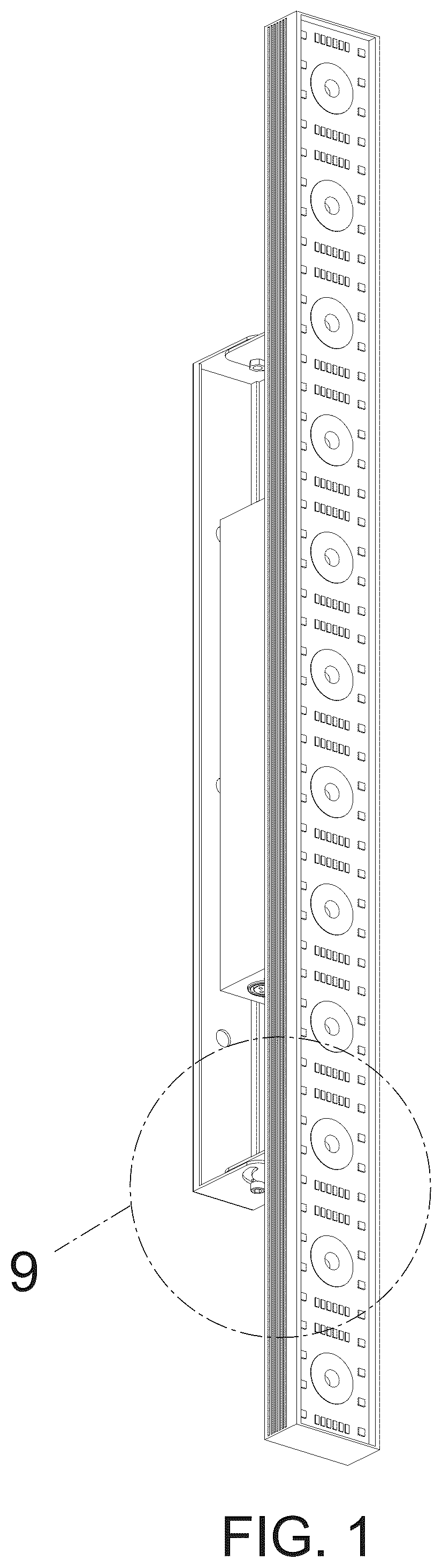

is a perspective view of a stage light, showing my new design;

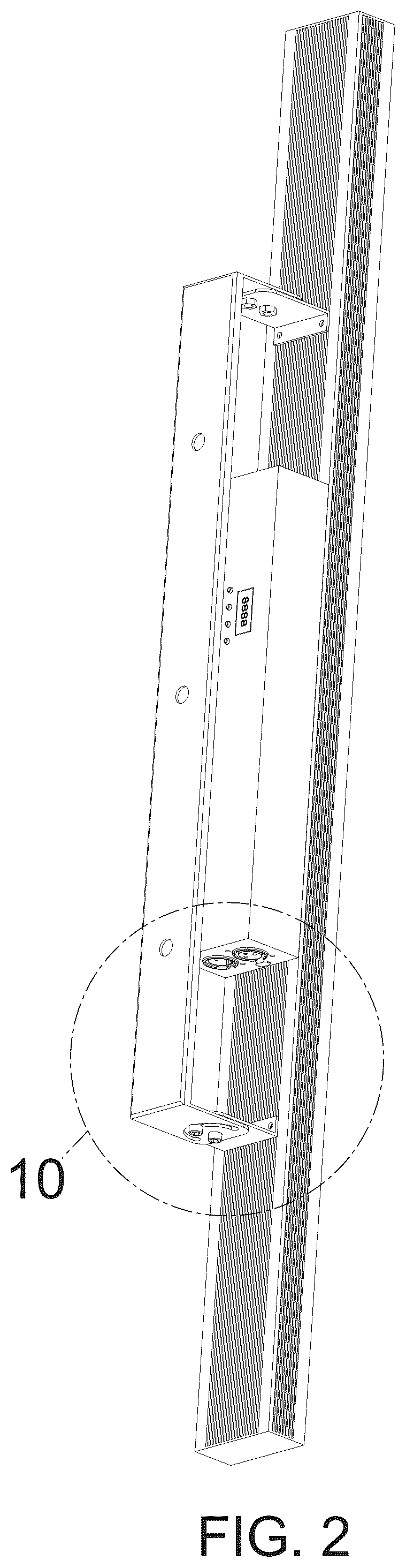

is another perspective view thereof;

is a front view thereof;

is a rear view thereof;

is a left side view thereof;

is a right side view thereof;

is an enlarged top plan view thereof;

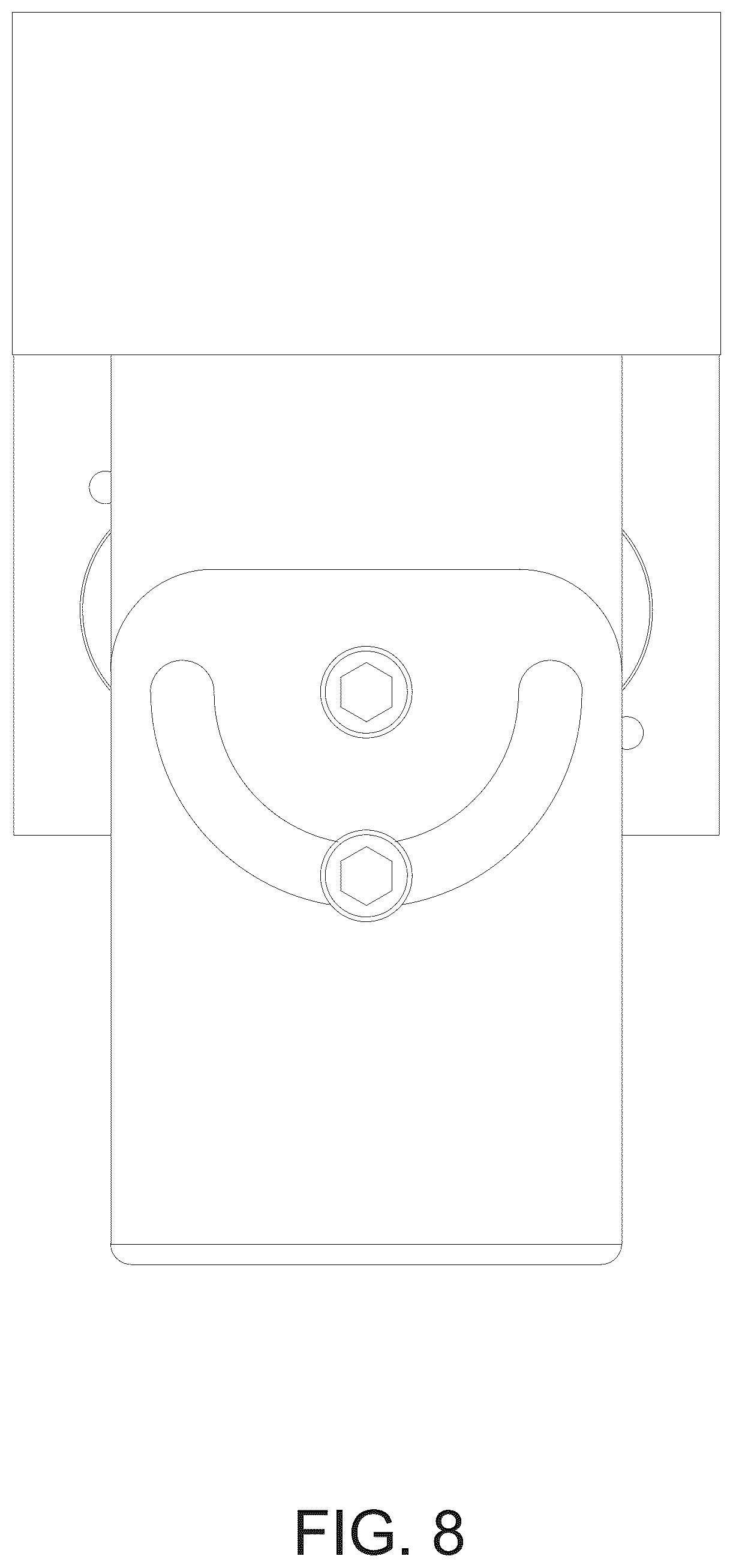

is an enlarged bottom plan view thereof;

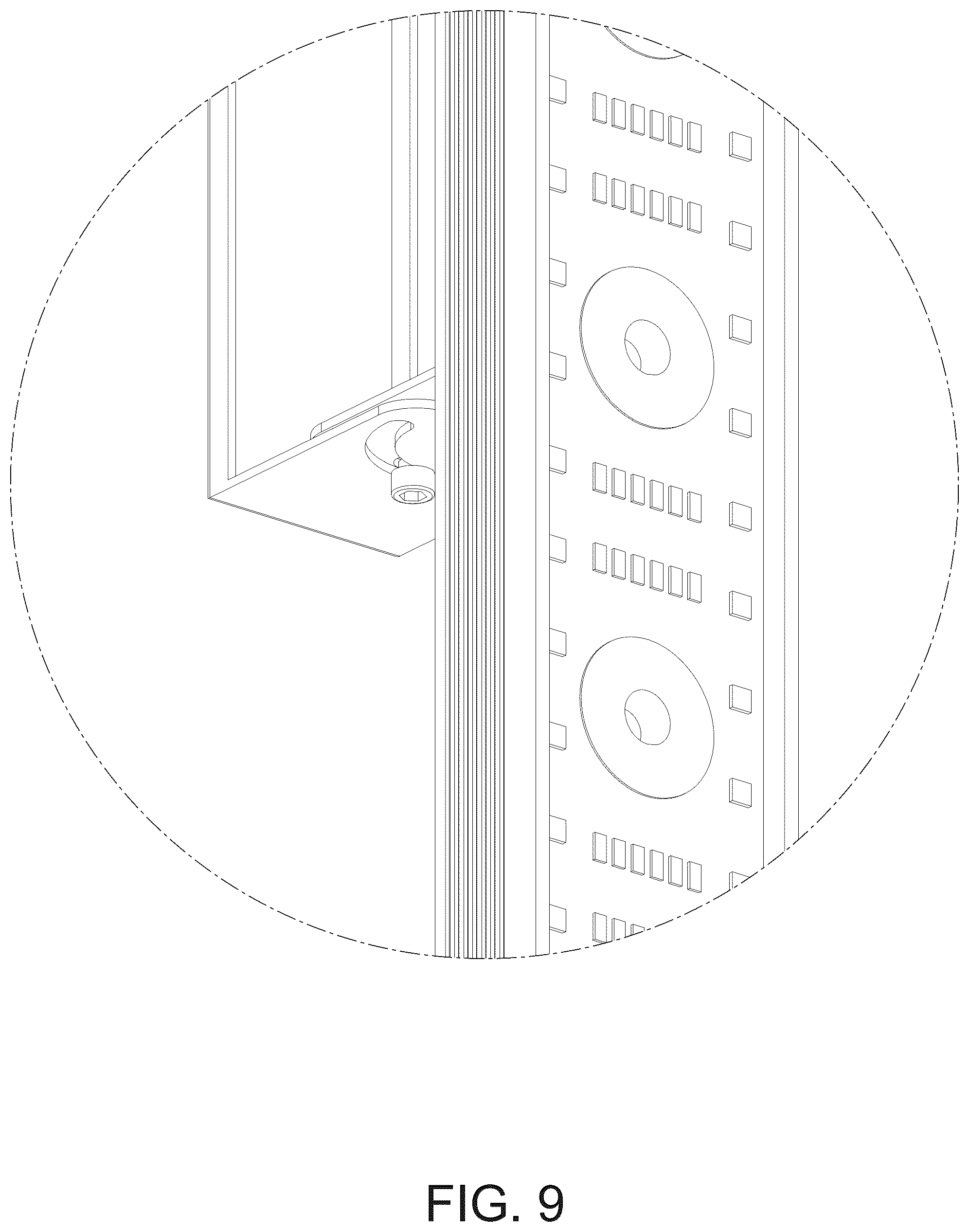

is an enlarged view of portion 9 shown in ; and,

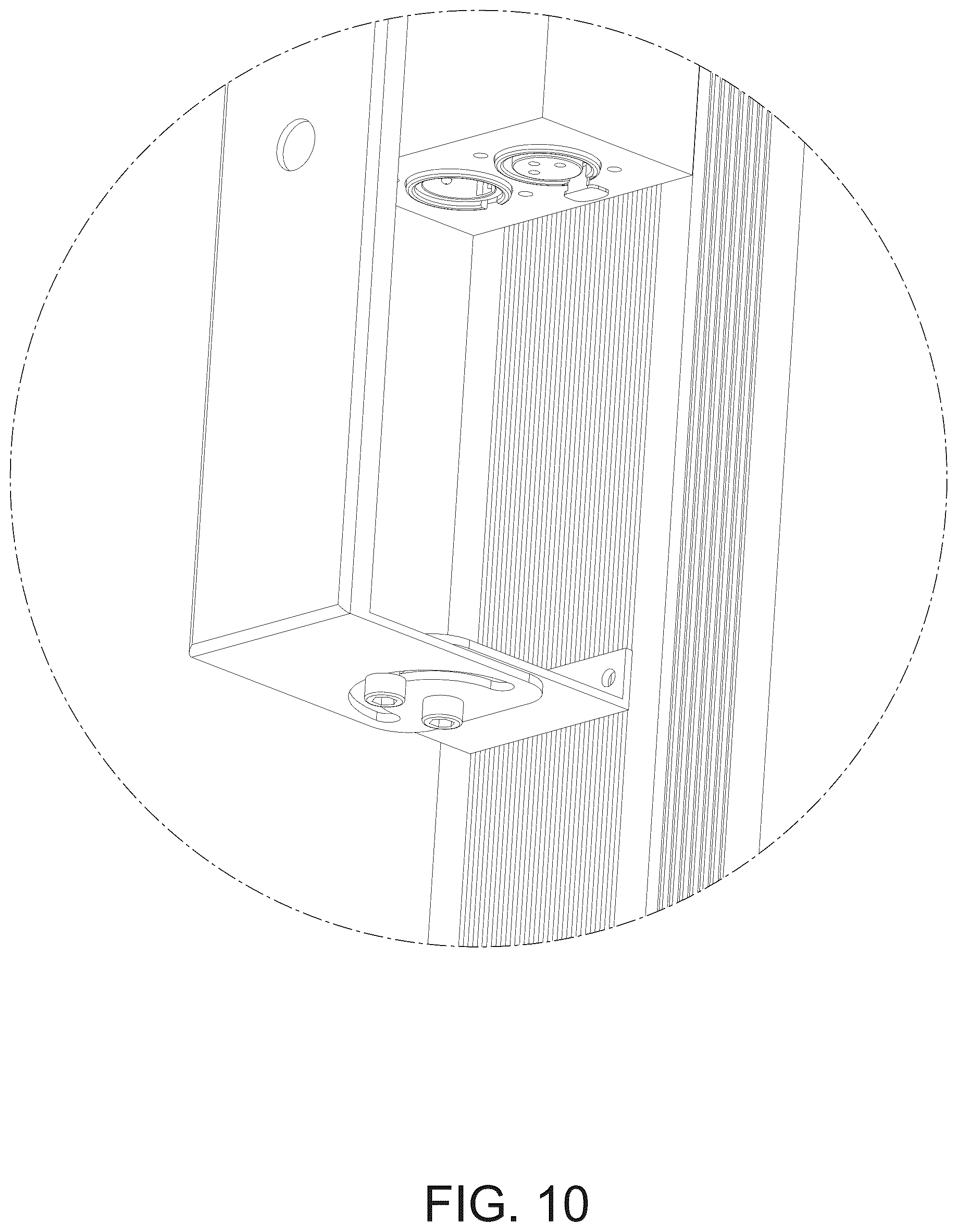

is an enlarged view of portion 10 shown in .

The dot-dash broken lines depict the boundaries of the enlargements that form no part of the claimed design.

Figures (10)

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
