USD1076172No. D 1,076,172designGranted 5/20/2025
Patent USD1076172 — Portable light — Figure 1
Fig. 1 · Portable Light

Claims (1)

Claim 1 (Independent)

The ornamental design for a portable light, as shown and described.

Full Description

Show full text →

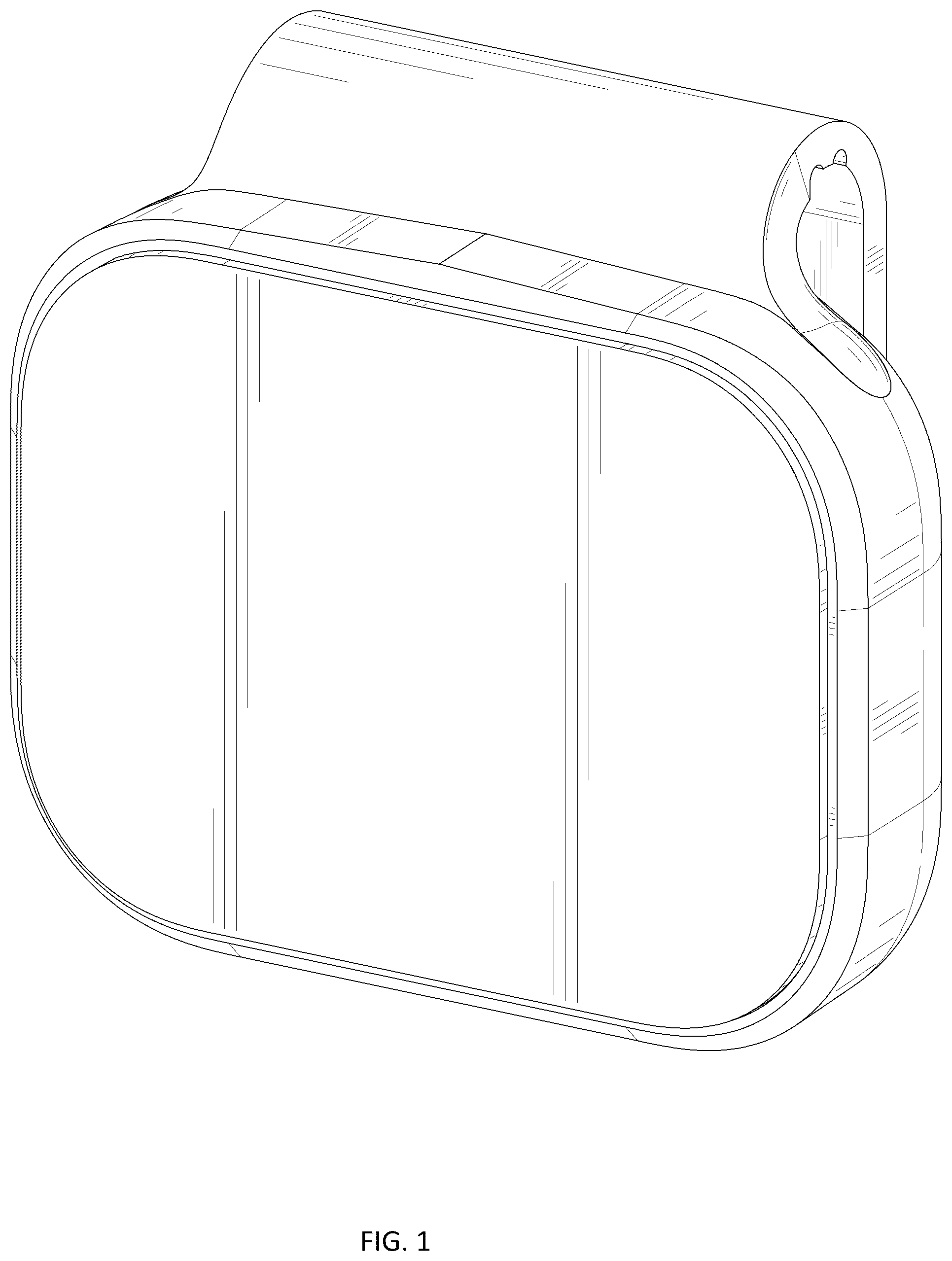

is a front, right and top perspective view of a portable light showing my new design;

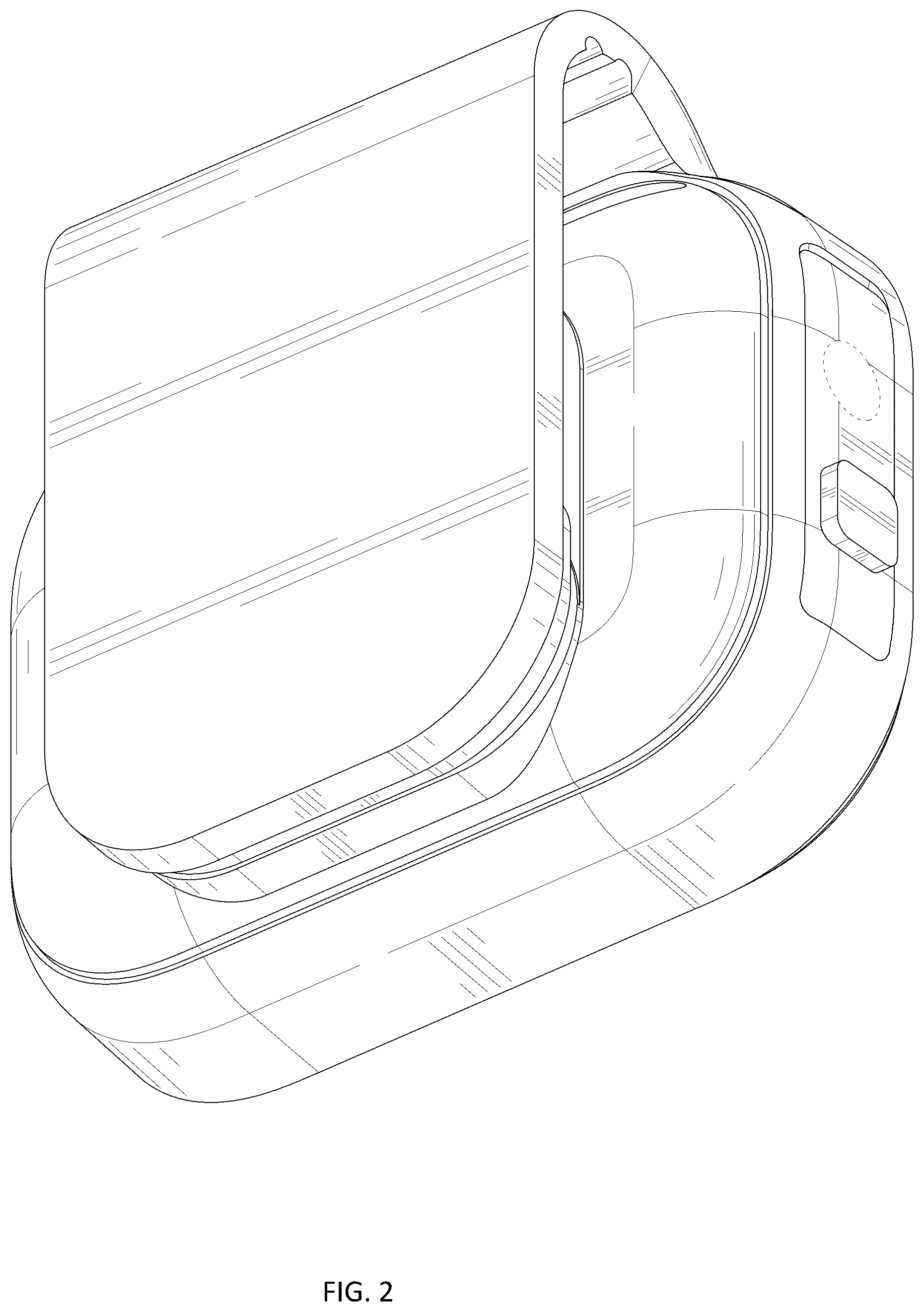

is a rear, left and bottom perspective view thereof;

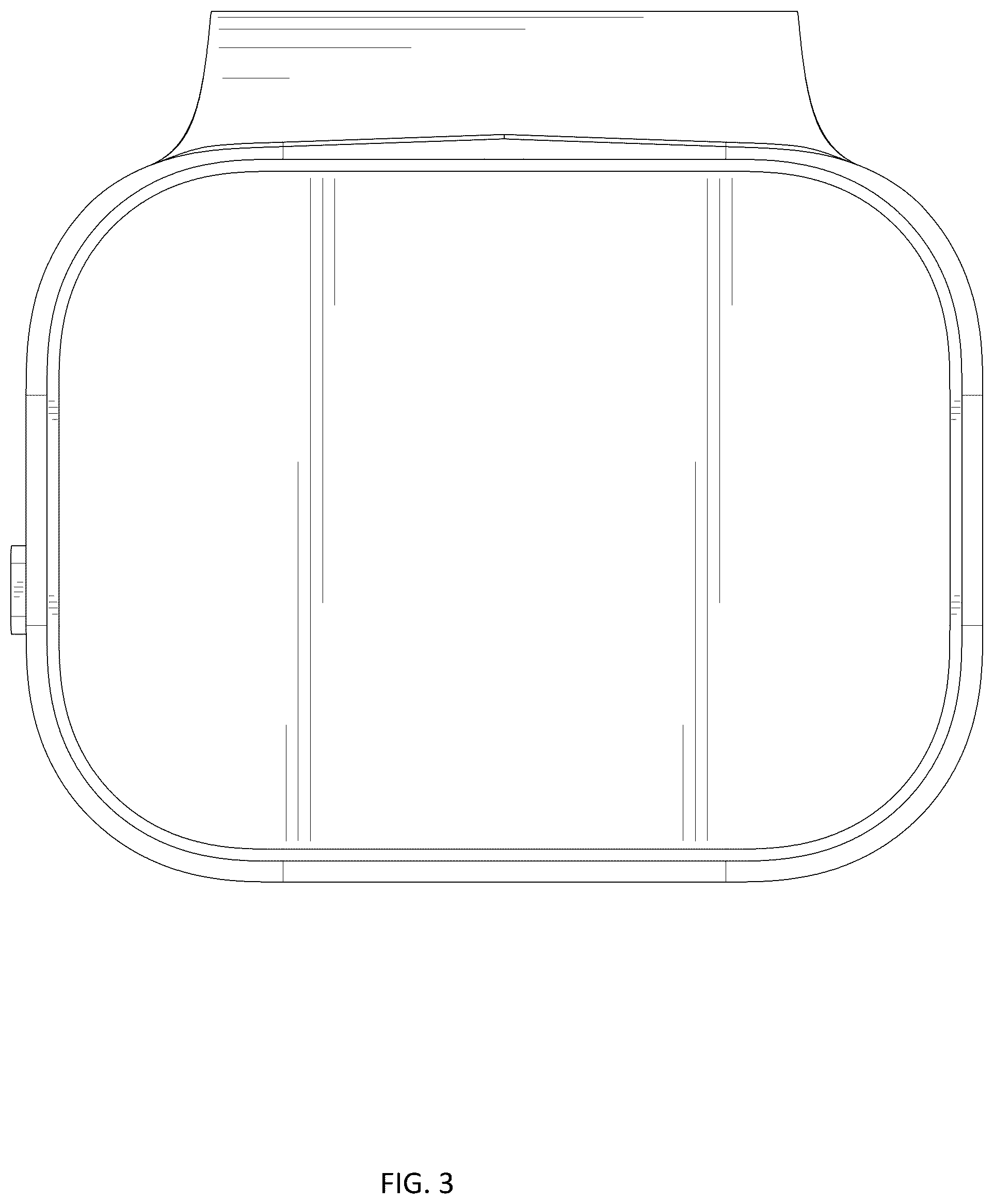

is a front view thereof;

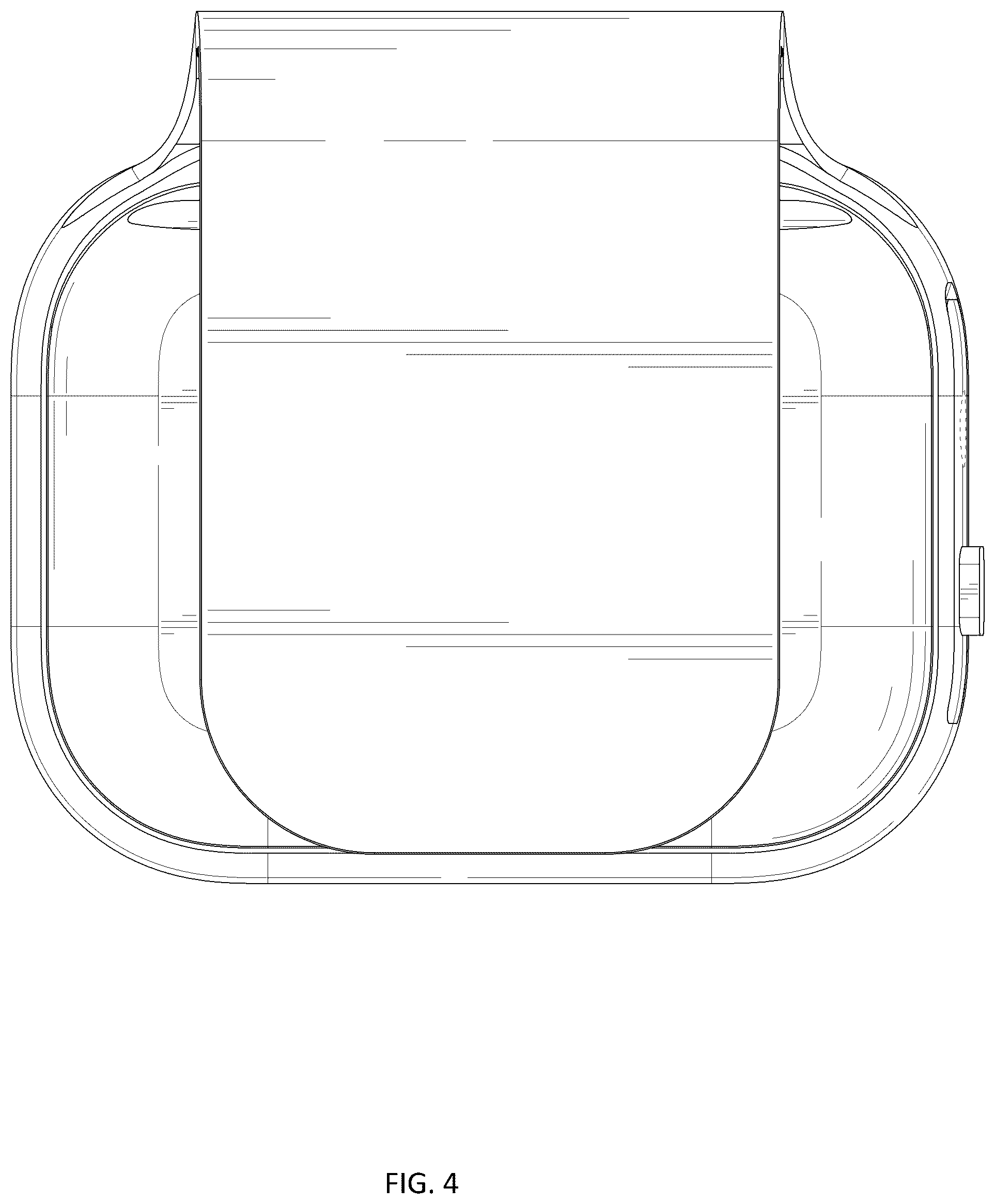

is a rear view thereof;

is a left side view thereof;

is a right side view thereof;

is a top plan view thereof;

is a bottom plan view thereof; and,

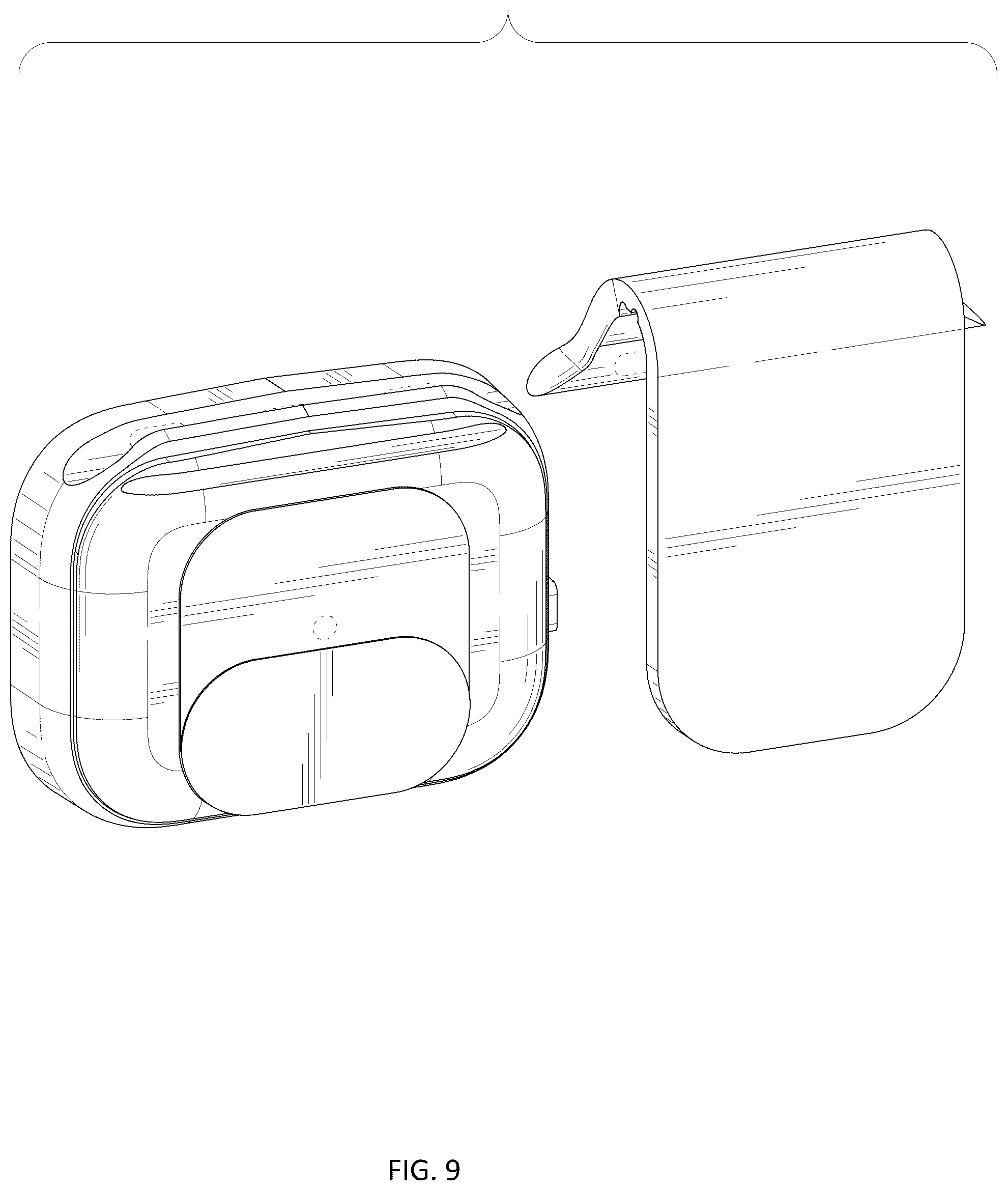

is an exploded view of the portable light.

The broken lines in the figures illustrate portions of the portable light that form no part of the claimed design.
