Inner Container of an Extraction Cartridge

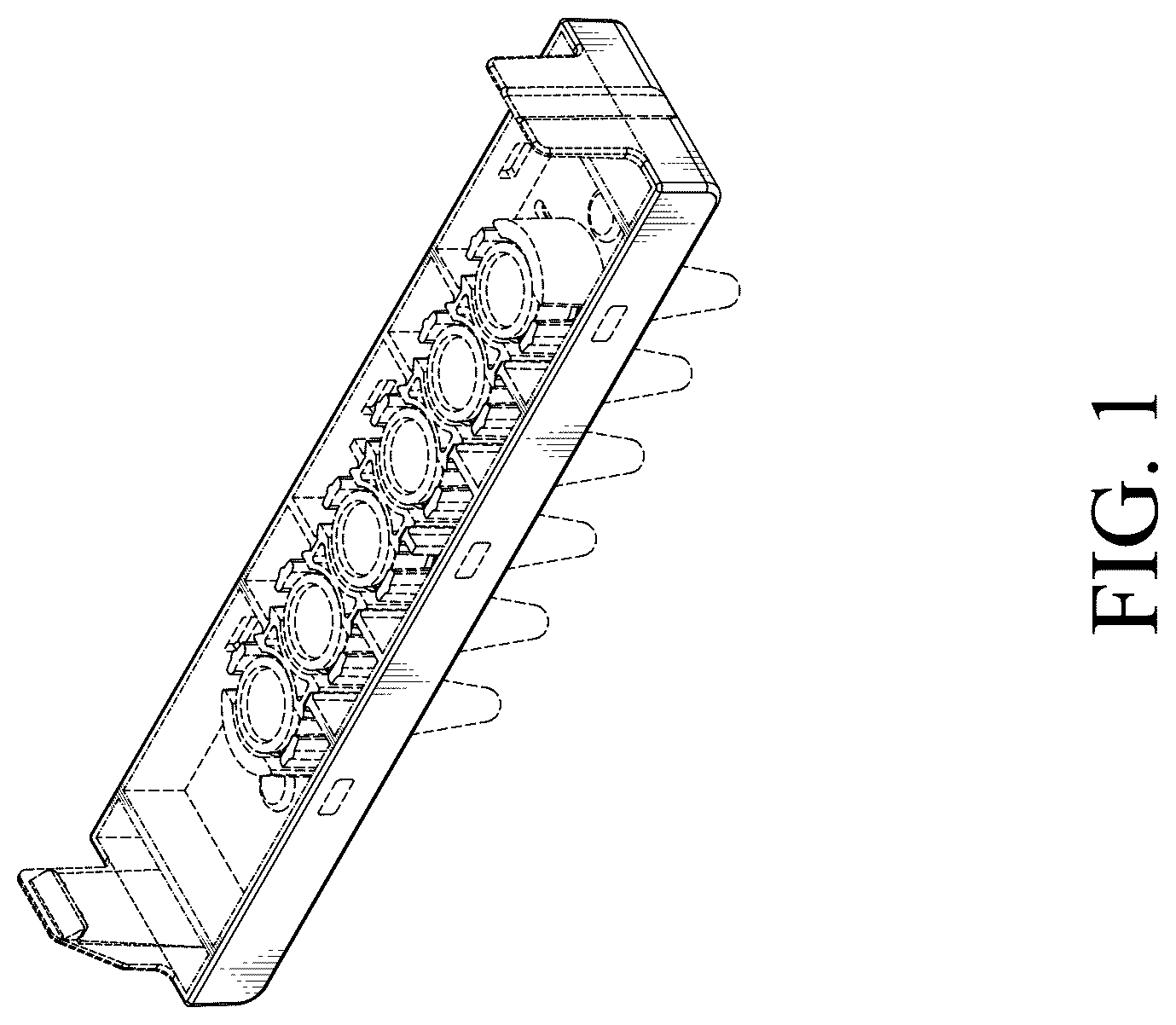

FIG. 1 is a perspective view of a bottom portion of an inner container of an extraction cartridge showing our new design;

FIG. 2 is a front view thereof;

FIG. 3 is a rear view thereof;

FIG. 4 is a left side view thereof;

FIG. 5 is a right side view thereof;

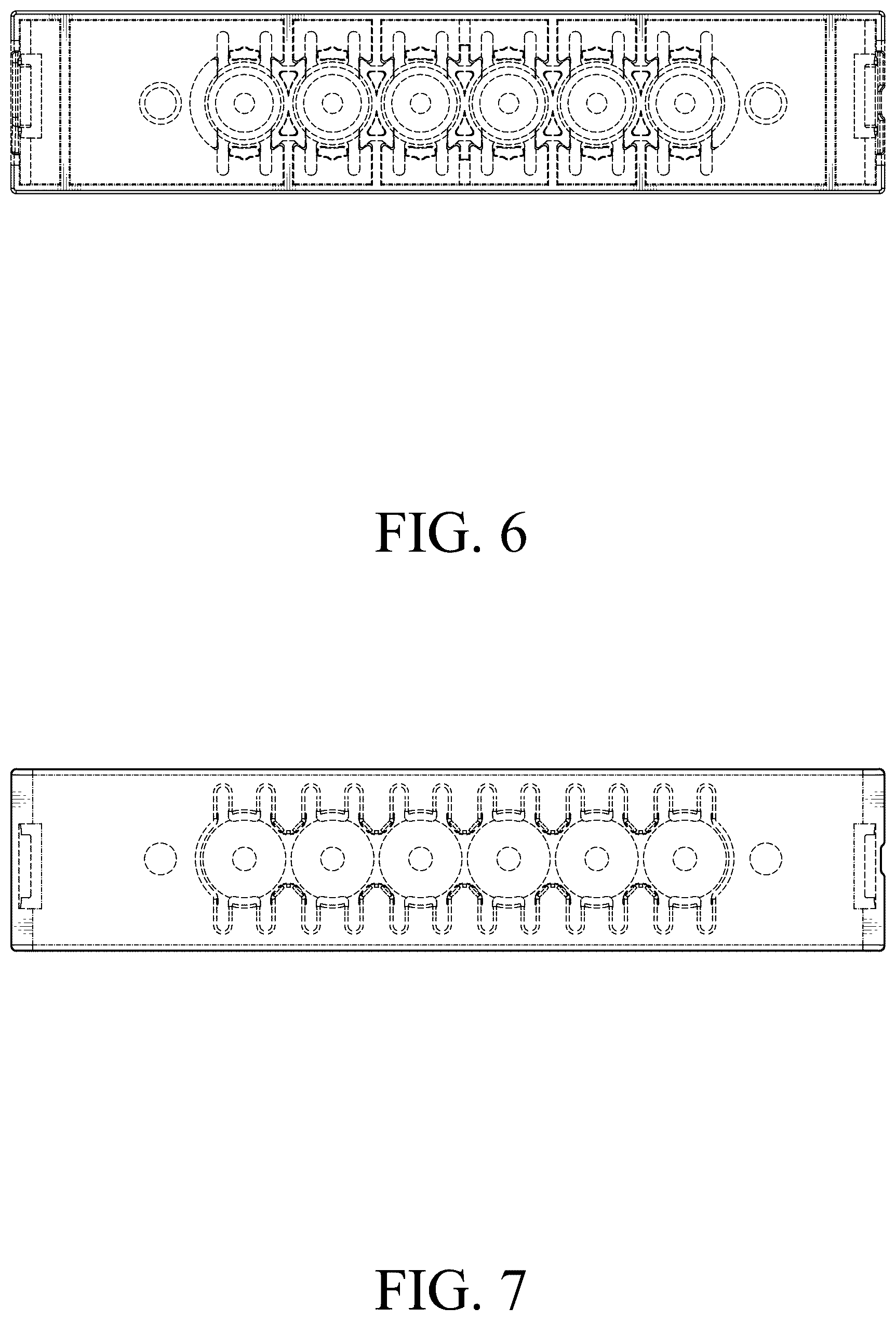

FIG. 6 is a top plan view thereof; and,

FIG. 7 is a bottom plan view thereof.

The dash-dash broken lines in the drawings depict portions of the inner container of an extraction cartridge that form no part of the claim. The dash-dot broken lines depict the boundaries of the claimed design, and form no part thereof. The dash-dash broken lines, the areas within them, and the unshaded areas bounded by both dash-dash broken lines and dash-dot broken lines depict portions of the inner container of an extraction cartridge that form no part of the claimed design.
