Spa

USD1076123No. D 1,076,123designGranted 5/20/2025
Patent USD1076123 — Spa — Figure 1
Fig. 1 · Spa

Claims (1)

Claim 1 (Independent)

The ornamental design for a spa, as shown and described.

Full Description

Show full text →

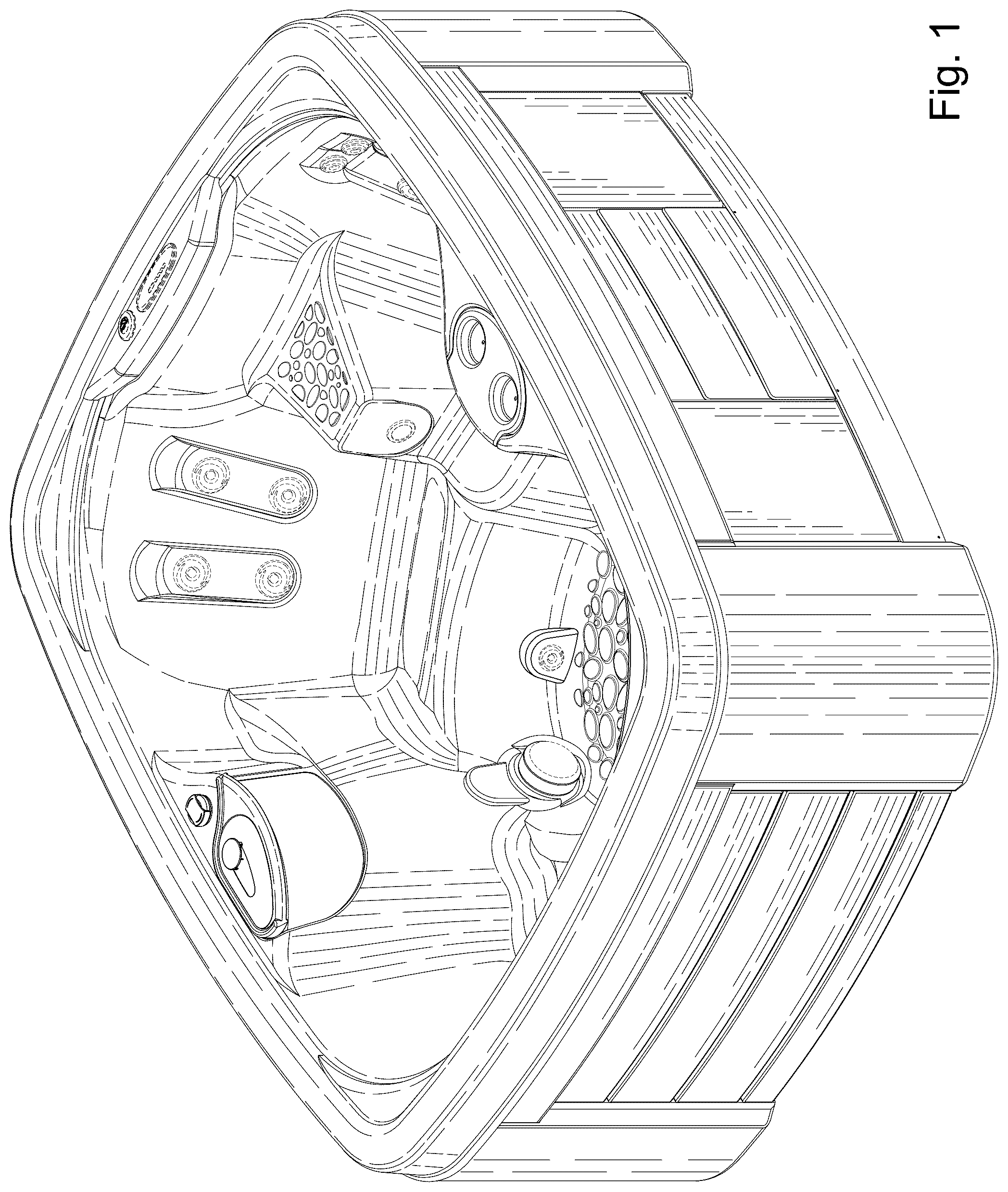

is a top, front, left perspective view of a spa, showing my new design;

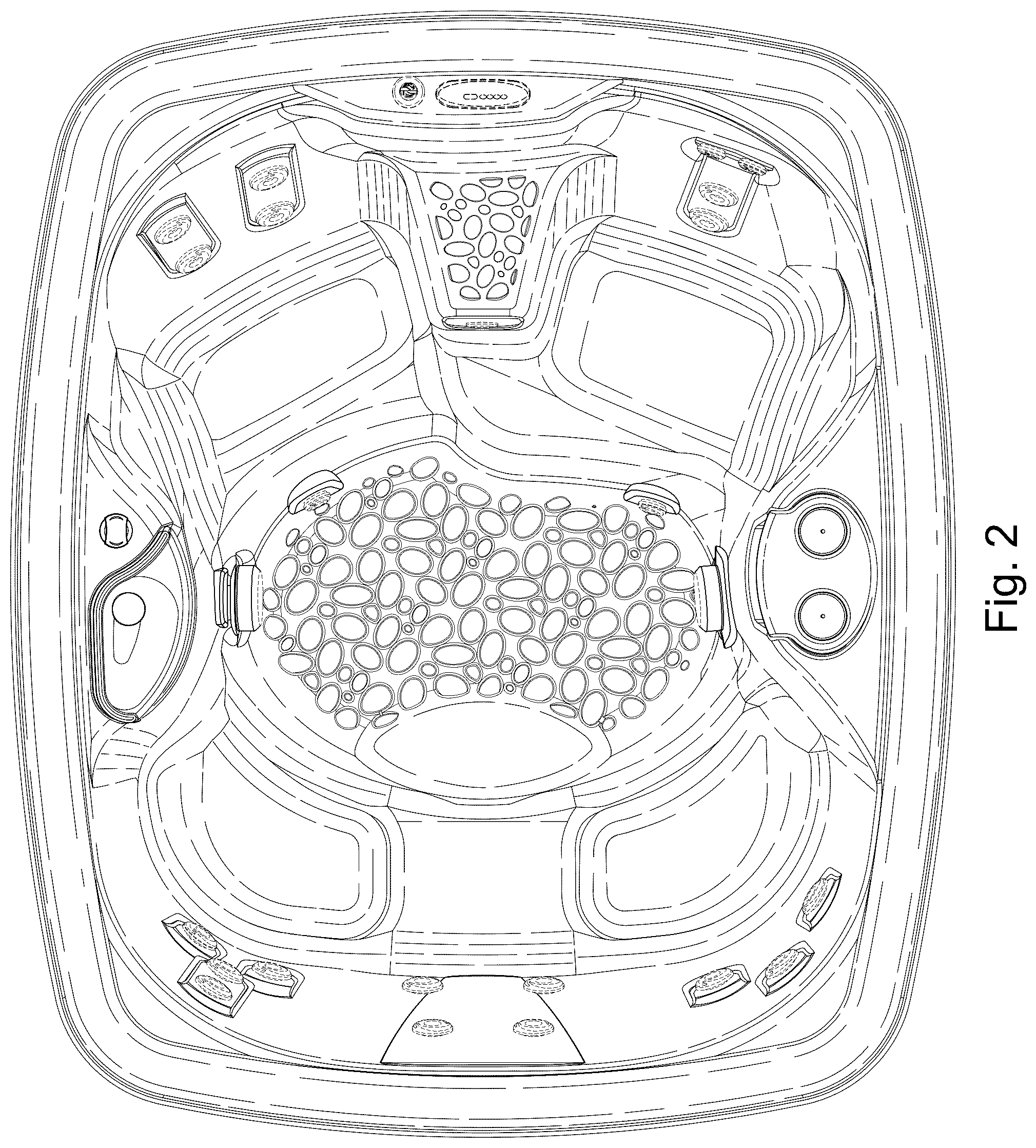

is a top plan view thereof;

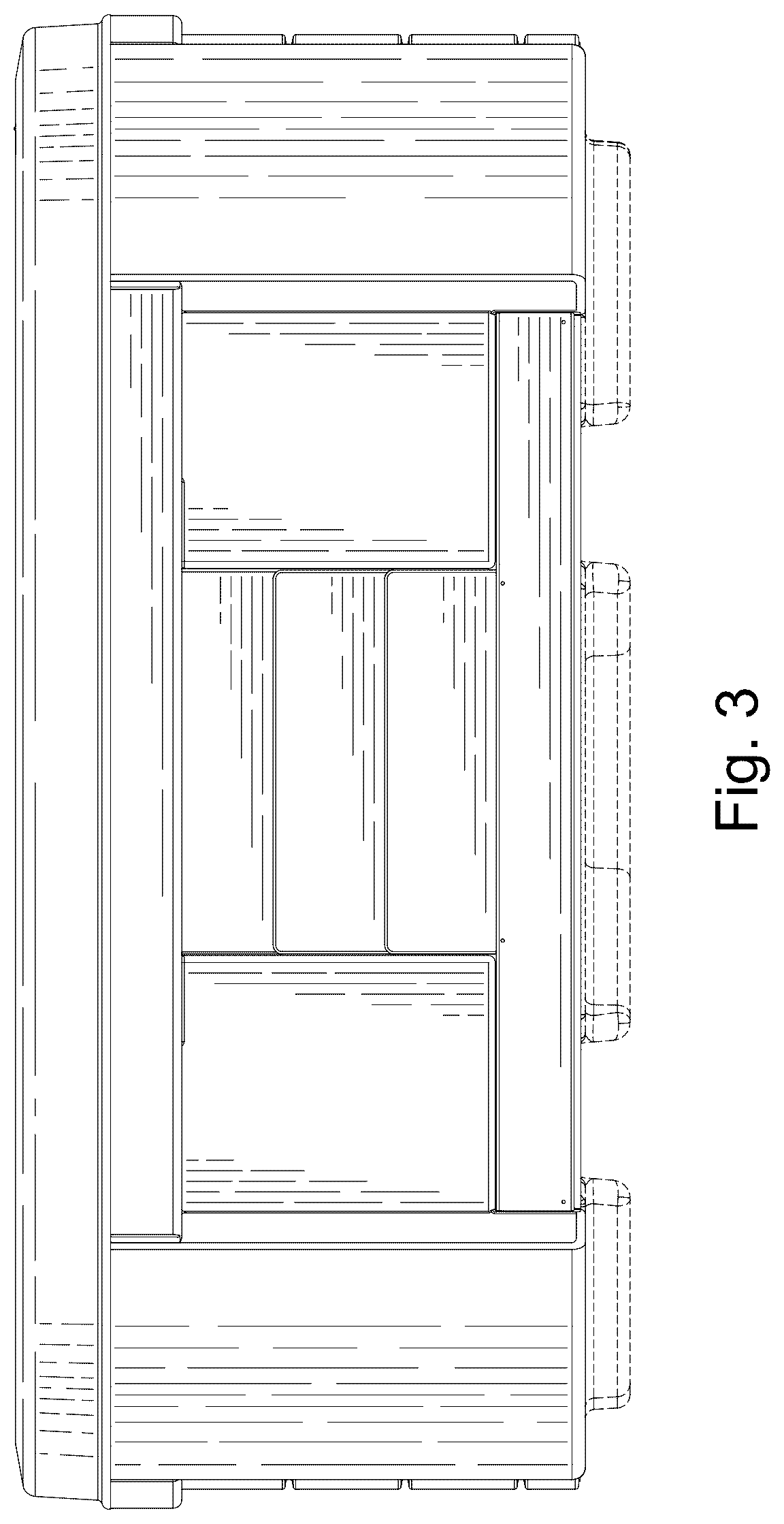

is a front elevation view thereof;

is a rear elevation view thereof;

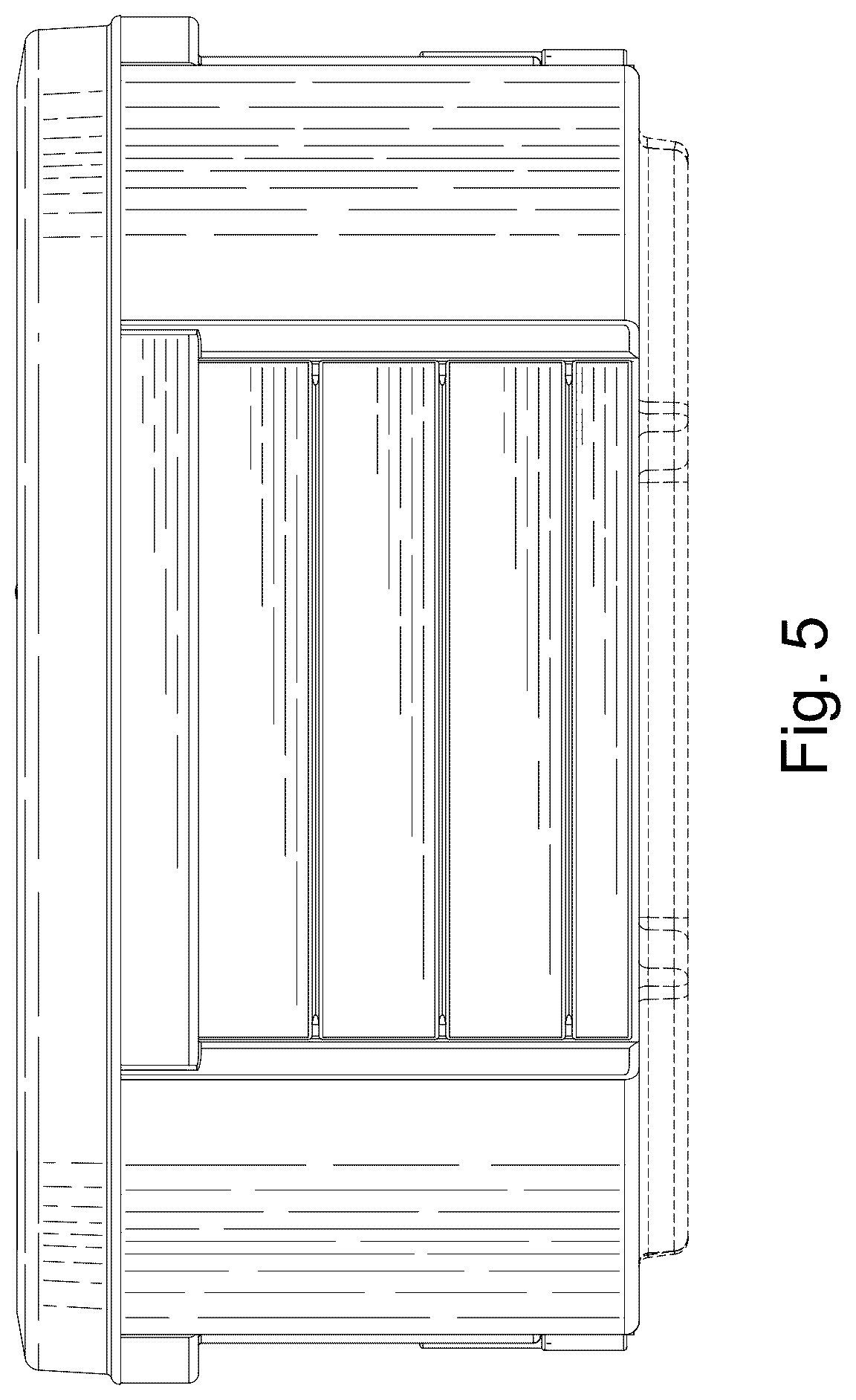

is a right side elevation view thereof; and,

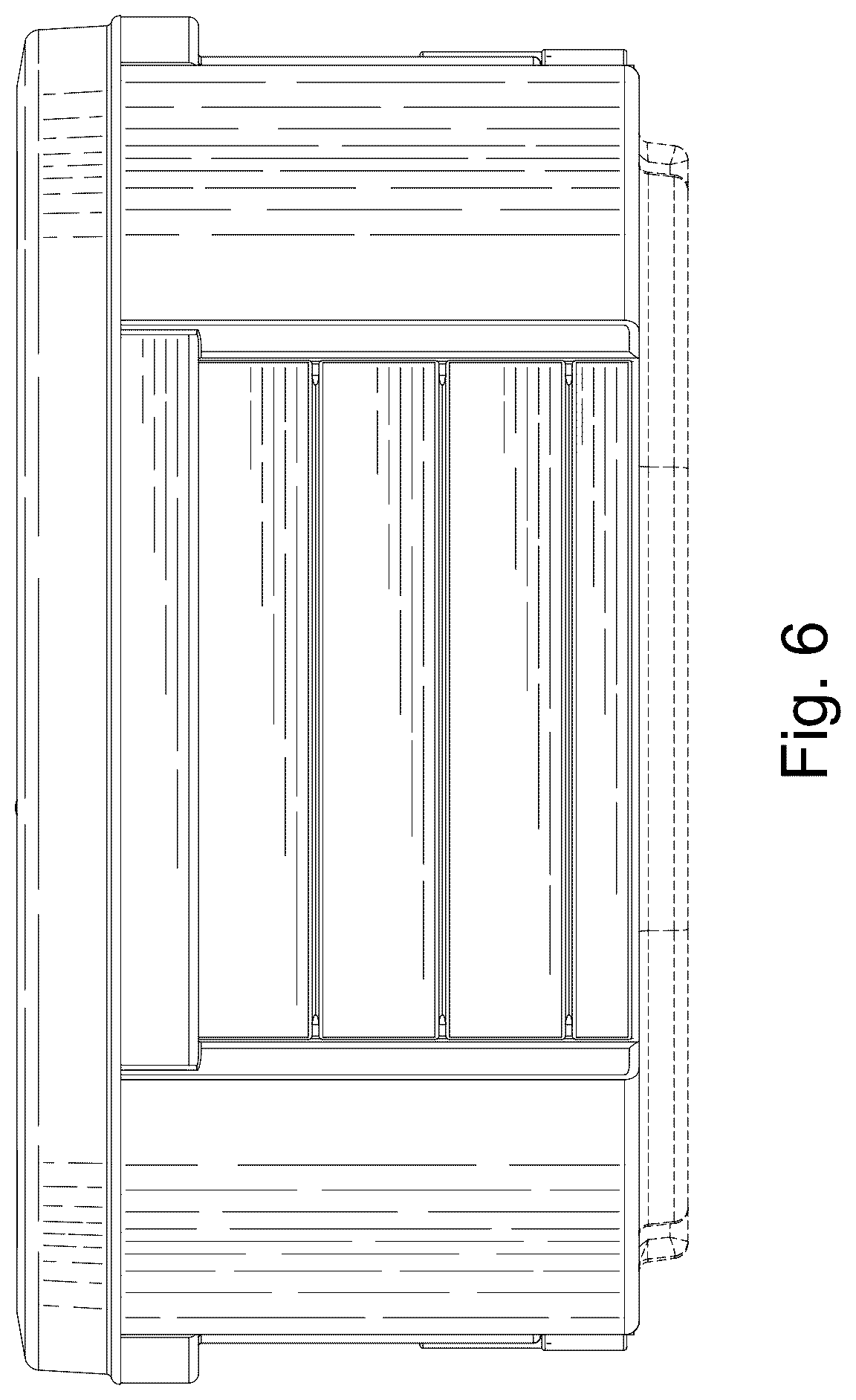

is a left side elevation view thereof.

In the drawings, the equal-length broken lines depict portions of the spa that form no part of the claimed design.
