Knee Physiotherapy Apparatus

USD1076108No. D 1,076,108designGranted 5/20/2025

Claims (1)

Claim 1 (Independent)

The ornamental design for a knee physiotherapy apparatus as shown and described.

Show full text →

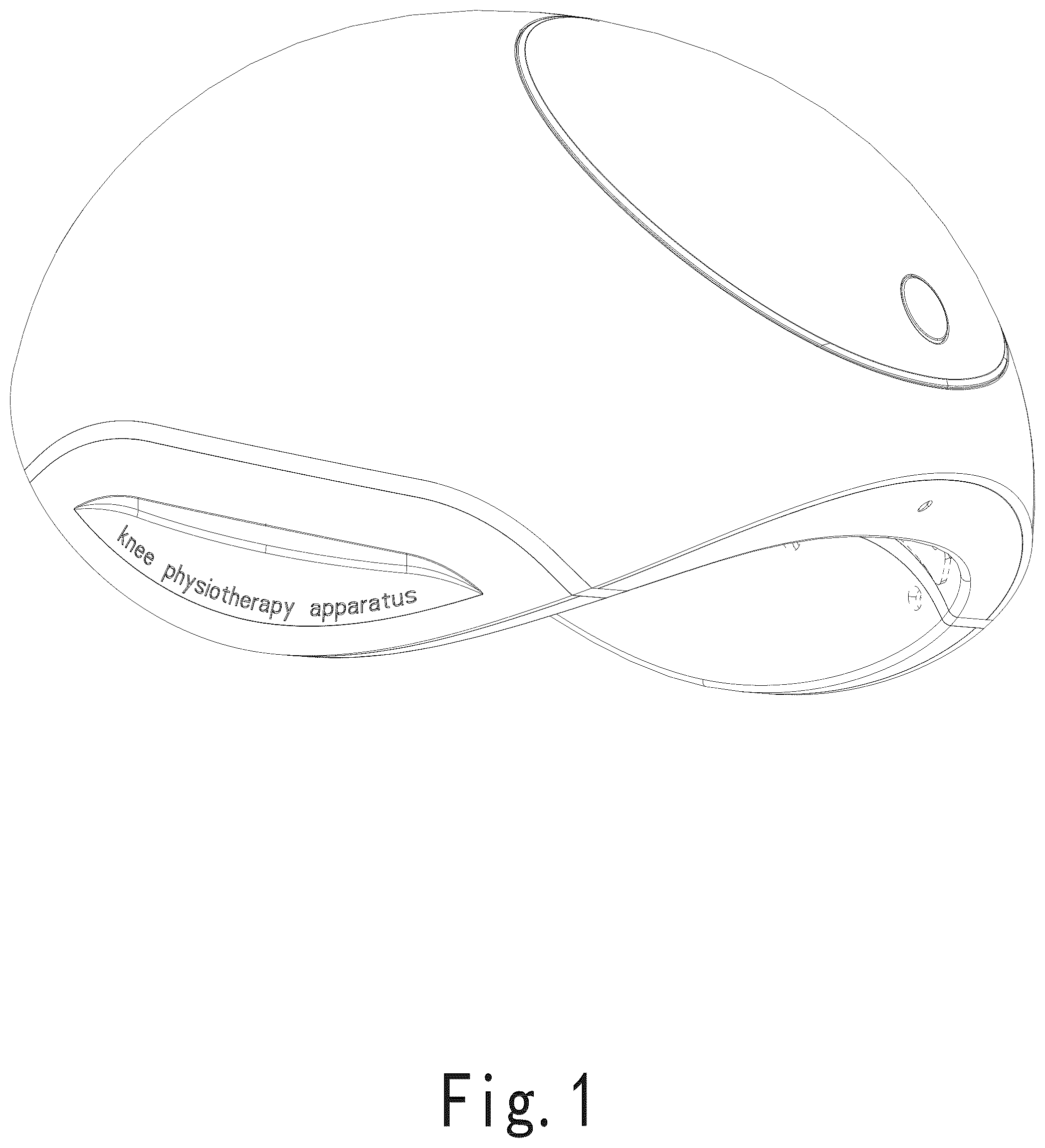

is a front perspective view of a knee physiotherapy apparatus showing my new design;

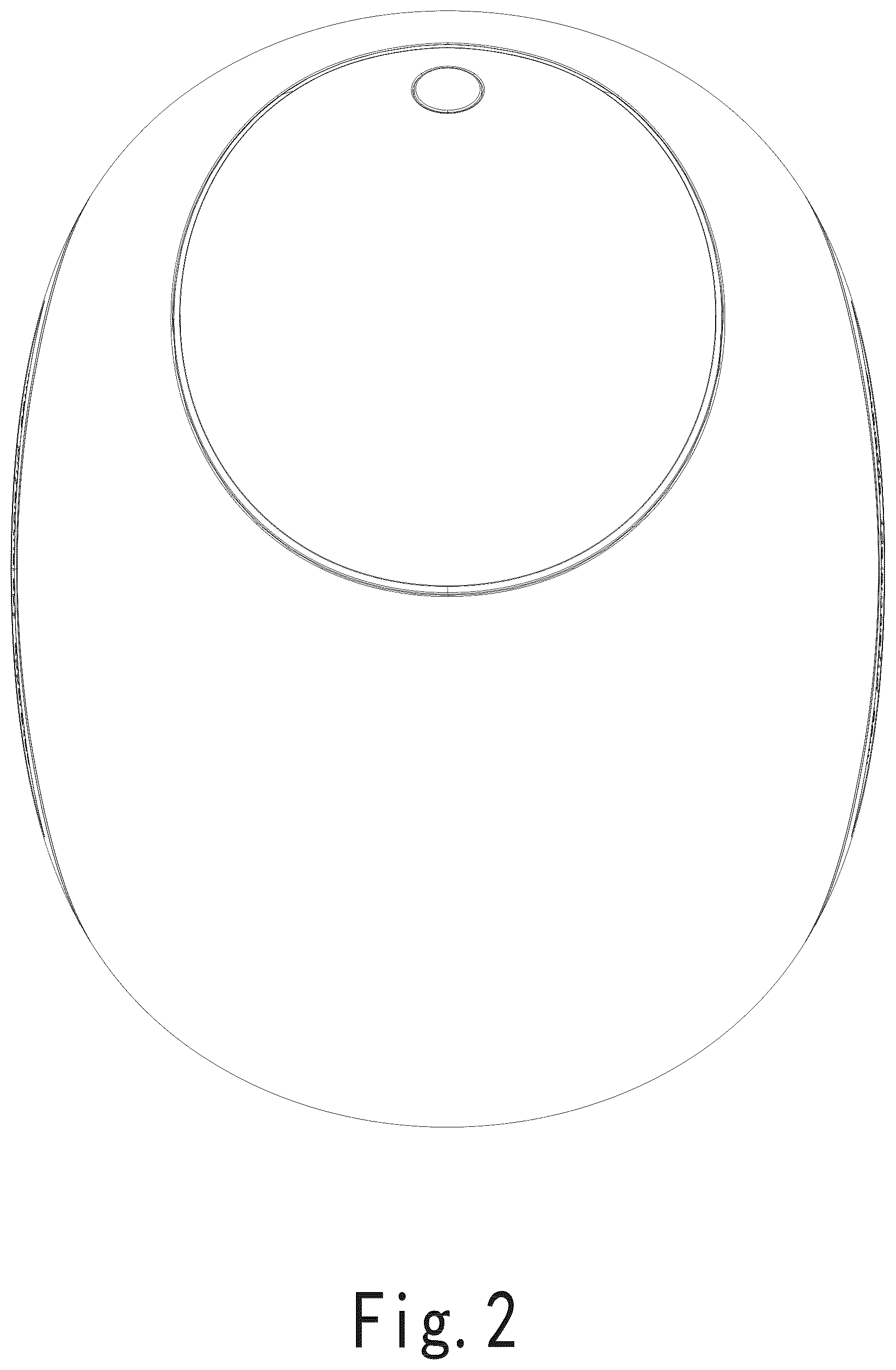

is a front elevational view thereof;

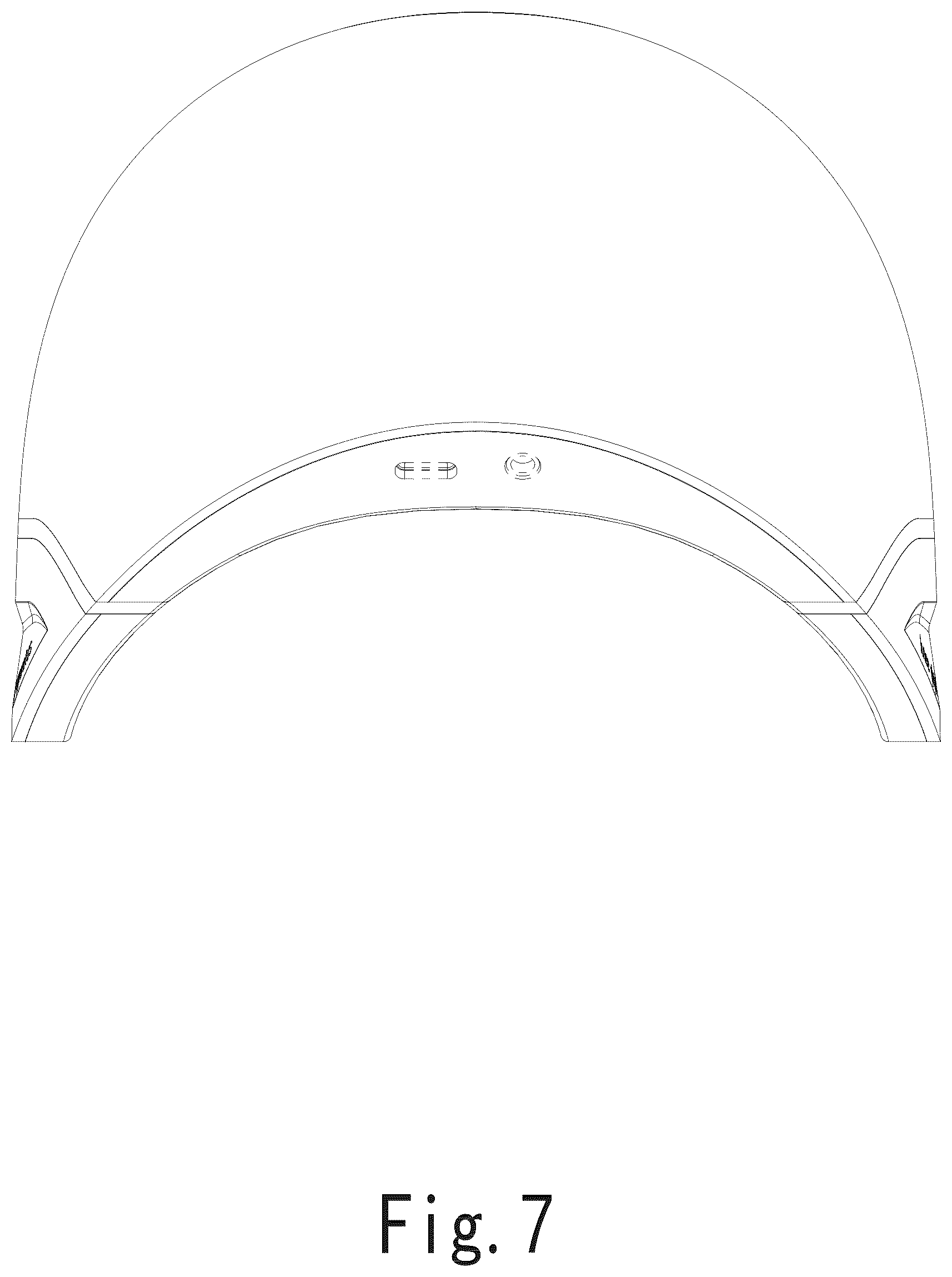

is a back elevational view thereof;

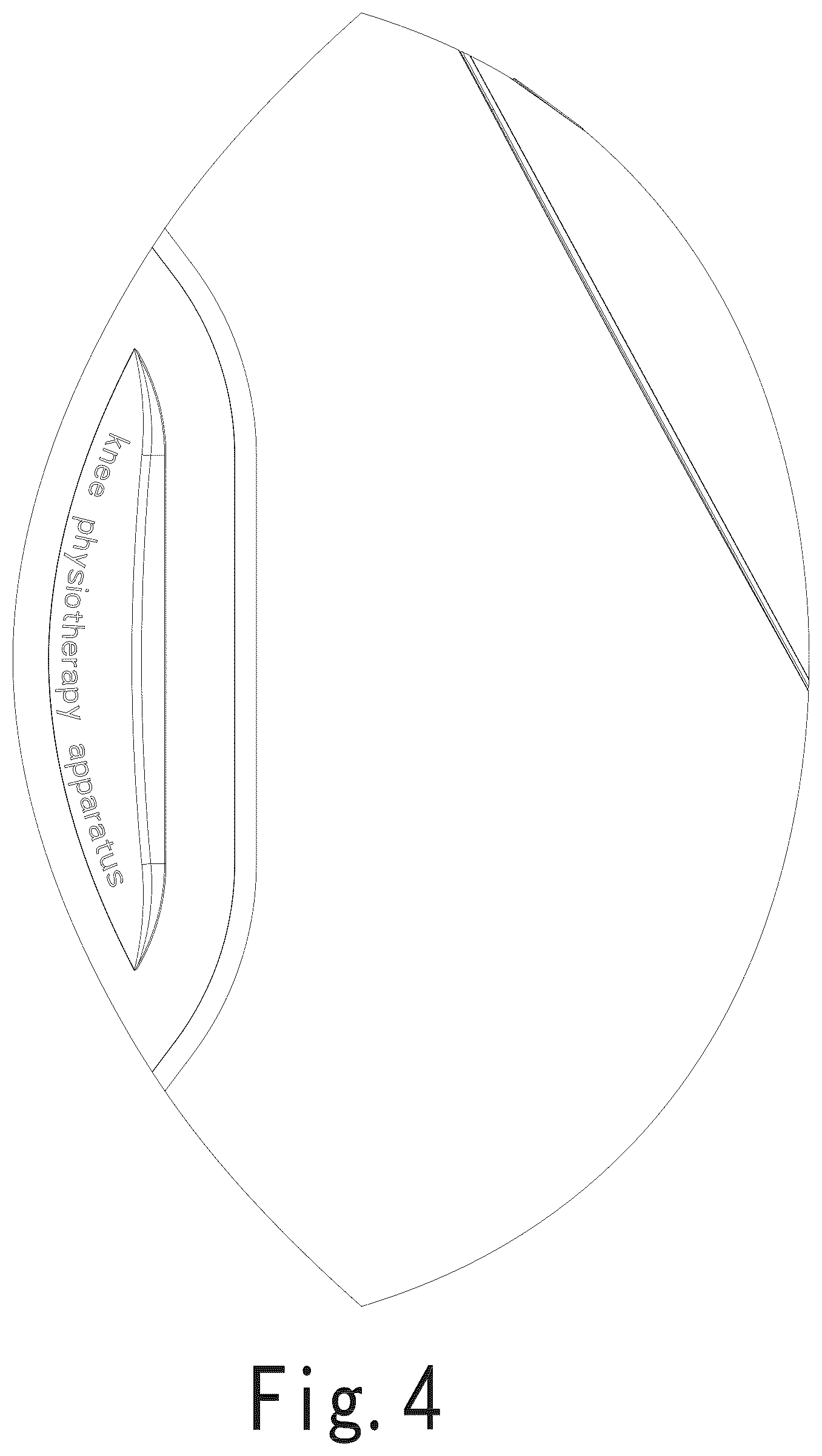

is a Right-side elevational view thereof;

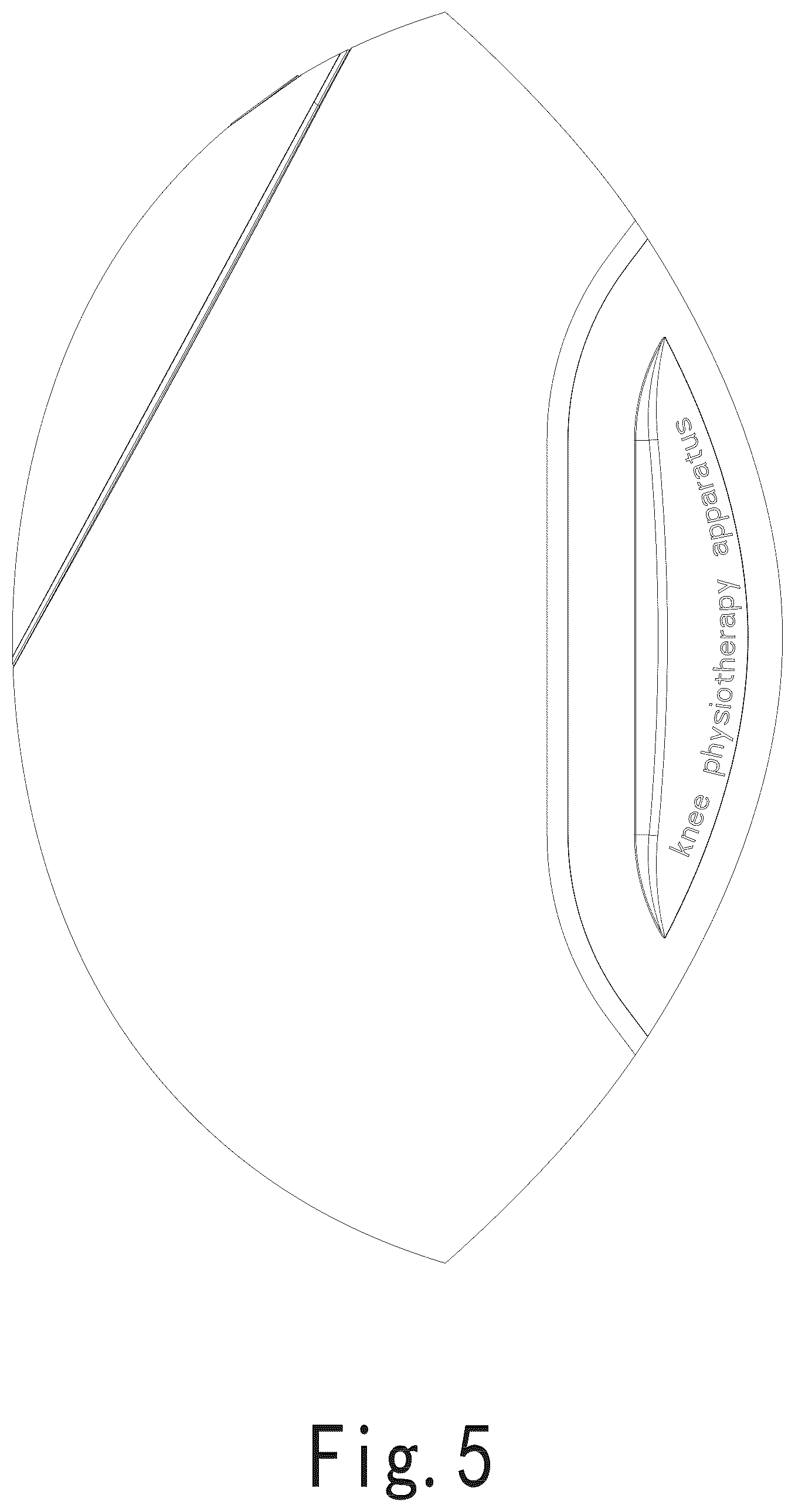

is a left-side elevational view thereof;

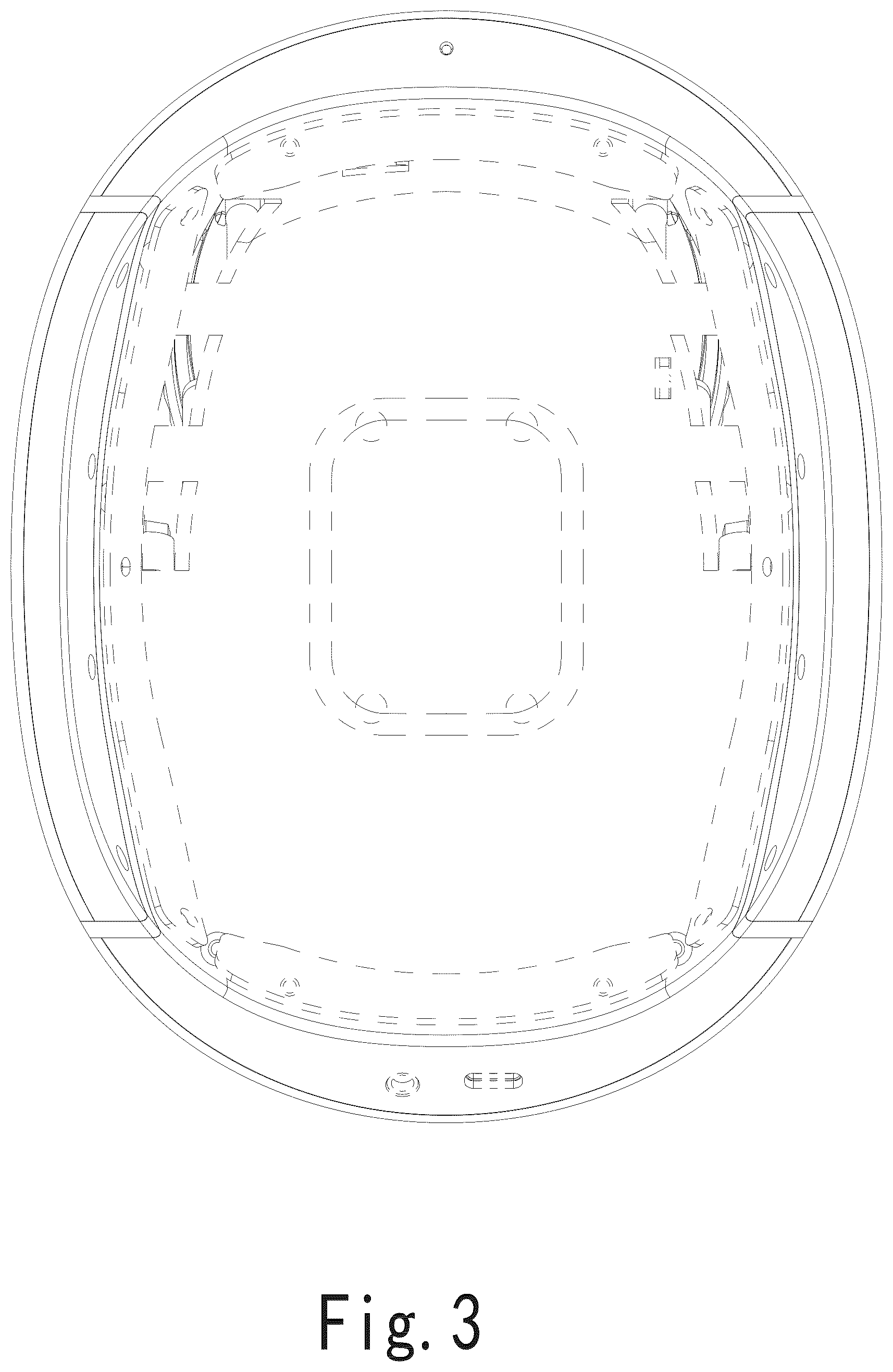

is a top plan view thereof; and,

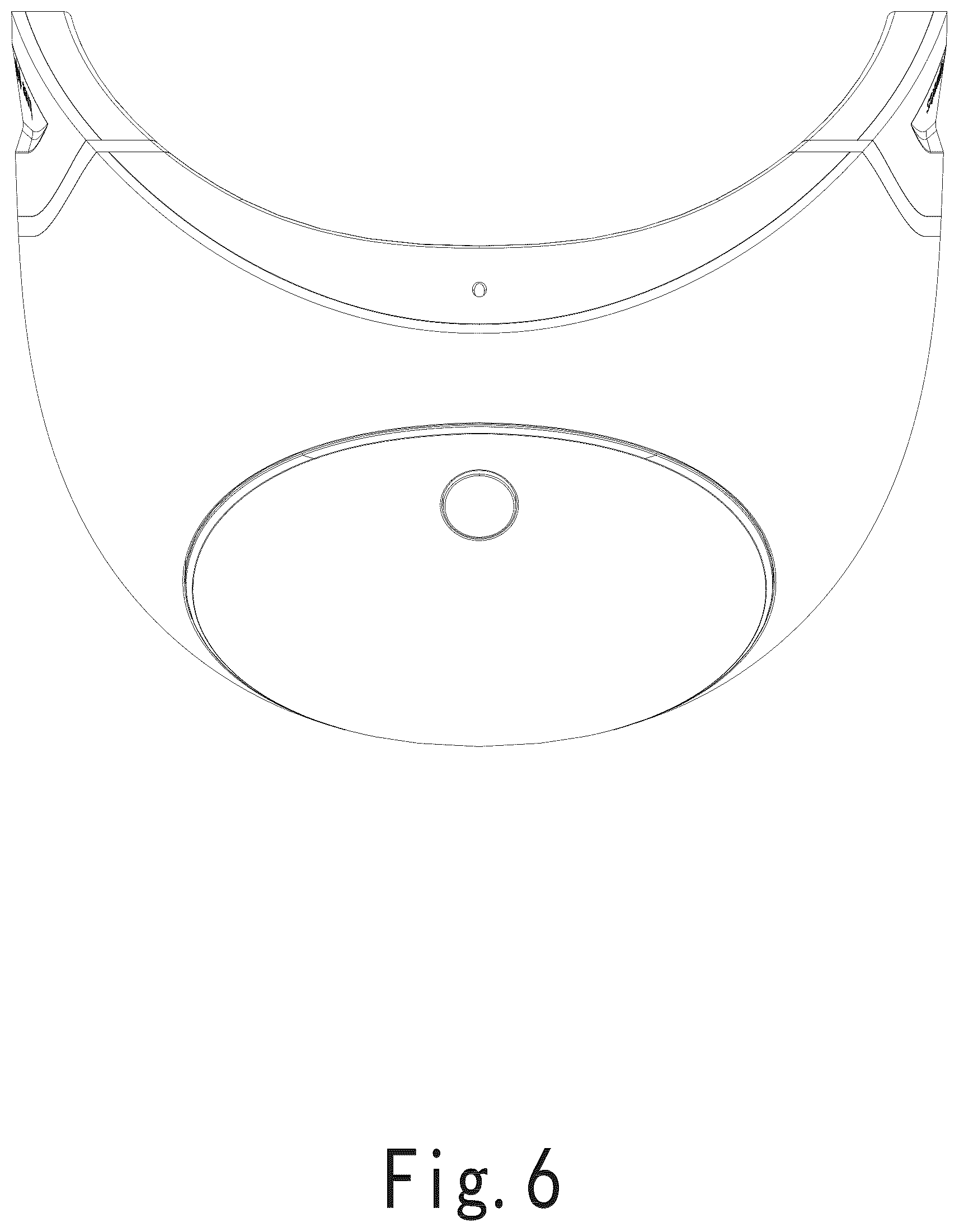

is a bottom plan view thereof.

The broken lines shown in the drawings illustrate portions of the knee physiotherapy apparatus that form no part of the claimed design.
