Ultrasound Transducer

USD1076105No. D 1,076,105designGranted 5/20/2025

Patent USD1076105 — Ultrasound transducer — Figure 1 — Fig. 1 · Ultrasound Transducer

Claims (1)

Claim 1 (Independent)

The ornamental design for an ultrasound transducer, as shown and described.

Full Description

Show full text →

is a top-front-left perspective view of an ultrasound transducer showing my new design;

is a bottom-front-left perspective view thereof

is a top-rear-right perspective view thereof;

is a bottom-rear-right perspective view thereof;

is a front elevational view thereof;

is a rear elevational view thereof;

is an enlarged top plan view thereof;

is an enlarged bottom plan view thereof;

is a left elevational view thereof; and,

is a right elevational view thereof.

The broken lines showing a cable end in are included for the purpose of illustrating environmental structure and form no part of the claimed design.

Figures (10)

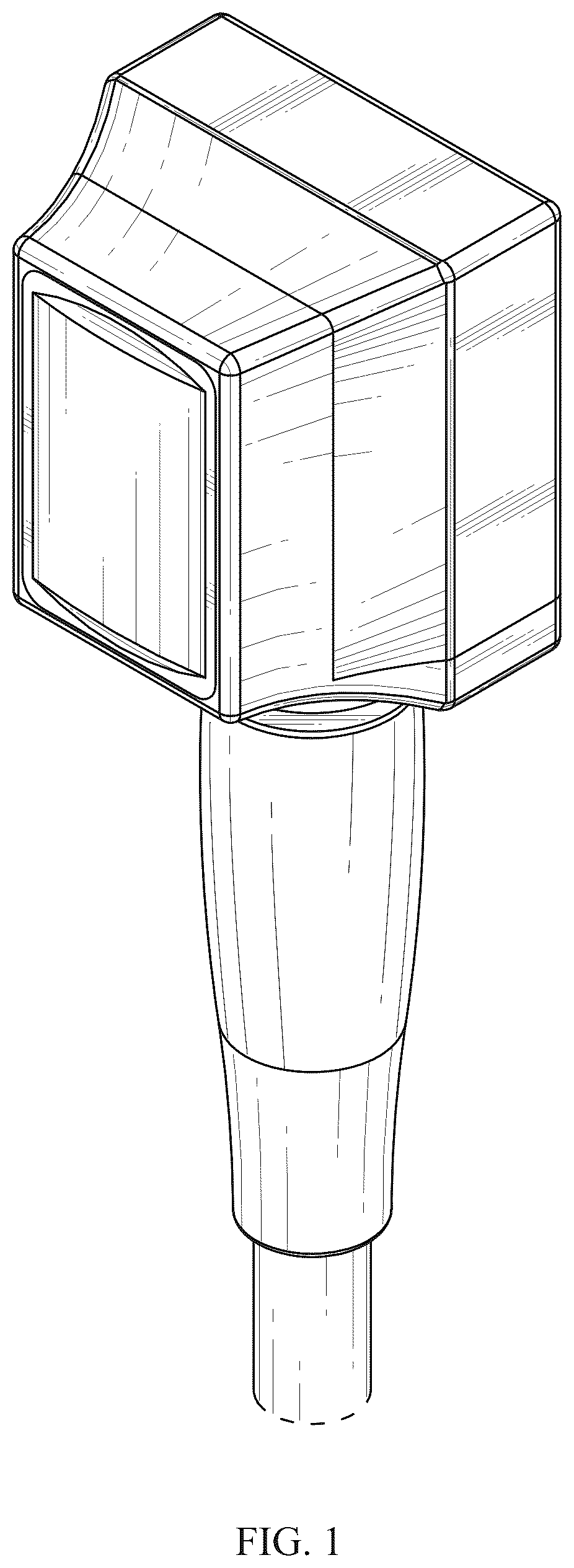

Patent USD1076105 Figure 1 – Ultrasound transducer — Fig. 1

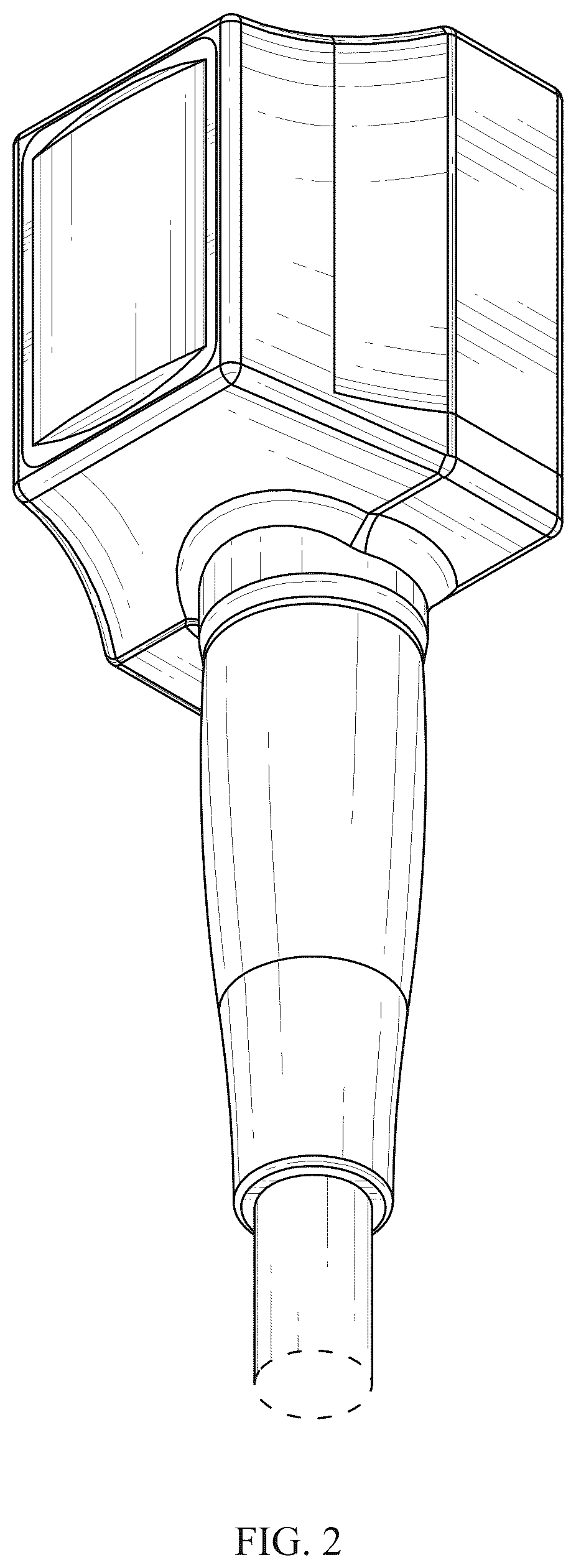

Patent USD1076105 Figure 2 – Ultrasound transducer — Fig. 2

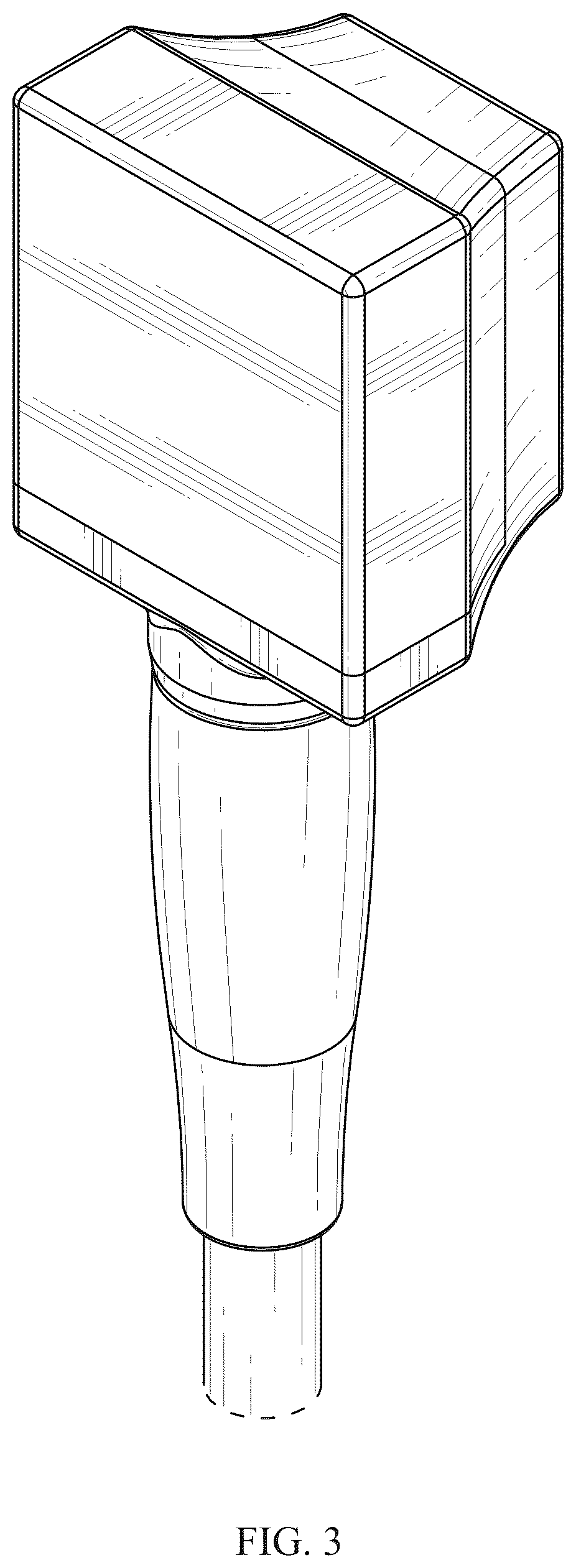

Patent USD1076105 Figure 3 – Ultrasound transducer — Fig. 3

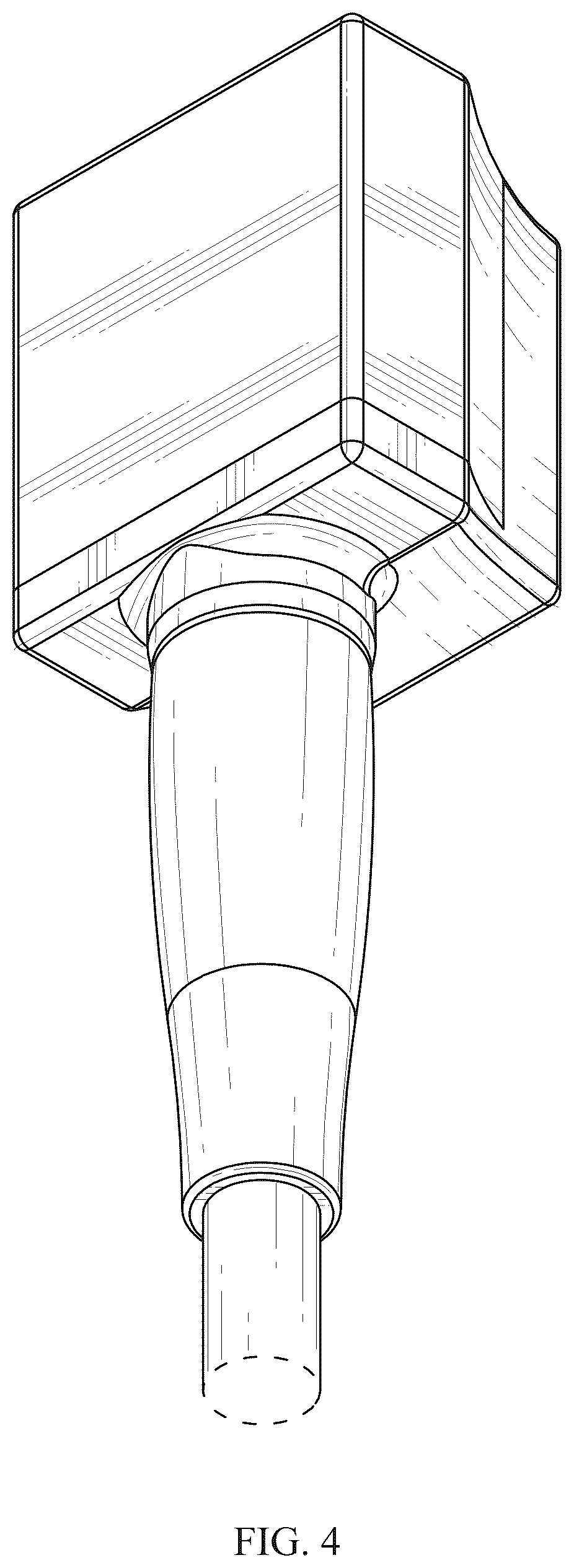

Patent USD1076105 Figure 4 – Ultrasound transducer — Fig. 4

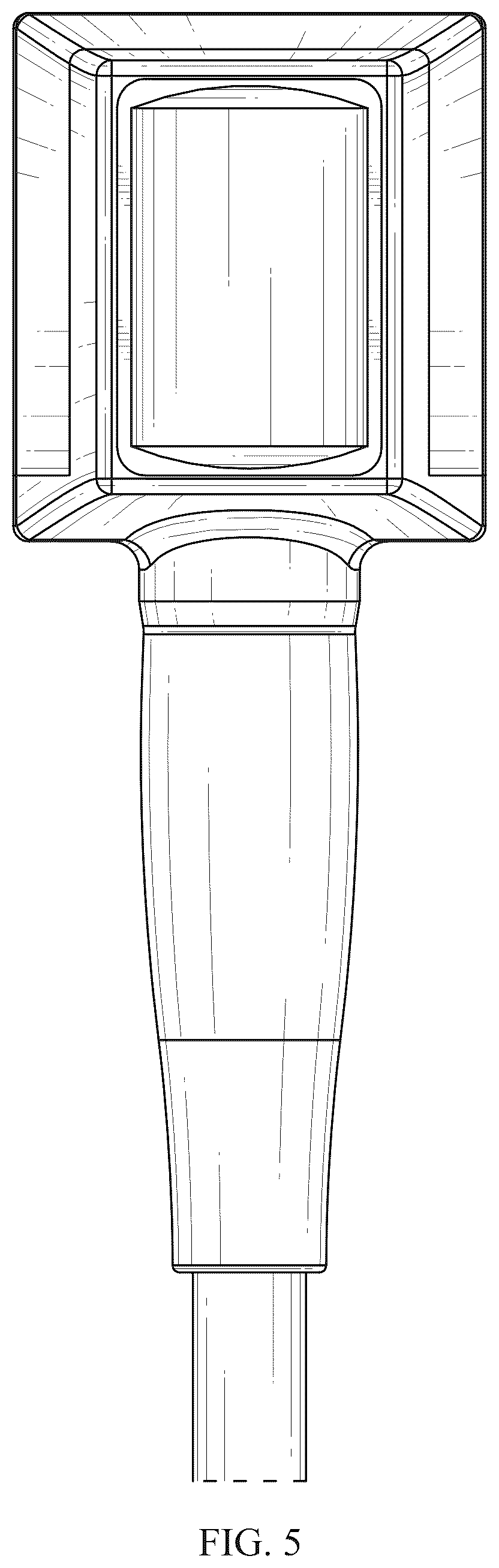

Patent USD1076105 Figure 5 – Ultrasound transducer — Fig. 5

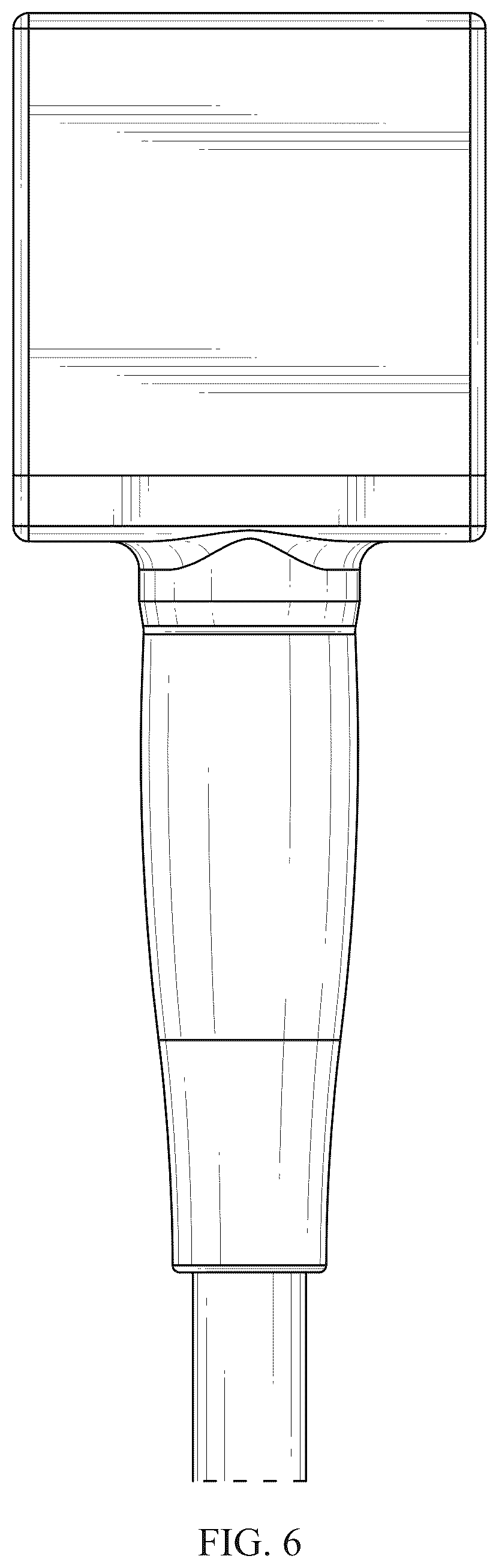

Patent USD1076105 Figure 6 – Ultrasound transducer — Fig. 6

Patent USD1076105 Figure 7 – Ultrasound transducer — Fig. 7

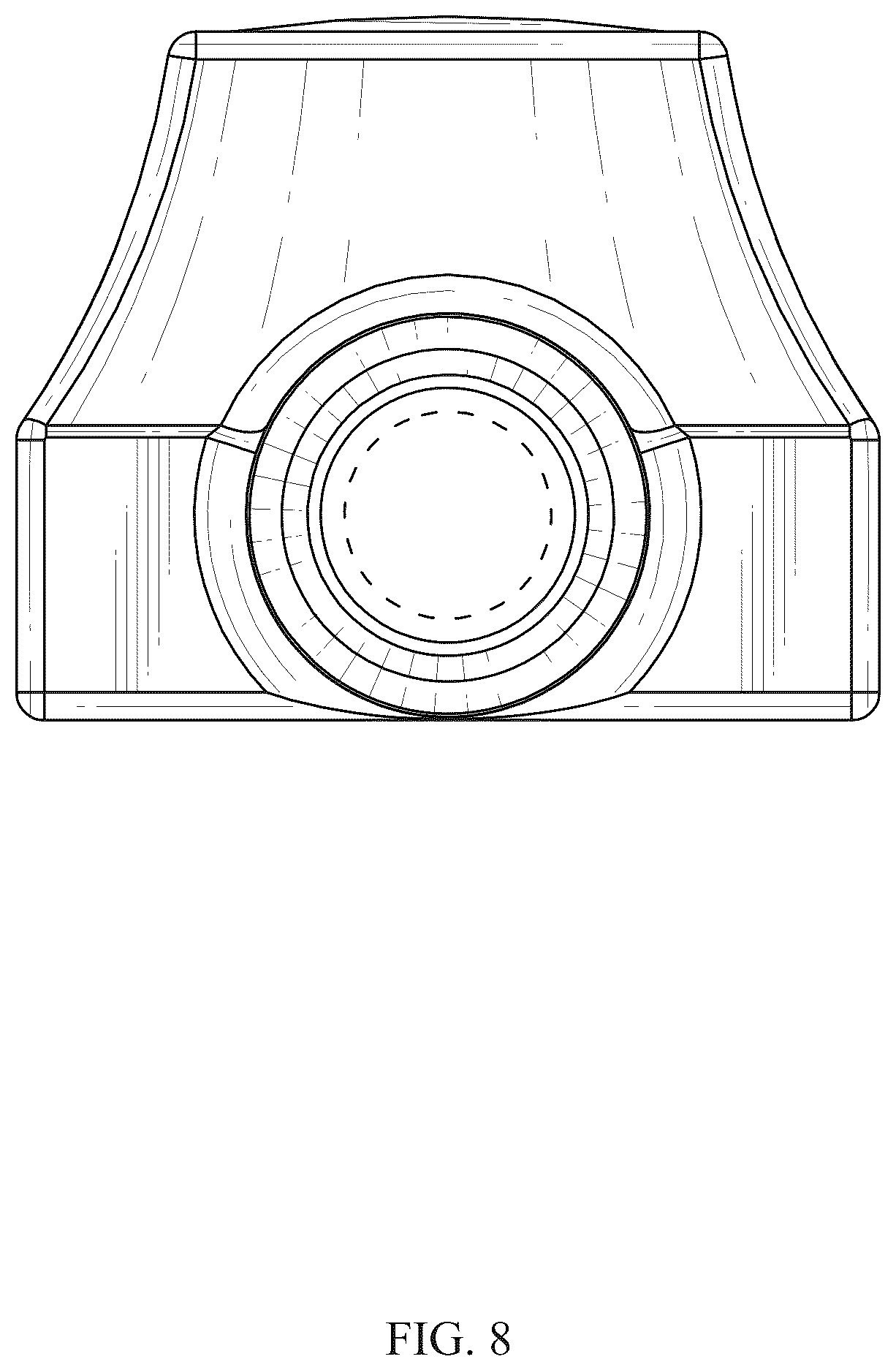

Patent USD1076105 Figure 8 – Ultrasound transducer — Fig. 8

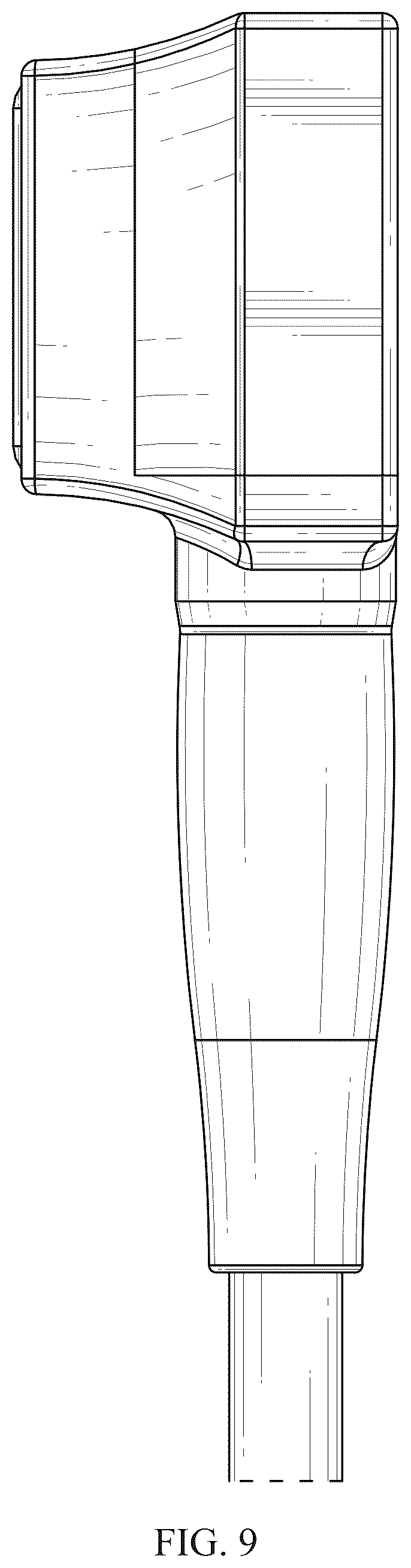

Patent USD1076105 Figure 9 – Ultrasound transducer — Fig. 9

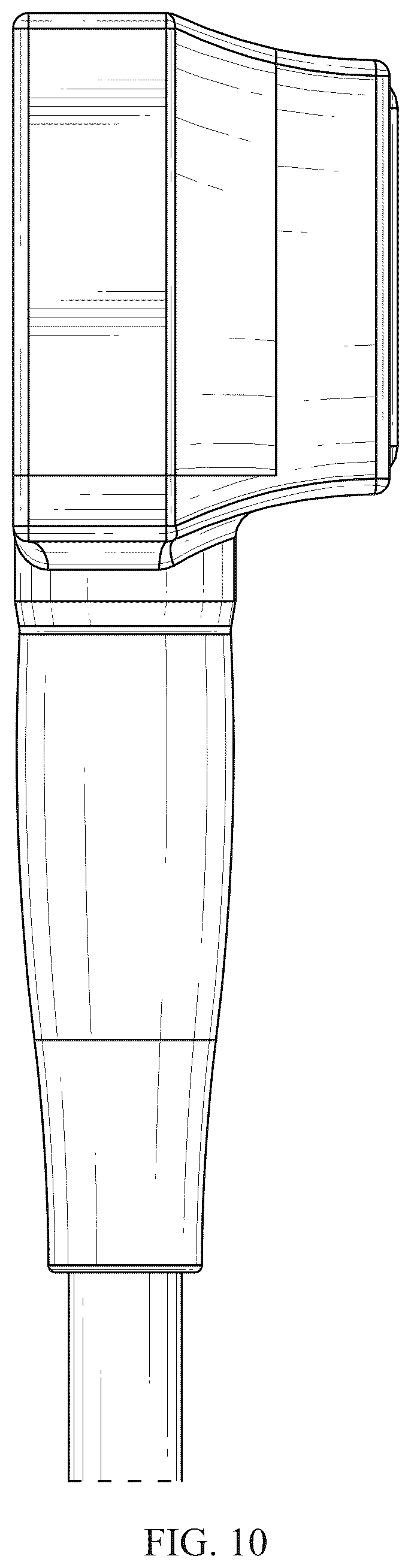

Patent USD1076105 Figure 10 – Ultrasound transducer — Fig. 10
