Protective Case for Game Device

USD1075926No. D 1,075,926designGranted 5/20/2025
Patent USD1075926 — Protective case for game device — Figure 1
Fig. 1 · Protective Case for Game Device

Claims (1)

Claim 1 (Independent)

The ornamental design for protective case for game device, as shown and described.

Full Description

Show full text →

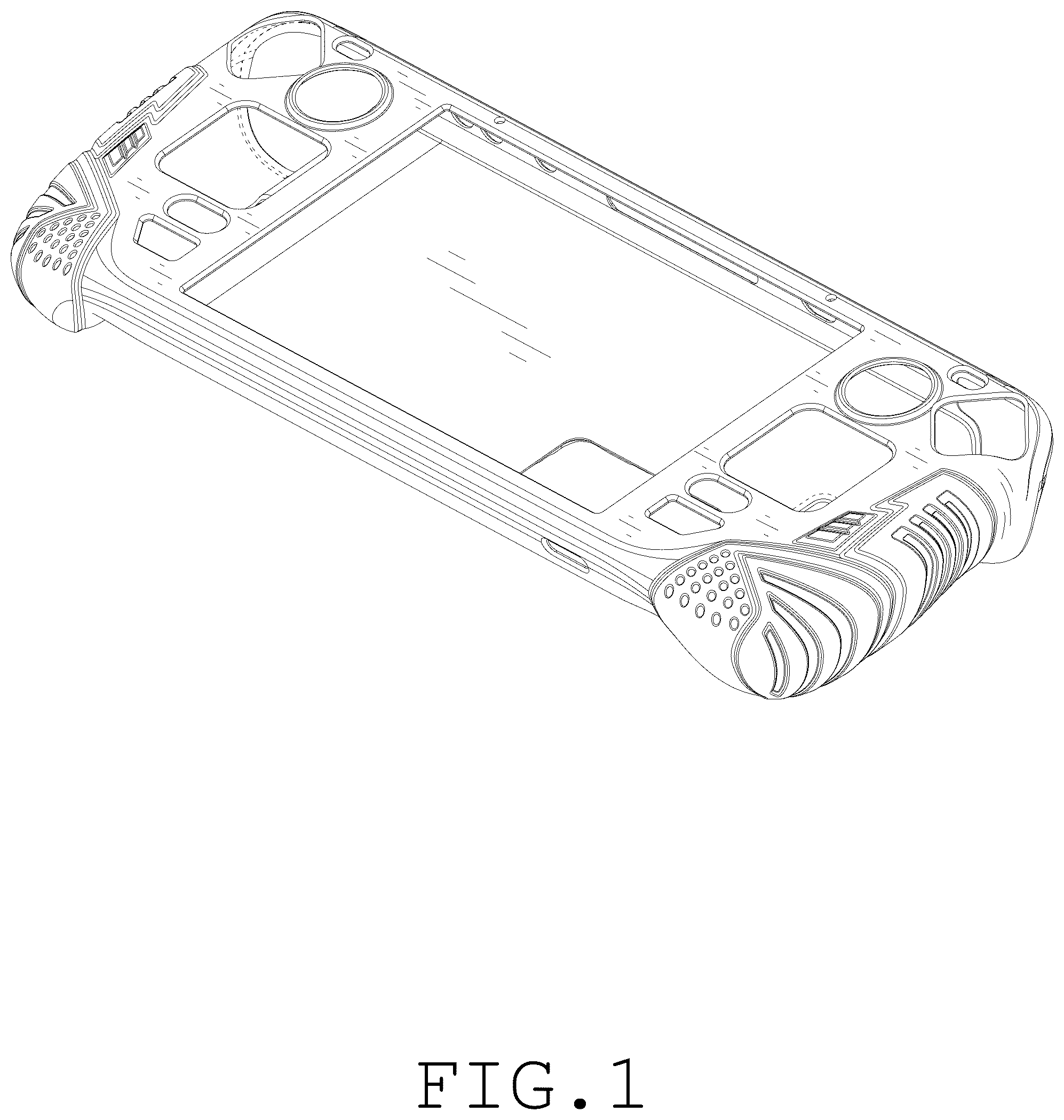

is a front, right and bottom perspective view of a protective case for game device showing my new design;

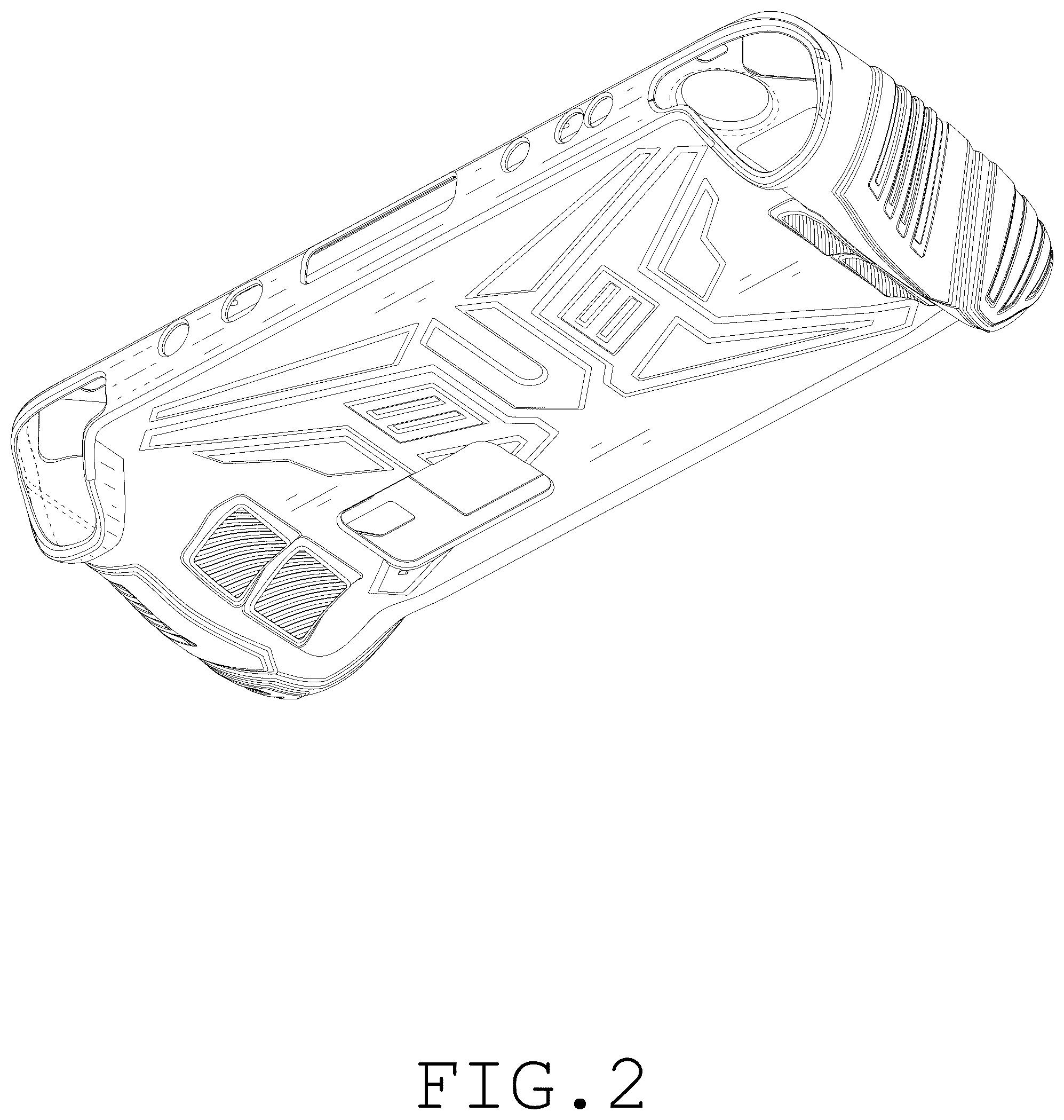

is a rear, left and top perspective view thereof;

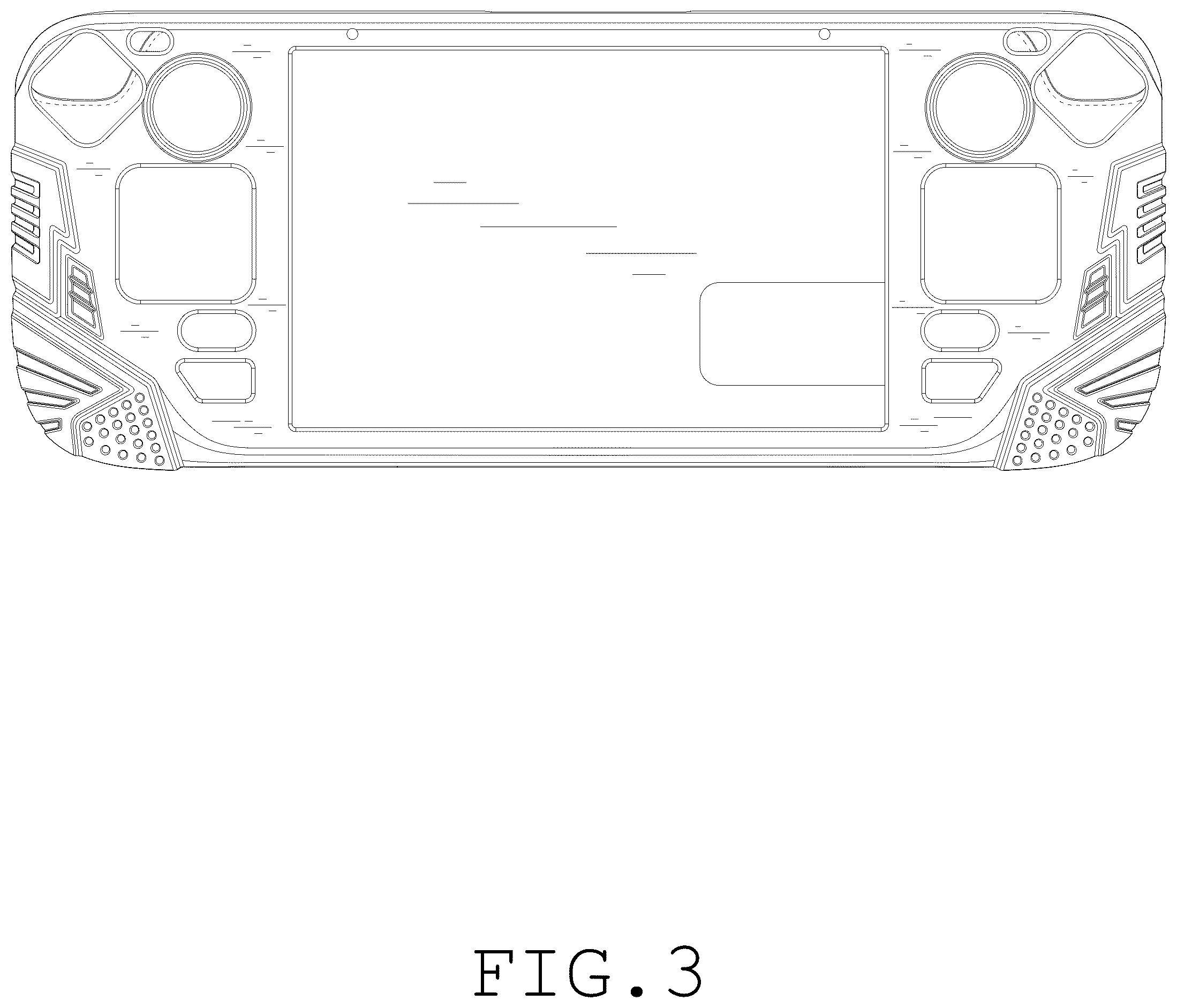

is a front view thereof;

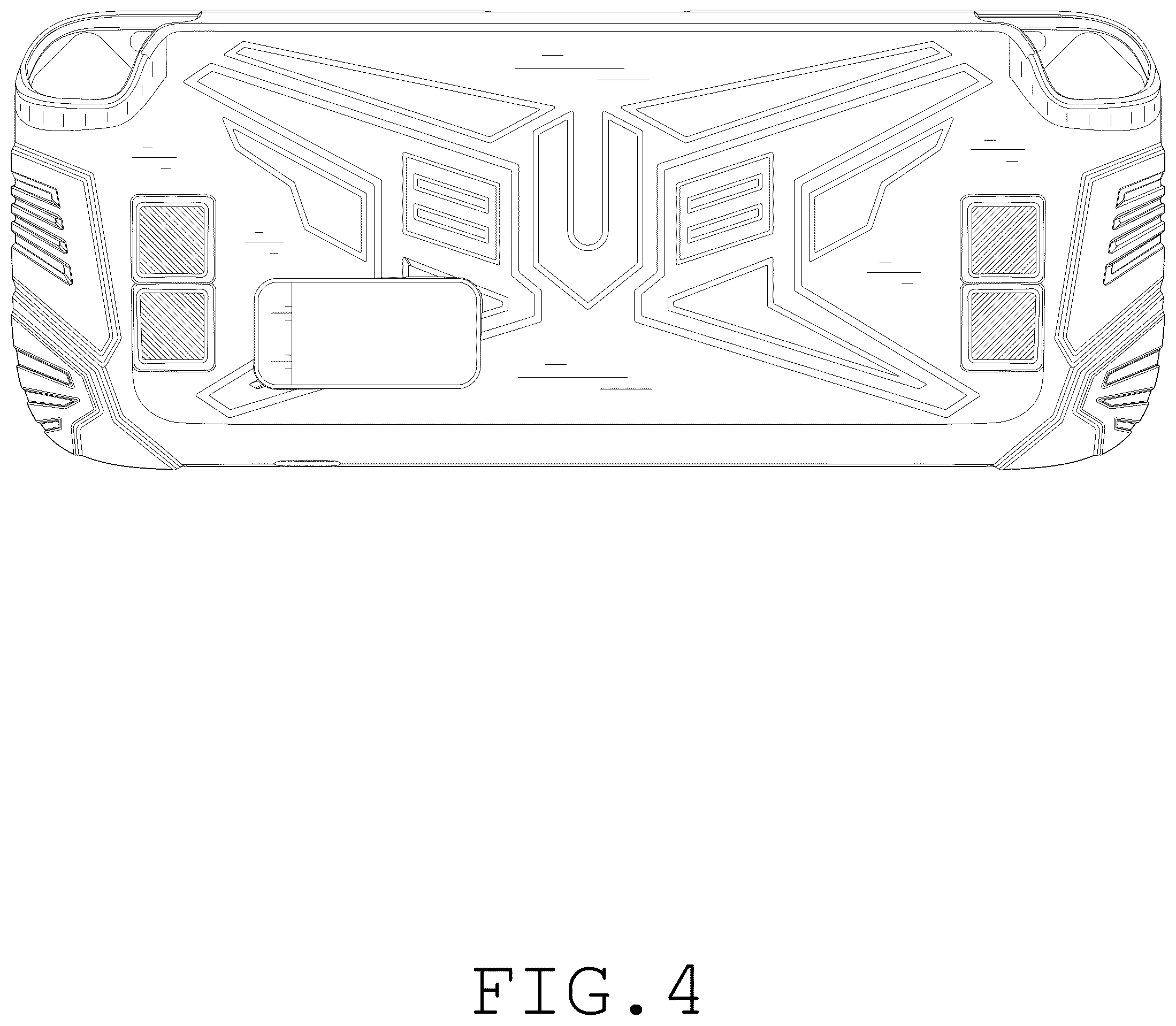

is a rear view thereof;

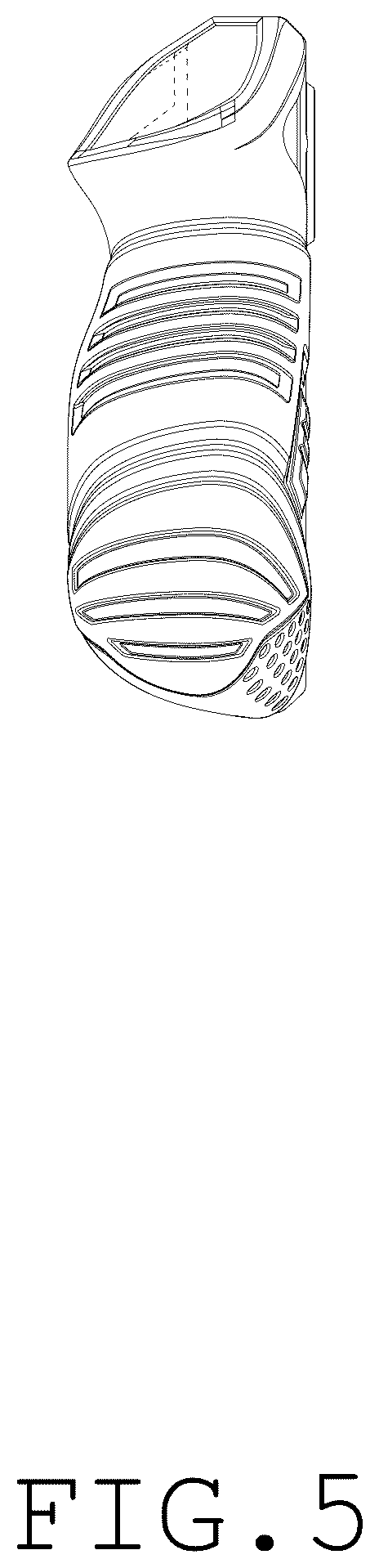

is a left view thereof;

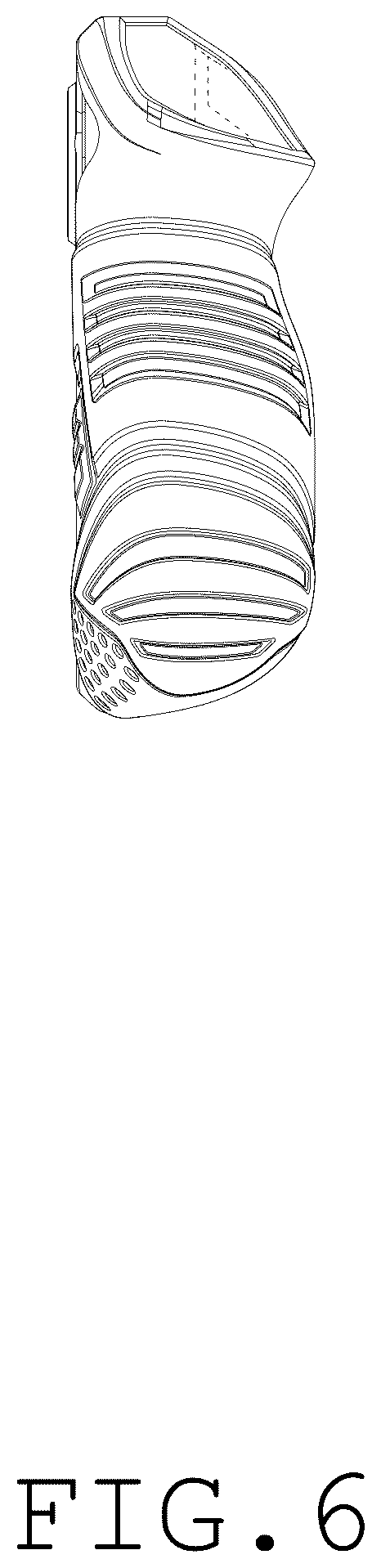

is a right view thereof;

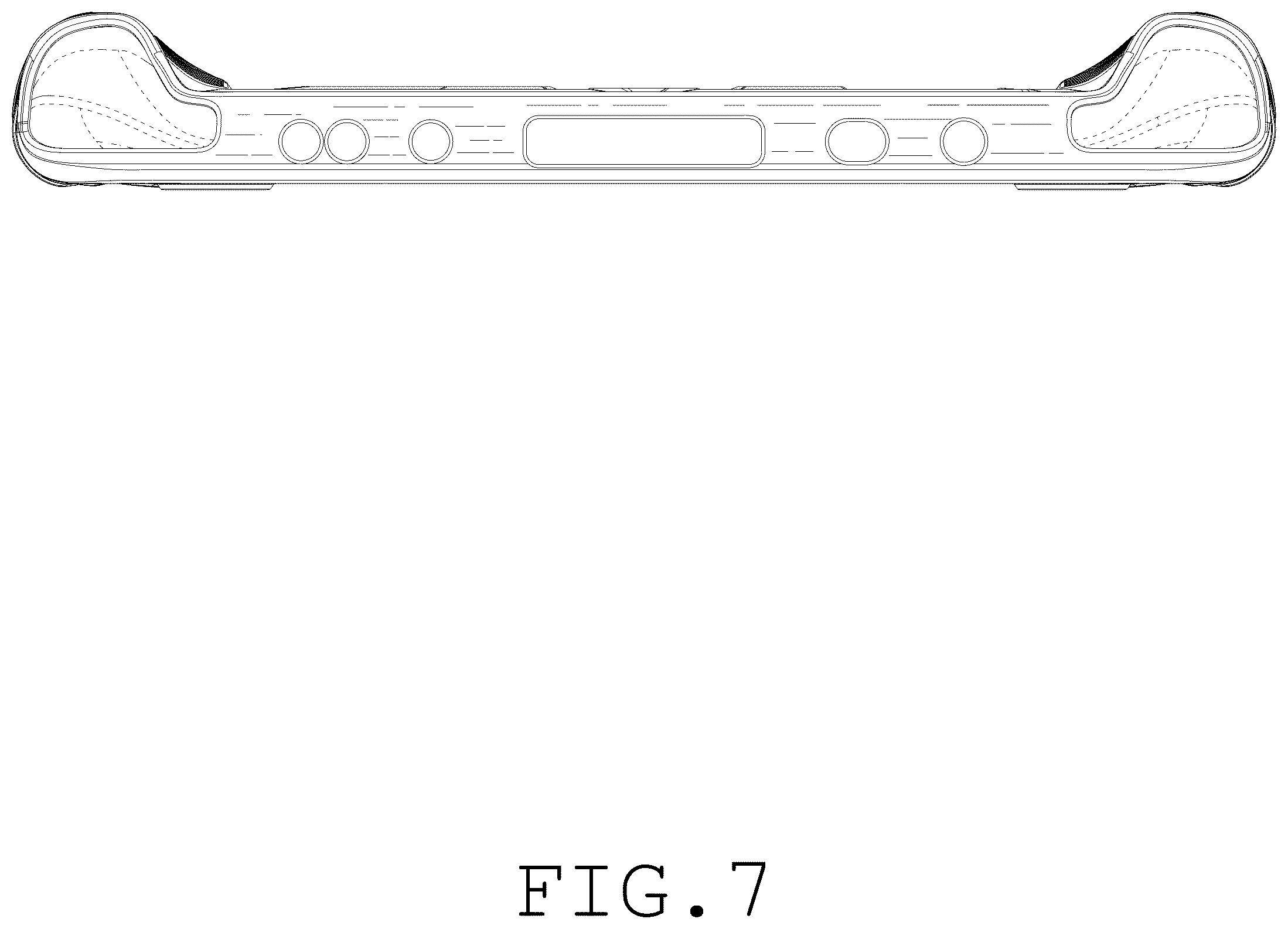

is a top view thereof; and,

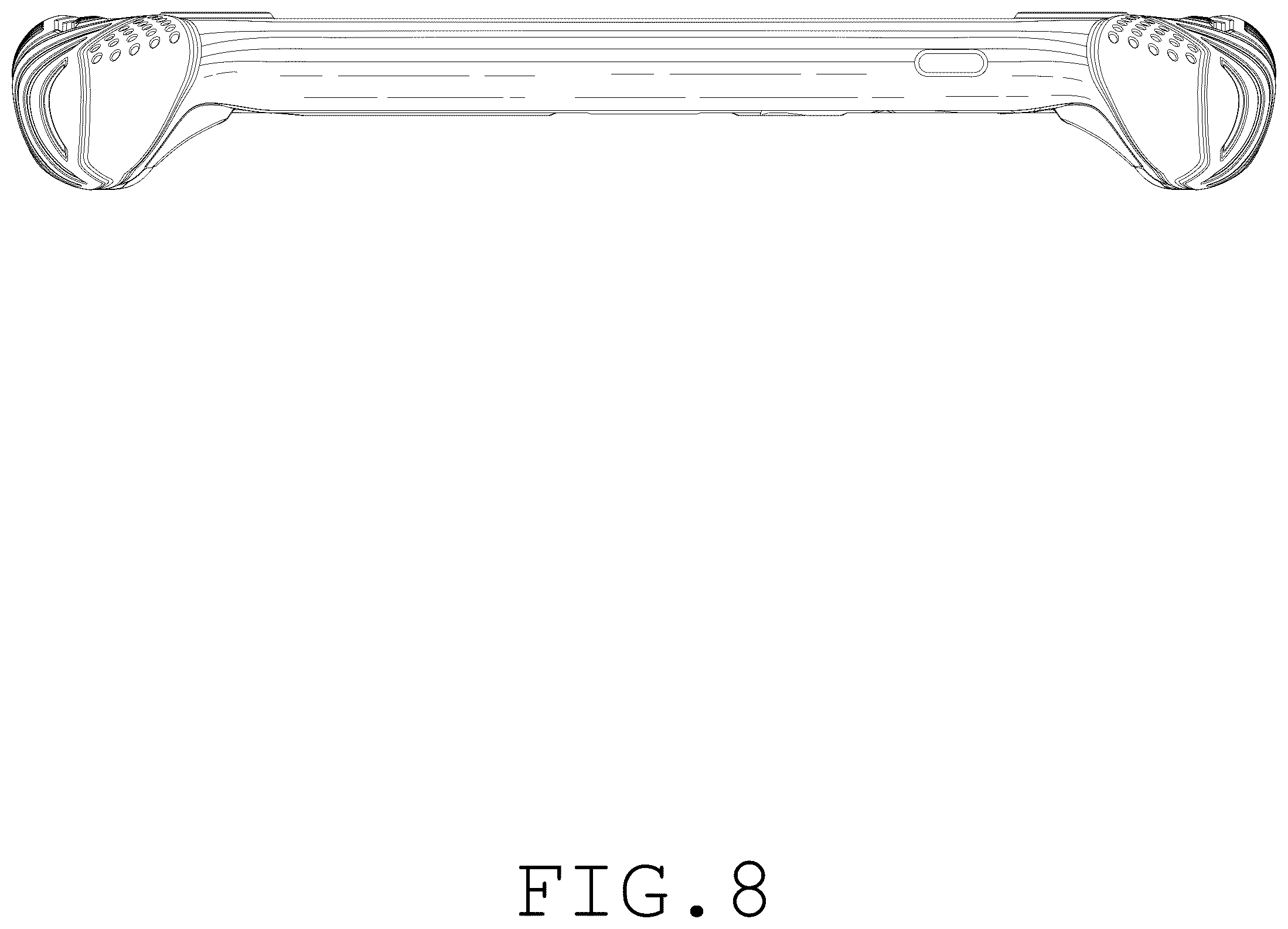

is a bottom view thereof.

The broken lines shown in the figures are for the purpose of illustrating portions of the protective case for game device that forms no part of the claimed design.
