Laptop

USD1075747No. D 1,075,747designGranted 5/20/2025

Patent USD1075747 — Laptop — Figure 1 — Fig. 1 · Laptop

Claims (1)

Claim 1 (Independent)

The ornamental design for a laptop as shown and described.

Full Description

Show full text →

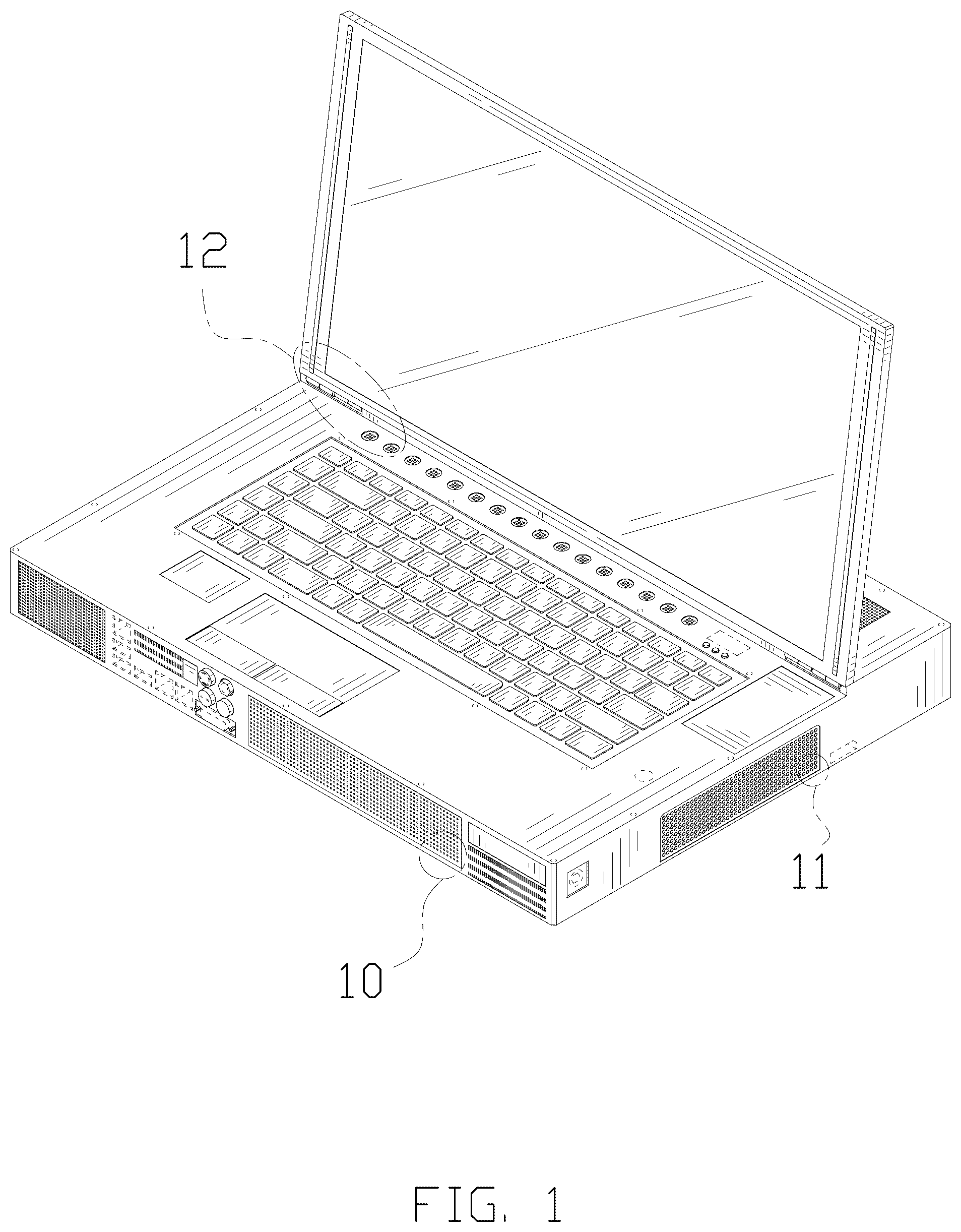

is a front, right and top perspective view of a laptop, showing my new design;

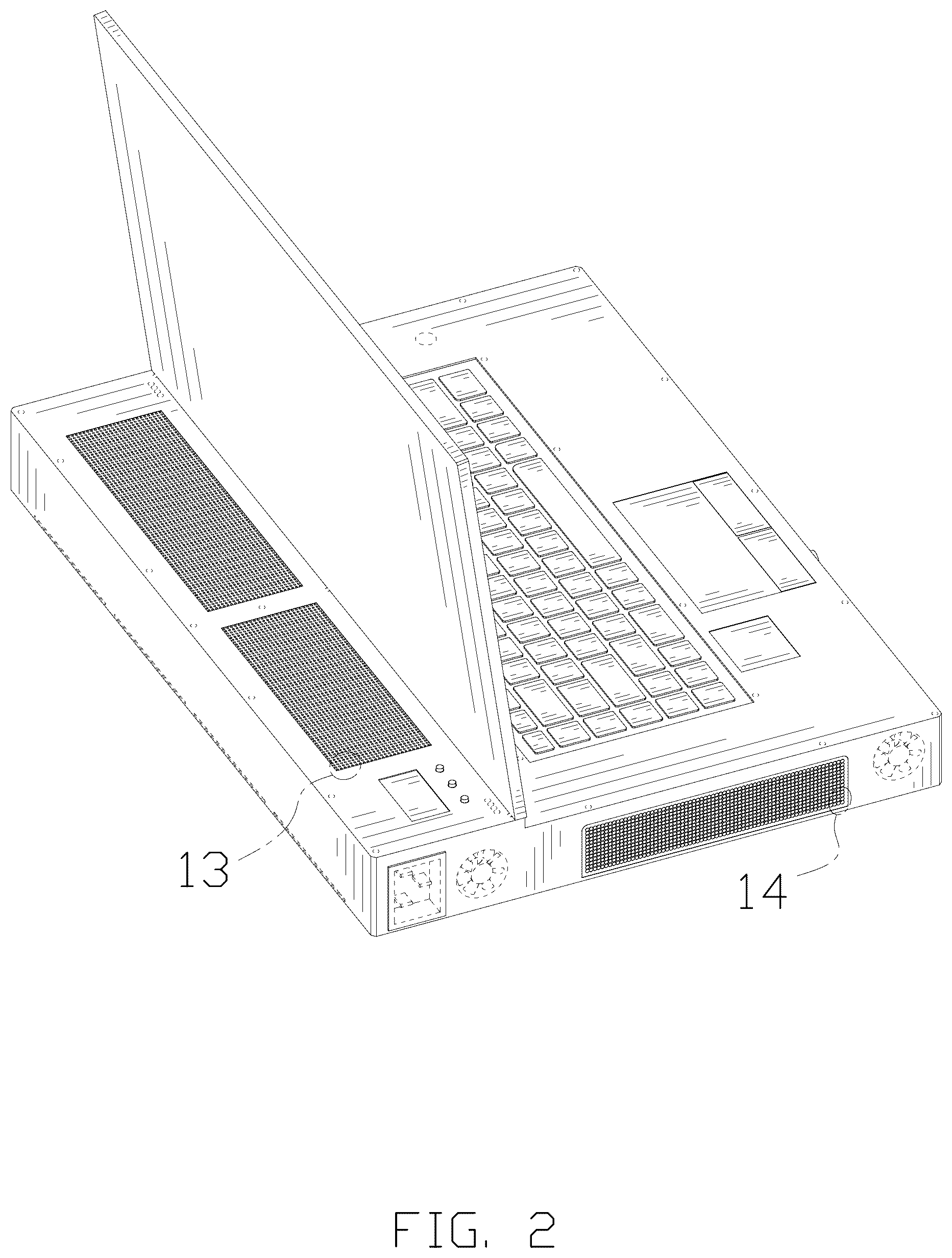

is a rear, left and top perspective view thereof;

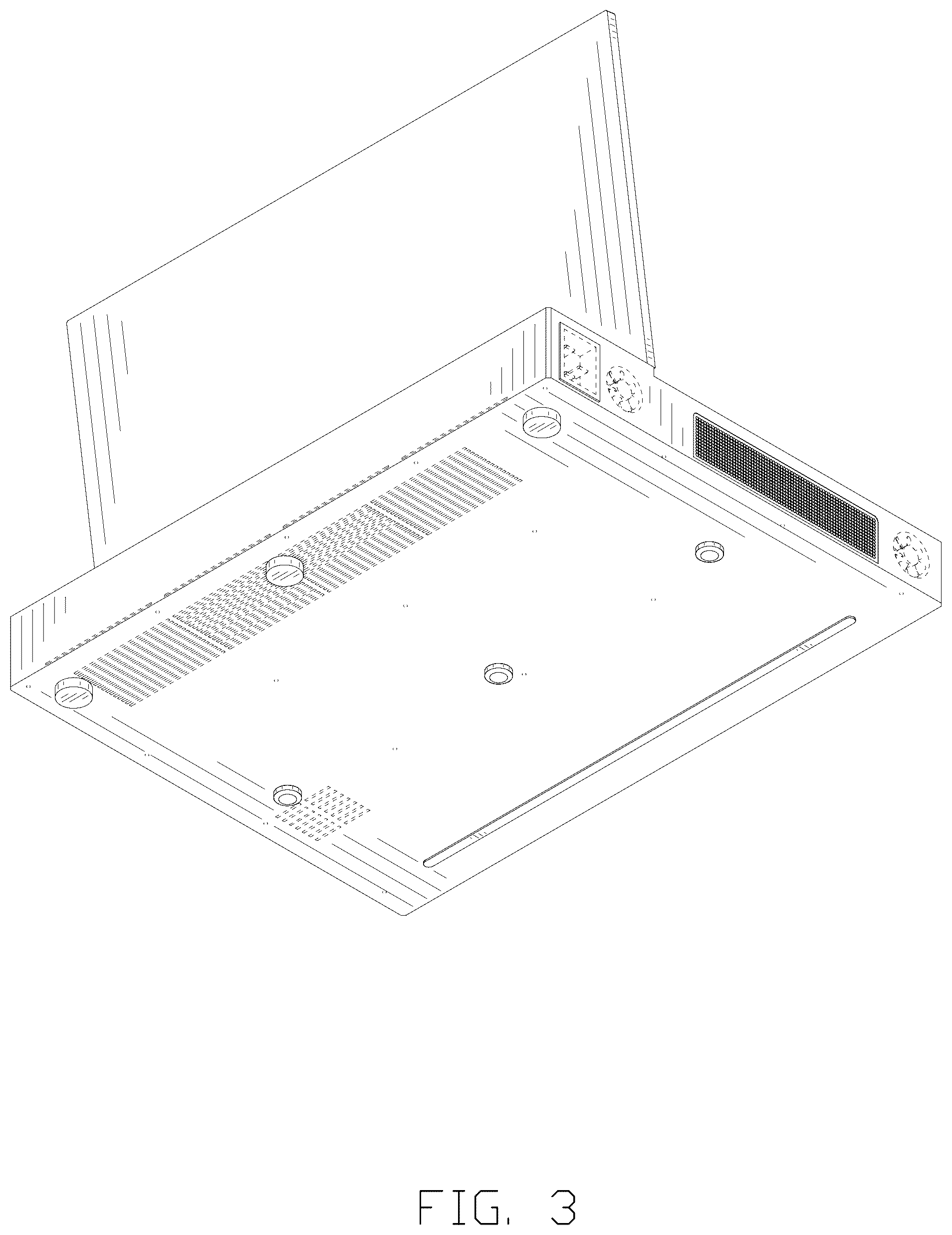

is a rear, left and bottom perspective view thereof;

is a front view thereof;

is a rear view thereof;

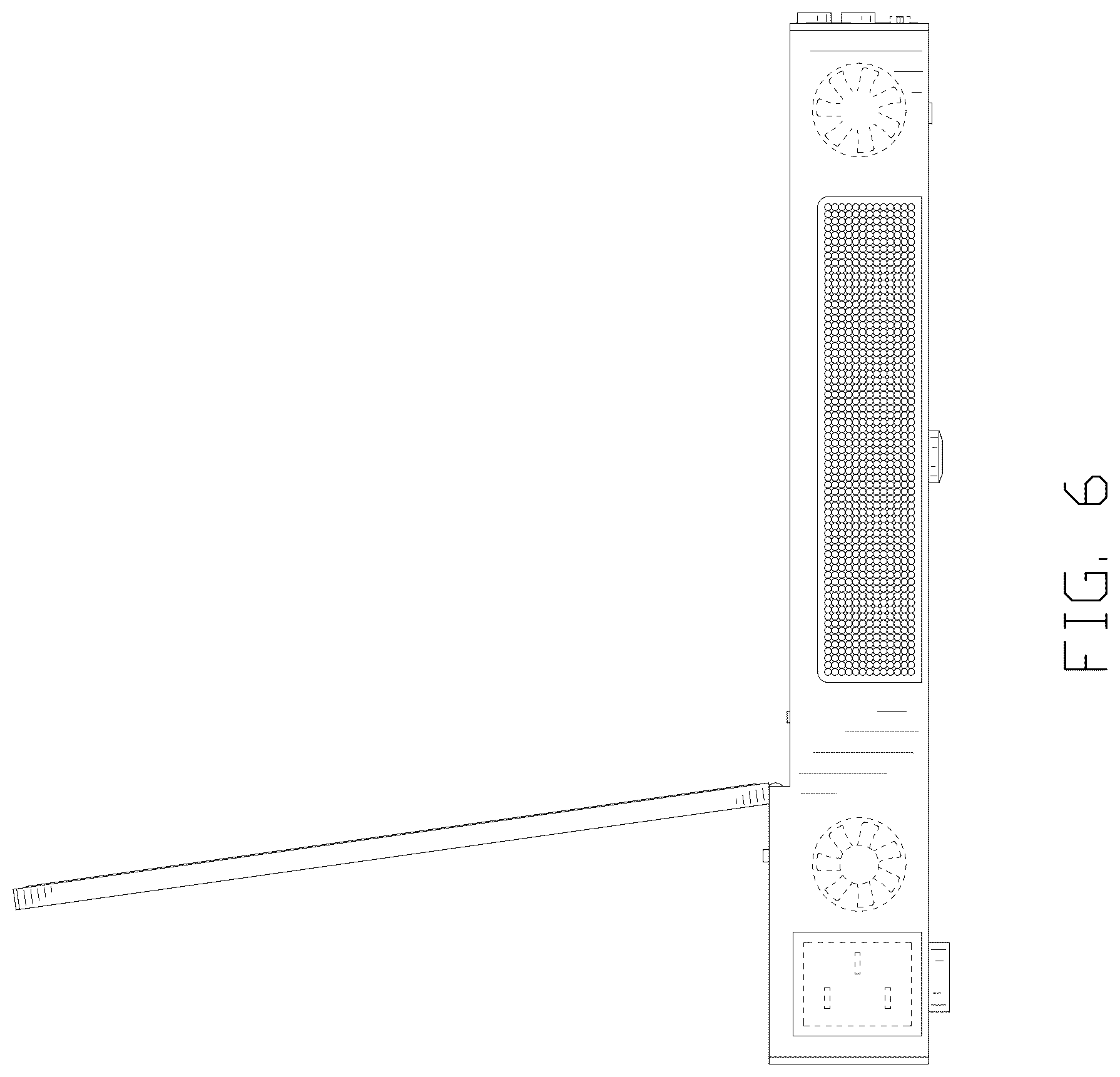

is a left side elevation view thereof;

is a right side elevation view thereof;

is a top plan view thereof;

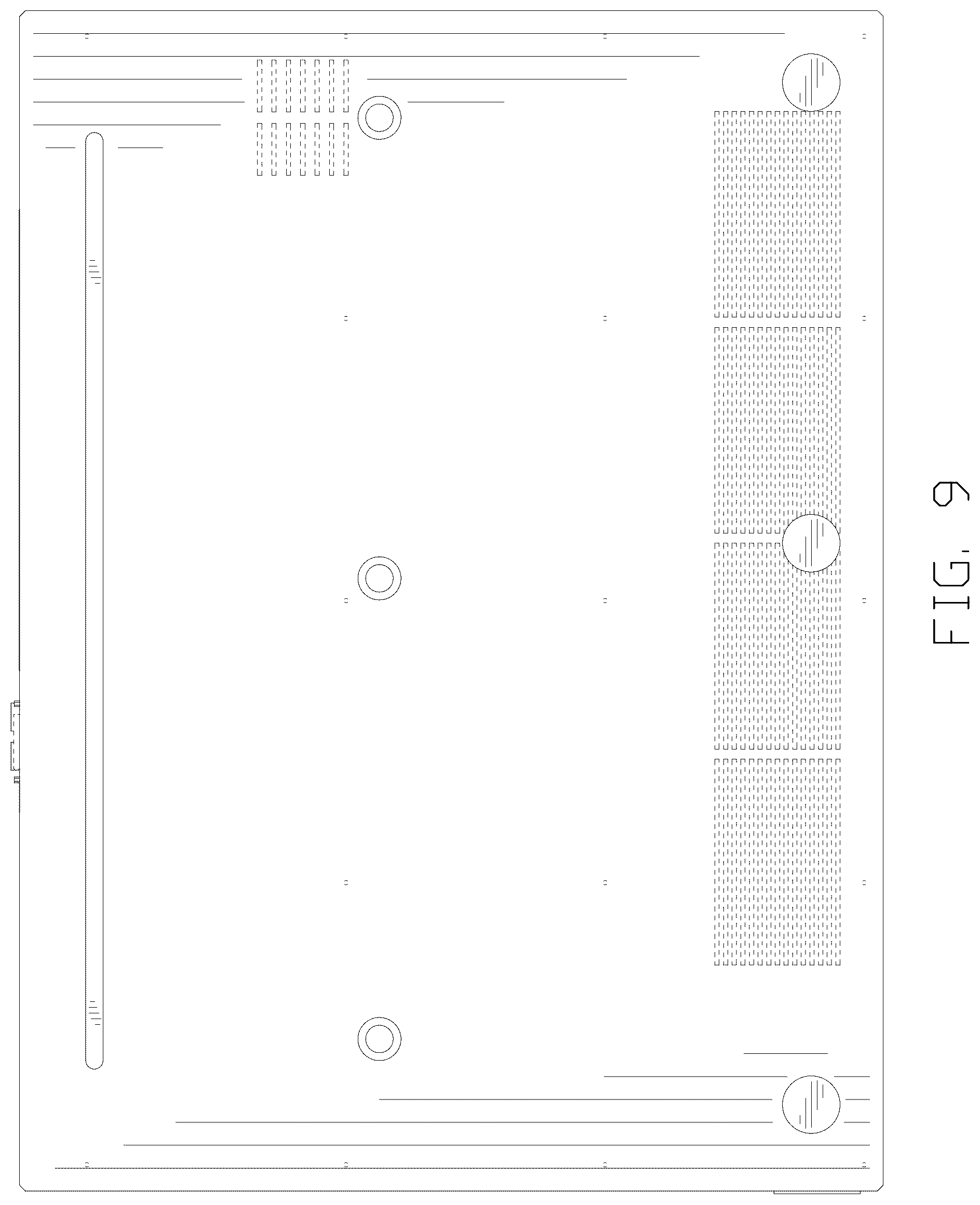

is a bottom plan view thereof;

is an enlarged view of an encircled area labeled “ 10 ” in ;

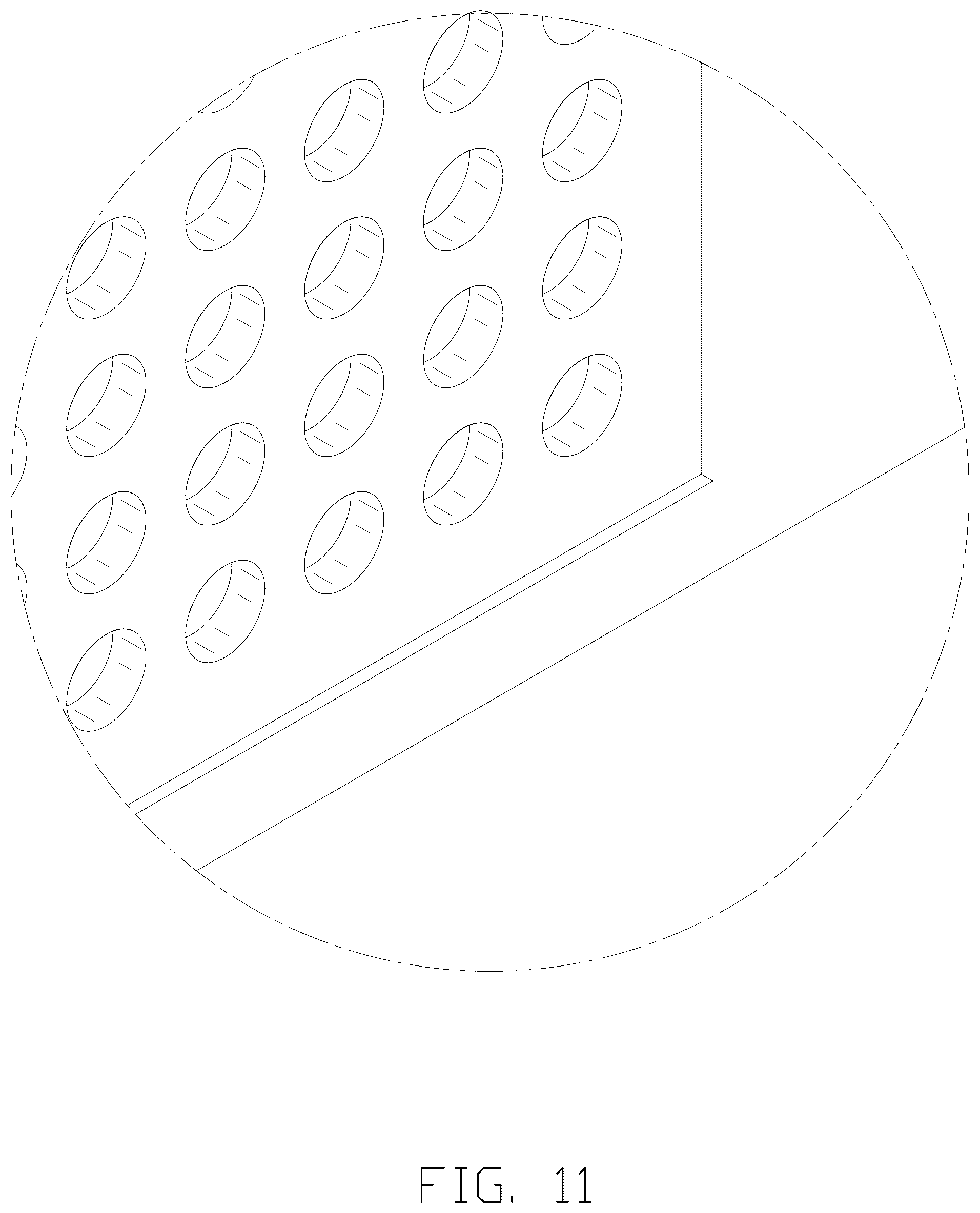

is an enlarged view of an encircled area labeled “ 11 ” in ;

is an enlarged view of an encircled area labeled “ 12 ” in ;

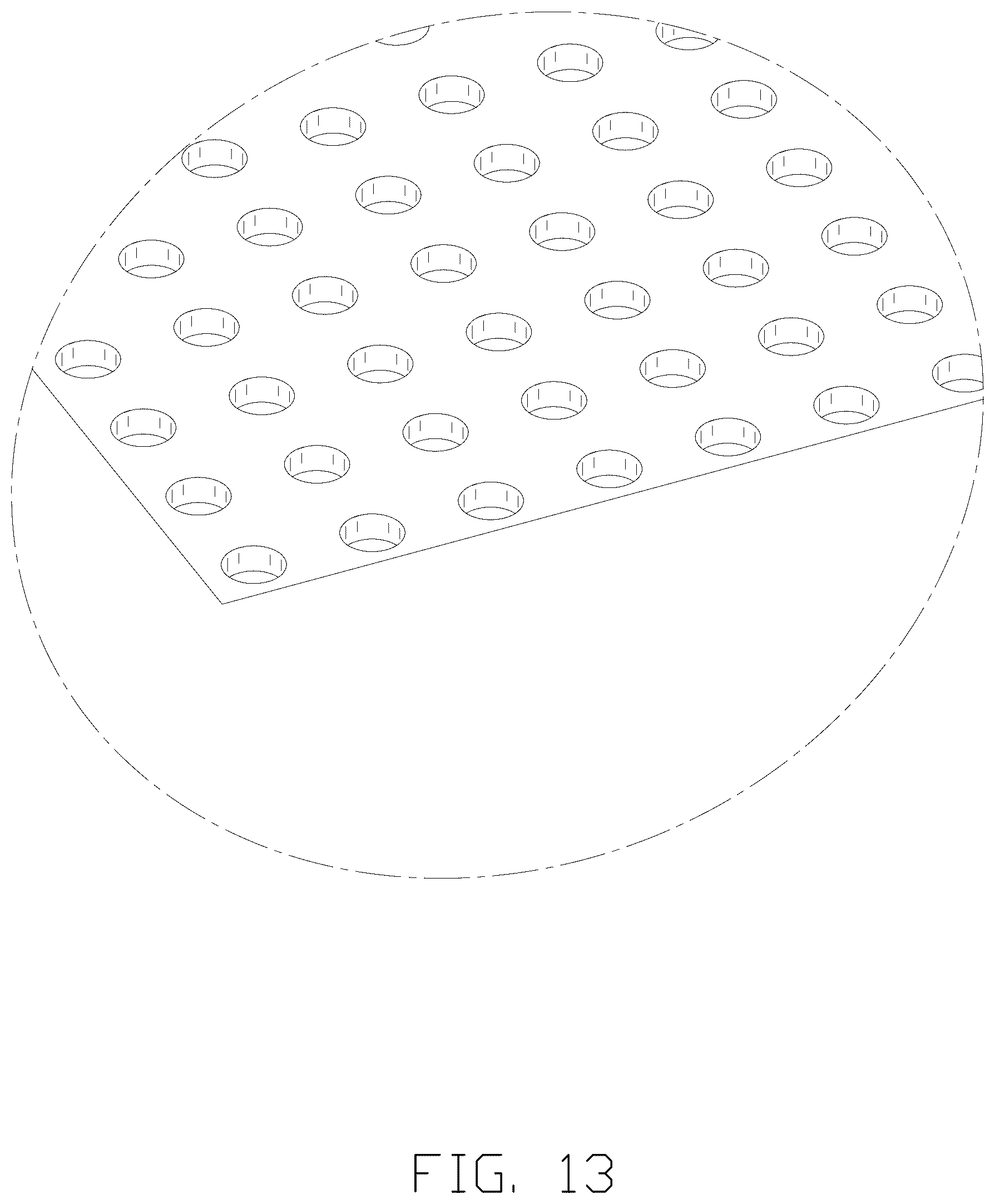

is an enlarged view of an encircled area labeled “ 13 ” in ; and,

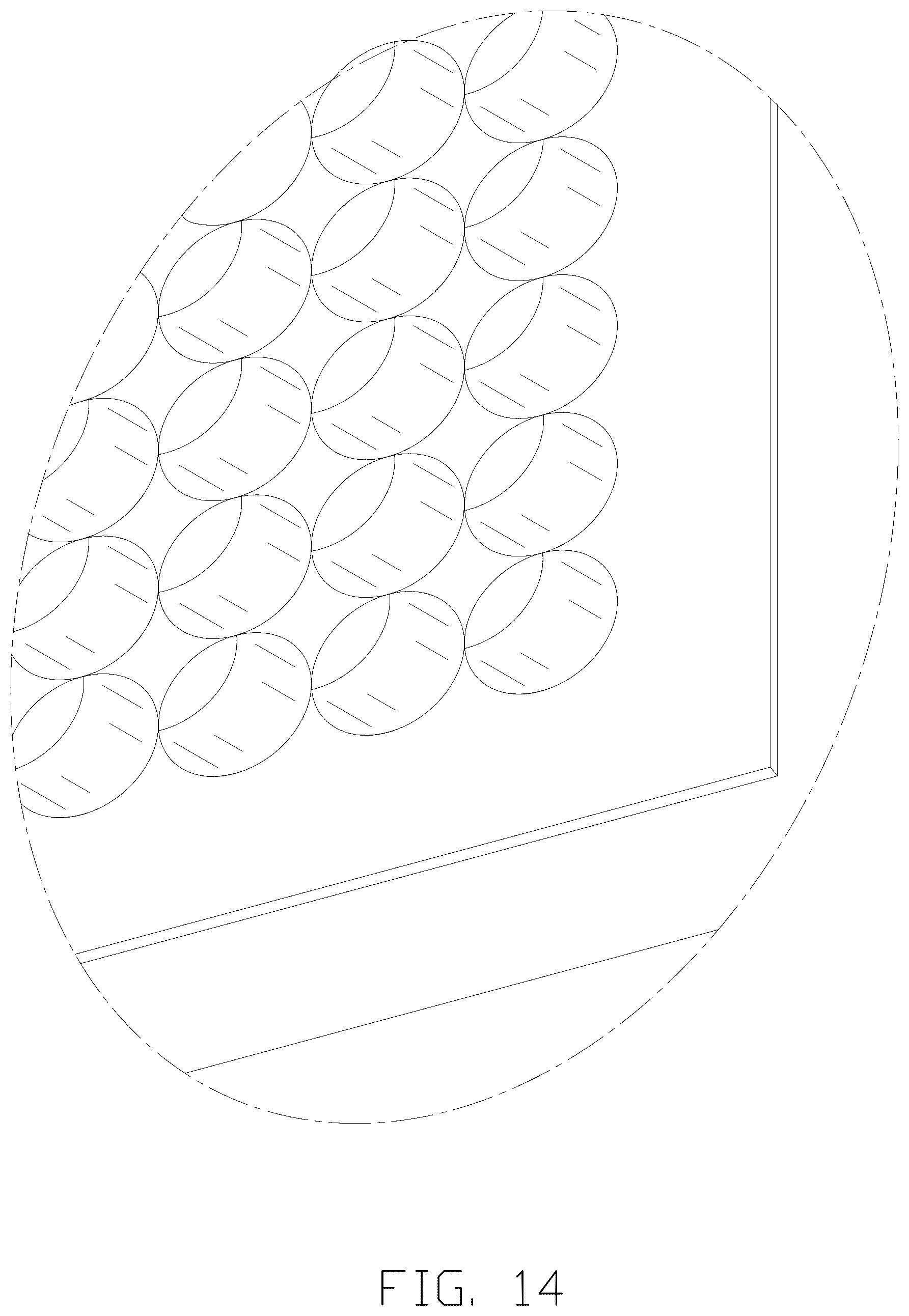

is an enlarged view of an encircled area labeled “ 14 ” in .

The broken lines depict portions of the laptop that form no part of the claimed design.

The dot-dash broken lines in , 2 , 10 , 11 , 12 , 13 , and 14 , framing portions of the claimed design that are illustrated for enlargements form no part of the claimed design.

Figures (14)

Patent USD1075747 Figure 1 – Laptop — Fig. 1

Patent USD1075747 Figure 2 – Laptop — Fig. 2

Patent USD1075747 Figure 3 – Laptop — Fig. 3

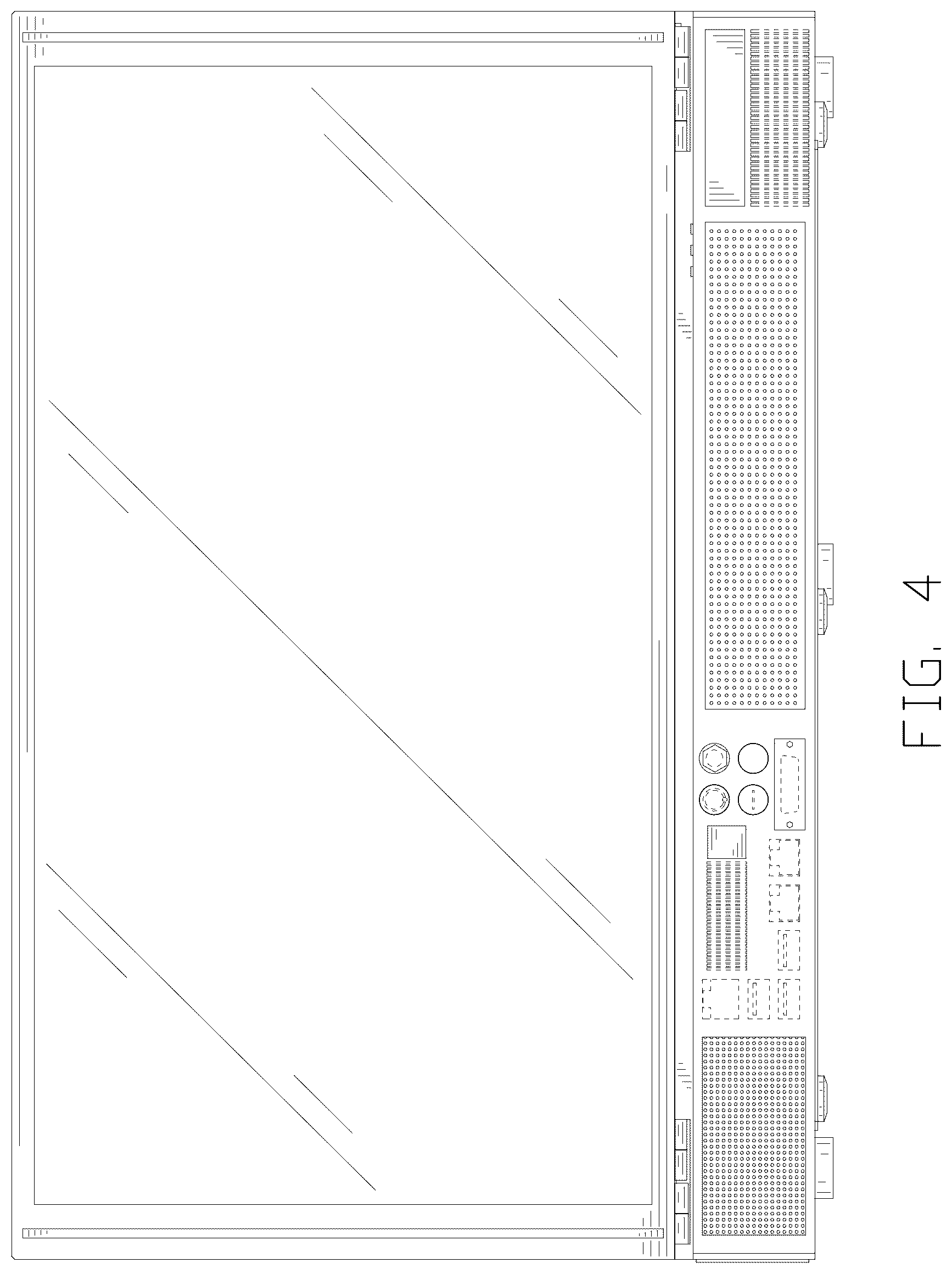

Patent USD1075747 Figure 4 – Laptop — Fig. 4

Patent USD1075747 Figure 5 – Laptop — Fig. 5

Patent USD1075747 Figure 6 – Laptop — Fig. 6

Patent USD1075747 Figure 7 – Laptop — Fig. 7

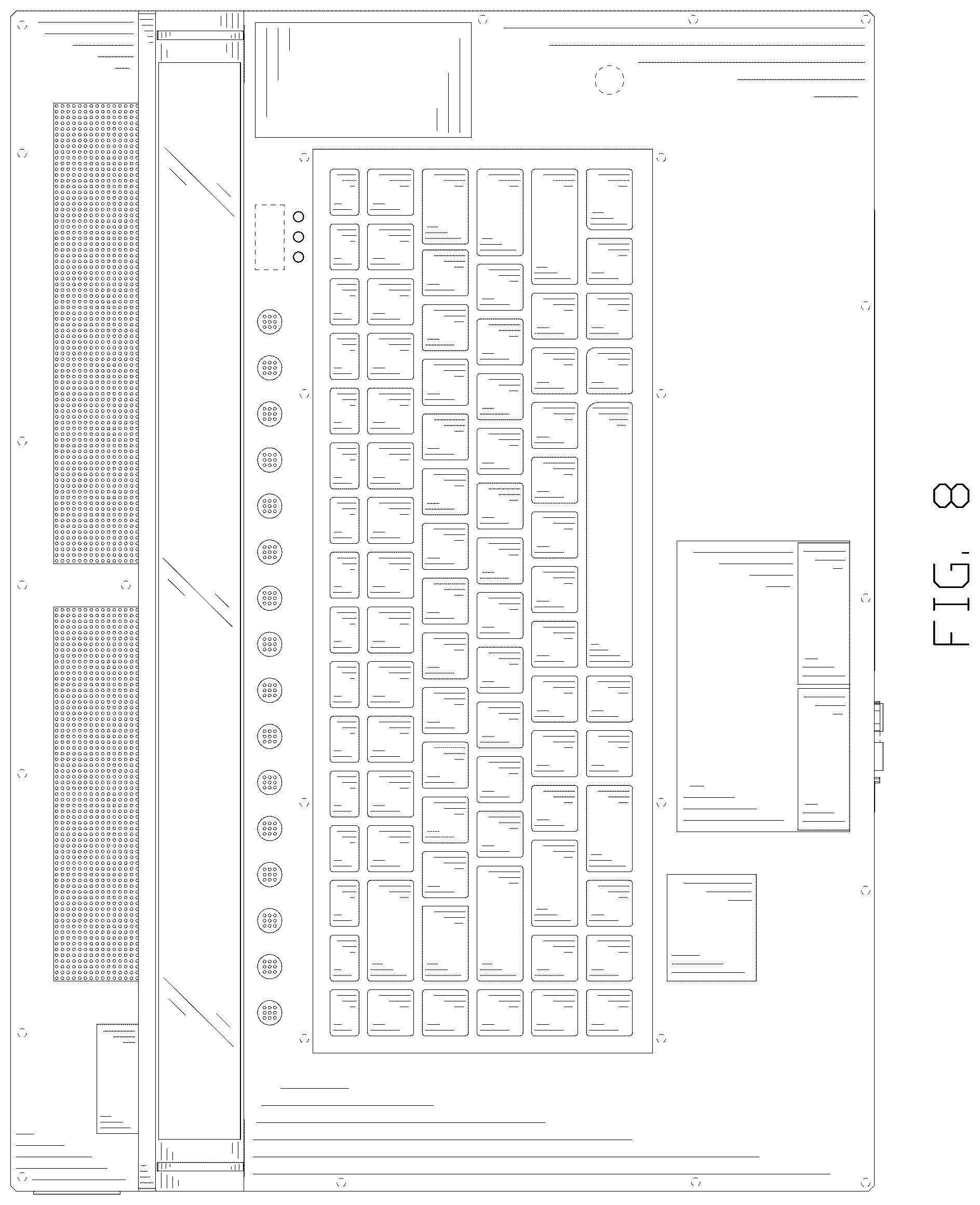

Patent USD1075747 Figure 8 – Laptop — Fig. 8

Patent USD1075747 Figure 9 – Laptop — Fig. 9

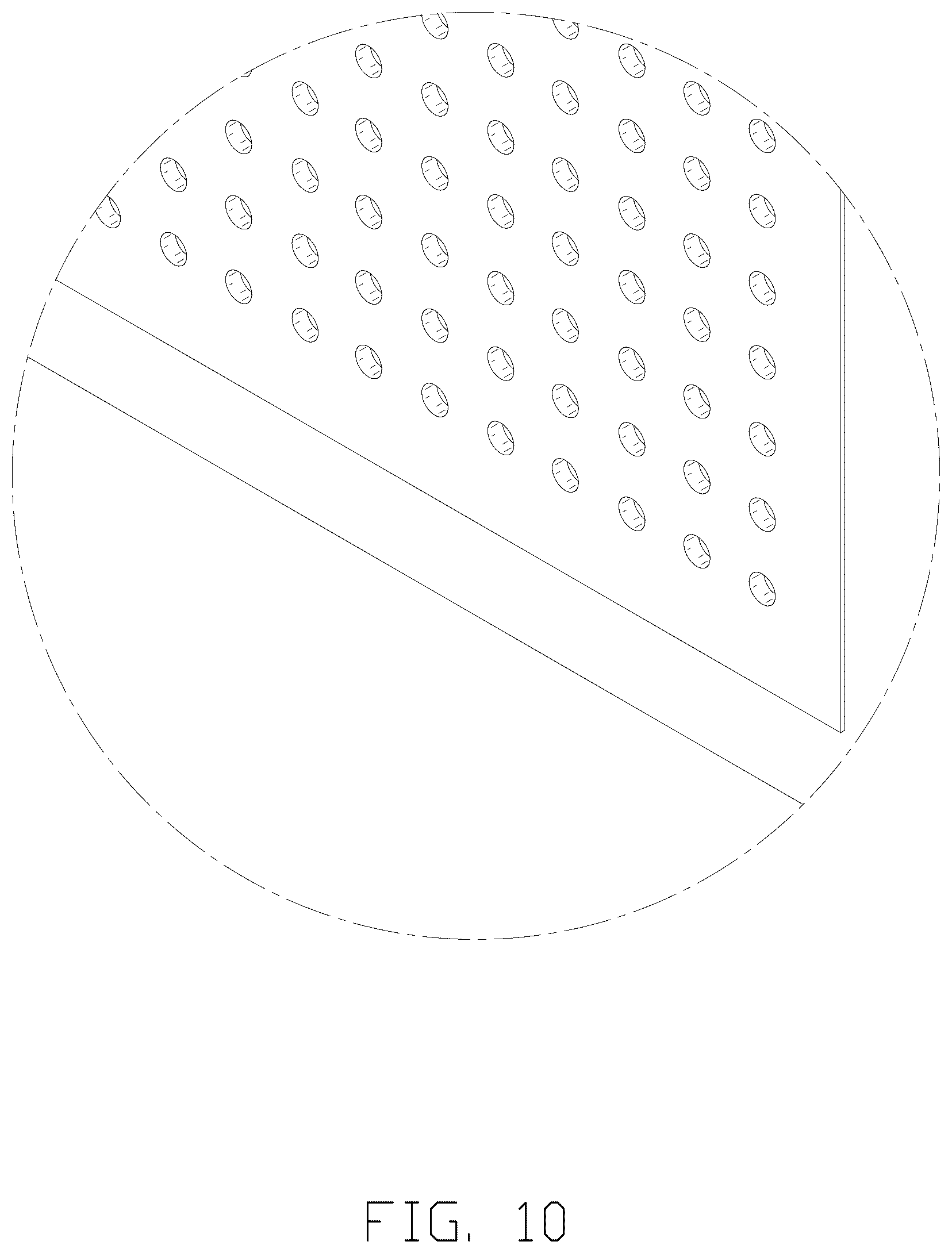

Patent USD1075747 Figure 10 – Laptop — Fig. 10

Patent USD1075747 Figure 11 – Laptop — Fig. 11

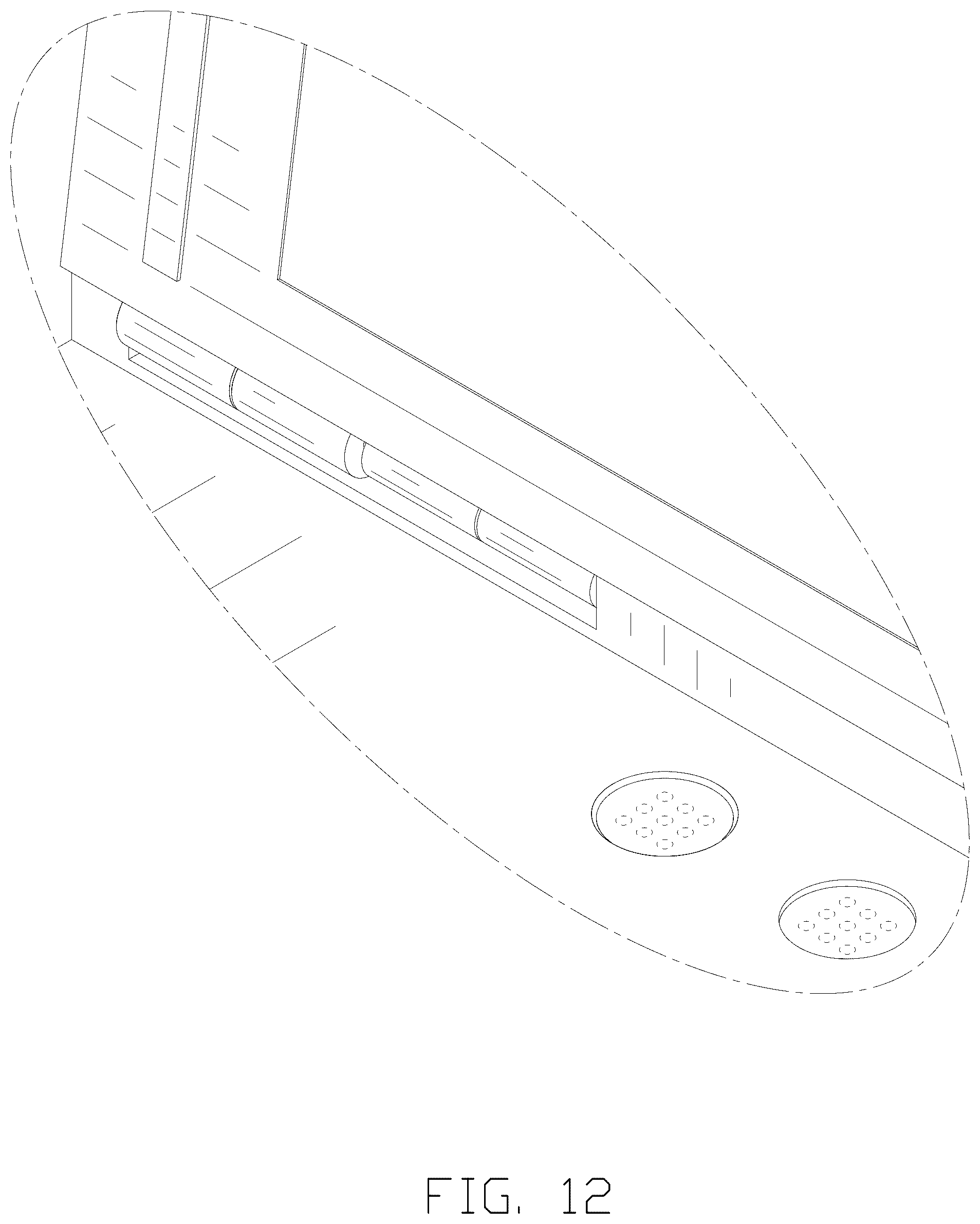

Patent USD1075747 Figure 12 – Laptop — Fig. 12

Patent USD1075747 Figure 13 – Laptop — Fig. 13

Patent USD1075747 Figure 14 – Laptop — Fig. 14
