Controller Device

USD1075670No. D 1,075,670designGranted 5/20/2025
Patent USD1075670 — Controller device — Figure 1
Fig. 1 · Controller Device

Claims (1)

Claim 1 (Independent)

The ornamental design for a controller device as shown and described.

Full Description

Show full text →

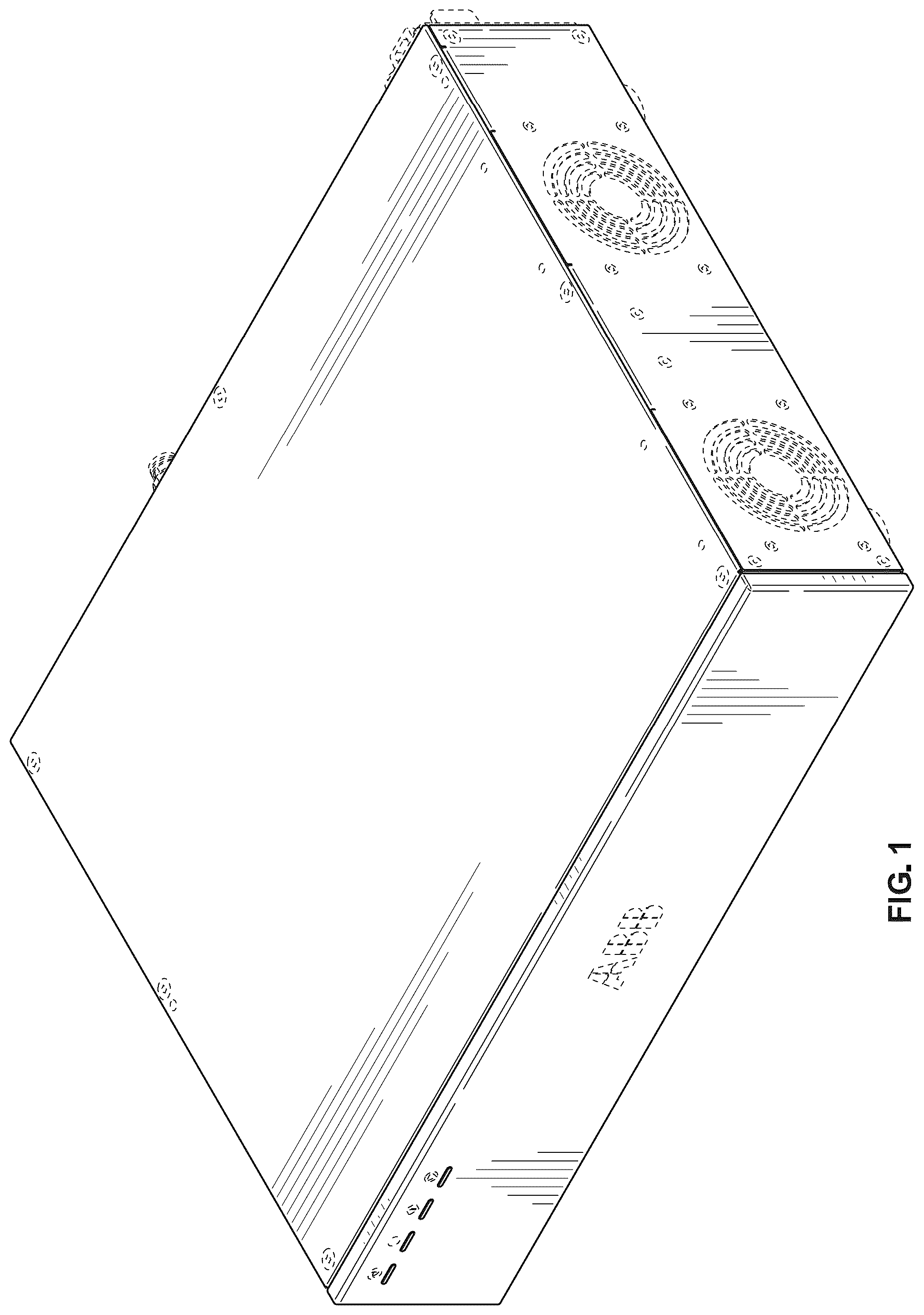

is a perspective view of a controller device showing the new design;

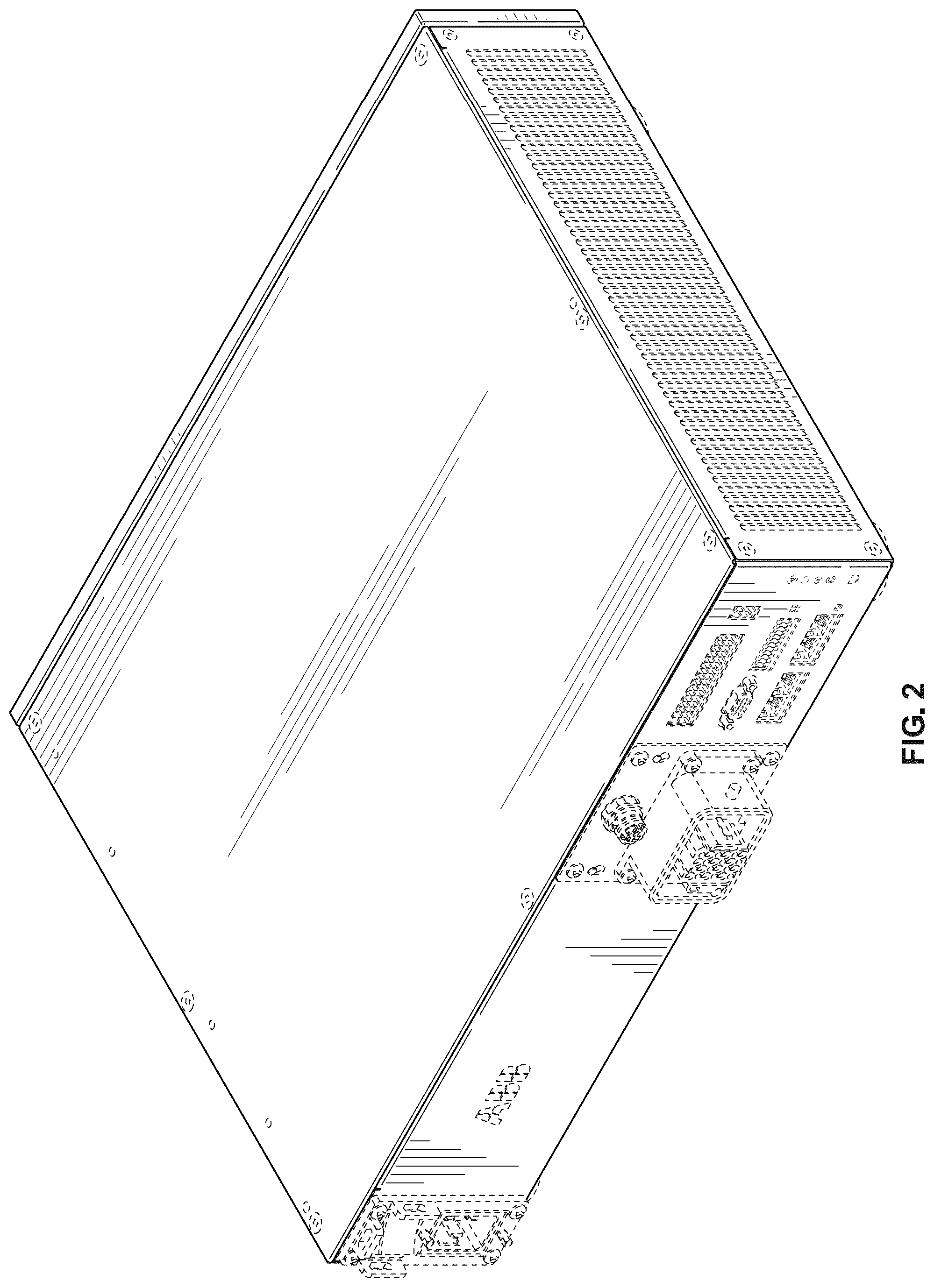

is another perspective view thereof;

is a front elevational view thereof;

is a rear elevational view thereof;

is a right side view thereof;

is a left side view thereof;

is a top plan view thereof; and,

is a bottom plan view thereof.

Broken lines are for illustrative purposes only and form no part of the claimed design.

Figures (6)

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
