Refrigerator Cabinet Door Lock

USD1075470No. D 1,075,470designGranted 5/20/2025

Patent USD1075470 — Refrigerator cabinet door lock — Figure 1 — Fig. 1 · Refrigerator Cabinet Door Lock

Claims (1)

Claim 1 (Independent)

The ornamental design for the refrigerator cabinet door lock as shown and described.

Full Description

Show full text →

is a perspective view of a refrigerator cabinet door lock;

is an enlarged perspective thereof;

is a front view thereof;

is a back view thereof;

is a left side view thereof;

is a top view thereof;

is a bottom view thereof;

is an enlarged perspective of another embodiment of a refrigerator cabinet door lock;

is a front view thereof;

is a back view thereof;

is a right side view thereof;

is a top view thereof; and,

is a bottom view thereof.

The right side view forms no part of the embodiments of the claimed design shown in .

The left side view forms no part of the embodiments of the claimed design shown in .

Elements shown in broken line form no part of the claimed design.

Figures (13)

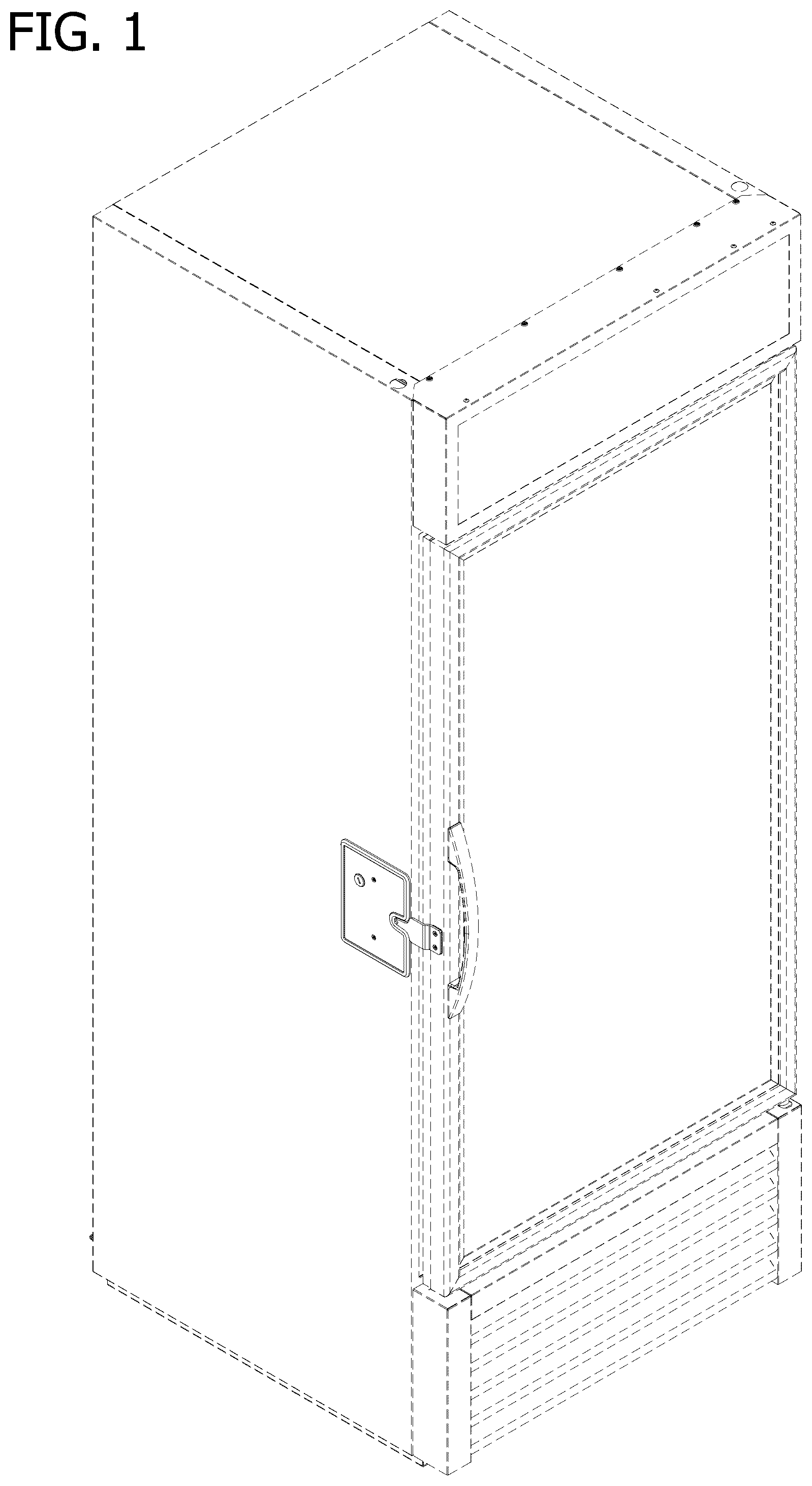

Patent USD1075470 Figure 1 – Refrigerator cabinet door lock — Fig. 1

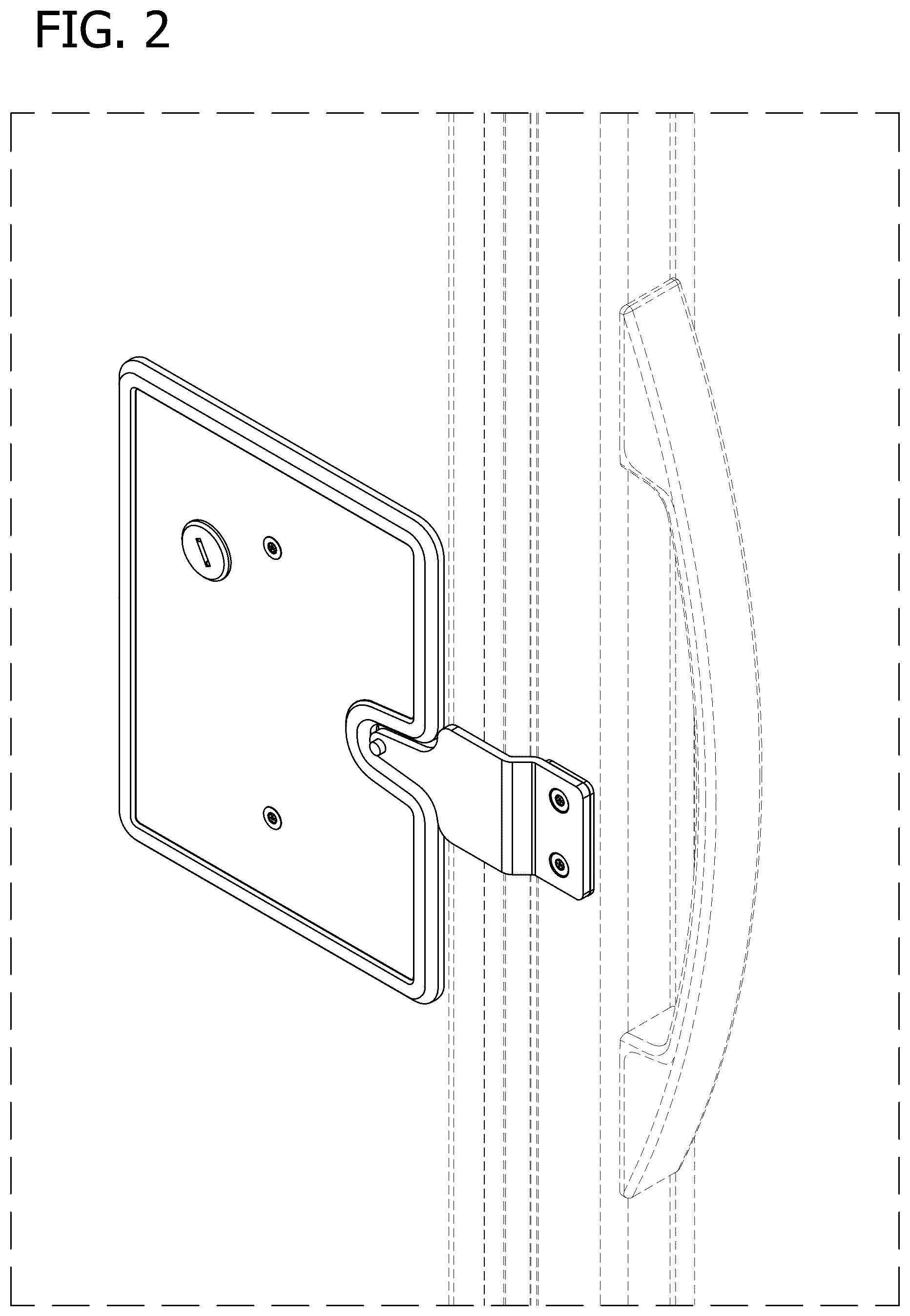

Patent USD1075470 Figure 2 – Refrigerator cabinet door lock — Fig. 2

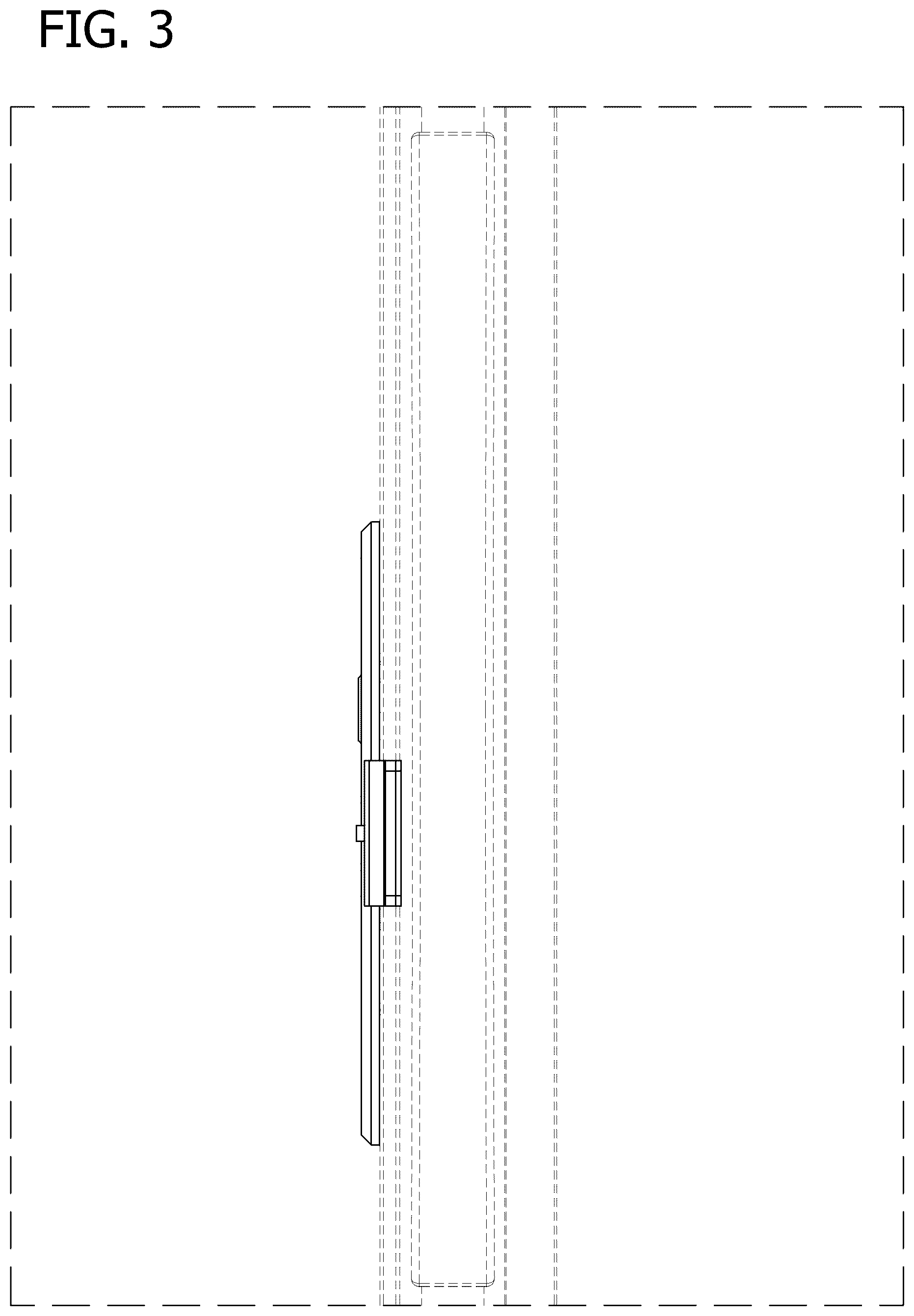

Patent USD1075470 Figure 3 – Refrigerator cabinet door lock — Fig. 3

Patent USD1075470 Figure 4 – Refrigerator cabinet door lock — Fig. 4

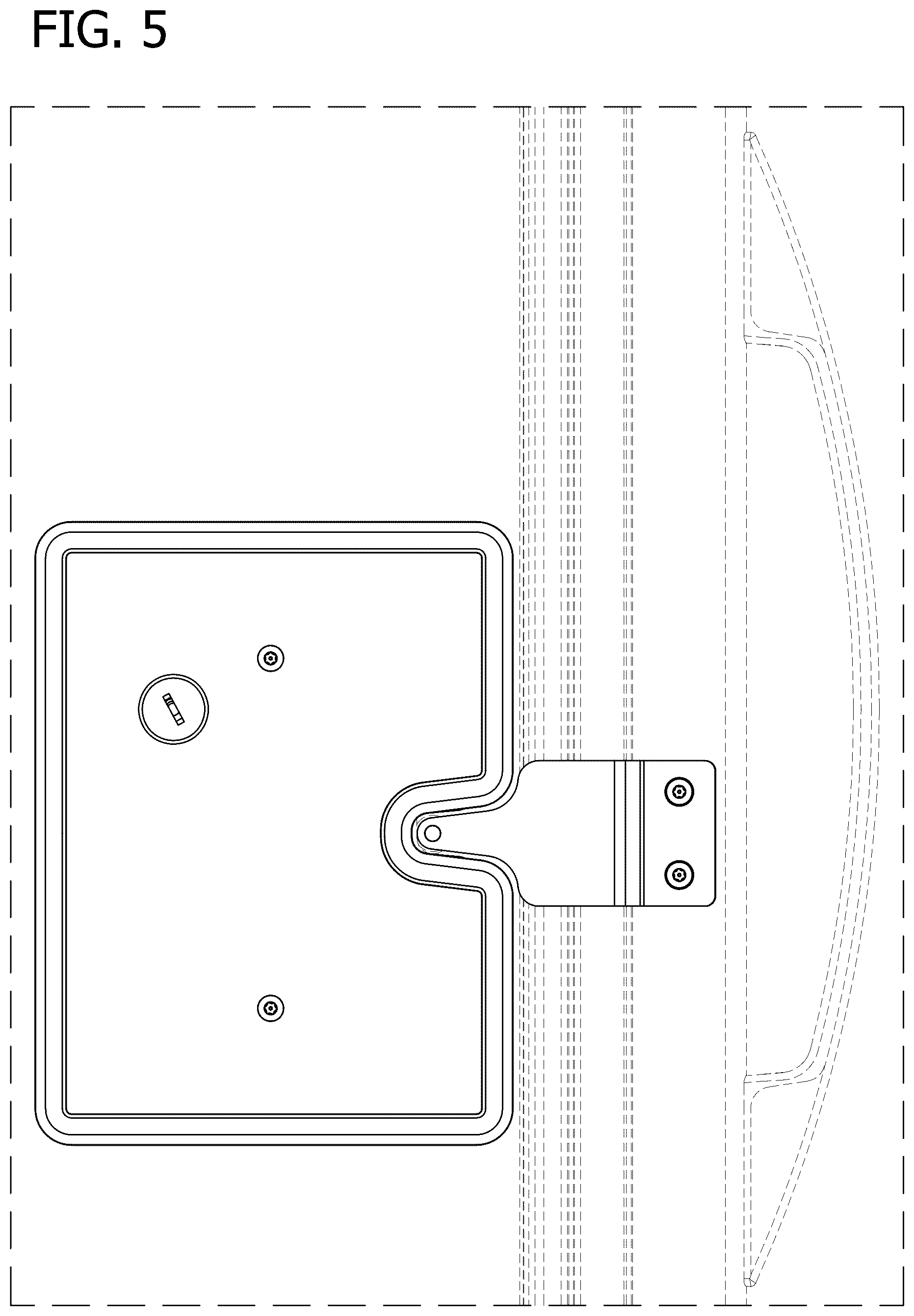

Patent USD1075470 Figure 5 – Refrigerator cabinet door lock — Fig. 5

Patent USD1075470 Figure 6 – Refrigerator cabinet door lock — Fig. 6

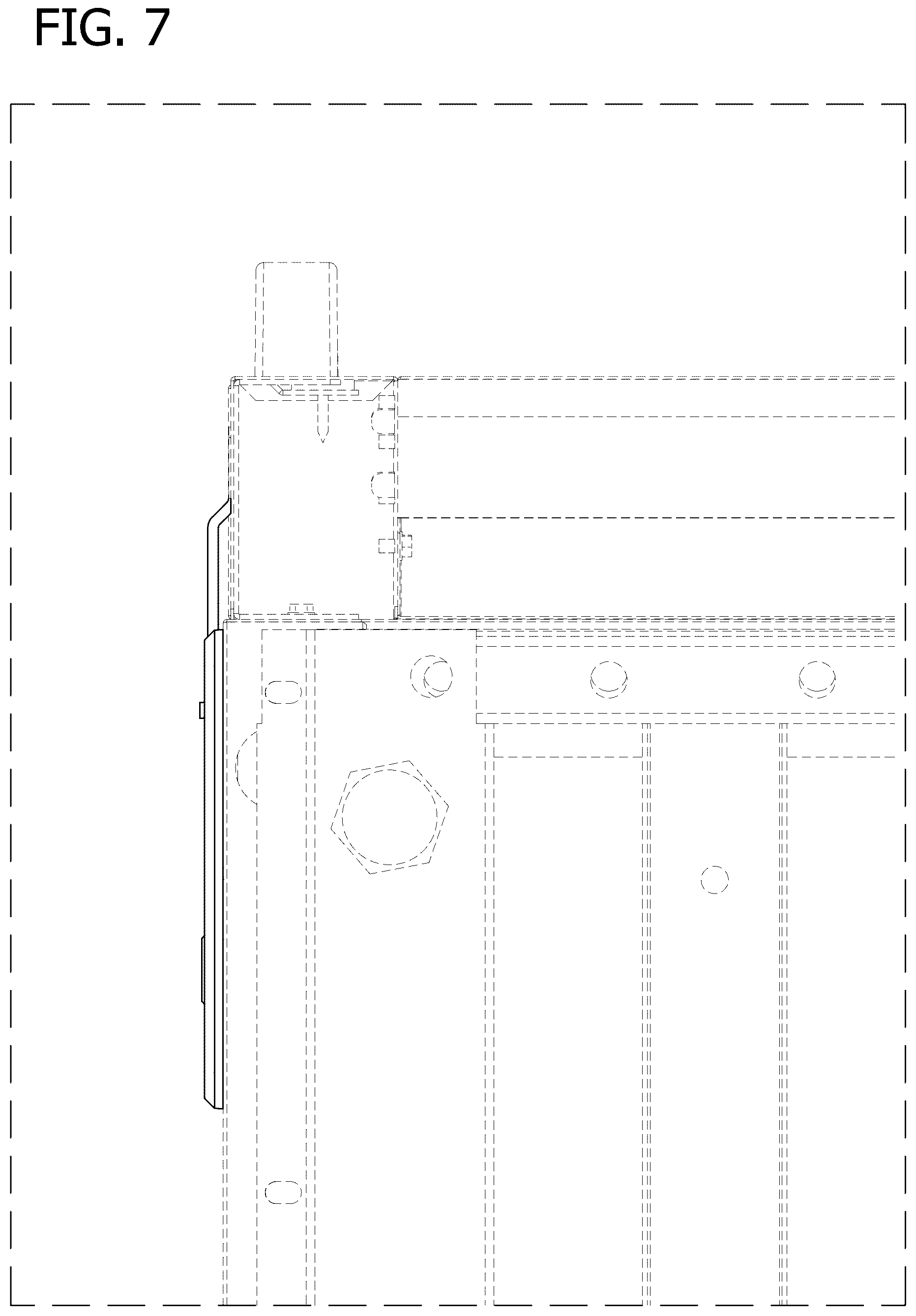

Patent USD1075470 Figure 7 – Refrigerator cabinet door lock — Fig. 7

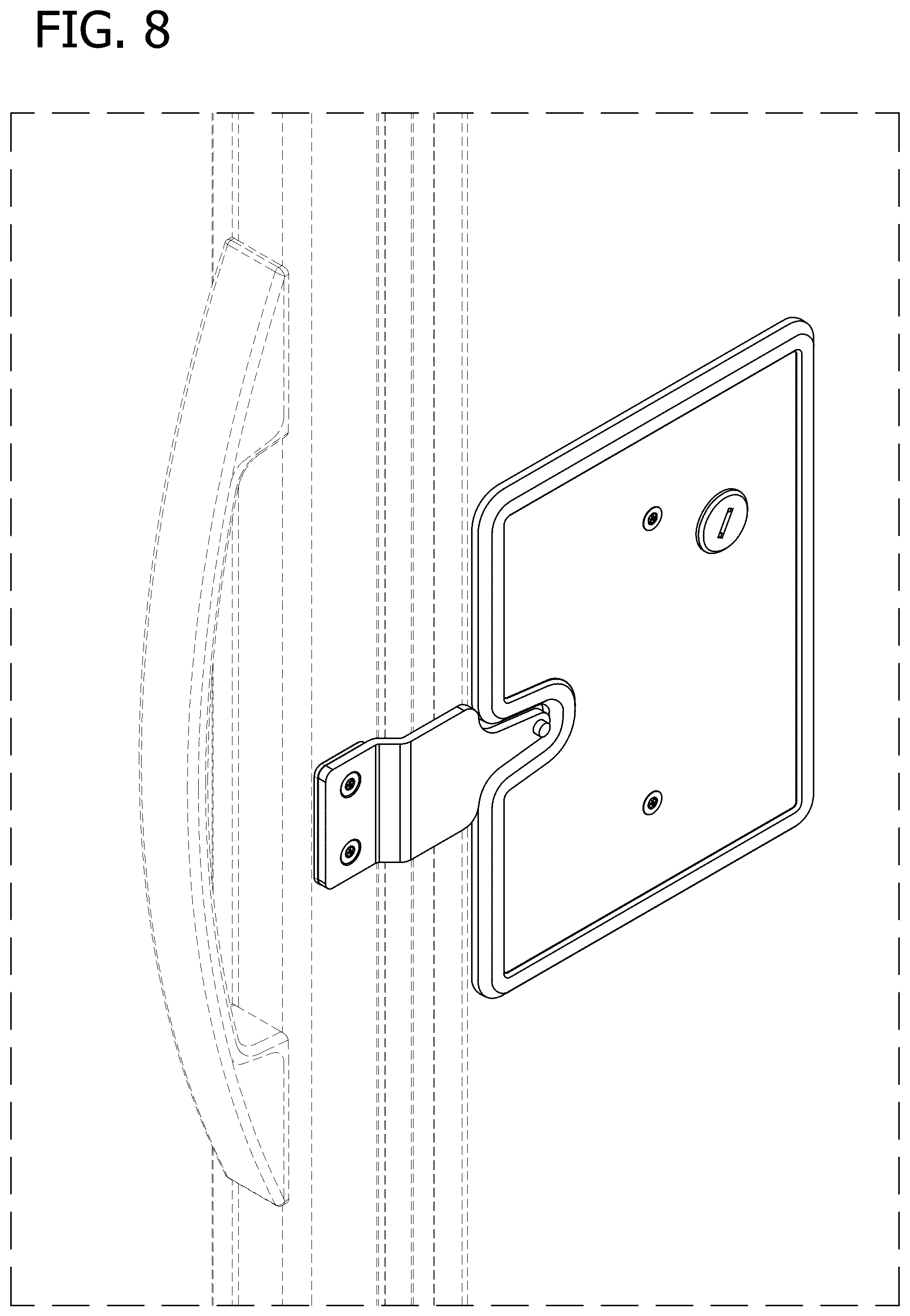

Patent USD1075470 Figure 8 – Refrigerator cabinet door lock — Fig. 8

Patent USD1075470 Figure 9 – Refrigerator cabinet door lock — Fig. 9

Patent USD1075470 Figure 10 – Refrigerator cabinet door lock — Fig. 10

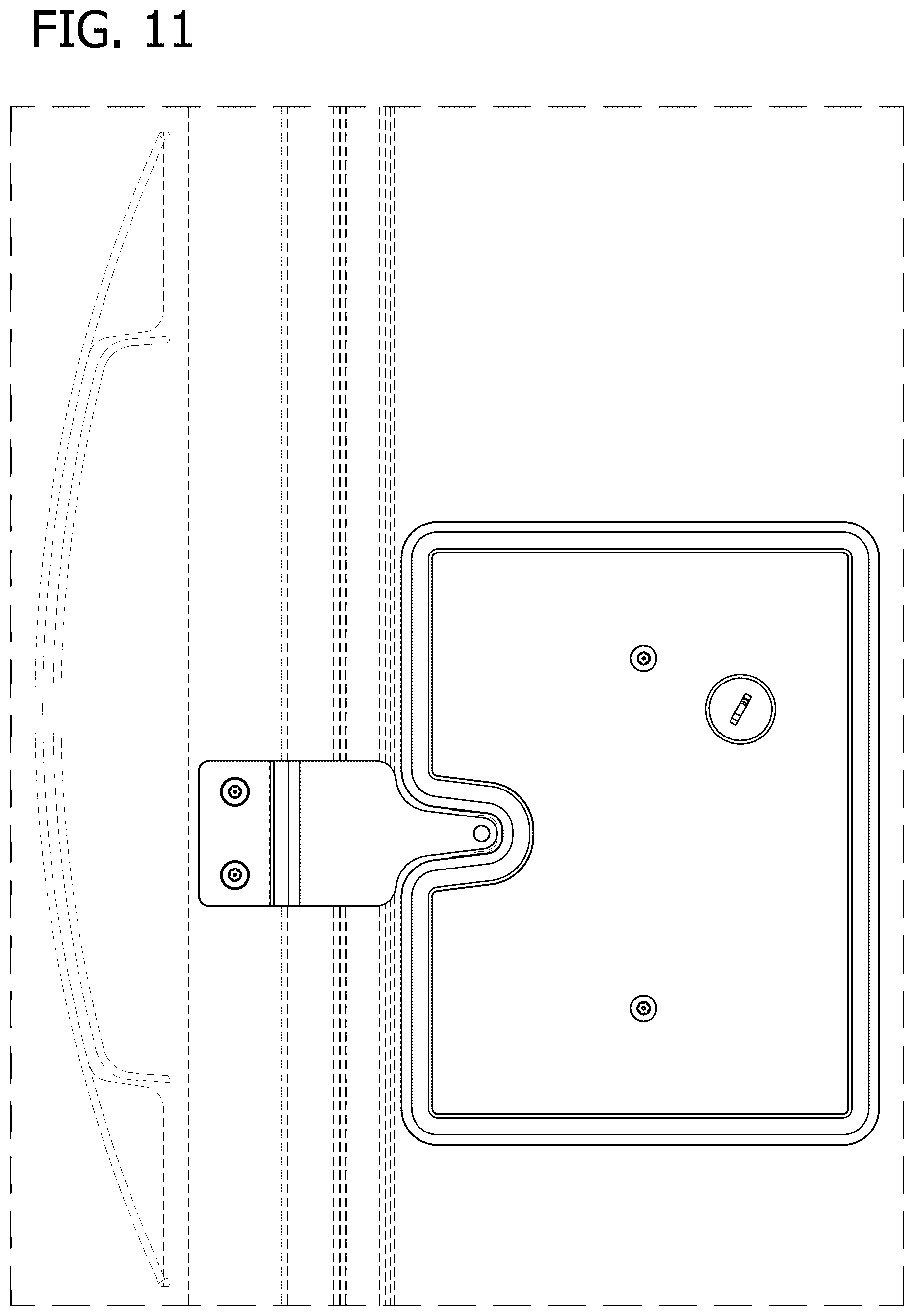

Patent USD1075470 Figure 11 – Refrigerator cabinet door lock — Fig. 11

Patent USD1075470 Figure 12 – Refrigerator cabinet door lock — Fig. 12

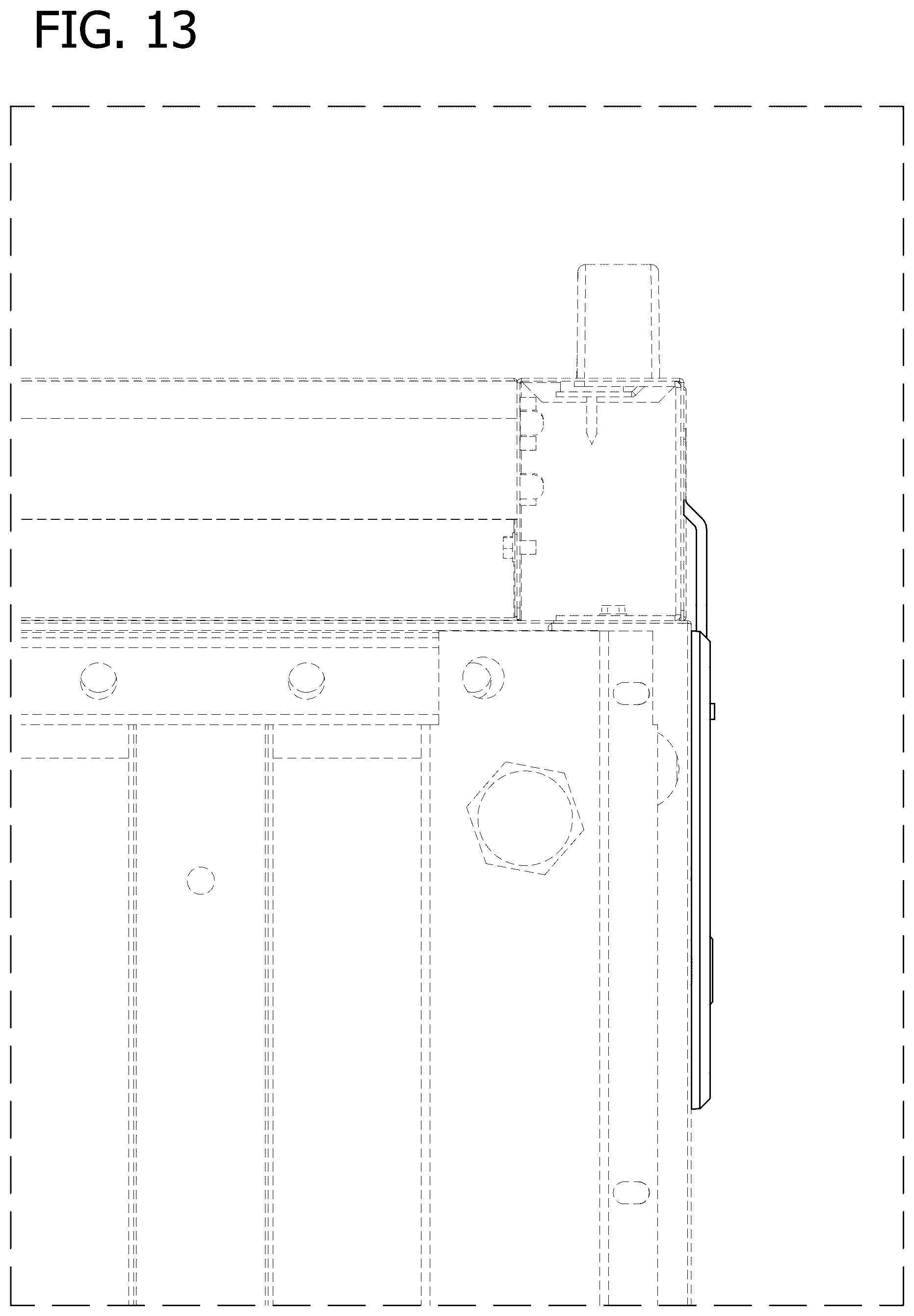

Patent USD1075470 Figure 13 – Refrigerator cabinet door lock — Fig. 13
