Shelving Unit

USD1075375No. D 1,075,375designGranted 5/20/2025
Patent USD1075375 — Shelving unit — Figure 1
Fig. 1 · Shelving Unit

Claims (1)

Claim 1 (Independent)

The ornamental design for a shelving unit, as shown and described.

Full Description

Show full text →

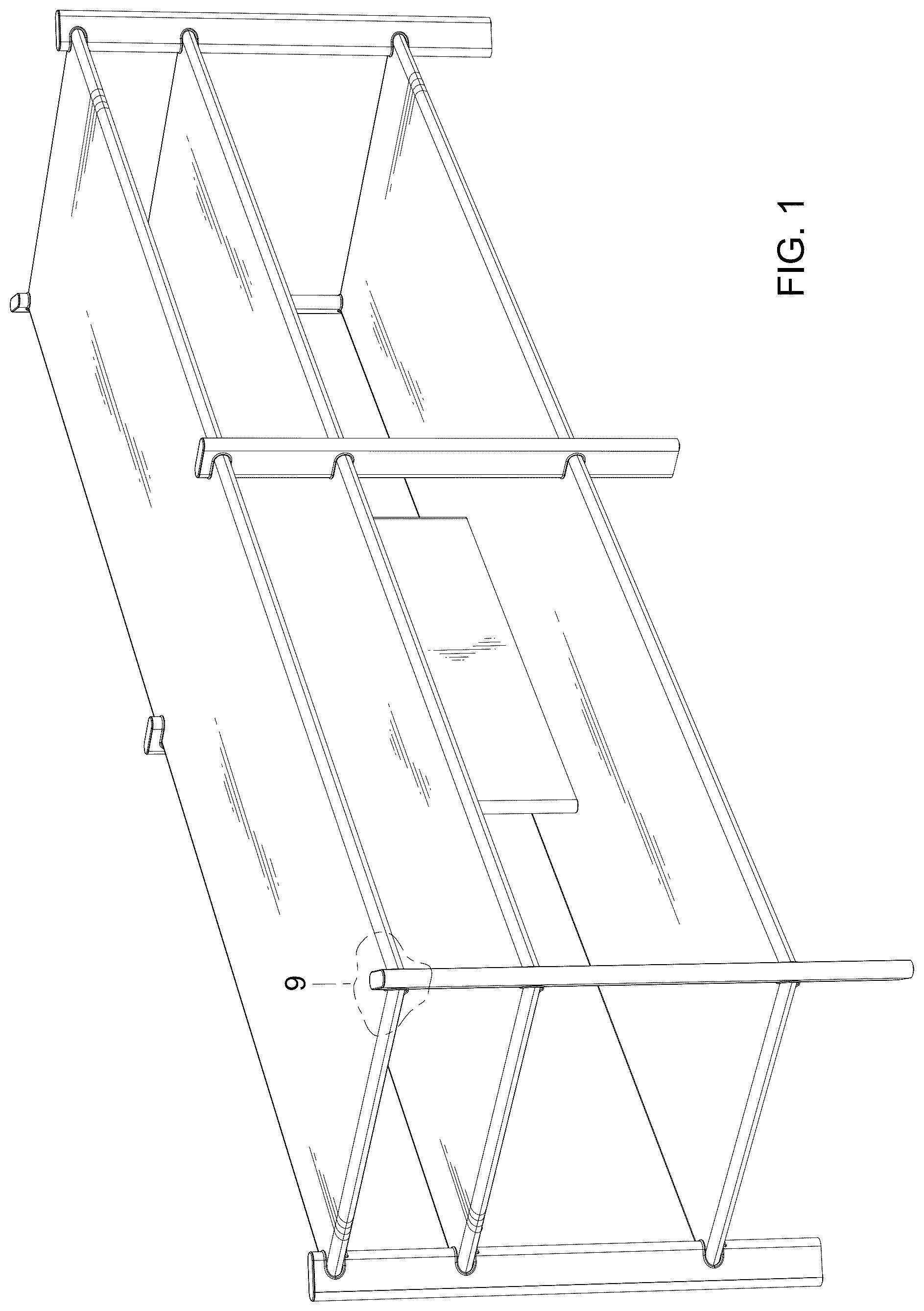

is a front, right side, top perspective view of a shelving unit embodying my new design;

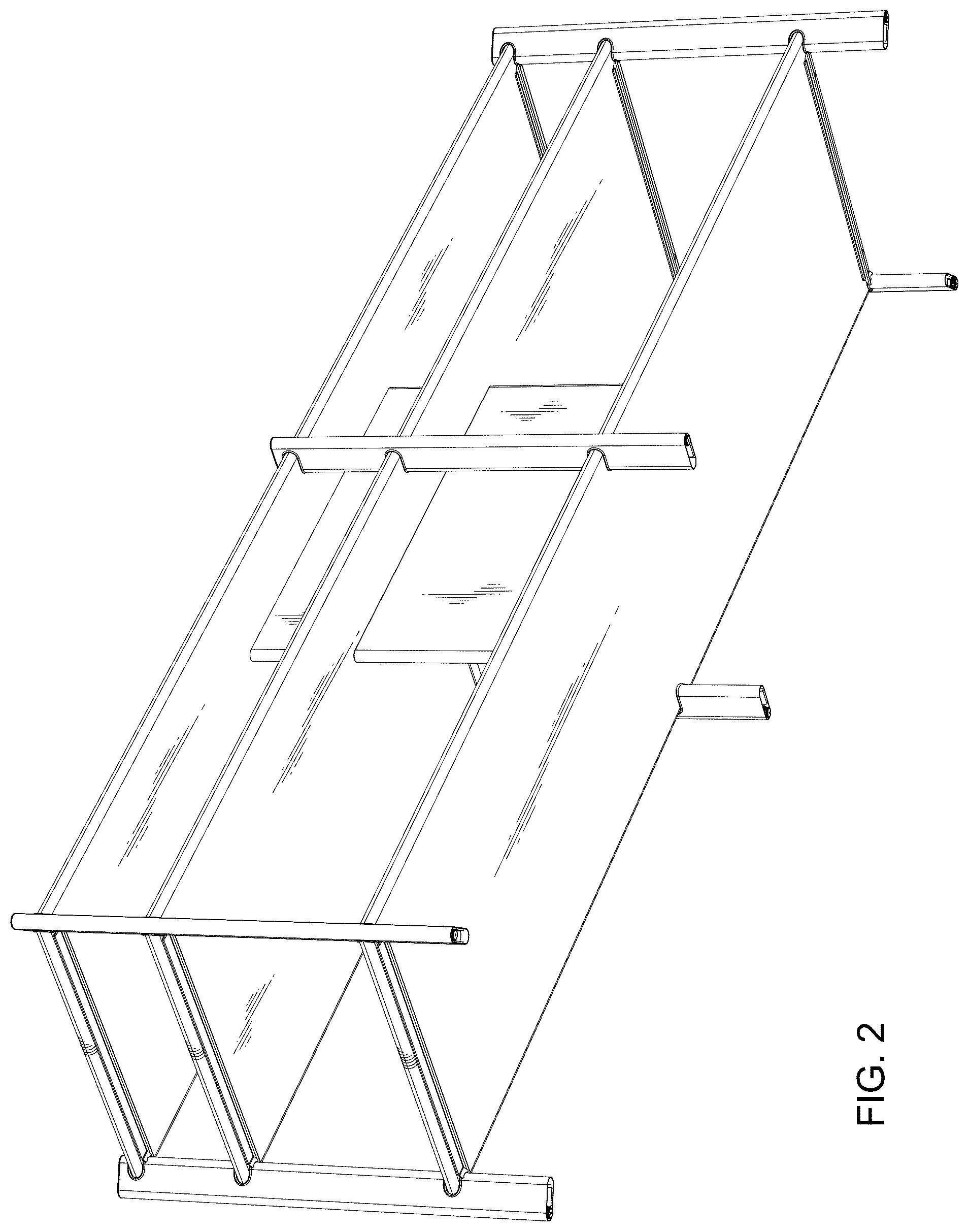

is a rear, left side, bottom perspective view thereof;

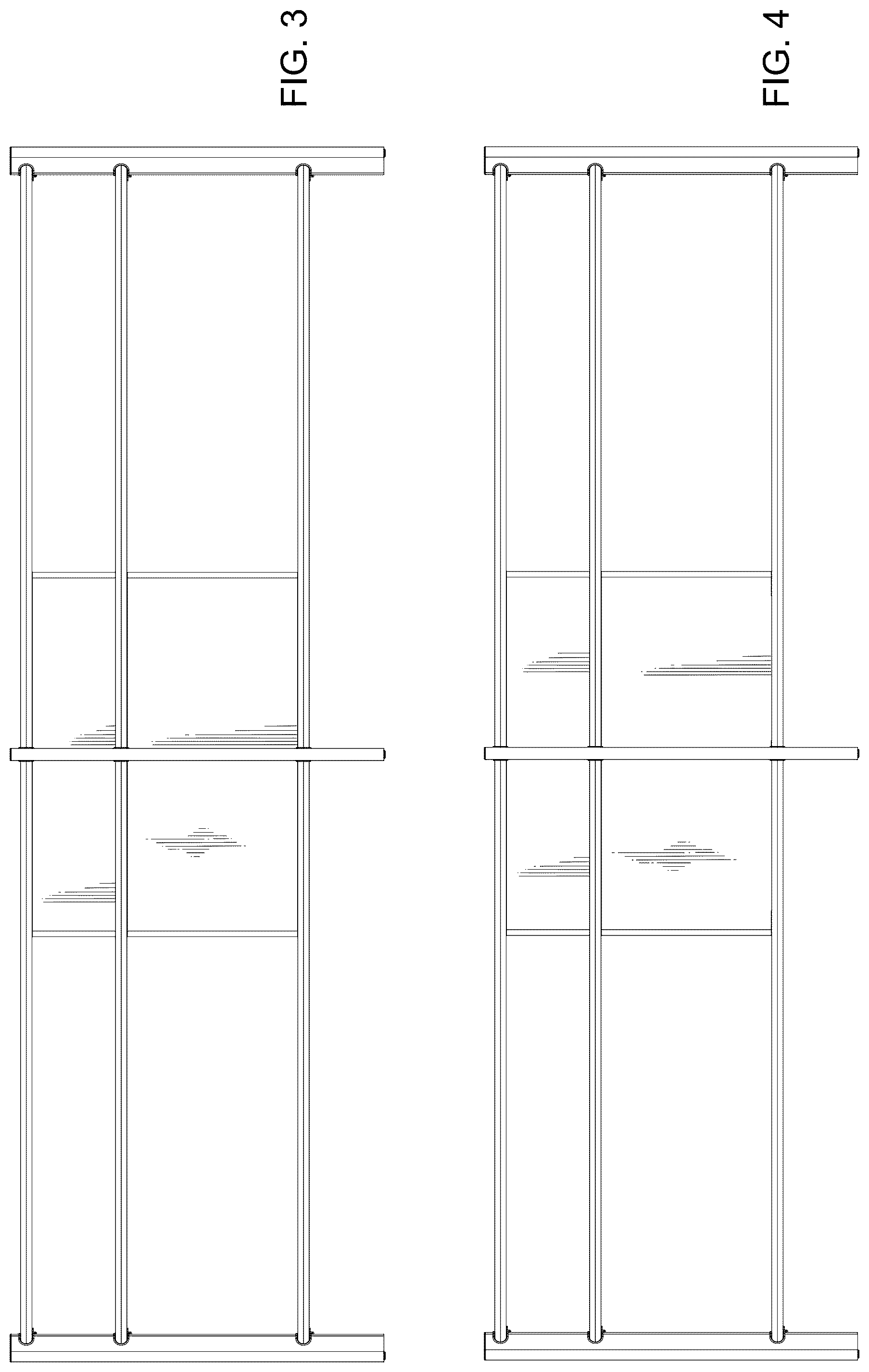

is a front view thereof;

is a rear view thereof;

is a left side view thereof;

is a right side view thereof;

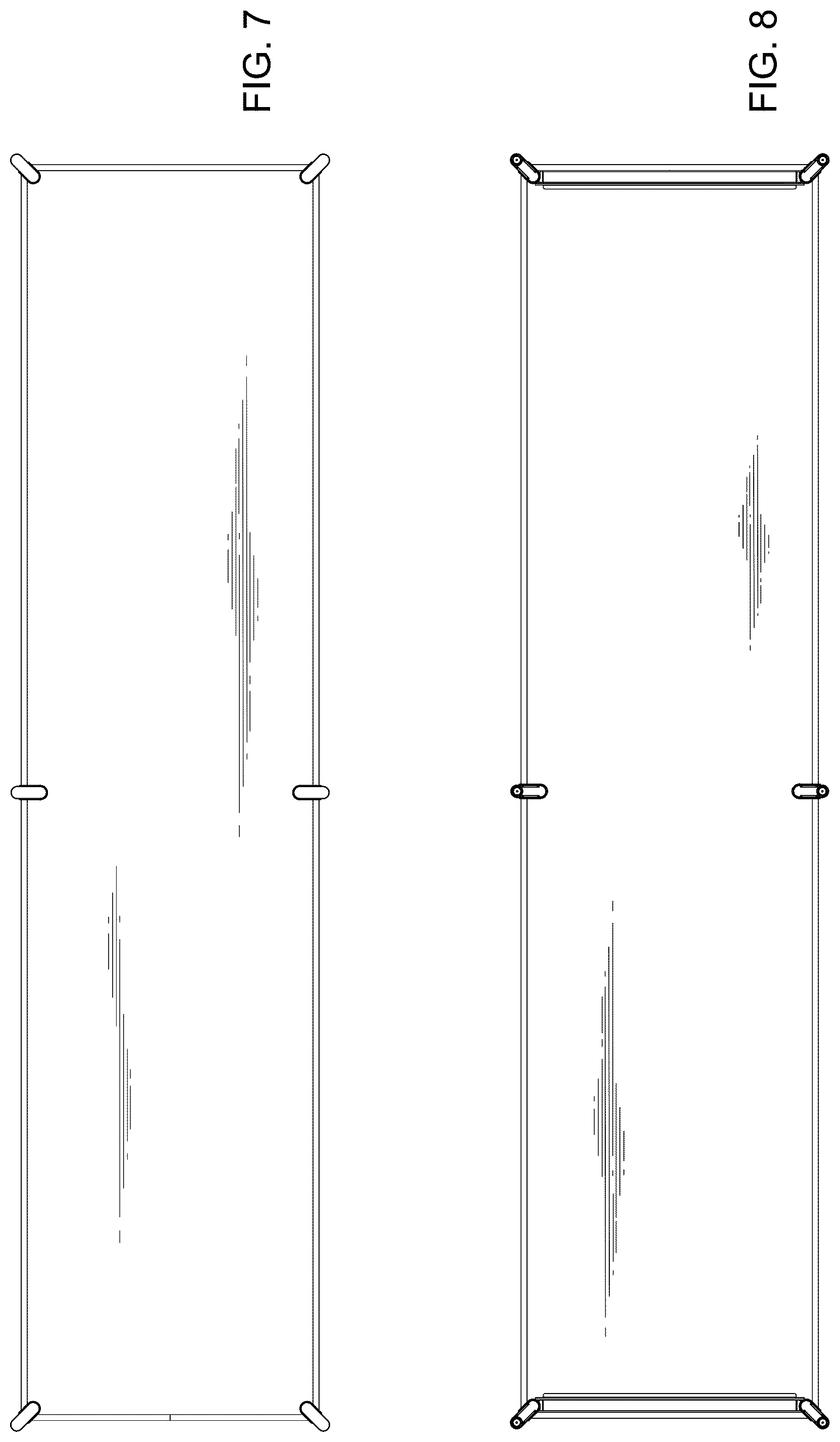

is a top view thereof;

is a bottom view thereof; and,

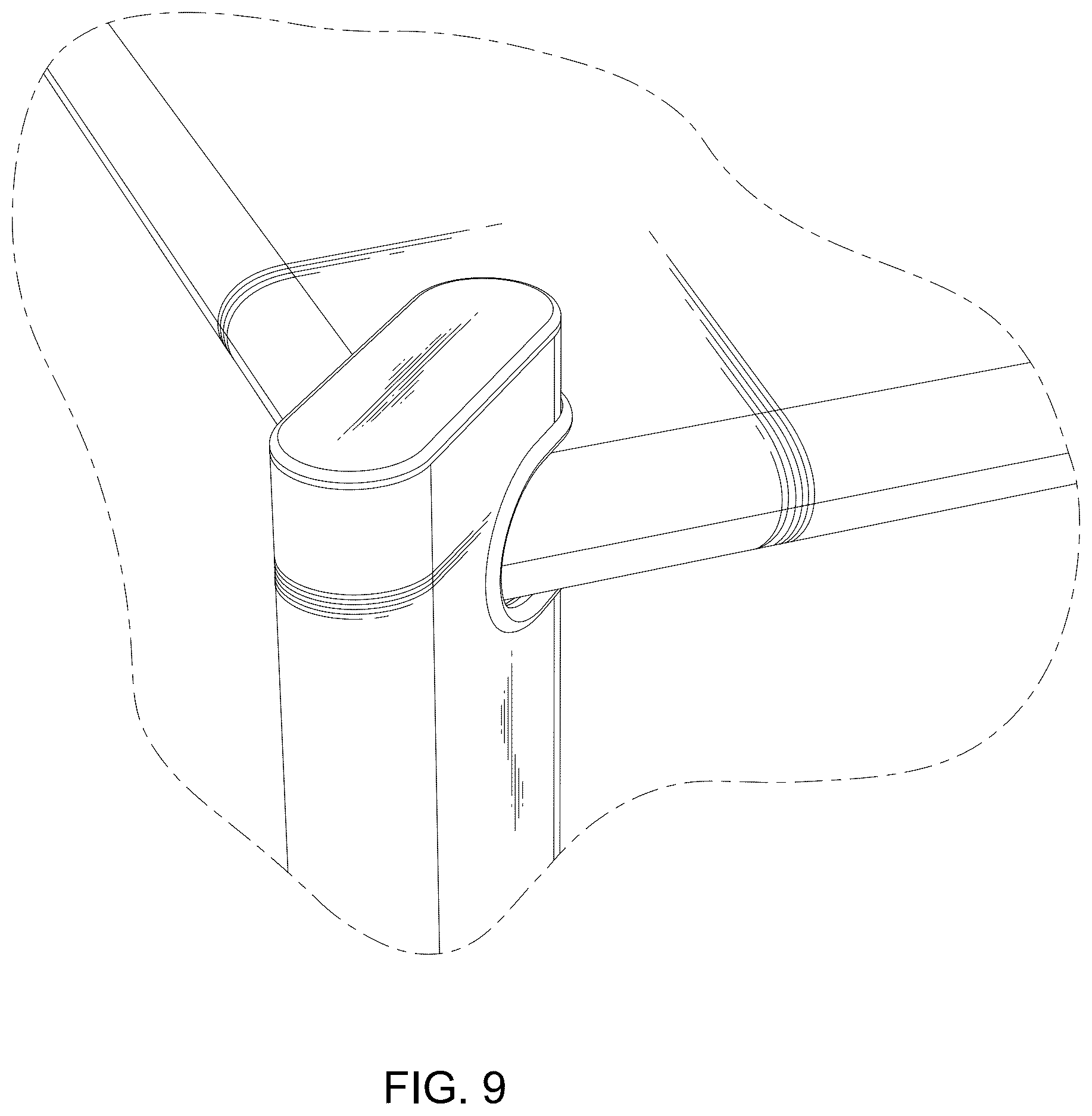

is an enlarged front, right side, top perspective view of the portion labeled “ 9 ” in .

The dot dash lines illustrate the bounds of the enlarged view and form no part of the claimed design.
