Street Litter Bin

USD1045312No. D 1,045,312designGranted 10/1/2024

Patent USD1045312 — Street litter bin — Figure 1 — Fig. 1 · Street Litter Bin

Claims (1)

Claim 1 (Independent)

The ornamental design for a street litter bin, as shown and described.

Full Description

Show full text →

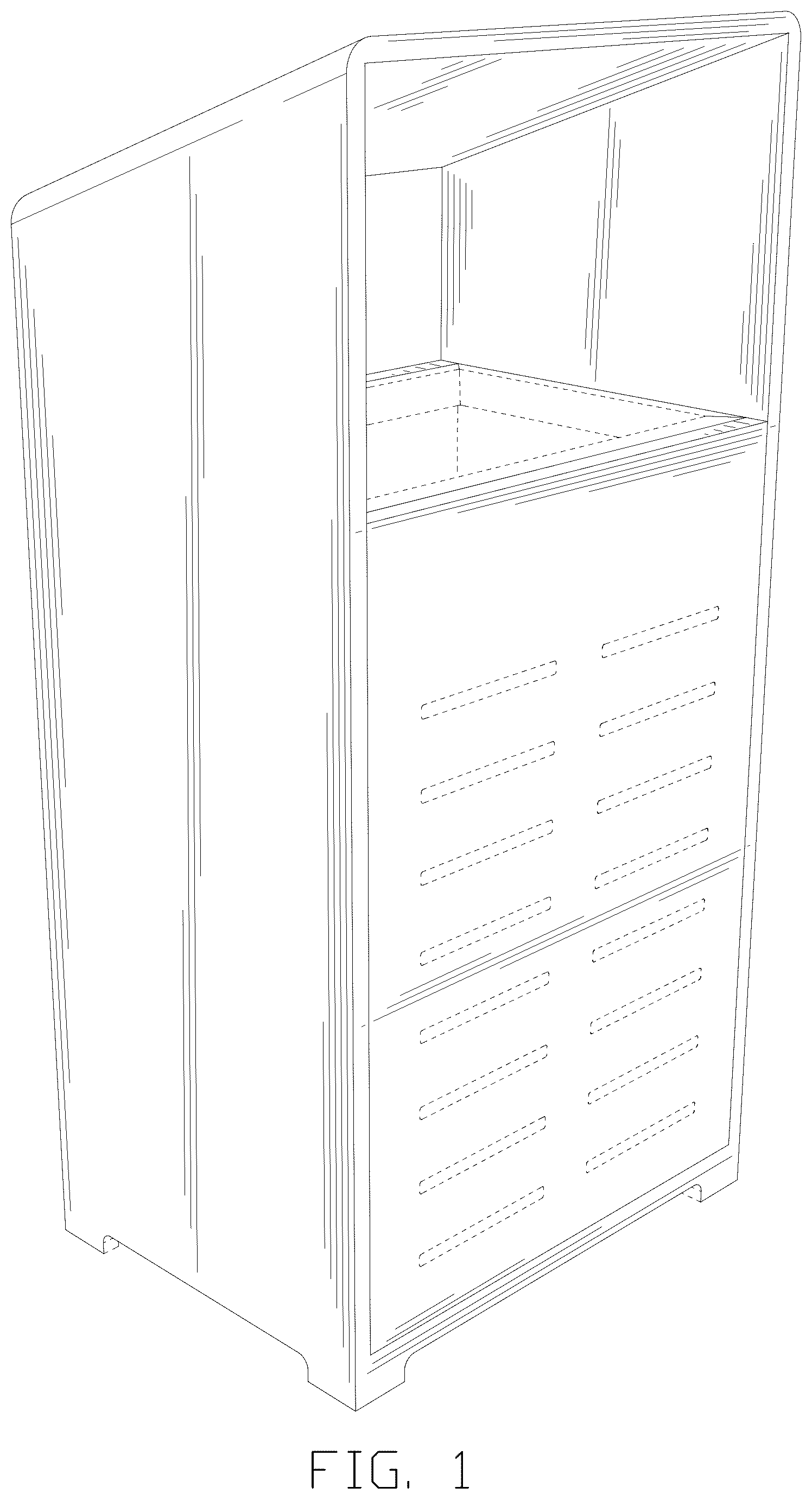

is a front, left and top perspective view of a street litter bin, showing my design.

is a rear, left and top perspective view thereof.

is a front elevation view thereof.

is a rear elevation view thereof.

is a left side elevation view thereof.

is a right side elevation view thereof.

is a top plan view thereof.

is a bottom plan view thereof.

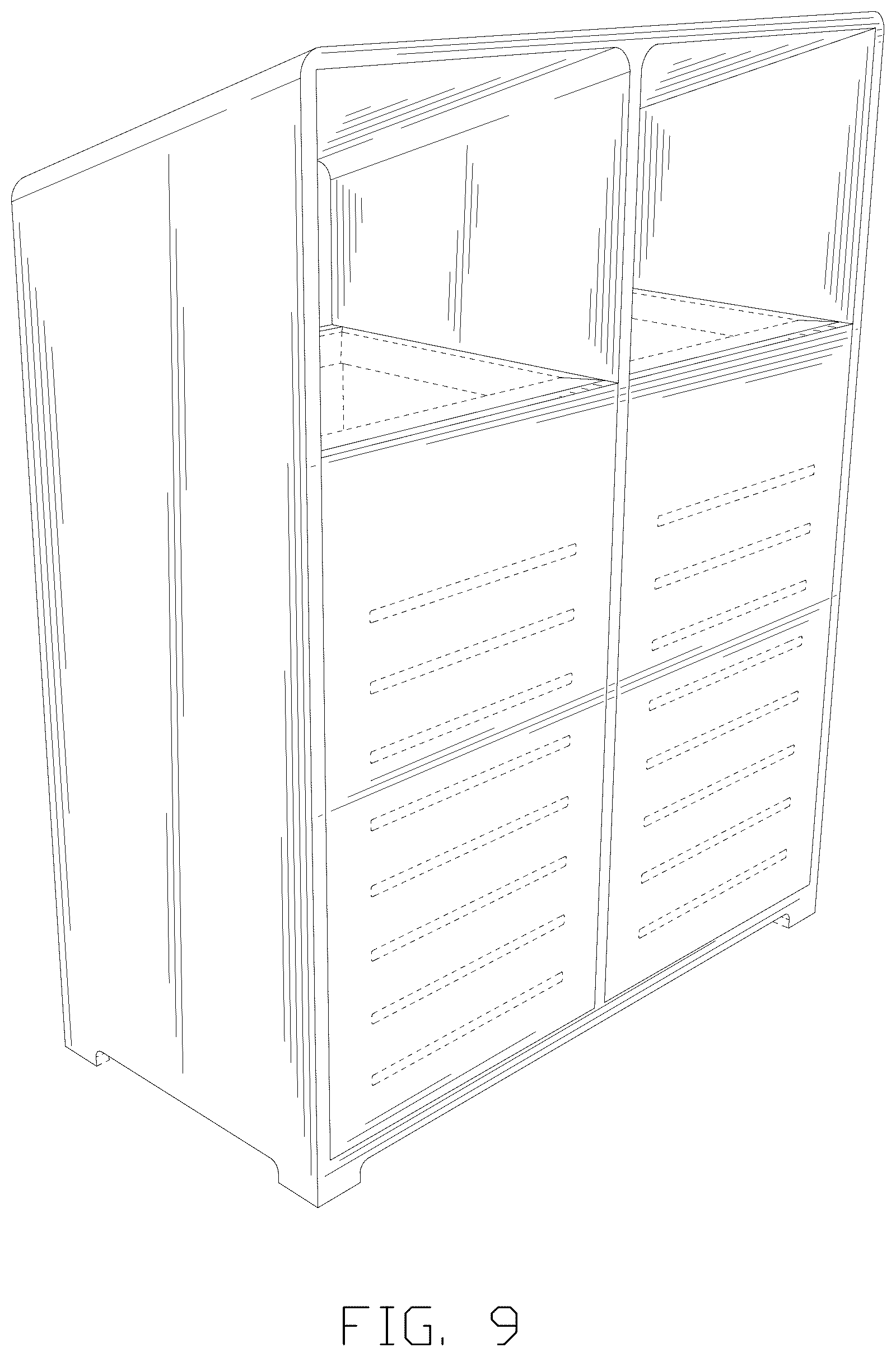

is a front, left and top perspective view of a second embodiment of a street litter bin.

is a rear, left and top perspective view of the second embodiment of the street litter bin of .

is a front elevation view of the second embodiment of the street litter bin of .

is a rear elevation view of the second embodiment of the street litter bin of .

is a left side elevation view of the second embodiment of the street litter bin of .

is a right side elevation view of the second embodiment of the street litter bin of .

is a top plan elevation view of the second embodiment of the street litter bin of ; and,

is a bottom plan elevation view of the second embodiment of the street litter bin of .

The broken lines depict portions of the street litter bin that form no part of the claimed design.
