Glass Rinser

USD1045265No. D 1,045,265designGranted 10/1/2024
Patent USD1045265 — Glass rinser — Figure 1
Fig. 1 · Glass Rinser

Claims (1)

Claim 1 (Independent)

The ornamental design for a glass rinser, as shown and described.

Full Description

Show full text →

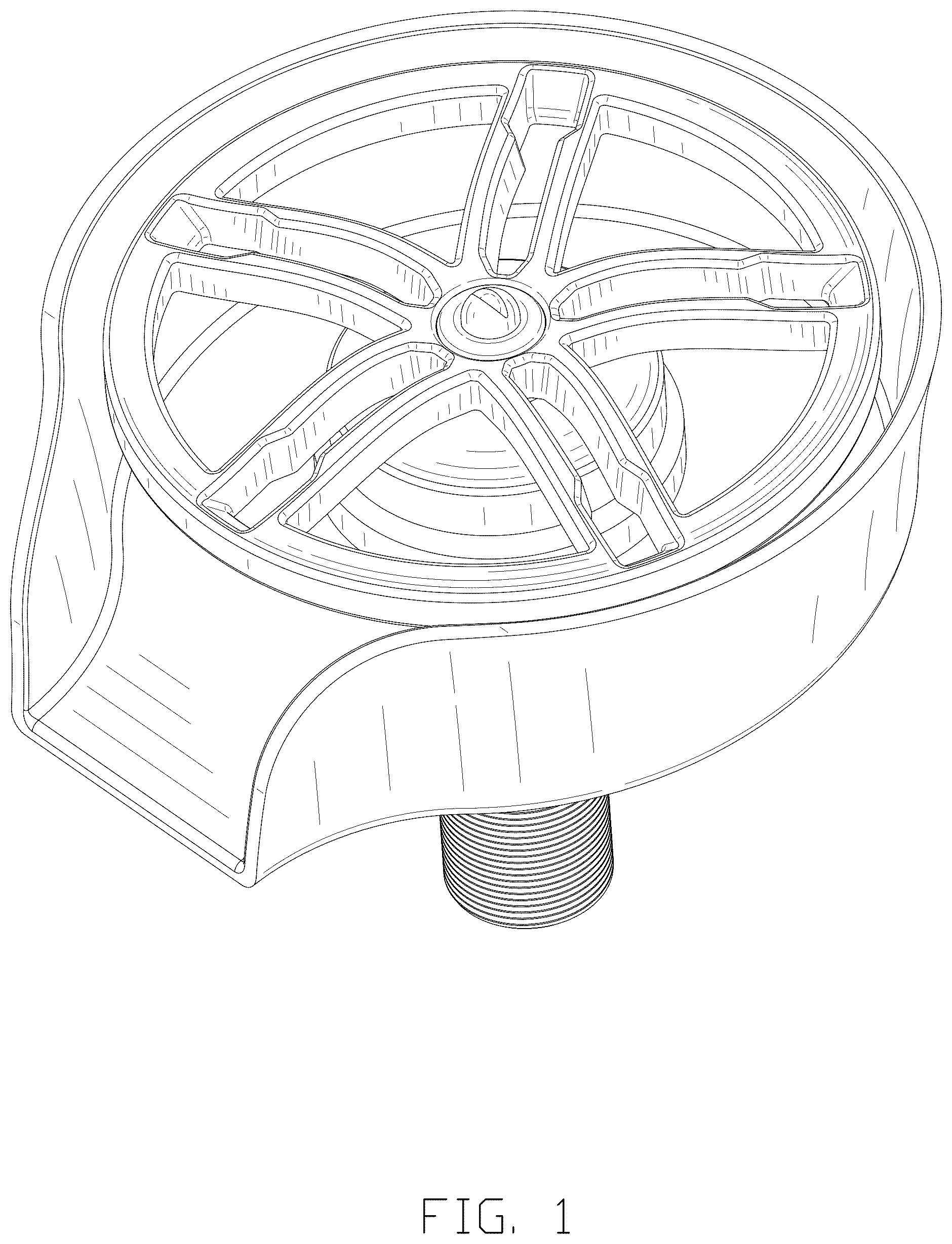

is a front, right, and top perspective view of a glass rinser, showing my new design;

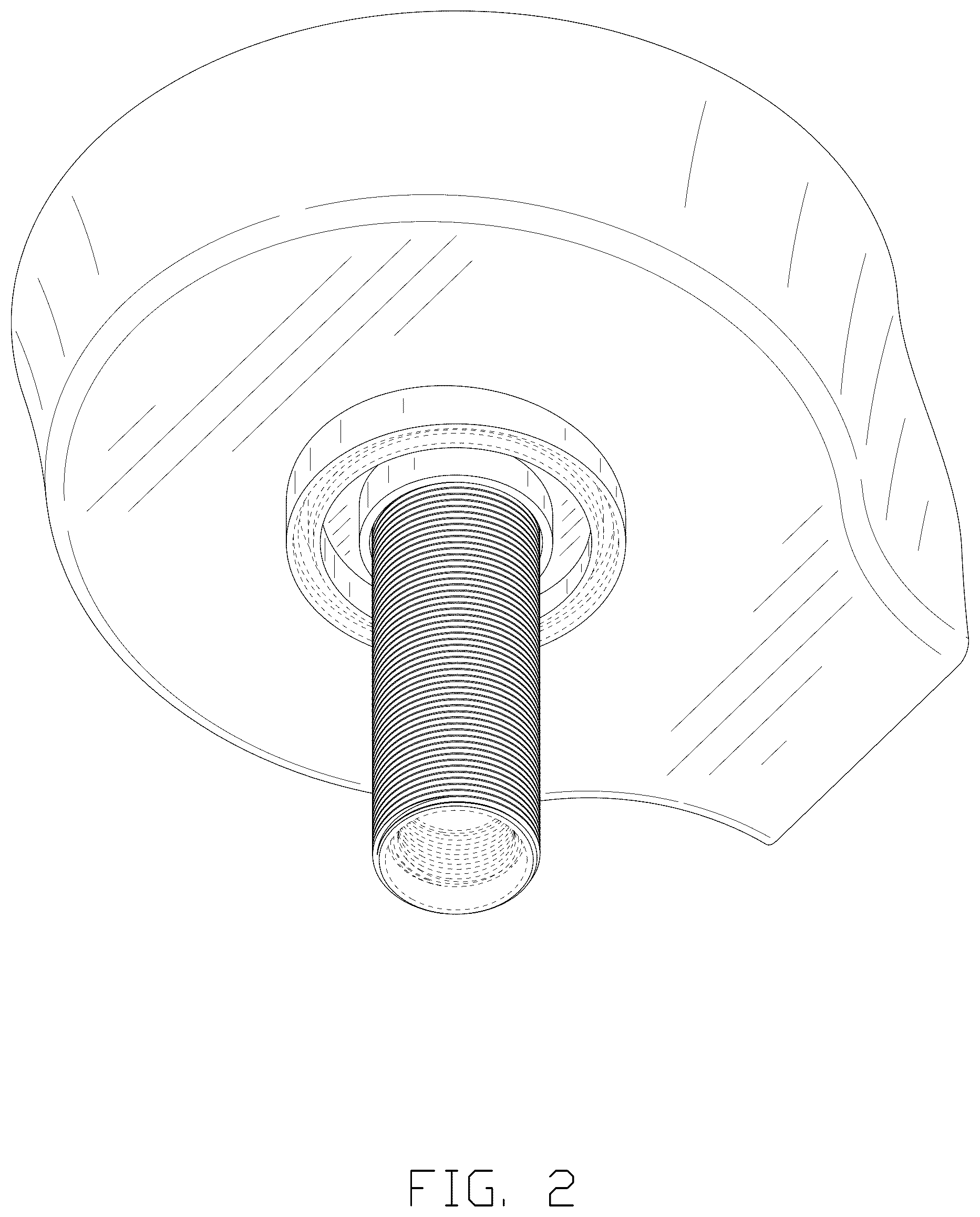

is a rear, left, and bottom perspective view thereof;

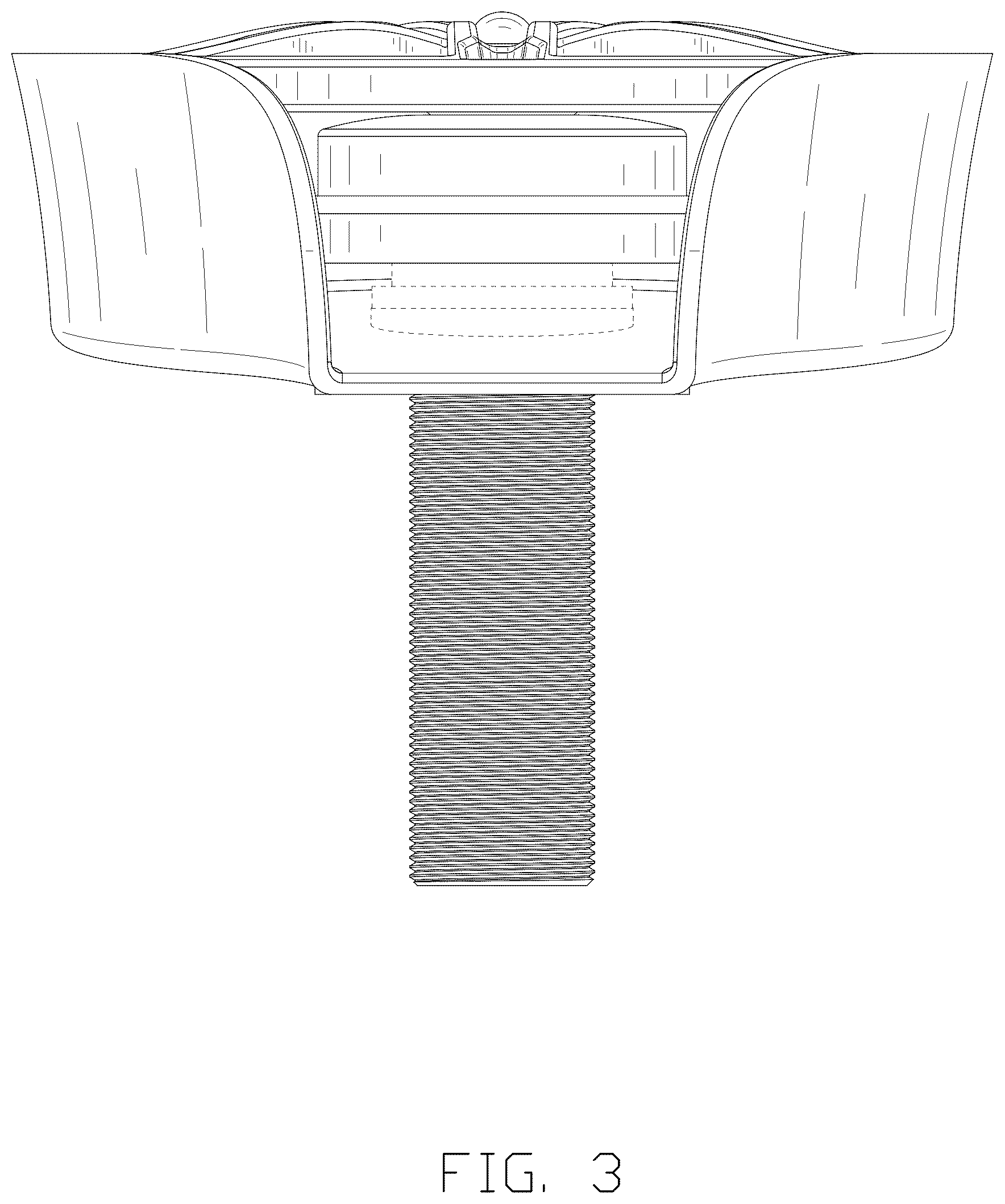

is a front view thereof;

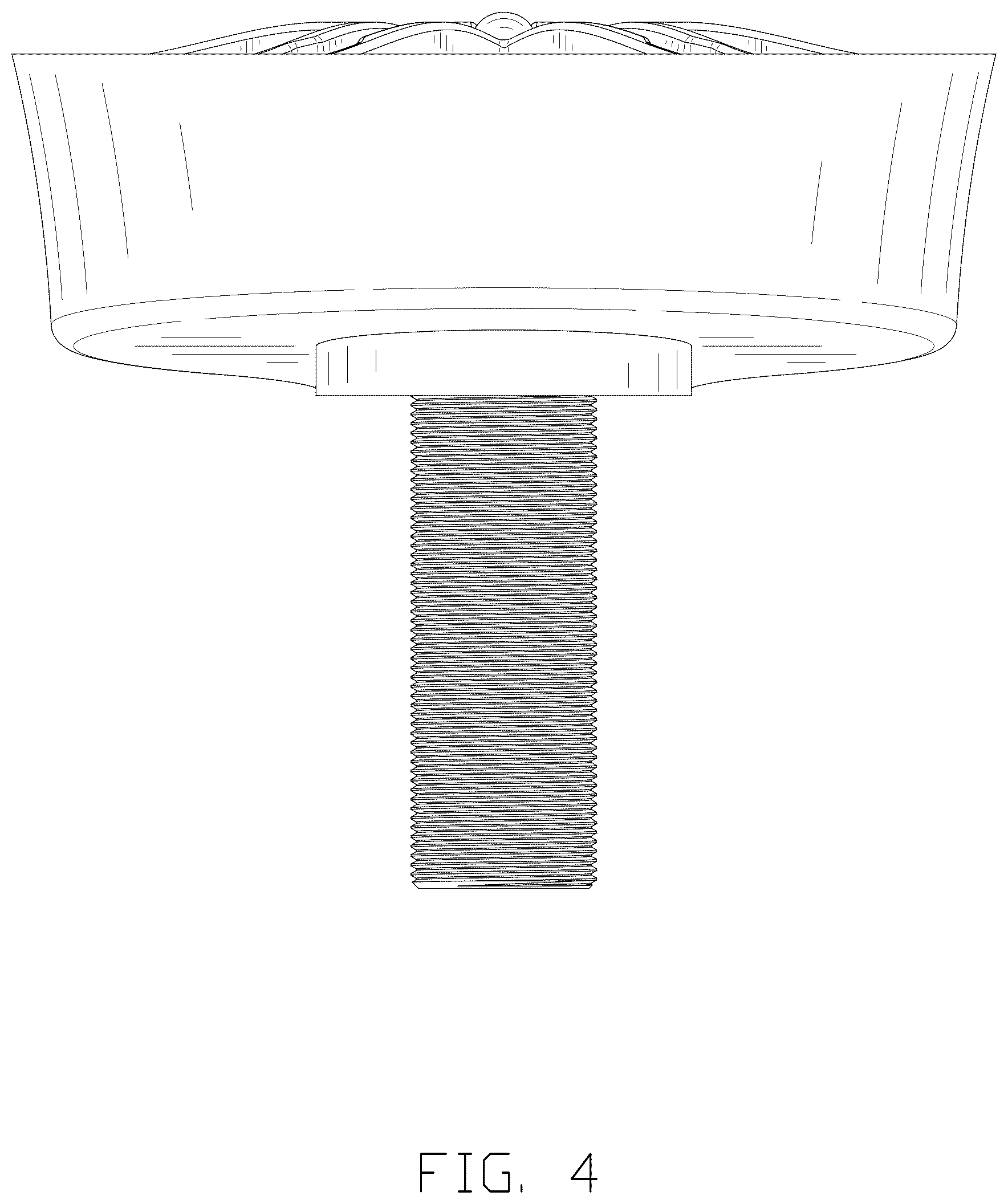

is a rear view thereof;

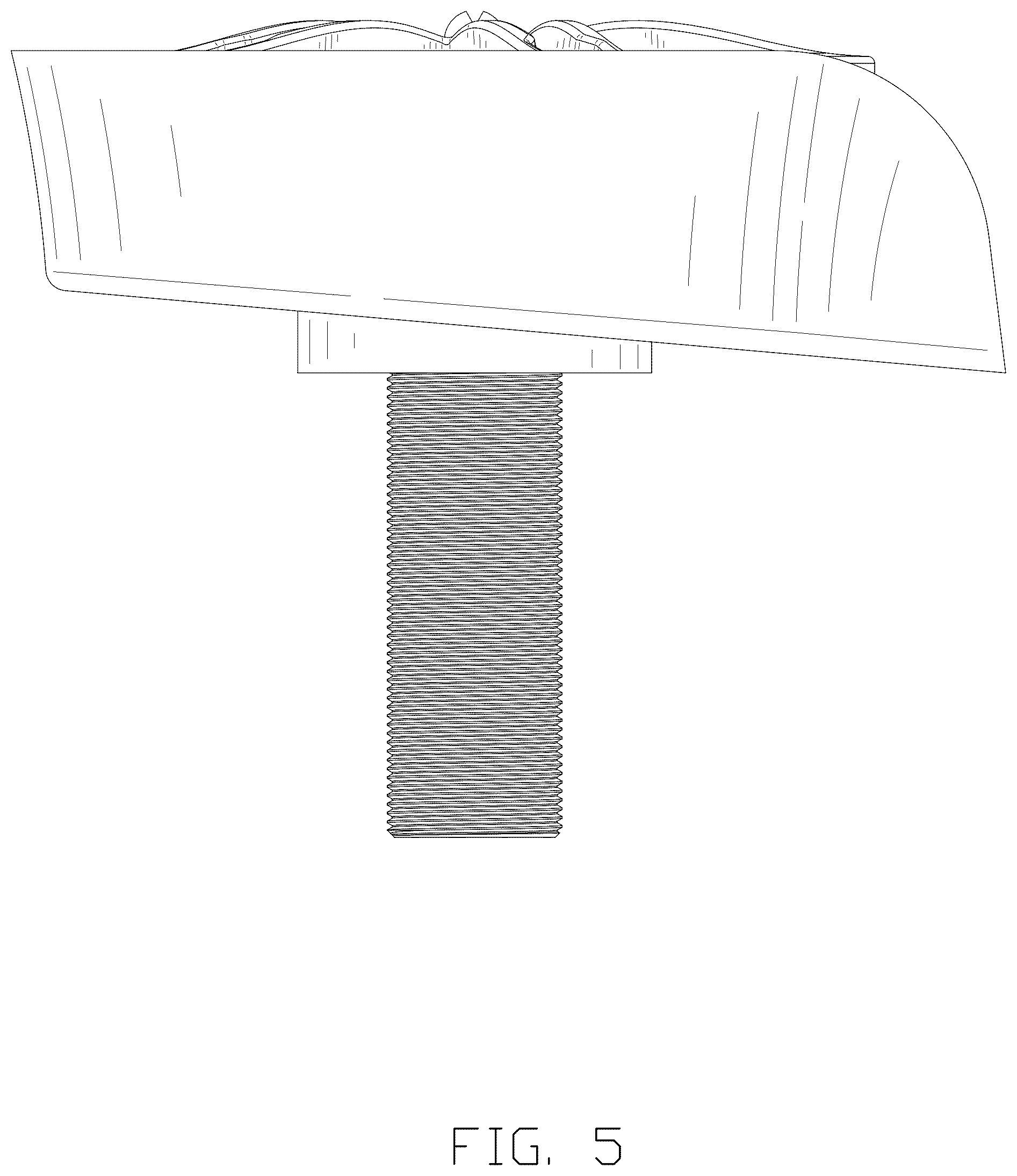

is a left side elevation view thereof;

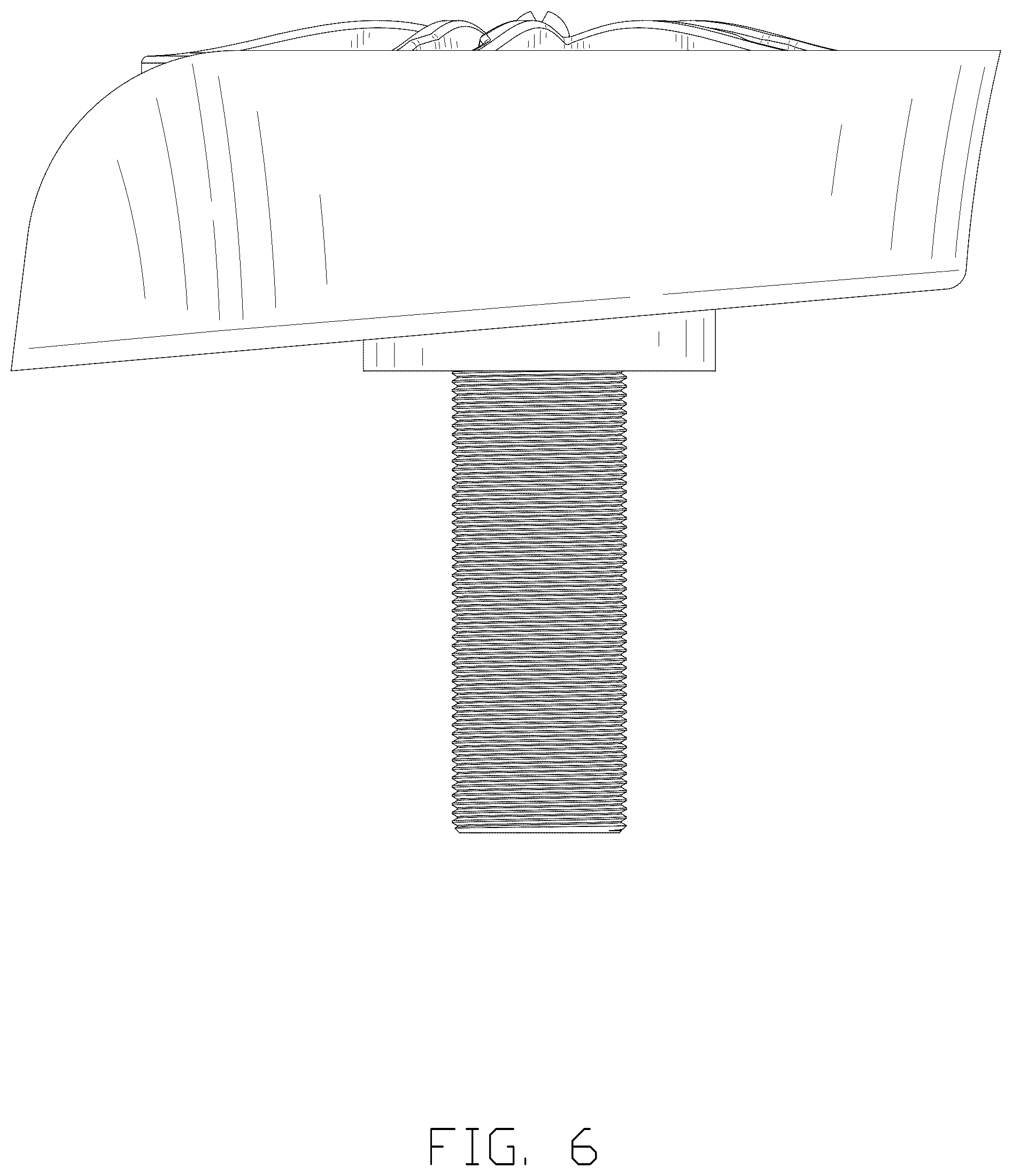

is a right side elevation view thereof;

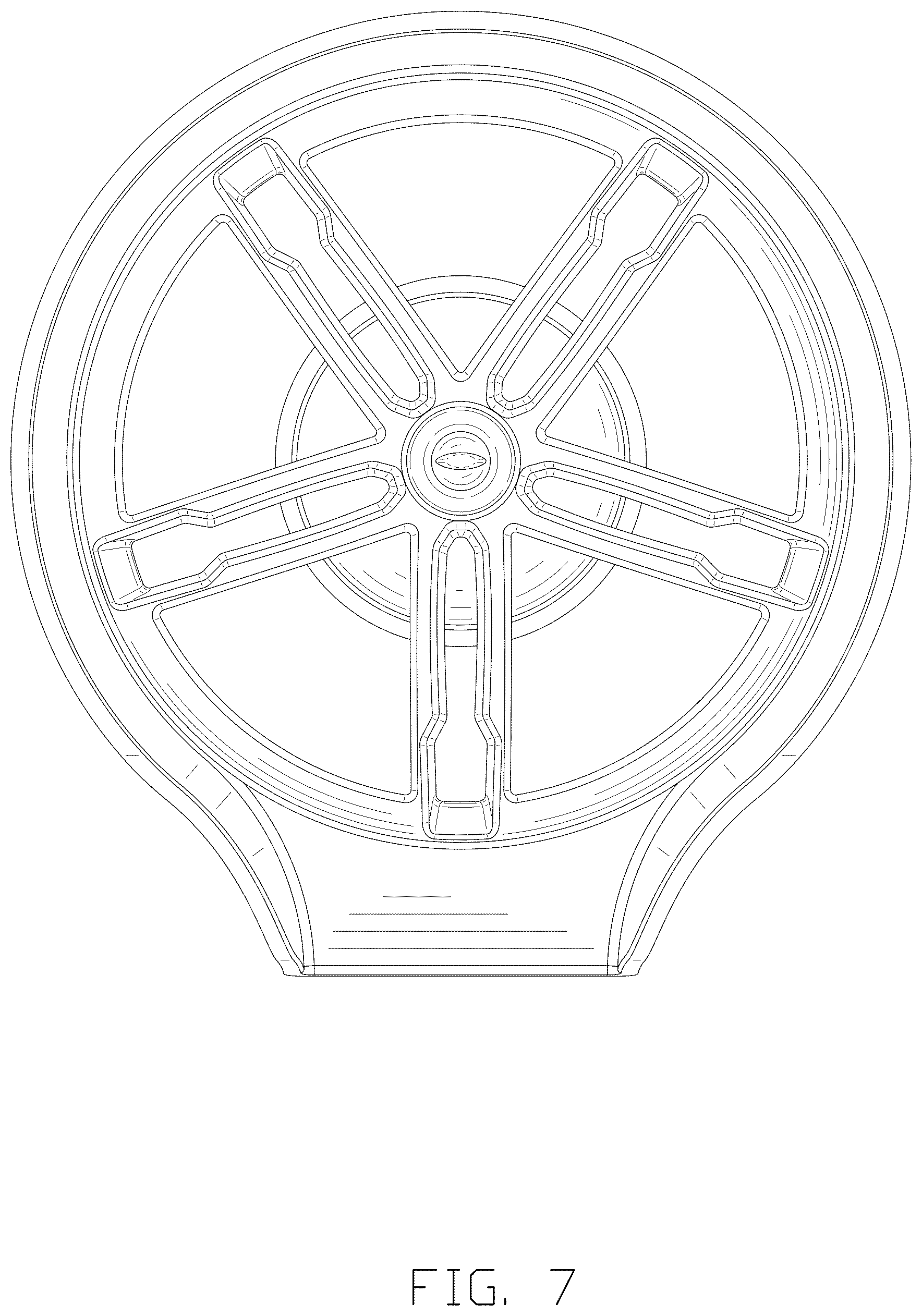

is a top plan view thereof; and,

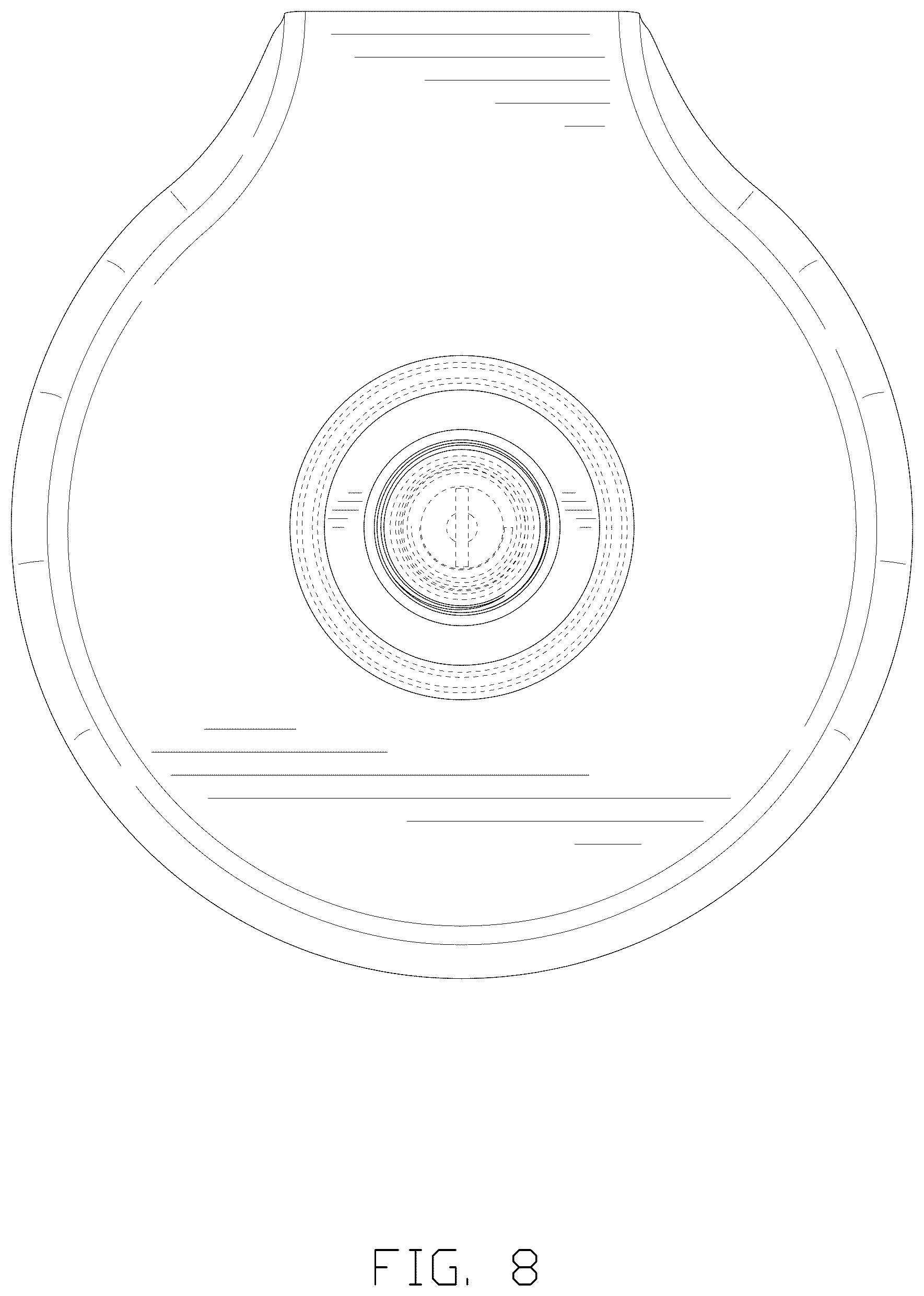

is a bottom plan view thereof.

The broken lines depict portions of the glass rinser in which the design is embodied that form no part of the claimed design.
