Reflector Module

USD1045200No. D 1,045,200designGranted 10/1/2024

Patent USD1045200 — Reflector module — Figure 1 — Fig. 1 · Reflector Module

Claims (1)

Claim 1 (Independent)

The ornamental design for a reflector module, as shown.

Full Description

Show full text →

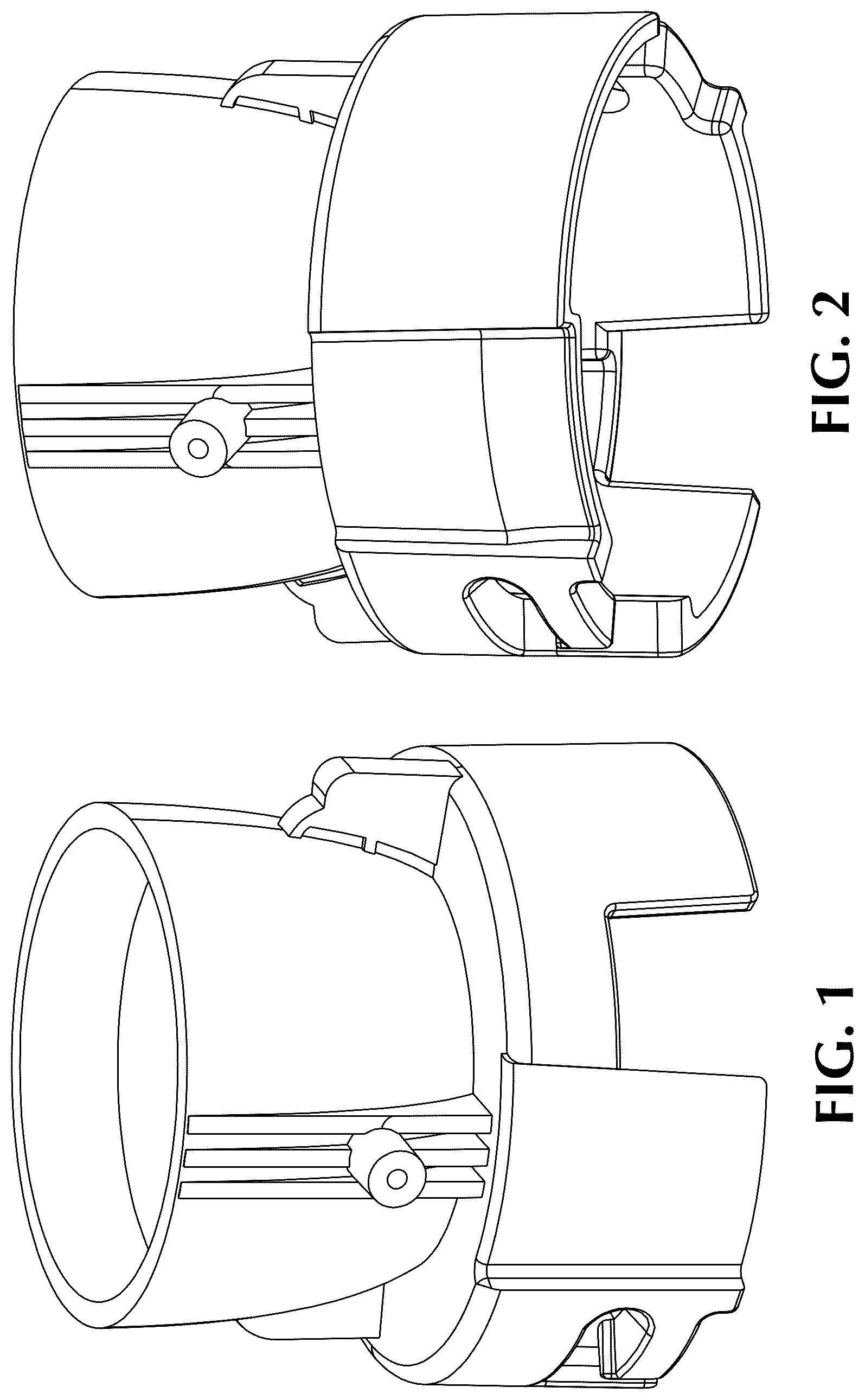

is a perspective view, from the top, of a first preferred embodiment of a reflector module in accordance with the new design;

is a perspective view thereof, from the bottom;

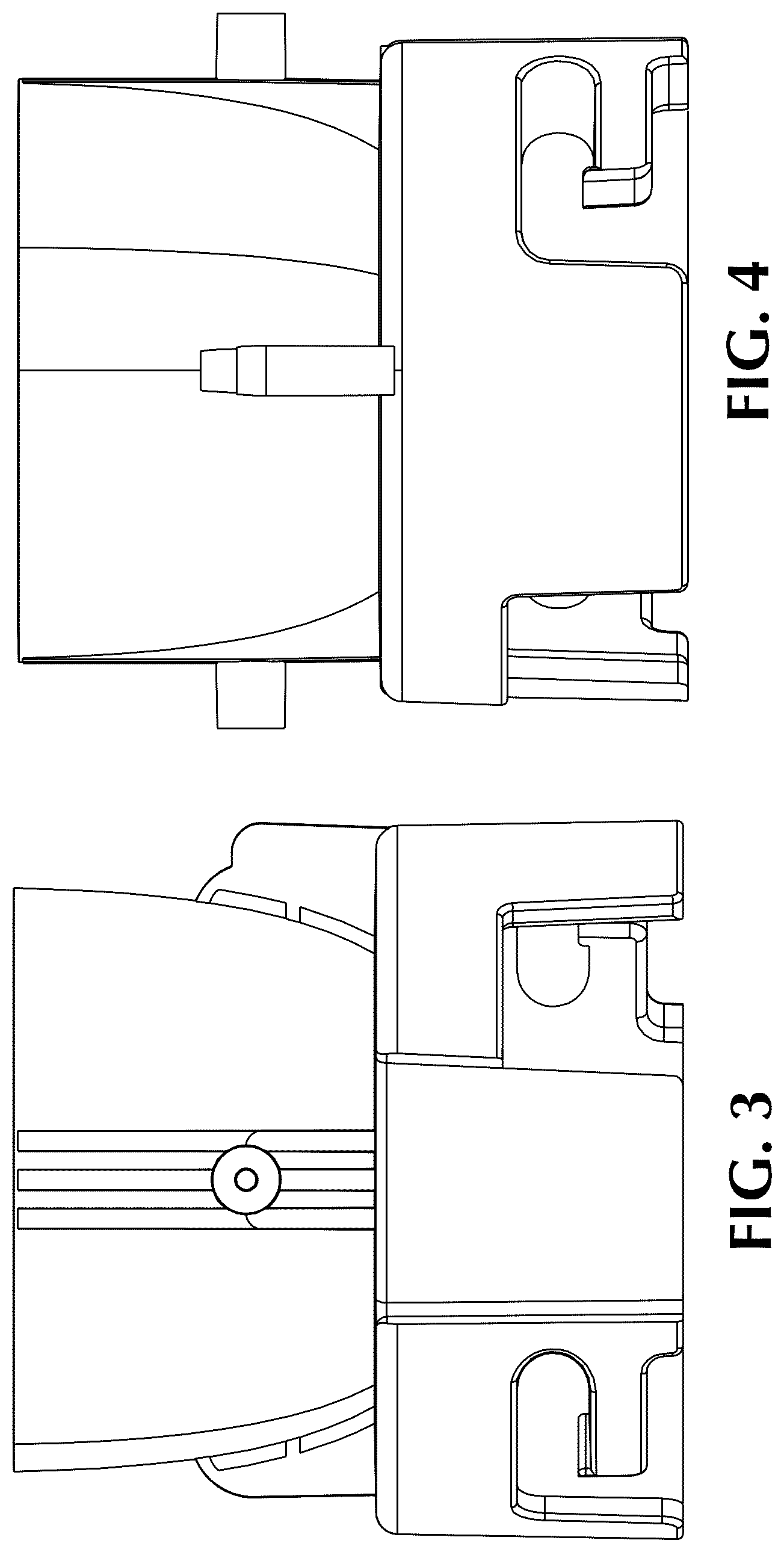

is a front view thereof;

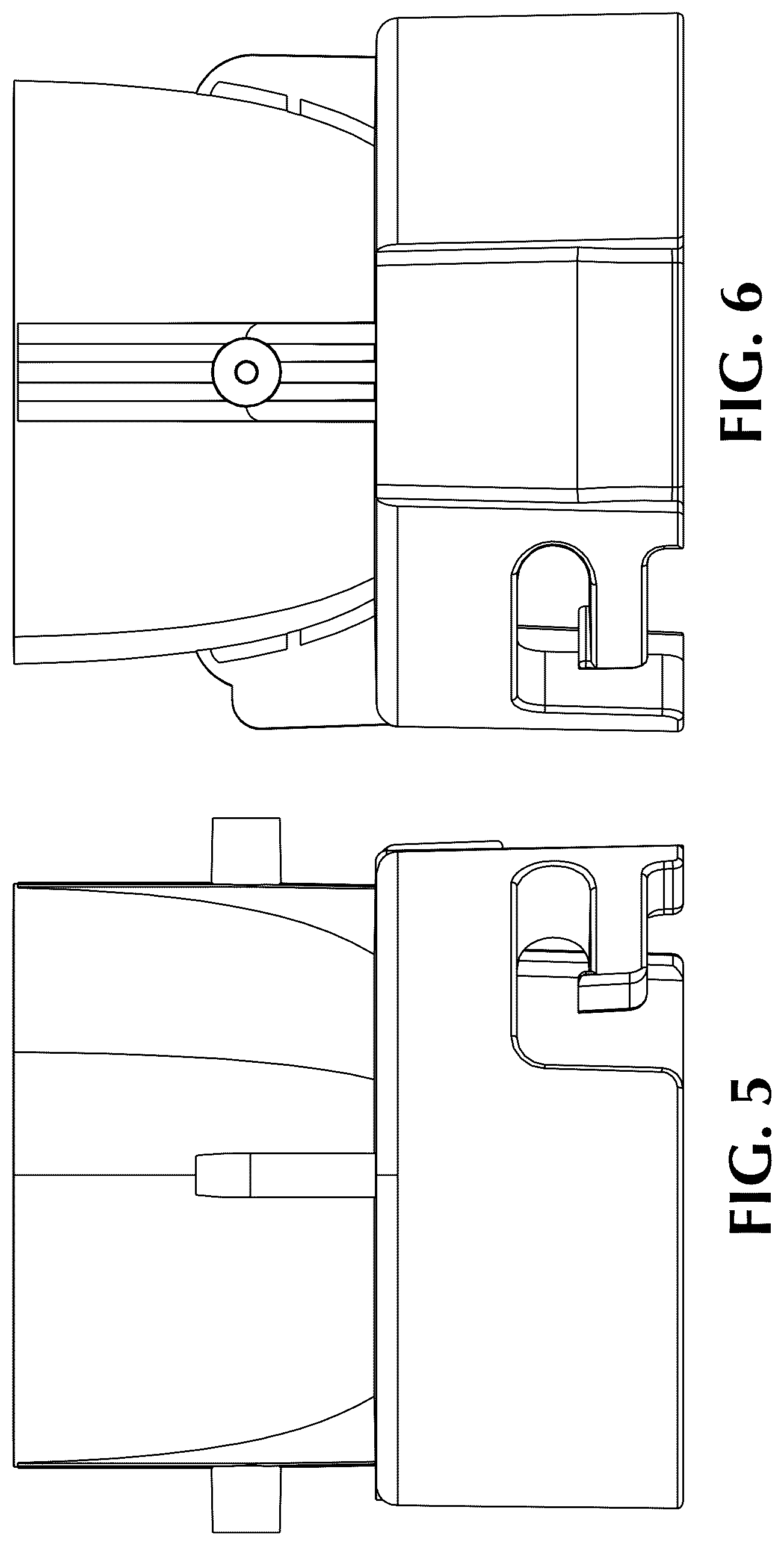

is a right side view thereof;

is a left side view thereof;

is a rear view thereof;

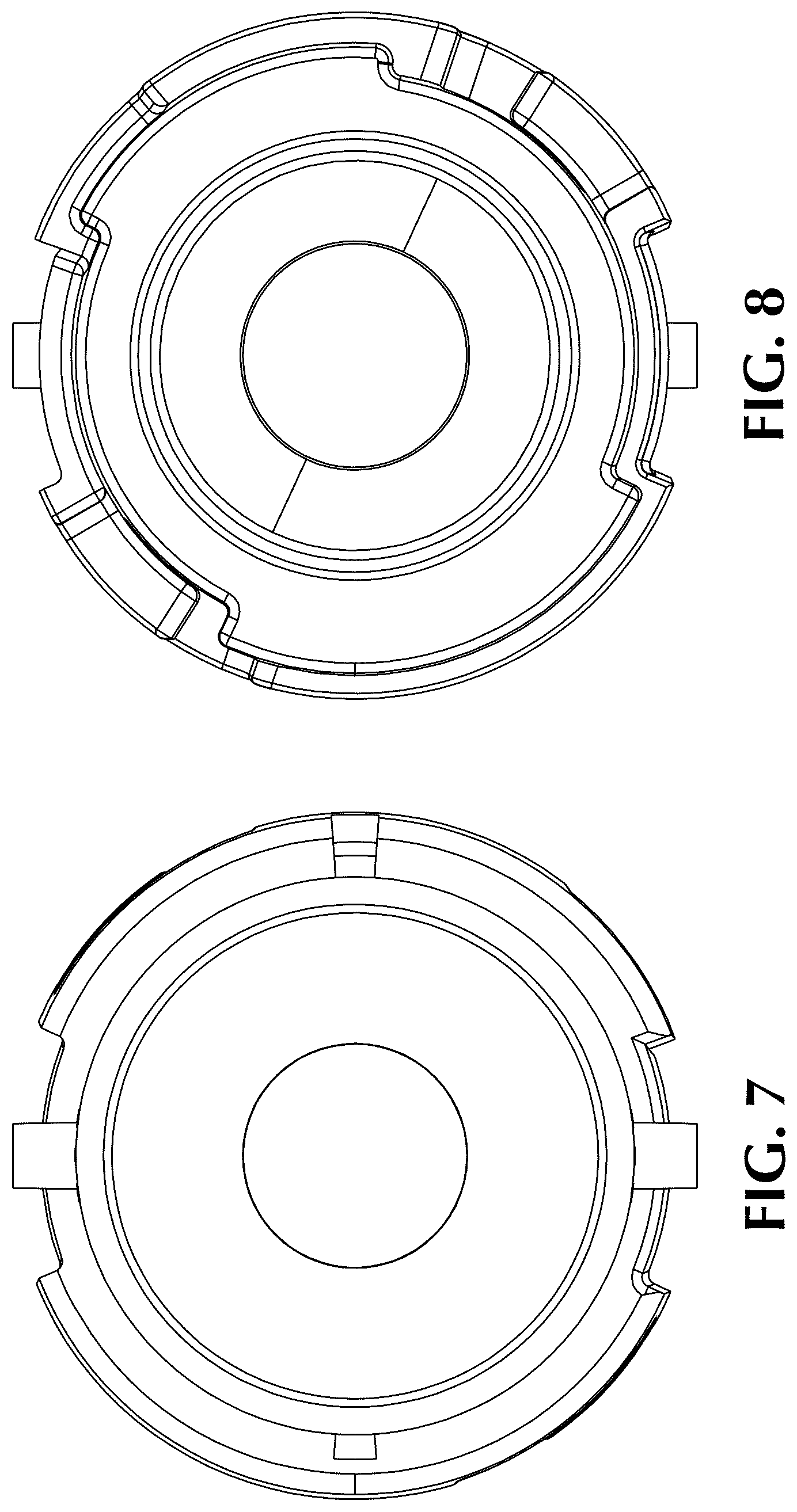

is a top view thereof; and

is a bottom view thereof.

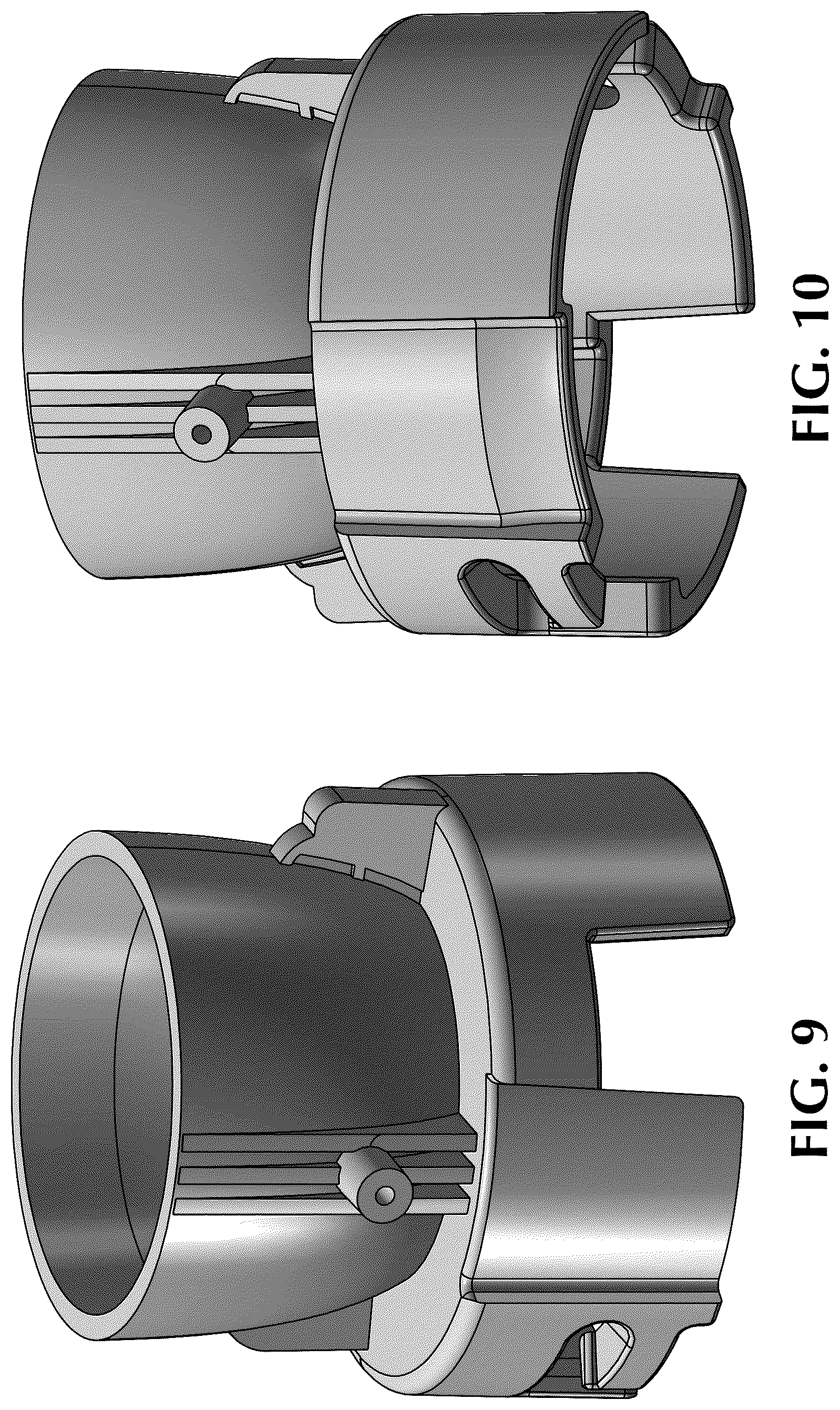

is a perspective view, from the top, of a second preferred embodiment of a reflector module in accordance with the new design;

is a perspective view thereof, from the bottom;

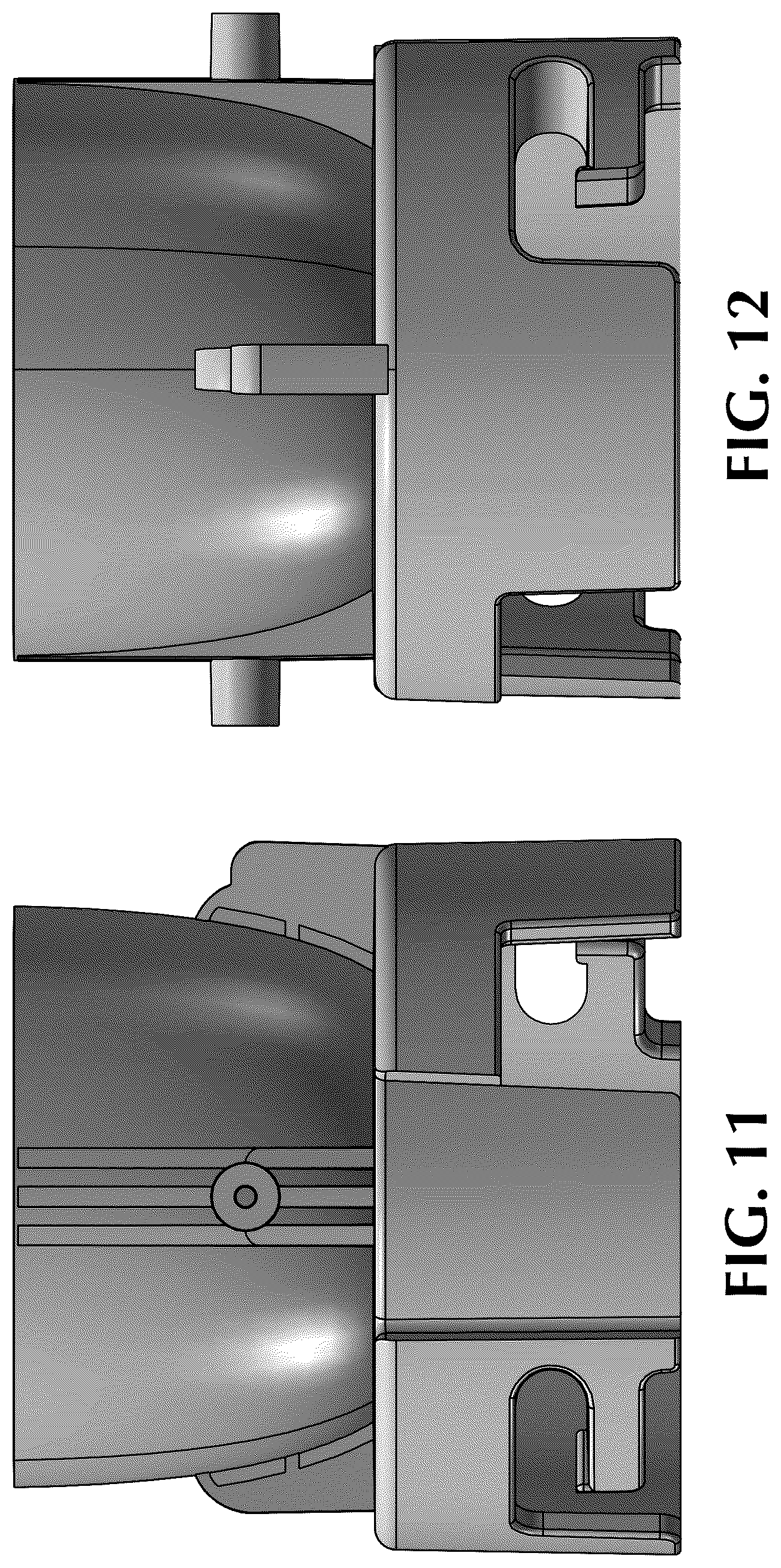

is a front view thereof;

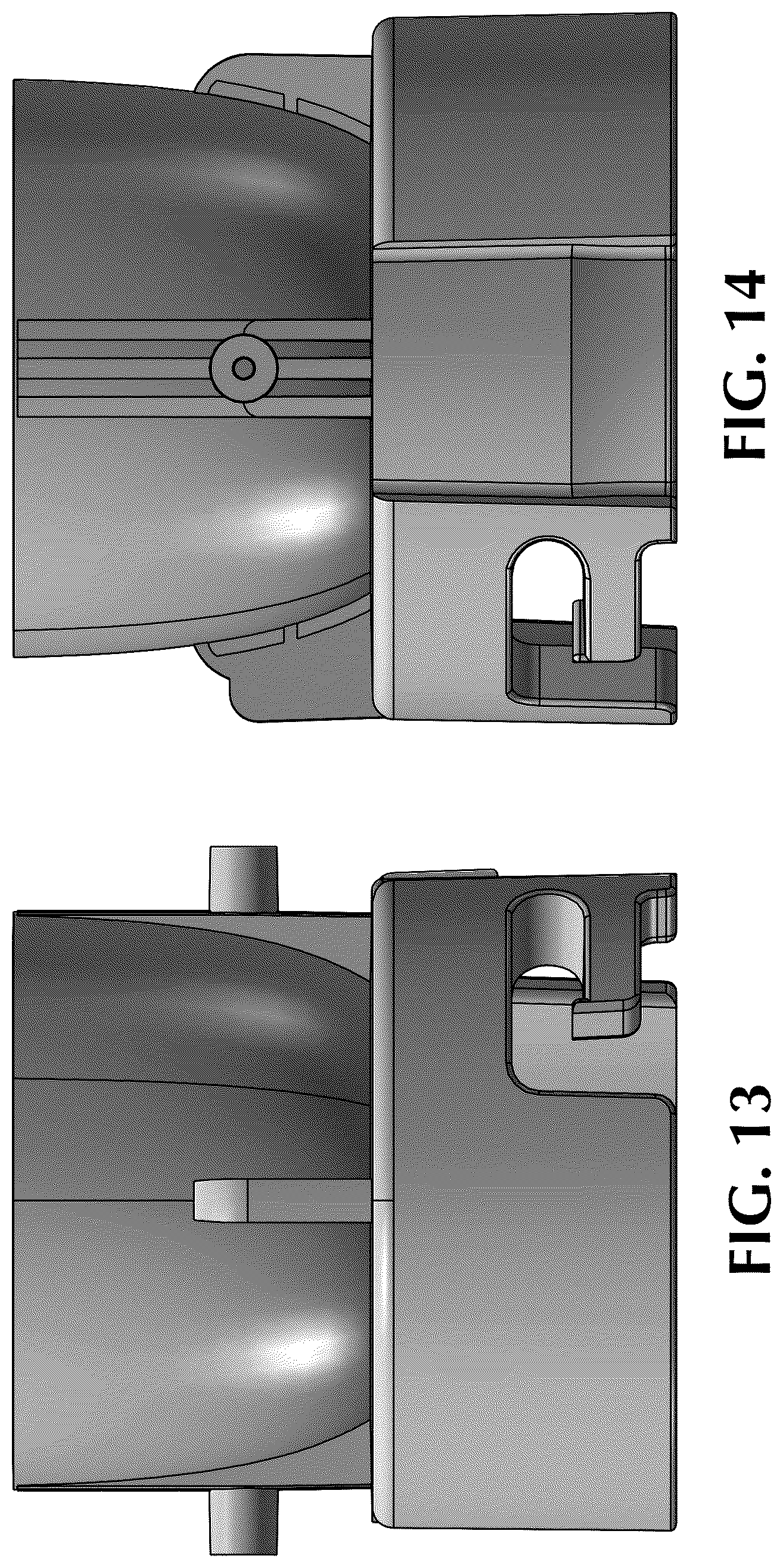

is a right side view thereof;

is a left side view thereof;

is a rear view thereof;

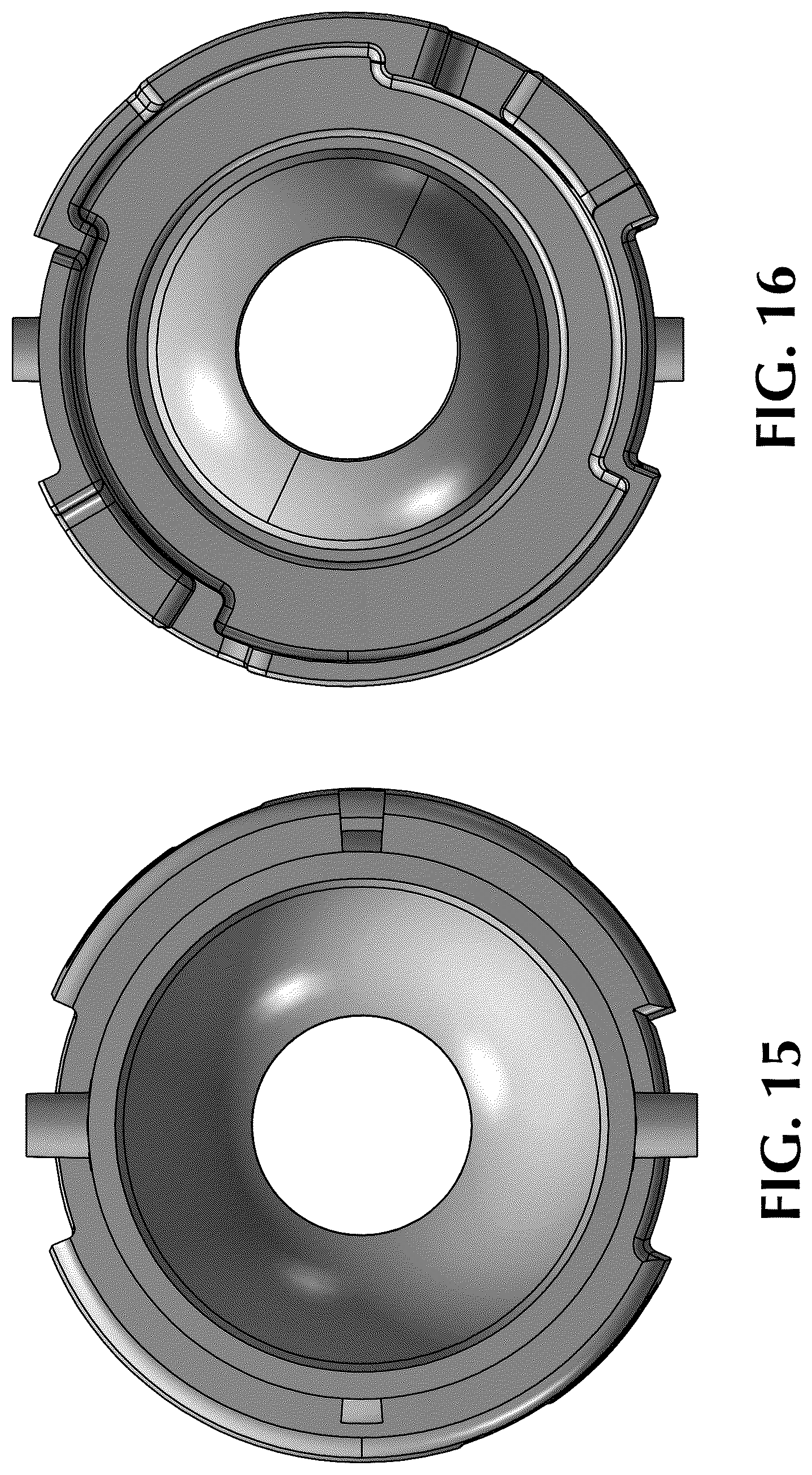

is a top view thereof; and,

is a bottom view thereof.
