Work Light

USD1045158No. D 1,045,158designGranted 10/1/2024
Patent USD1045158 — Work light — Figure 1
Fig. 1 · Work Light

Claims (1)

Claim 1 (Independent)

The ornamental design for a work light, as shown and described.

Full Description

Show full text →

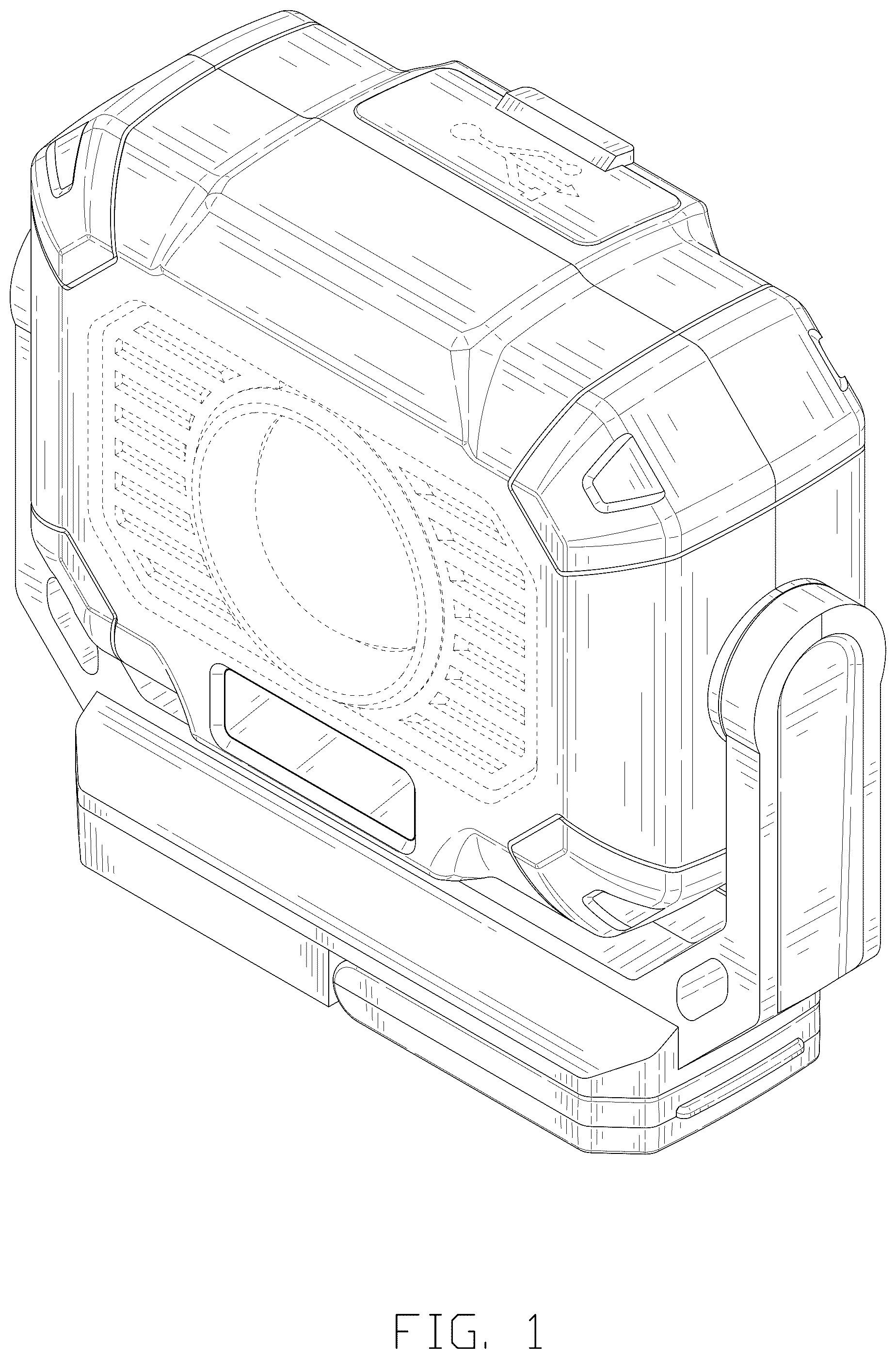

is a perspective view of a work light showing my new design;

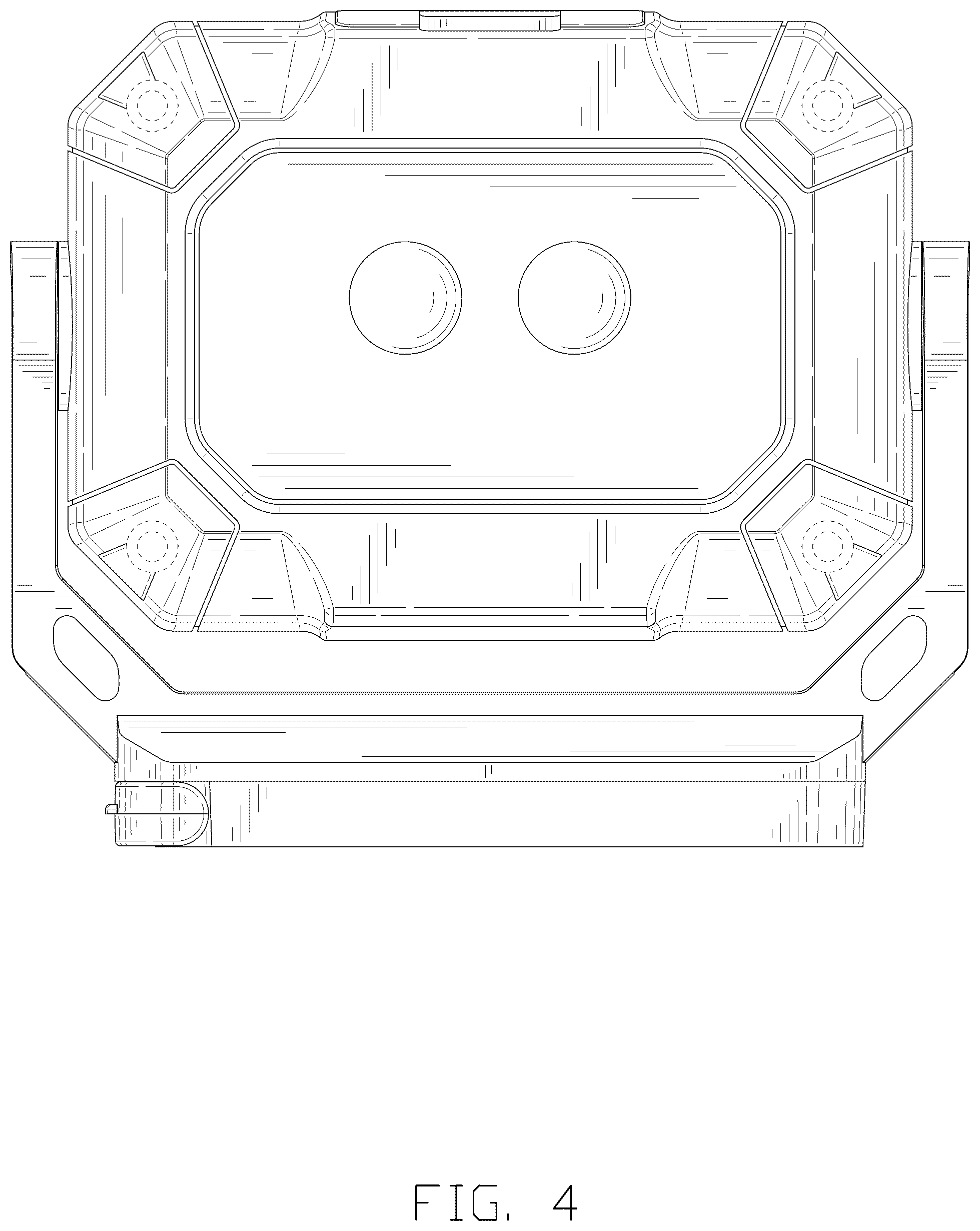

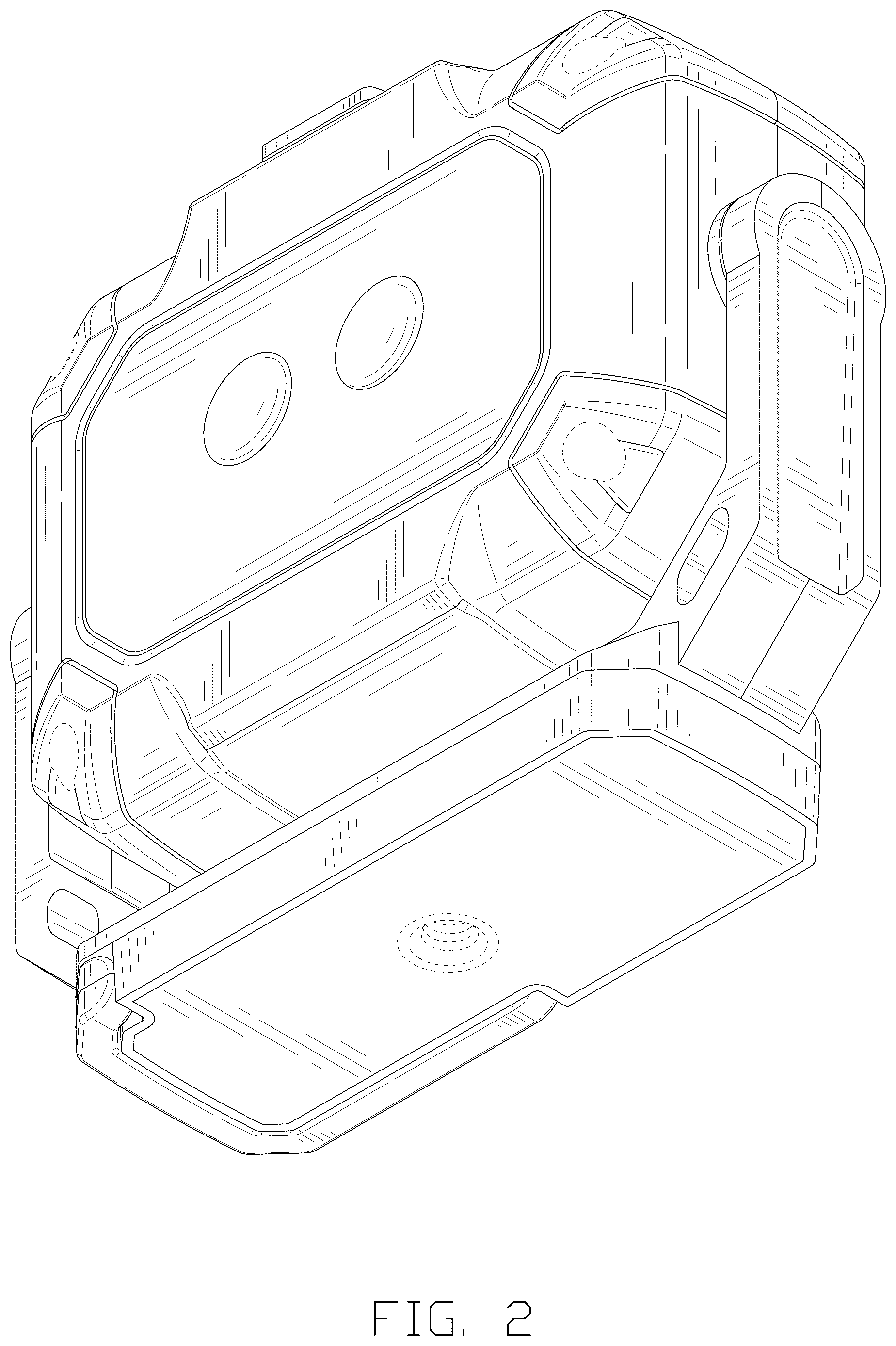

is another perspective view thereof;

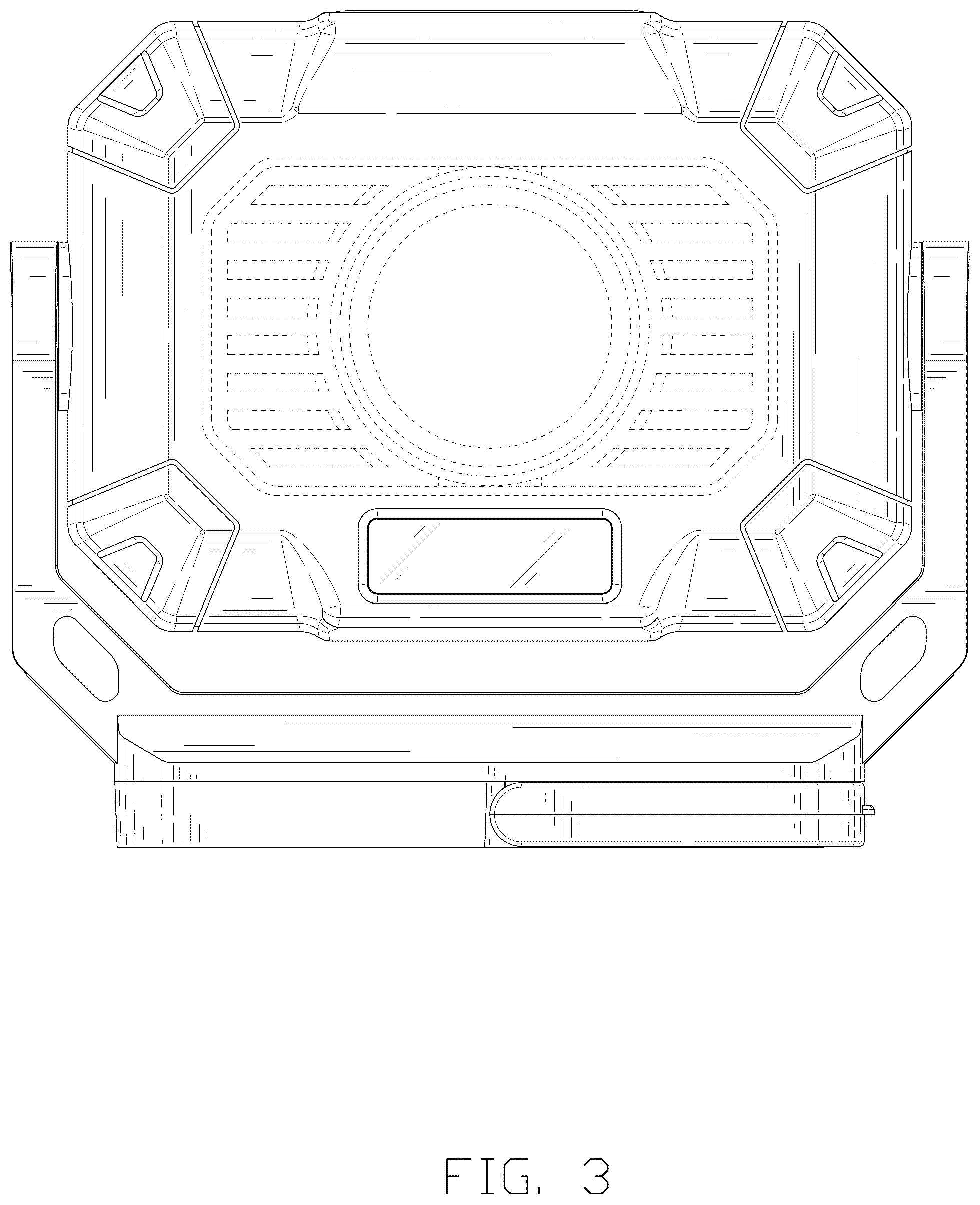

is a front elevational view thereof;

is a rear elevational view thereof;

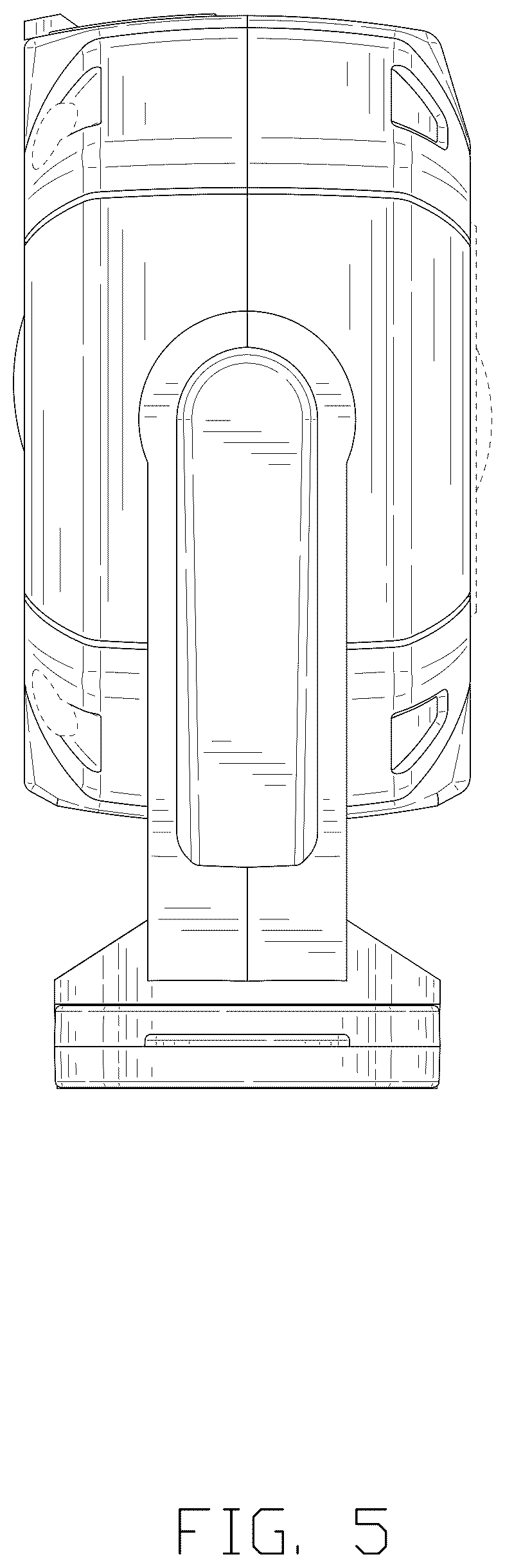

is a left side elevational view thereof;

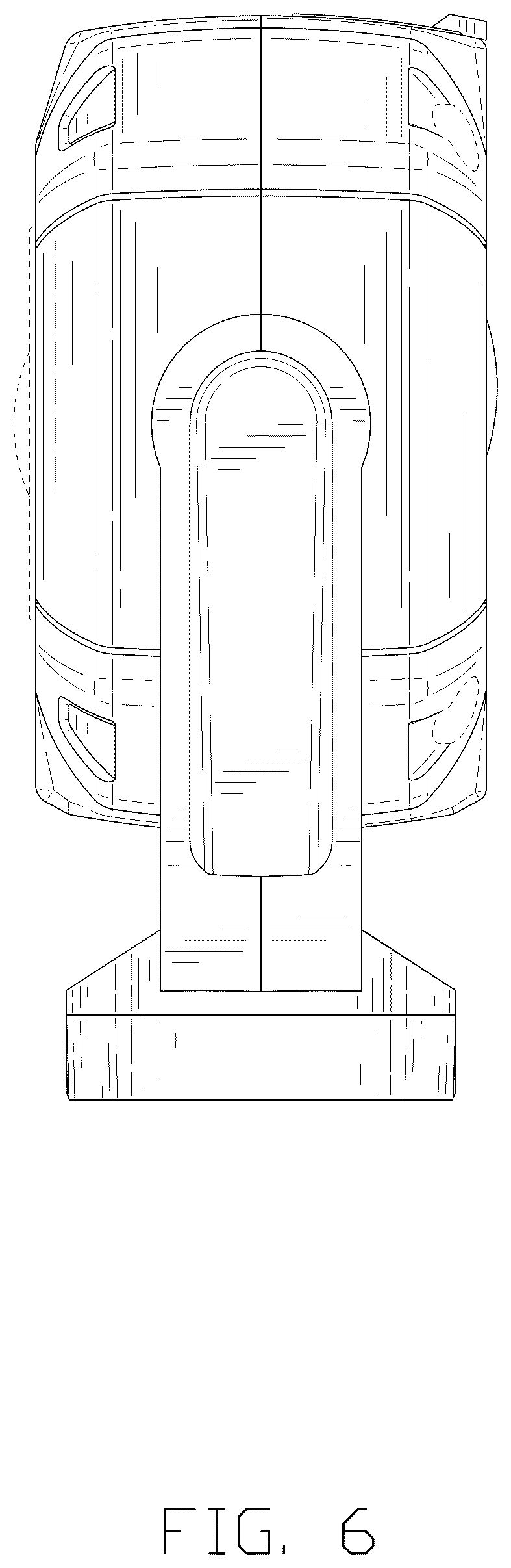

is a right side elevational view thereof;

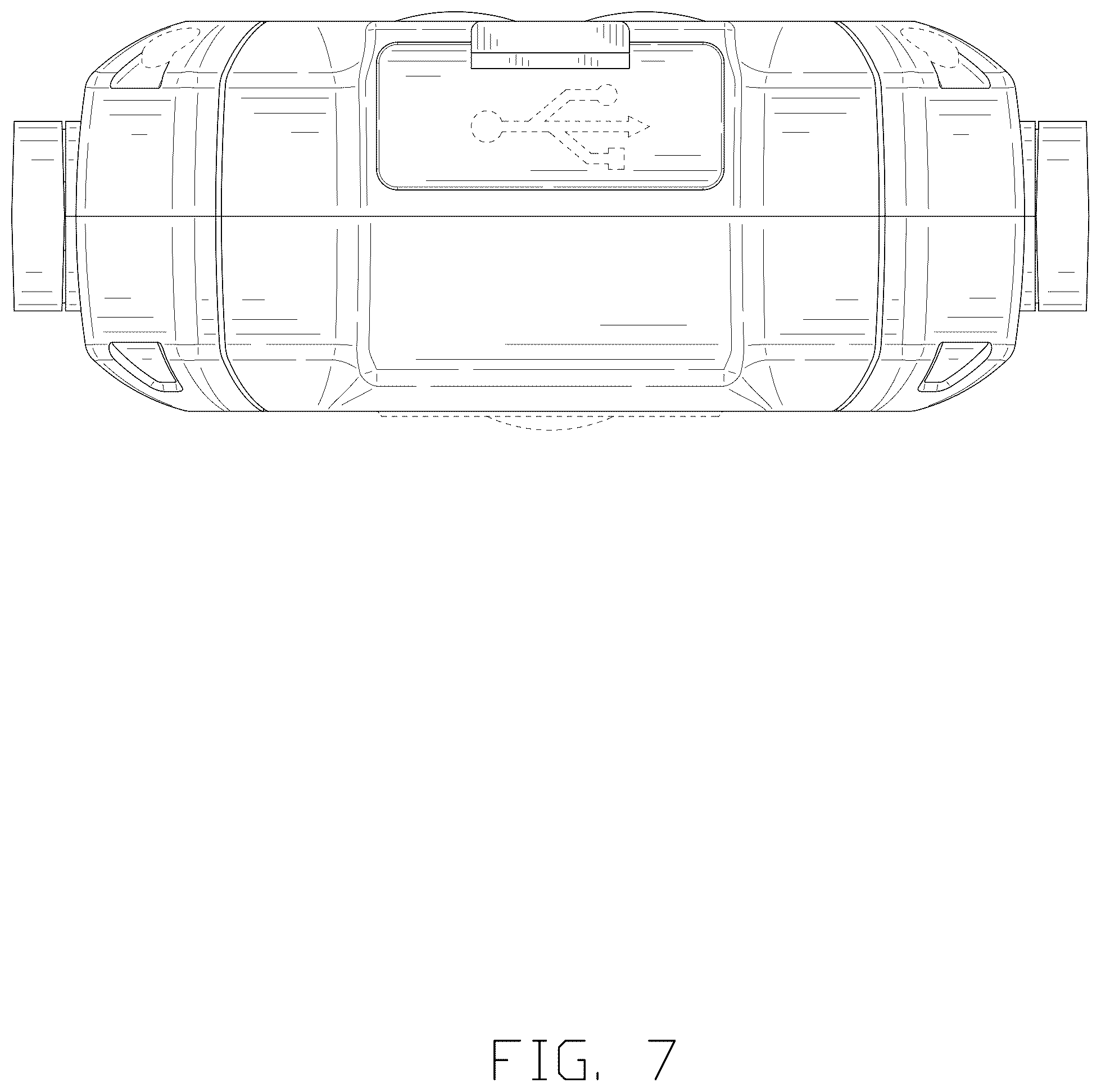

is a top plan view thereof, and,

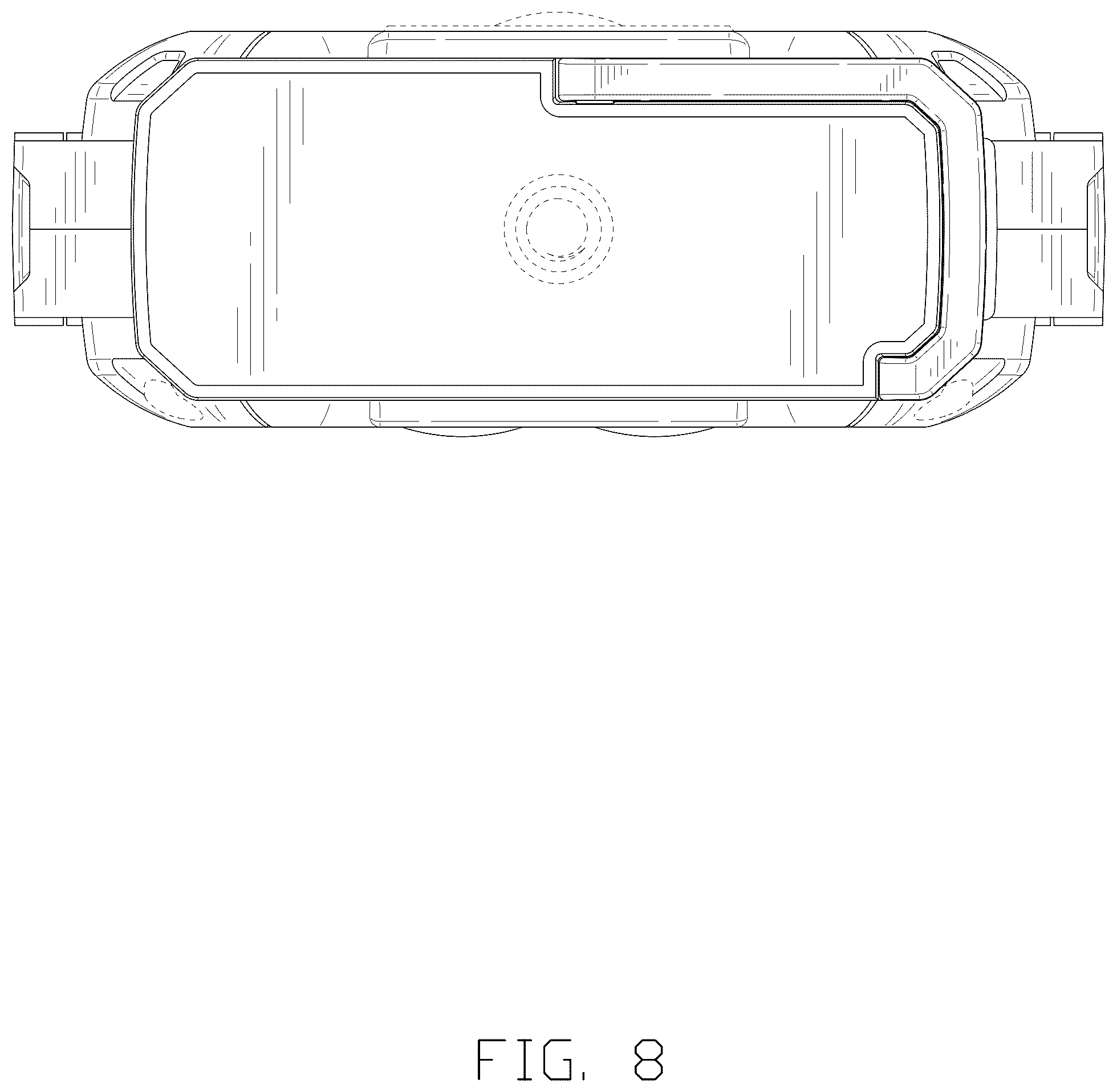

is a bottom plan view thereof.

The broken lines in the drawings depict portions of the work light that form no part of the claimed design.
