Sample Incubation and Testing Device

USD1045122No. D 1,045,122designGranted 10/1/2024
Patent USD1045122 — Sample incubation and testing device — Figure 1
Fig. 1 · Sample Incubation and Testing Device

Claims (1)

Claim 1 (Independent)

The ornamental design for a sample incubation and testing device, as shown and described.

Full Description

Show full text →

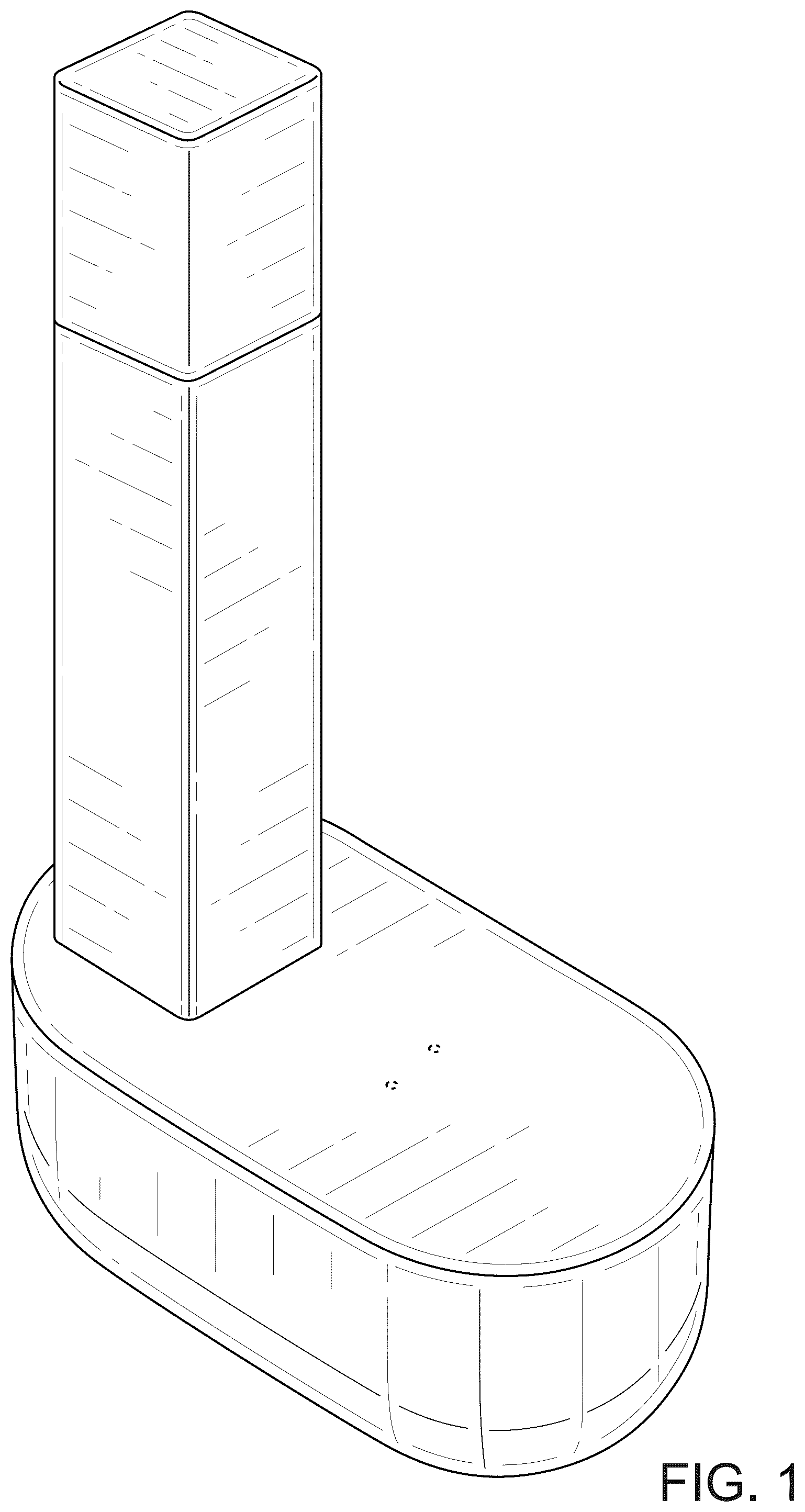

is a perspective view of a sample incubation and testing device showing our new design;

is a front view thereof;

is a back view thereof;

is a left side view thereof;

is a right side view thereof;

is a top view thereof;

is a bottom view thereof; and,

is an exploded view thereof.

The broken lines in the drawings depict portions of the sample incubation and testing device and form no part of the claimed design.
