Tattoo and Embroidery Integrated Needle

USD1045079No. D 1,045,079designGranted 10/1/2024
Patent USD1045079 — Tattoo and embroidery integrated needle — Figure 1
Fig. 1 · Tattoo and Embroidery Integrated Needle

Claims (1)

Claim 1 (Independent)

The ornamental design for a tattoo and embroidery integrated needle, as shown and described.

Full Description

Show full text →

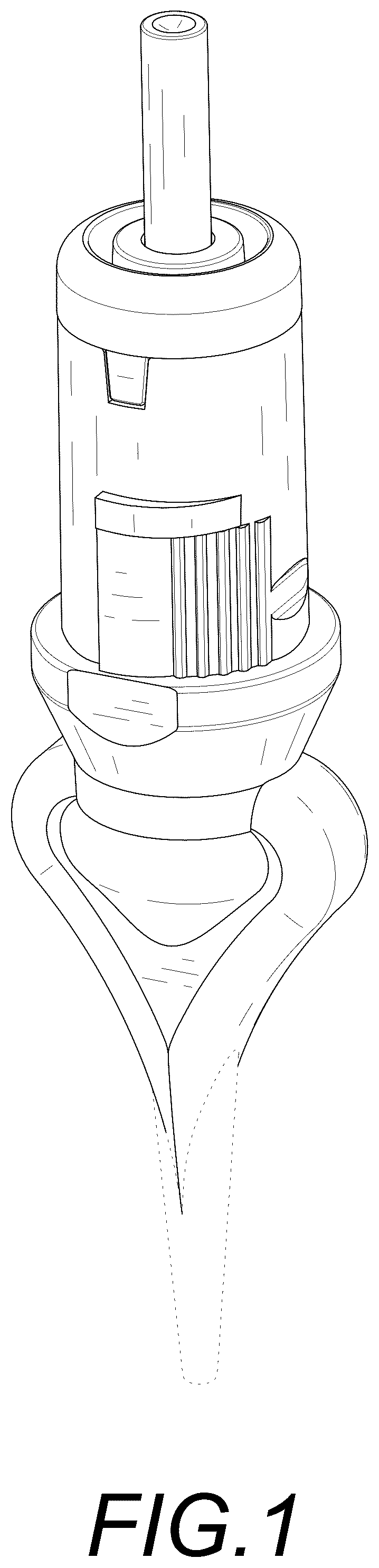

is a front perspective view of a tattoo and embroidery integrated needle, showing my new design;

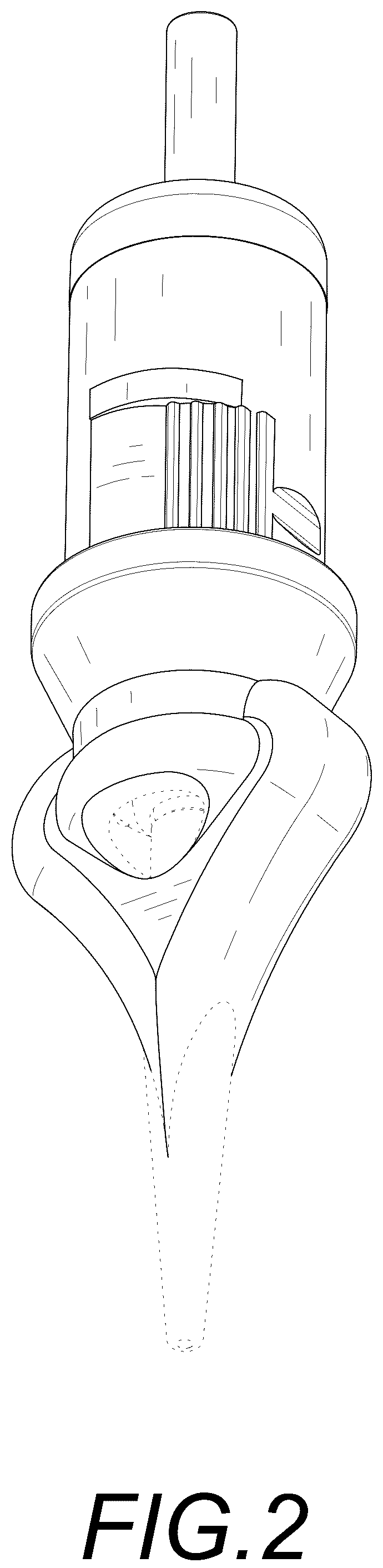

is a rear perspective view thereof;

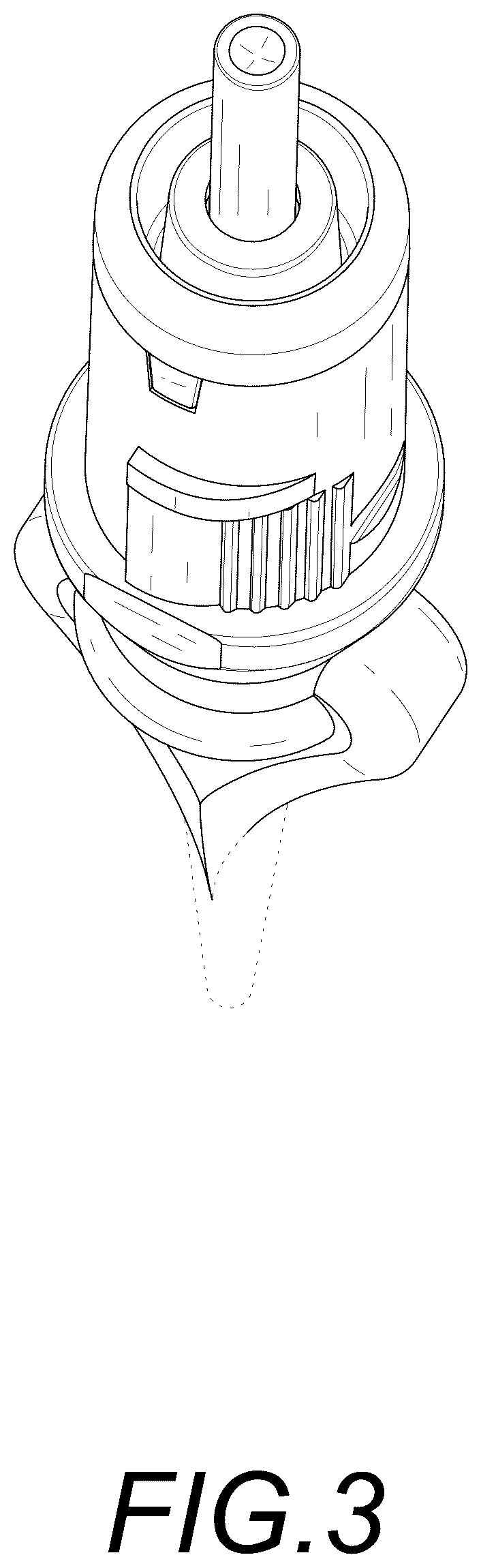

is a top perspective view thereof;

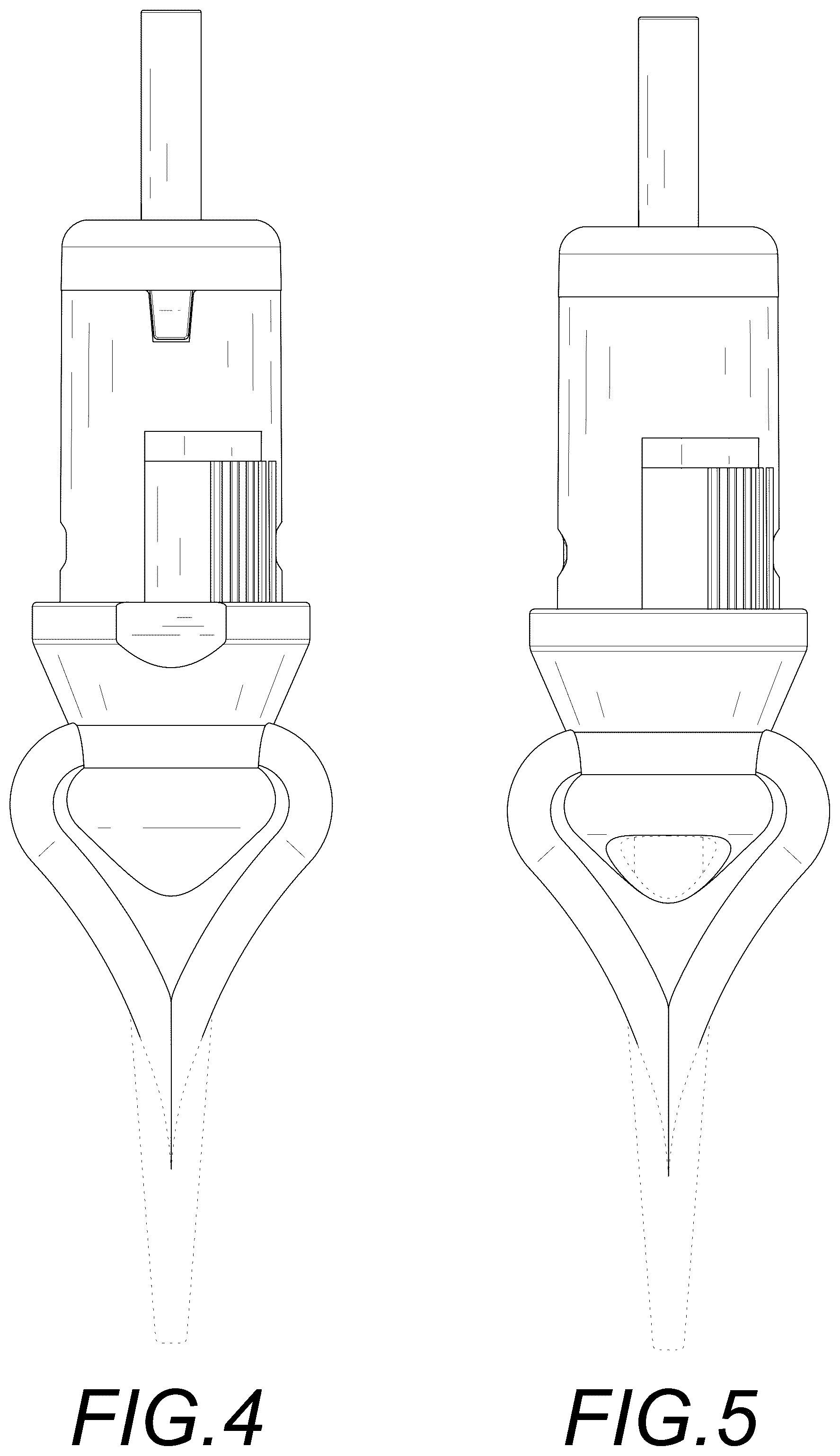

is a front elevational view thereof;

is a rear elevational view thereof;

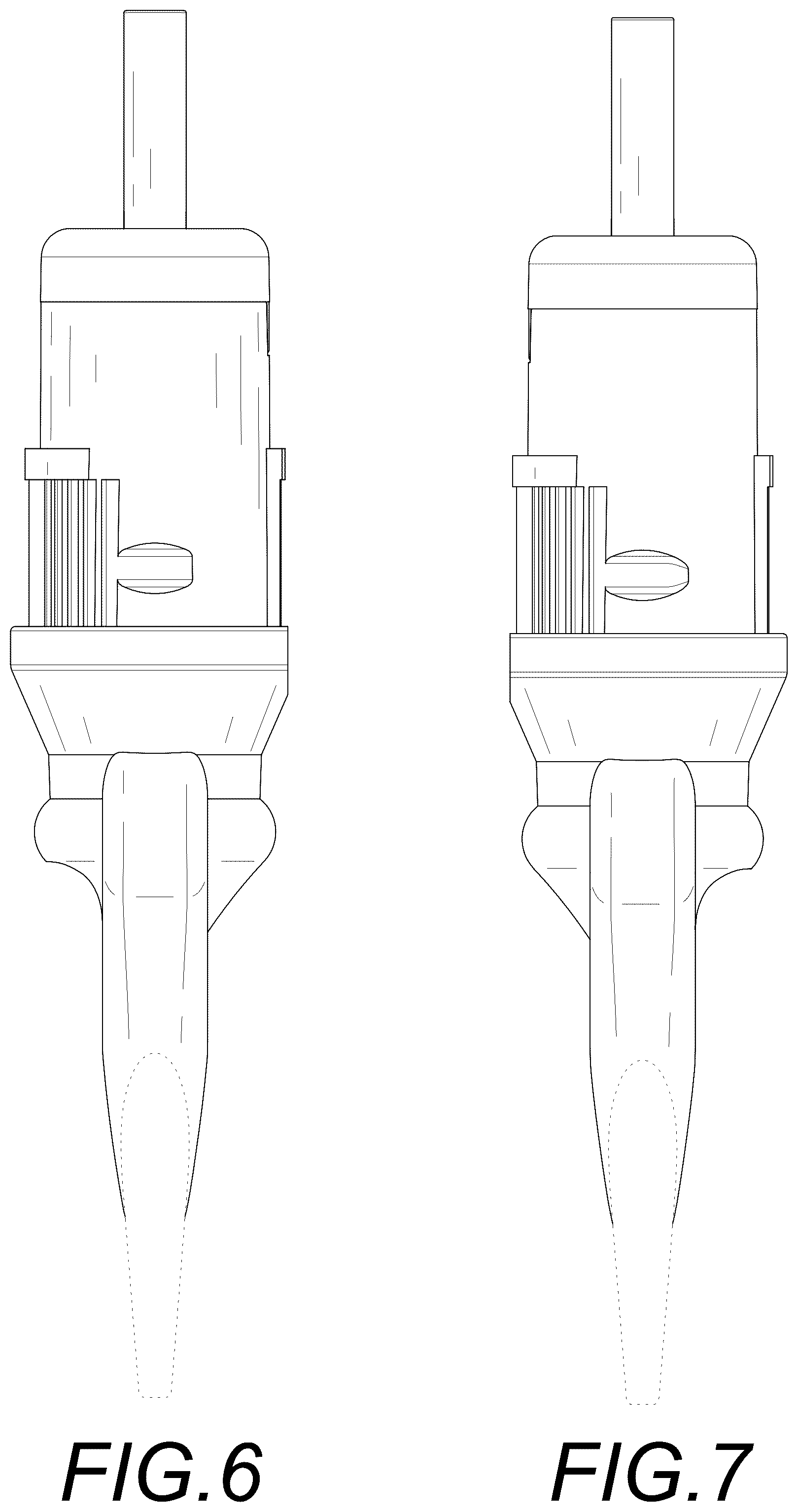

is a left side view thereof;

is a right side view thereof;

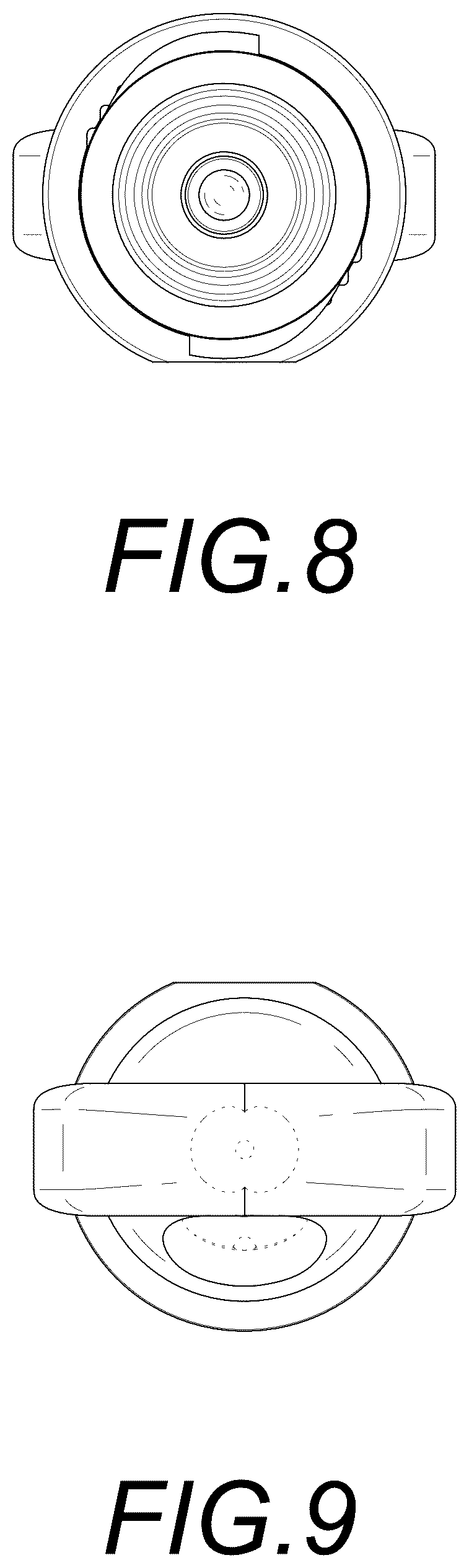

is a top plan view thereof; and,

is a bottom plan view thereof.

The broken lines in the figures are for the purposes of illustrating portions of the tattoo and embroidery integrated needle, which form no part of the claimed design.
