Shaking Drum

USD1044925No. D 1,044,925designGranted 10/1/2024
Patent USD1044925 — Shaking drum — Figure 1
Fig. 1 · Shaking Drum

Claims (1)

Claim 1 (Independent)

The ornamental design for a shaking drum, as shown and described.

Full Description

Show full text →

is a front isometric view of a shaking drum in accordance with the new design;

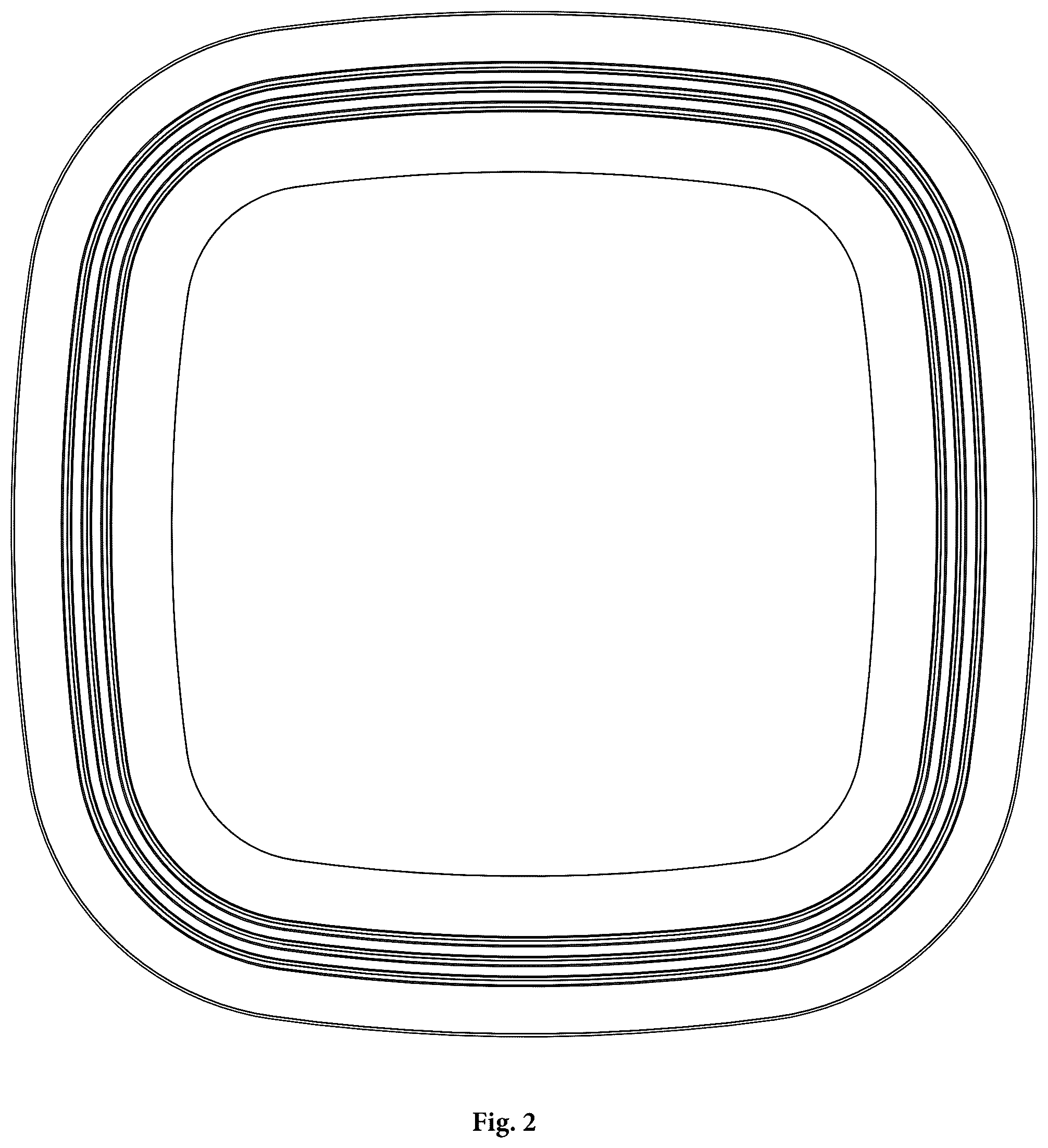

is a top view thereof;

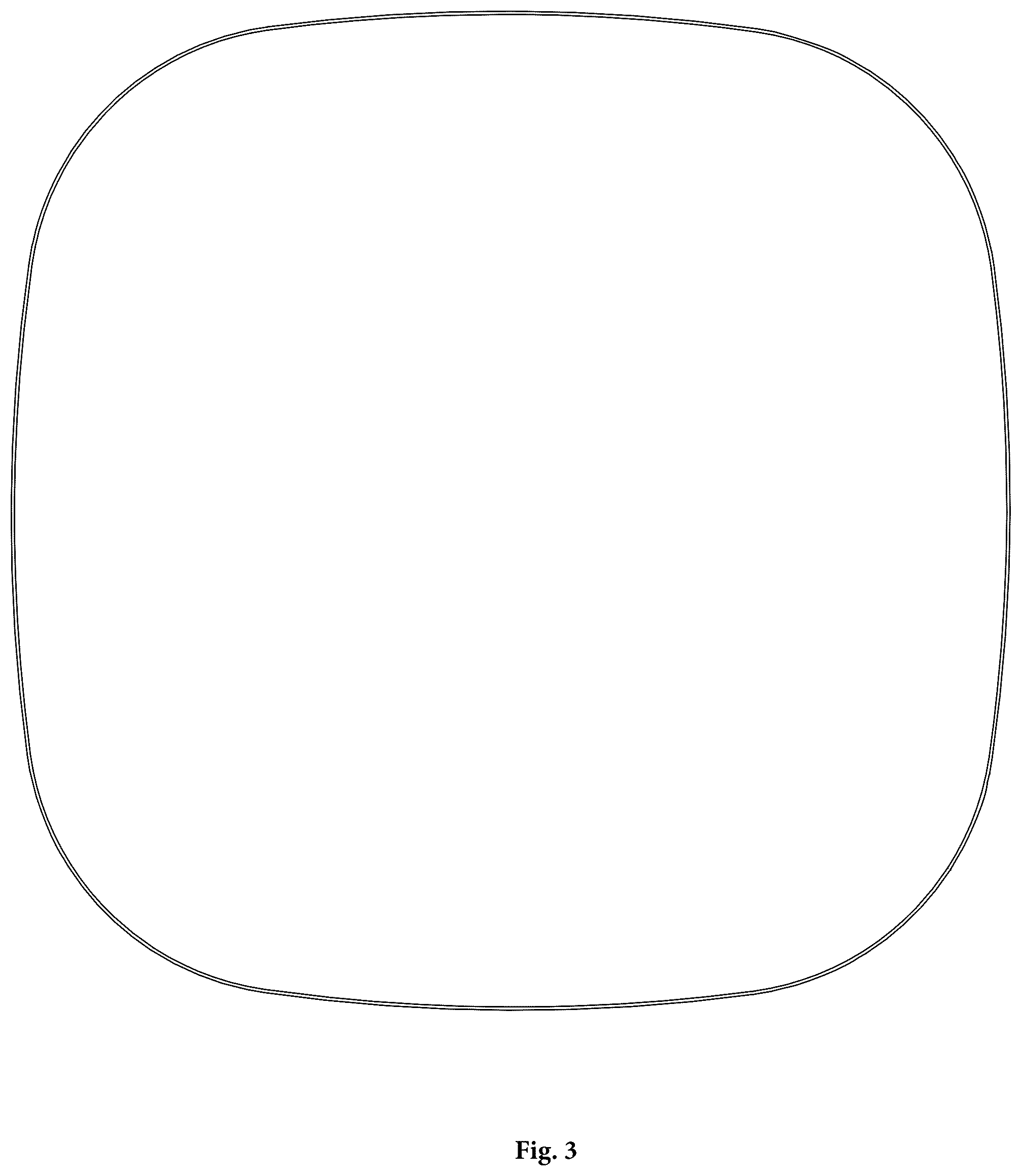

is a bottom view thereof;

is a front view thereof;

is a rear view thereof;

is a right view thereof; and,

is a left view thereof.

Figures (7)

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
