Surveillance Camera

USD1044904No. D 1,044,904designGranted 10/1/2024
Patent USD1044904 — Surveillance camera — Figure 1
Fig. 1 · Surveillance Camera

Claims (1)

Claim 1 (Independent)

The ornamental design for a surveillance camera, as shown and described.

Full Description

Show full text →

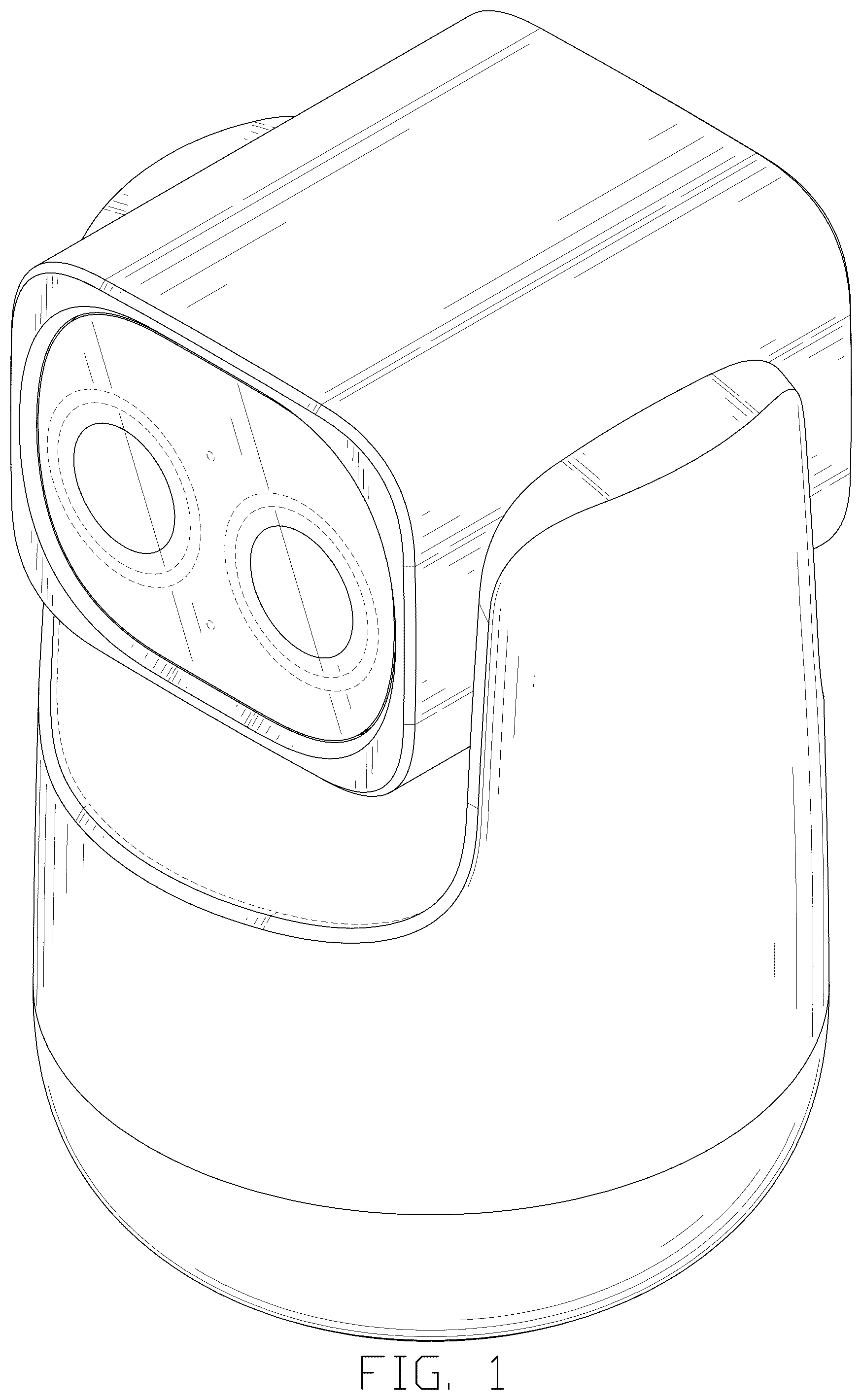

is a front, top perspective view of a surveillance camera, showing our new design;

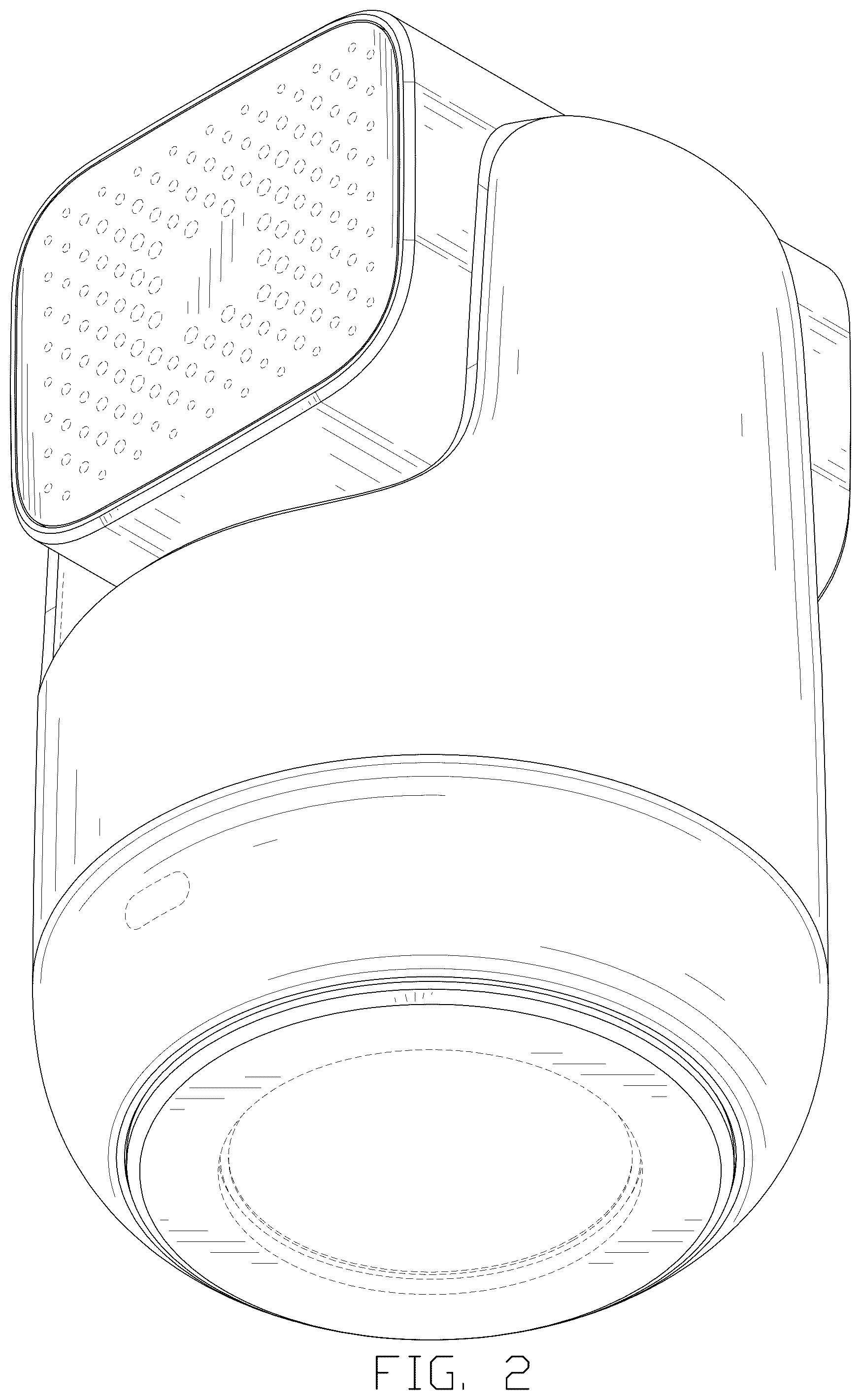

is a rear, bottom perspective view thereof;

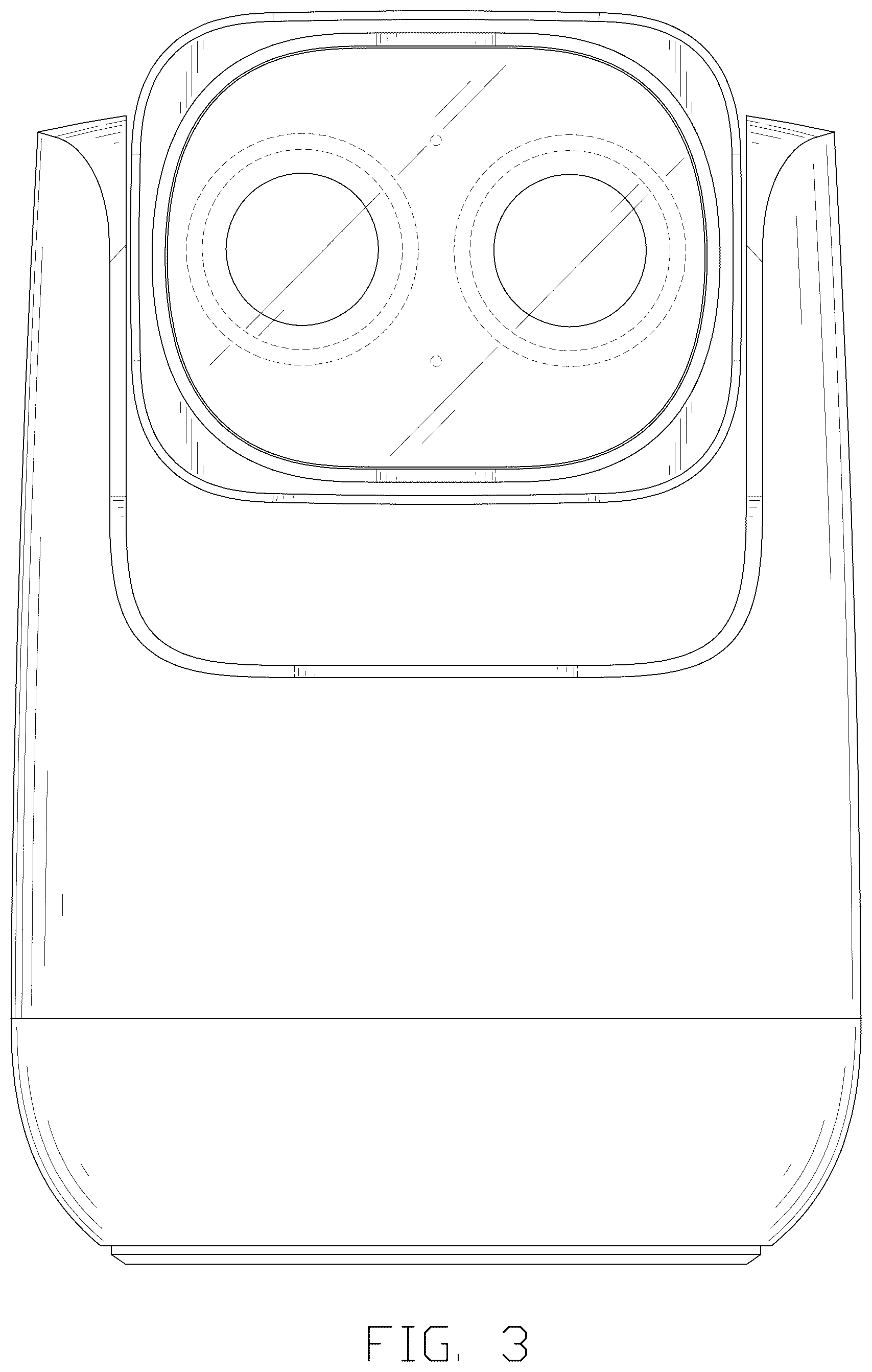

is a front elevation view thereof;

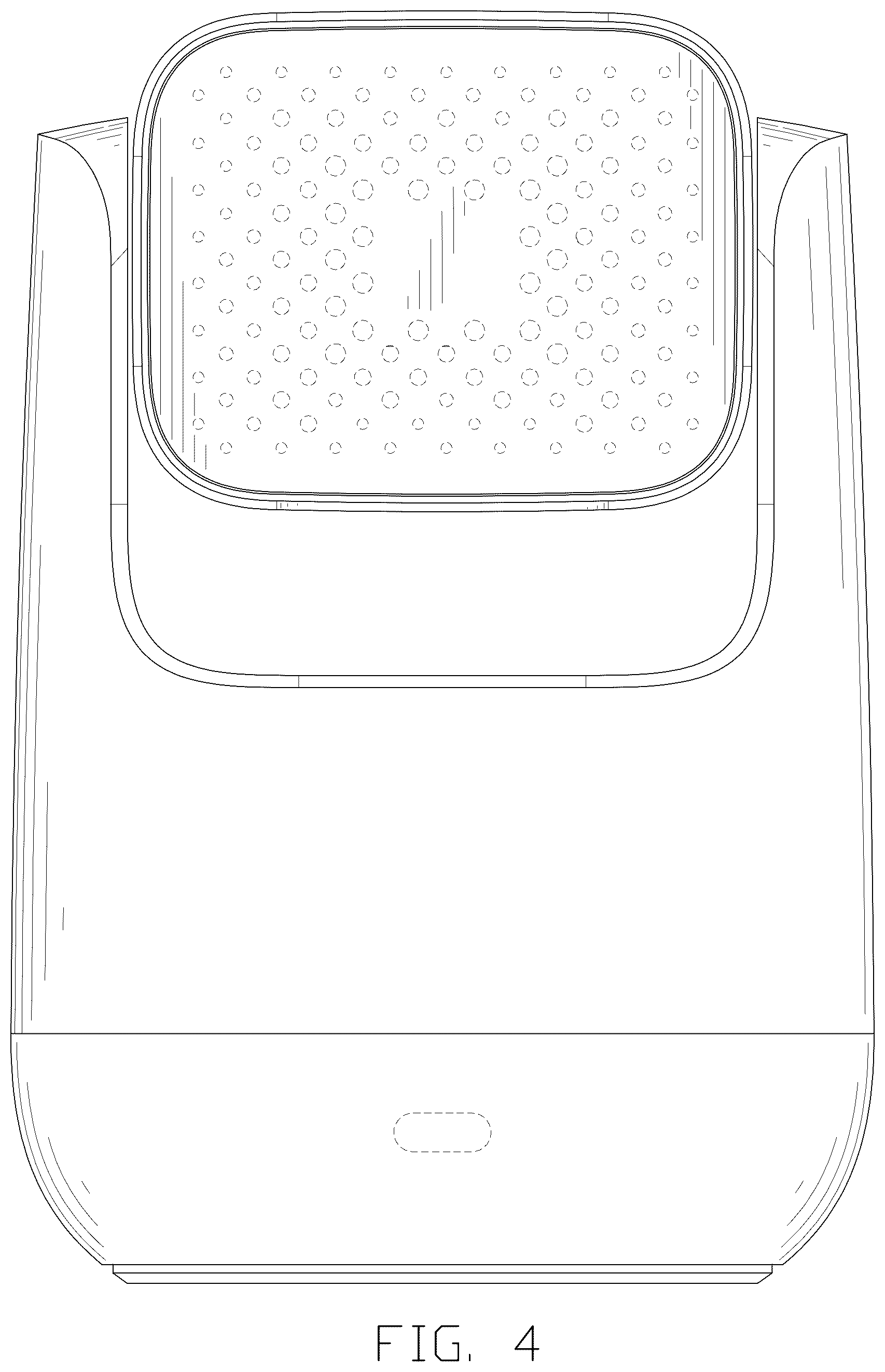

is a rear elevation view thereof;

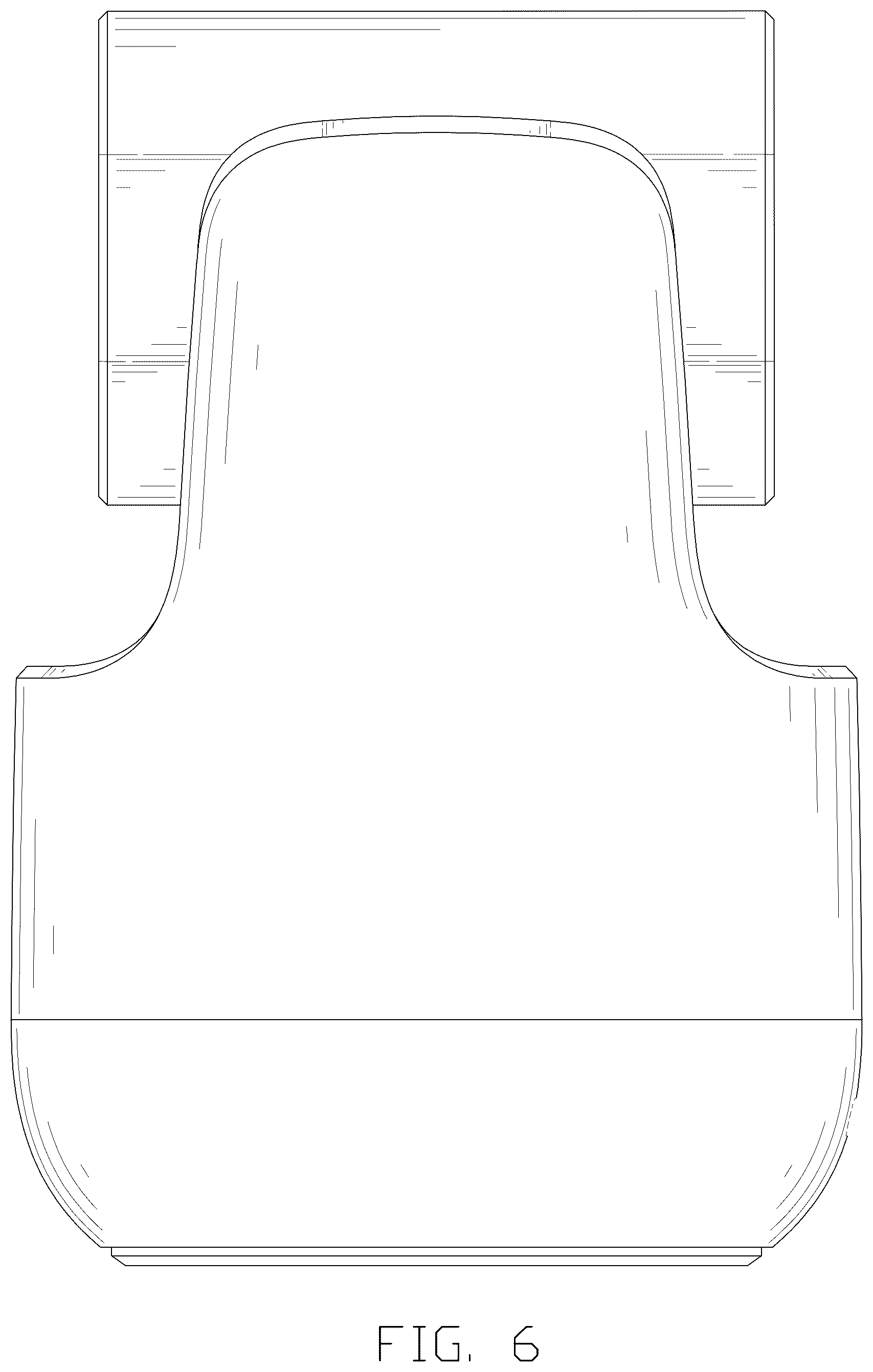

is a left side elevation view thereof;

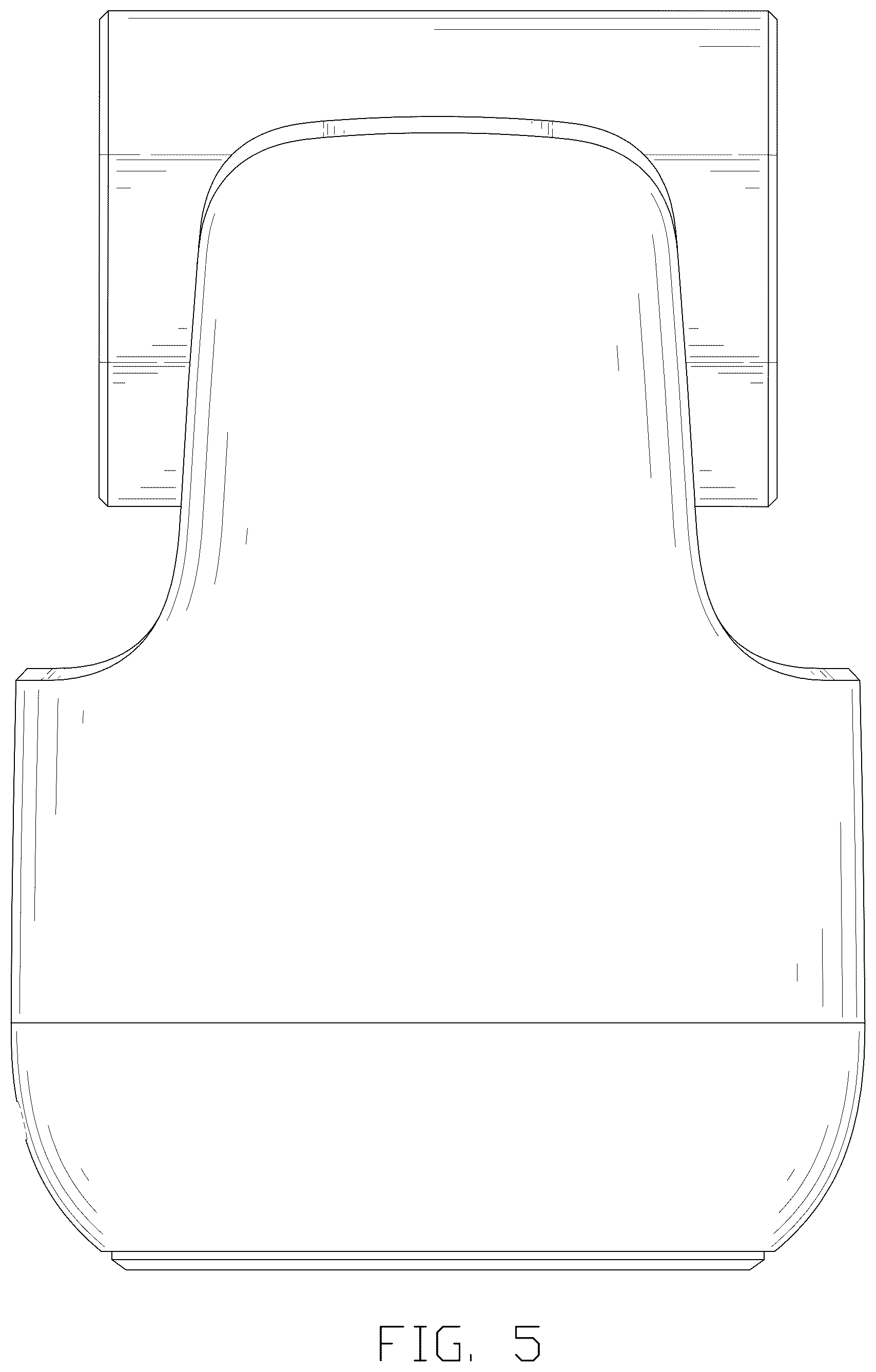

is a right side elevation view thereof;

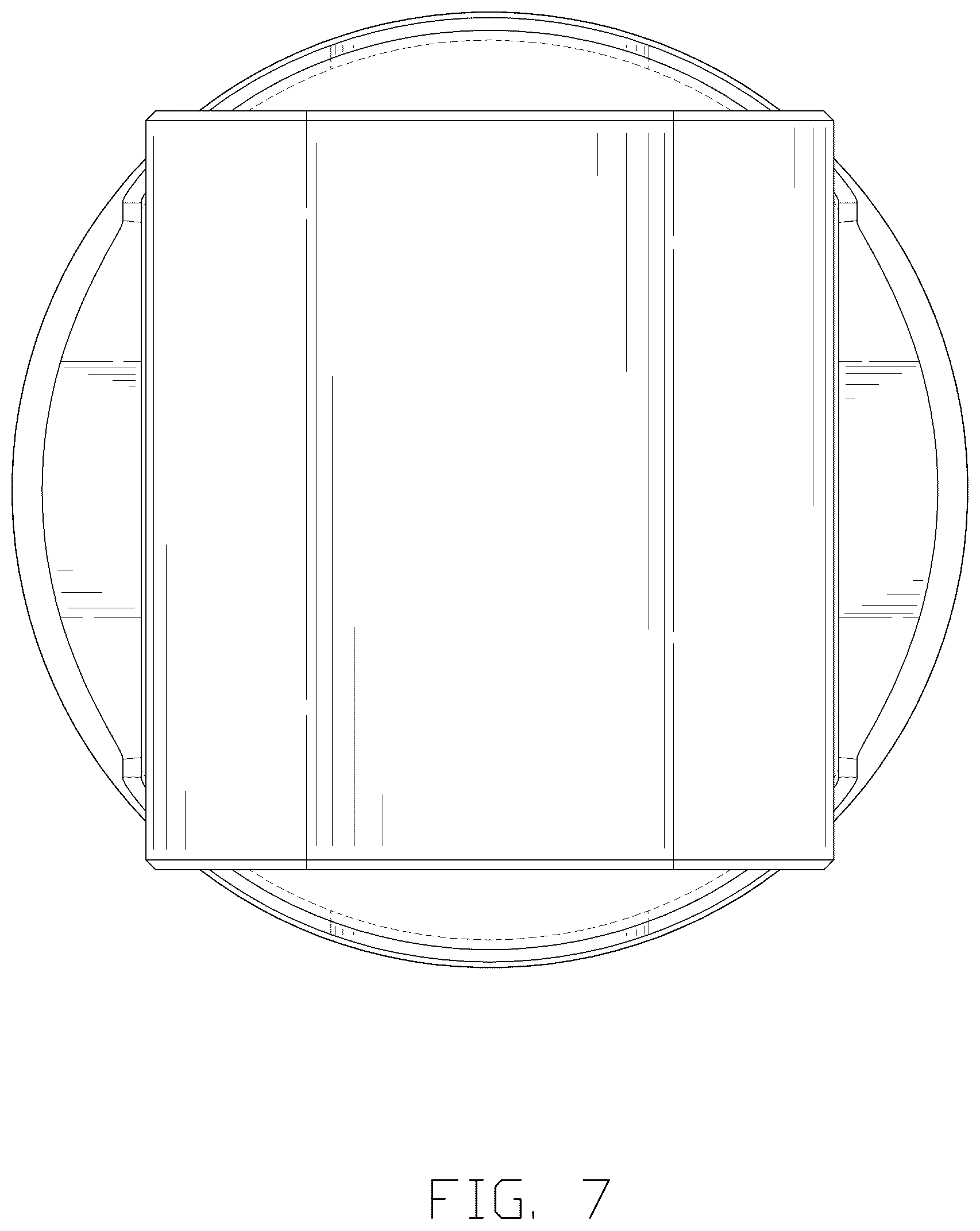

is a top plan view thereof; and,

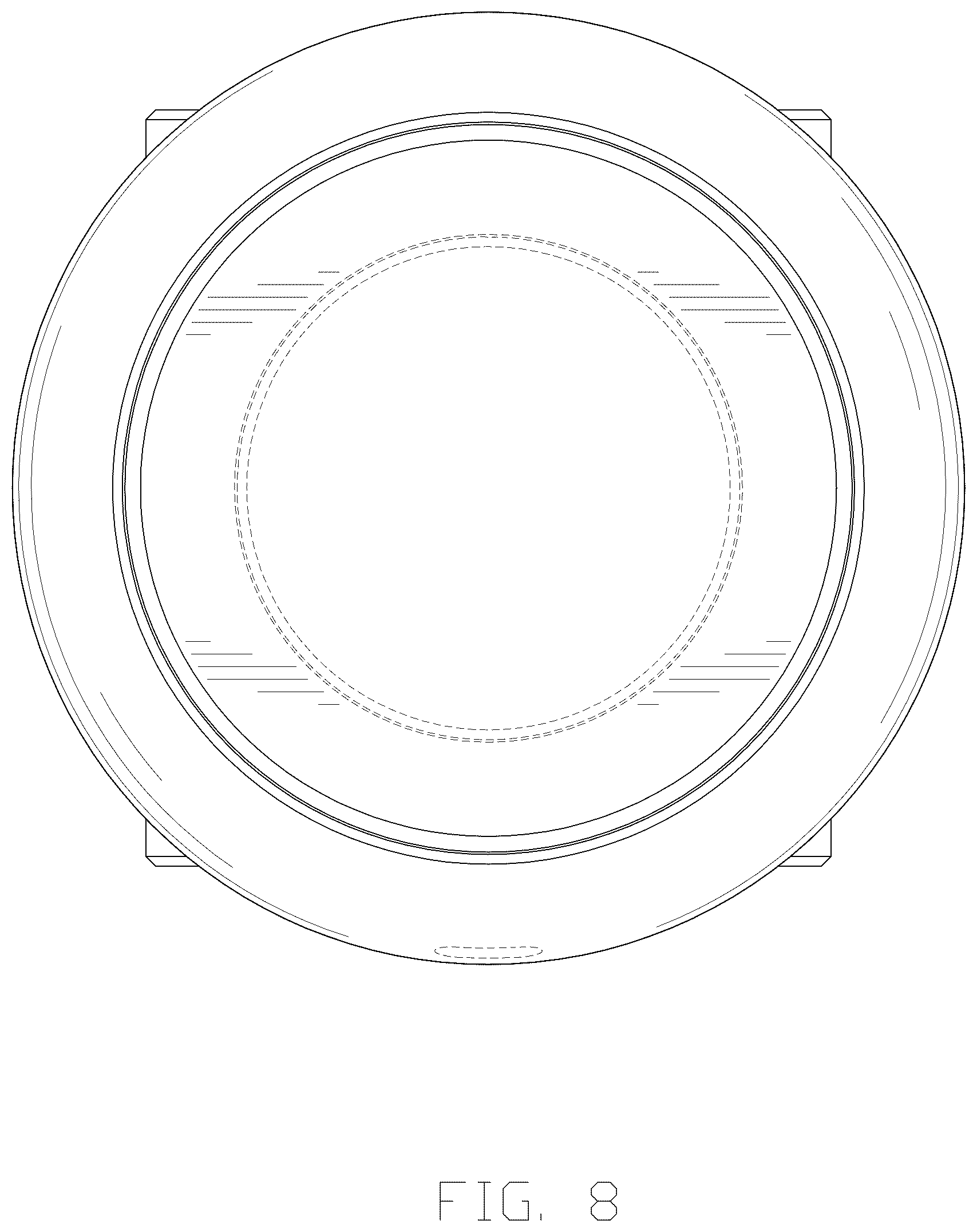

is a bottom plan view thereof.

The broken lines in the figures illustrate portions of the surveillance camera that form no part of the claimed design.
