Head-mounted Display

USD1044807No. D 1,044,807designGranted 10/1/2024
Patent USD1044807 — Head-mounted display — Figure 1
Fig. 1 · Head-mounted Display

Claims (1)

Claim 1 (Independent)

The ornamental design for a head-mounted display, as shown and described.

Full Description

Show full text →

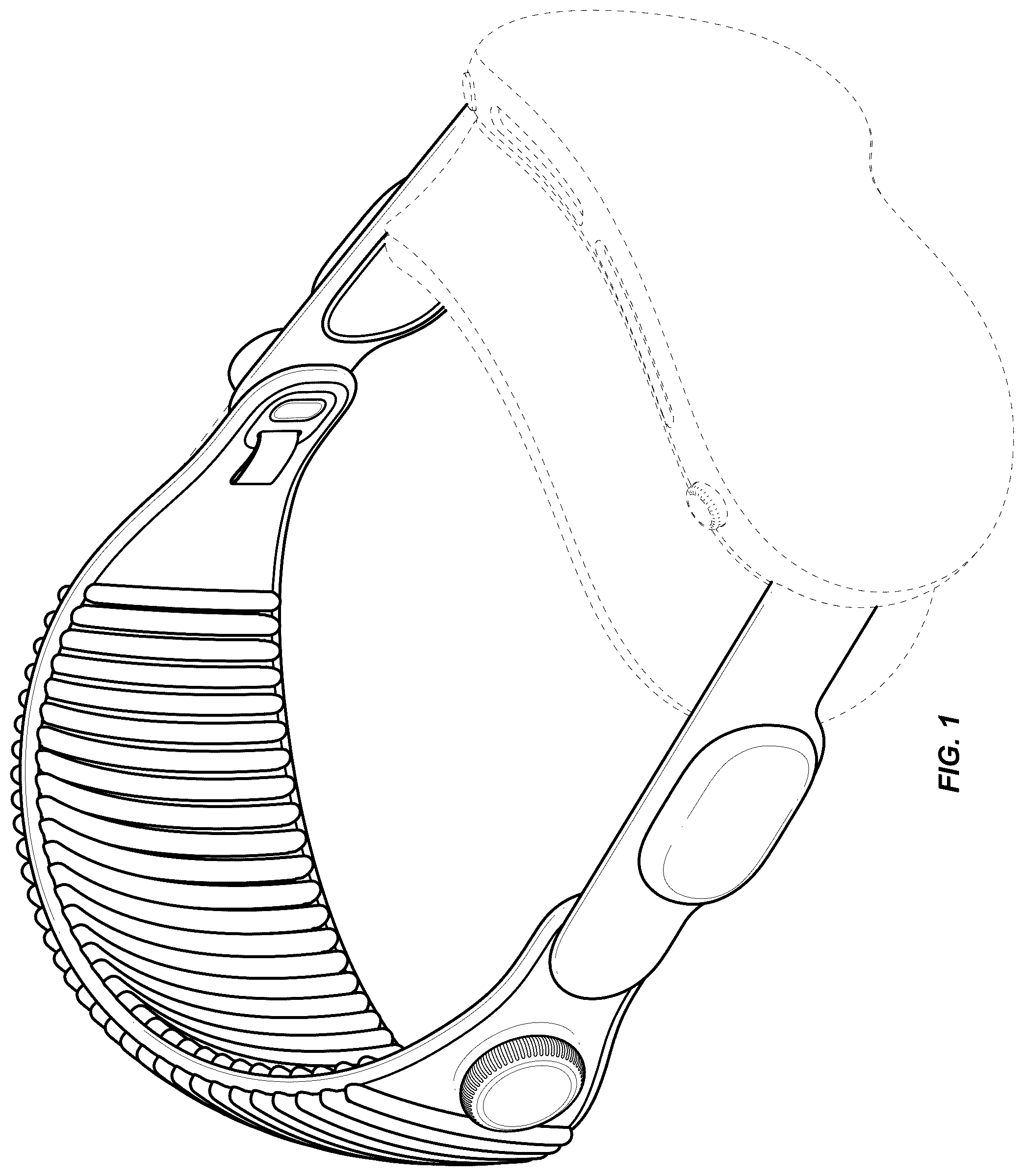

is a top front isometric view of a head-mounted display showing the claimed design;

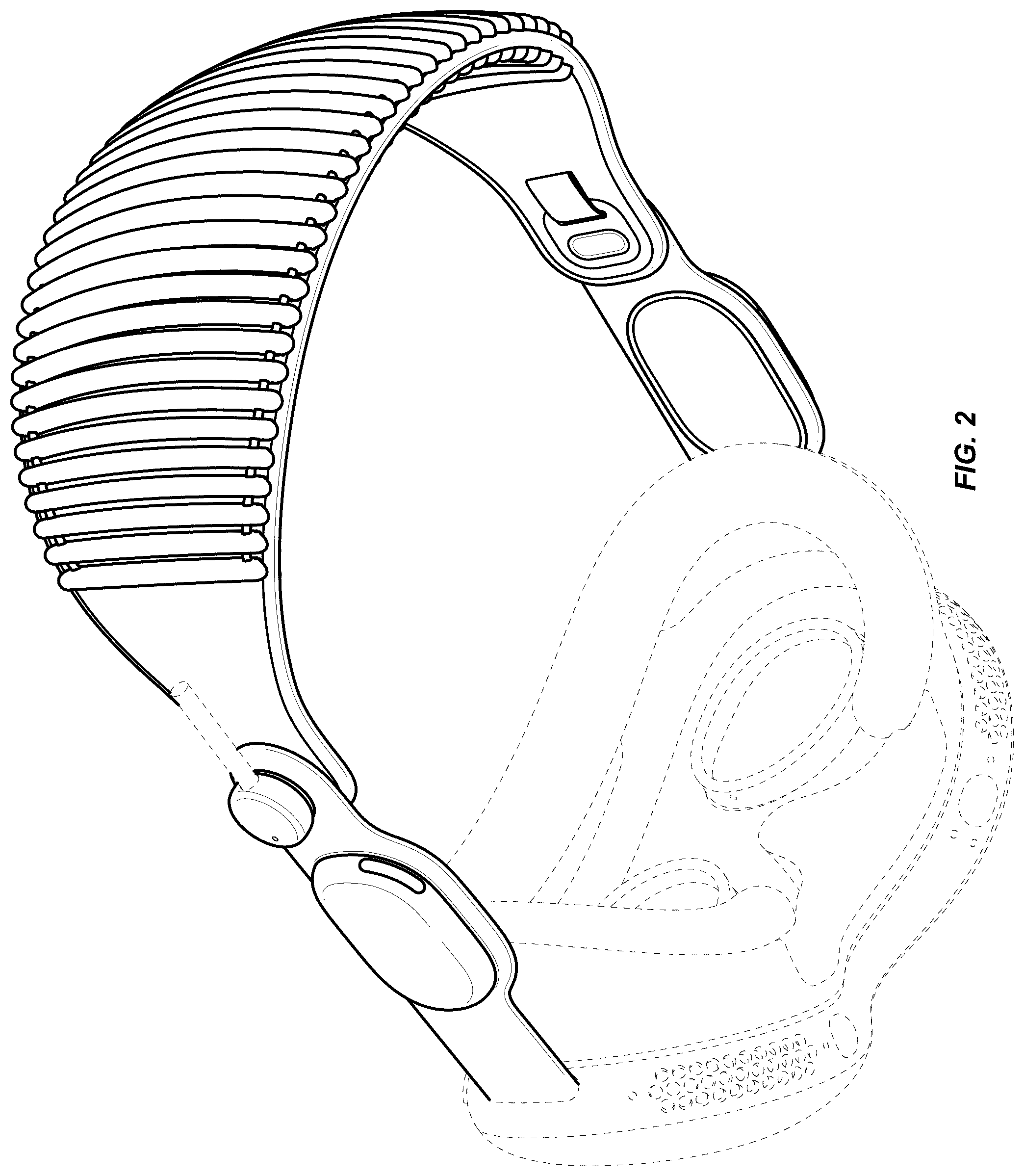

is a bottom rear isometric view thereof;

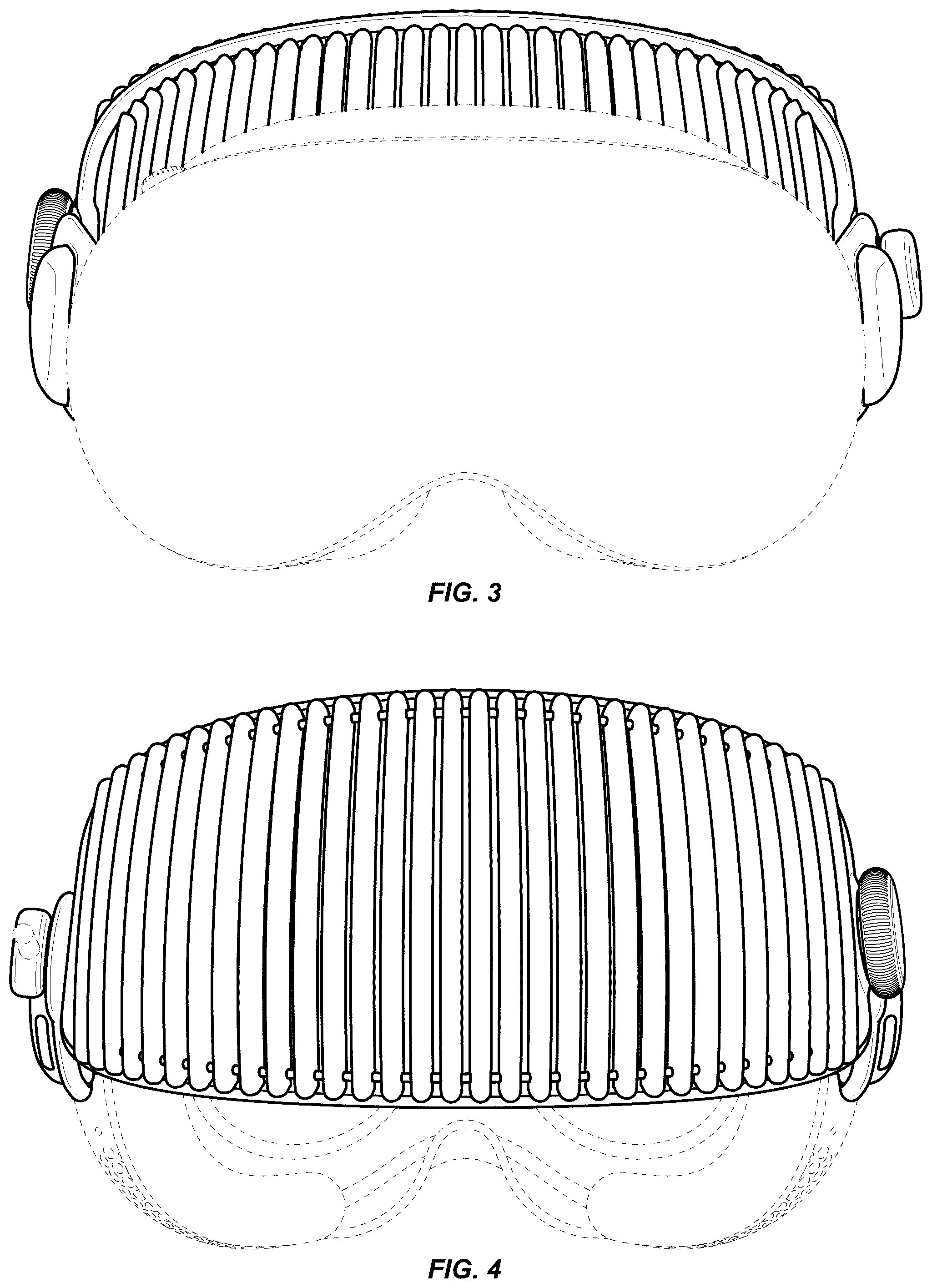

is a front elevation view thereof;

is a rear elevation view thereof;

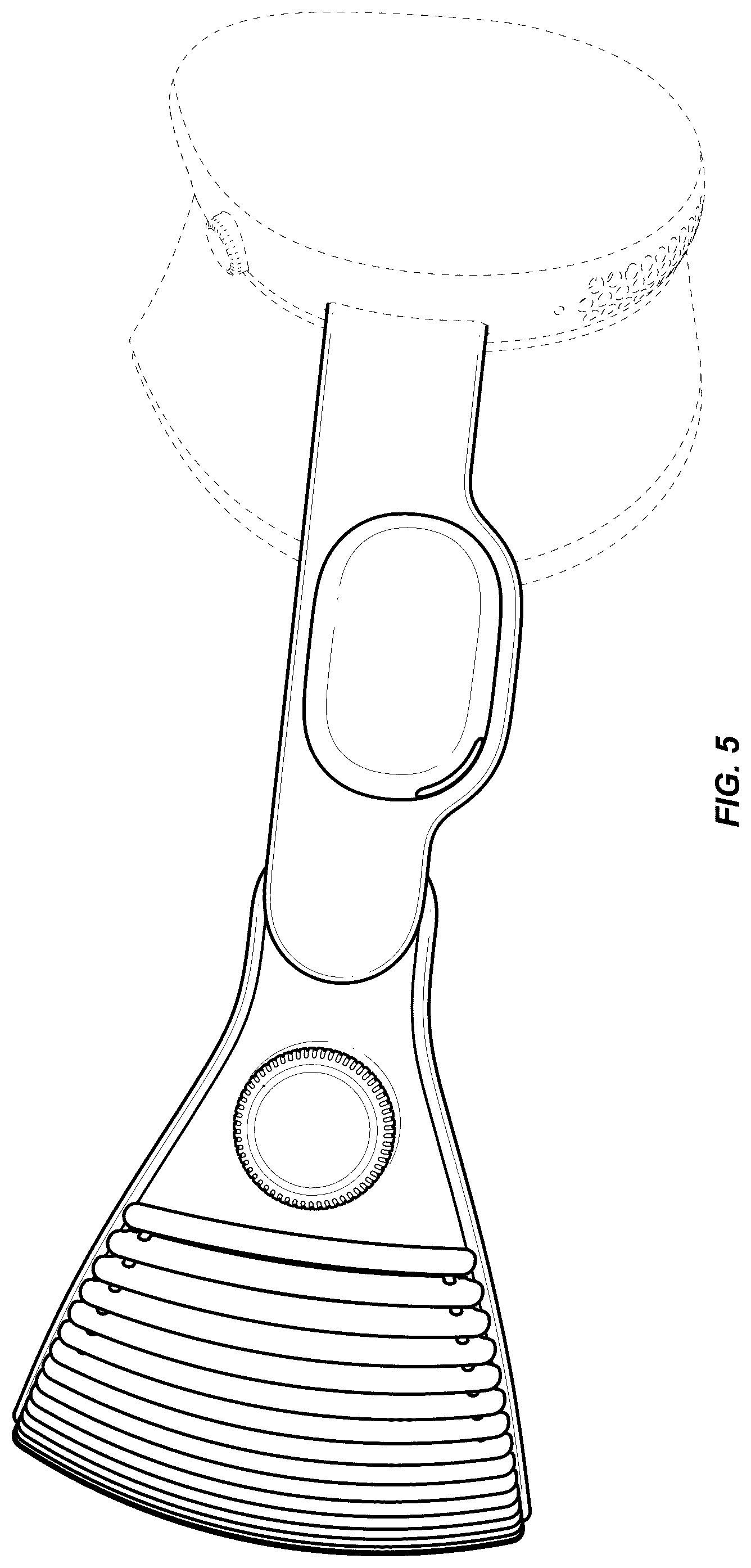

is a left side elevation view thereof;

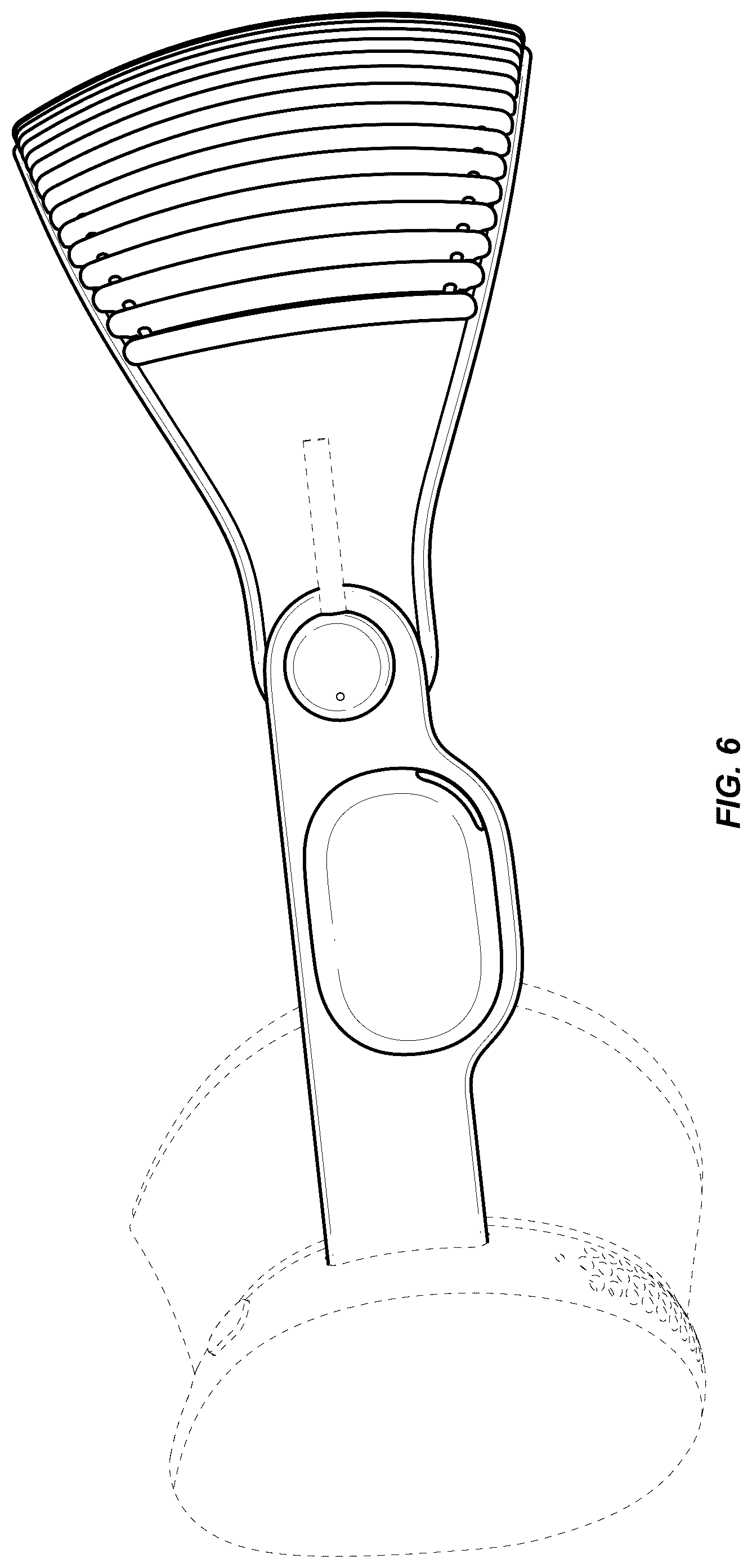

is a right side elevation view thereof;

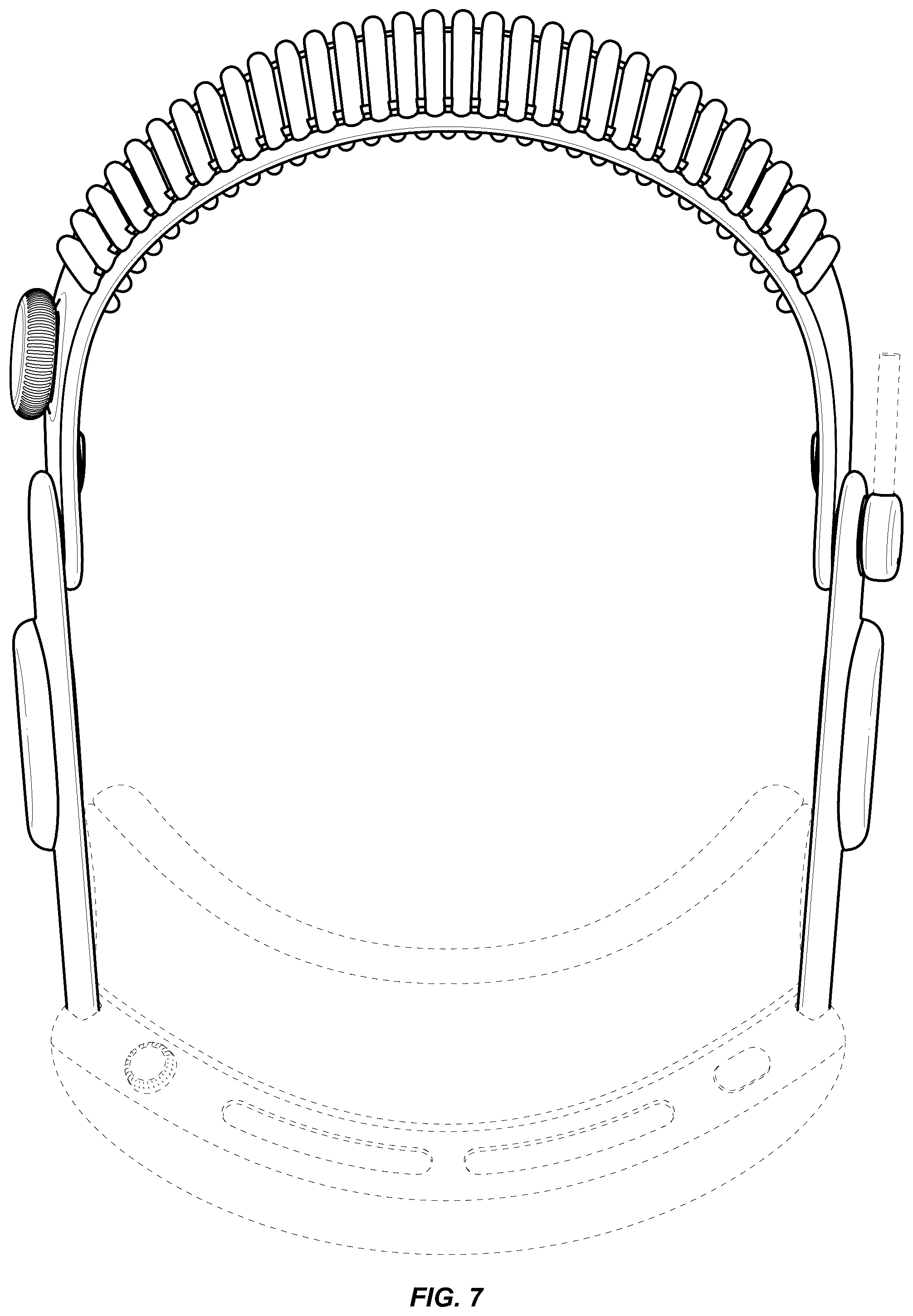

is a top plan view thereof; and,

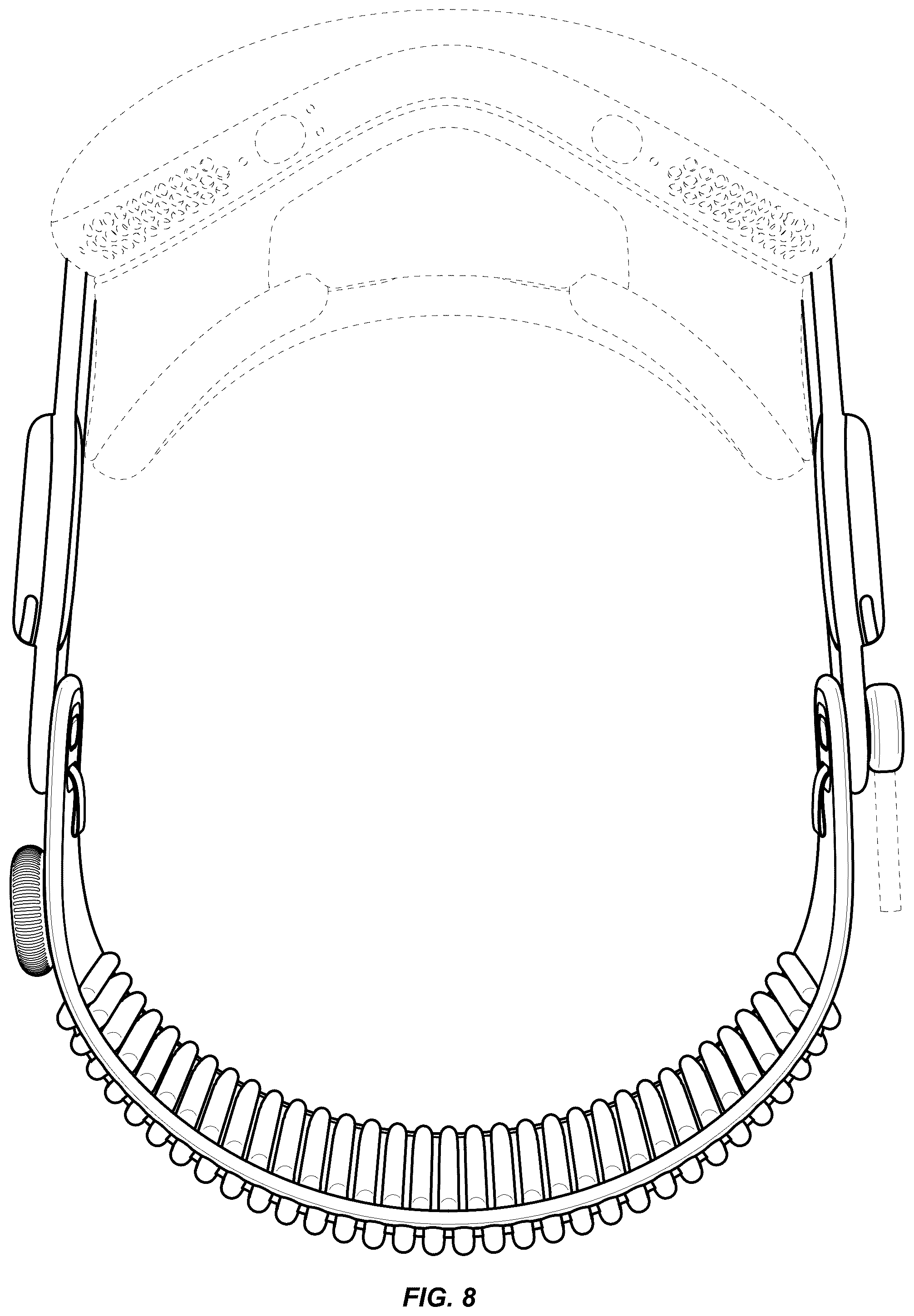

is a bottom plan view thereof.

The broken lines in the figures show portions of the head-mounted display that form no part of the claimed design.

Figures (7)

Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
