Charger

USD1044708No. D 1,044,708designGranted 10/1/2024
Patent USD1044708 — Charger — Figure 1
Fig. 1 · Charger

Claims (1)

Claim 1 (Independent)

The ornamental design for a charger, as shown and described.

Full Description

Show full text →

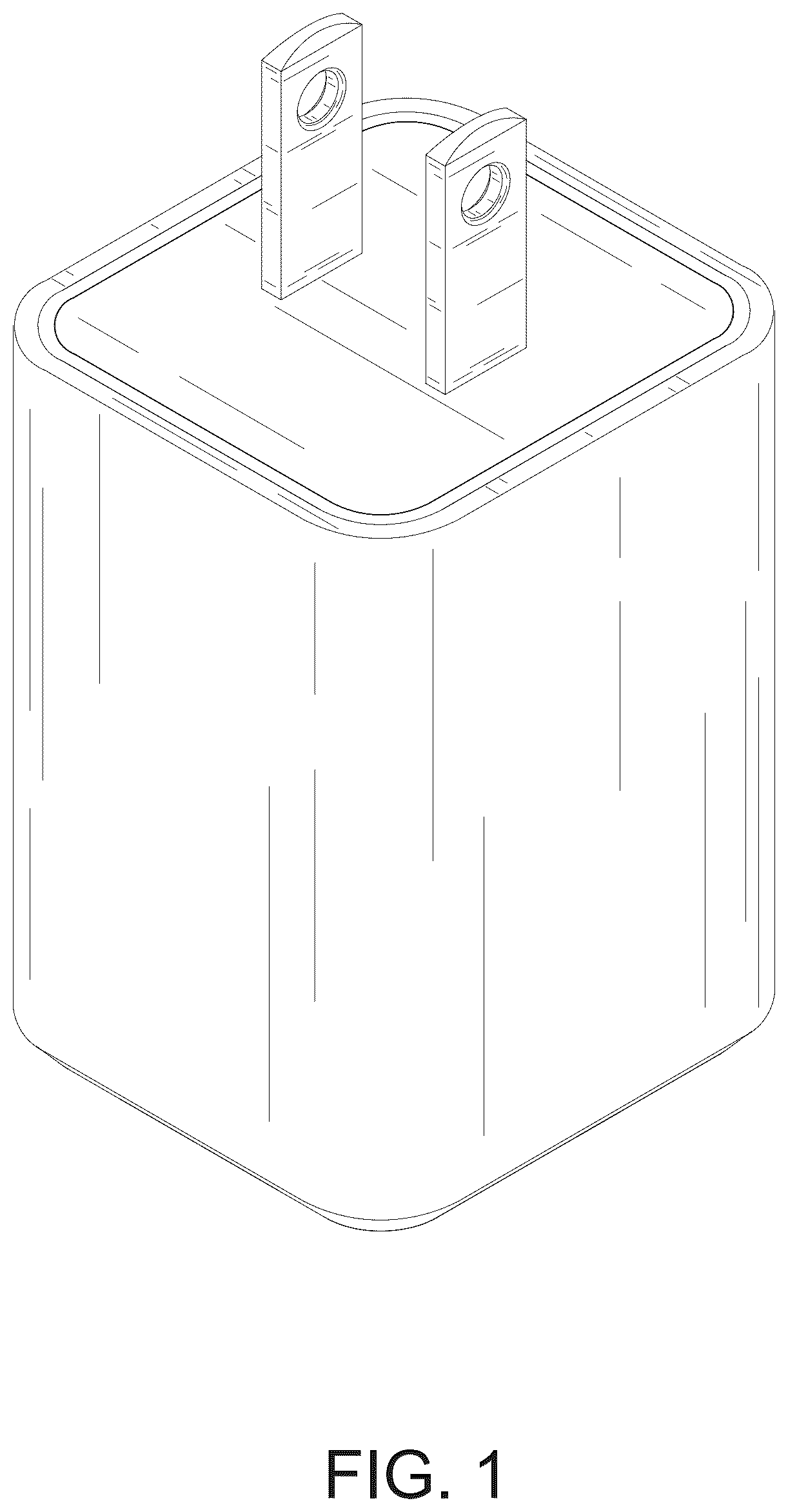

is a perspective view of a charger, showing my new design;

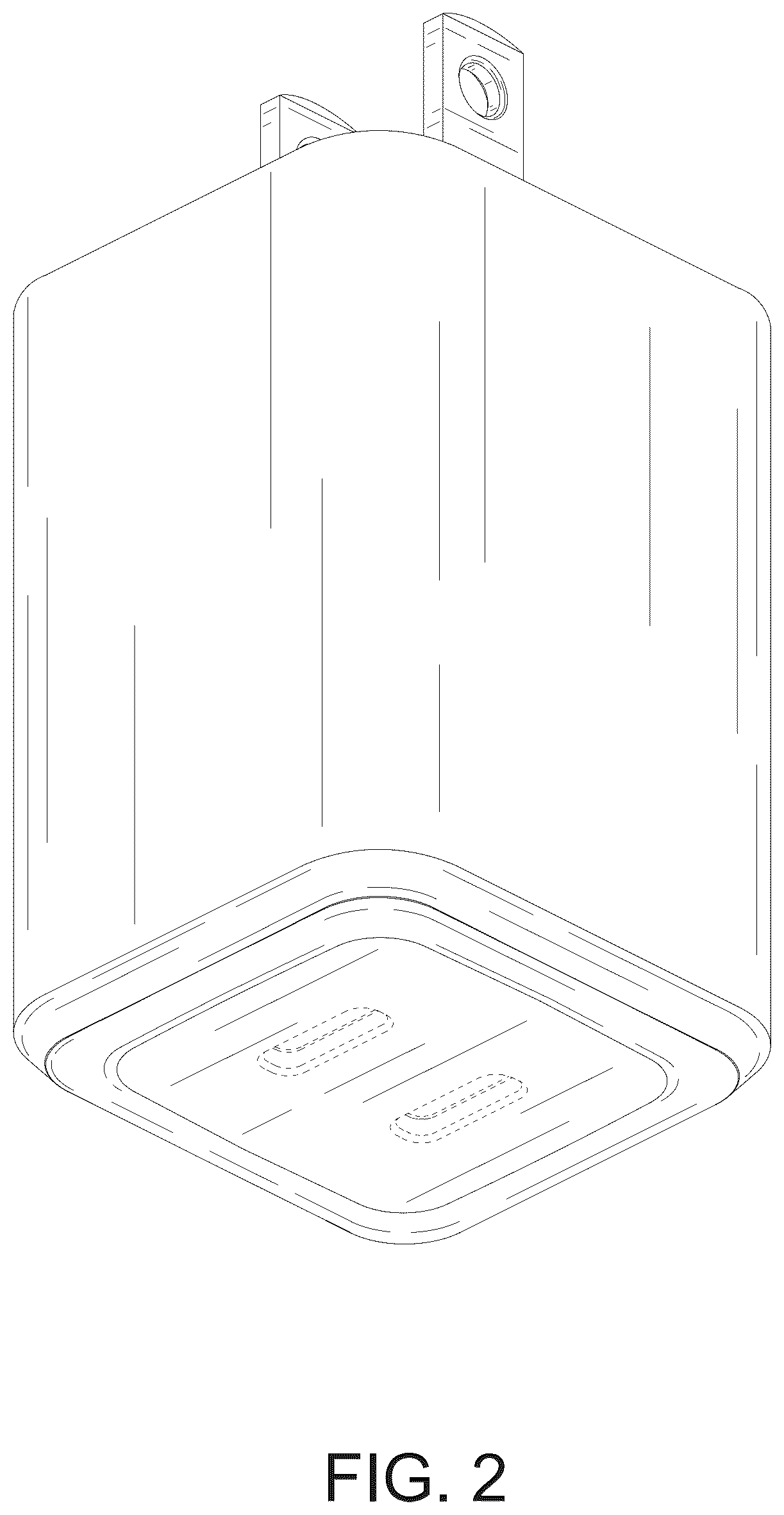

is another perspective view thereof;

is a front view thereof;

is a rear view thereof;

is a left side view thereof;

is a right side view thereof;

is a top plan view thereof; and,

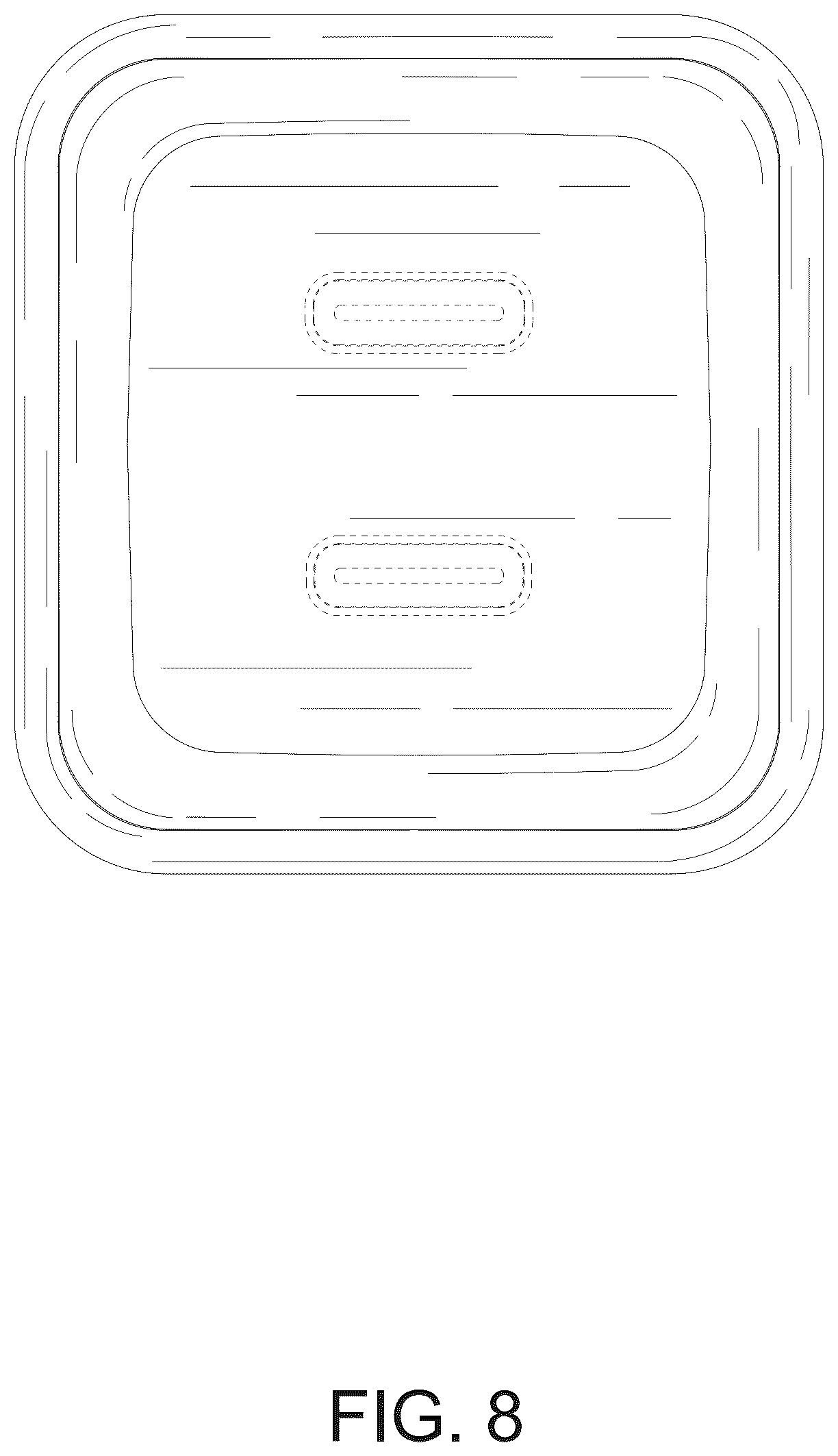

is a bottom plan view thereof.

The broken line showing ofthe charger is for the purpose of illustrating article and forms no part of the claimed design.
