Non-pneumatic Tire

USD1044699No. D 1,044,699designGranted 10/1/2024

Patent USD1044699 — Non-pneumatic tire — Figure 1 — Fig. 1 · Non-pneumatic Tire

Claims (1)

Claim 1 (Independent)

The ornamental design for a non-pneumatic tire, as shown and described.

Full Description

Show full text →

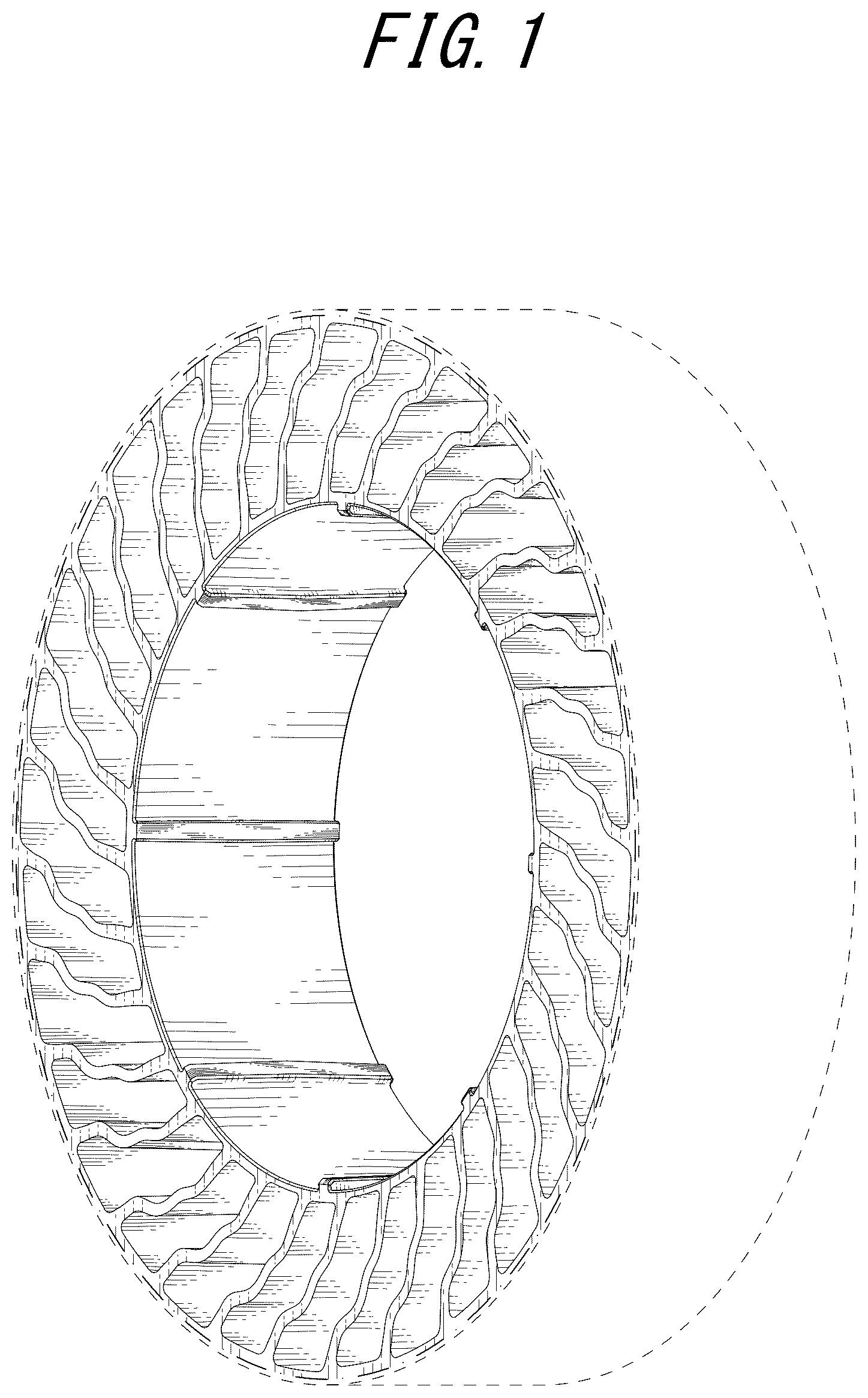

is a perspective view of a non-pneumatic tire showing my new design;

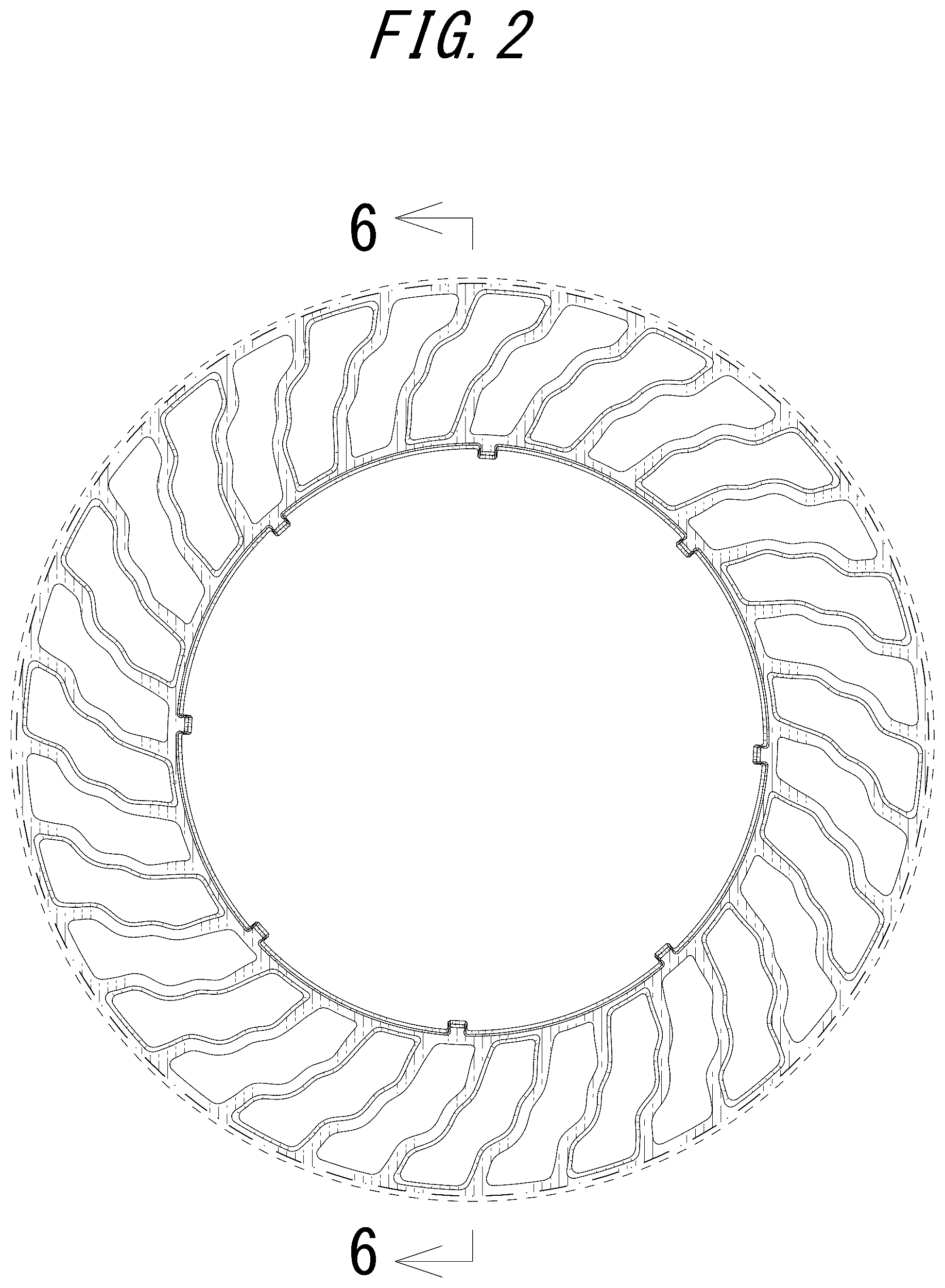

is a front view thereof;

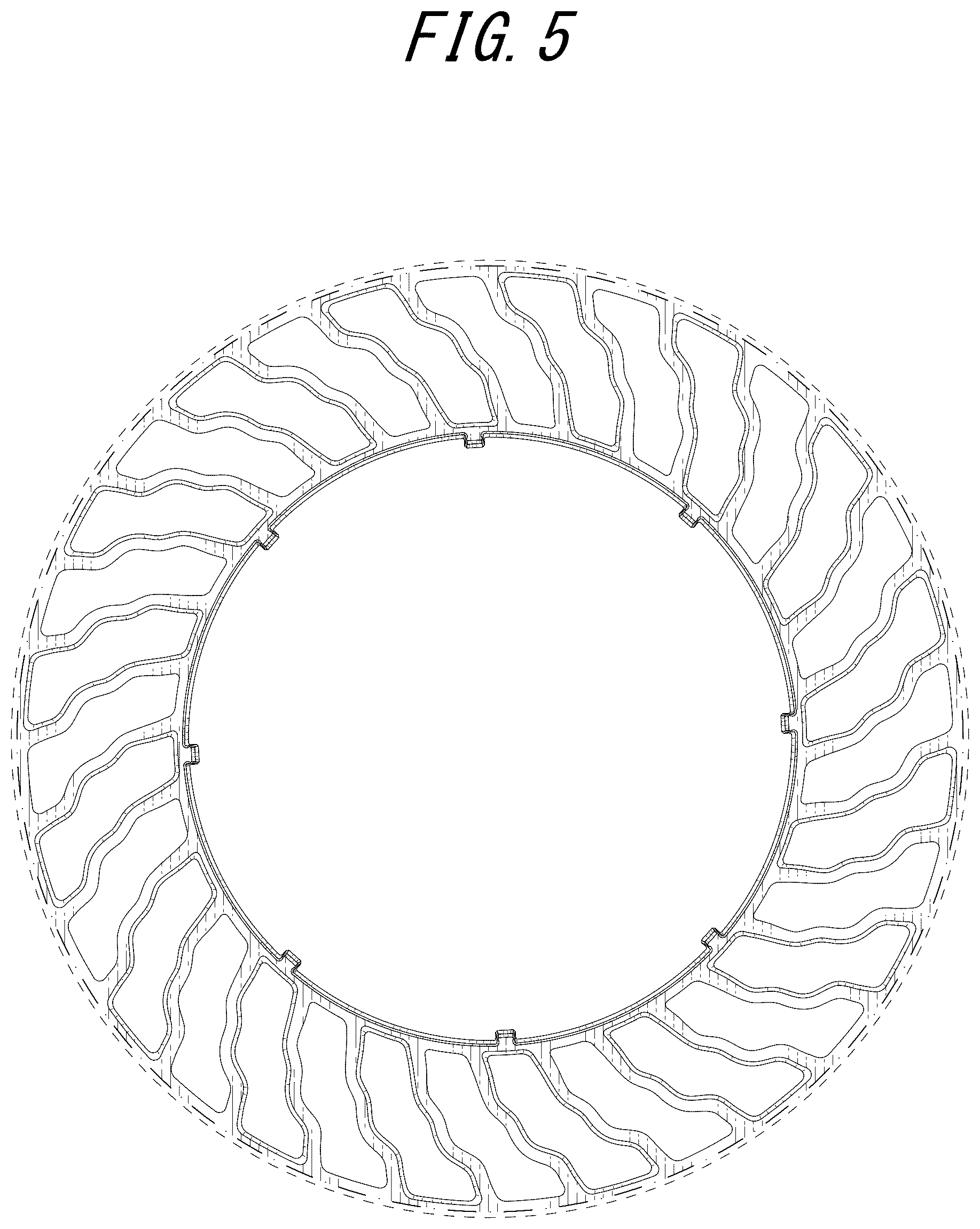

is a top view thereof, the bottom view being identical;

is a right side view thereof, the left side view being identical;

is a rear view thereof; and,

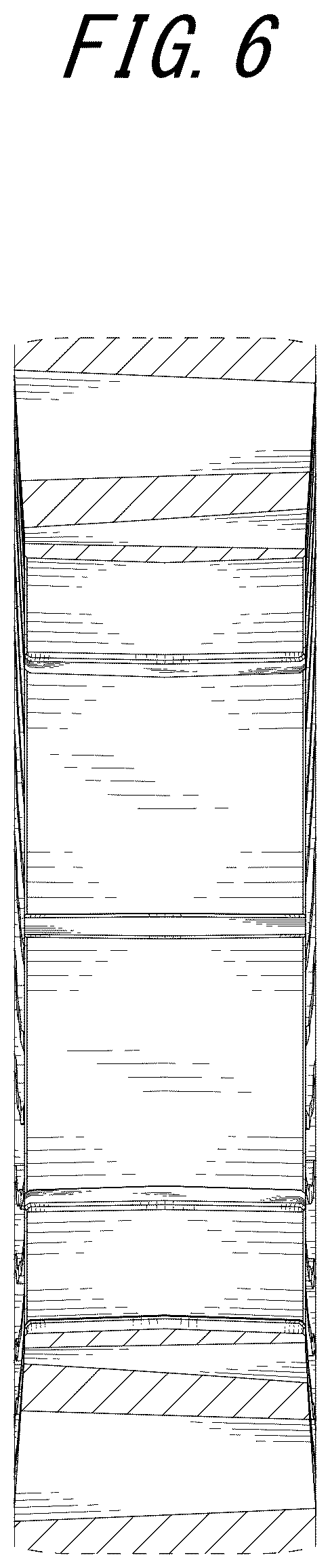

is a cross-sectional view thereof taken along line 6 - 6 in .

Broken lines show environmental portions of a non-pneumatic tire that are not being claimed, and form no part of the claimed design. The dash-dot-dash broken lines are used to show the boundary between unclaimed and claimed subject matter, and thus form no part of the claimed design.

Figures (6)

Patent USD1044699 Figure 1 – Non-pneumatic tire — Fig. 1

Patent USD1044699 Figure 2 – Non-pneumatic tire — Fig. 2

Patent USD1044699 Figure 3 – Non-pneumatic tire — Fig. 3

Patent USD1044699 Figure 4 – Non-pneumatic tire — Fig. 4

Patent USD1044699 Figure 5 – Non-pneumatic tire — Fig. 5

Patent USD1044699 Figure 6 – Non-pneumatic tire — Fig. 6
