Windshield Wiper

USD1044676No. D 1,044,676designGranted 10/1/2024
Patent USD1044676 — Windshield wiper — Figure 1
Fig. 1 · Windshield Wiper

Claims (1)

Claim 1 (Independent)

The ornamental design for windshield wiper, as shown and described.

Full Description

Show full text →

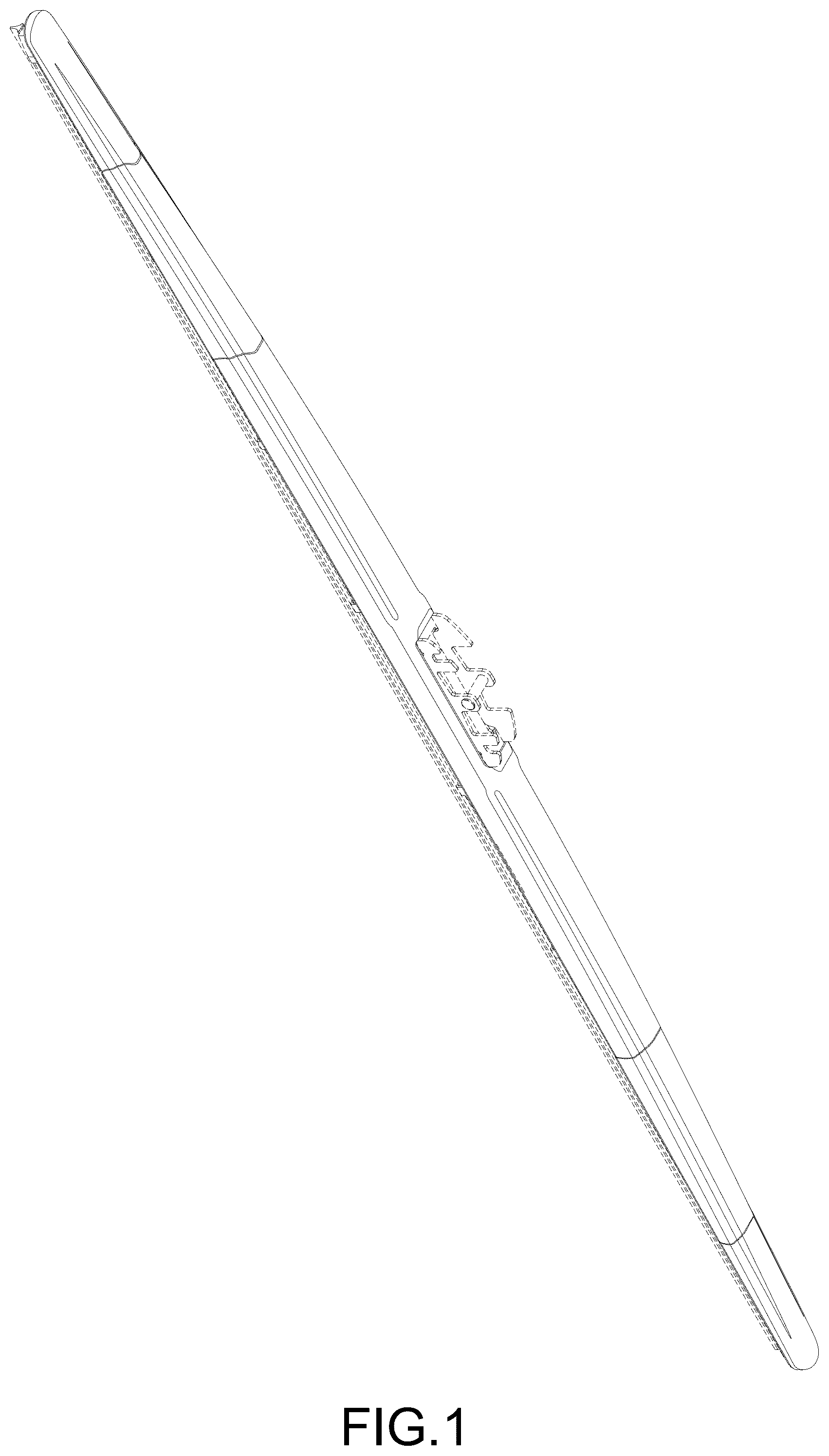

is a perspective view of windshield wiper showing my new design;

is a front view thereof;

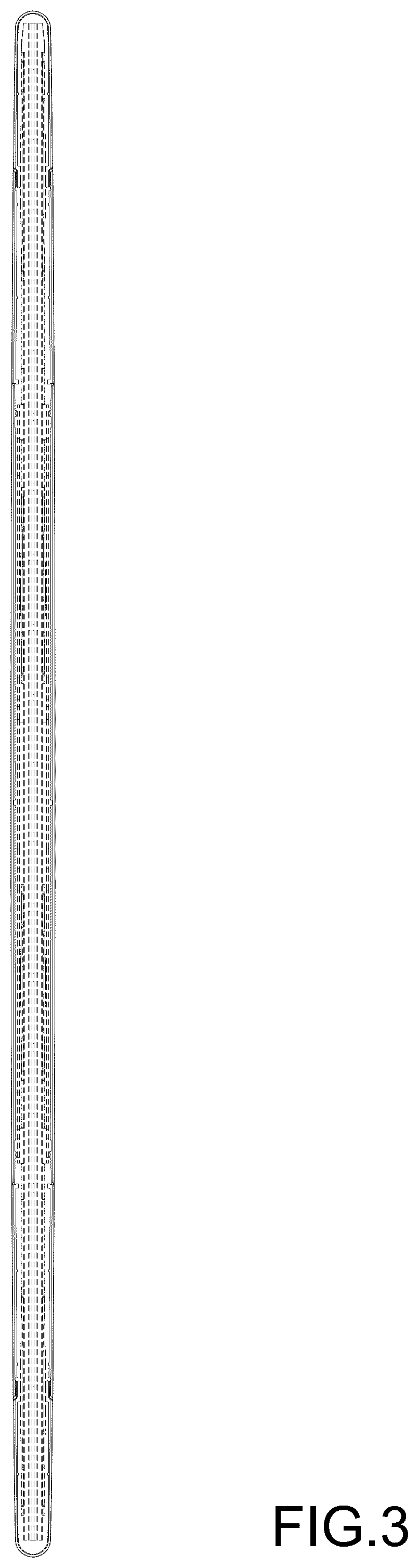

is a rear view thereof;

is a left side view thereof;

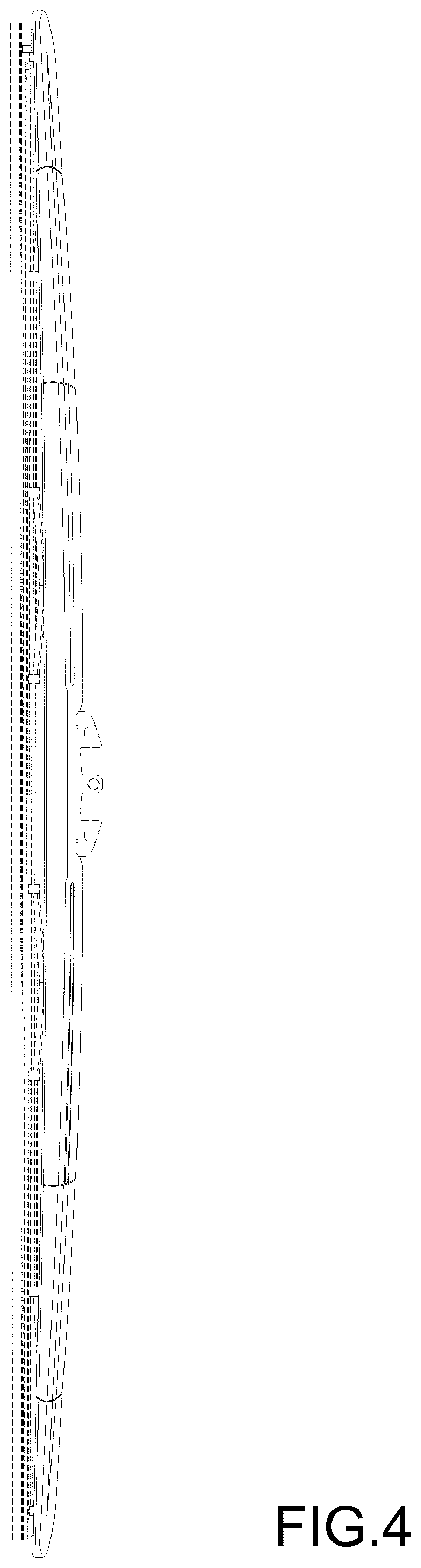

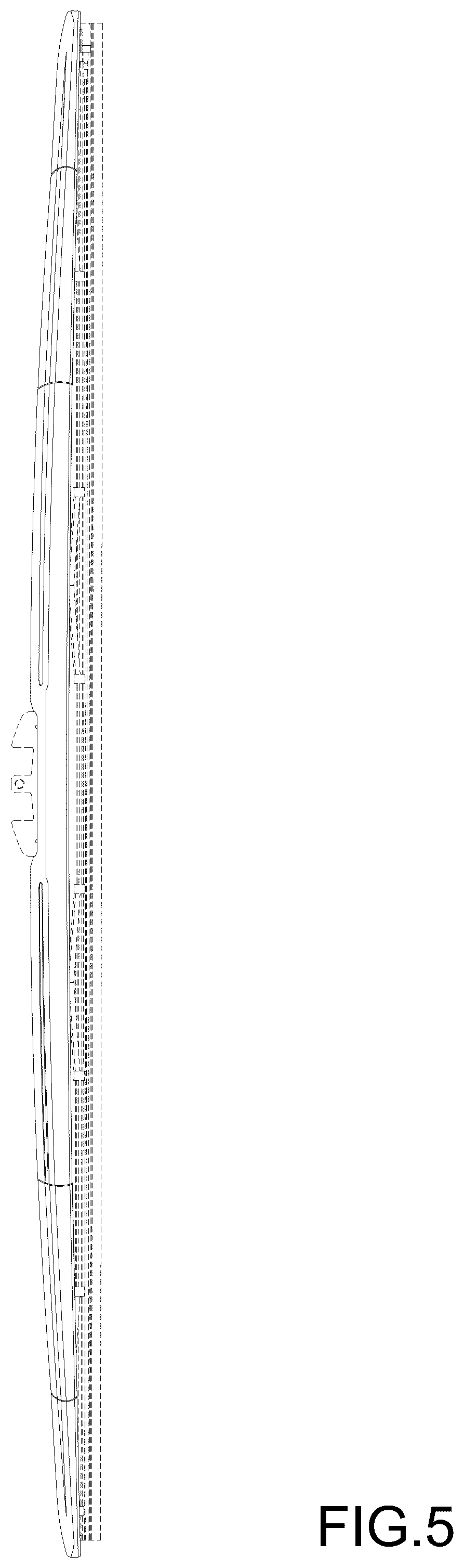

is a right side view thereof;

is a top view thereof; and,

is a bottom view thereof.

The broken lines shown in the figures are for the purpose of illustrating portions of the windshield wiper and form no part of the claimed design.
