Grille

USD1044610No. D 1,044,610designGranted 10/1/2024
Patent USD1044610 — Grille — Figure 1
Fig. 1 · Grille

Claims (1)

Claim 1 (Independent)

The ornamental design for a grille, as shown and described.

Full Description

Show full text →

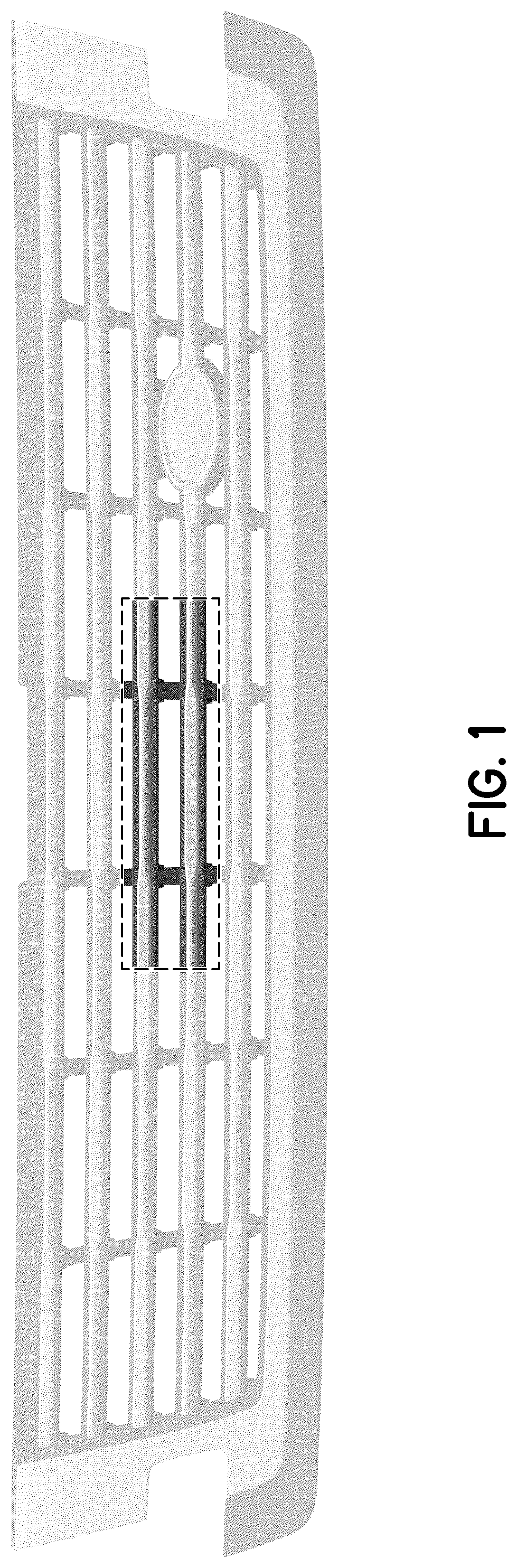

is front view of a grille according to the present invention.

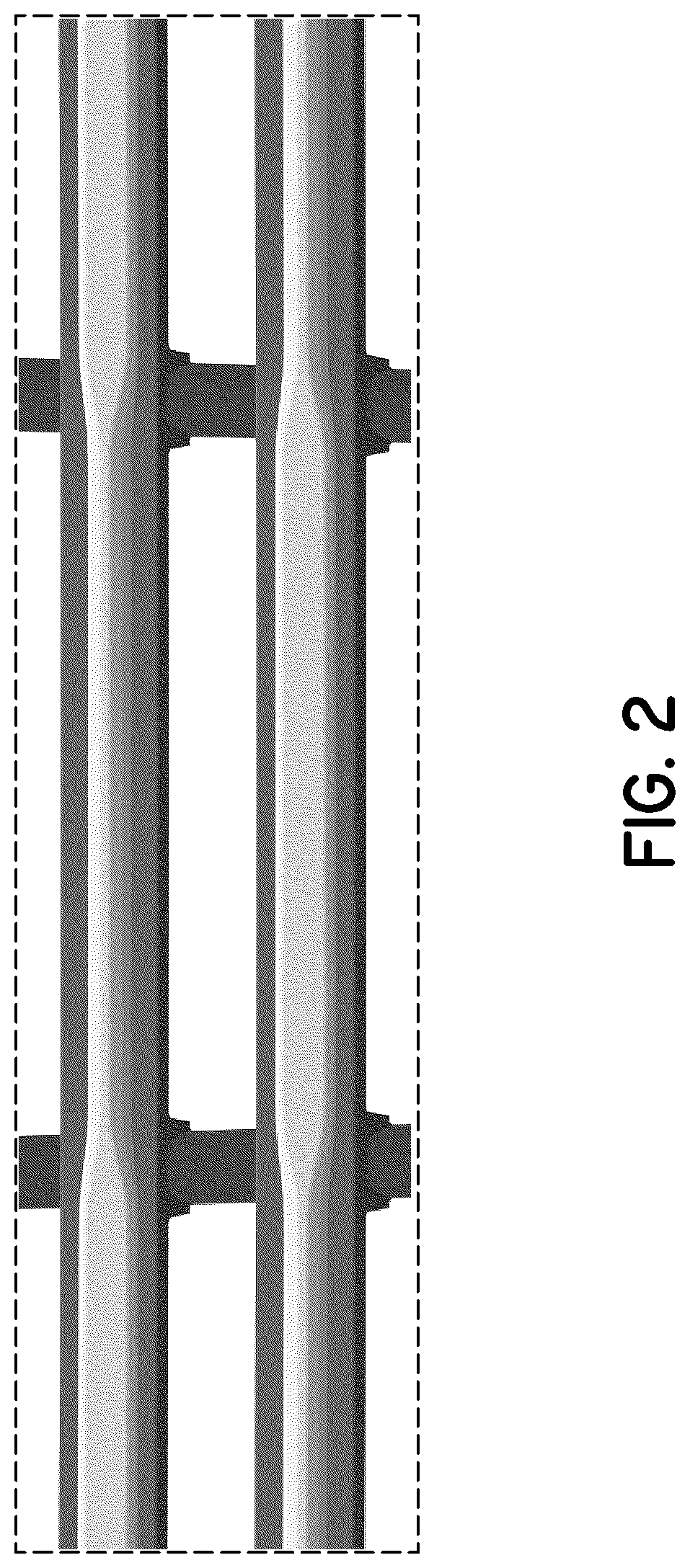

is a front enlarged view of the grille shown in .

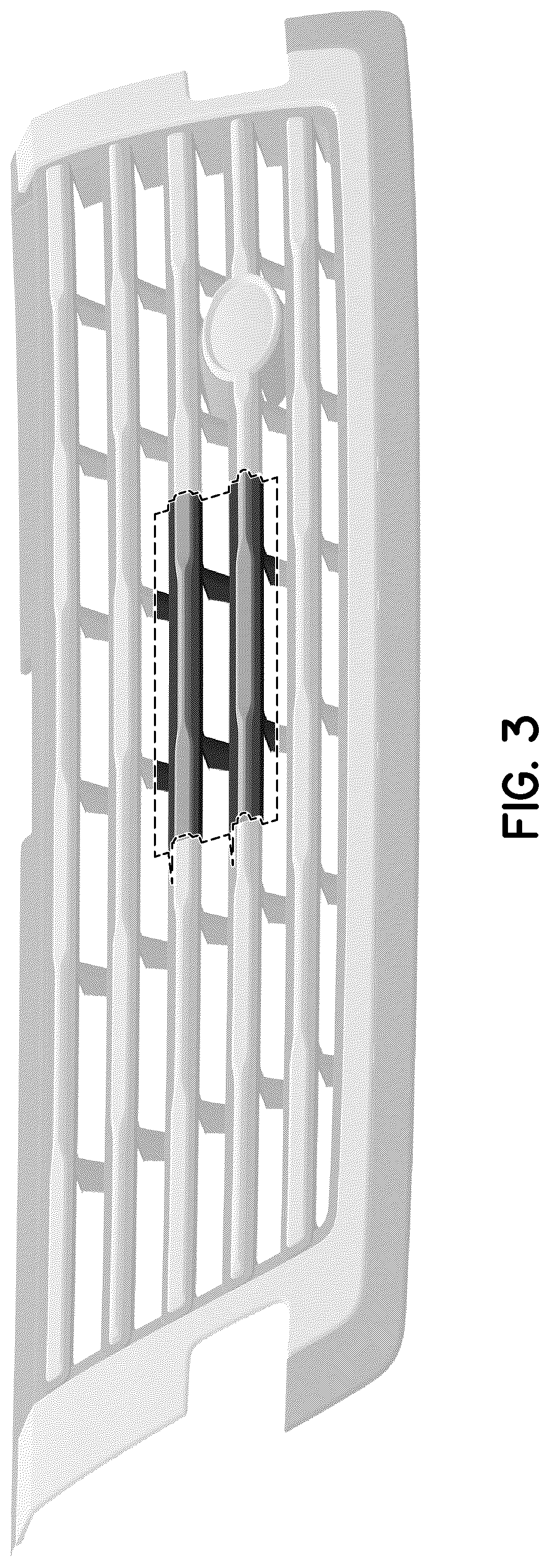

is a front left perspective view thereof; and,

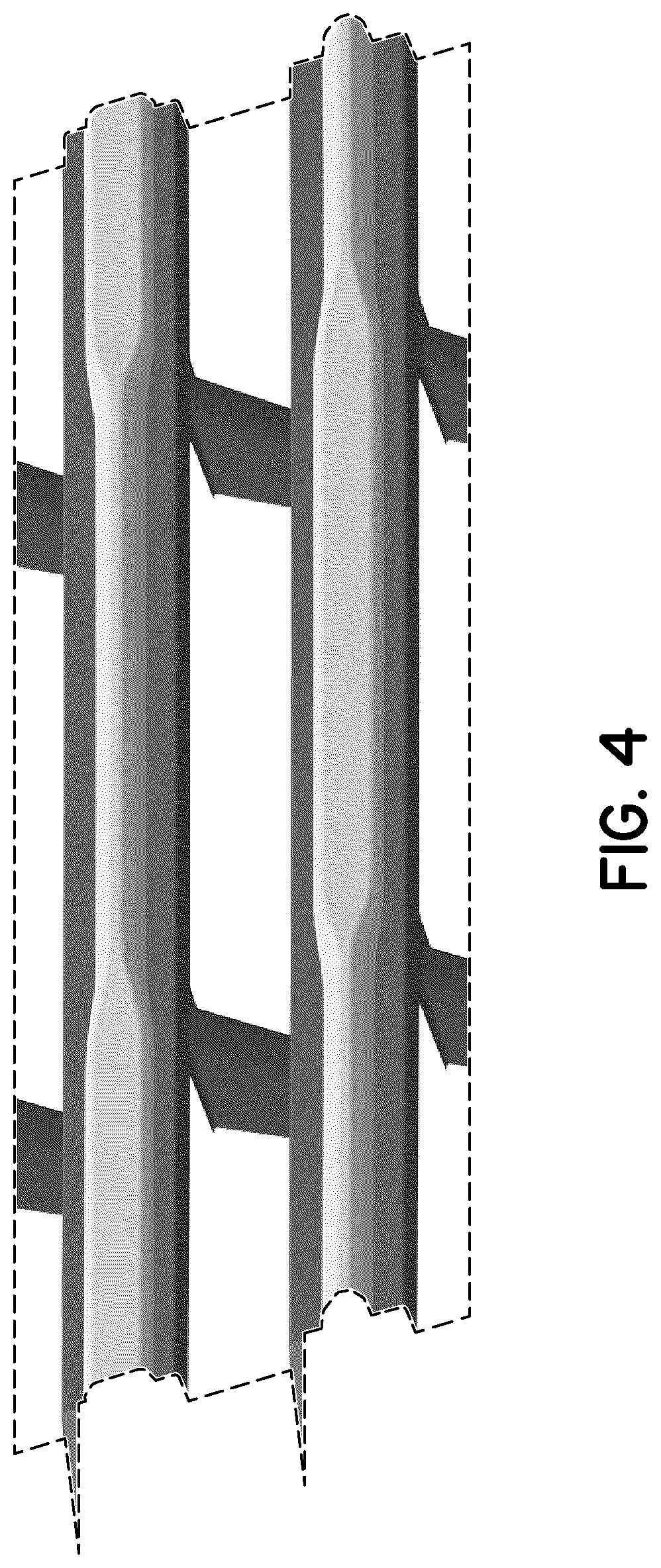

is a front left perspective view thereof.

Broken lines included in the drawings represent a boundary that forms no part of the claimed design. Portions of the grille shown in half-tone shading surrounding the broken line represent environmental subject matter that forms no part of the claimed design.
