USD1044504No. D 1,044,504designGranted 10/1/2024
Patent USD1044504 — Bottle — Figure 1
Fig. 1 · Bottle

Claims (1)

Claim 1 (Independent)

The ornamental design for a bottle, as shown and described.

Full Description

Show full text →

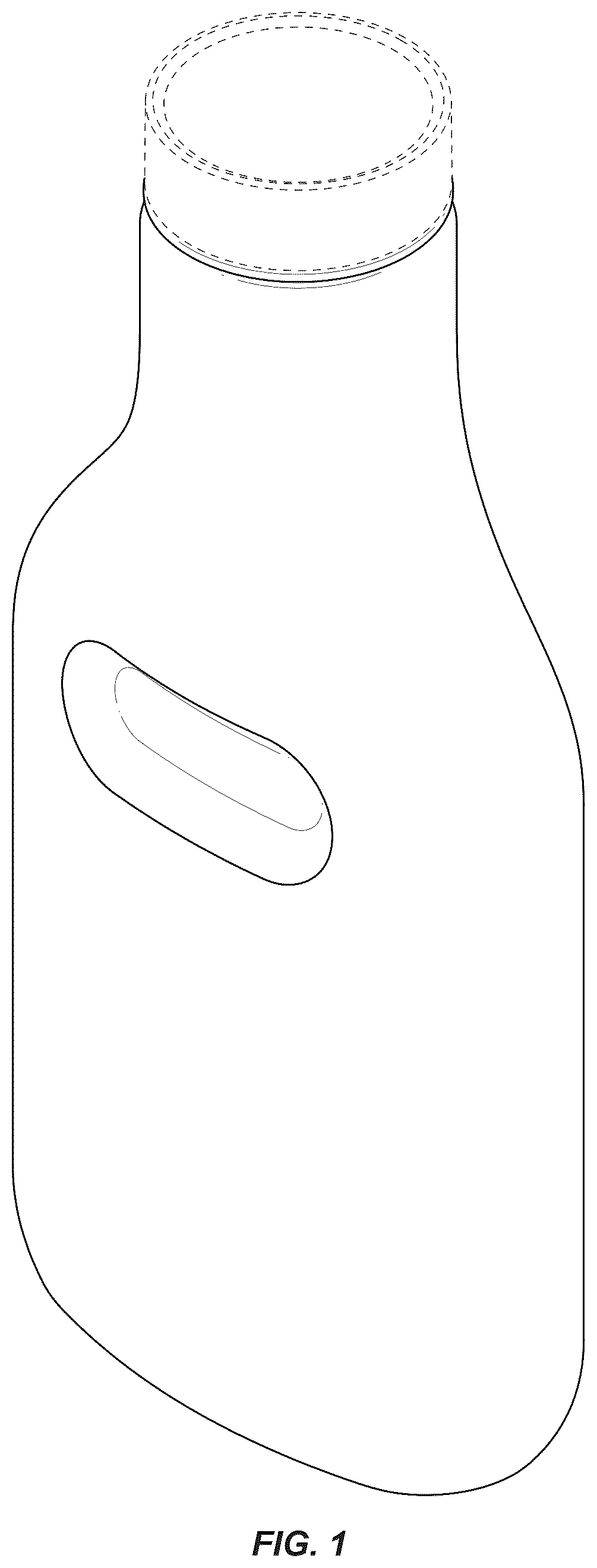

is a top front perspective view of a bottle showing the claimed design;

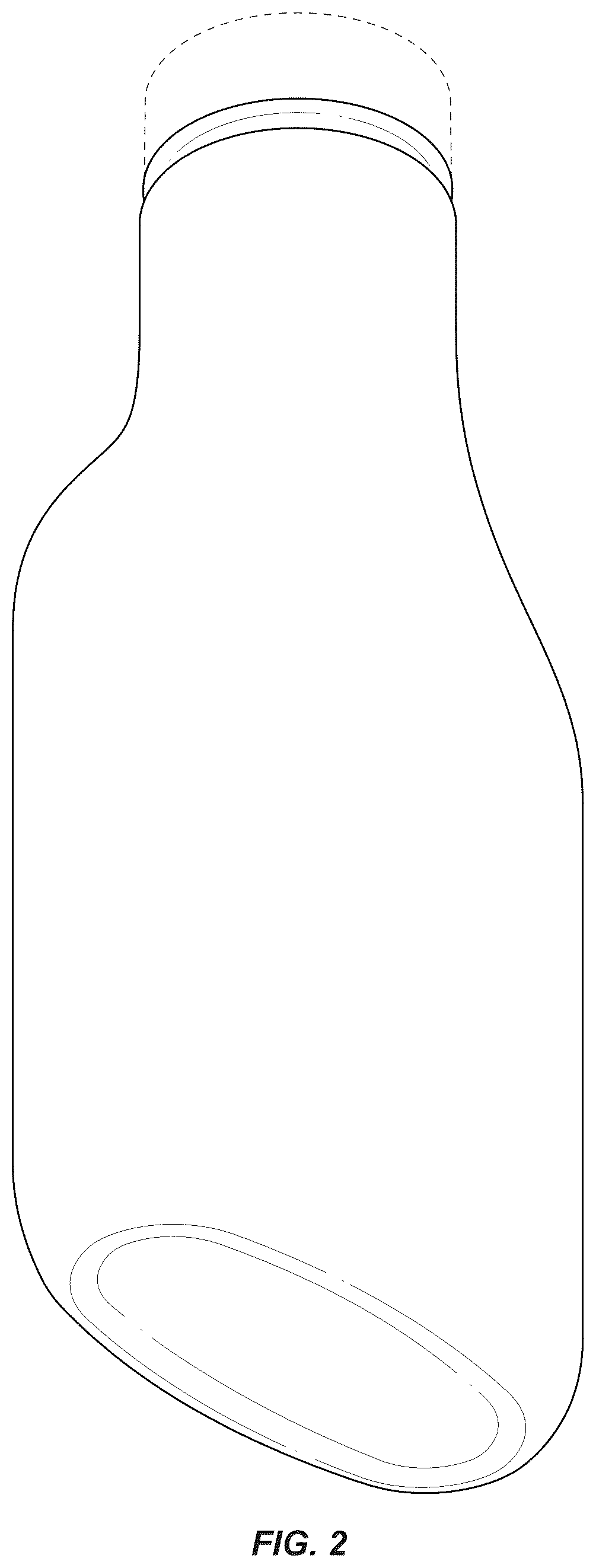

is bottom rear perspective view thereof;

is a front view thereof;

is a rear view thereof;

is a left side view thereof;

is a right side view thereof;

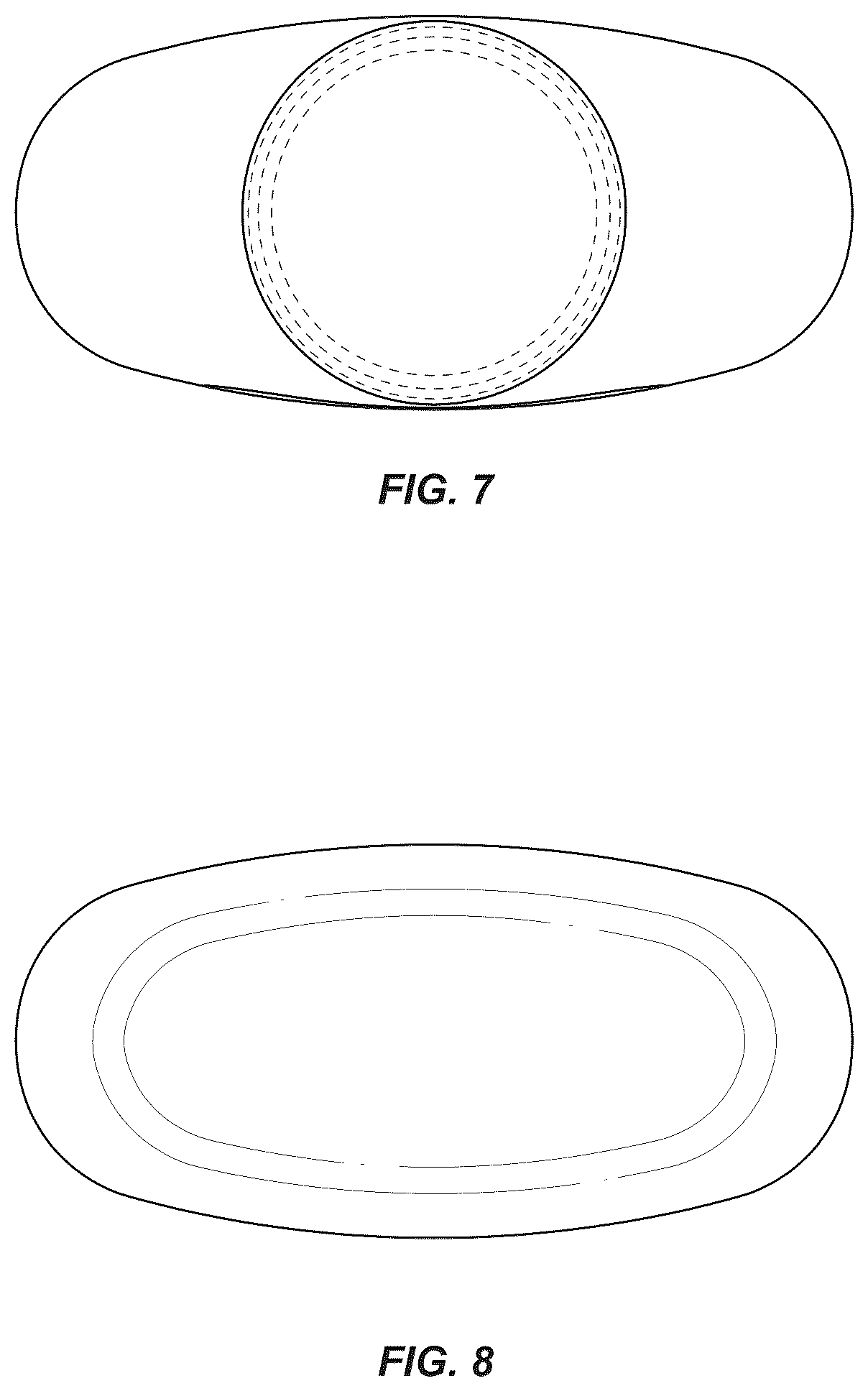

is a top view thereof, and,

is a bottom view thereof.

The broken lines in the figures show portions of the bottle that form no part of the claimed design.
