Hinge for Cooking Appliance

1. Hinge for cooking appliance

1 . 1 : Perspective

1 . 2 : Front

1 . 3 : Back

1 . 4 : Left

1 . 5 : Right

1 . 6 : Top

1 . 7 : Bottom

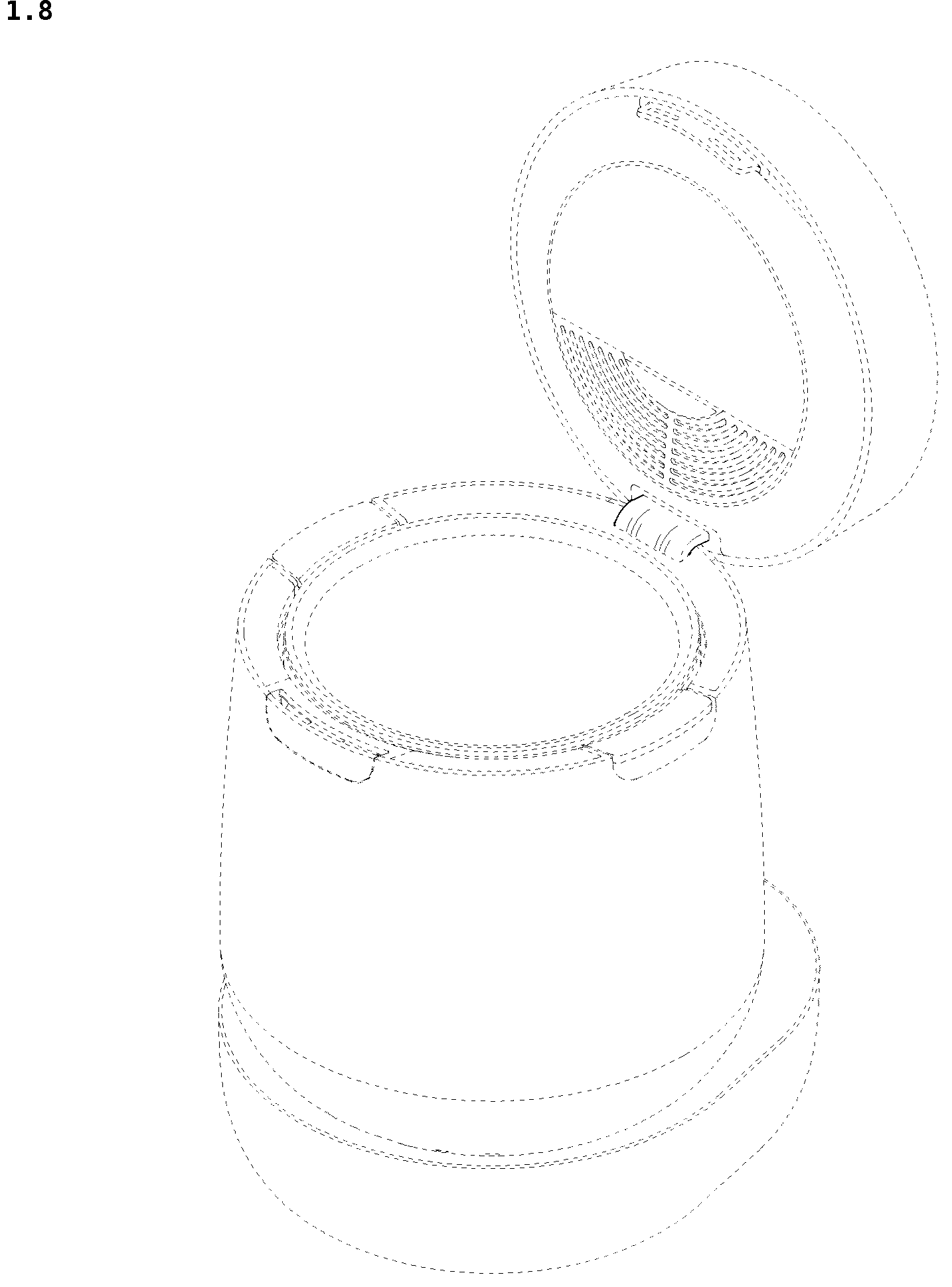

1 . 8 : Perspective view 2

1 . 9 : Back view 2

The broken lines depict portions of hinge for cooking appliance that form no part of the claimed design; reproduction 1 . 8 is a perspective view showing the state of use that the claimed design has been attached to a cooking appliance; reproduction 1 . 9 is a back view showing the state of use that the claimed design has been attached to a cooking appliance and the lid has been closed; this design is a Hinge for cooking appliance which connects the main body and the lid part of the cooking appliance as shown in reproductions 1 . 8 and 1 . 9 ; this design is not exposed from the outside when the lid part is closed.
