Claims (1)
Claim 1 (Independent)
The ornamental design for a fry pan, as shown and described.
Full Description
Show full text →

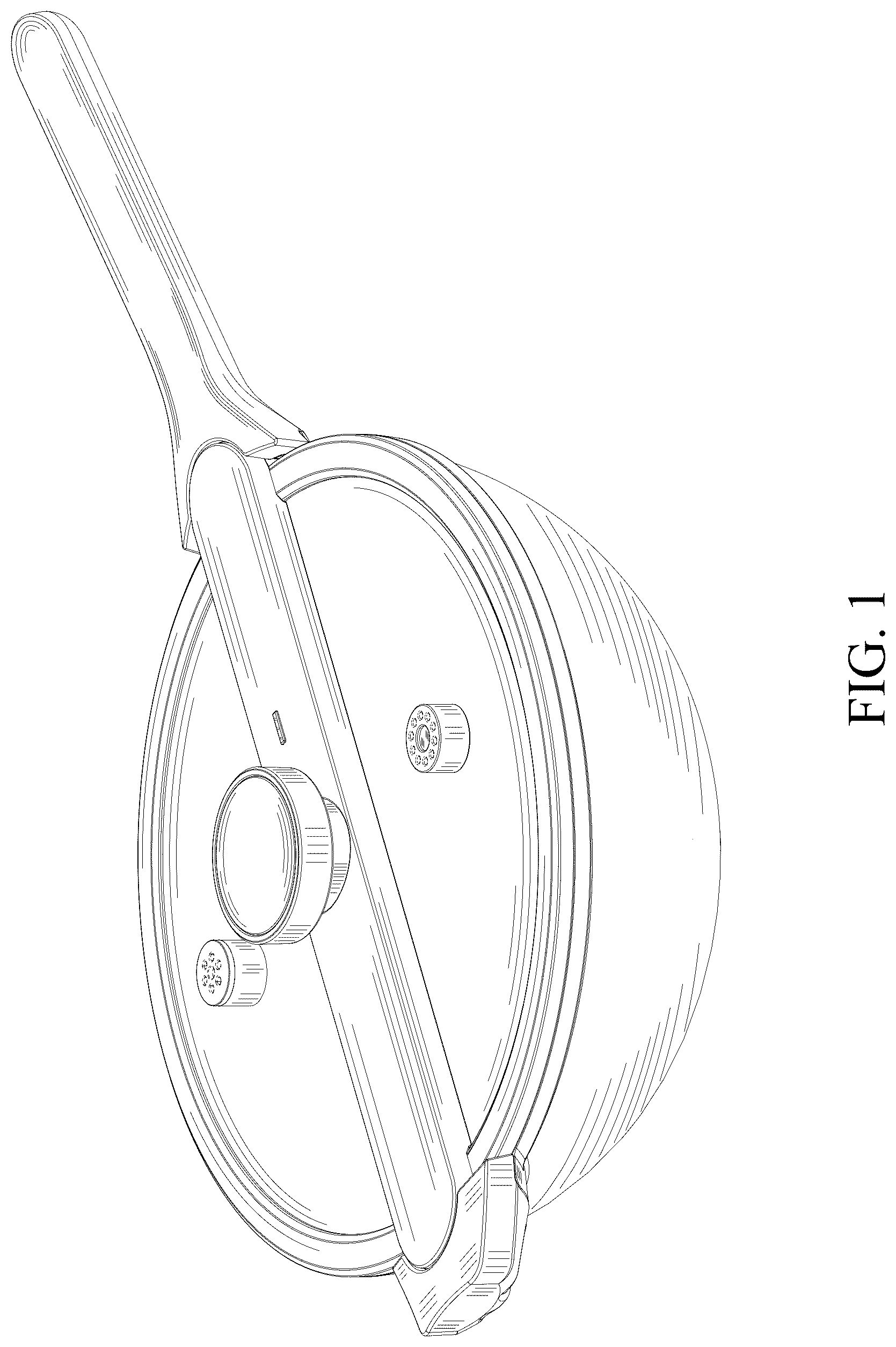

is a perspective view of a fry pan, showing my new design;

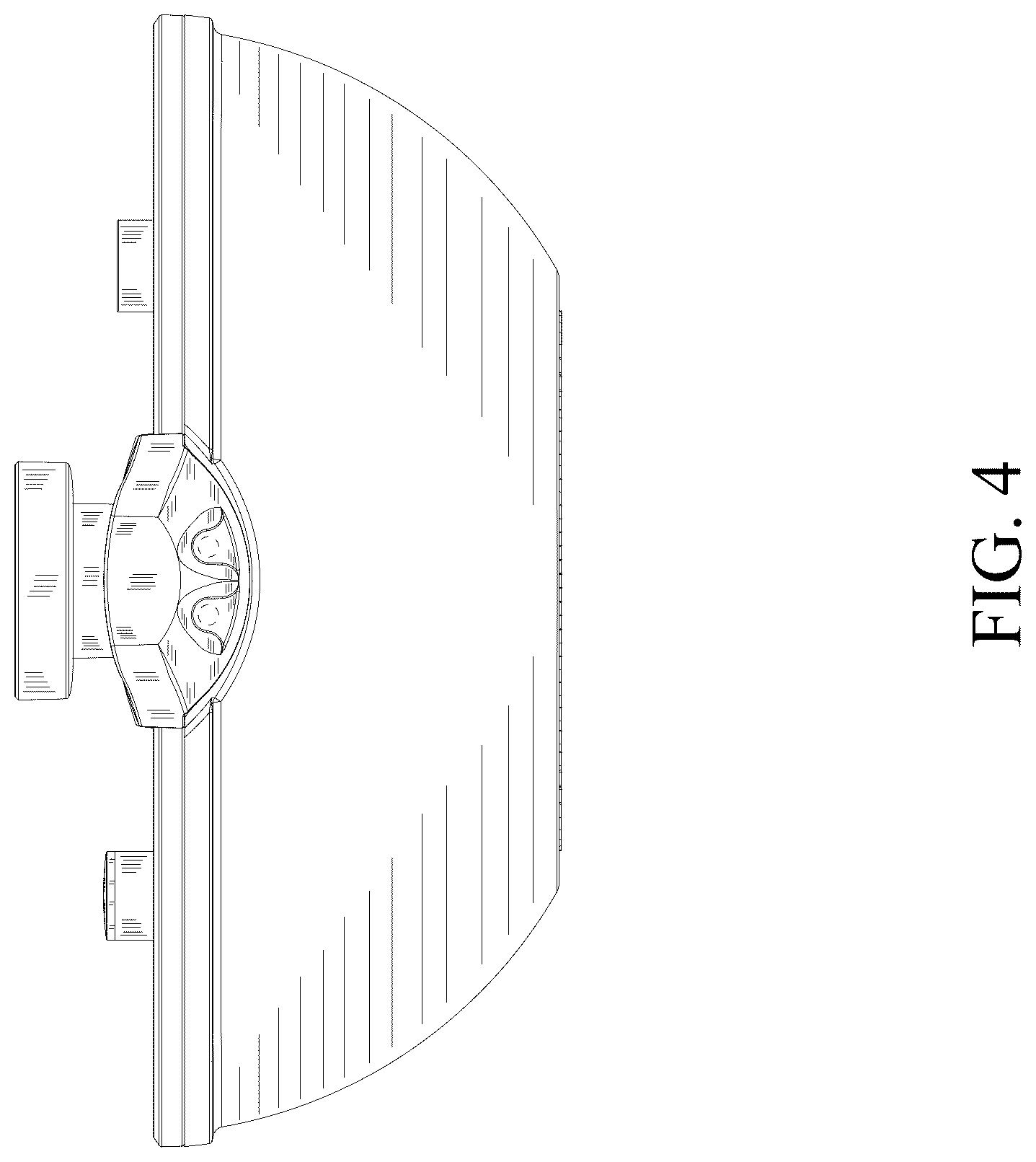

is a front view thereof;

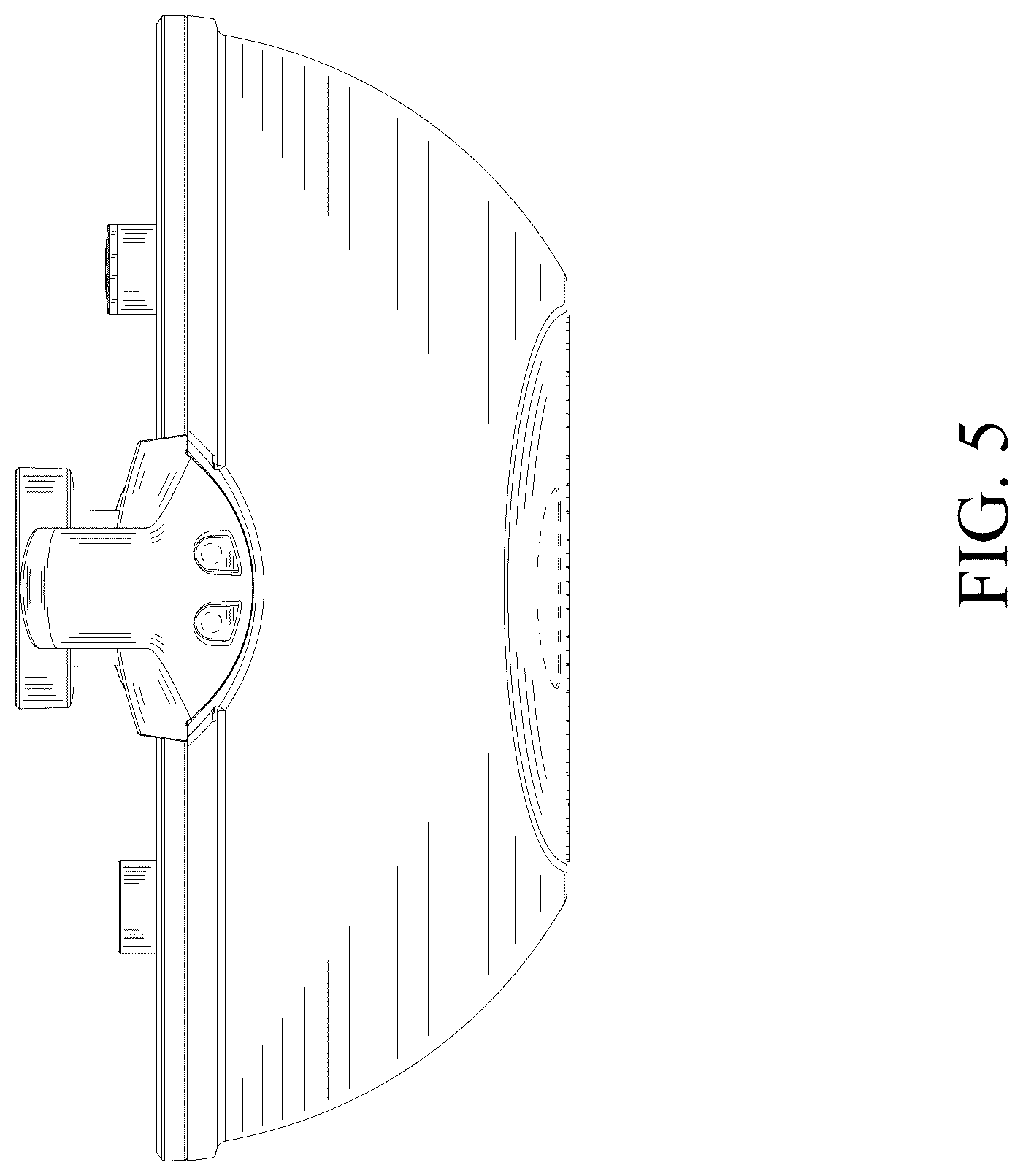

is a rear view thereof;

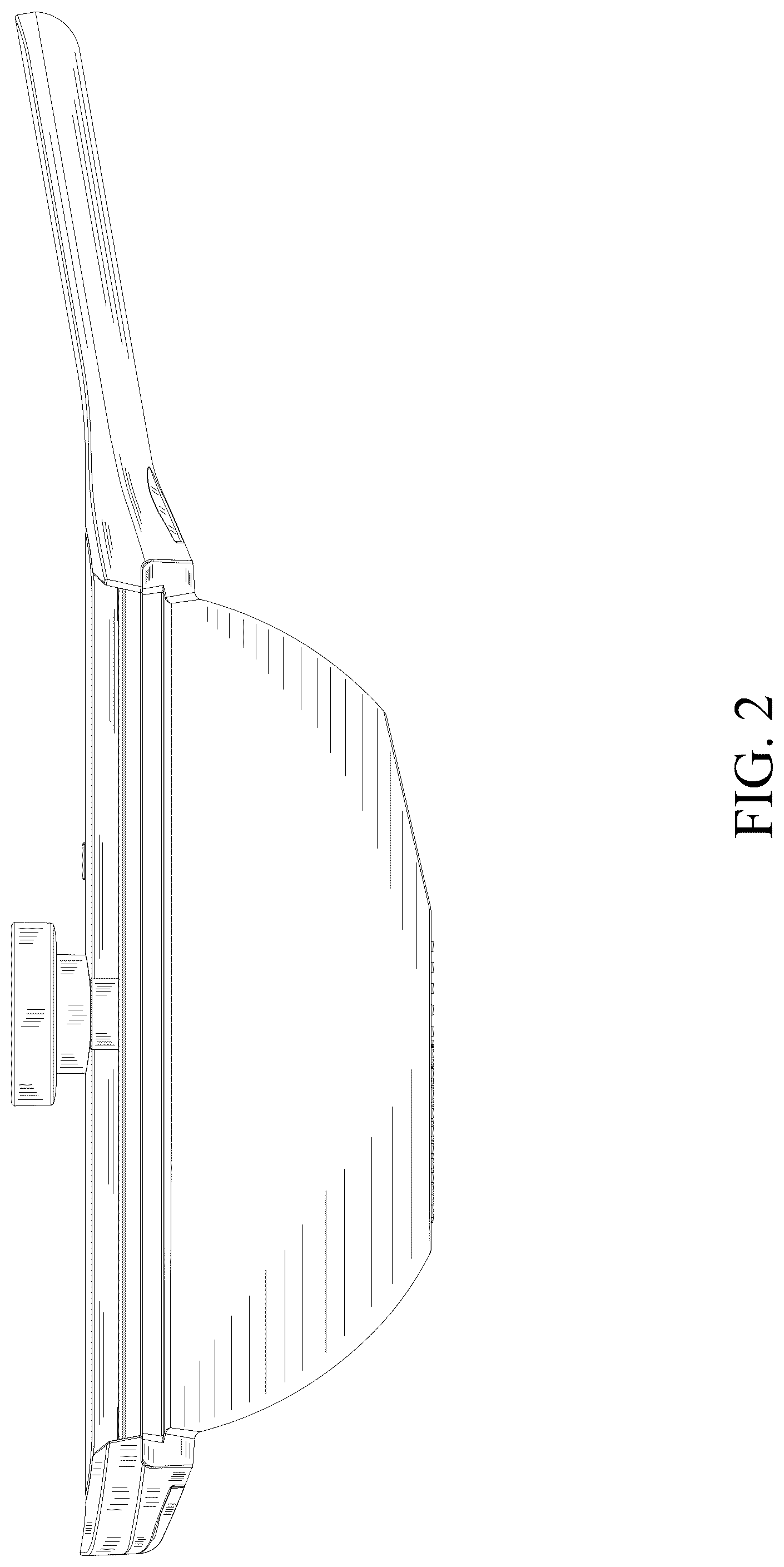

is a left side view thereof;

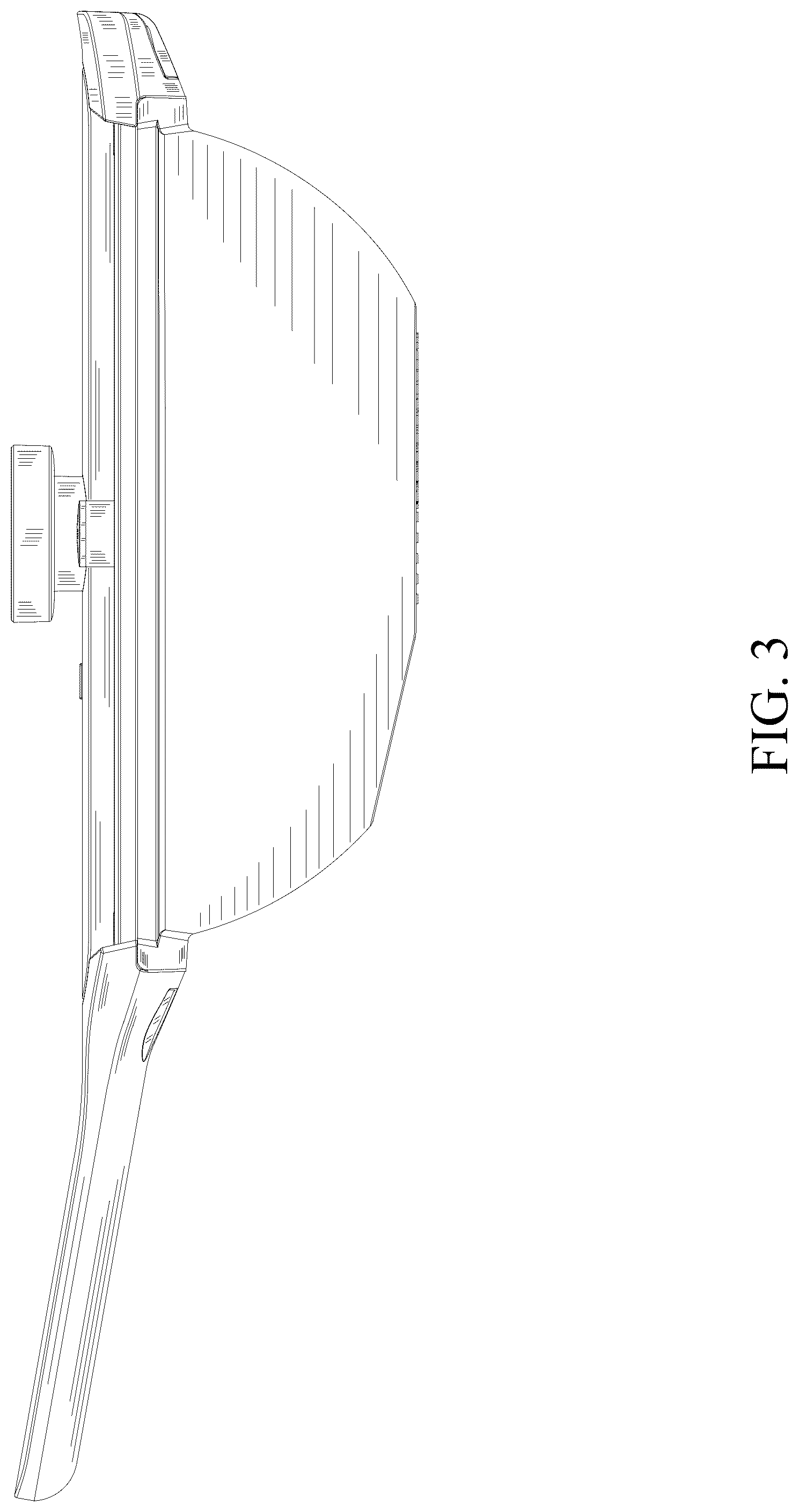

is a right side view thereof;

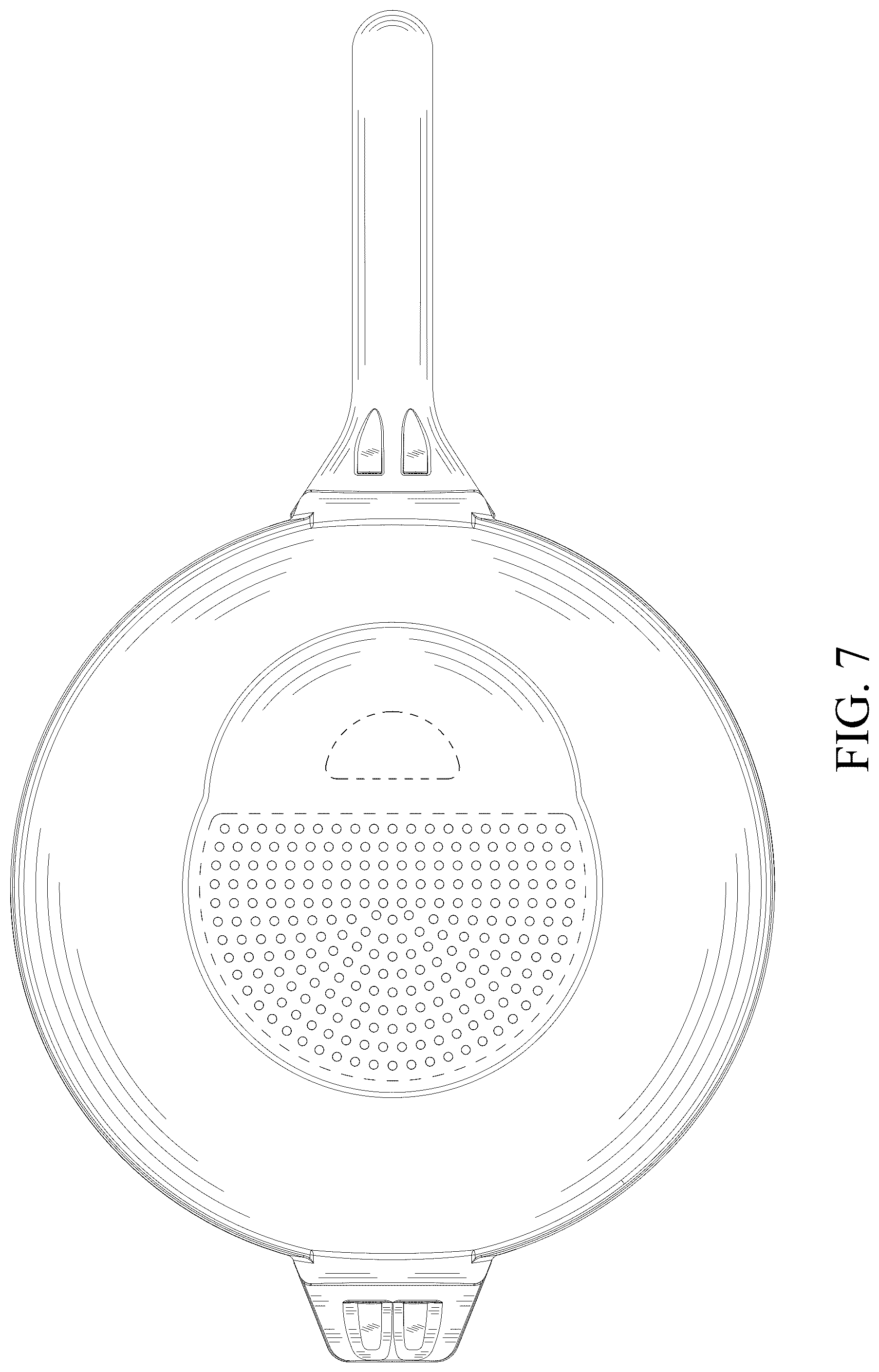

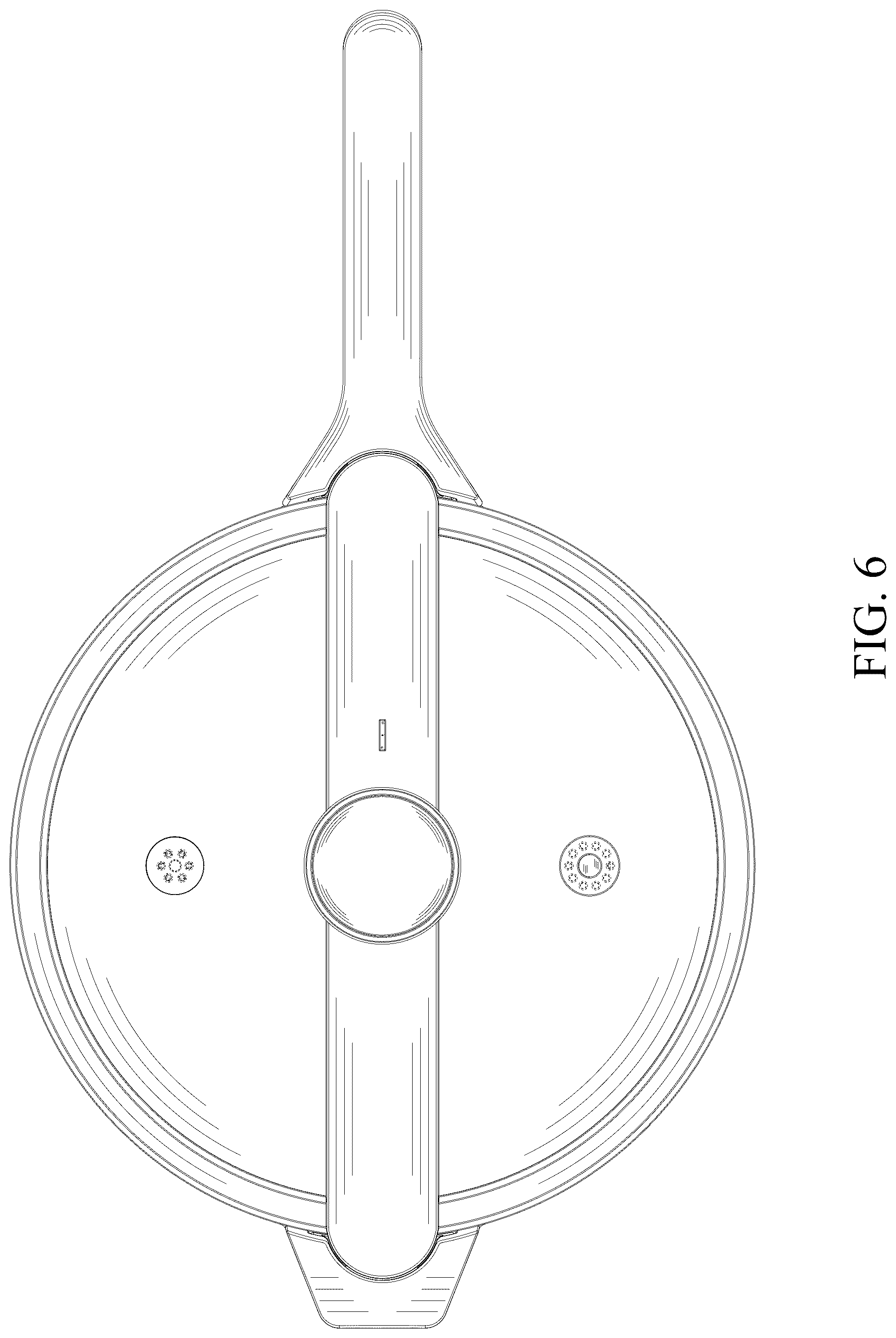

is a top plan view thereof;
is a bottom plan view thereof; and,
The broken lines where present illustrate environment of the fry pan that form no part of the claimed design.
