Infant Changing Pad

USD1044327No. D 1,044,327designGranted 10/1/2024

Patent USD1044327 — Infant changing pad — Figure 1 — Fig. 1 · Infant Changing Pad

Claims (1)

Claim 1 (Independent)

The ornamental design for an infant changing pad, as shown and described.

Full Description

Show full text →

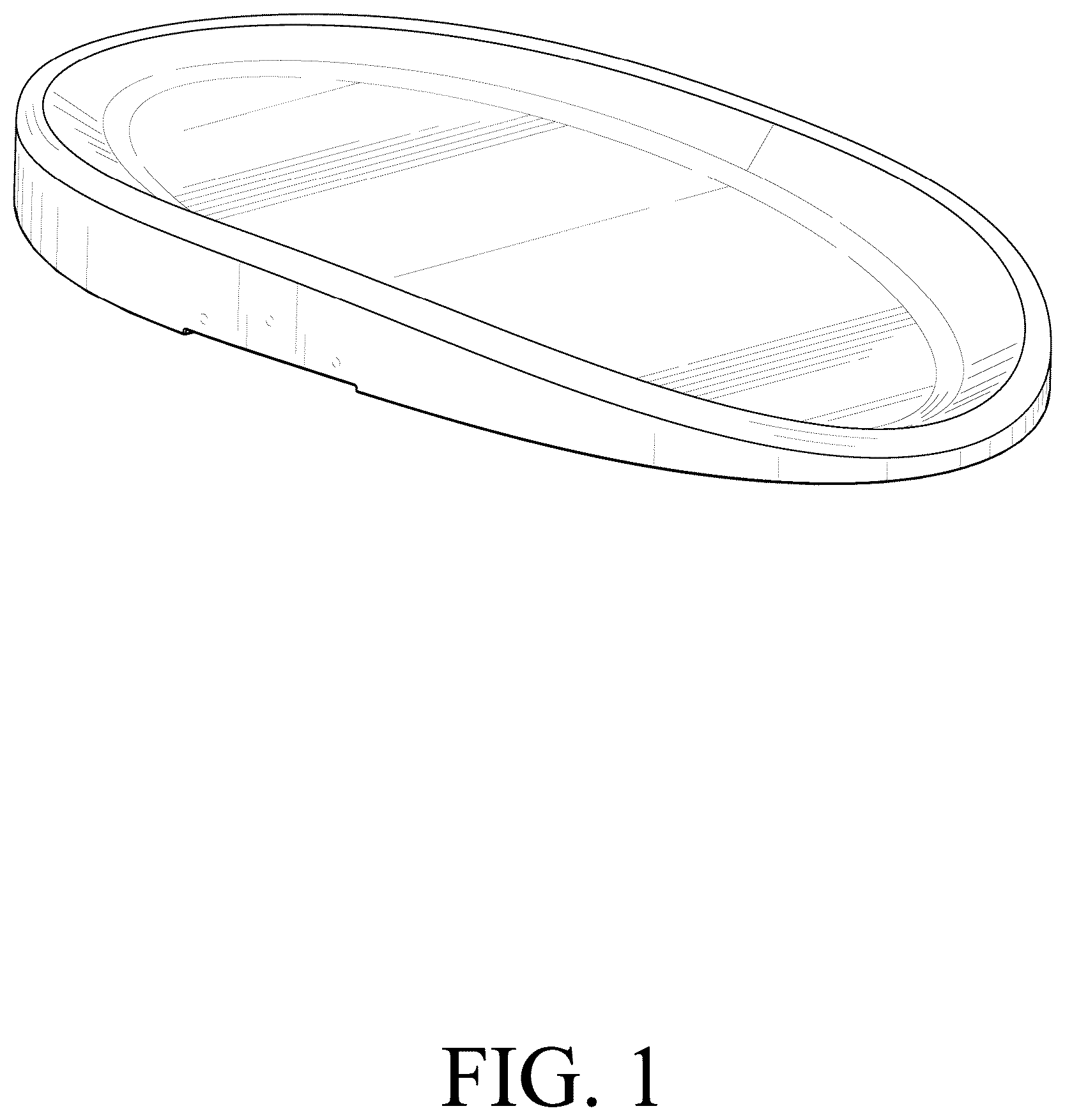

is a front, left-side perspective view of an infant changing pad showing my new design;

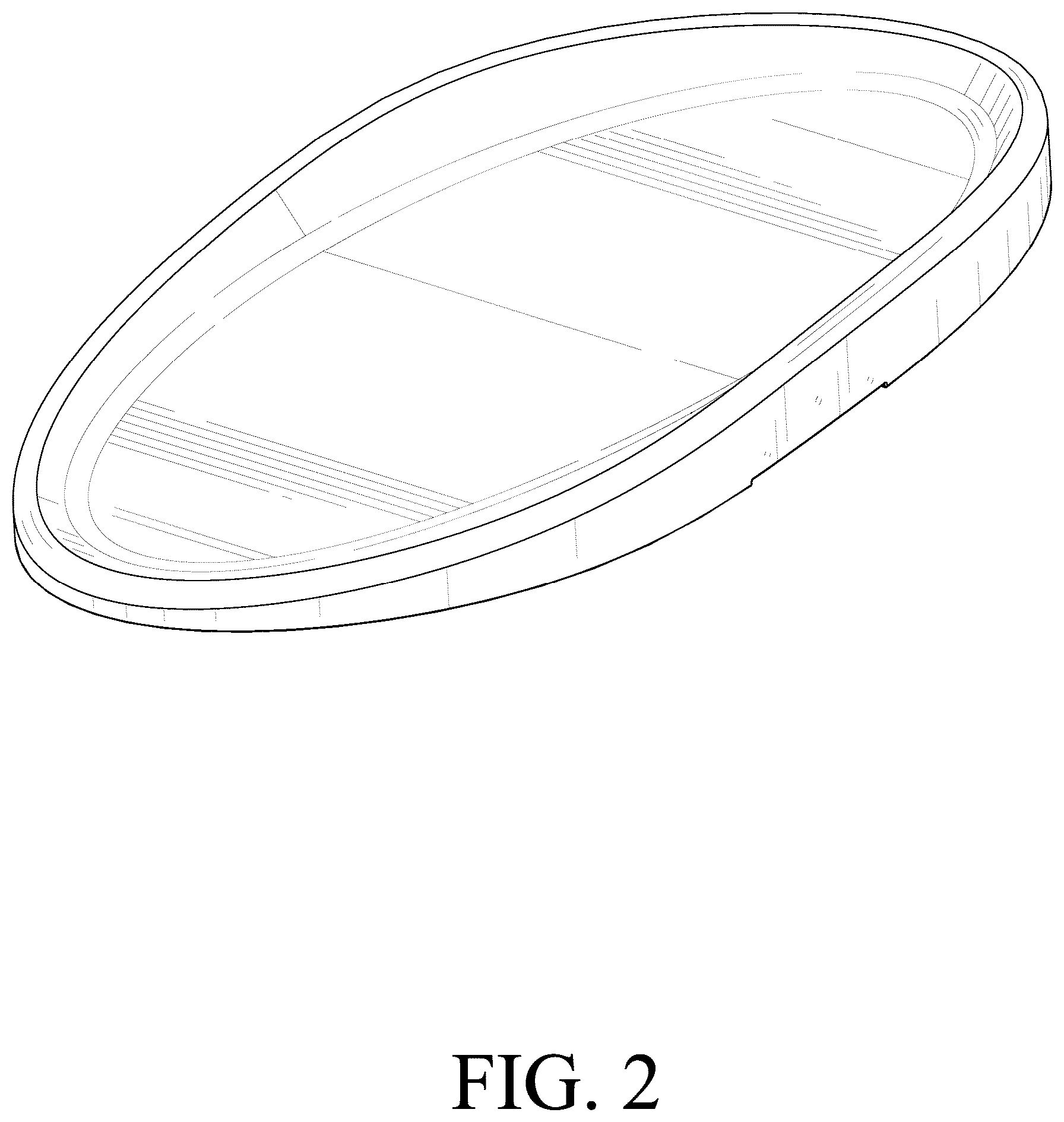

is a front, right-side perspective view thereof;

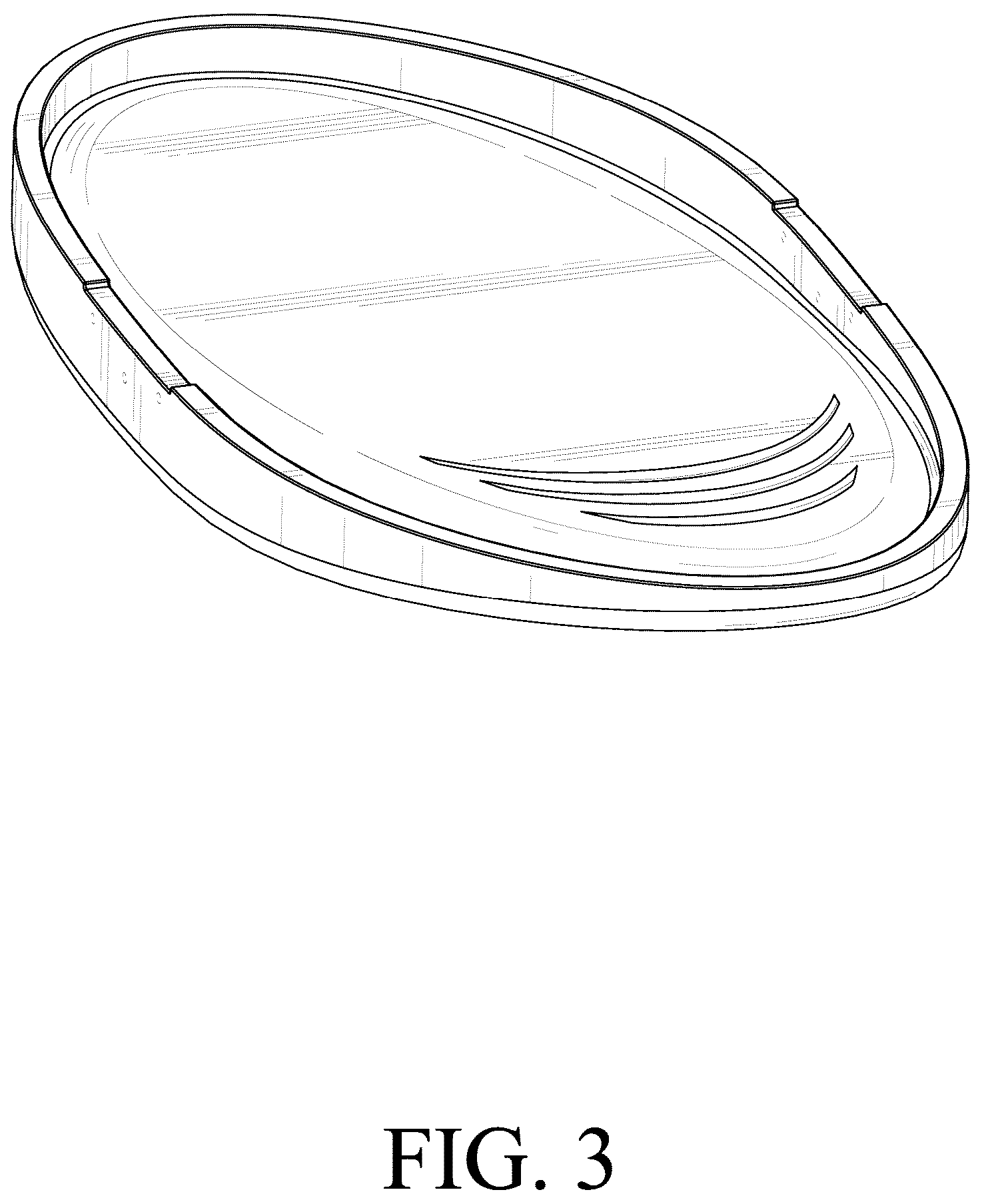

is a rear, right-side perspective view thereof;

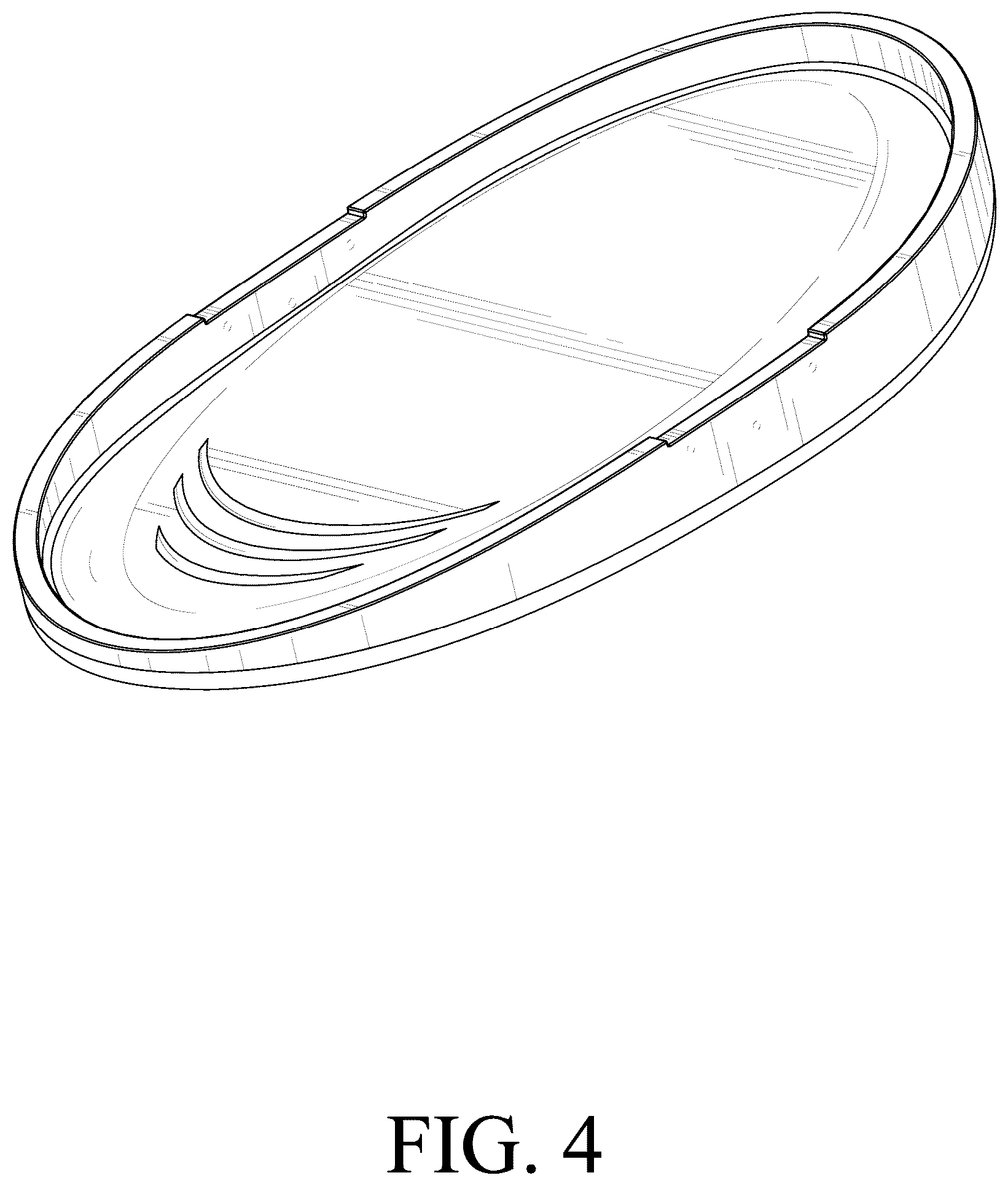

is a rear, left-side perspective view thereof

is a front elevational view thereof;

is a rear elevational view thereof;

is a left-side elevational view thereof;

is a right-side elevational view thereof;

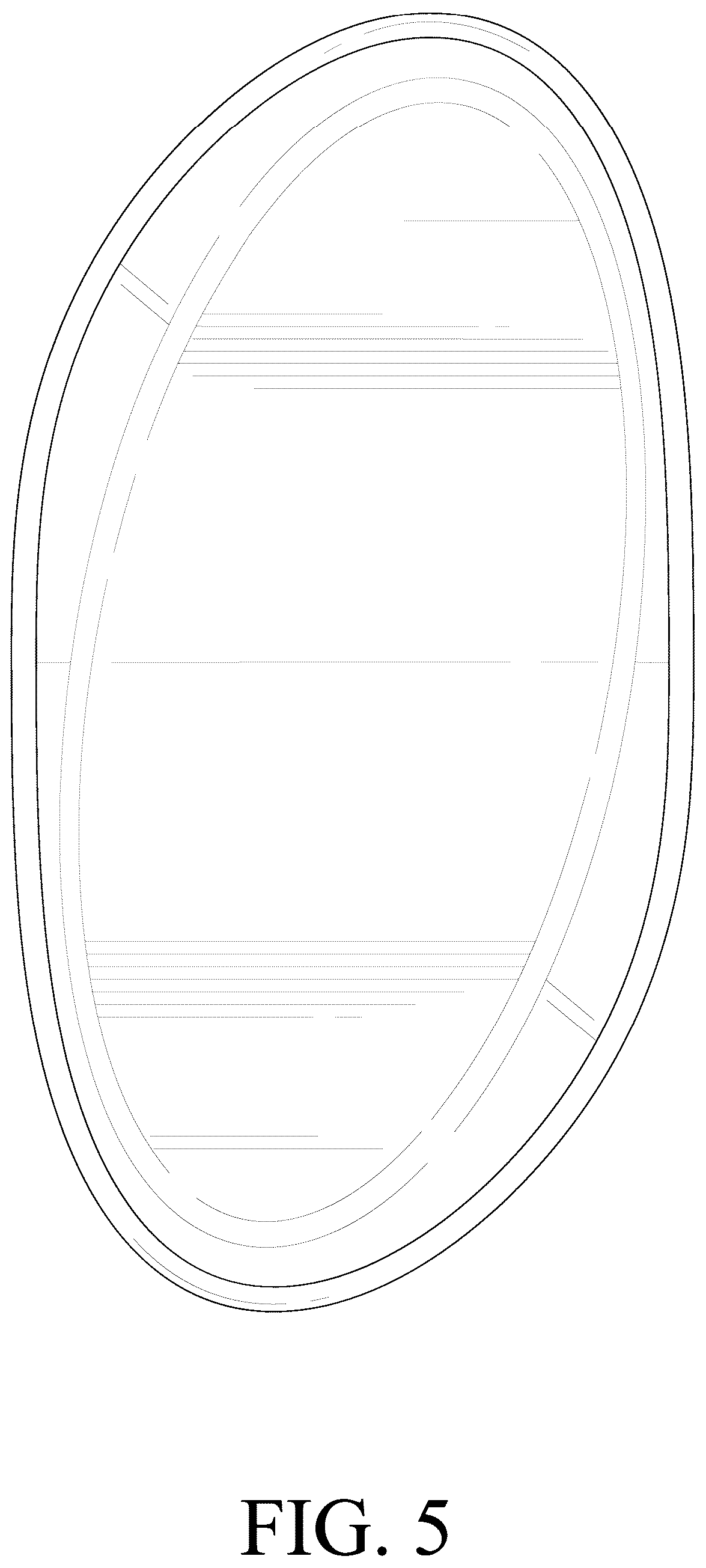

is a top plan view thereof;

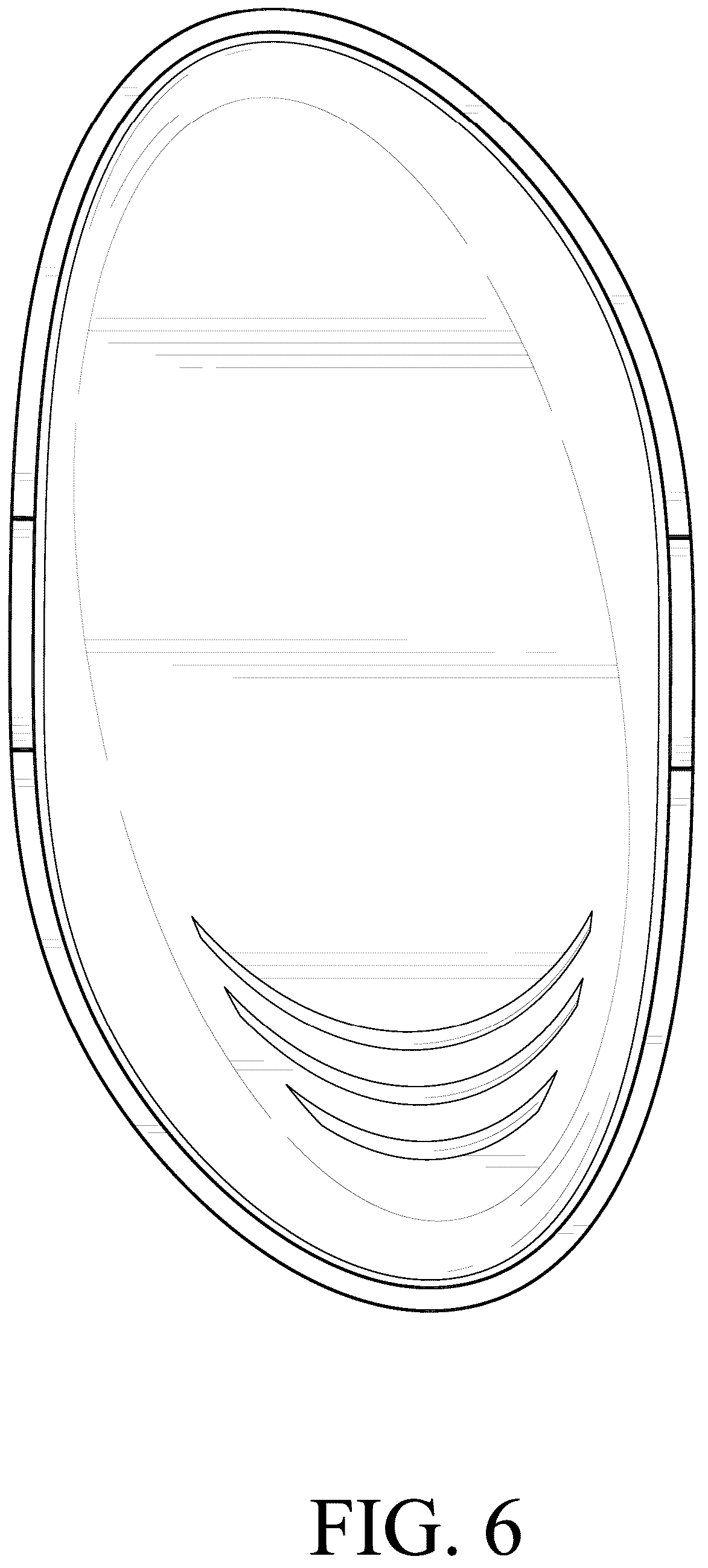

is a bottom plan view thereof; and,

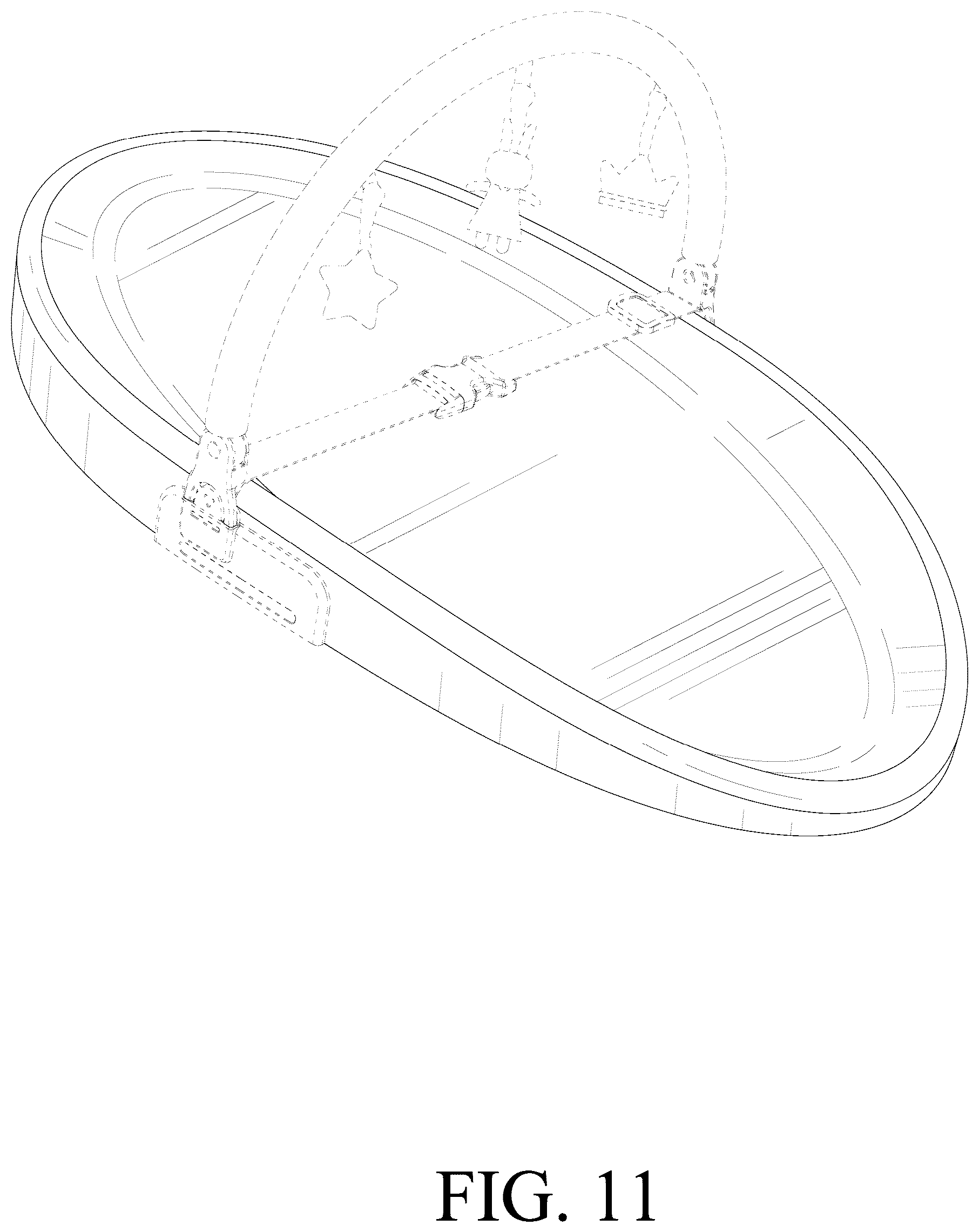

is a front, left-side perspective view of the infant changing pad in an environment of use.

The broken lines shown in the drawings illustrate environment and form no part of the claimed design.

Figures (11)

Patent USD1044327 Figure 1 – Infant changing pad — Fig. 1

Patent USD1044327 Figure 2 – Infant changing pad — Fig. 2

Patent USD1044327 Figure 3 – Infant changing pad — Fig. 3

Patent USD1044327 Figure 4 – Infant changing pad — Fig. 4

Patent USD1044327 Figure 5 – Infant changing pad — Fig. 5

Patent USD1044327 Figure 6 – Infant changing pad — Fig. 6

Patent USD1044327 Figure 7 – Infant changing pad — Fig. 7

Patent USD1044327 Figure 8 – Infant changing pad — Fig. 8

Patent USD1044327 Figure 9 – Infant changing pad — Fig. 9

Patent USD1044327 Figure 10 – Infant changing pad — Fig. 10

Patent USD1044327 Figure 11 – Infant changing pad — Fig. 11
