Cleaning Brush

USD1044288No. D 1,044,288designGranted 10/1/2024

Patent USD1044288 — Cleaning brush — Figure 1 — Fig. 1 · Cleaning Brush

Claims (1)

Claim 1 (Independent)

The ornamental design for a cleaning brush, as shown and described.

Full Description

Show full text →

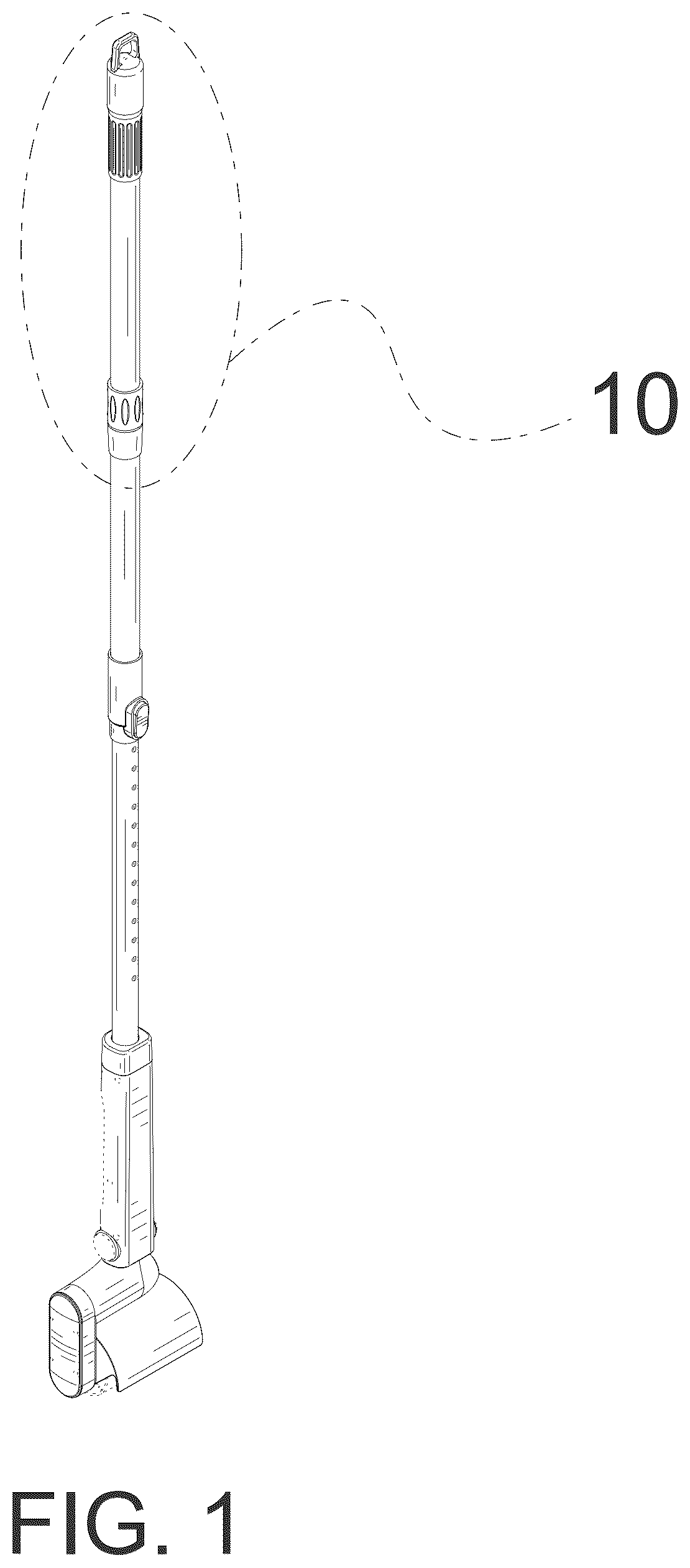

is a front perspective view of a cleaning brush, showing my new design;

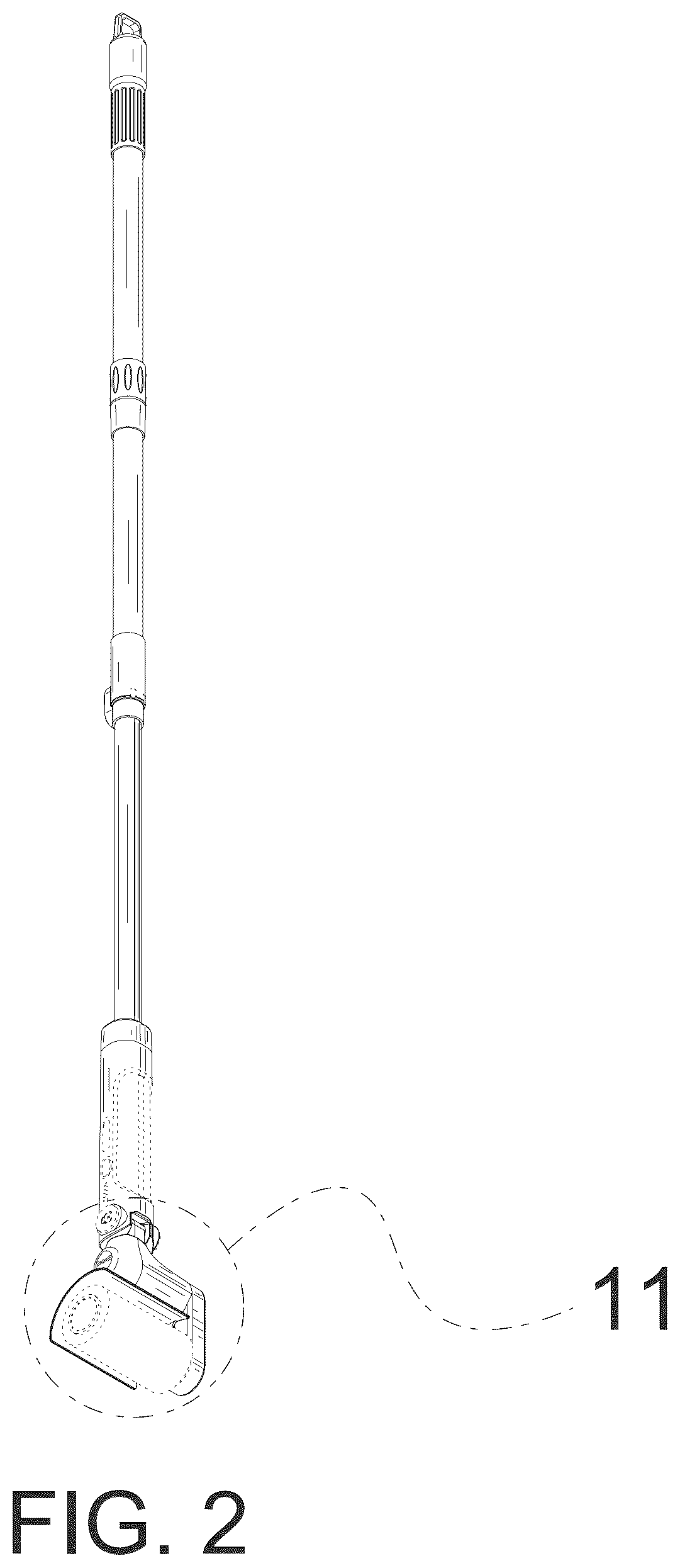

is a rear perspective view thereof;

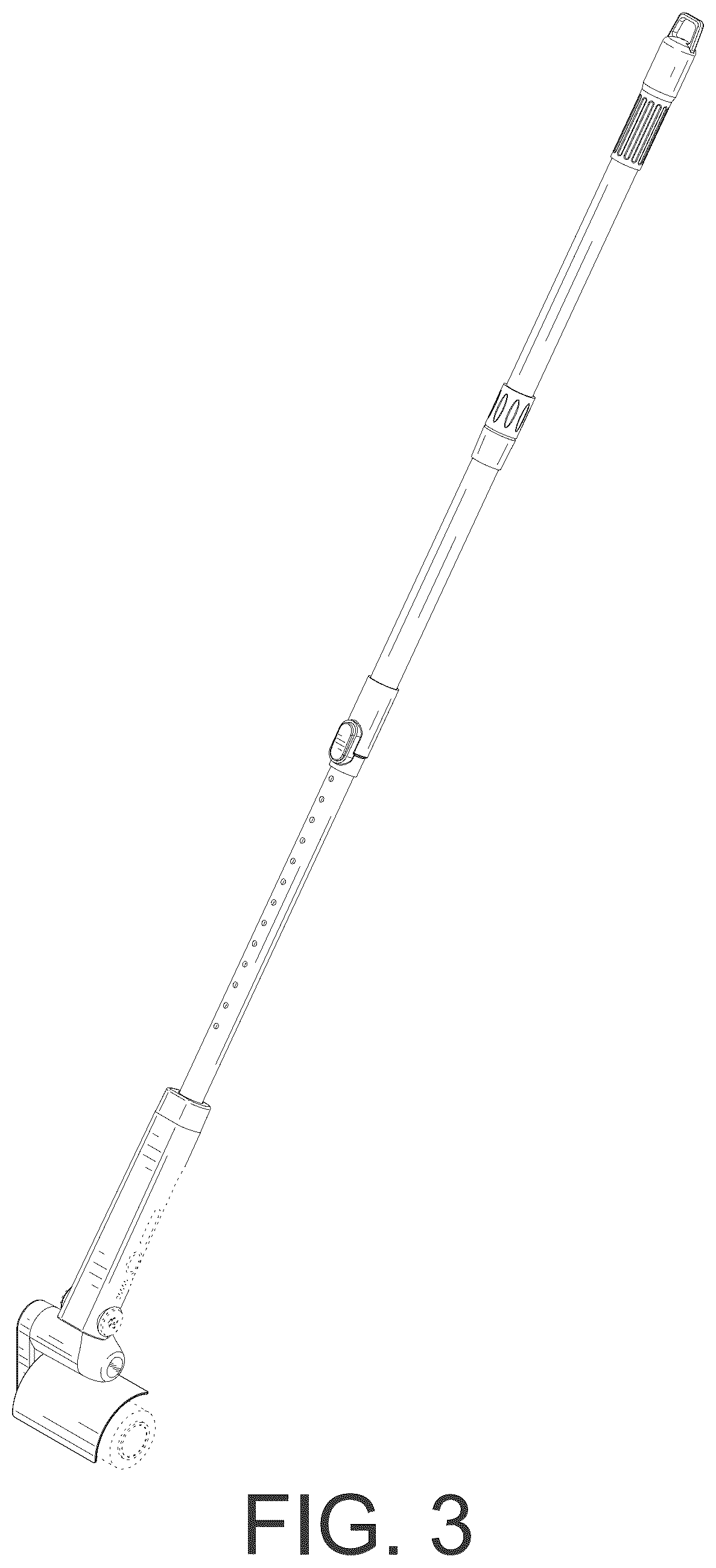

is a front perspective view, shown in condition of use;

is a front view thereof;

is a rear view thereof;

is a left side view thereof;

is a right side view thereof;

is an enlarged top view thereof;

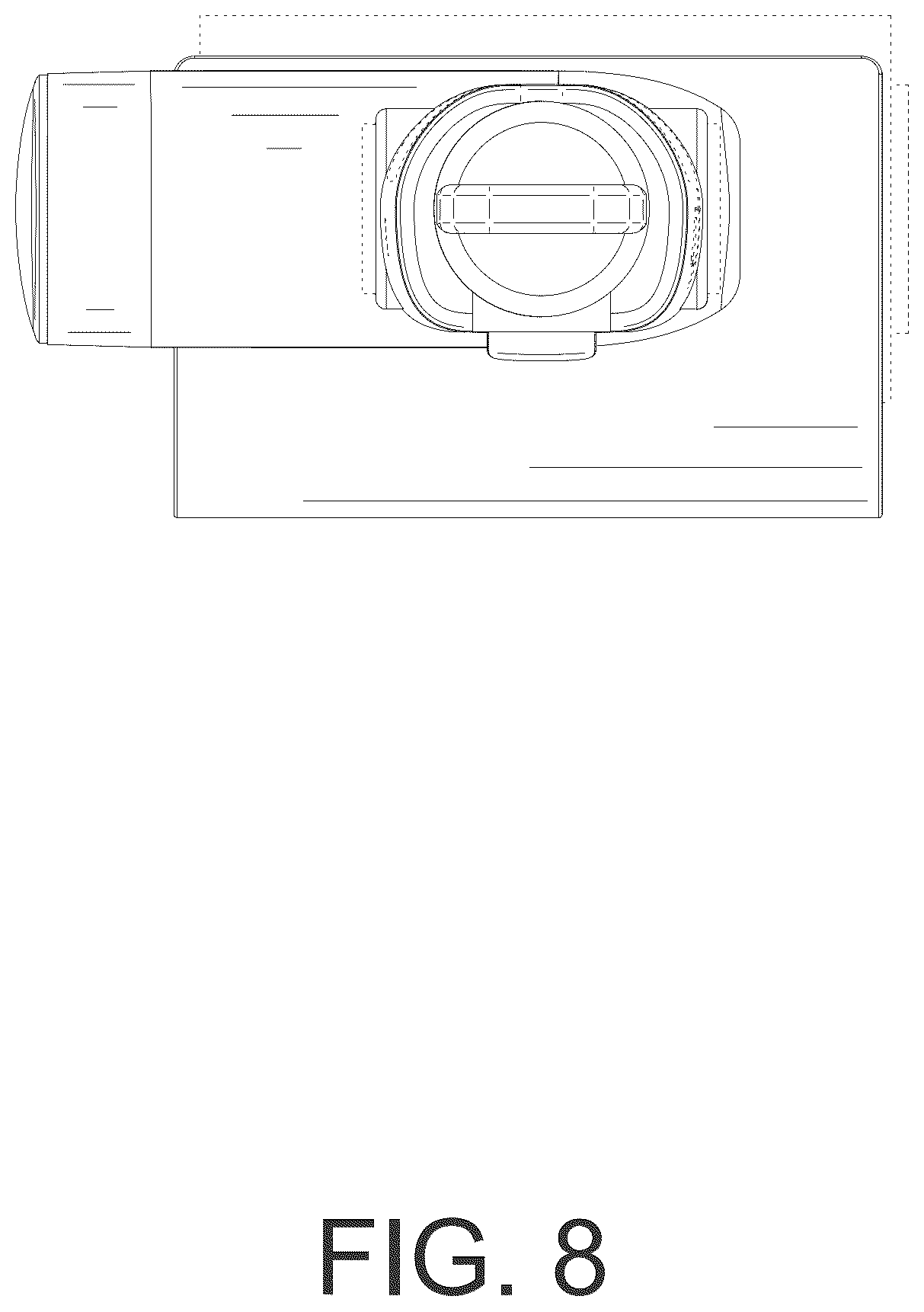

is an enlarged bottom view thereof;

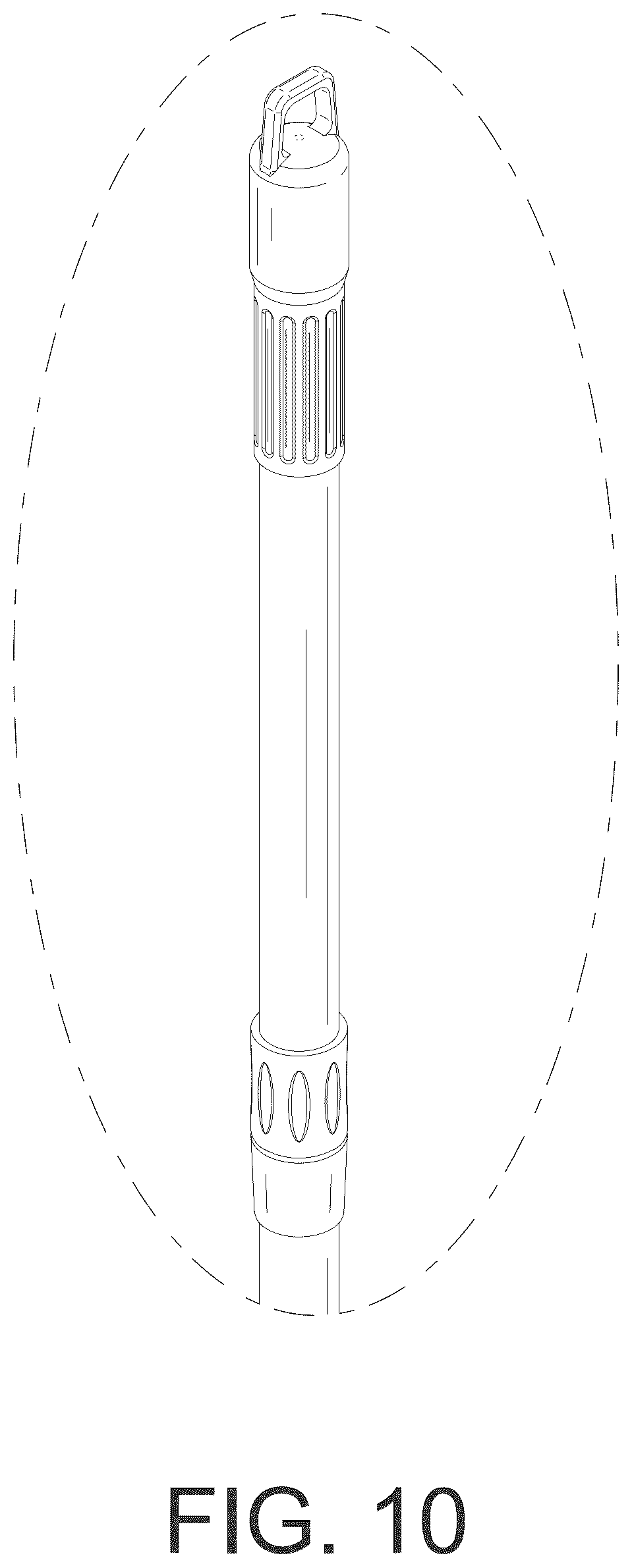

is an enlarged detail view of area 10 in ; and,

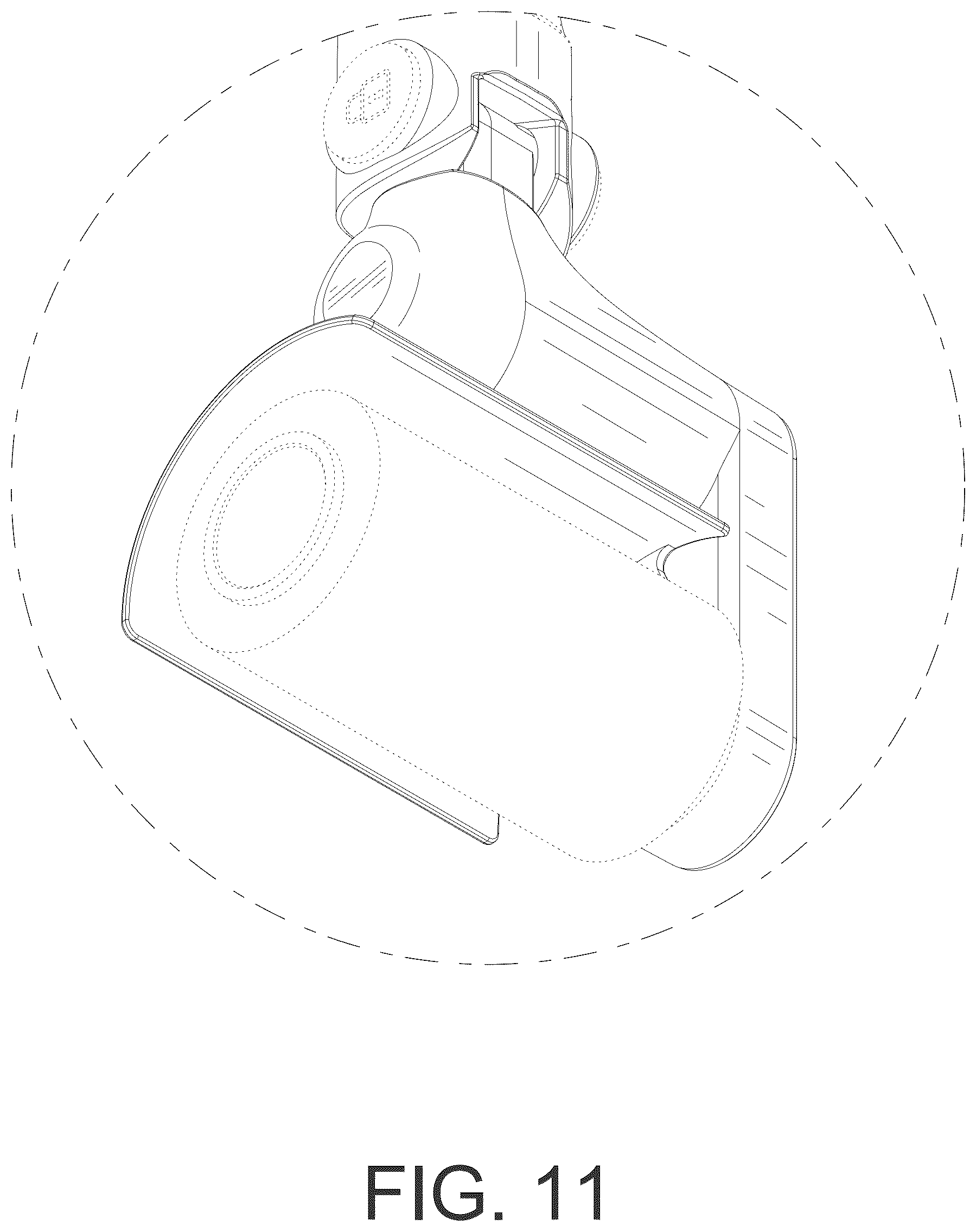

is an enlarged detail view of area 11 in .

The broken lines in the drawings illustrate the portions of the cleaning brush, which form no part of the claimed design.

The dash-dot-dash broken lines depict enlarged portions that form no part of the claimed design.

Figures (11)

Patent USD1044288 Figure 1 – Cleaning brush — Fig. 1

Patent USD1044288 Figure 2 – Cleaning brush — Fig. 2

Patent USD1044288 Figure 3 – Cleaning brush — Fig. 3

Patent USD1044288 Figure 4 – Cleaning brush — Fig. 4

Patent USD1044288 Figure 5 – Cleaning brush — Fig. 5

Patent USD1044288 Figure 6 – Cleaning brush — Fig. 6

Patent USD1044288 Figure 7 – Cleaning brush — Fig. 7

Patent USD1044288 Figure 8 – Cleaning brush — Fig. 8

Patent USD1044288 Figure 9 – Cleaning brush — Fig. 9

Patent USD1044288 Figure 10 – Cleaning brush — Fig. 10

Patent USD1044288 Figure 11 – Cleaning brush — Fig. 11
